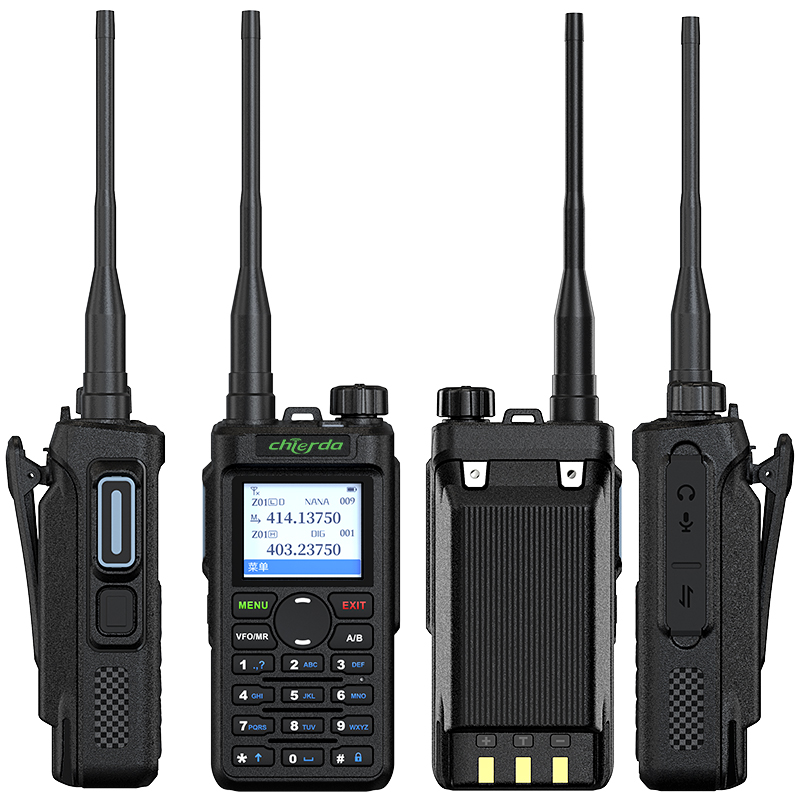

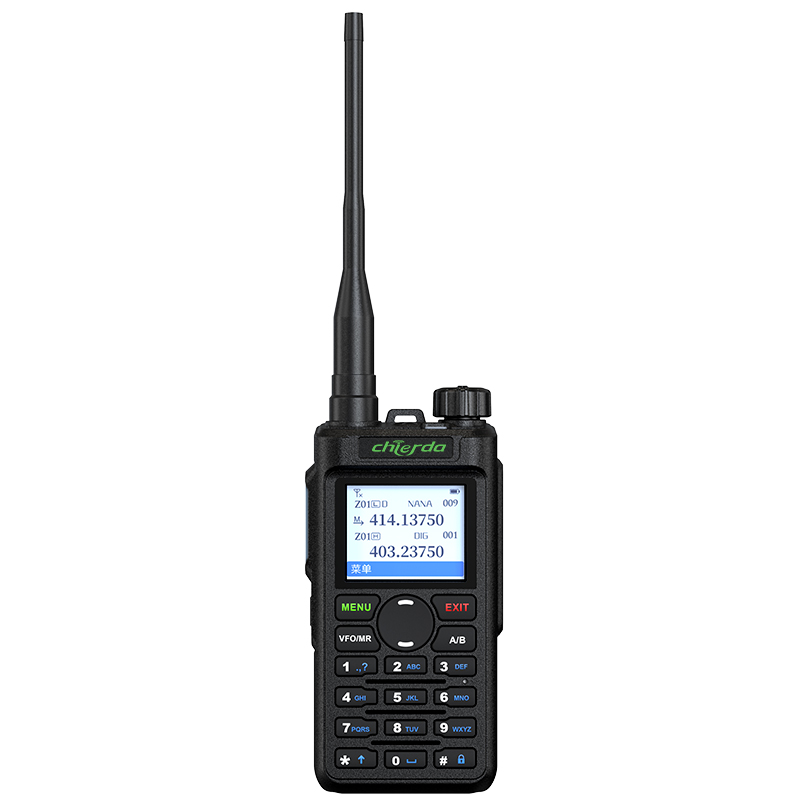

Chierda UV58D AES256 Dual Band DMR Ham Radio
UV58D
Chierda UV58D High Power Dual Band DMR radio supports both digital mode and analog mode and is compatible with MOTOTBRO radios.

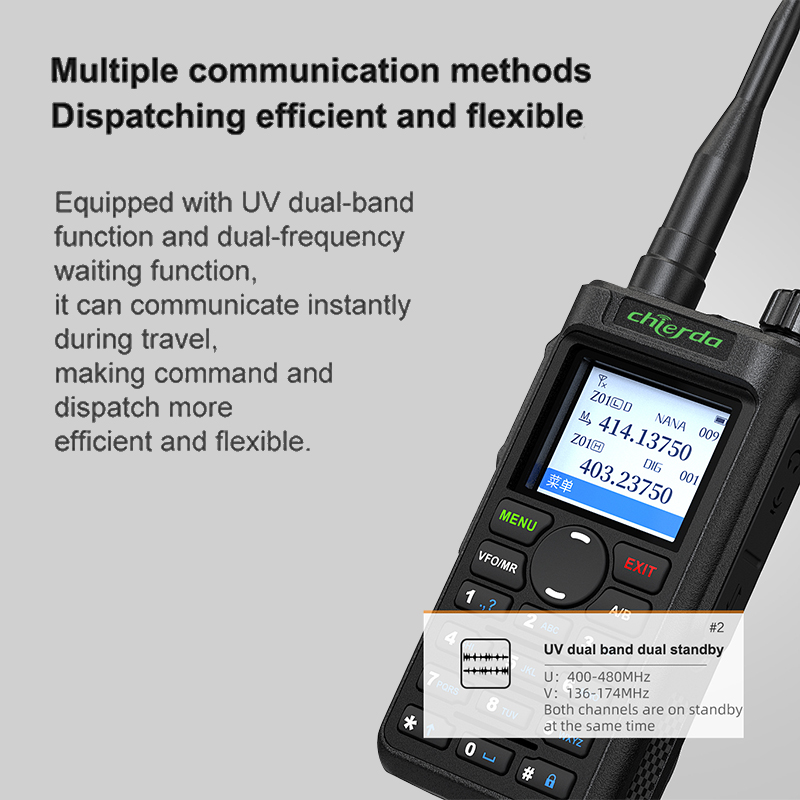

Support UV dual band:
Chierda UV58D DMR radio supports UV dual-band, and features dual-frequency waiting function. Users can communicate seamlessly during travel. A perfect companion for your trip!Advanced AES256 Encryption:
AES-256 encryption is extremely secure. It is the most secure encryption algorithm available today and is used extensively in government and military applications, as well as by businesses operating in highly regulated industries. UV58D uses AES256 encryption to make your talk uncrackable.
SPECIFICATION | |
Frequency Range | UHF:400-480MHz |
Channels | 1024(32zone) |
Channel Spacing | 12.5kHz/25kHz |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+60℃ |
Storage temperature | -40℃+85℃ |
Operating Voltage | DC 7.4V |
Battery Type | 2000mAh Li-ion |
Dimension | 112*55*37mm |
TRANSMITTER | |
Output Power | VHF:5W |
Frequency Sensitivity | ±1.0ppm |
Adjacent Channel Power | -60dBm@12.5kHz |
Modulation Mode | 16K∅F3E/11K∅F3E |
Modulation Constraints | 2.5kHz@12.5kHz |
Audio Distortion | ≤5% |
Vocoder Type | AMBE+2TM |
4FSK Digital Modulation | 12.5kHz(data only)7K60FXD |
| 12.5kHz(data+voice)7K6OFXE |
Digital Protocol | ETSI TS 102361-1.-2.-3 |
RECEIVER | |
Analog Receiver Sensitivity | 0.35uV/-116dBm(20dB SINAD） |
Digital Receiver Sensitivity | 0.3uV-117.4dBm(BER 5%) |
Blocking | 84dB |
Adjacent Channel Selectivity | TIA603C:-65dB ETS1:-60dB |
Audio Frequency Power | ≥500mW |
Audio Response | +1~-3dB |
Receiving Spurious Transmitting | ≤-57dBm@30MHz~1GHz |
| ≤-47dBm@1GHz~12.75GHz |
Audio Distortion | ≤3%(Type) |
Spurious Response | TIA603C:-65dB ETSL-65dB |

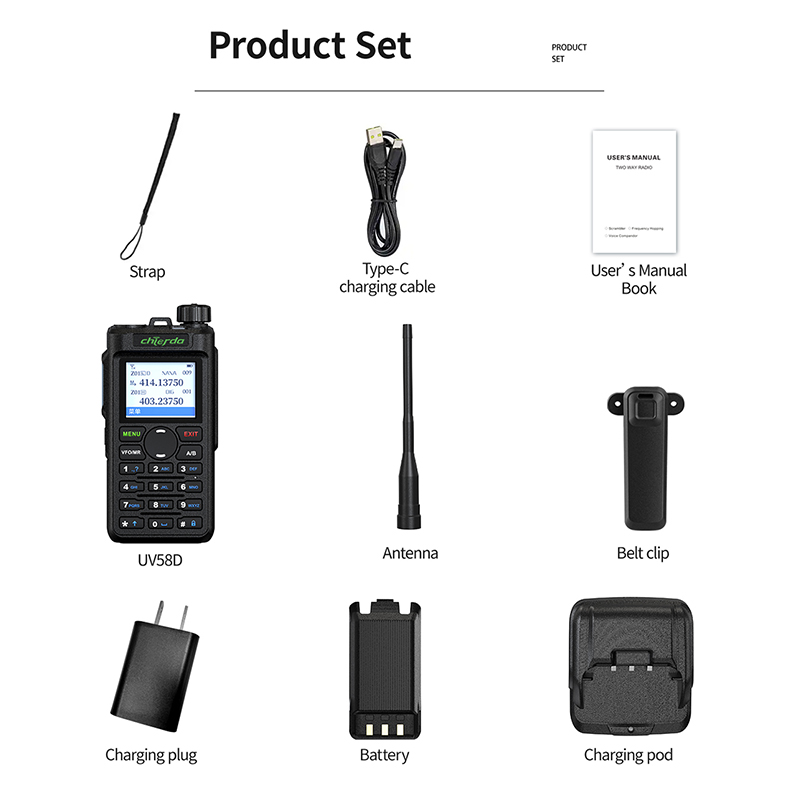

Product set
Radio*1
Strap*1
Type-C charging cable*1
User's manual book*1
Antanna*1
Belt clip*1
Charging plug*1
Battery*1

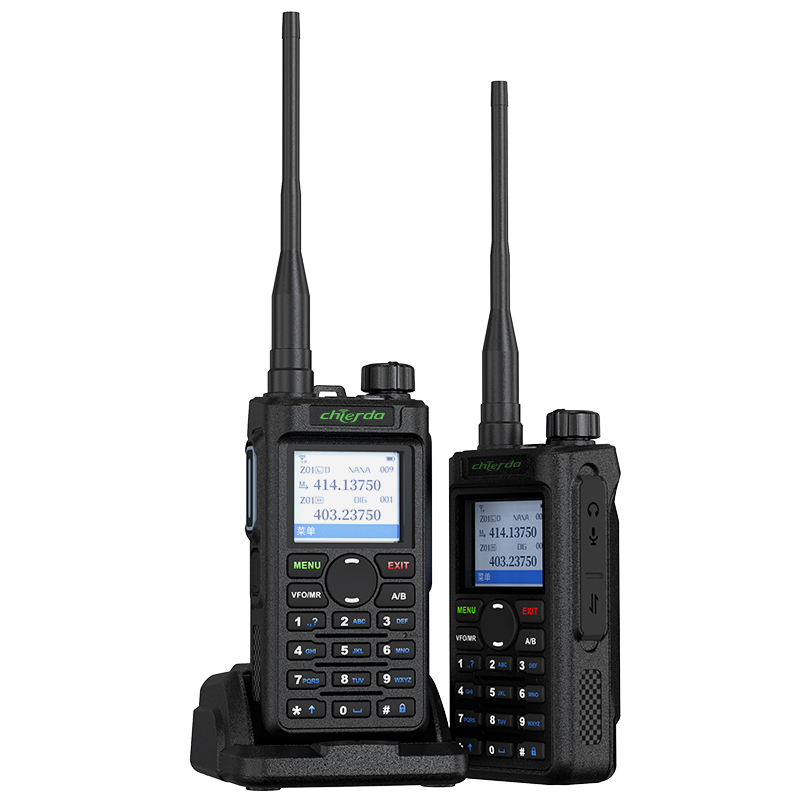

Charging pod*1
