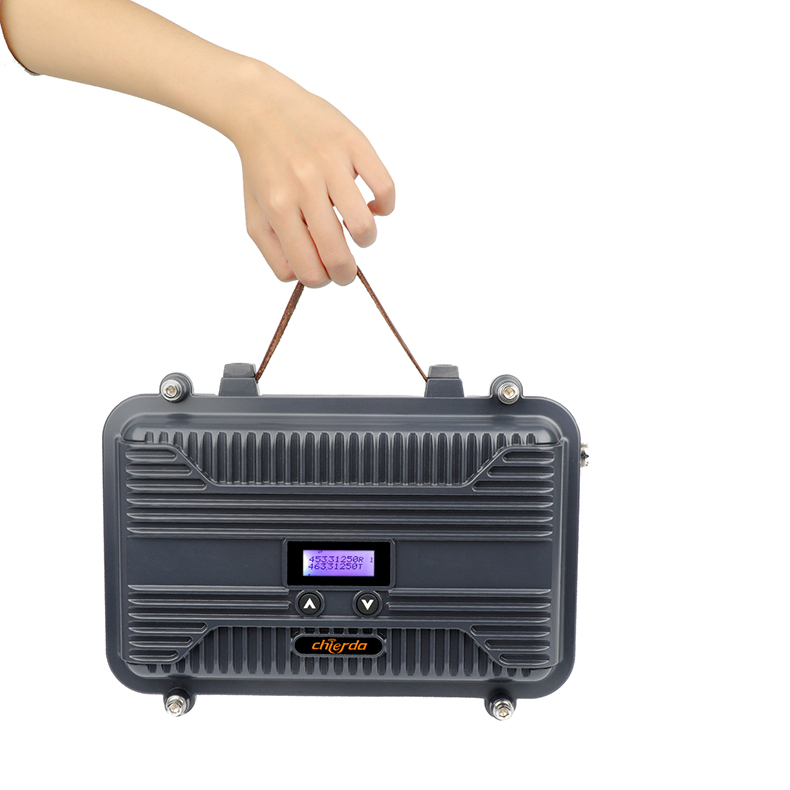

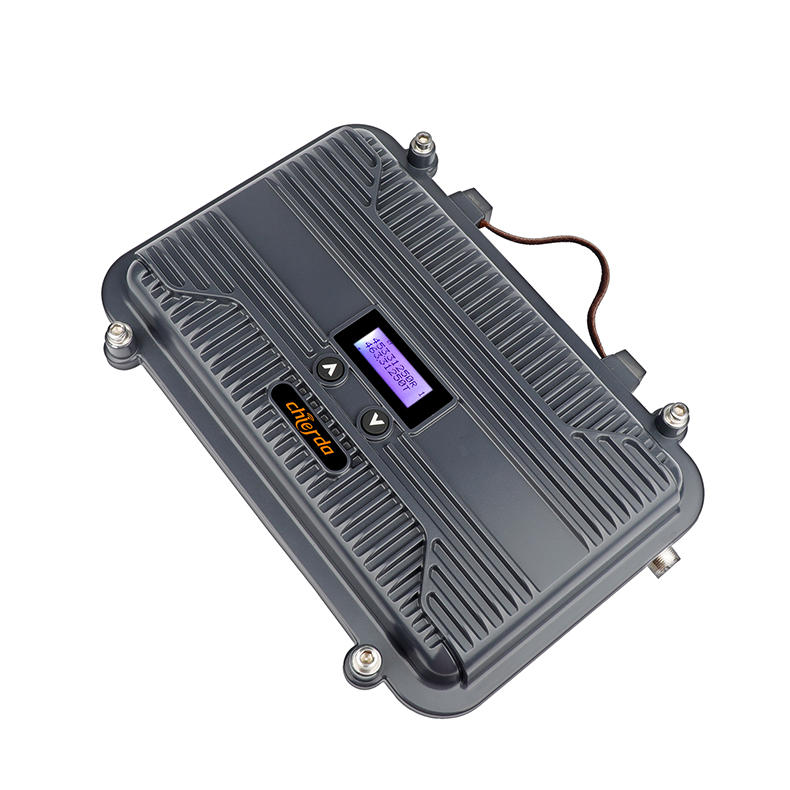

Chierda V9 10W Analog Mini Portable Repeater
V9

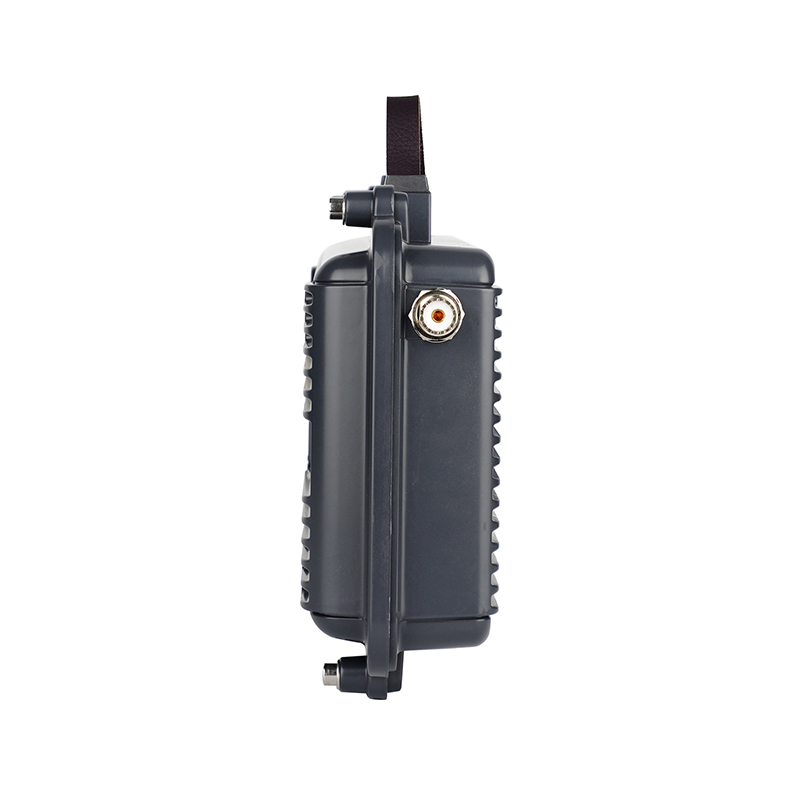

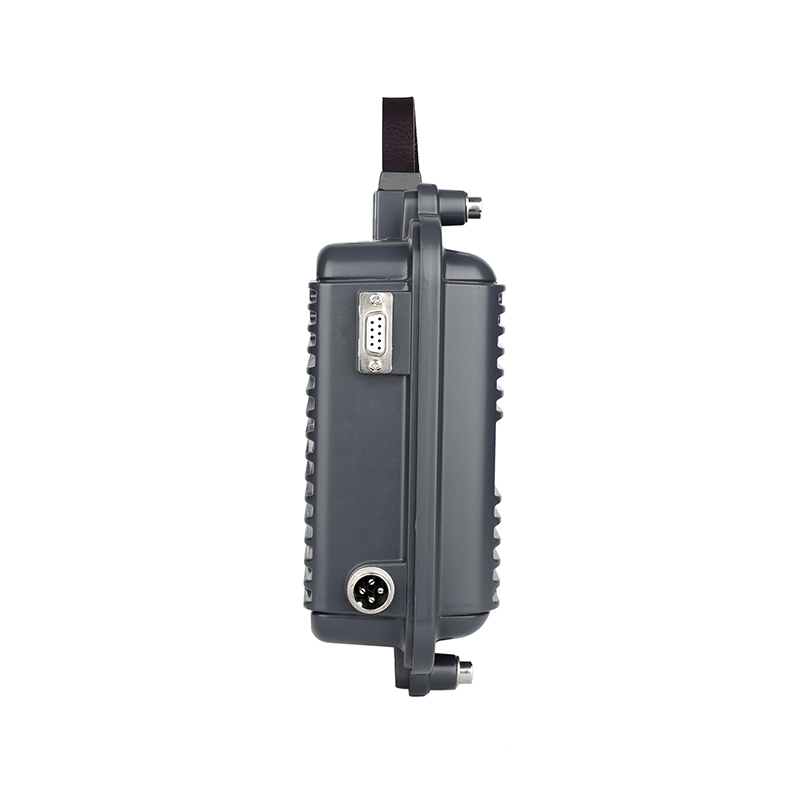

1.Rugged and Portable Body, Good Sealing
2.Analog repeater,can directly connect with a handheld microphone
3.10 watt, pair with Chierda walkie talkies can reach 20-25km coverage

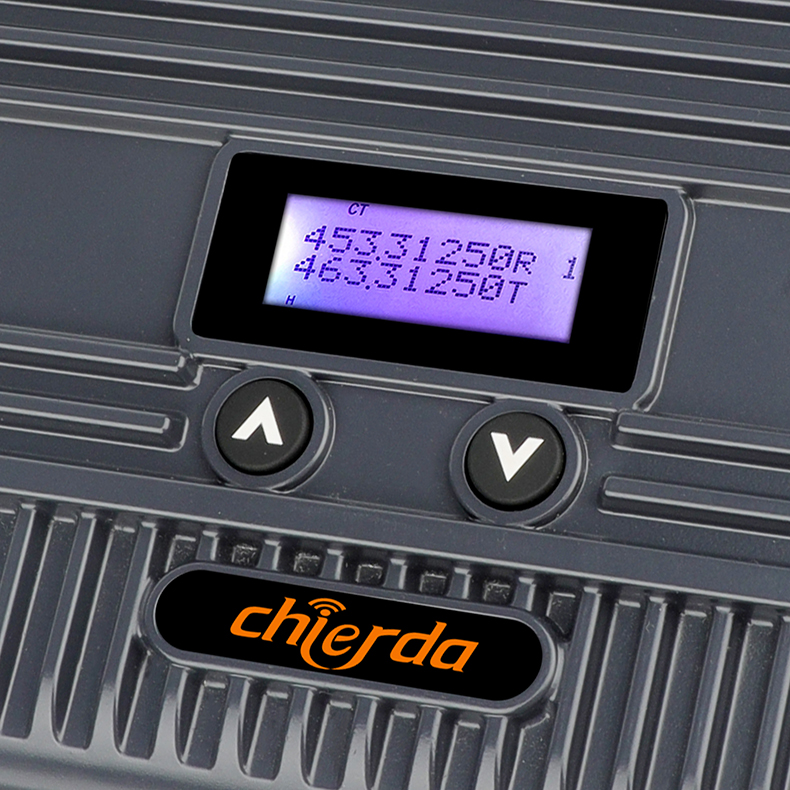

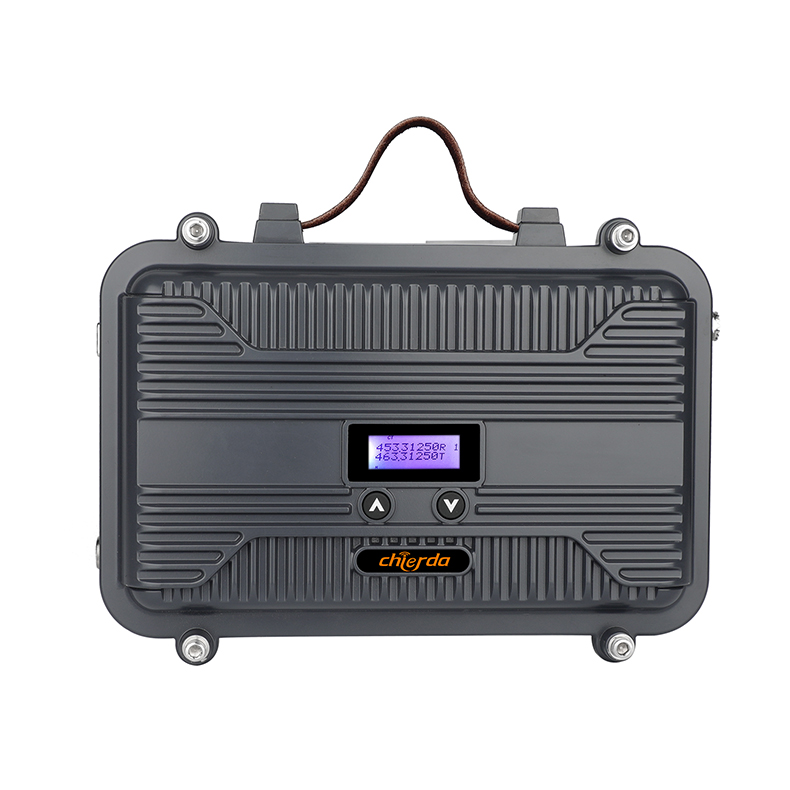

4.Keyboard Lock, Color LCD Screen

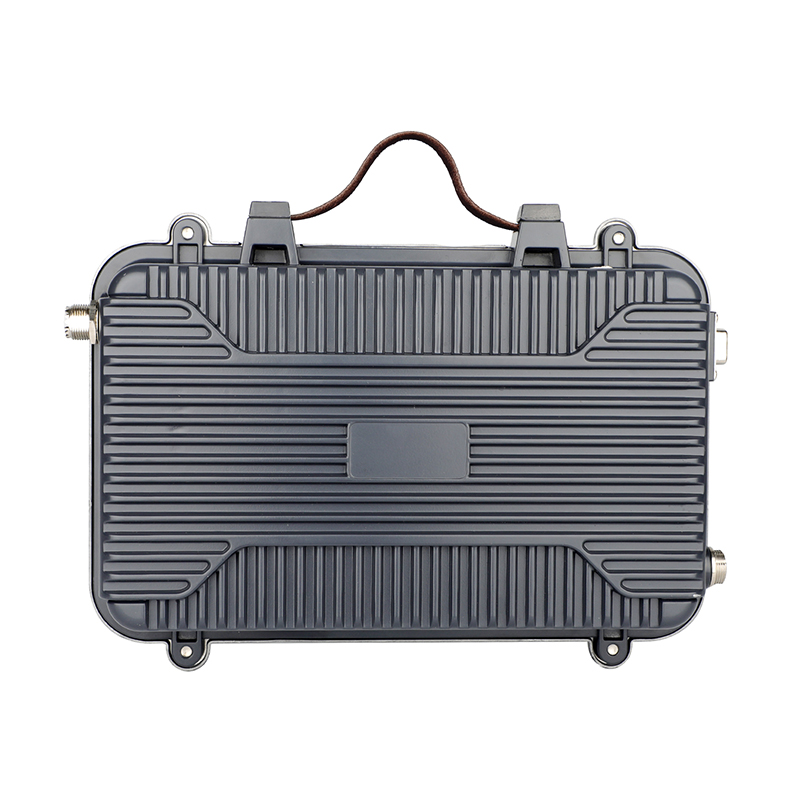

Chierda V9 Repeater is an analog repeater. It perfectly works with walkie talkies to expand communication distance. This repeater is a good choice for farming, camping trips or emergency preparedness. It is waterproof and dustproof. The shell is made of metal and has great sealing ability.

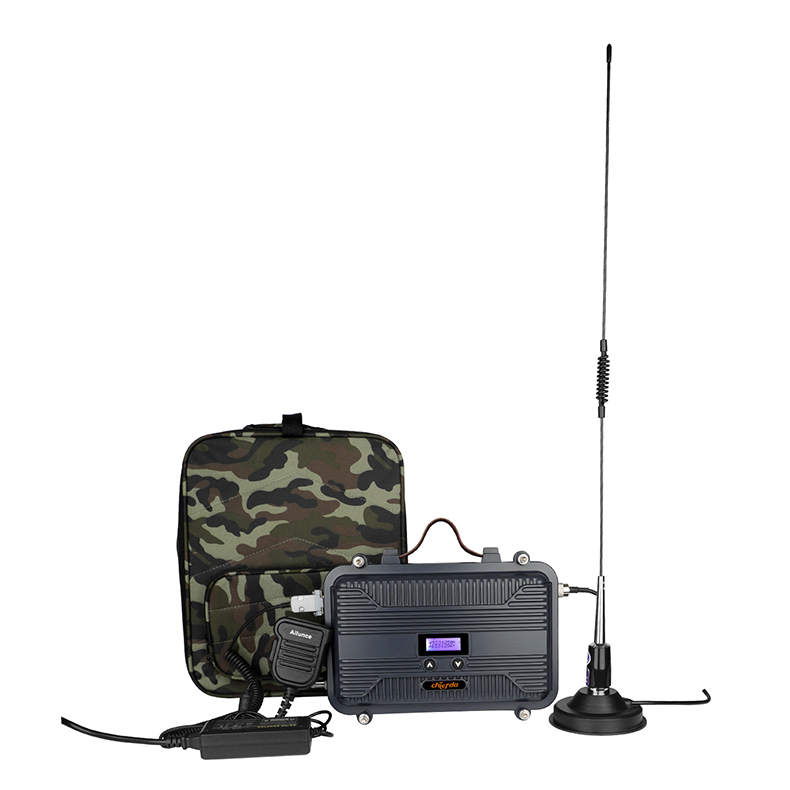

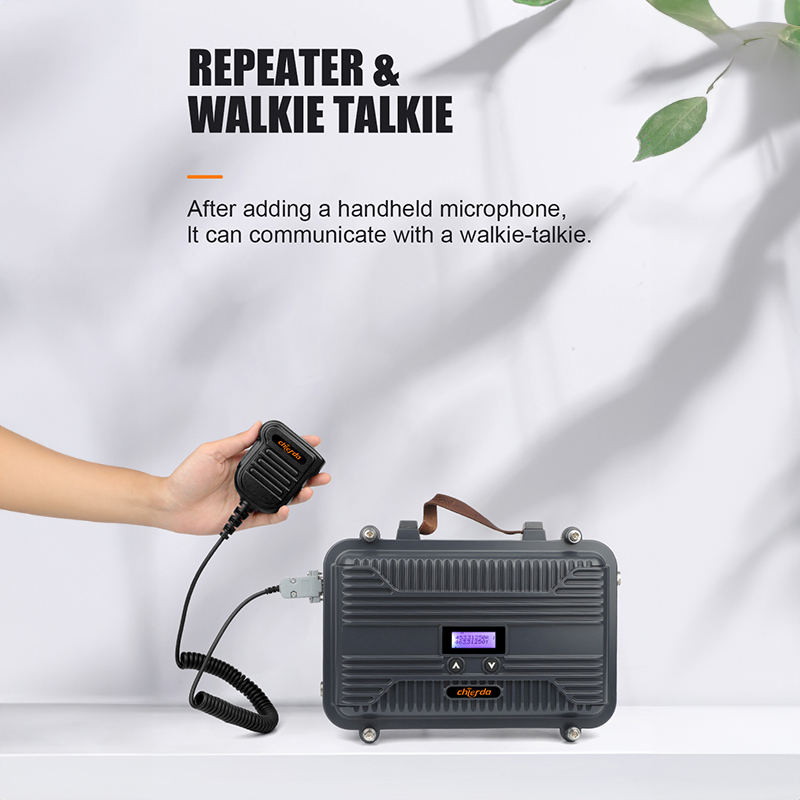

Work with Walkie Talkies:

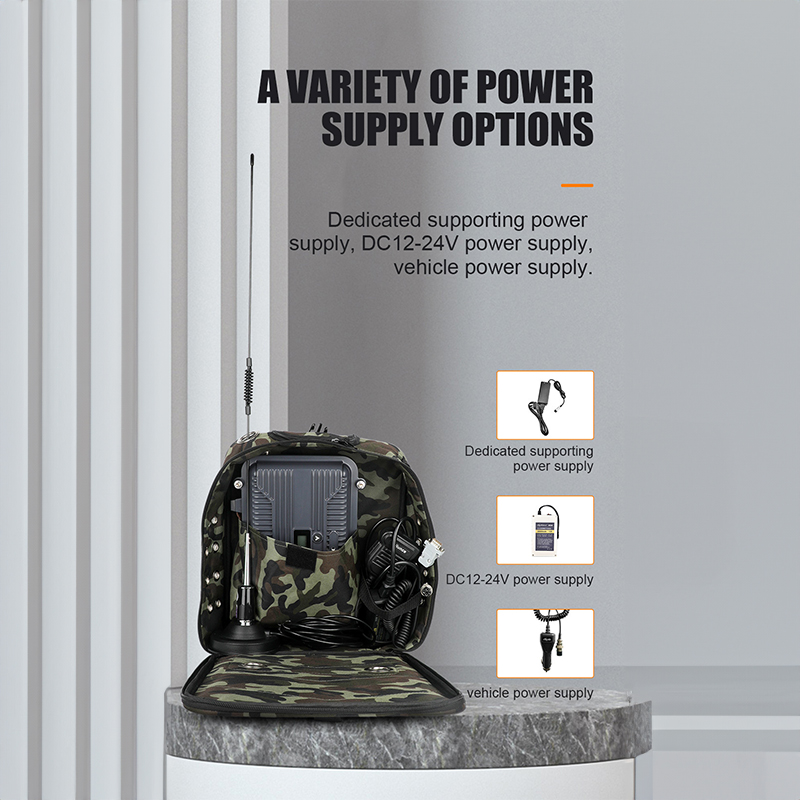

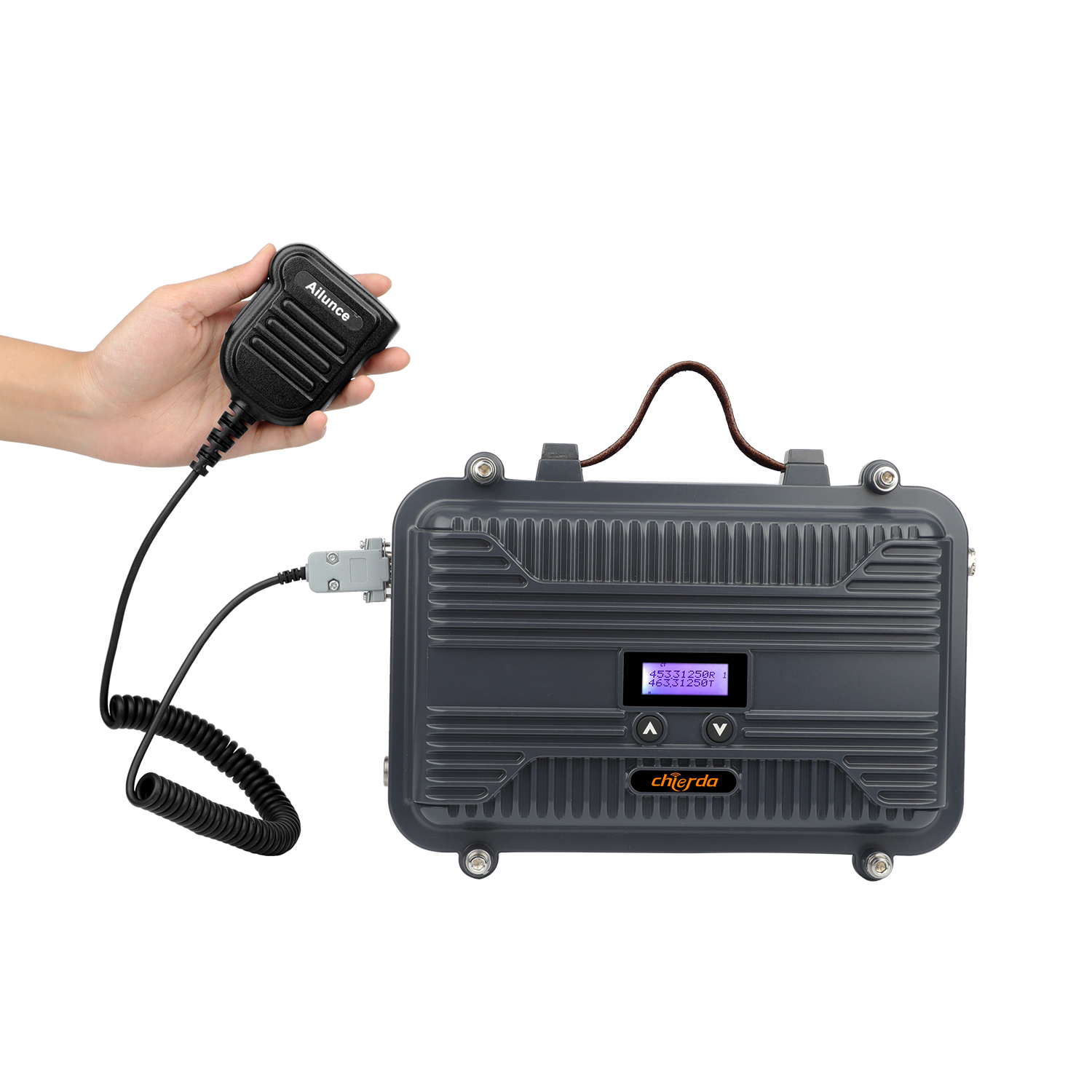

You can directly connect a handheld microphone with V9 repeater. Then you can communicate with other walkie talkies to expand the communication range.Various Power Supply Options:

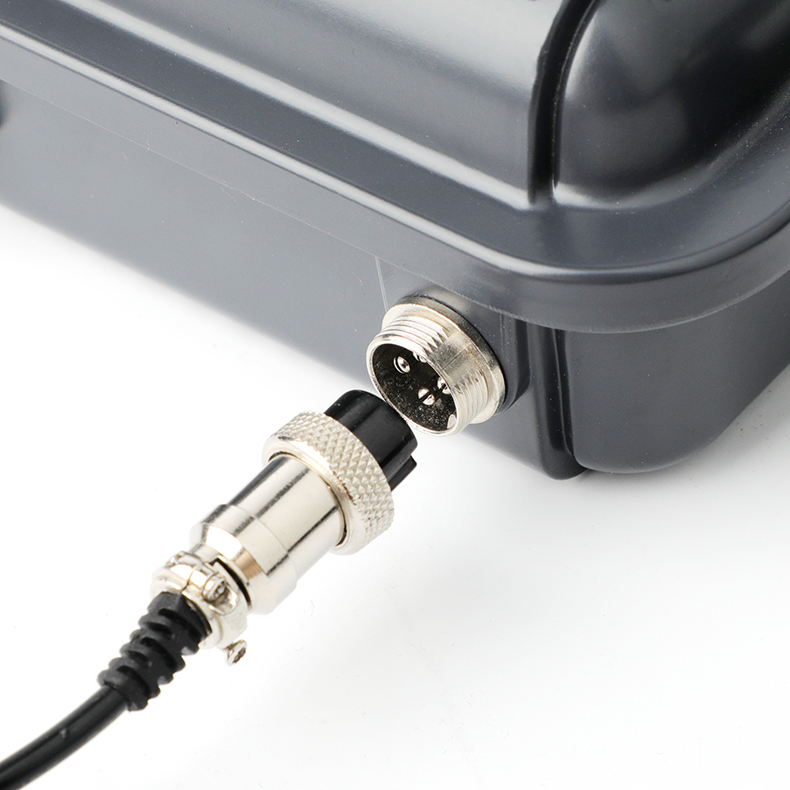

V9 repeater supports different power supplies, such as dedicated supporting power supply, DC12-24V power supply, and vehicle power supply.
Various application Scenarios:
V9 repeater can be used in a wide range of applications, such as outdoor activities, farms, marine...SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Capacity | 16CH |
Channel Spacing | ±12.5KHz (Narrowband) / |
Operating Voltage | DC12V ~24V |
Operating Temperature | -30℃~ +60°℃ |
Frequency Stability | ±0.5ppm |

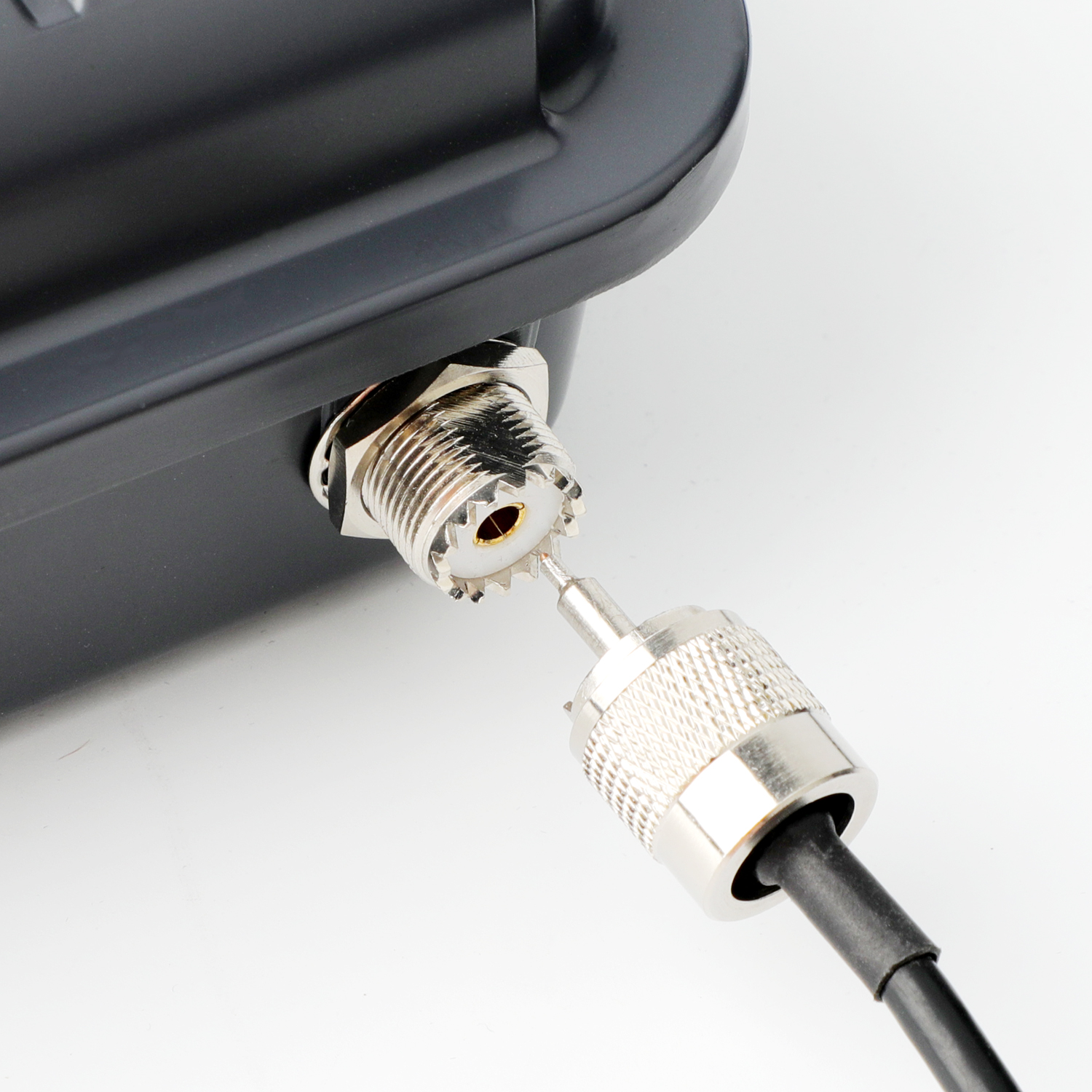

Antenna Impedance | 50Ω |
Size | 190x75x215 mm |
TRANSMITTER | |
Output Power | 10W |
Intermediate | 160MHz/465MHz |
Modulation Method | F3E |
Spurious Emission | -60dB Or Less |
Maximum Frequency Deviation | Wide: ±5kHz |
FM Noise | Wide:≤45dB |
RECEIVER | |
Intermediate | 150MHz /455MHz |
Sensitivity | 0.2μV(Wide) |
Squelch Sensitivity | 0.15μV (Wide) |
Adjacent Channel | ≥70dB (Wide)/ |
Intermodulation/ | ≥55dB |
FM Ham and Noise | ≤-45dB(Wide) / |
work broadband | ≤±7KHz / ≤±5KHz |
Modulation Type | F3E |
Audio Distortion | ≤5% |

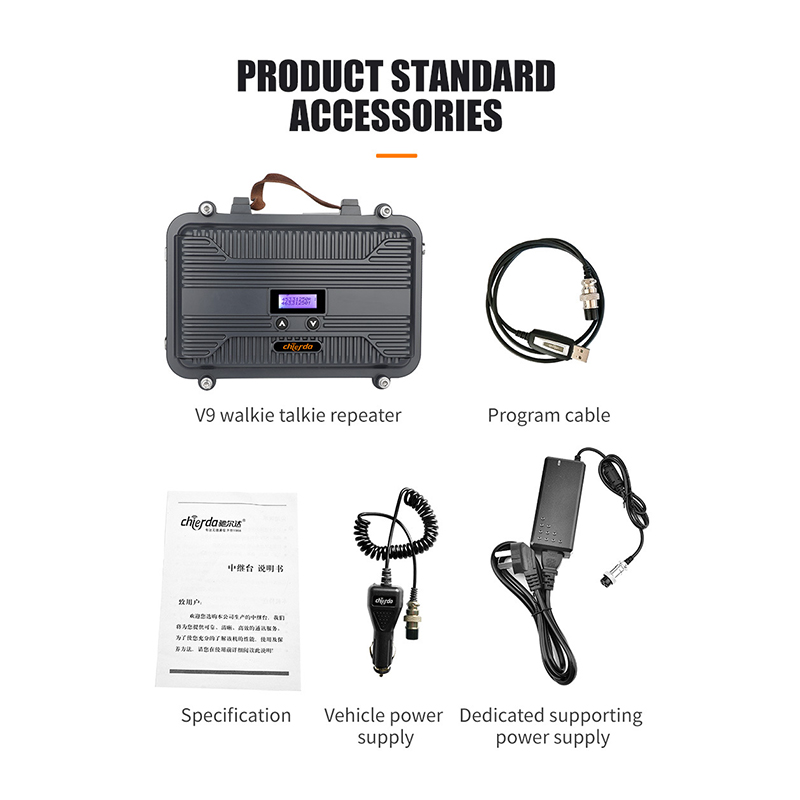

Product set
Repeater*1

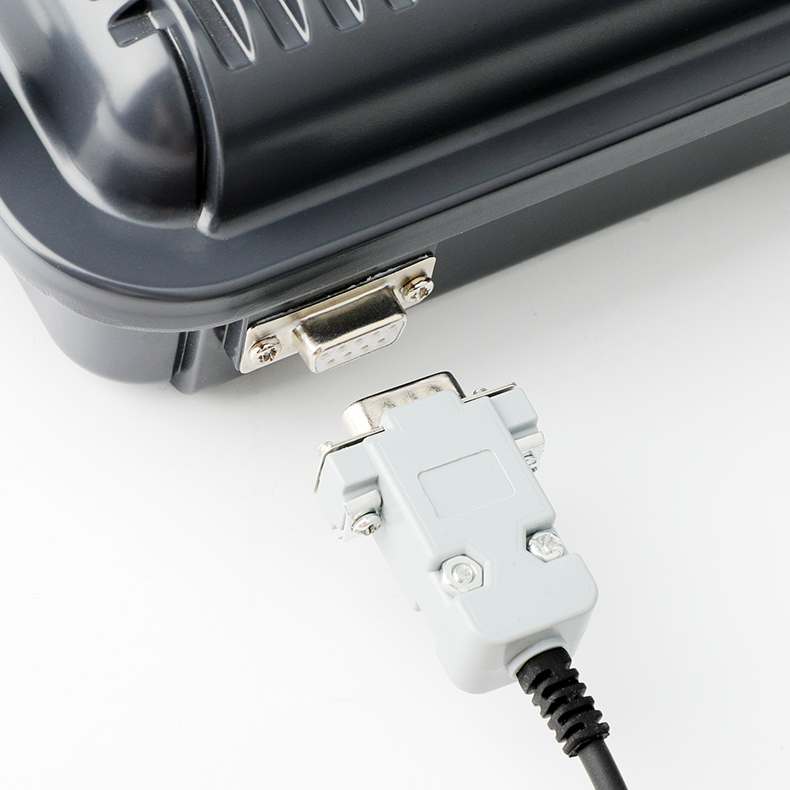

Program cable*1
Vehicle power supply*1
Delicated supporting Power Supply*1
User's manual*1
