Chierda P5 Zello Platform 5000km Long Talk Range 4G LTE PoC Network Radio
P5

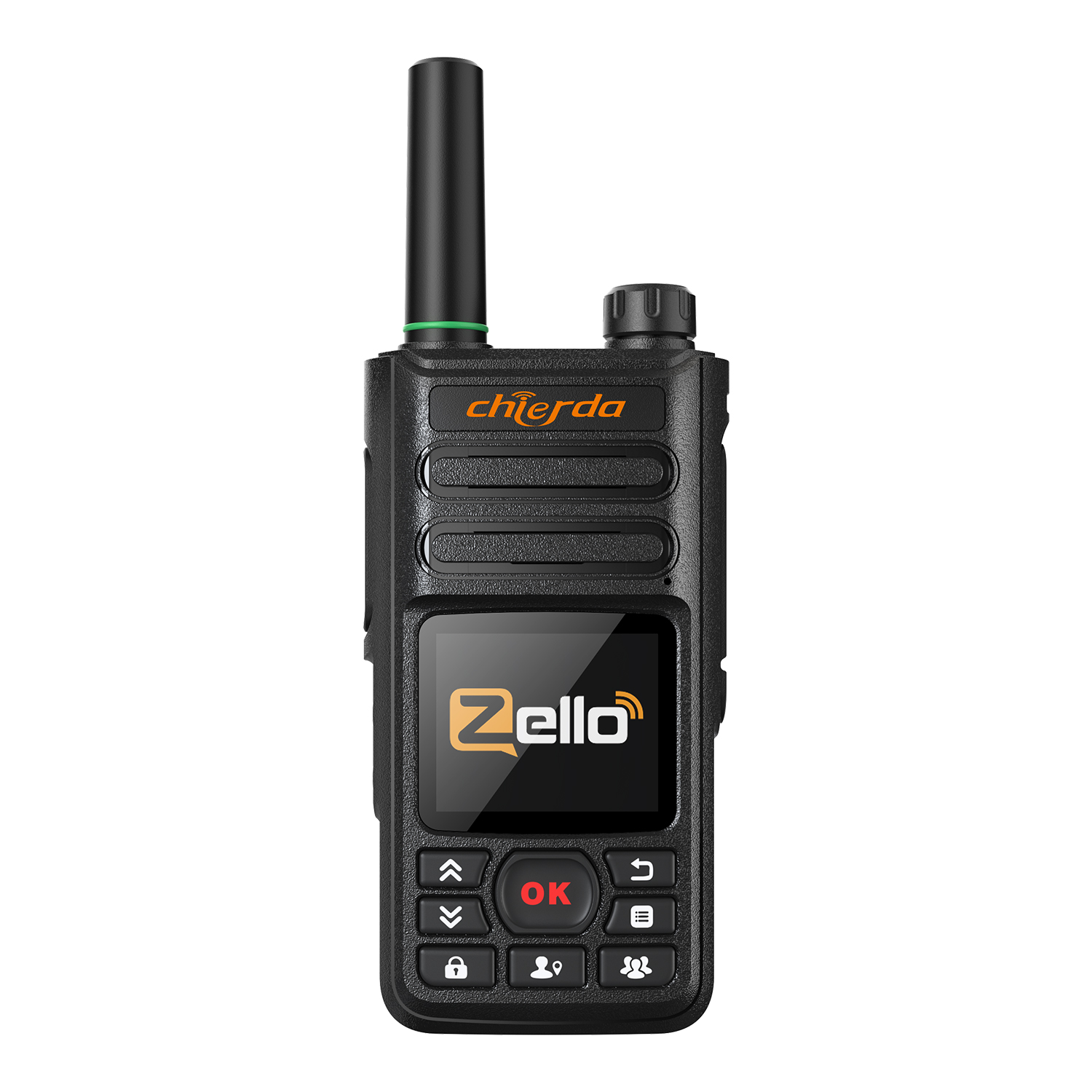

Chierda P5 is a push-to-talk over cellular (PoC) radio and provides communications over a full 4G network. It can truly achieve 5000km long-range talk across the whole country. It features 1.77‘’ SPI color screen and sturdy housing.

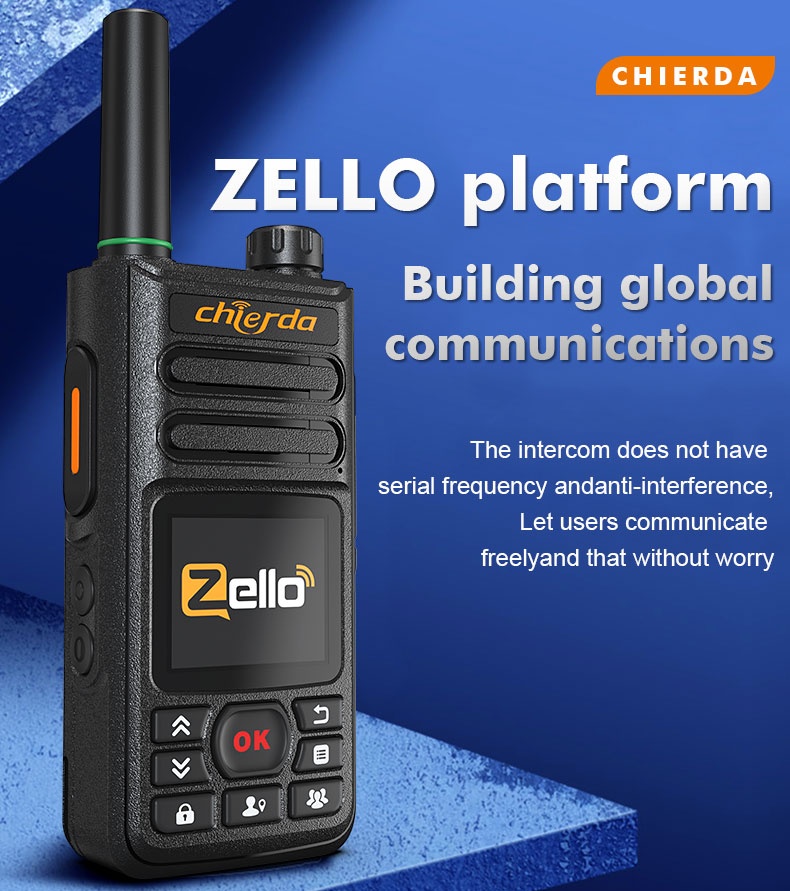

Zello Platform:
P5 radio adapts the universal and latest Zello Platform, making it easy to operate.Unlimited Coverage:

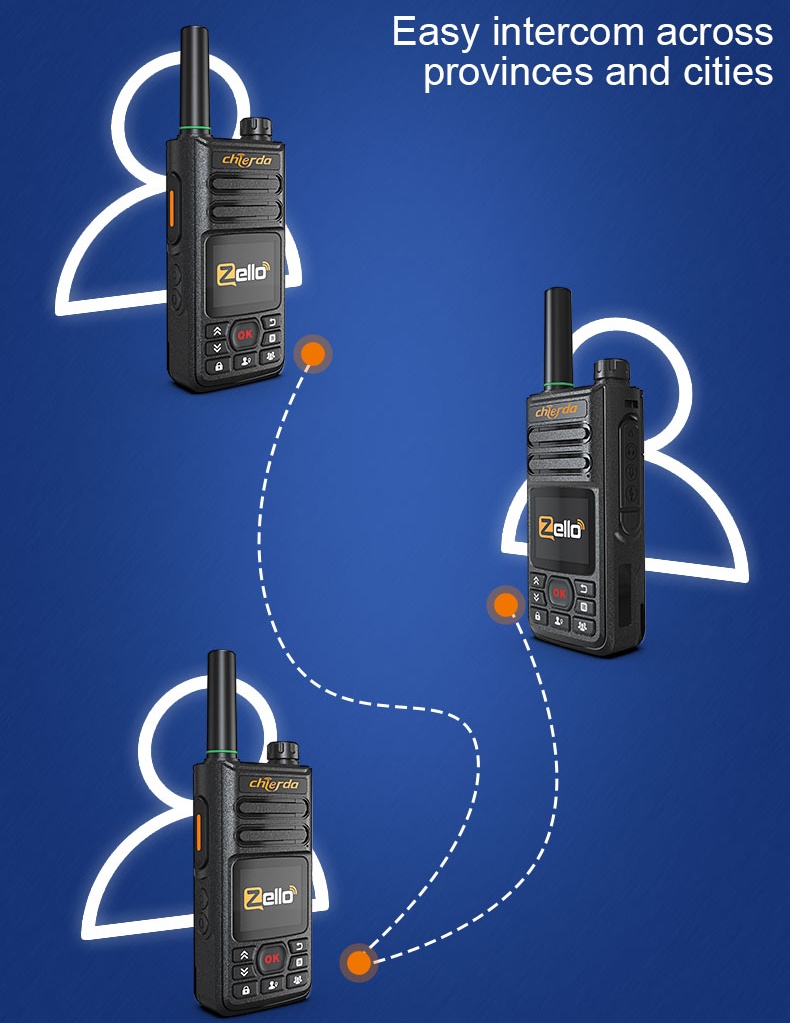

Unlike usual walkie-talkies which only can talk within a certain area, P5 PoC radio has no limit in coverage. Users can send instant voice messages to others across many cities.

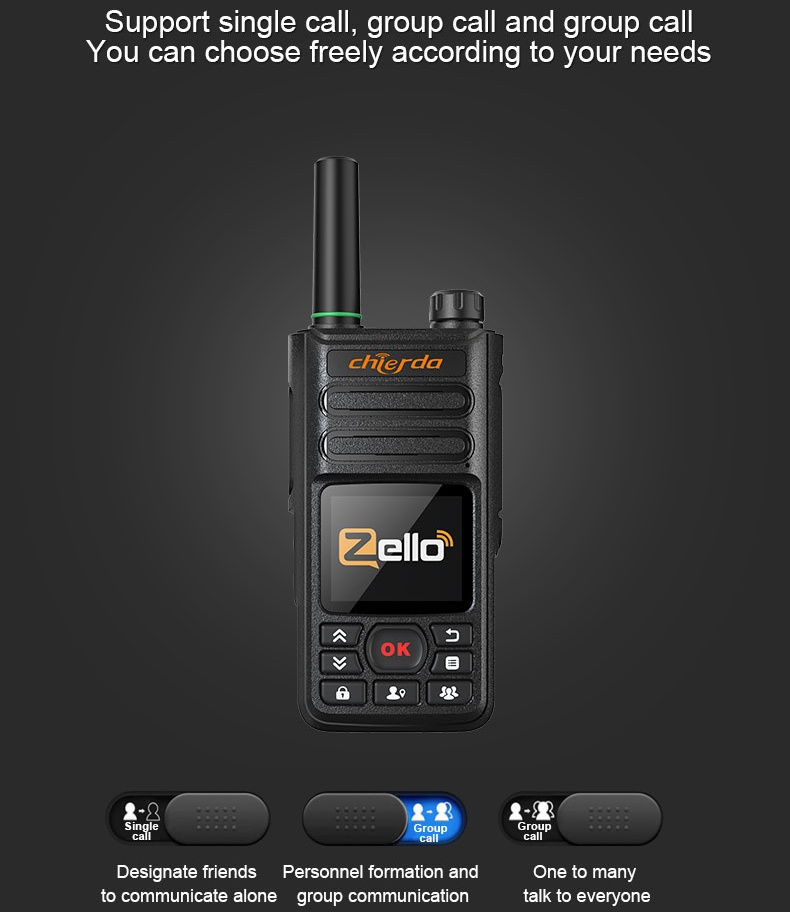

Single/Group/All Call:

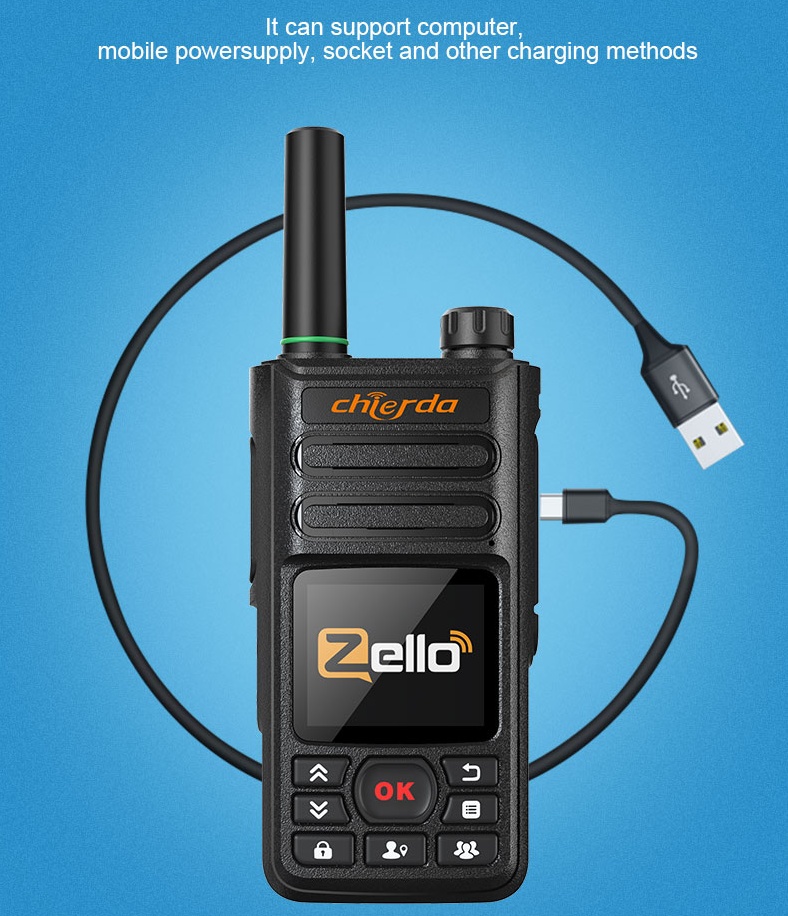

P5 radio enables various calling modes, including single calls, group calls, and all calls, allowing for efficient and effective communication. You can choose freely according to your needs.Type-C Charging:
P5 allows for Type-C fast charging. The charging way is highly versatile. Don't worry about charging anymore.
Dimension |
| 121*61*33 mm(L×W×H) |
Weight |
| 198.4g |
Basic configuration | chip | Qualcomm MSM8909 [ Quad Core 1.1Ghz Processor ] |
| frequency band(MHZ) | 2G: GSM 850/900/1800/1900MHz |
| SIM card | Single |
| SMS function | support |
| physical buttons | support |
| side button | support |
| one key intercom | support |
| system | Android 5.1.1 |
| antenna | Built-in full Netcom antenna, built-in Beidou/GPS, WIFI, Bluetooth antenna |
| Operating Voltage | 3.7V |
| Receiver sensitivity | -106dbm |
| Maximum transmit power | 23dBm~25dBm@All up bits |
| range of working temperature | -20——+75 degrees |
| storage temperature range | -40——+85 degrees |
| audio output power | 2W@10% distortion |
Network | 4G | FDD LTE, TDD LTE |
| 3G | WCDMA, TDSCDMA, CDMA2000 |
| 2G | GSM, CDMA |
| Wi-Fi | support |
| Bluetooth | BT 3.0 |
Screen |
| 1.77 inch SPI color screen, resolution: 160*128 |
storage |
| 4GB+512MB |
Capacity (mAh) |
| ≧4000mAh |
charger |
| TBD |
USB cable |
| USB Micro 5Pin |

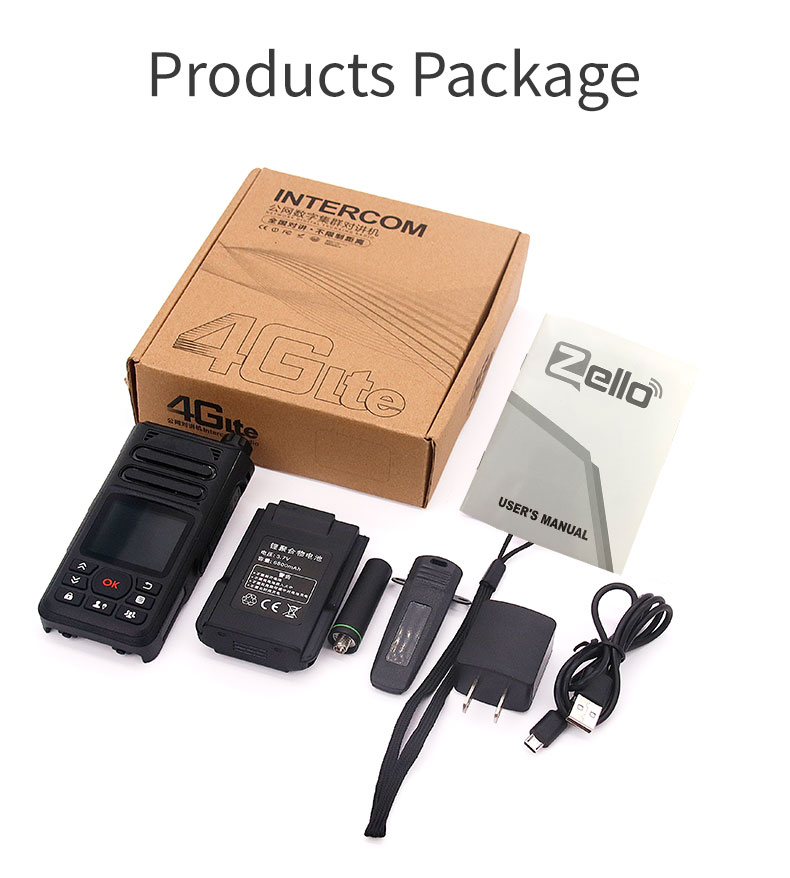

Product set
Radio*1
Battery*1
Strap*1
Type-C charging cable*1
User's manual book*1
Antanna*1
Belt clip*1
Charging plug*1
Battery*1
Charging pod*1
