Chierda V9D Customizable 10W Portable DMR Digital Repeater

V9D

1.Customized IP67 Waterproof/Dustproof, Built-in Duplexer, TDMA

2.Rugged and Portable Body, Good Sealing

3.DMR Repeater, Extend the distance of the handheld Radios

4.Analog and Digital Mode

5.Color LCD Screen, Visual Operation, Key Lock

Contcat Us

Features
Specification

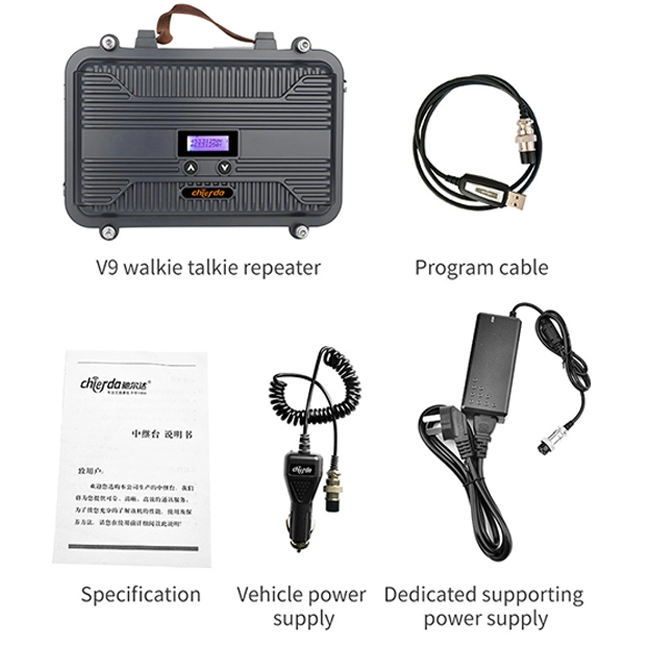

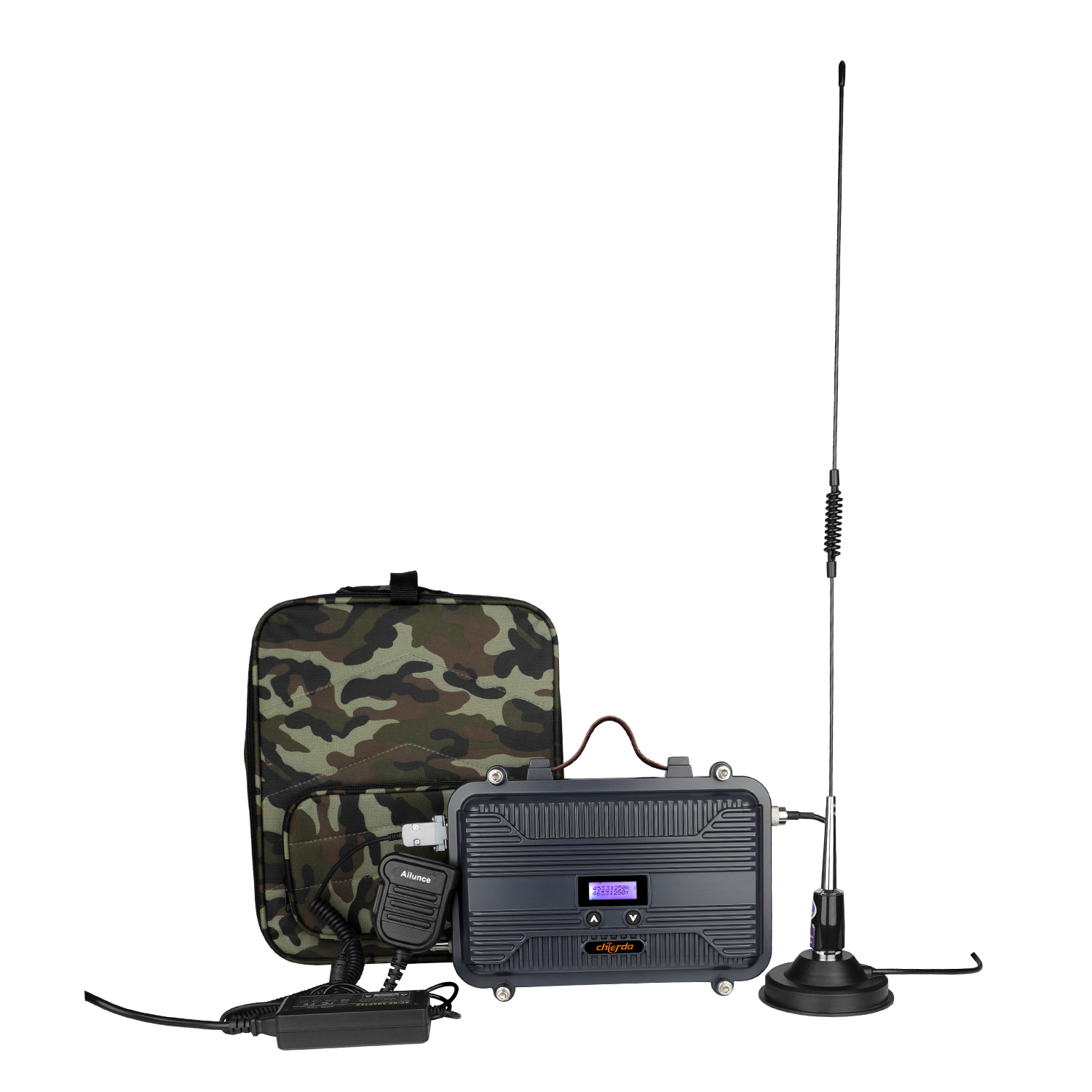

Whats in the Box
Resources

Features

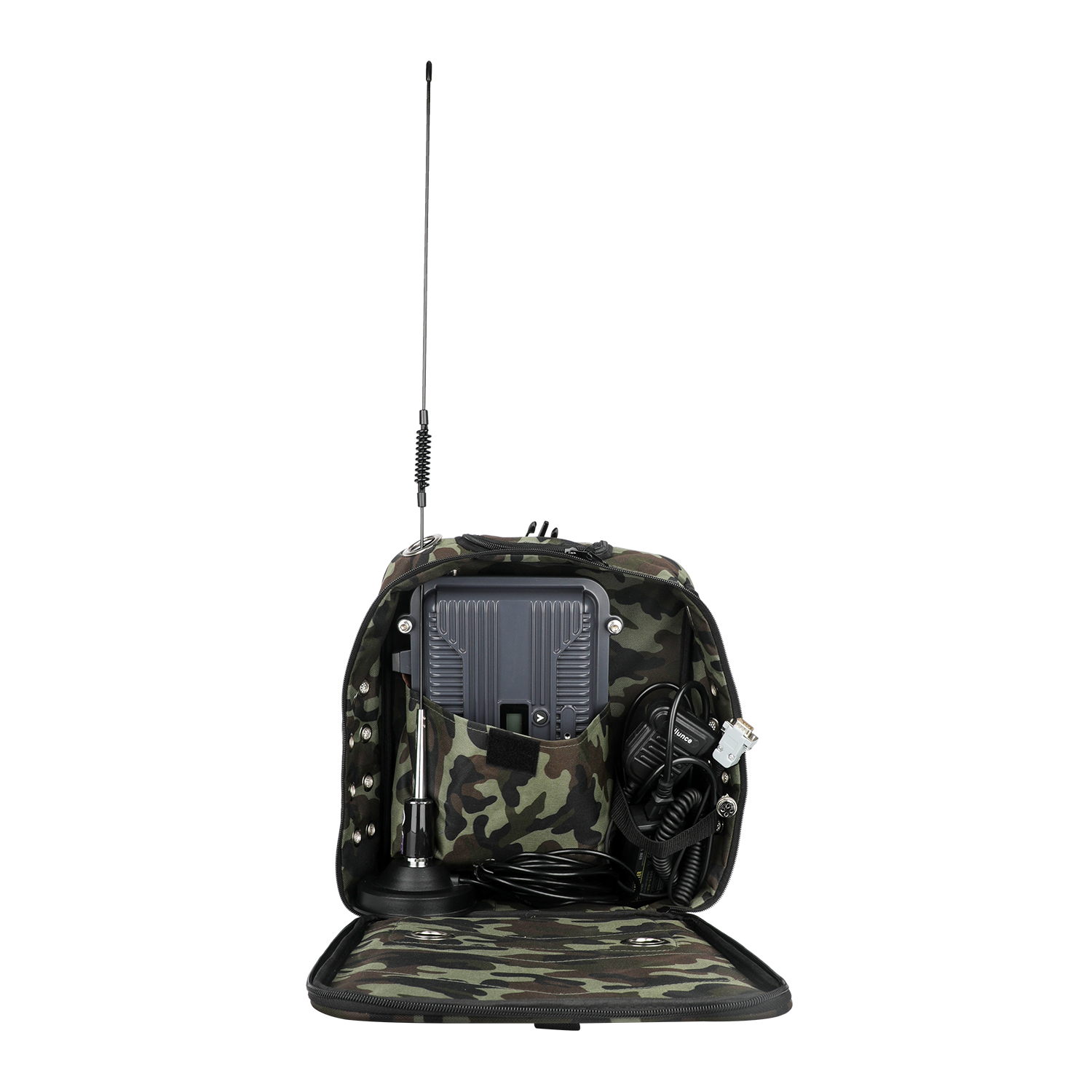

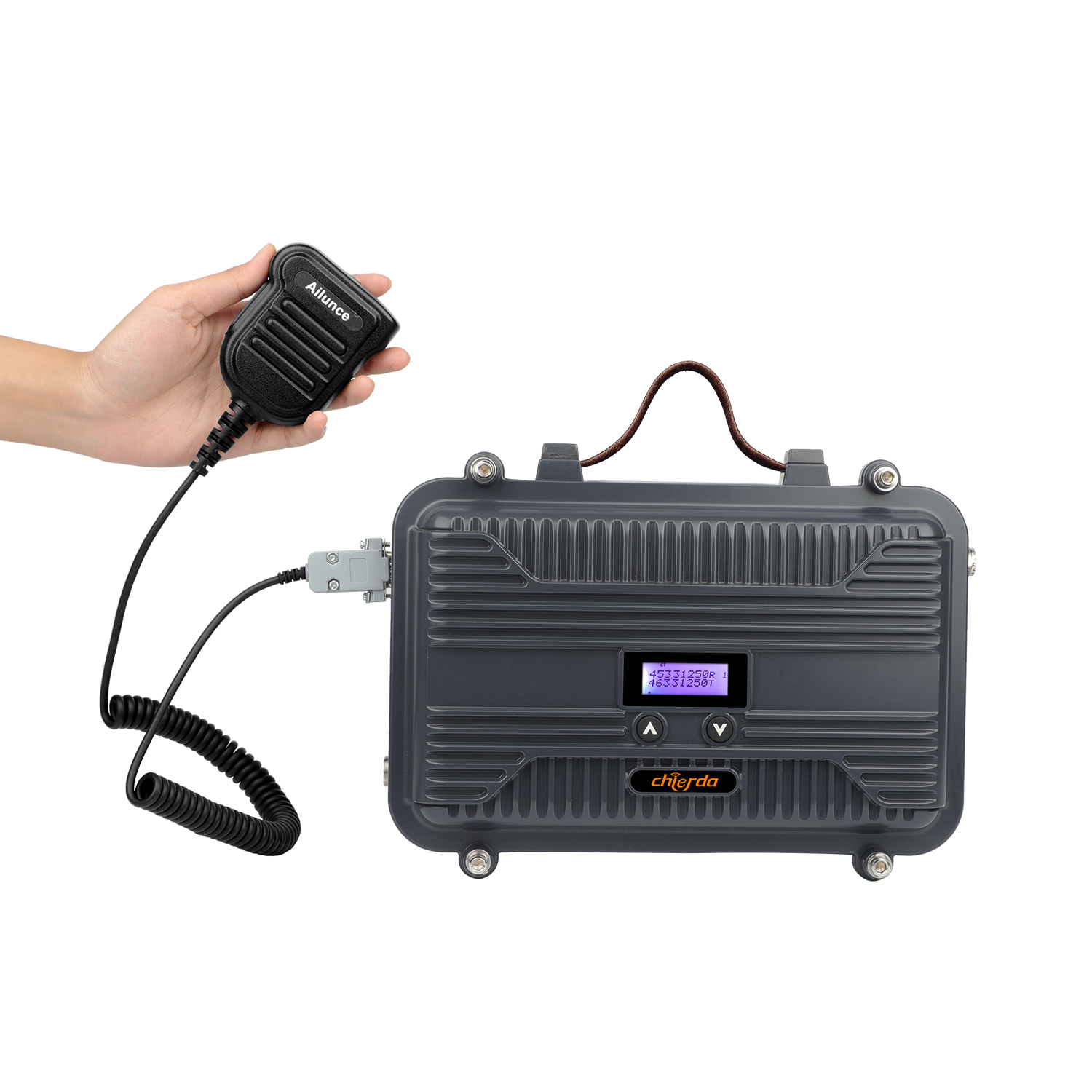

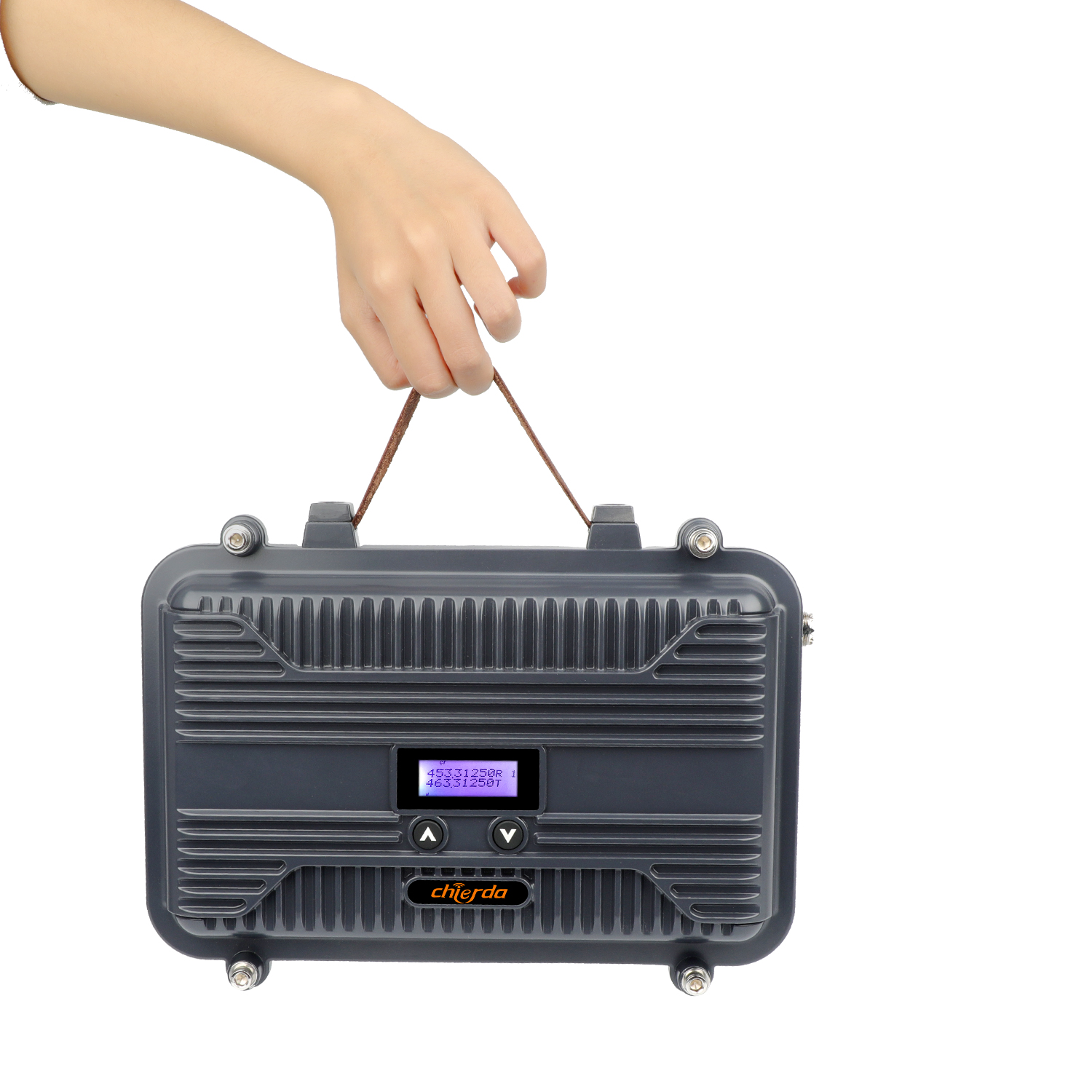

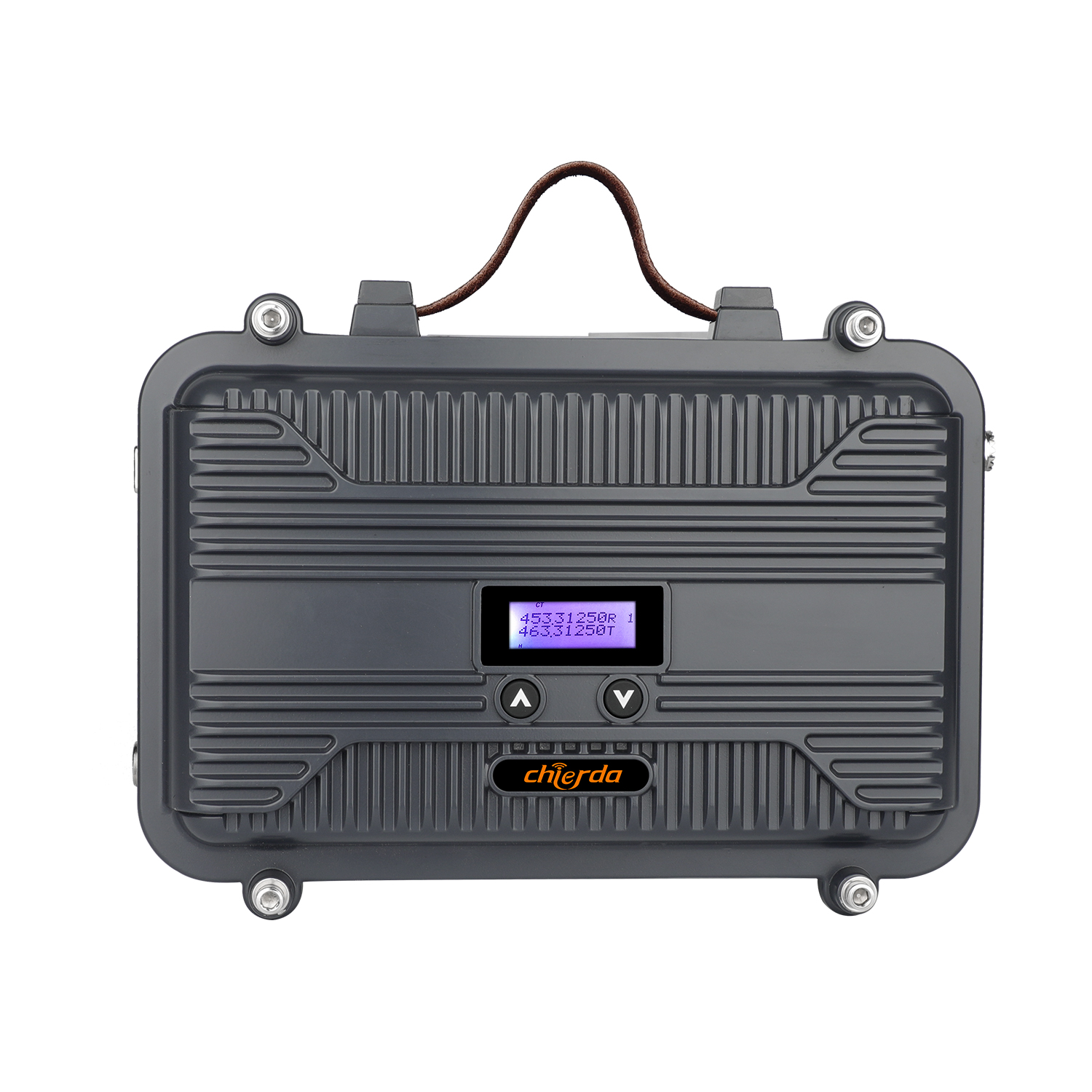

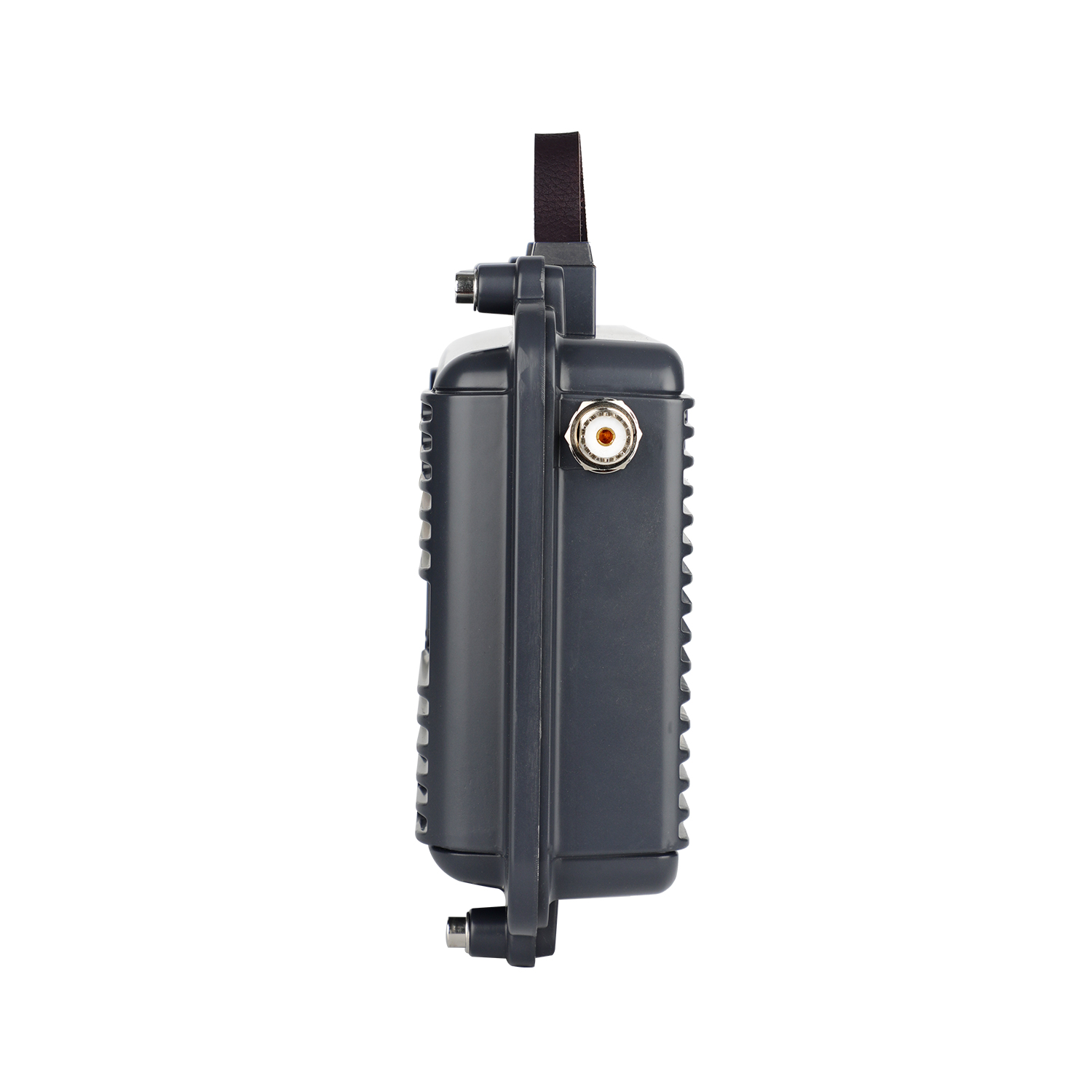

Chierda V9D DMR Portable Repeater is a movable digital repeater. It perfectly works with walkie talkies to expand communication distance. This repeater is portable and compact in size, which makes it a perfect choice for farming, camping trips or emergency preparedness. The shell is made of metal and has great sealing ability.

Support Customization:

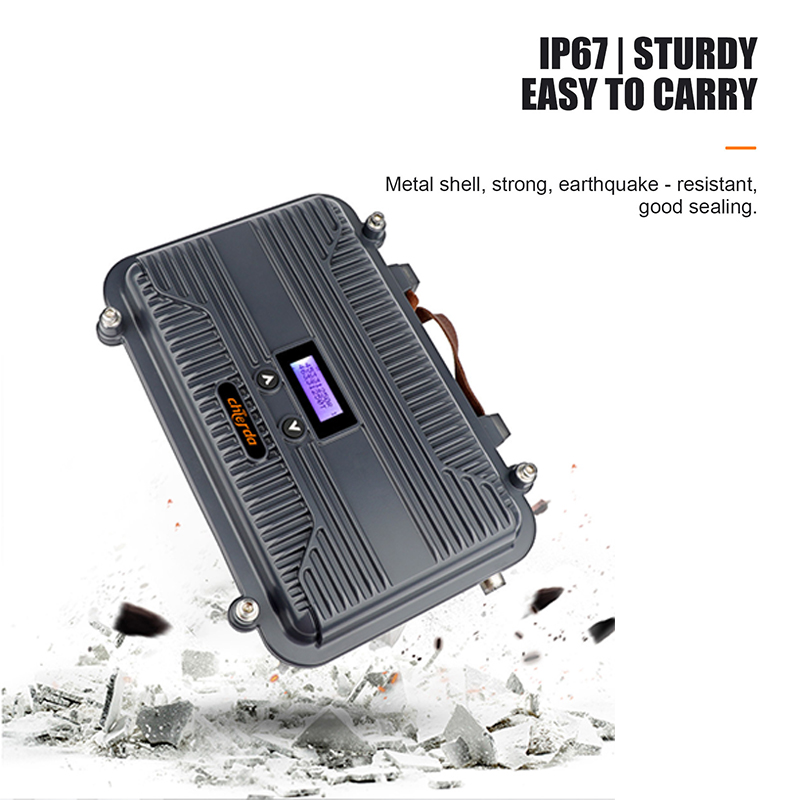

V9D repeater can manufactured to be truly waterproof with IP67 Rating for the design on structure.
V9D repeater has stock on UHF frequency band. offset 10mhz，TX: 463.3125mhz and RX: 453.3125MHZ
In addition, this repeater can also customized on VHF/UHF frequency band.

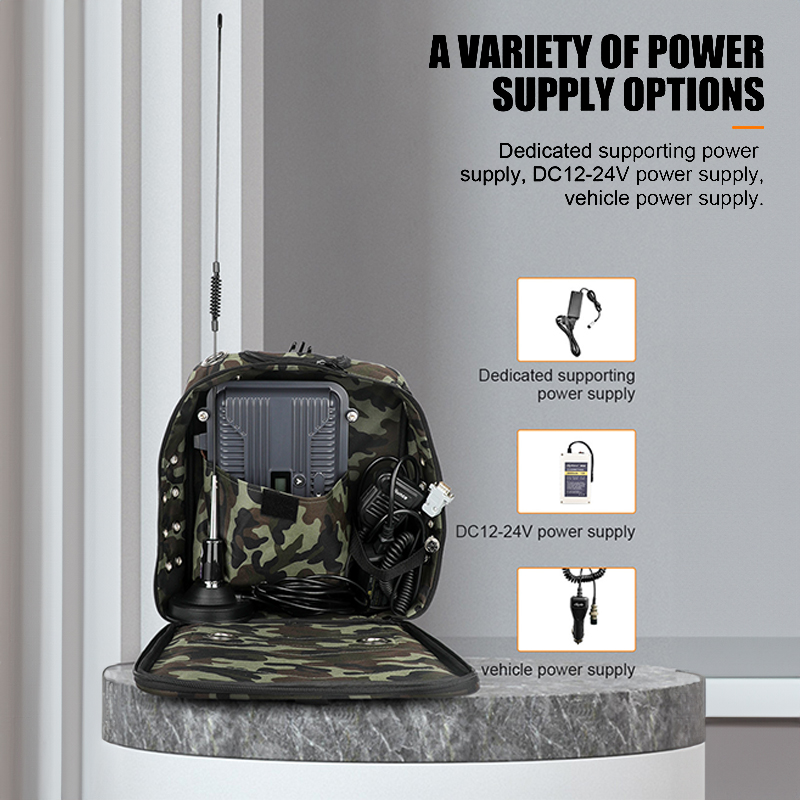

Various Power Supply Options:
V9D repeater can be powered by DC12V~24V power, car power, portable battery and solar battery.

Specification

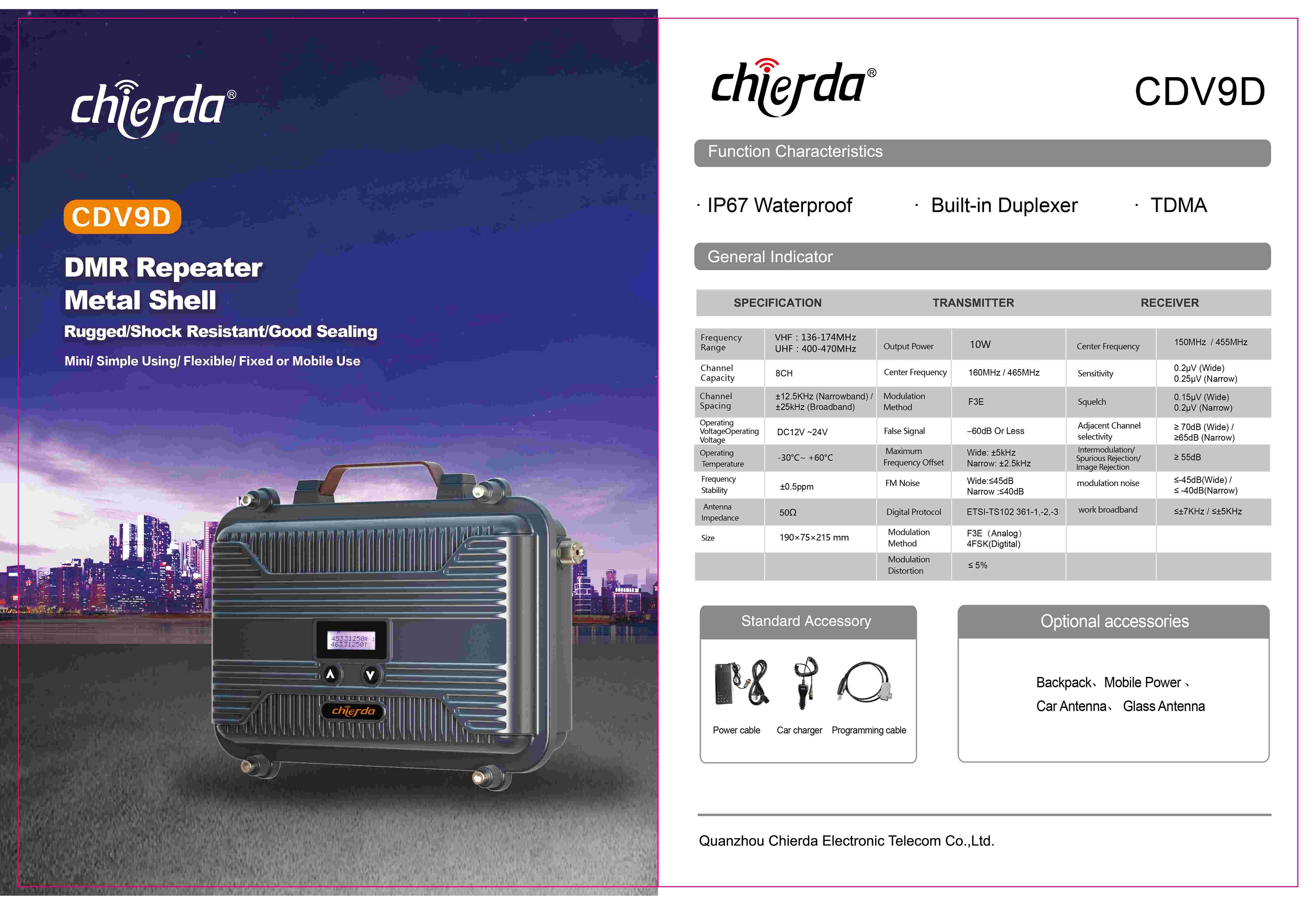

SPECIFICATION
Frequency Range	VHF:136-174MHz UHF:400-470MHz
Channel Capacity	8CH
Channel Spacing	±12.5KHz (Narrowband) / ±25kHz (Broadband)
Operating Voltage	DC12V ~24V
Operating Temperature	-30℃~ +60°℃
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Size	190x75x215 mm
TRANSMITTER
Output Power	10W
Center Frequency	160MHz/465MHz
Modulation Method	F3E
False Signal	-60dB Or Less
Maximum Frequency Offset	Wide: ±5kHz Narrow: ±2.5kHz
FM Noise	Wide:≤45dB Narrow :≤40dB
Digital Protocol	ETSI-TS102 361-1,-2,-3
Modulation Method	F3E (Analog) 4FSK(Digtital)
Modulation Distortion	≤5%
RECEIVER
Center Frequency	150MHz /455MHz
Sensitivity	0.2μV(Wide) 0.25μV(Narrow)
Squelch	0.15μV (Wide) 0.2μV(Narrow)
Adjacent Channel selectivity	≥70dB (Wide)/ ≥65dB(Narrow)
Intermodulation/ Spurious Rejection/ Image Rejection	≥55dB
modulation noise	≤-45dB(Wide) / ≤-40dB(Narrow)
work broadband	≤±7KHz / ≤±5KHz
