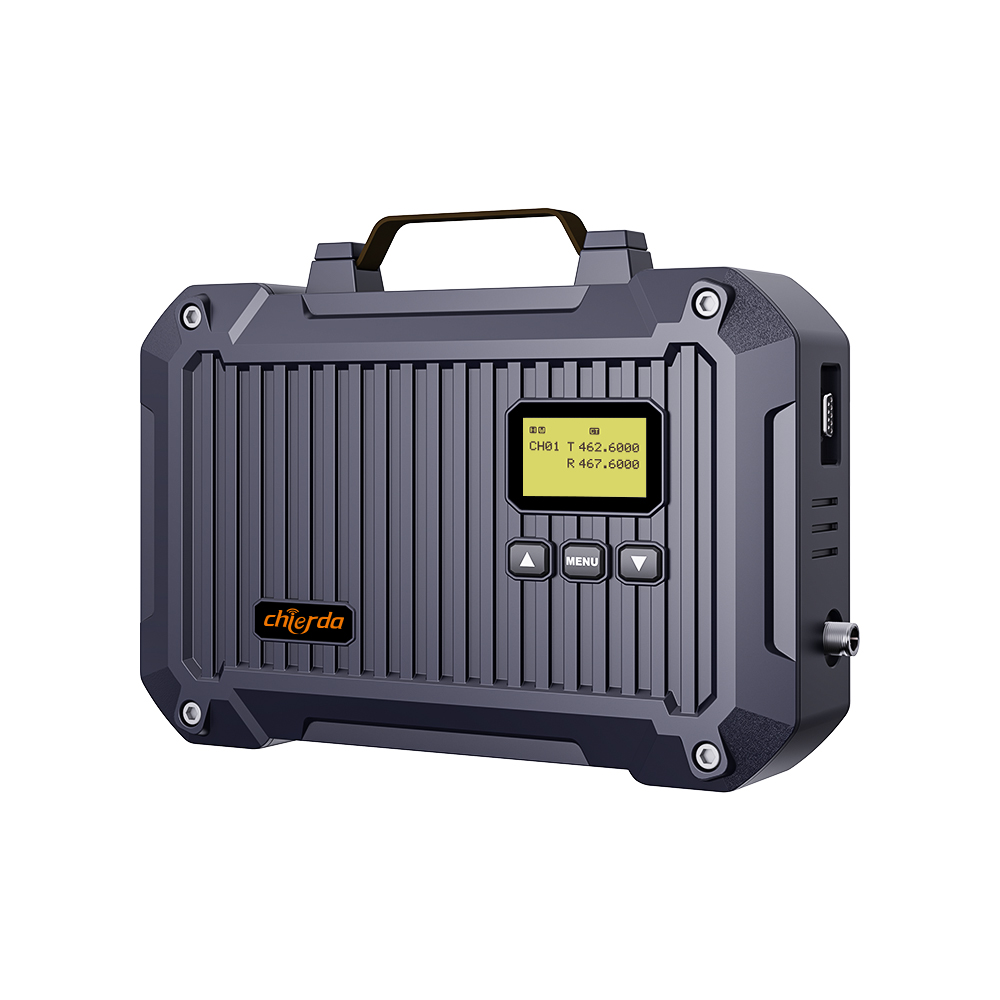

Chierda V25 25 Watt High Power Repeater

V25

1. 25 watt high power

2. IP66 Waterproof

3. Allows for 2 repeaters linking

4. Color LCD backlit screen

5. Channel/frequency lock

6. Low temperature mode

7. Portable design and easy installation

Contcat Us

Features
Specification

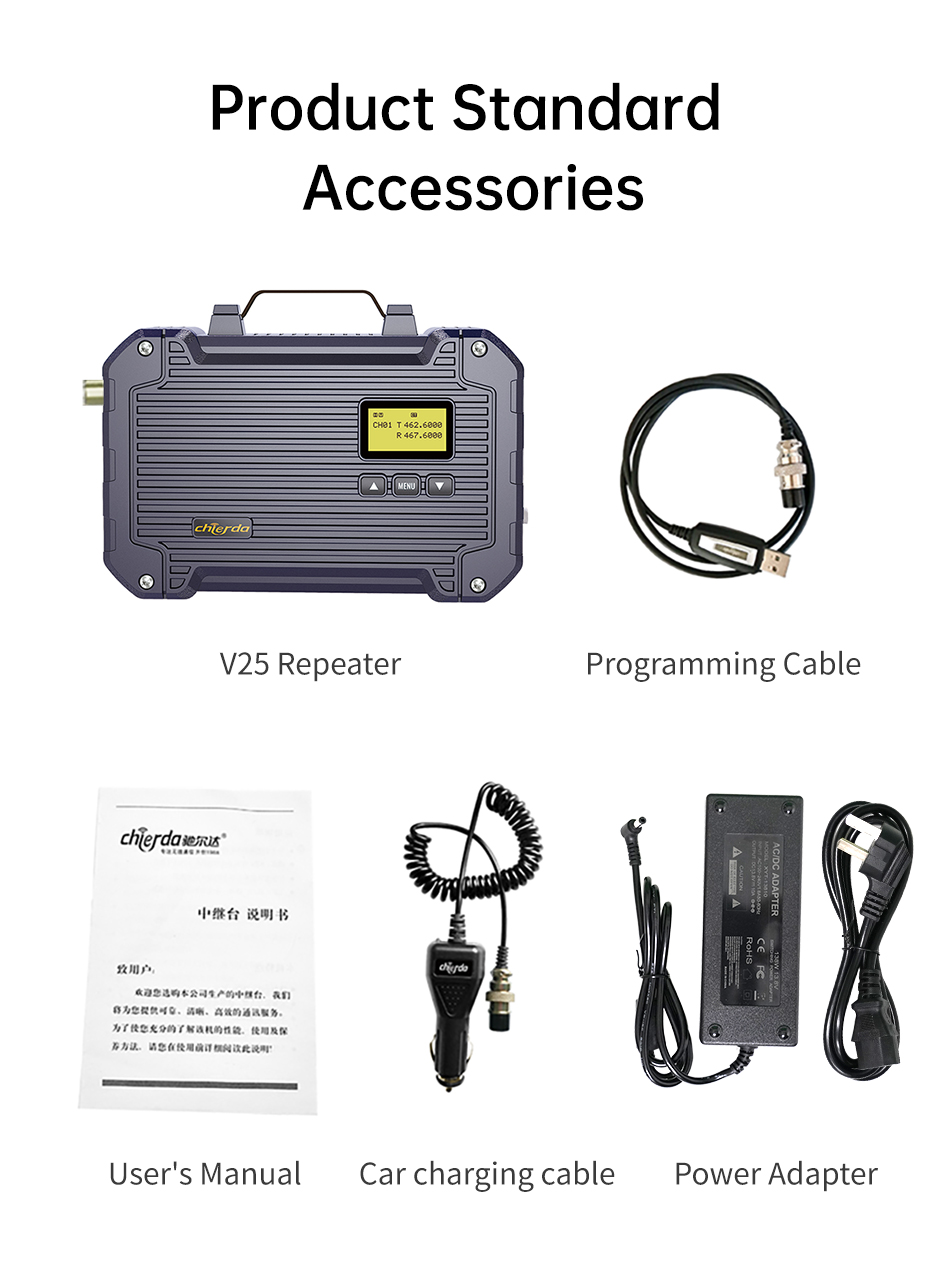

Whats in the Box
Resources

Features

Chierda V25 is the next-generation repeater for extended communication range. It features 25 watt high power, long range communication, IP66 waterproof. It is designed to be compact and portable, which is easy to carry and install. With many advanced functions, it is ideal for use in large areas, such as farms, base sites.

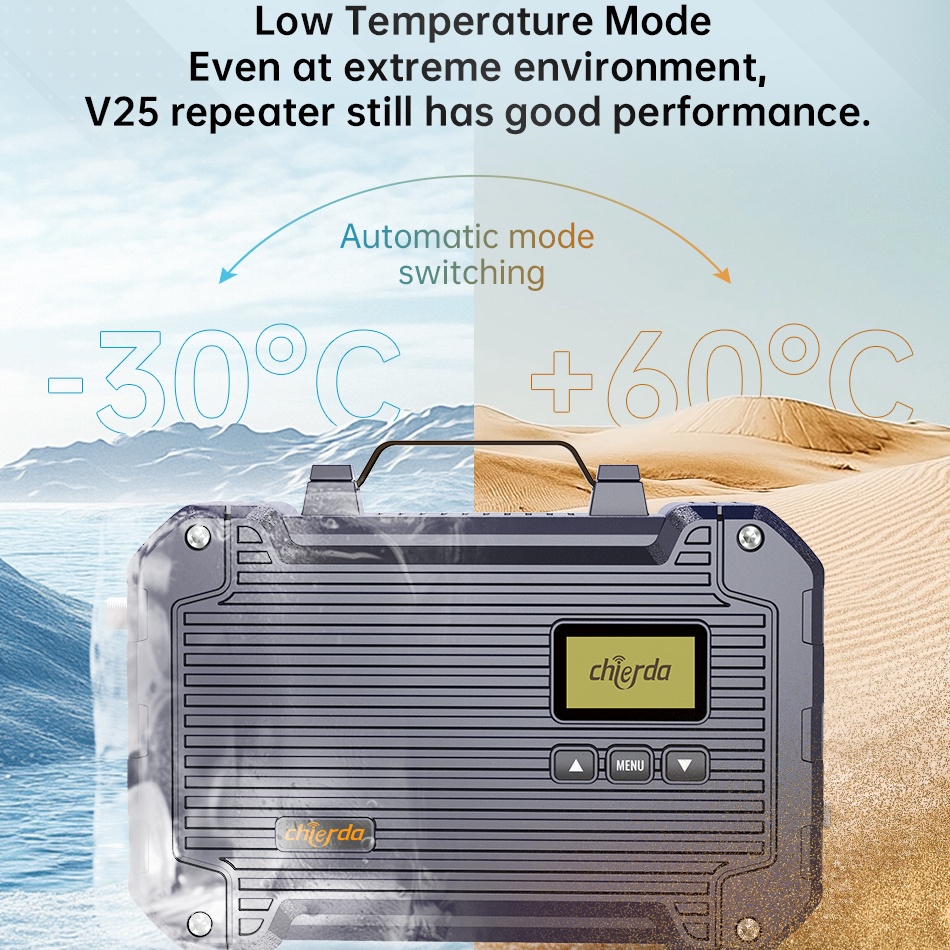

Low temperature mode:

V25 repeater is built to perform reliably in extreme weather conditions. In cold environments, you can manually activate the low temperature mode, allowing the device to auto-heat and operate efficiently in temperatures ranging from -30°C to +60°C. When operating in warmer conditions, simply deactivate the mode to conserve energy and extend battery life.

Repeater Linking:

Allows for two V25 repeaters to link together to extend communication range.

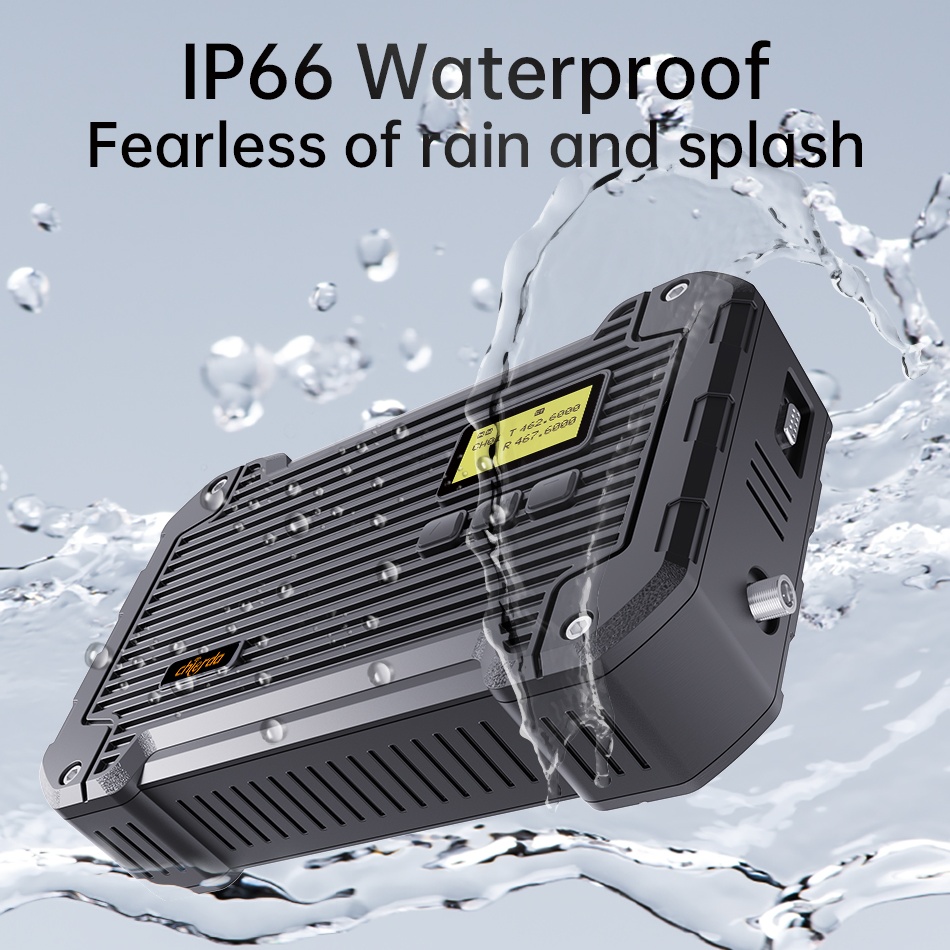

IP66 Weatherproof:

Designed to withstand the toughest environments, V25 repeater offers complete dust and water protection, ensuring reliable performance even in the most challenging weather.

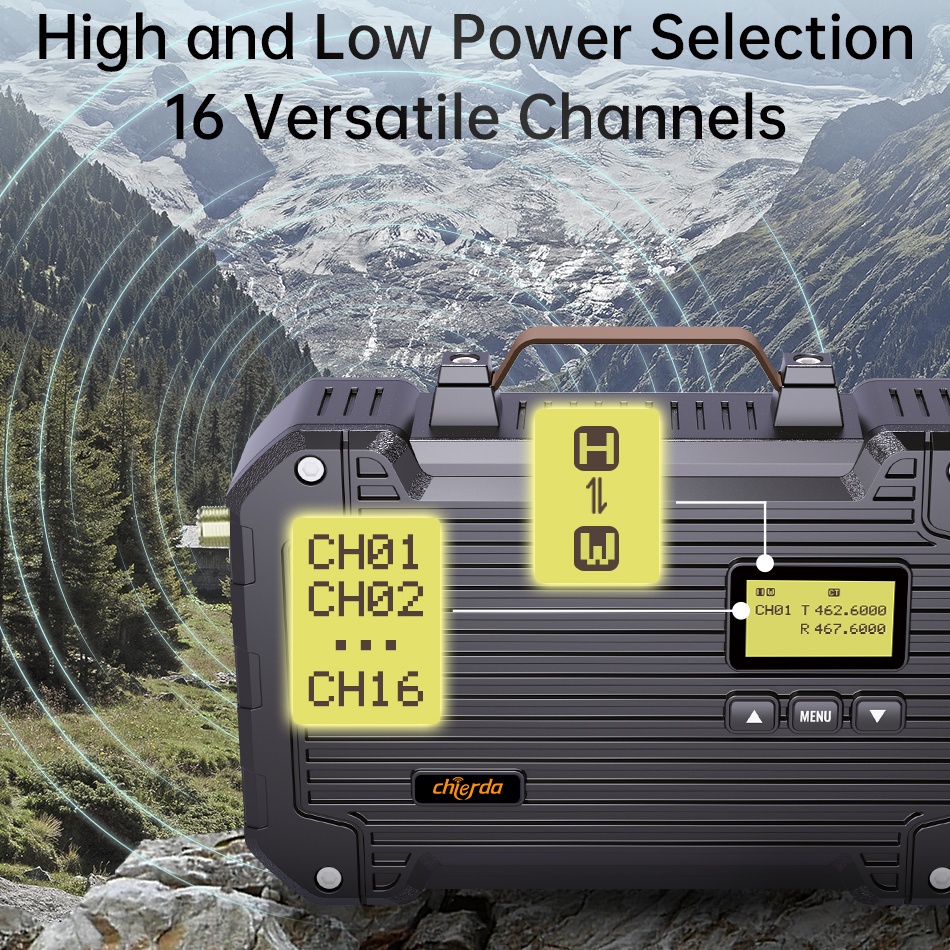

High/Low Power Selection:

V25 repeater offers 16 customizable channels and delivers a measured maximum output power of 25W. Users can flexibly switch between high and low power modes. High Power: 22–25W; Low Power: 5–8W.

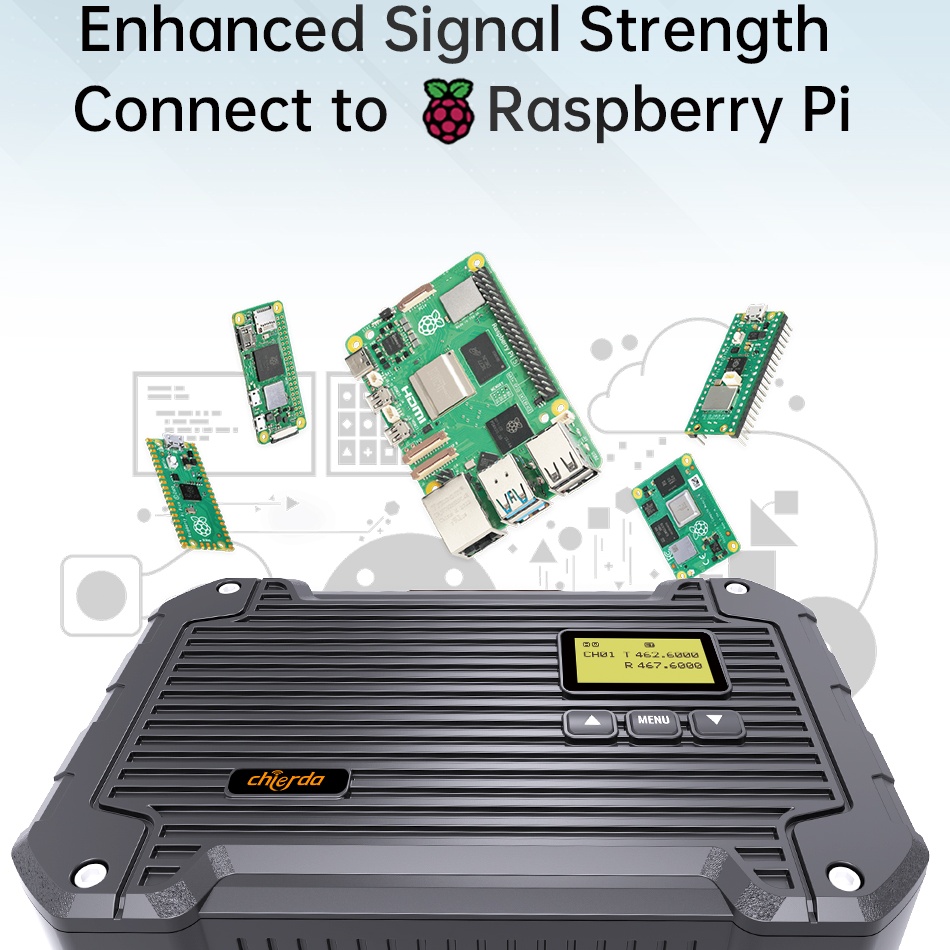

Connect To Raspberry Pi:

V25 repeater can connect with a Raspberry Pi to enhance signal strength and unlock more performance.

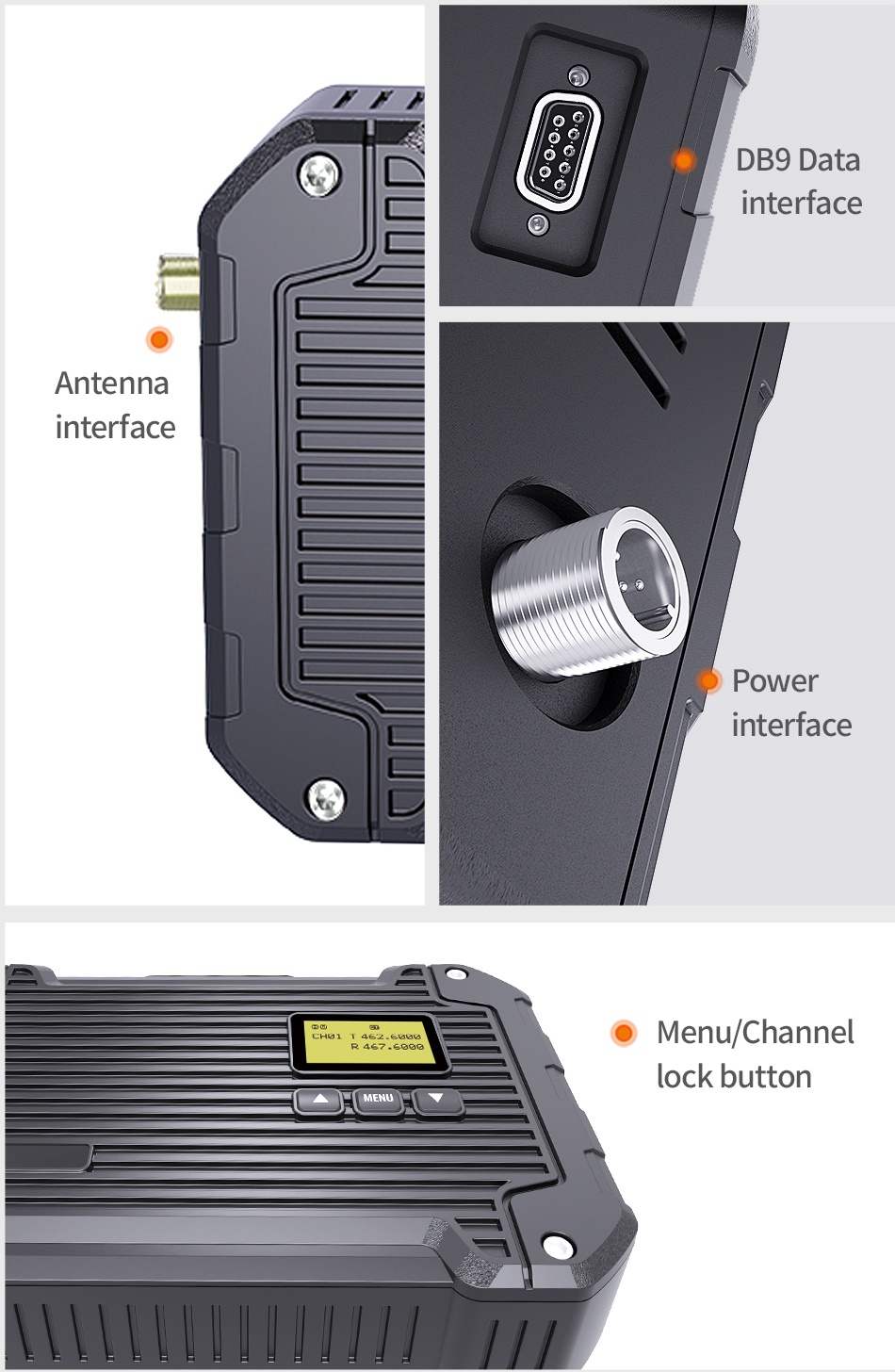

Product Details:

Specification

SPECIFICATION
Frequency Range	UHF:400-470MHz
Channel Capacity	16CH
Channel Spacing	±12.5KHz (Narrowband) / ±25kHz (Broadband)
Operating Voltage	DC12V ~24V
Operating Temperature	-30℃~ +60°℃
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Size	190x75x215 mm
TRANSMITTER
Output Power	25W
Intermediate Frequency	160MHz/465MHz
Modulation Method	F3E
Spurious Emission	-60dB Or Less
Maximum Frequency Deviation	Wide: ±5kHz Narrow: ±2.5kHz
FM Noise	Wide:≤45dB Narrow :≤40dB
RECEIVER
Intermediate Frequency	150MHz /455MHz
Sensitivity	0.2μV(Wide) 0.25μV(Narrow)
Squelch Sensitivity	0.15μV (Wide) 0.2μV(Narrow)
Adjacent Channel selectivity	≥70dB (Wide)/ ≥65dB(Narrow)
Intermodulation/ Spurious Rejection/ Image Rejection	≥55dB
FM Ham and Noise	≤-45dB(Wide) / ≤-40dB(Narrow)
work broadband	≤±7KHz / ≤±5KHz
Modulation Type	F3E
Audio Distortion	≤5%
