Chierda CD-108 10W Digital Two Way Radio
CD-108
1. Digital Handheld Radio
2. High Power, Long Distance
3. Rugged and Durable Body
4. Frequency Hopping and Scrambler
5. Tail Sound Elimination
Chierda CD108 is a digital radio. It is high performance and versitile. 10W output power allows a communication coverage up to 10km. It features frequency hopping, scrambler, VOX, tail sound elimination and many other functions.

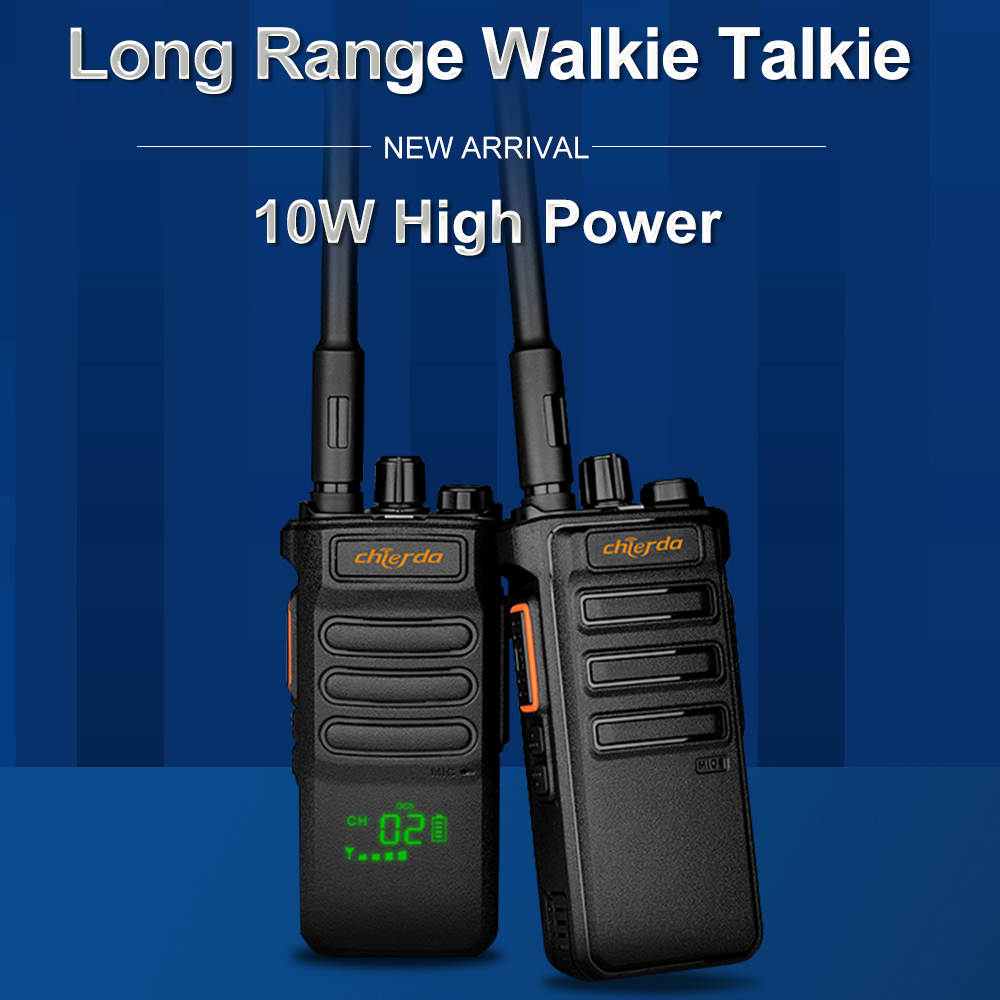

Long Range Walkie Talkie:
Chierda CD108 is a 10W handheld radio. Technically, users can talk to each other within the coverage of 10 km. It depends on the terrain and weather. In an open area, the talk distance can be extended.VOX Function:
CD108 digital radio can be voice-operated. This function truly frees your hands. When busy, you can clip this radio with a belt clip in the standard pack. Don't worry about the operation and clarity.

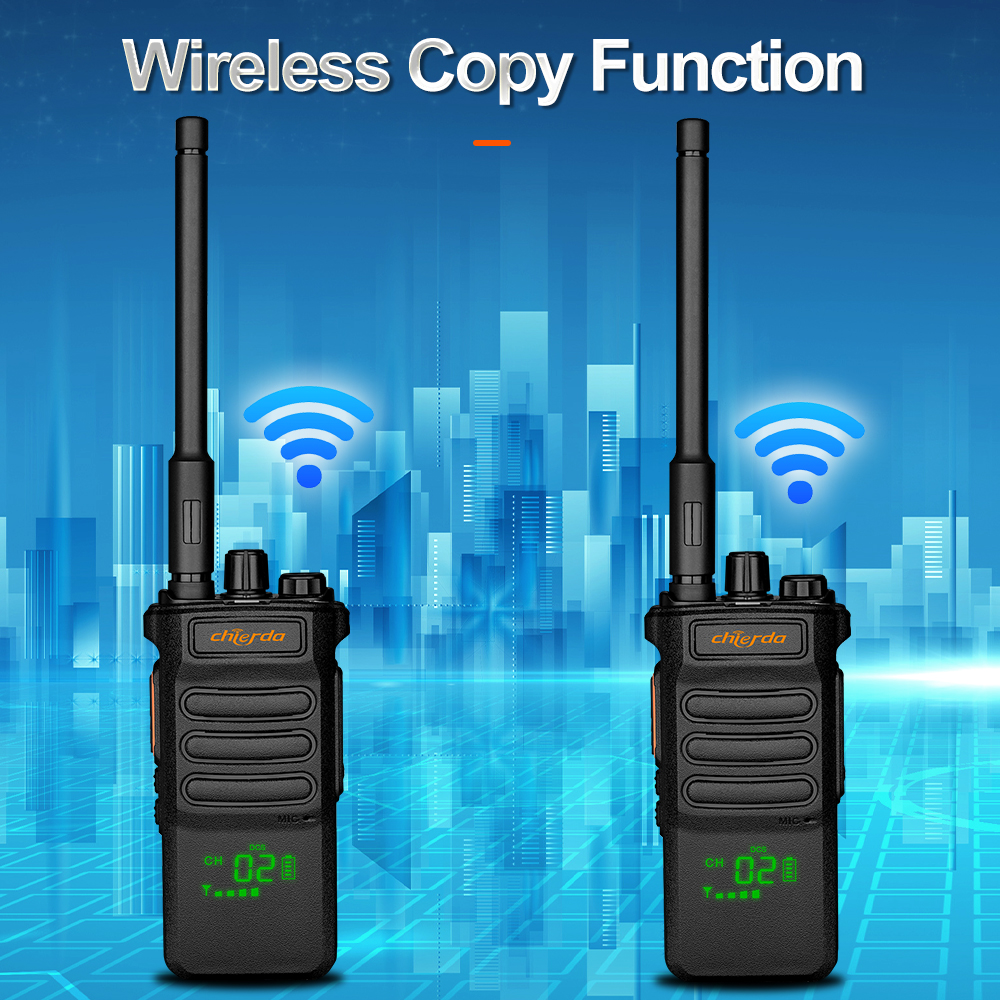

Wireless Copy Function:
This function lets users easily copy settings from one device to another for quick setup. Greatly increase work efficiency.CD-108 | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 128 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
CD-108D | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 128 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
CD-108F with Bluetooth | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 128 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
Product set
Radio*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
