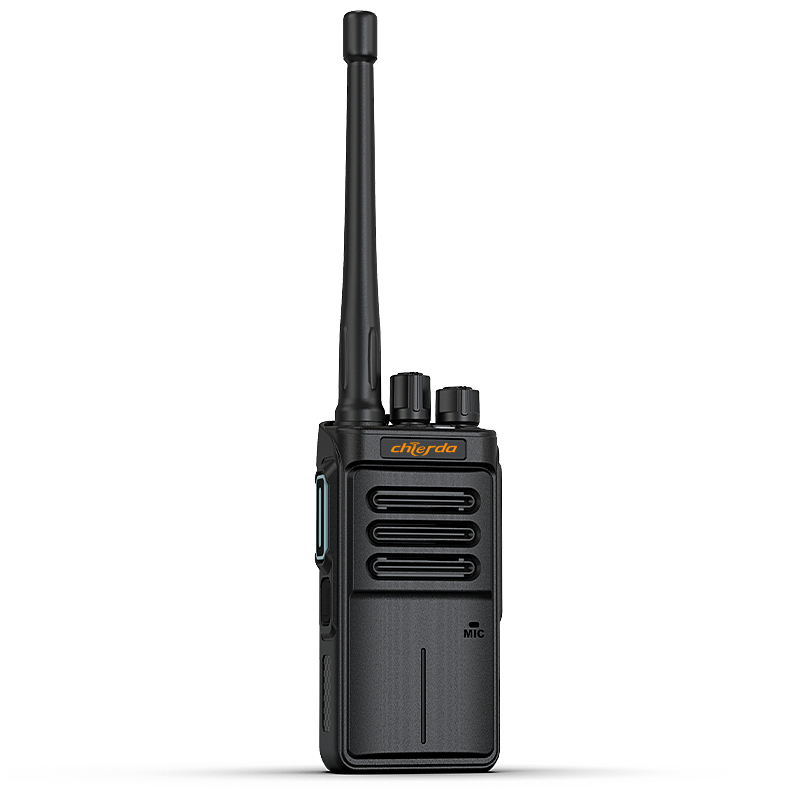

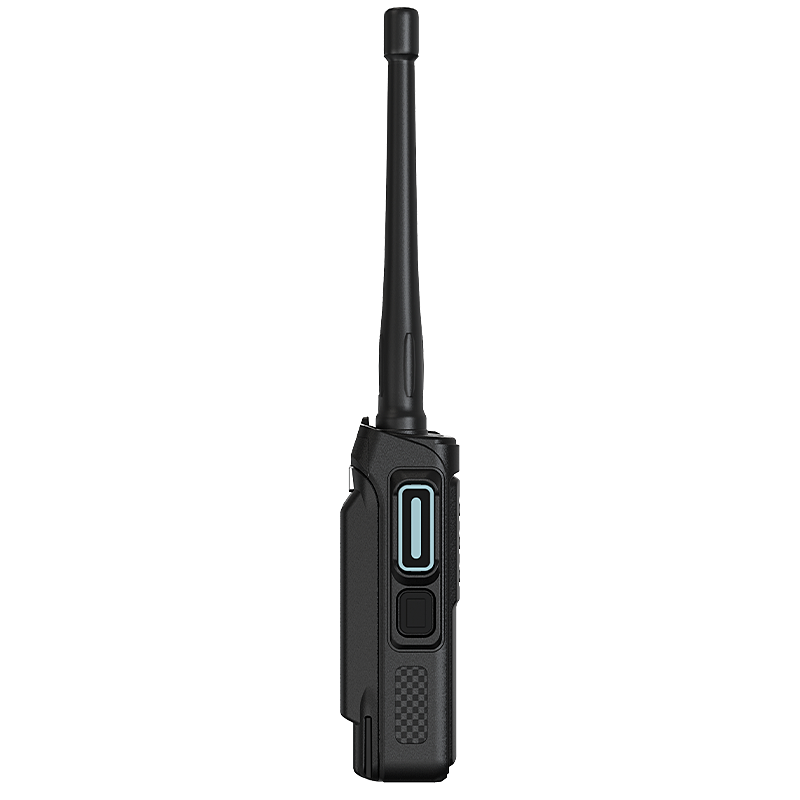

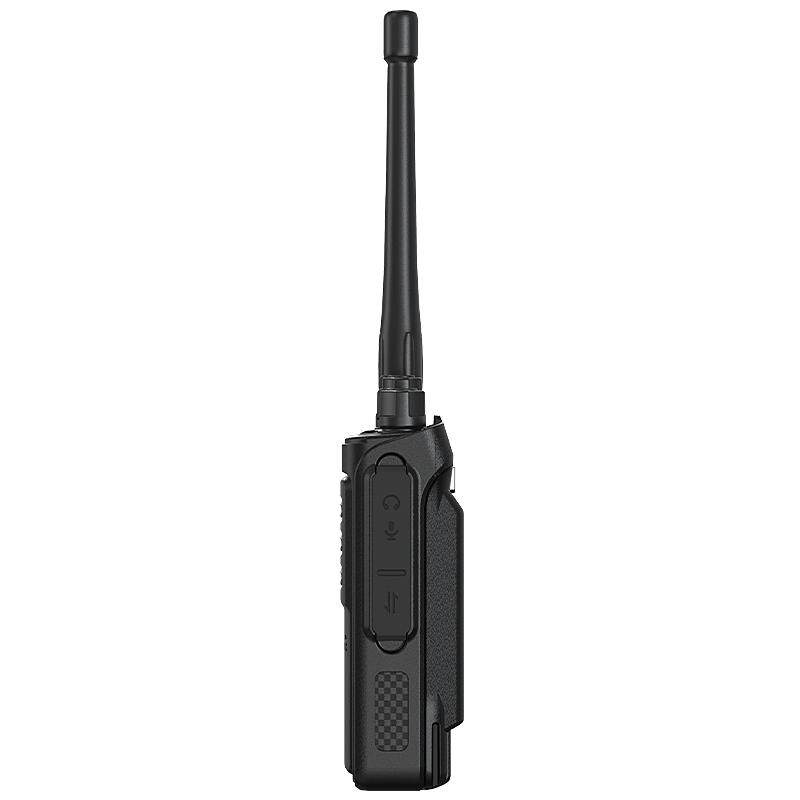

Chierda TC56D AES256 Encryption DMR Digital Radio

TC56D

1. AES256 Encryption, Compatible with MOTOTBRO Radios

2. DMR Radio

3. VOX Hand-free Function

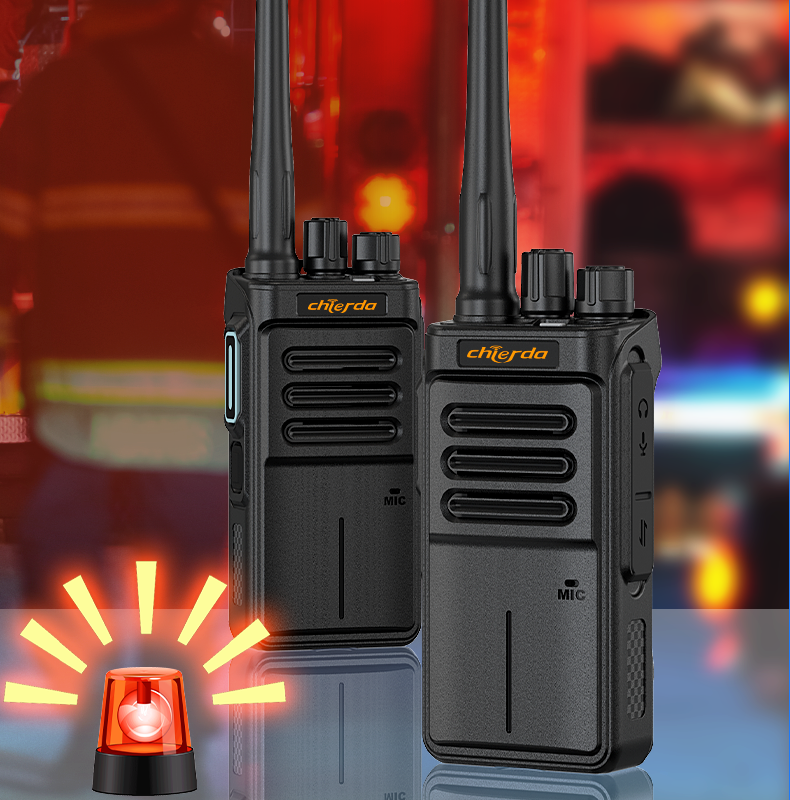

4. Recording Feature and Audio Playback

5. Single/Group/All Call

6. Emergency Alarm Function

7. Selectable High/Low Power Mode

8. Remote Kill/Active

9. Repeater Capable

Contcat Us

Features
Specification

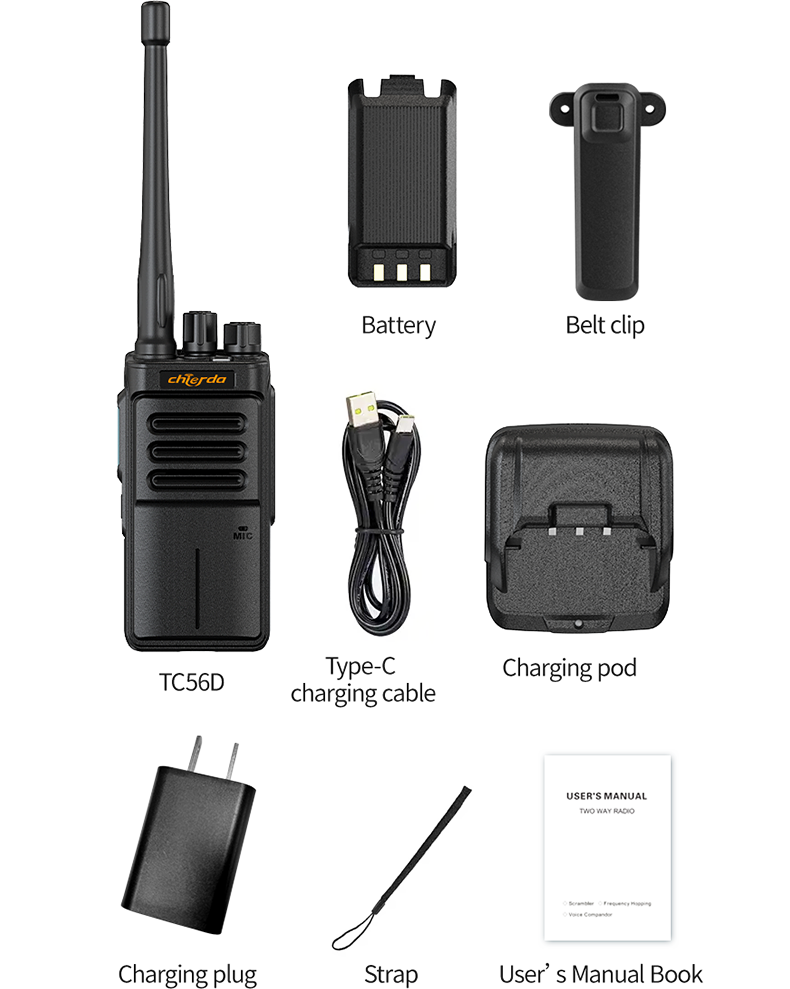

Whats in the Box
Resources

Features

Chierda TC56D DMR radio is professional-grade and packed with a lot of advanced features. It features AES256 encryption to protect the talk's security and privacy. It is repeater capable and can be connected with DMR repeater to extend communication range. These makes it a perfect choice for use in government deparments and security team.

Advanced AES256 Encryption:

AES256 encryption is an advance and latest technology to encryted your talk. TC56D uses AES256 encryption to make your talk uncrackable. It can also compatible with MOTOTBRO.

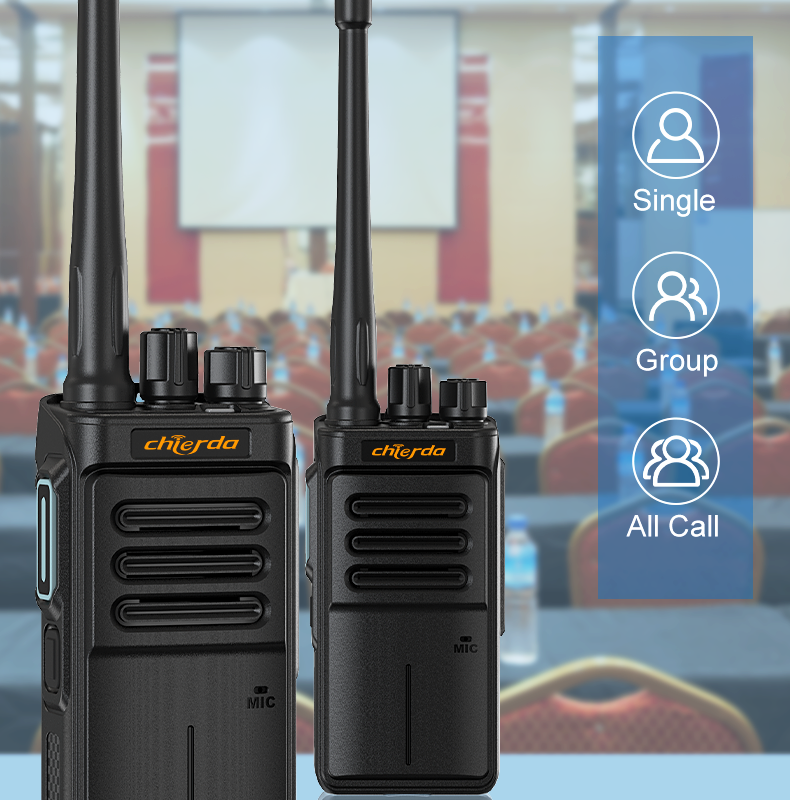

Sing/Group/All Call:

TC56D DMR radio supports various call modes, including single call, group call, and all call. you can call one to one, one to a group, or one to all.

Audio Playback:

TC56D radio is equipped with a high-capacity recording chip and supports continuous real-time recording. You can also playback the recorded audio.

Specification

SPECIFICATION
Frequency Range	UHF:400-480MHz or VHF:136-174MHz
Channels	512(32zone)
Channel Spacing	12.5kHz/25kHz
Antenna Impedence	50Ω
Operating Temperature	-20℃+60℃
Storage temperature	-40℃+85℃
Operating Voltage	DC 7.4V
Battery Type	2000mAh Li-ion
Dimension (No indude antenna and knob)	1125538.5mm
TRANSMITTER
Output Power	5W
Frequency Sensitivity	±1.5ppm
Adjacent Channel Power	-40dBm@12.5kHz
Modulation Mode	FM
Modulation Constraints	2.5kHz@12.5kHz
Audio Distortion	≤5%
Vocoder Type	AMBE+2TM
4FSK Digital Modulation	12.5kHz(data only)7K60FXD
	12.5kHz(data+voice)7K6OFXE
Digital Protocol	ETSI TS 102361-1.-2.-3
RECEIVER
Analog Receiver Sensitivity	0.35uV/-116dBm(12dB SINAD） 0.22uV/-120dBm(12dB SINAD)
Digital Receiver Sensitivity	0.3uV-117.4dBm(BER 5%) 0.22uV/-110dBm(BER 1%)
Blocking	84dB
Adjacent Channel Selectivity	TIA603C:-65dB ETS1:-60dB
Audio Frequency Power	≥500mW
Audio Response	+1~-3dB
Receiving Spurious Transmitting	≤-57dBm@30MHz~1GHz
	≤-47dBm@1GHz~12.75GHz
Audio Distortion	≤3%(Type)
Spurious Response	TIA603C:-65dB ETSL-65dB
