Chierda CD-A8 Long Range Waterproof DMR Handheld Radio
CD-A8
1. IP67 Waterproof and Dustproof
2. Conformity with DMR Tier I & II
3. High/Low Power Options
4. Rugged Design
5. 128 Channels
6. FCC & CE Certified
Chierda CD-A8 Digital radio has conformity with DMR Tier I & II. It can be compatible with Motorola DMR radios. It features a rugged body, making it suitable for use in construction sites, warehouses, security, and other mission-critical industries.
IP67 Waterproof and Dustproof:
CD-A8 radio has an IP67 waterproof rating and is tested by the authorized lab. This means the radio can endure submersion in one meter of water for 30 minutes and still work normally. It's also dustproof and fearless of use in any harsh environment.Frequency Hopping and Scrambler Function:
Chierda CD-A8 DMR is a high-performance radio with many advanced features. Frequency hopping and scrambler functions can make communication much safer and more efficient.
High Power Wide Coverage:
Chierda CD-A8 radio has an output power of 10W. Users can choose high or low power according to their needs. 10W output power allows communication coverage up to 12km.SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 128 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2900mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 128x58.5x39mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

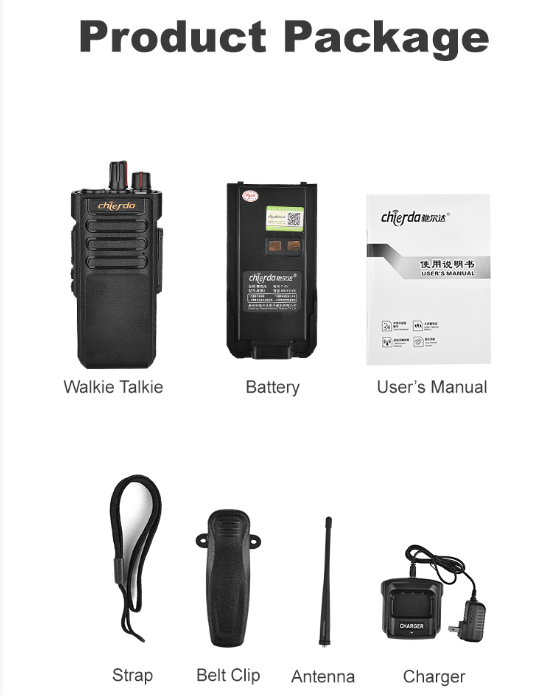

Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
