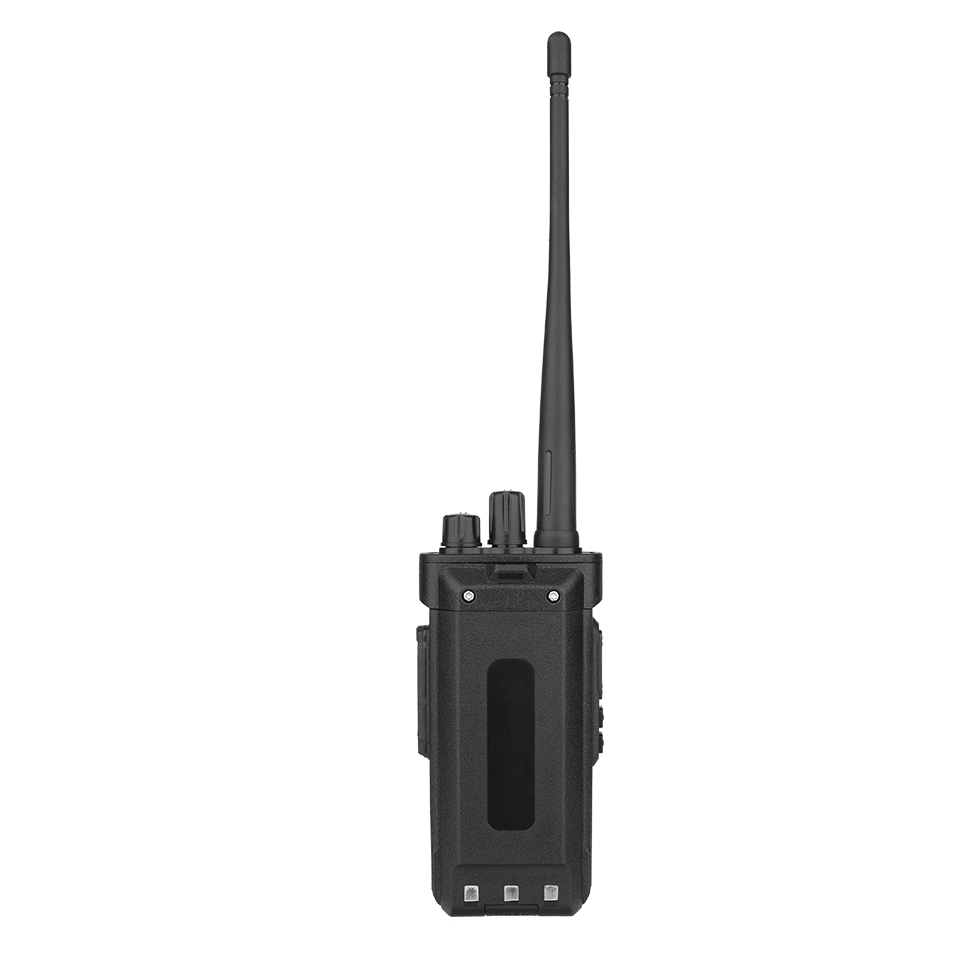

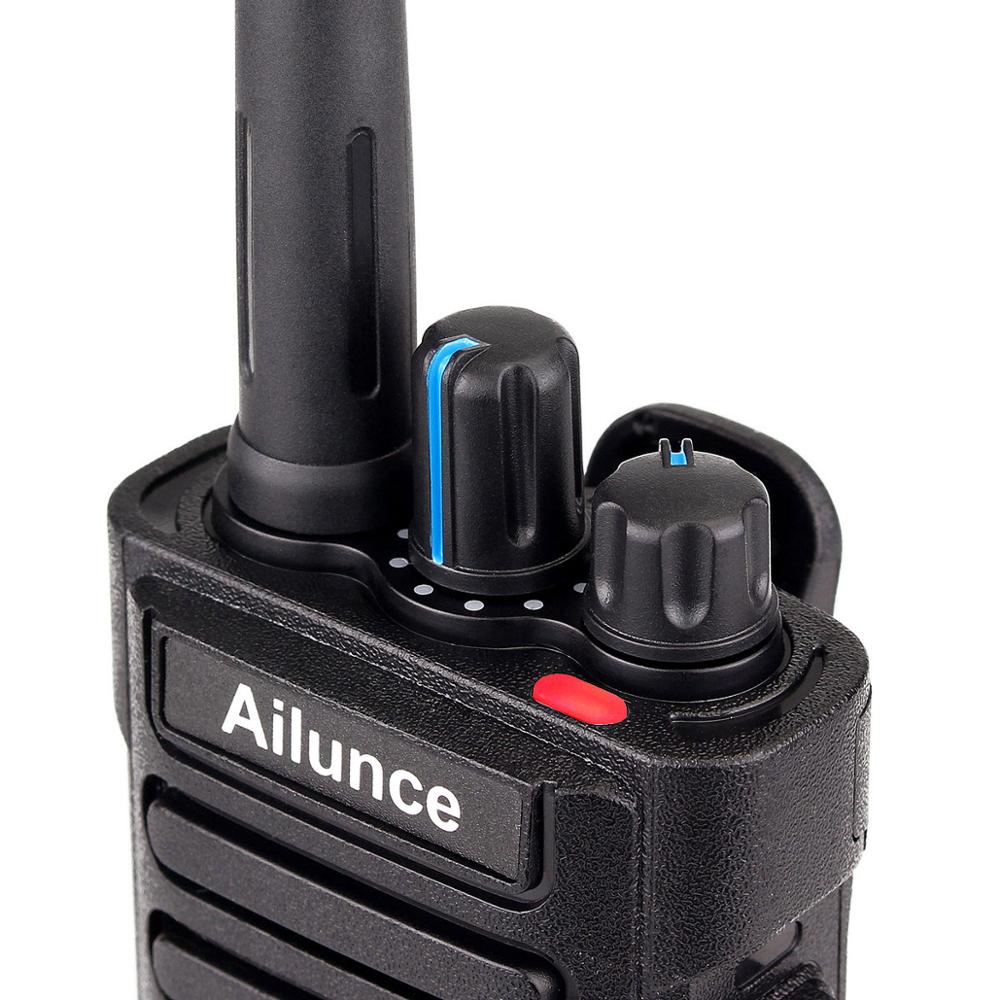

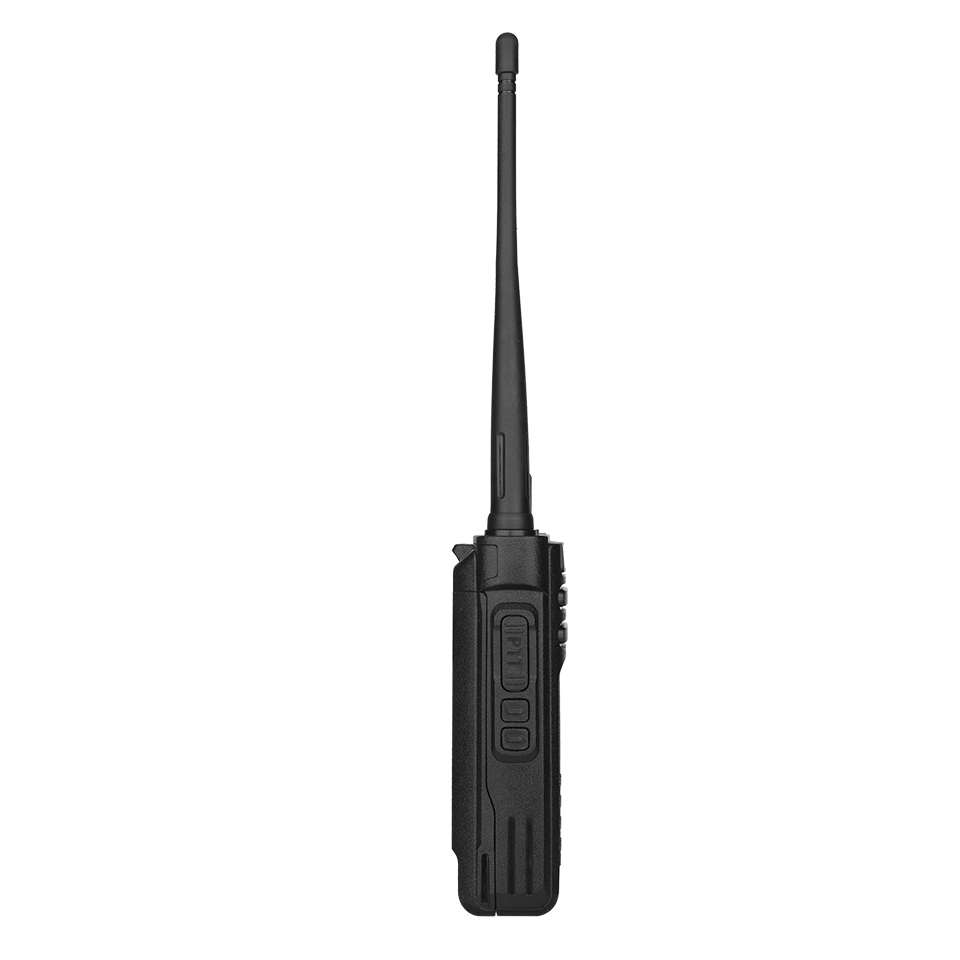

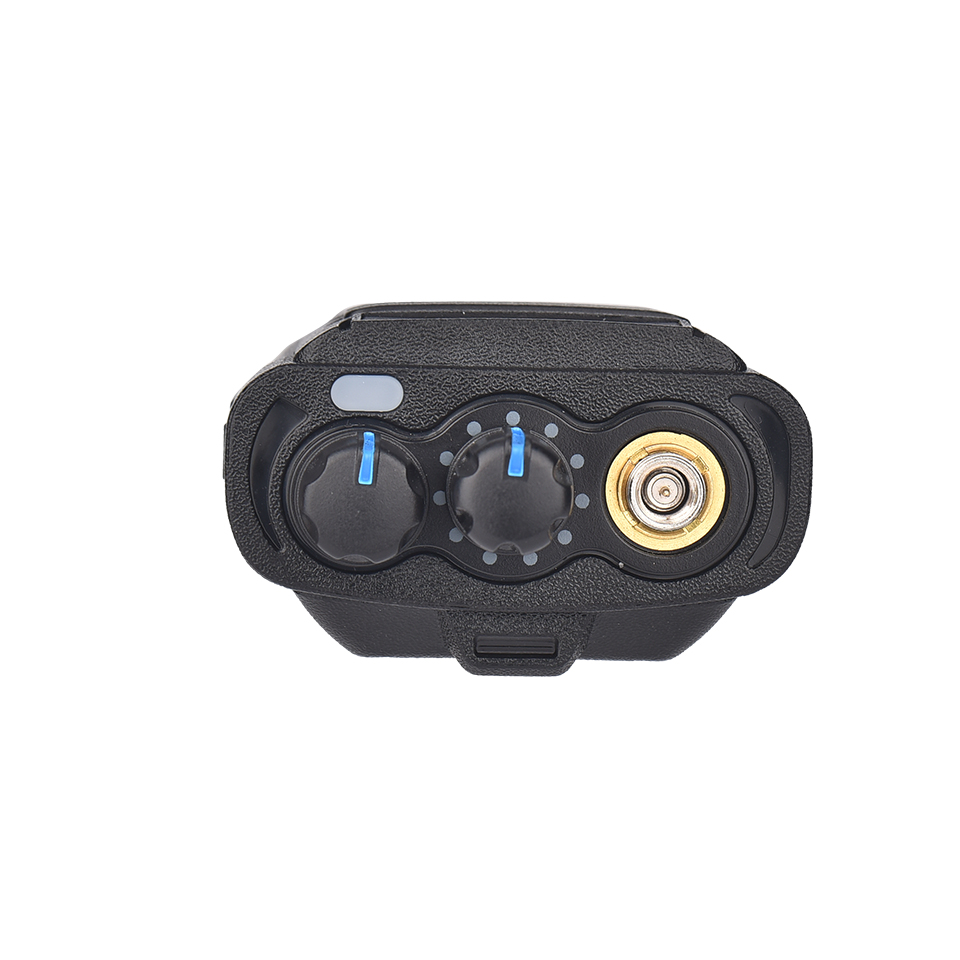

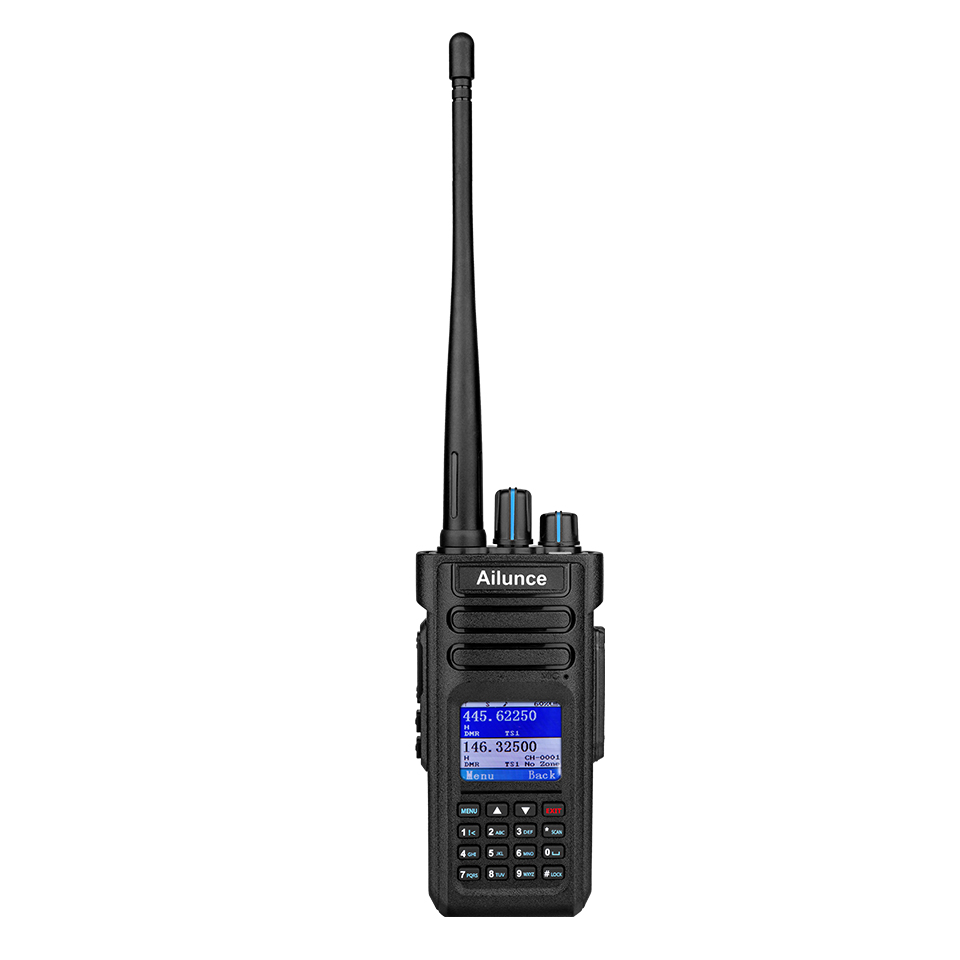

Chierda HD1 IP67 Waterproof Long-range Dual Band DMR Handheld Radio
HD1
1.IP67 Waterproof Dual Band Ham Radio
2.Digital/Analog Double Modes
3.Compatible with Motorola Tier Ⅰ&Ⅱ
4.2900mAh Large Battery Capacity
5.GPS Optional
6.CE, FCC, IC Approved
Chierda HD1 IP67 Waterproof Long-range Dual Band DMR Handheld radio has 3000 channels, 100000 contacts, and 1000 priority contacts. It features an LCD screen and a full DTMF keyboard. It is compatible with MOTOTRBO series Tier I and II. Dual-band mode for users to choose. HD1 radio has optional GPS function. It is a high performance and high functional ham radio and provides enhanced clear sound. These features make HD1 radio popular among radio amatuers.

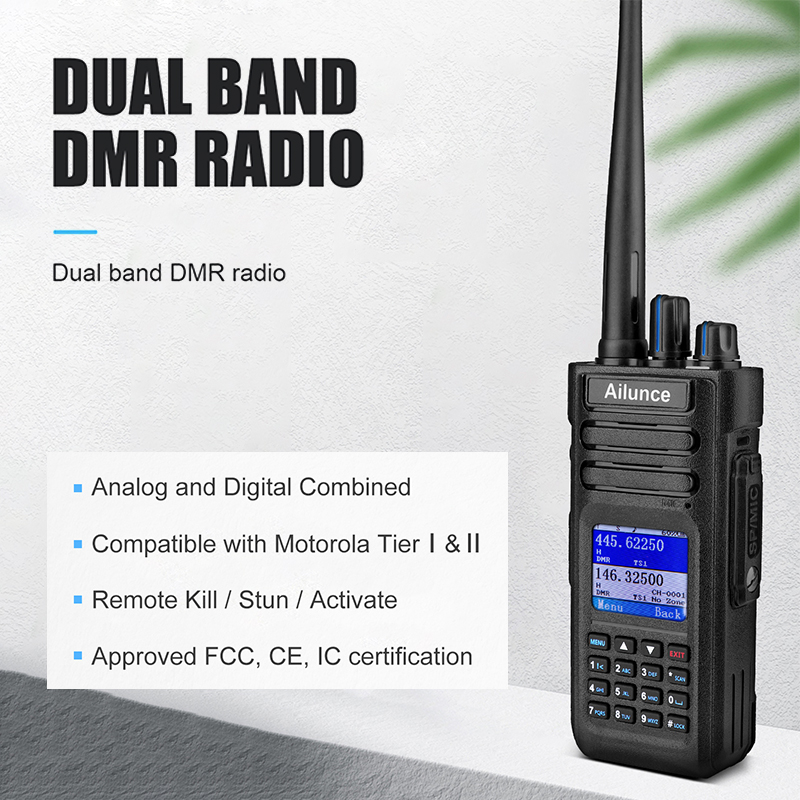

Digital & Analog Double Mode, Dual Band:

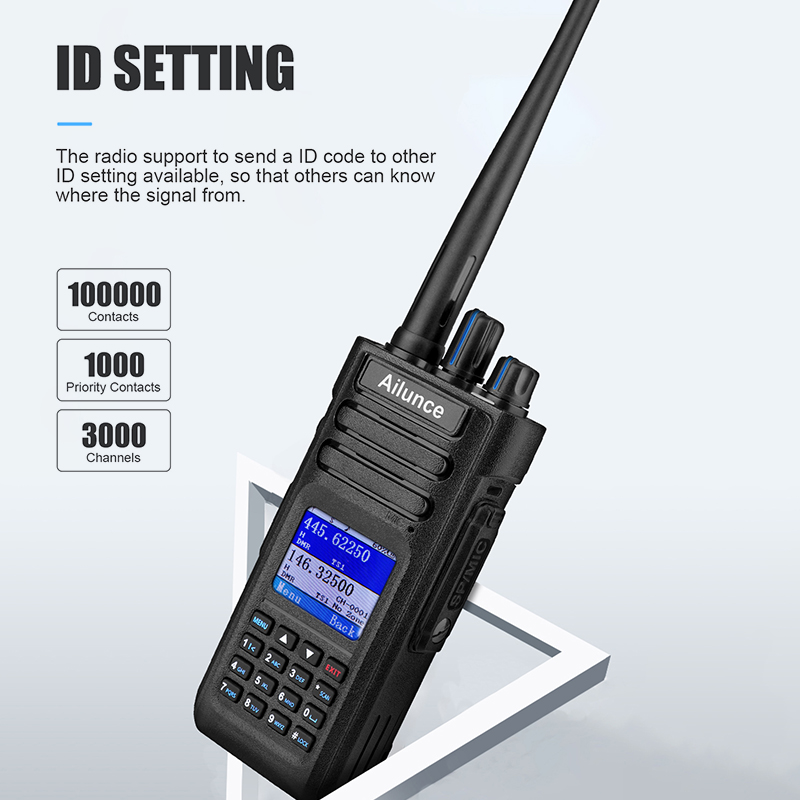

HD1 radio is compatible with digital and analog modes. You can quickly switch working modes of this DMR radio to adapt to different usage environments. In addition, it is compatible with Motorola Tier Ⅰ&Ⅱ.ID Setting:
This feature lets users know exactly where the ID signal comes from. with up to 3,000 channels, 100,000 contacts, and 1,000 priority contacts, HD1 walkie talkie makes complex organizational communications simple and visible.

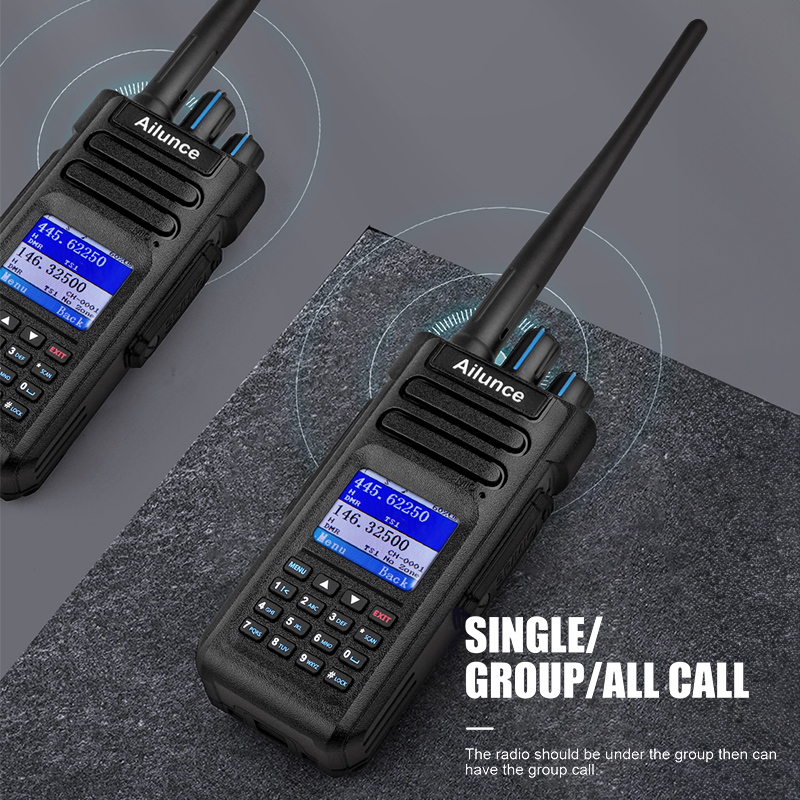

Single/Group/All call:

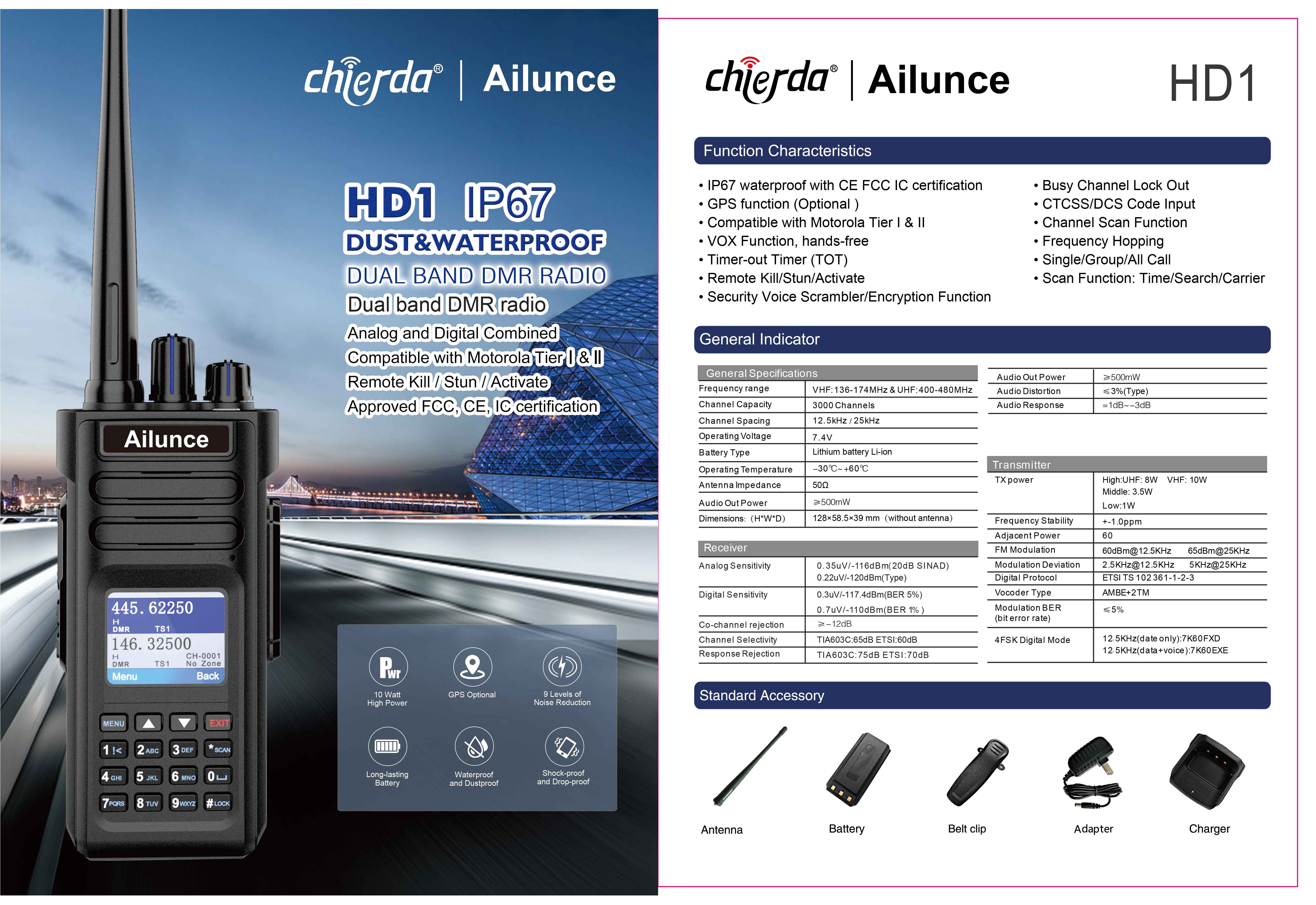

You can use a variety of call methods to make your team work more efficiently.SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Capacity | 3000 |
ChannelSpacing | 12.5 KHz / 25 KHz |
Operating Voltage | 7.4V |
Battery Type | Lithium battery |
Operating | -30℃～+60℃ |
Antenna Impedance | 50Ω |
Audio Out Power | ≥500mW |
Dimension | 128x58.5x39mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜ 5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
| |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
| |
Intermodulation | ≥60dB |

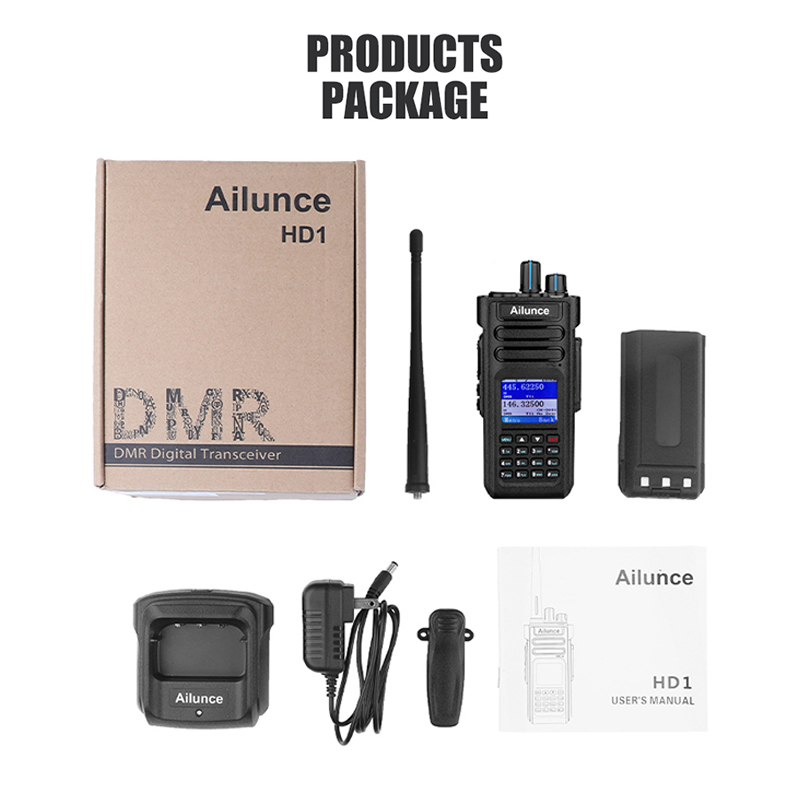

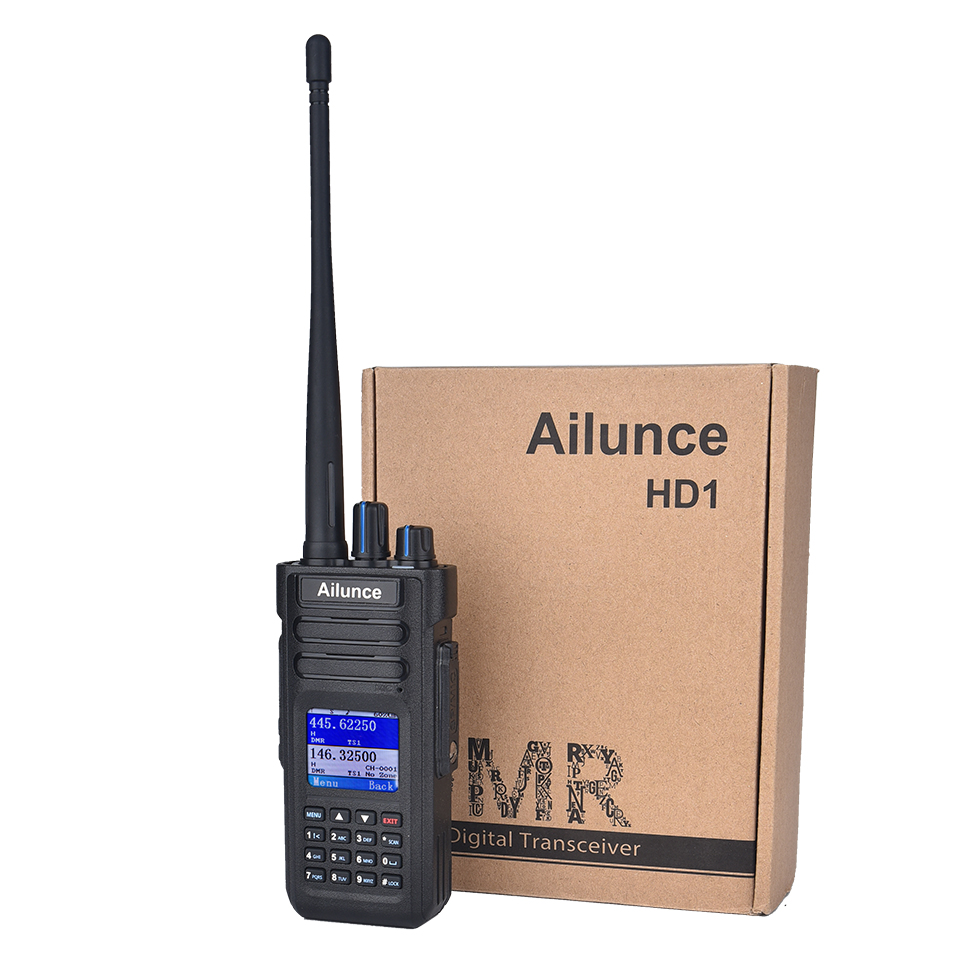

Product set
Radio*1

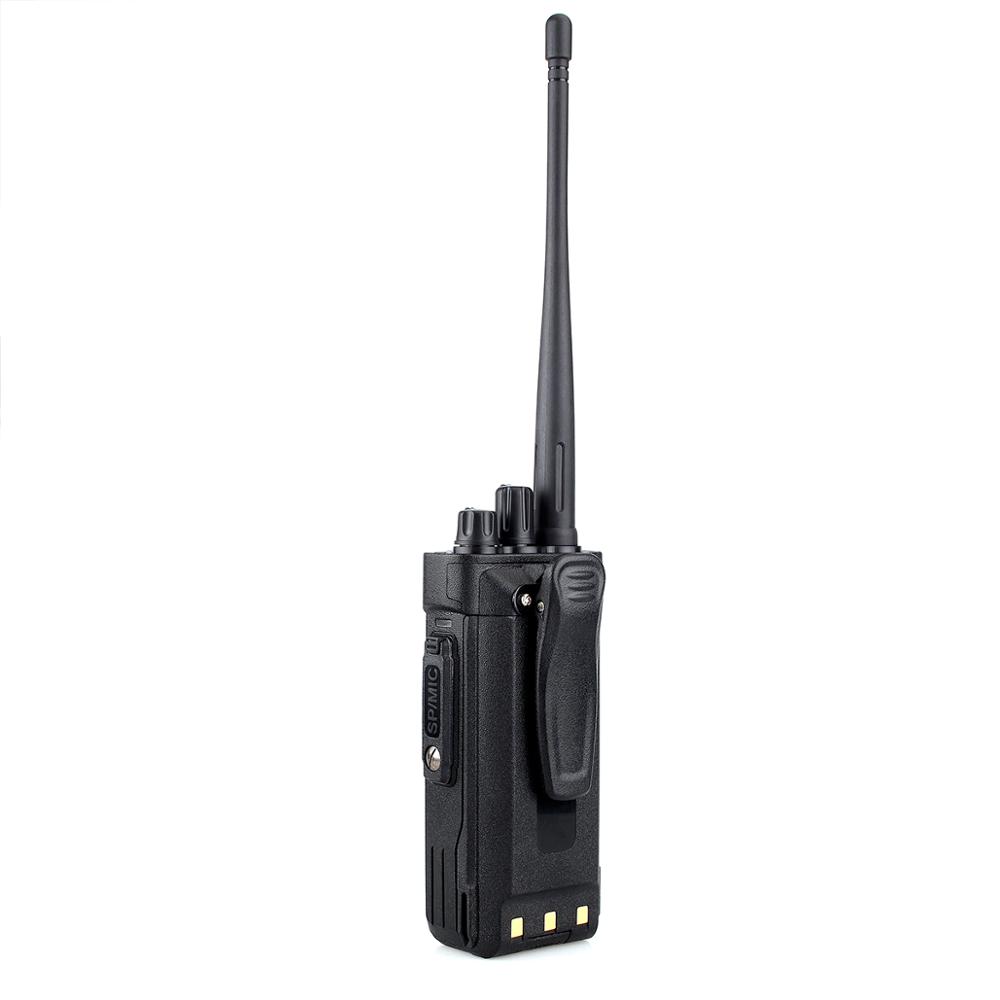

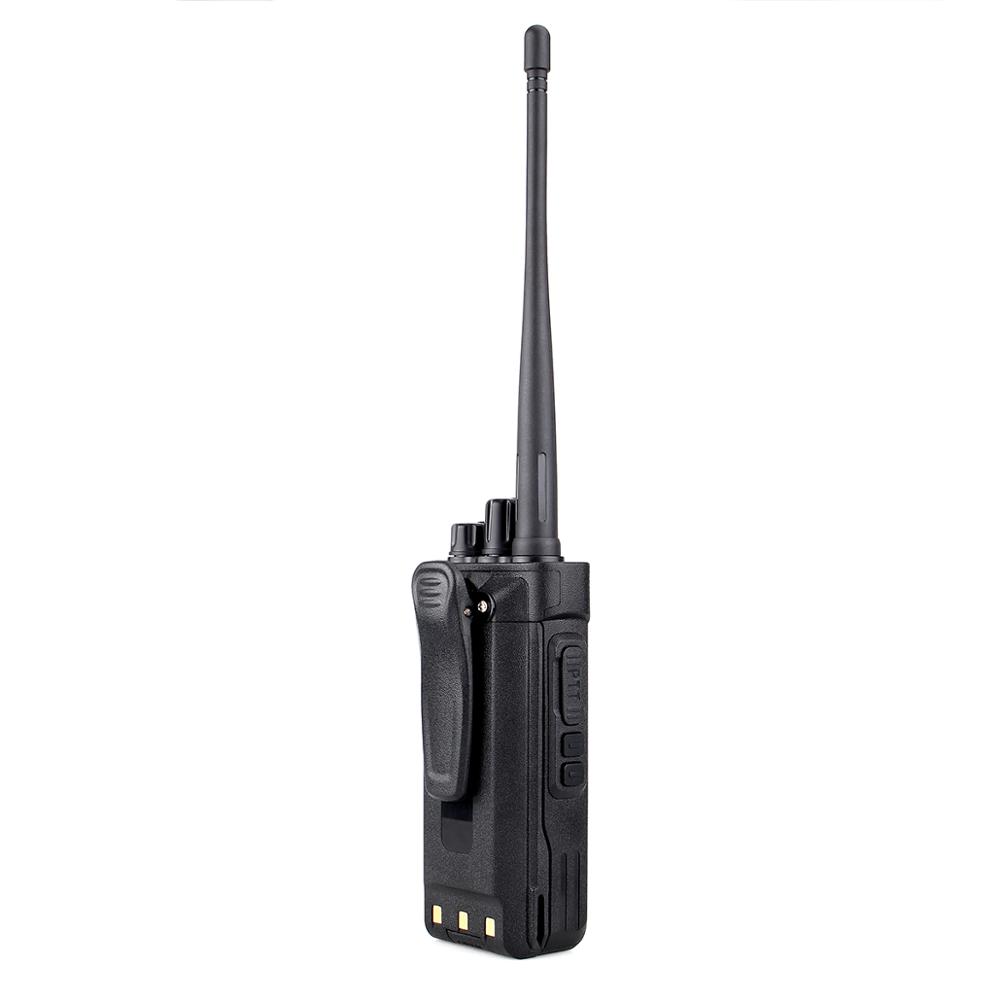

Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
