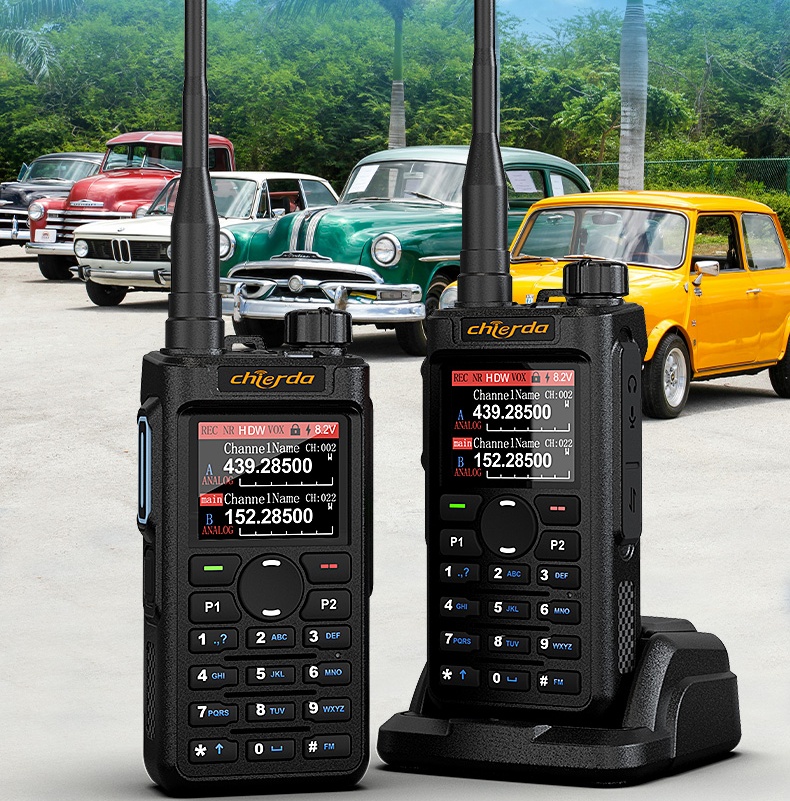

Chierda UV58NBDR UHF VHF Dual Band Ham Radio
UV58NBDR
1. Two Way Noise Reduction
2. UV Dual Band
3. VOX Hands-free Function
4. DTMF
5. Schedulted Shutdown
6. Record and Playback Function
7. One-key Channel Copy, Scan
8. Alarm Function

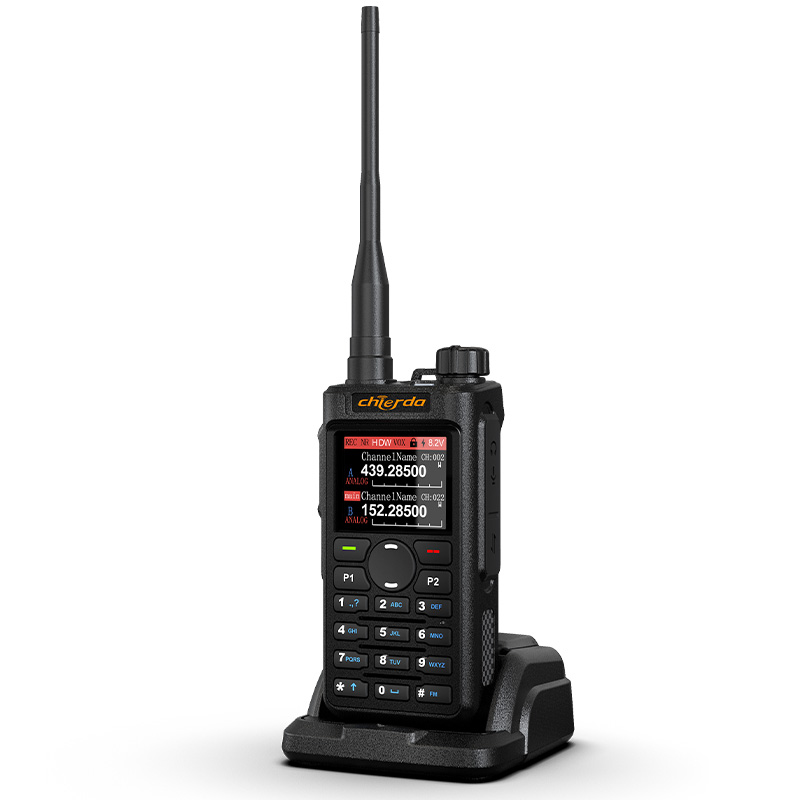

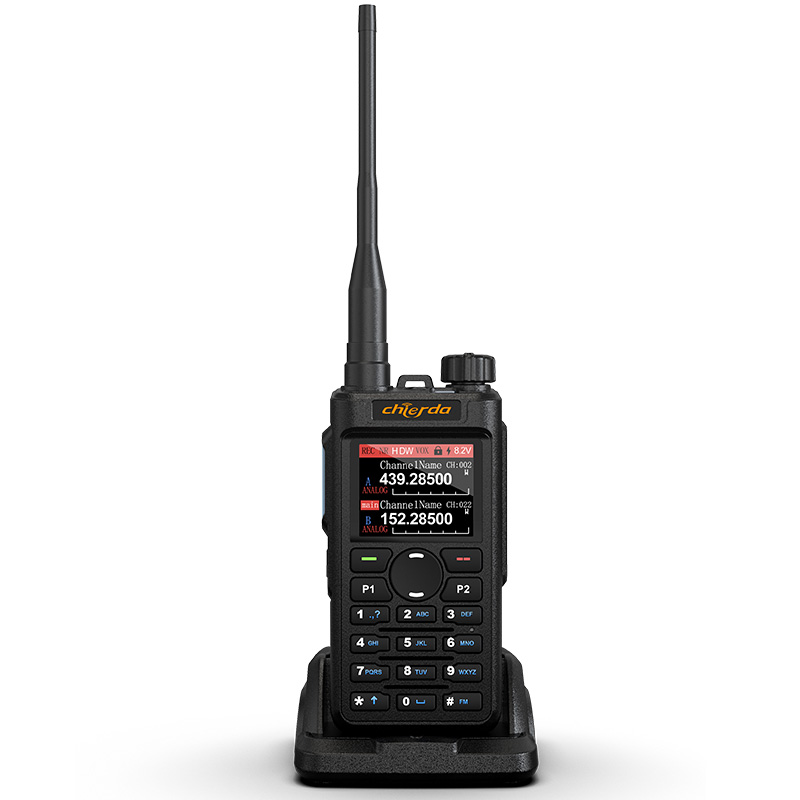

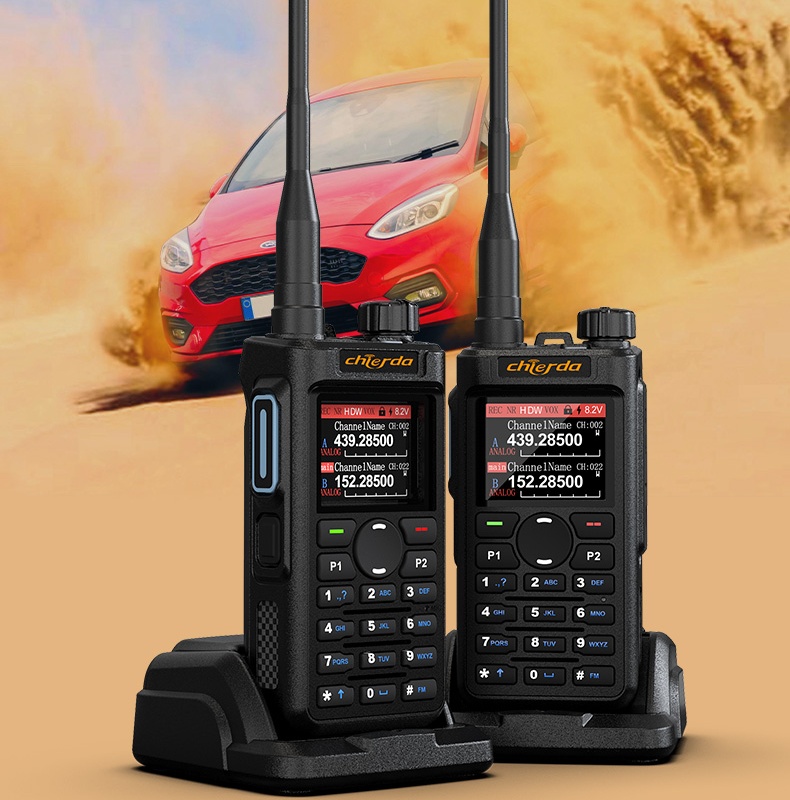

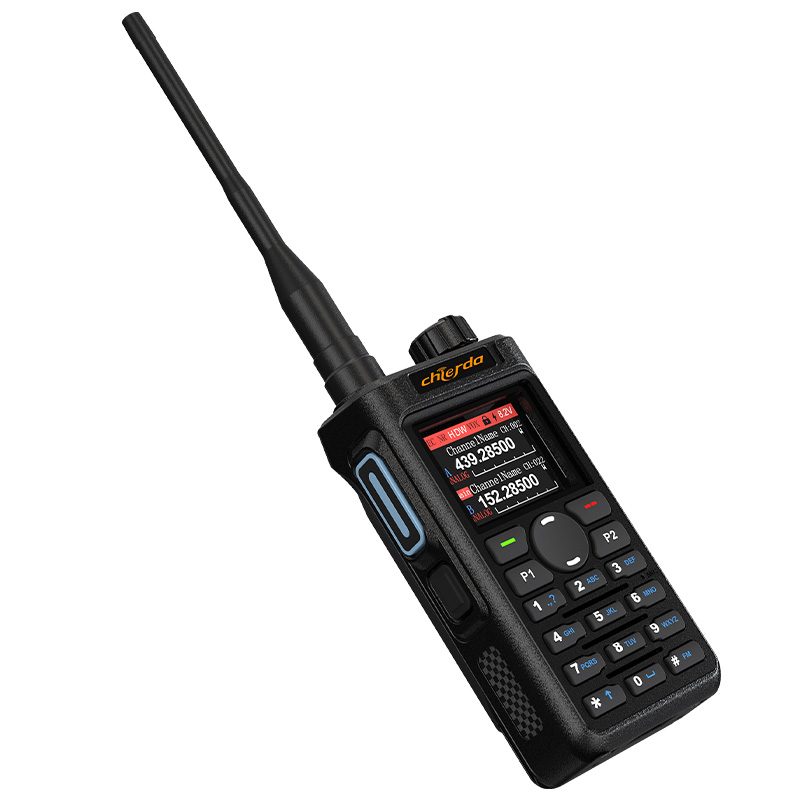

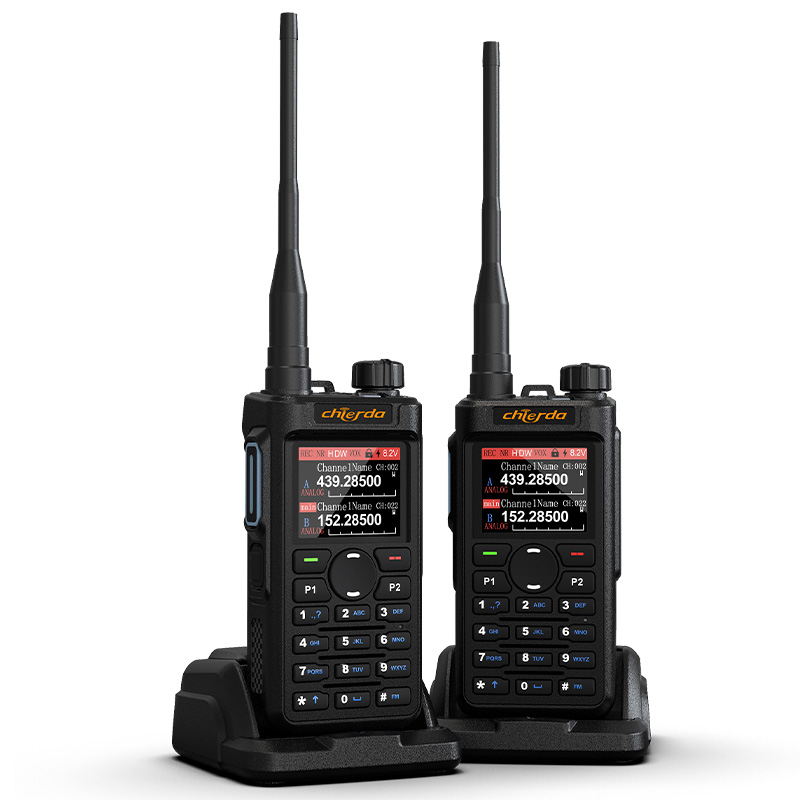

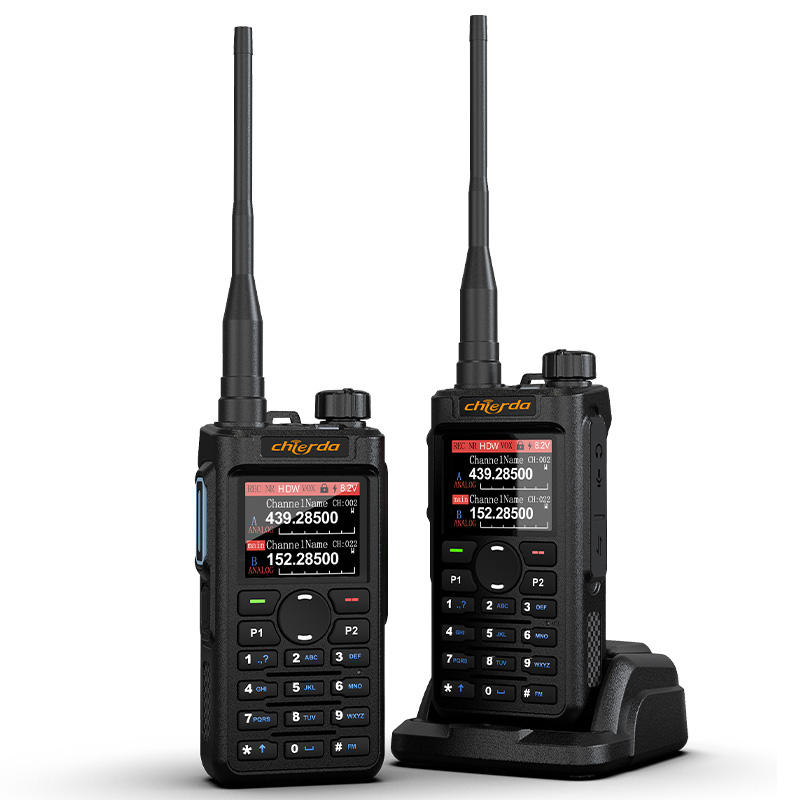

Chierda UV58NBDR is a dual band walkie talkie, which can operate both on VHF and UHF band. It has 256 channels and features two-way noise reduction function. It is ideal for off-road trip, transportation, outdoor camping.
Support UV dual band:

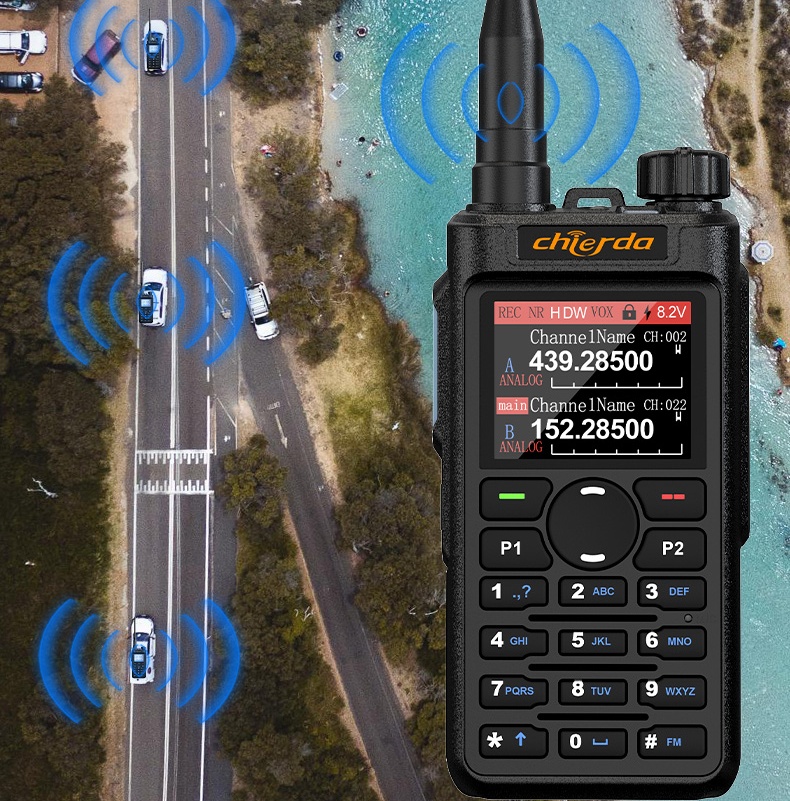

Chierda UV58NBDR radio operates on both VHF and UHF frequency band, which makes it ideal to use in many situations. It provide high clarity with newly upgraded speaker.Two-way Noise Reduction:

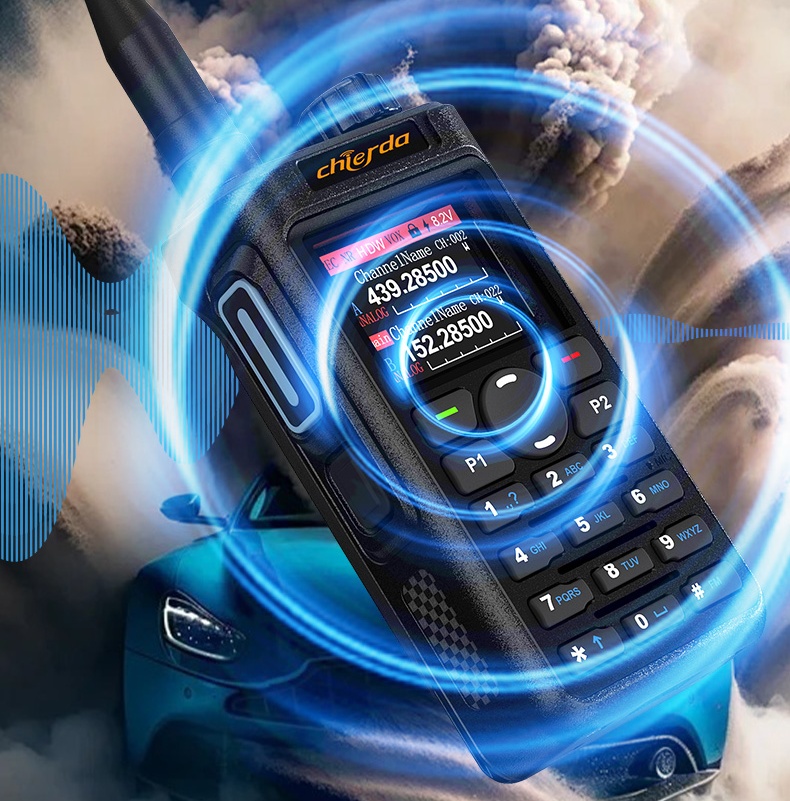

UV58NBDR radio supports two-way noise cancelling. It can not only reduce the background noise on the receiver, but also on the transmitter. By doing so, it delivers crystal clear sound.
One-key Group Call:
You can set a group in advance and start a group call by pressing one key. It is efficient for group communication.Timed Shutdown:
UV58NBDR radio has a timed shutdown function. You can set a time to actively shutdown the walkie talkie. It can save the battery power and extend service life.

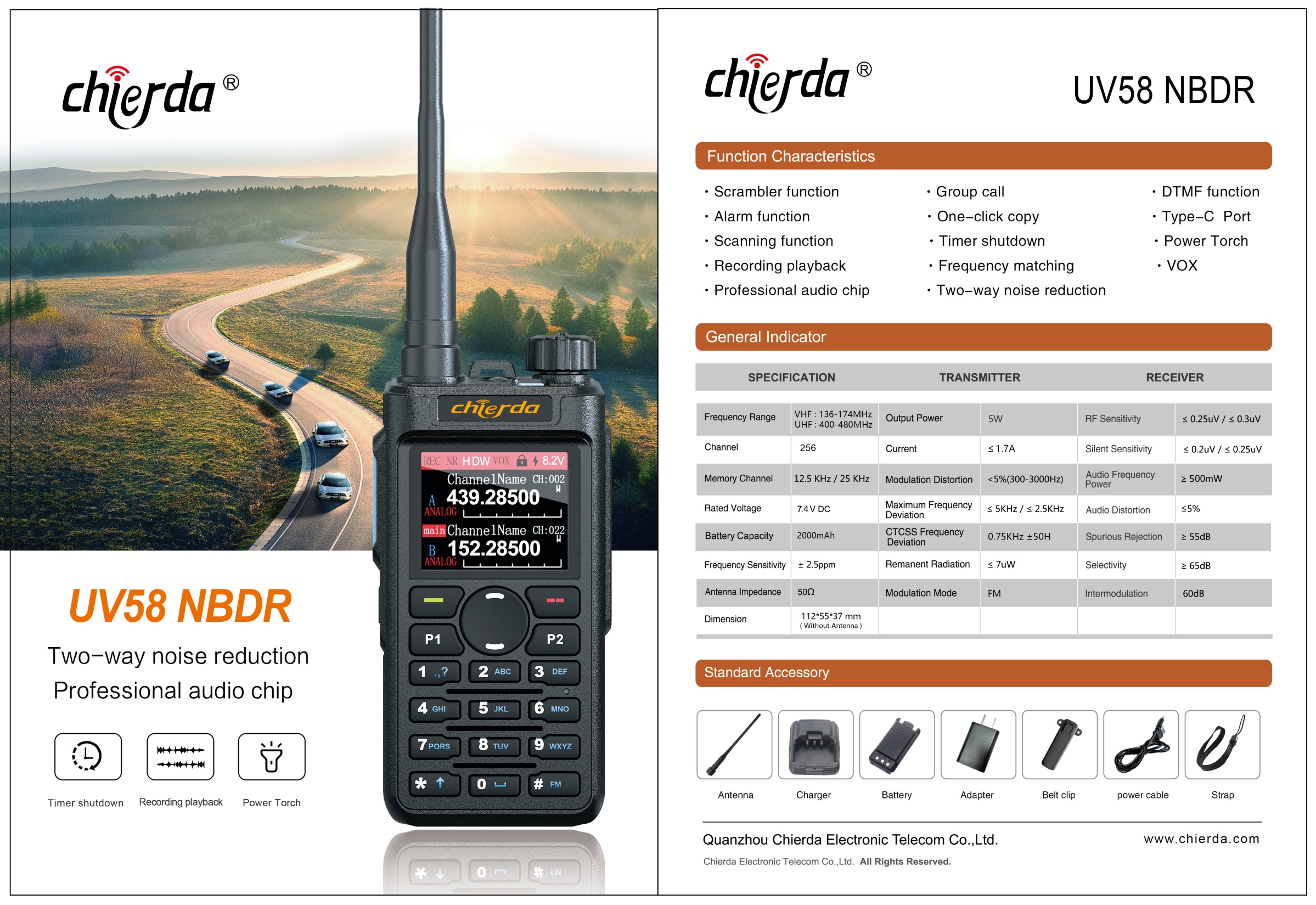

SPECIFICATION | |
Frequency Range | VHF:136-174MHz UHF:400-480MHz |
Channel Spacing | 256 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2800mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 112x55x37mm |
TRANSMITTER | |
Output Power | 5W |
Current | ≤1.7A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

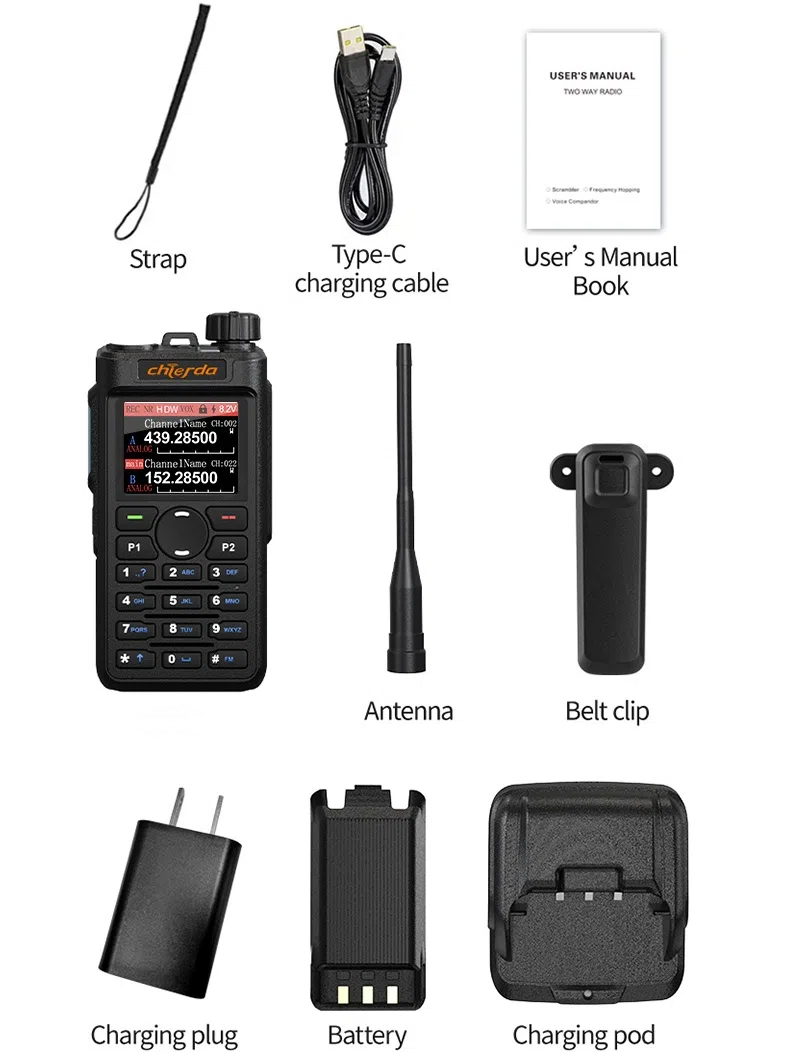

Product set
Radio*1
Strap*1
Type-C charging cable*1
User's manual book*1
Antanna*1
Belt clip*1
Charging plug*1
Battery*1
Charging pod*1
