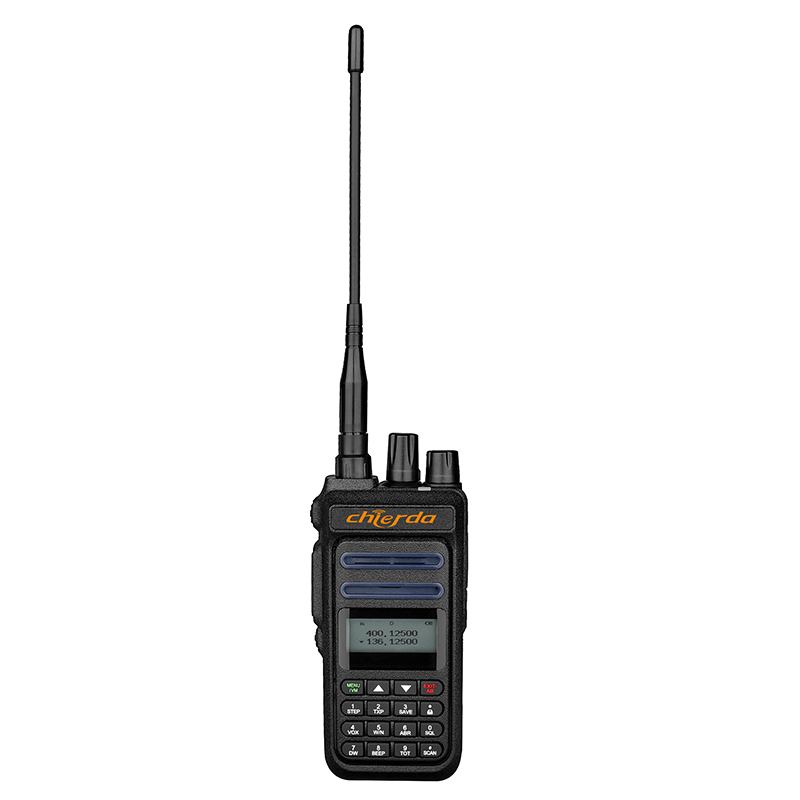

Chierda X2UV 5 Watt Dual Band Radio

X2UV

1.1-5km Talk Coverage, up to 128 Channels

2.VOX Hands-free Function

3.CTCSS/DCS and PTT ID

4.DTMF Function

5.Radio Remote Stun/Remote Kill

6.Single Call, Group Call, All Call

7.Firmware Upgrade

Contcat Us

Features
Specification

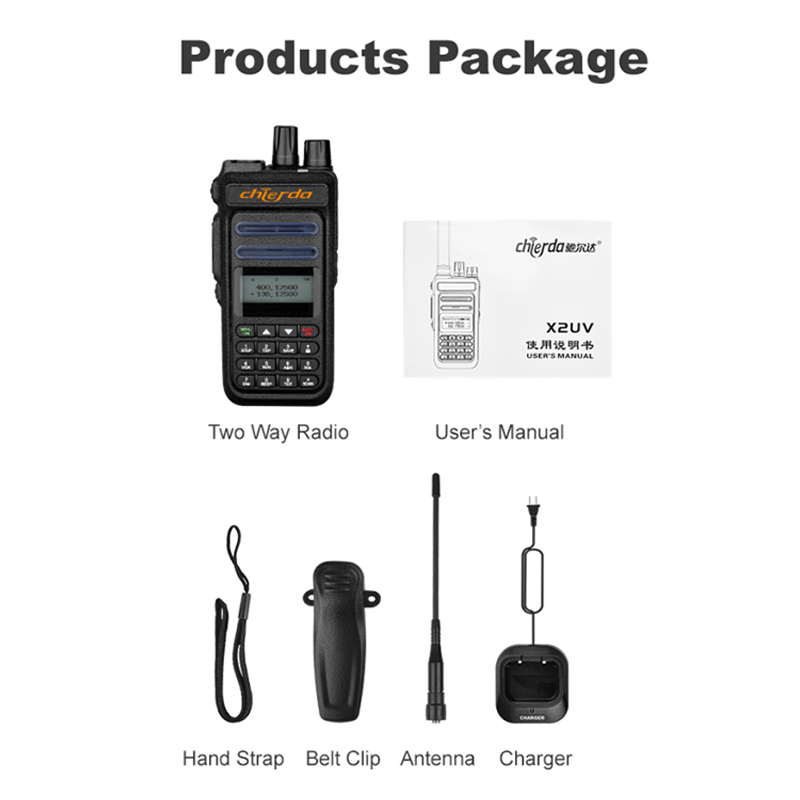

Whats in the Box
Resources

Features

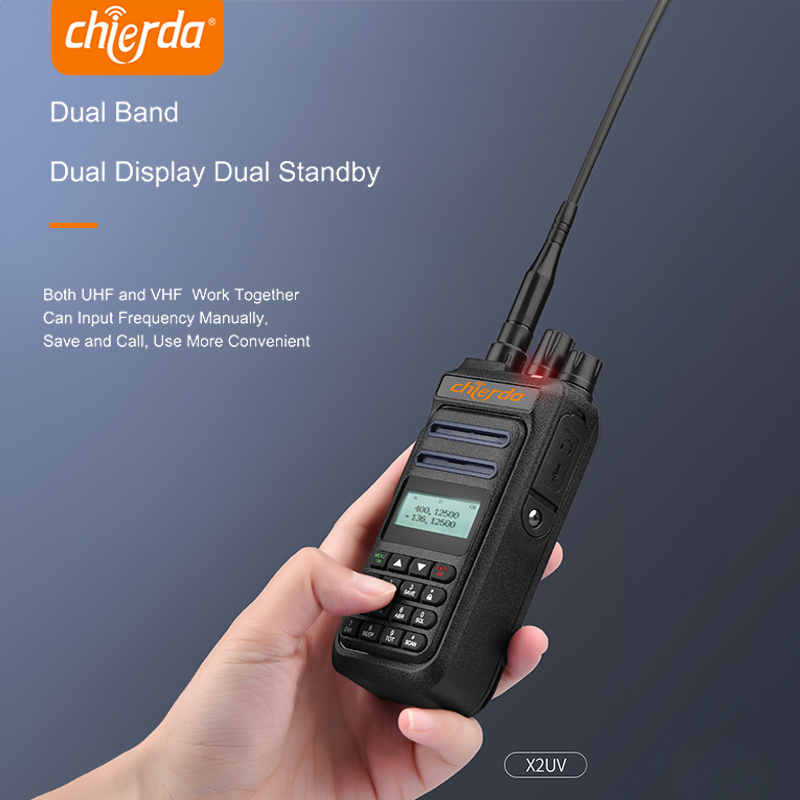

Chierda X2UV 5 Watt GMRS two-way radio features dual band, dual display and dual standby, with 128 channels. Both UHF and VHF can work together. It can cover 1-5 km talk distance. It is suitable for different scenarios such as transportation and logging camps. Group call function is also perfect for warehouse staff belonging to different departments to use, which is more convenient for communication.

Wide Coverage:

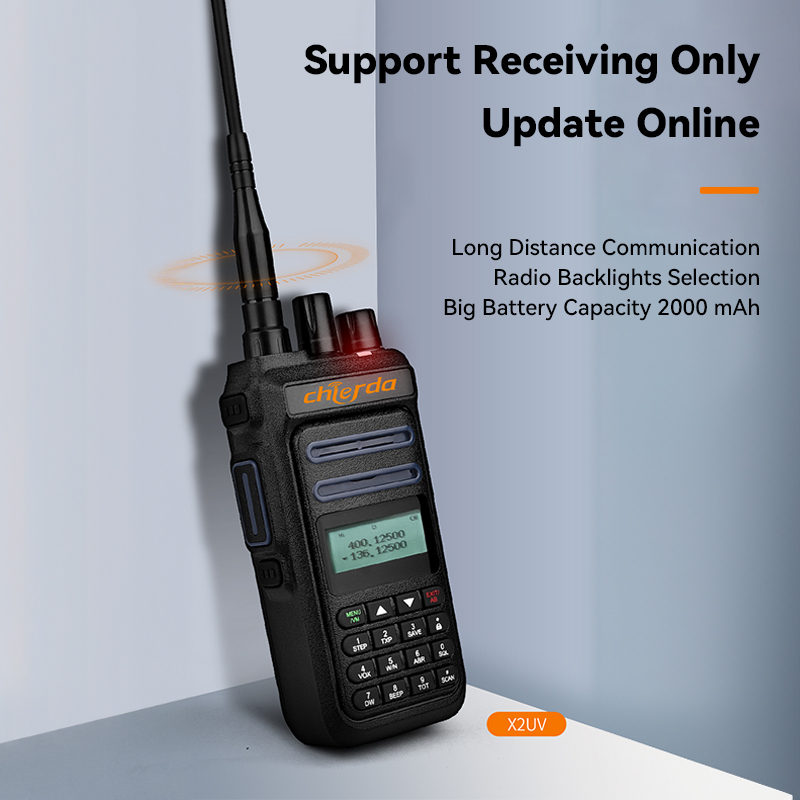

X2UV radio is a 5W dual band handheld radio. It can be used for communication within 5 km range. The firmware upgrade function can support users to upgrade online and continuously optimize the radio.

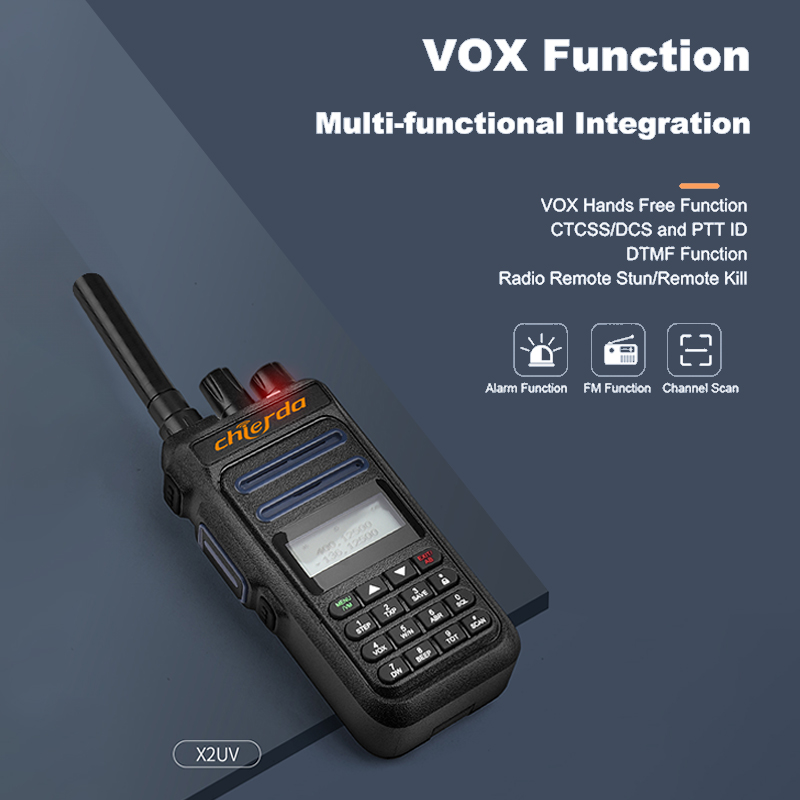

VOX Hands-free Function:

When VOX function is activated, you don’t need to hold and operate the radio to communicate with partners.

Single Call, Group Call, All Call:

Group Call function and ID code greatly improve efficiency between different departments. X2UV walkie talkie features 22 FRS channels and also can be used with other FRS and GMRS radios.

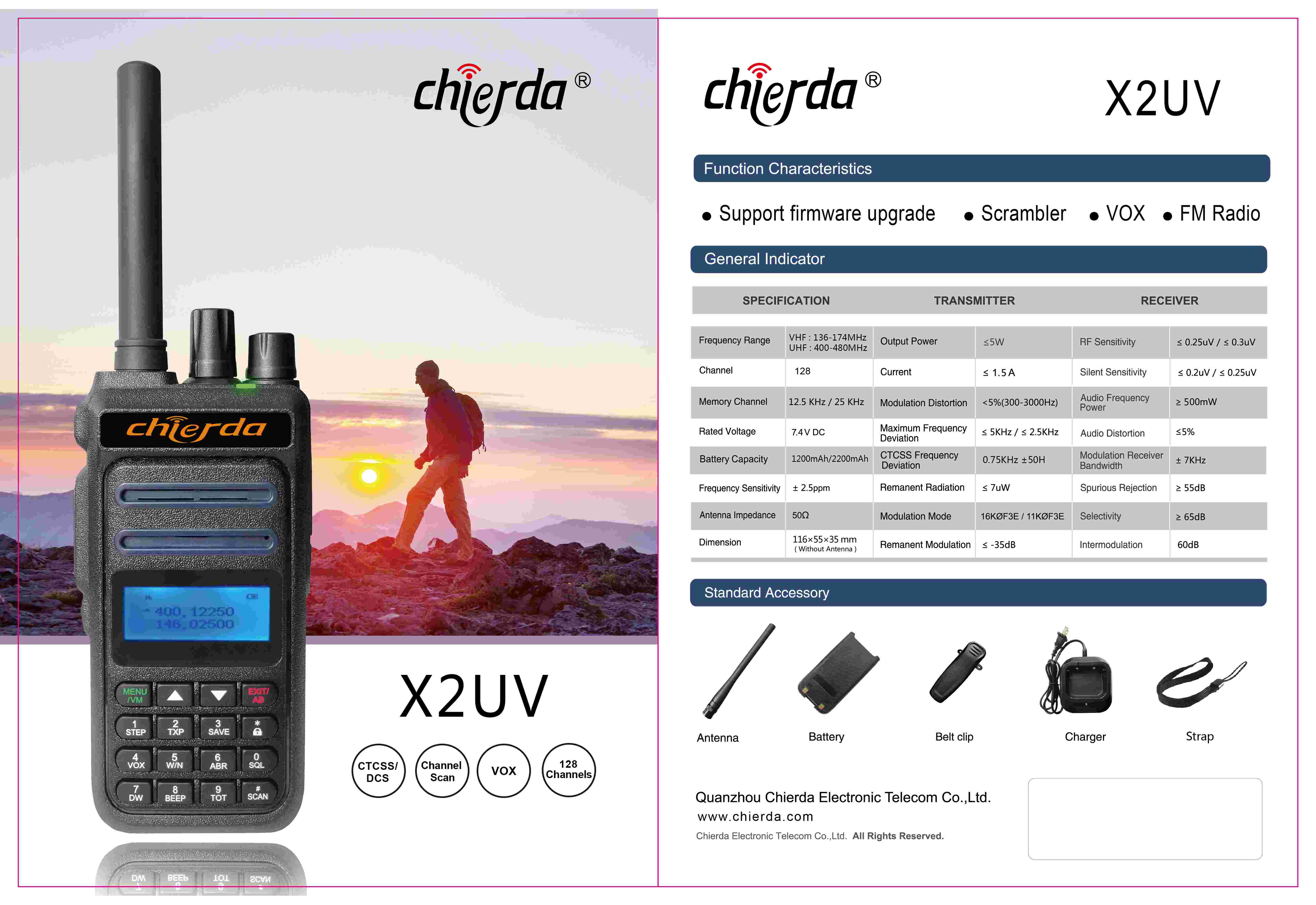

Specification

SPECIFICATION
Frequency Range	VHF:136-174MHz UHF:400-480MHz
Channel Spacing	128
Memory Channel	12.5 KHz / 25 KHz
Rated Voltage	7.4V DC
Battery Capacity	1200mAh/2200mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension	116x55x35mm (Without Antenna)
TRANSMITTER
Output Power	5W
Current	≤1.5A
Modulation Distortion	<5%(300-3000Hz)
Maximum Frequency Deviation	≤ 5KHz/≤ 2.5KHz
CTCSS Frequency Deviation	0.75KHz± 50Hz
Remanent Radiation	≤7uW
Modulation Mode	16K∅F3E/11K∅F3E
Remanent Modulation	≤-35dB
RECEIVER
RF Sensitivity	≤ 0.25uV/ ≤ 0.3uV
Silent Sensitivity	≤0.2uV/≤0.25uV
Audio Frequency Power	≥500mW
Audio Distortion	≤5%
Modulation Receiver Bandwidth	±7KHz
Spurious Rejection	≥55dB
Selectivity	≥65dB
Intermodulation	≥60dB
