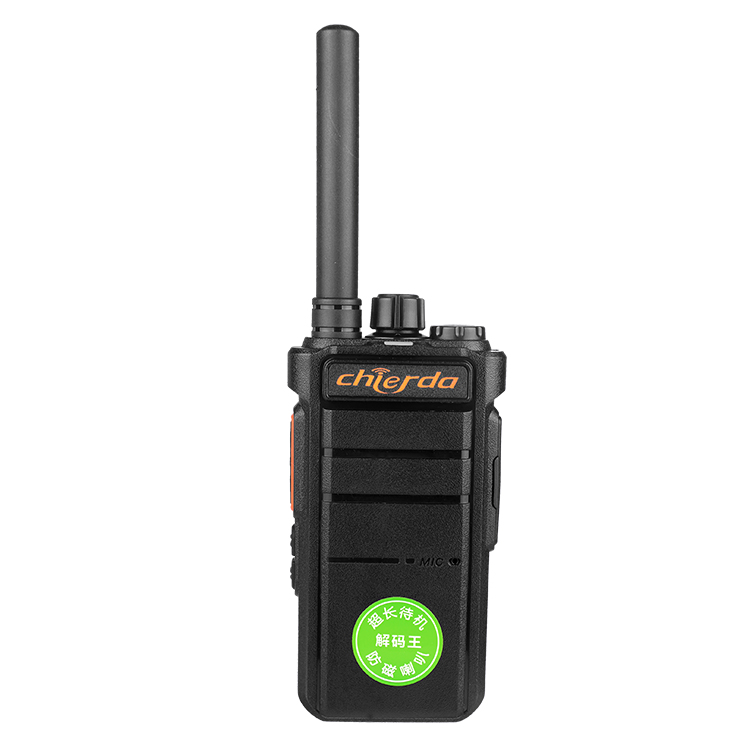

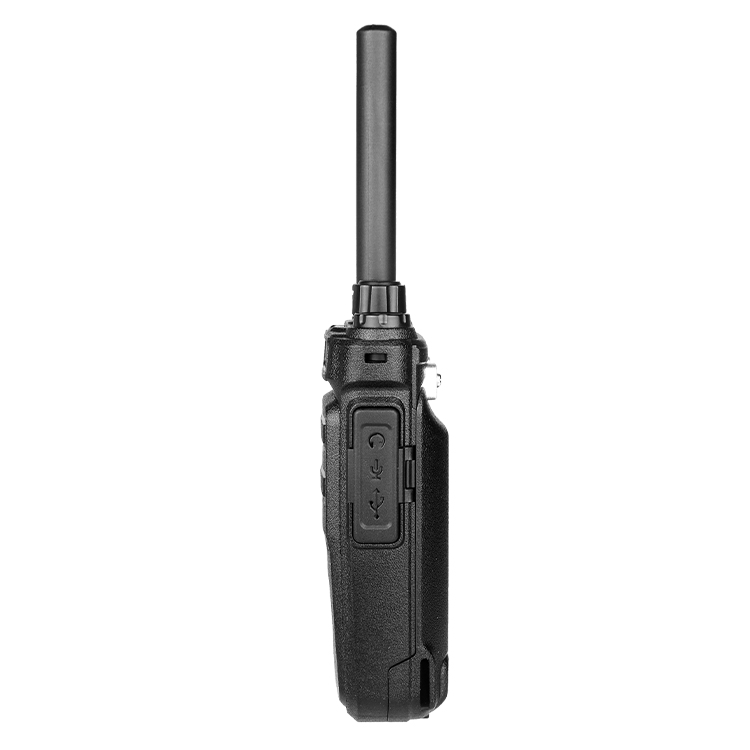

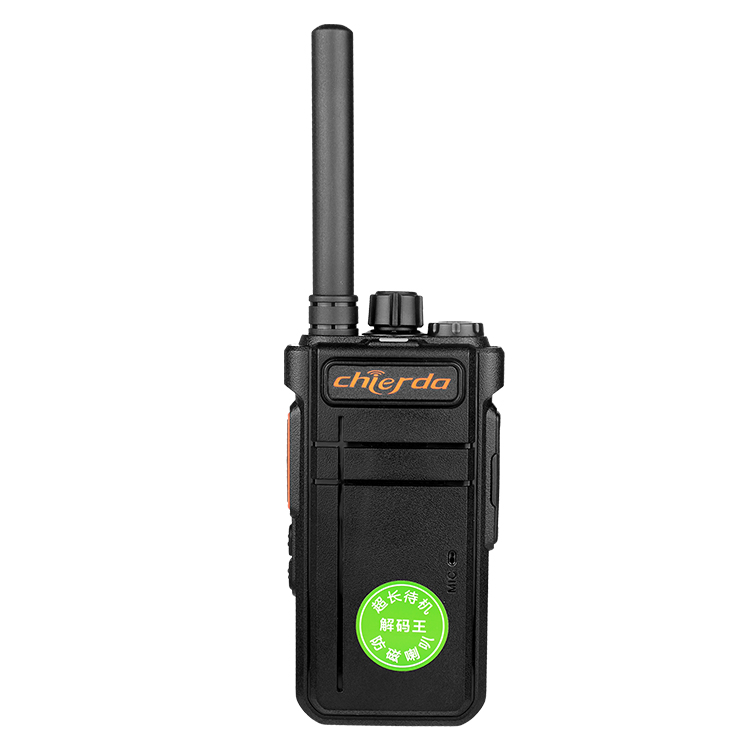

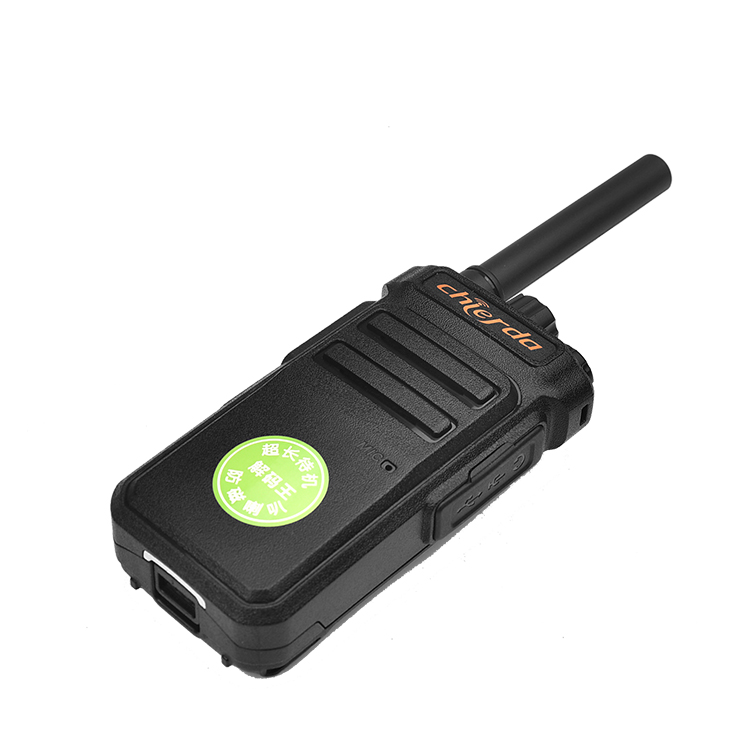

Chierda CD101 Series High-performance Waterproof Analog Radio
CD-101
1.IP54 Waterproof, Sturdy Body
2.HD Sound
3.VOX Function
4.Built-in Flashlight
Chierda CD101 series High-performance two-way radio has three different and fashionable housing. You can choose the housing as you like. Chierda 101 radio has IP54 rating, which means it is waterproof and can be used in many environments. It is equipped with a rechargeable battery and supports many charging ways.

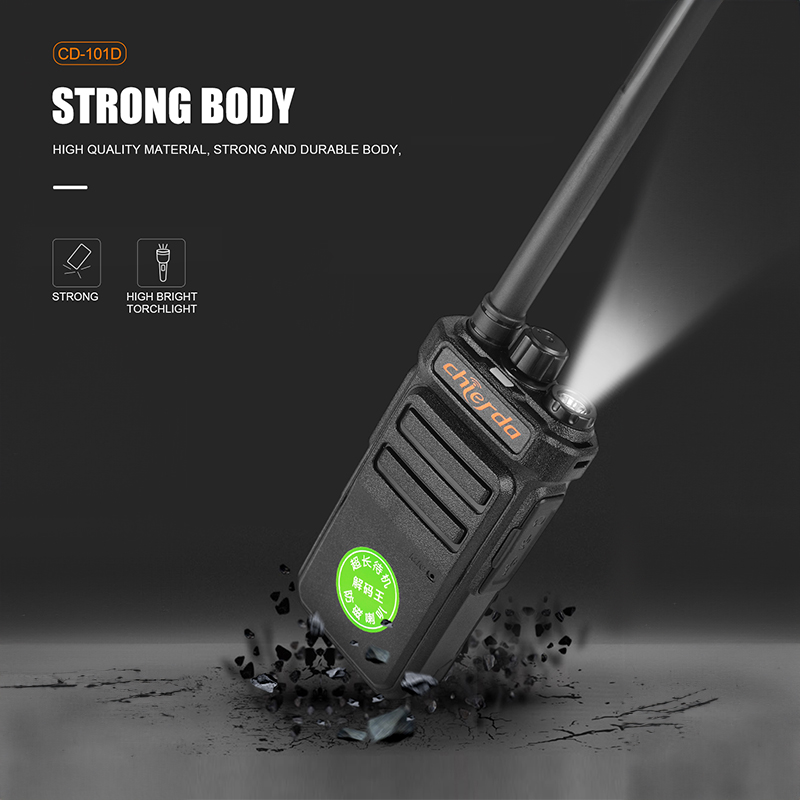

Strong Body:
CD 101 two way radio body is made of high-quality material, making it sturdy and durable.Long Battery Life:

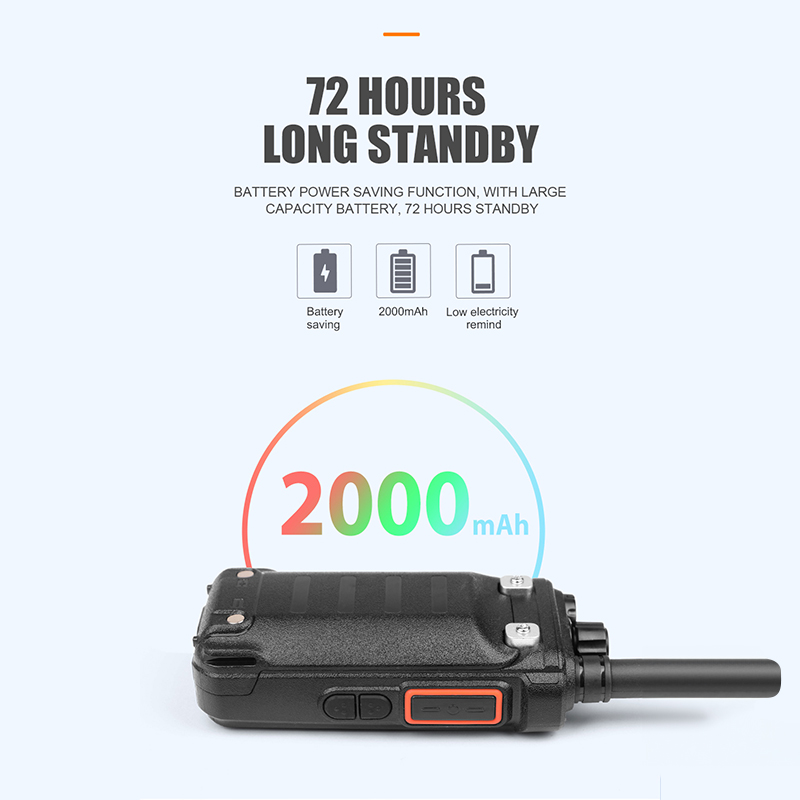

Powered by 2000mAh battery, CD101 can stand by 72 hours without charging.

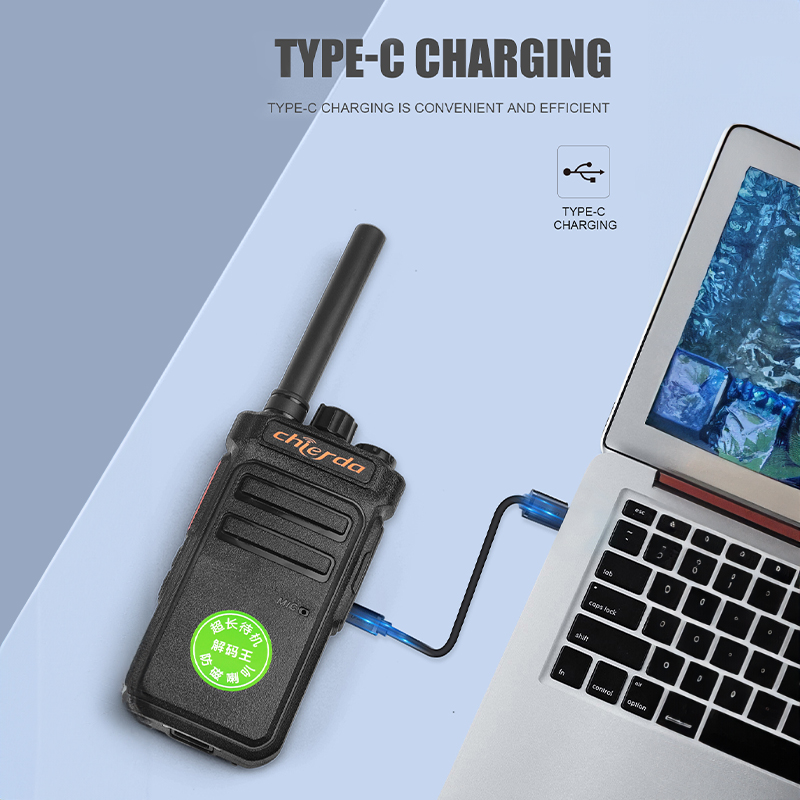

Support USB-C charging:

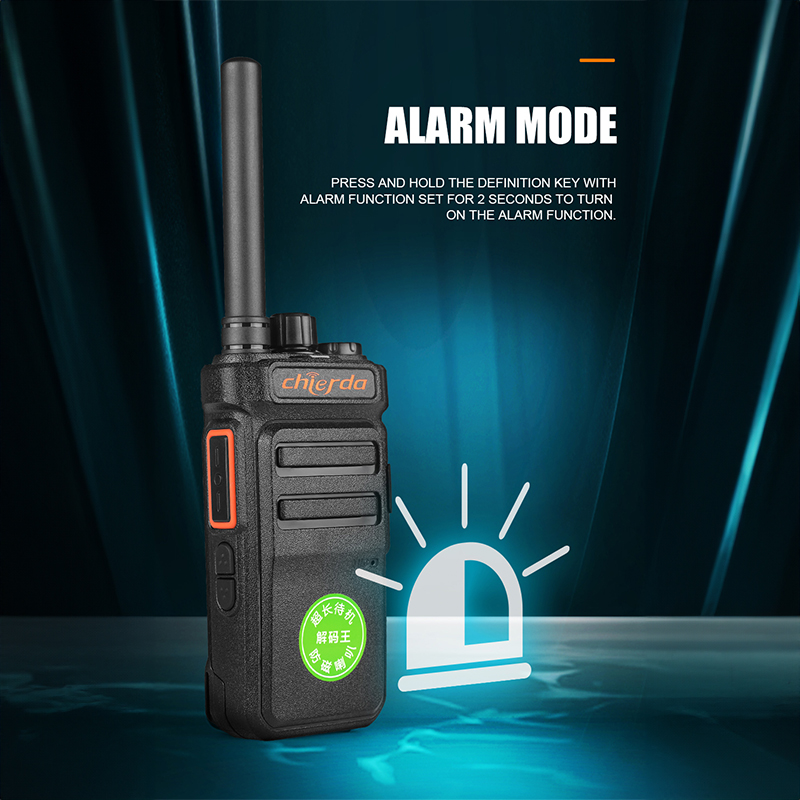

Type-c charging port allows different ways to charge at every place.Alarm mode:
When you meet danger, you may press the button to send alarm to your partners.

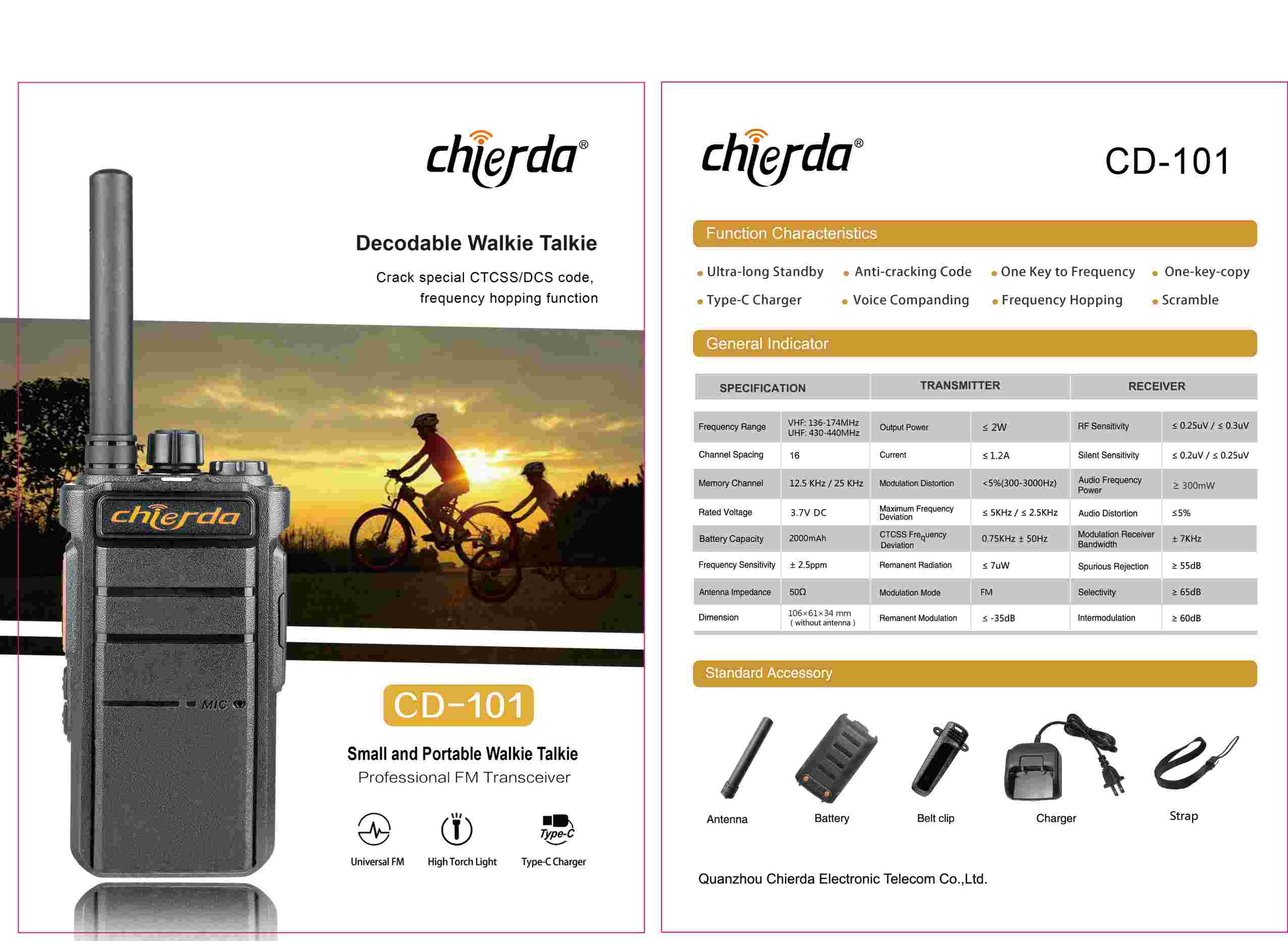

CD101 | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 2000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x61x34mm |
TRANSMITTER | |
Output Power | ≤2W |
Current | ≤1.2A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

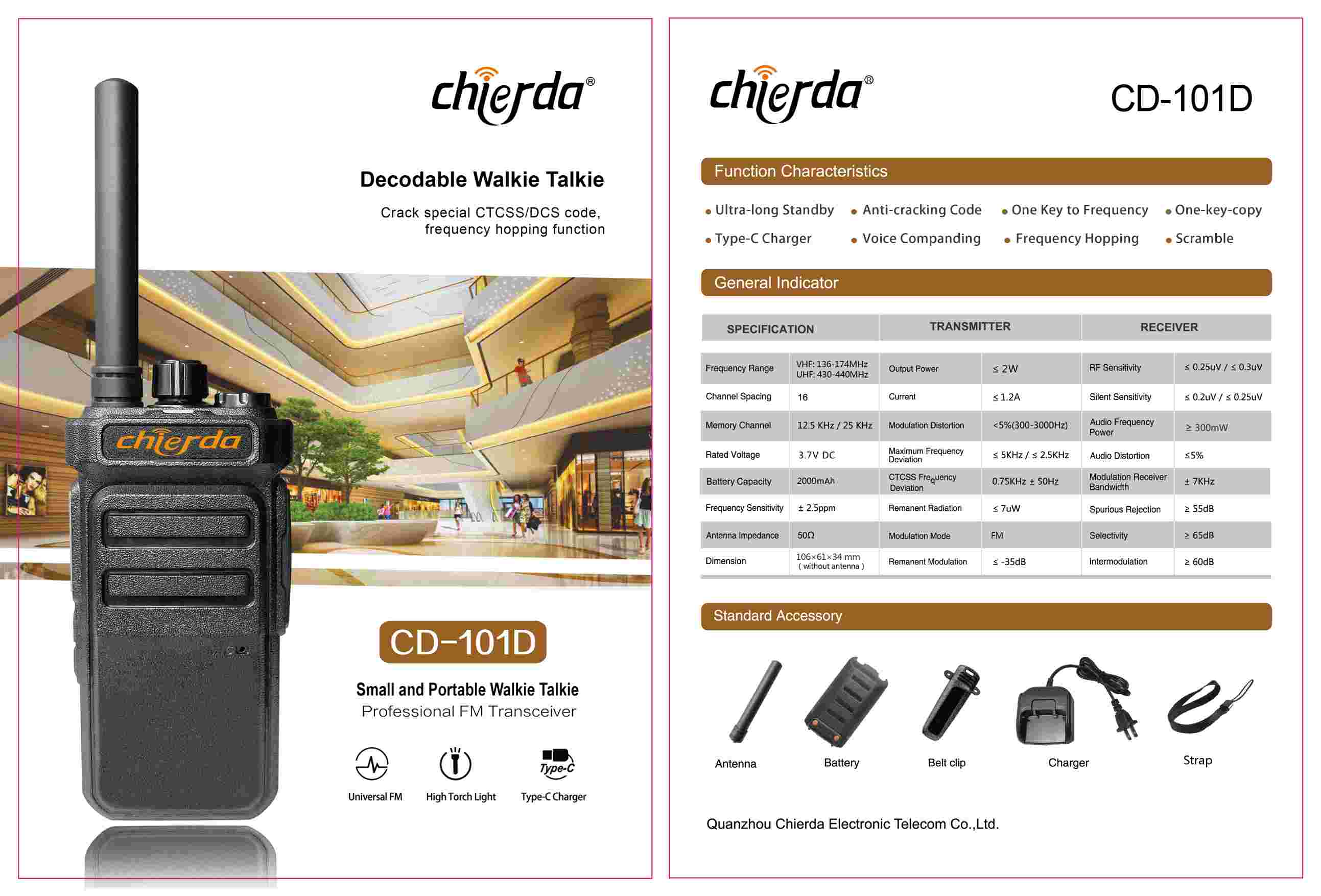

CD101D | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 2000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x61x34mm |
TRANSMITTER | |
Output Power | ≤2W |
Current | ≤1.2A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
CD101F | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 2000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x61x34mm |
TRANSMITTER | |
Output Power | ≤2W |
Current | ≤1.2A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

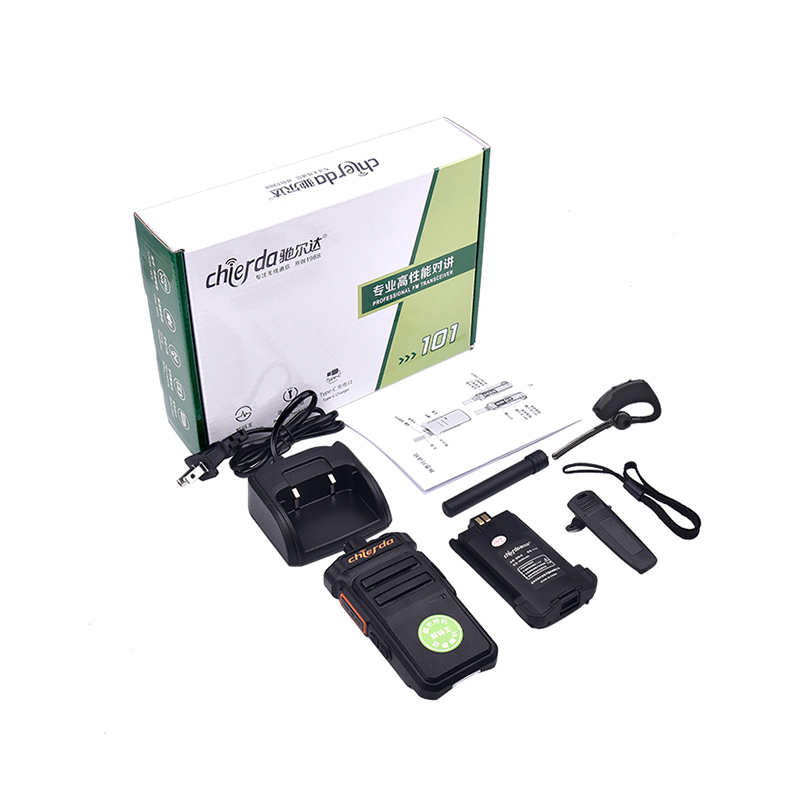

Product set
Radio*1
Battery*1
Charger*1
Belt clip*1
Strap*1
Antenna*1
User's manual*1
