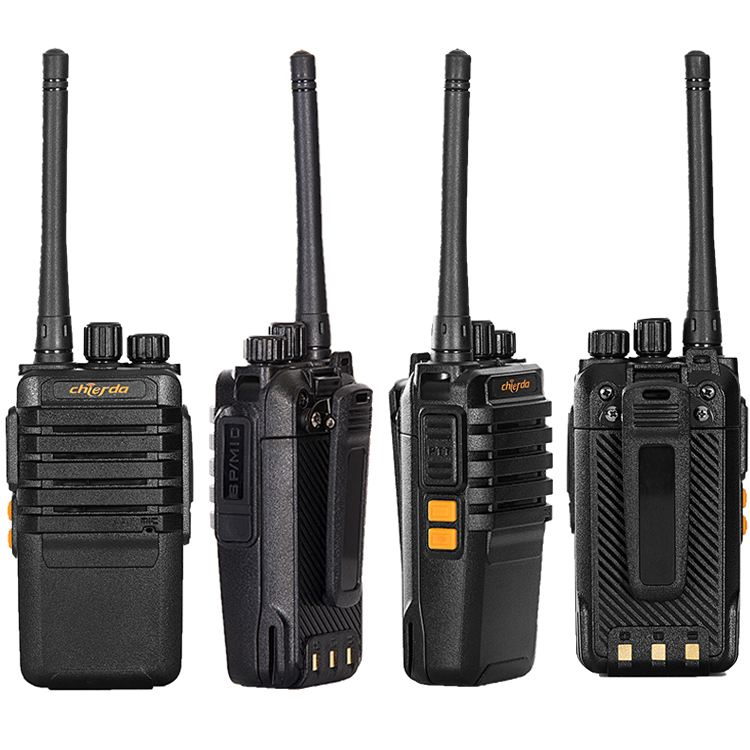

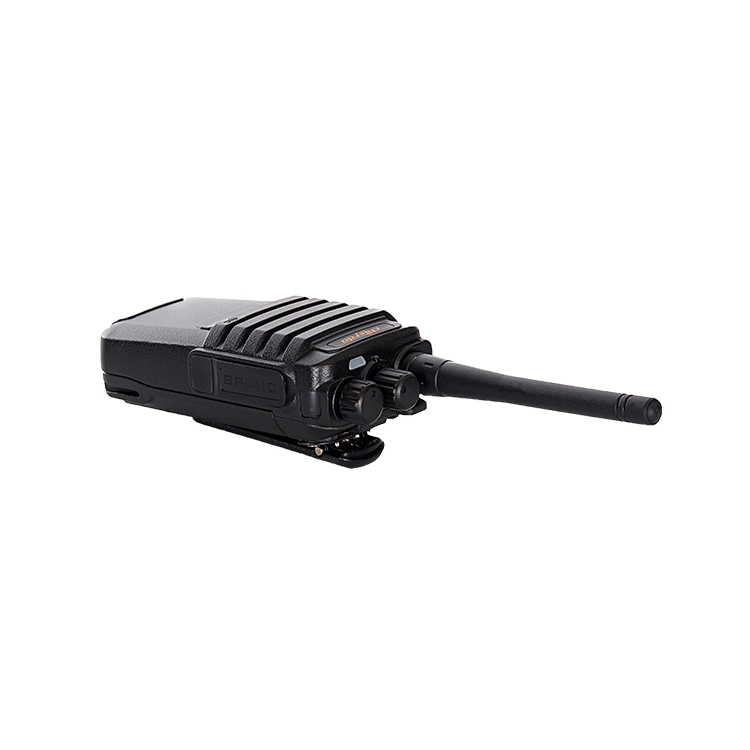

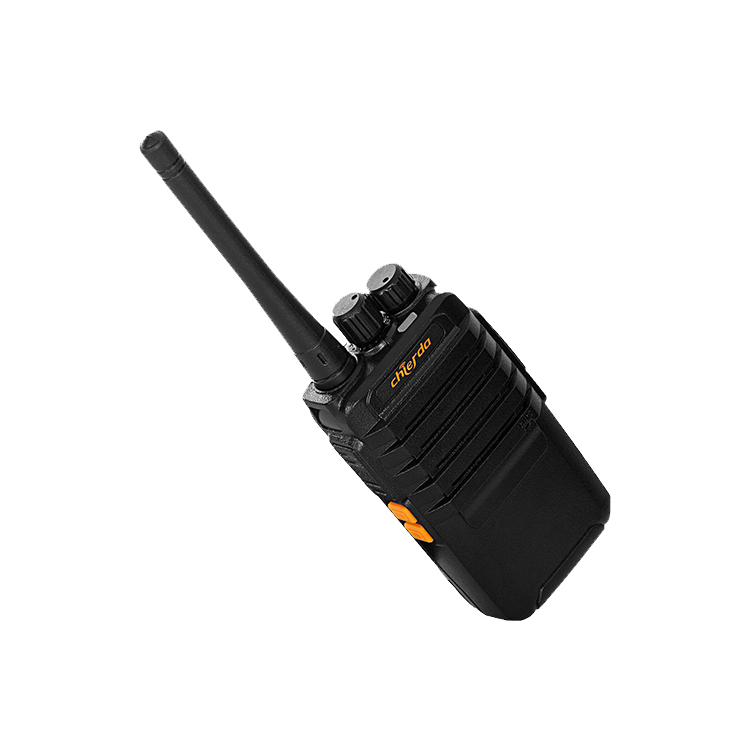

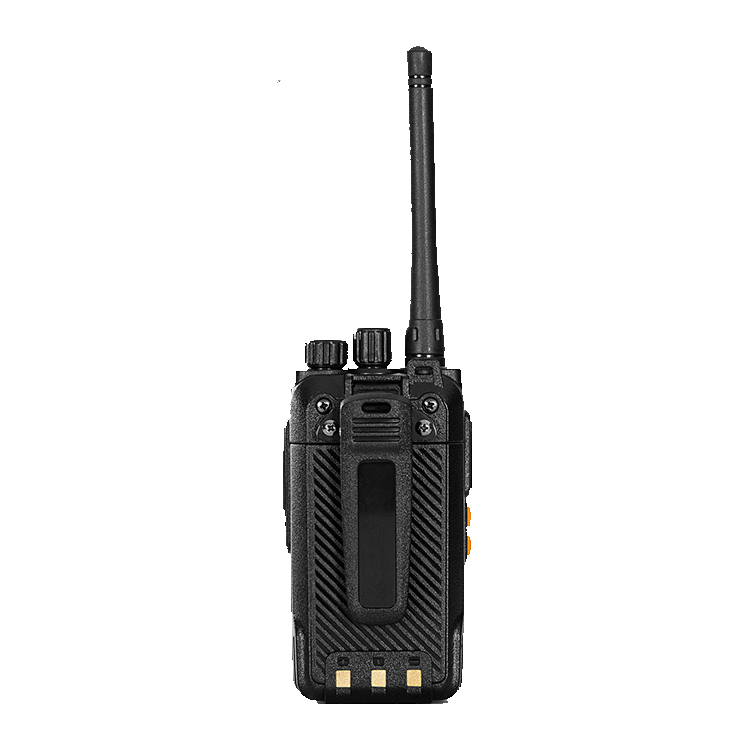

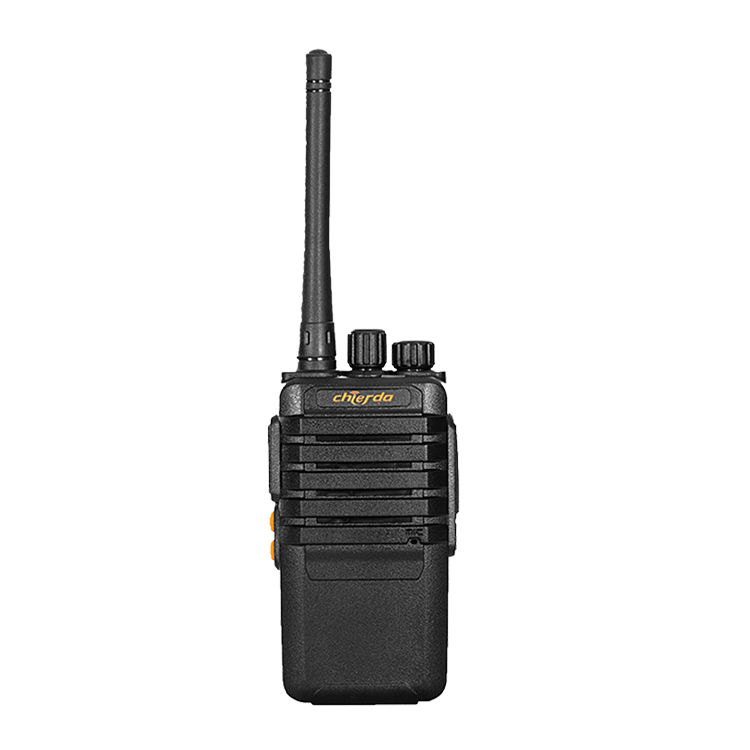

Chierda CD328 Portable Rugged Two Way Radio
Chierda CD328 Portable Rugged Two Way Radio
Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio Chierda CD328 Portable Rugged Two Way Radio

Chierda CD328 Portable Rugged Two Way Radio

CD-328

1.CTCSS/DCS

2.Battery Save Function

3.PC Programmable

Features

Chierda CD328 Portable Rugged Two-way Radio is a powerful 2 Watt handheld radio that offers reliable communication. The operation is simple and easy. It features CTCSS/DCS, busy channel lockout, voice compander and a variety of functions. The compact size fits perfectly in the palm of your hand.

Features

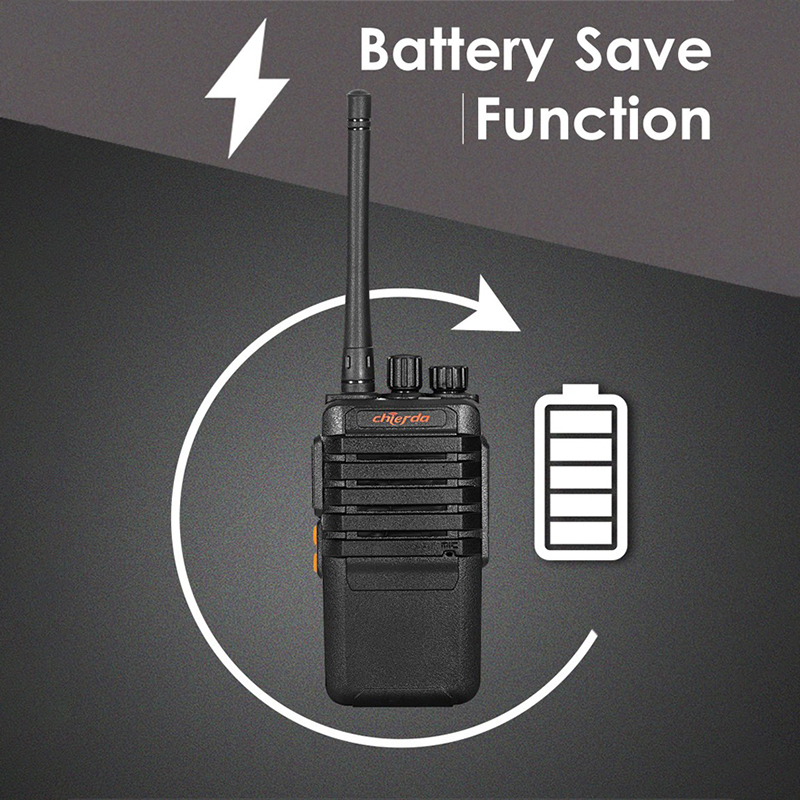

Power Saving Function:

CD328 walkie talkie is powered by 1000mAh battery and has battery save function to extend working time.

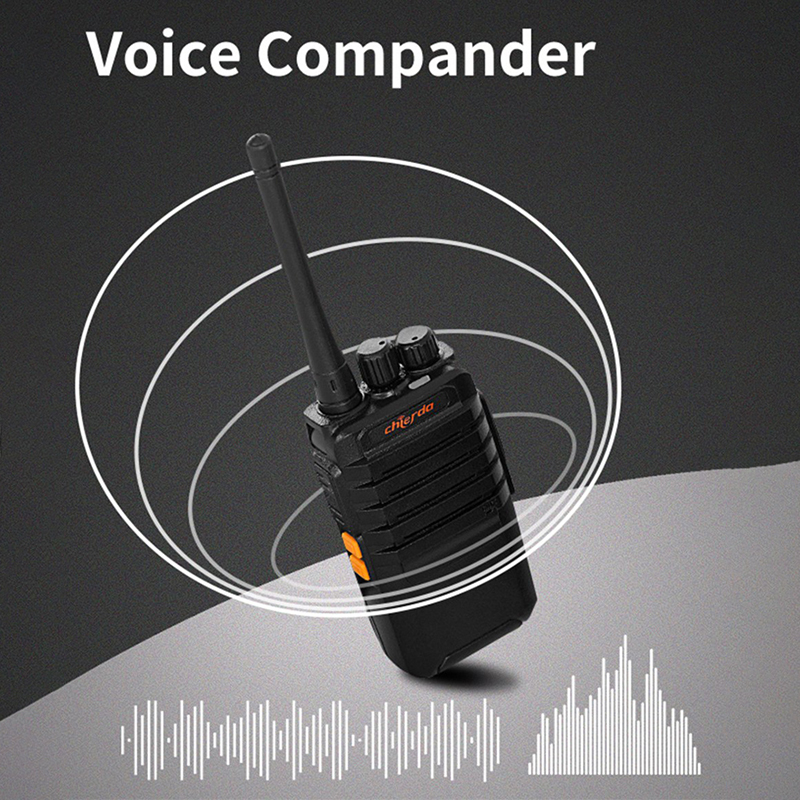

Voice Compander:

This function can make your calls much clearer even in nosiy environments.
Features
Features

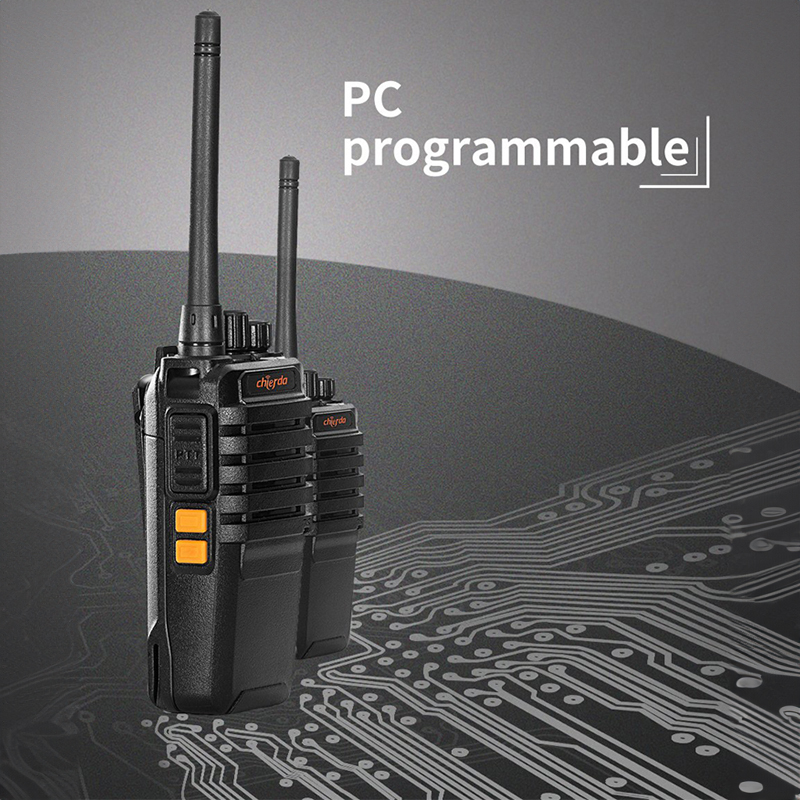

PC Programmable:

CD328 radio is easily programmable via PC by using programming cable.

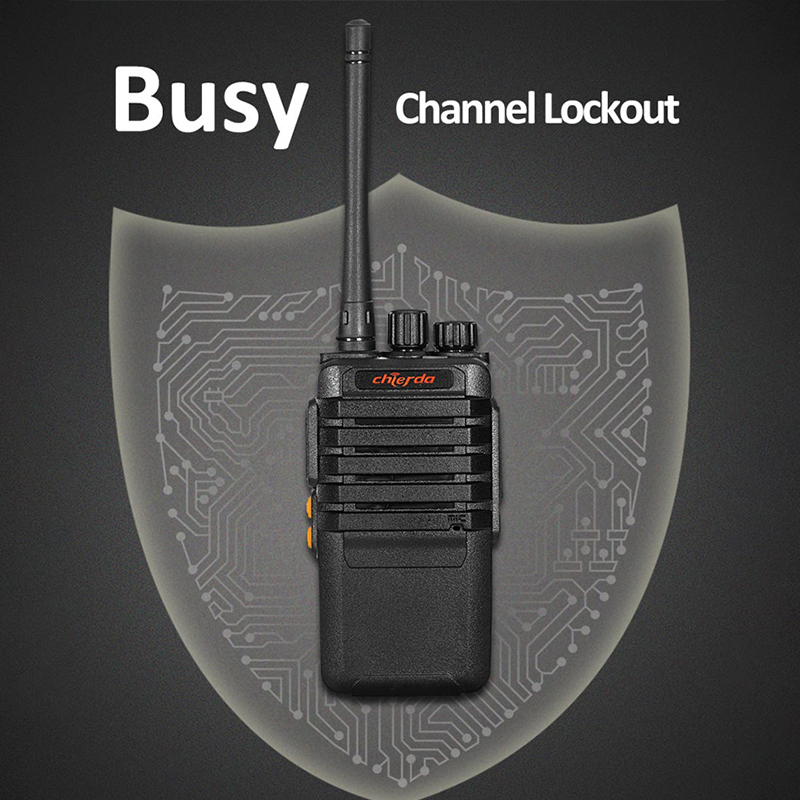

Busy Channel Lockout:

The channel lock function can lock busy channels to prevent interference. So CD328 radio can help users to work efficiently.
Features

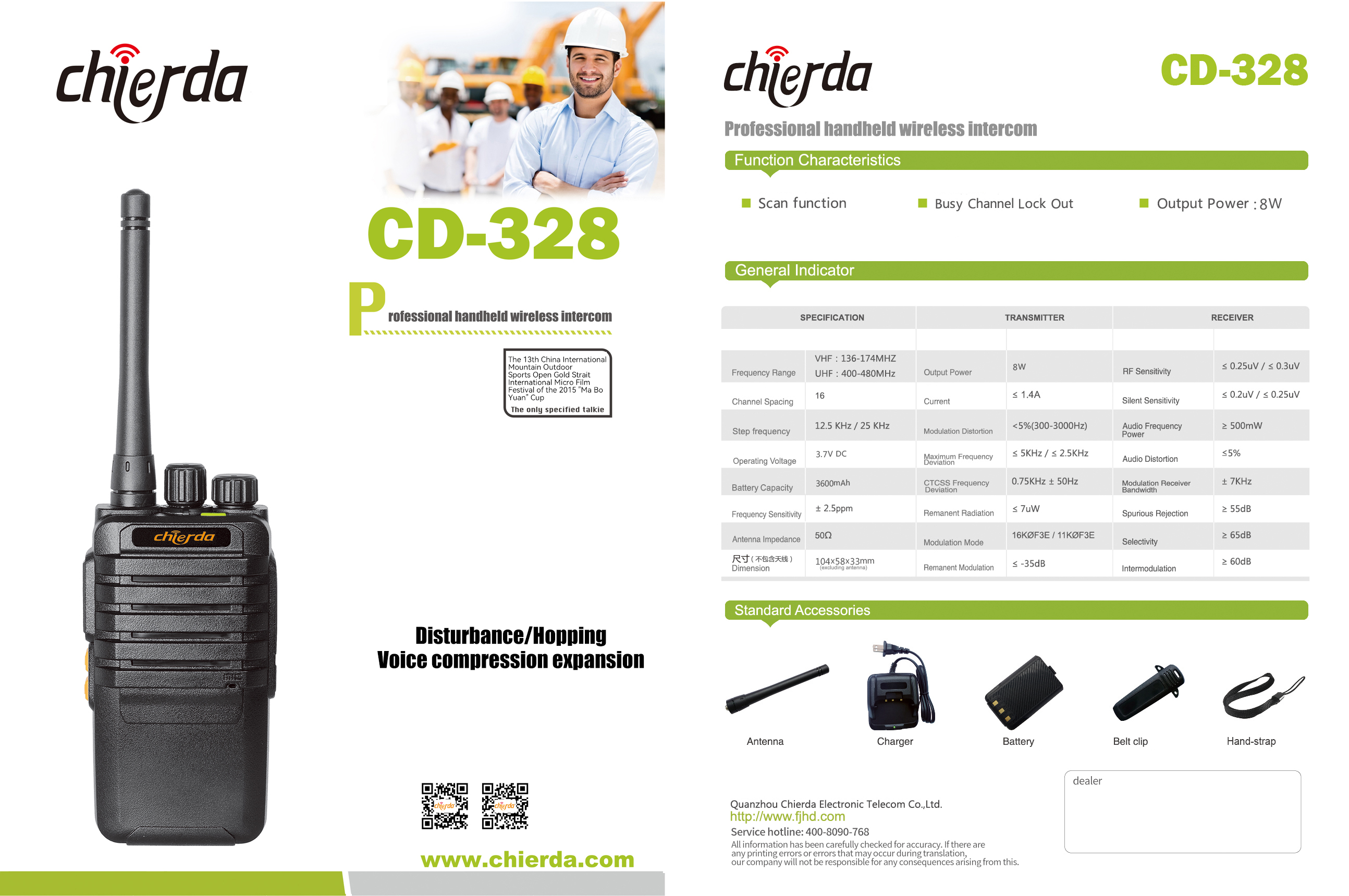

Specification

SPECIFICATION

Frequency Range

VHF:136-174MHz
UHF:400-480MHz

Channel Spacing

16

Memory Channel

12.5 KHz / 25 KHz

Rated Voltage

3.7V DC

Battery Capacity

1200mAh/2900mAh

Frequency Sensitivity

± 2.5ppm

Antenna Impedance

50Ω

Dimension

104x58x33mm
(Excluding Antenna)

TRANSMITTER

Output Power

2W

Current

≤1.4A

Modulation Distortion

<5%(300-3000Hz)

Maximum Frequency
Deviation

≤ 5KHz/≤ 2.5KHz

CTCSS Frequency
Deviation

0.75KHz± 50Hz

Remanent Radiation

≤7uW

Modulation Mode

16K∅F3E/11K∅F3E

Remanent Modulation

≤-35dB

RECEIVER

RF Sensitivity

≤ 0.25uV/ ≤ 0.3uV

Silent Sensitivity

≤0.2uV/≤0.25uV

Audio Frequency Power

≥500mW

Audio Distortion

≤5%

Modulation Receiver
Bandwidth

±7KHz

Spurious Rejection

≥55dB

Selectivity

≥65dB

Intermodulation

≥60dB

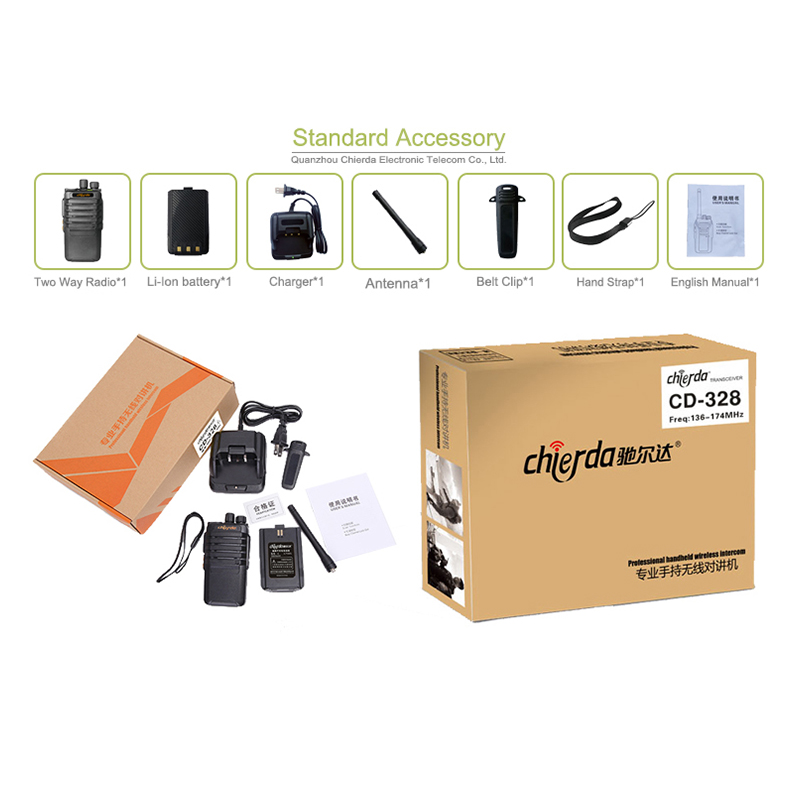

Whats in the Box
whats in the Box

Product set

Radio*1

Battery*1

Charger*1

Belt clip*1

Strap*1

Antenna*1

User's manual*1

Resources

CD328

CD328

DownLoad

Firmware/Software

1.CD328

The WIN11 driver is compatible with the WIN10,WIN8,and WIN7 operating systems
