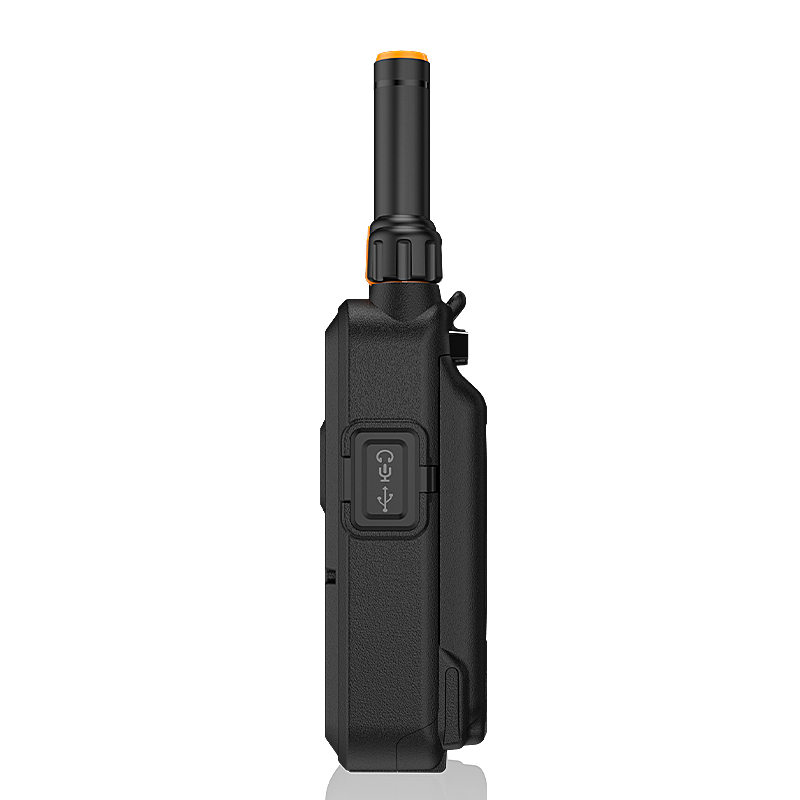

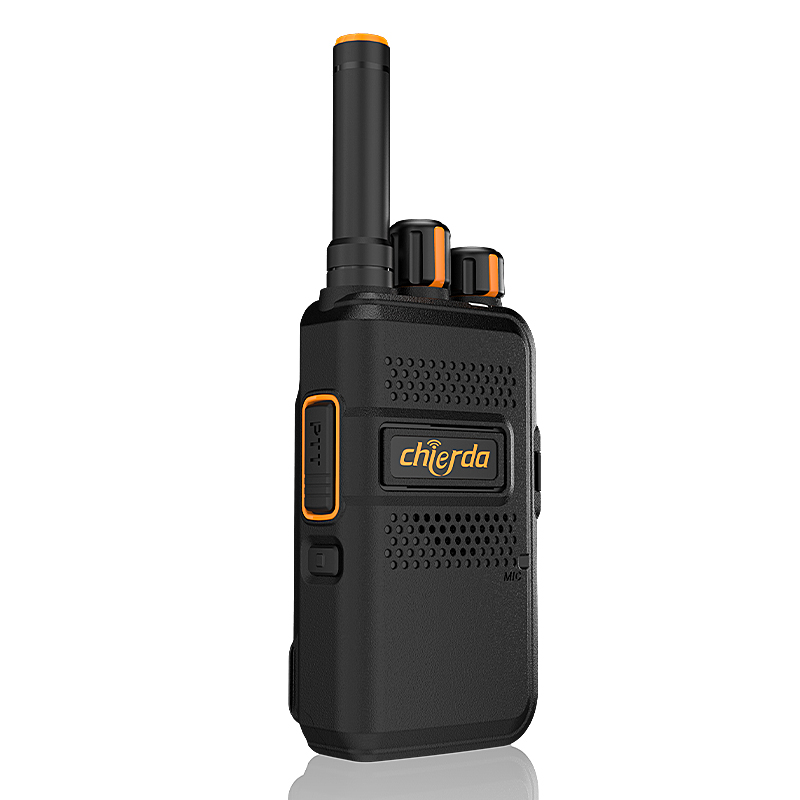

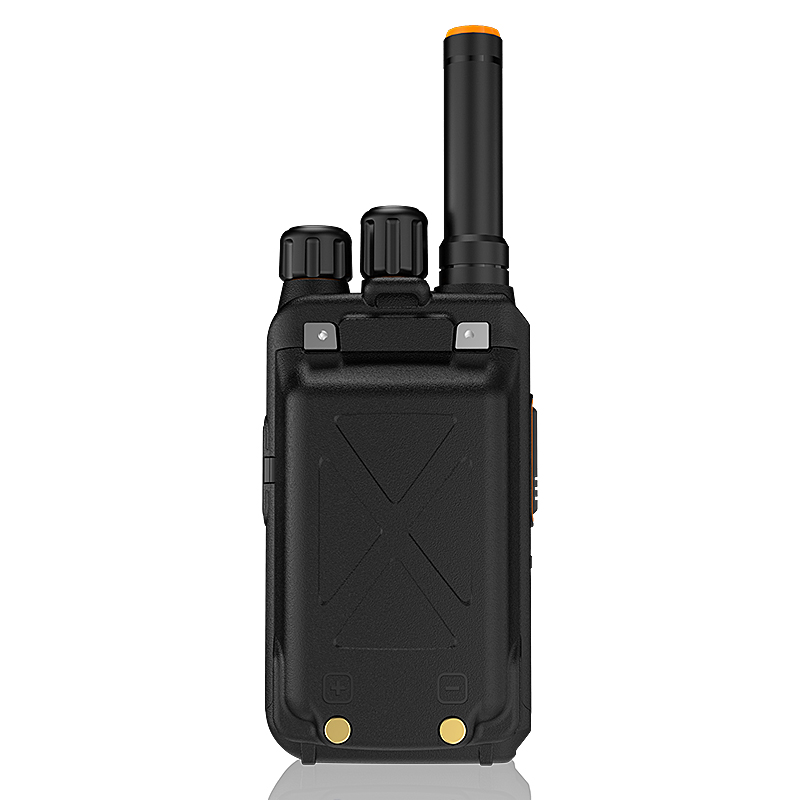

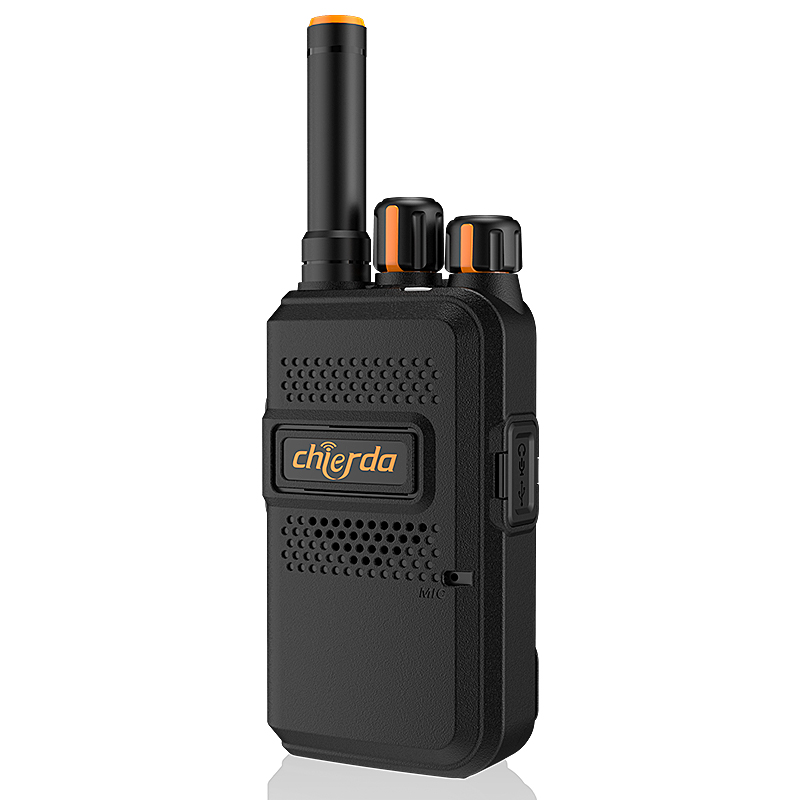

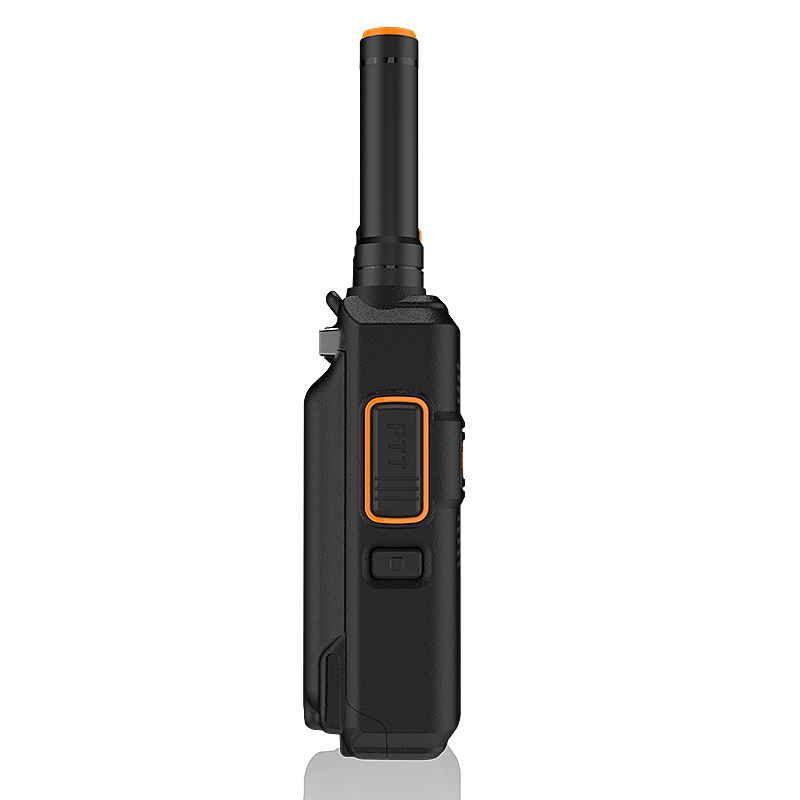

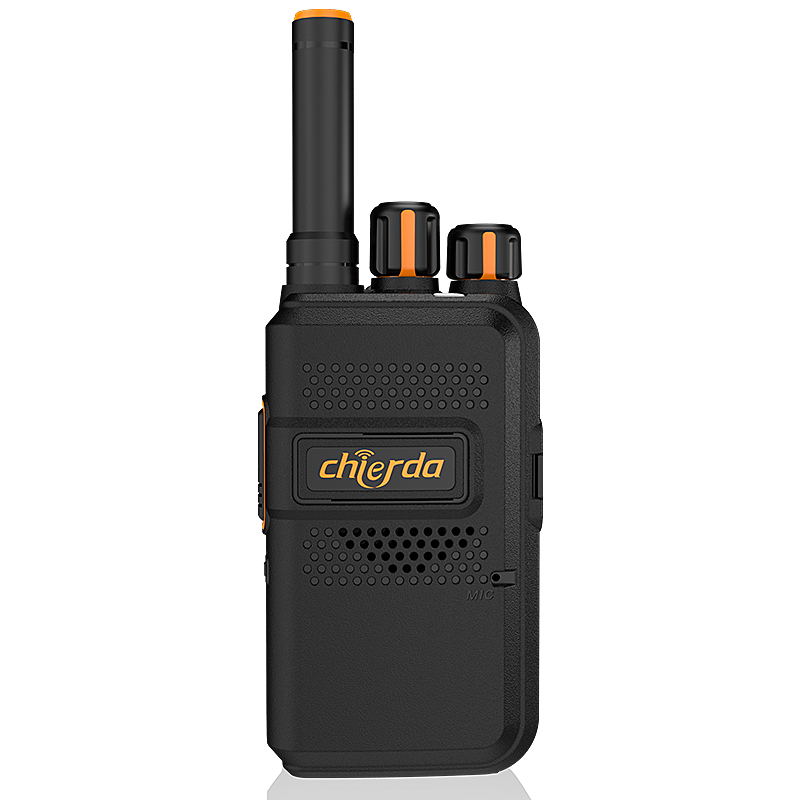

Chierda TC308 Compact Long-range Portable Two-way Radio

TC308

1.Compact and Portable

2.Busy Channel Lockout

Contcat Us

Features
Specification

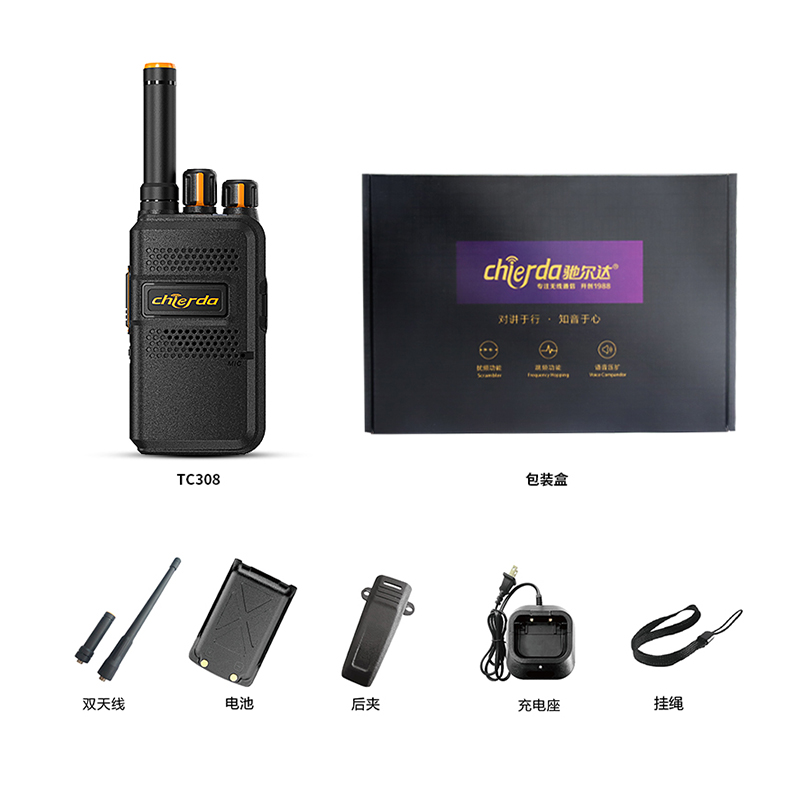

Whats in the Box
Resources

Features

Chierda TC308 two-way radio combines convenience, durability, and versatility. It is designed to be small and thin, making it easy to carry with. It is ideal for various settings, such as hotels and clubs, salons, malls...

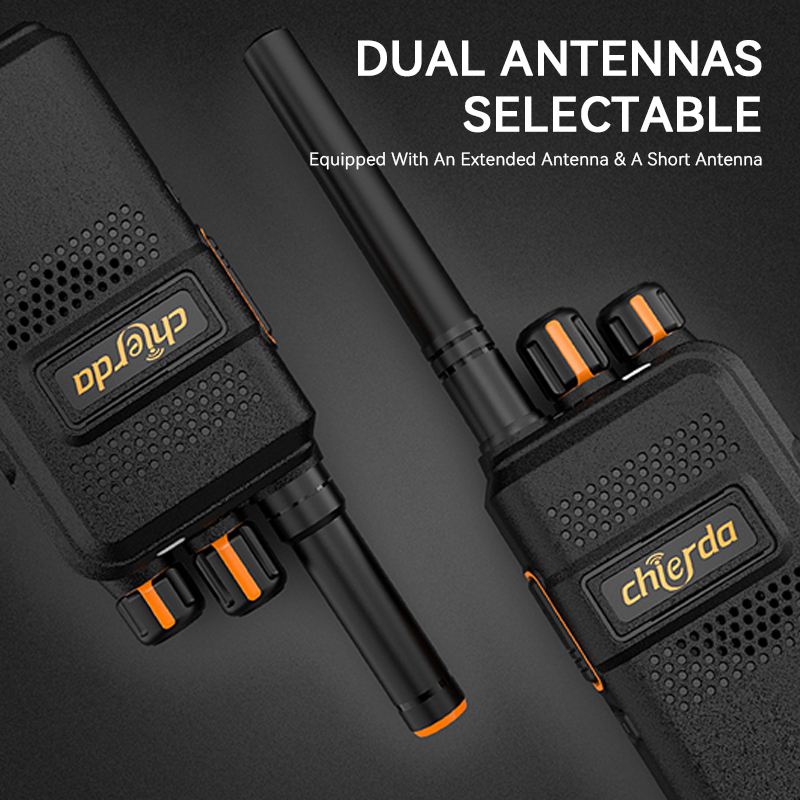

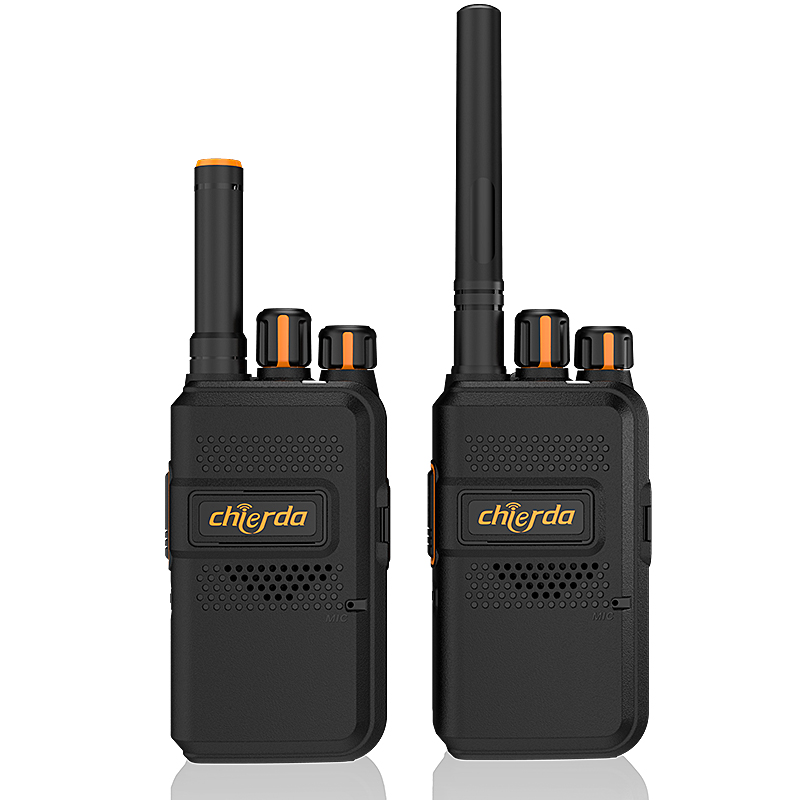

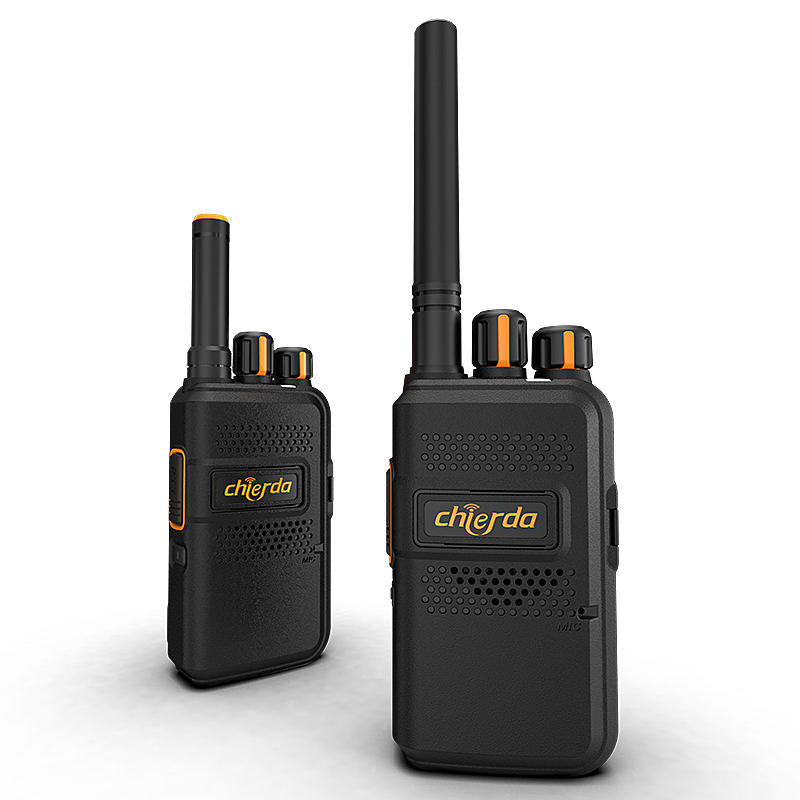

Antenna Options:

The standard pack includes two antennas, one long and one short. Users can choose antenna for the TC308 walkie-talkie according to needs.

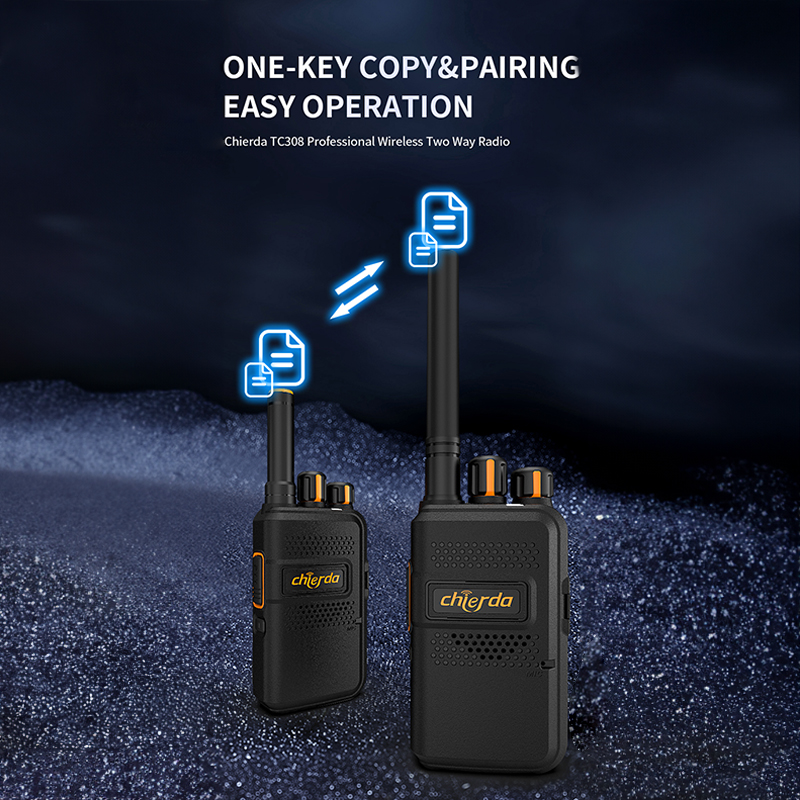

One-key Copy and Pairing:

The wireless copy function enables the walkie-talkie to easily copy the frequency without programming, which saves time and improves working efficiency.

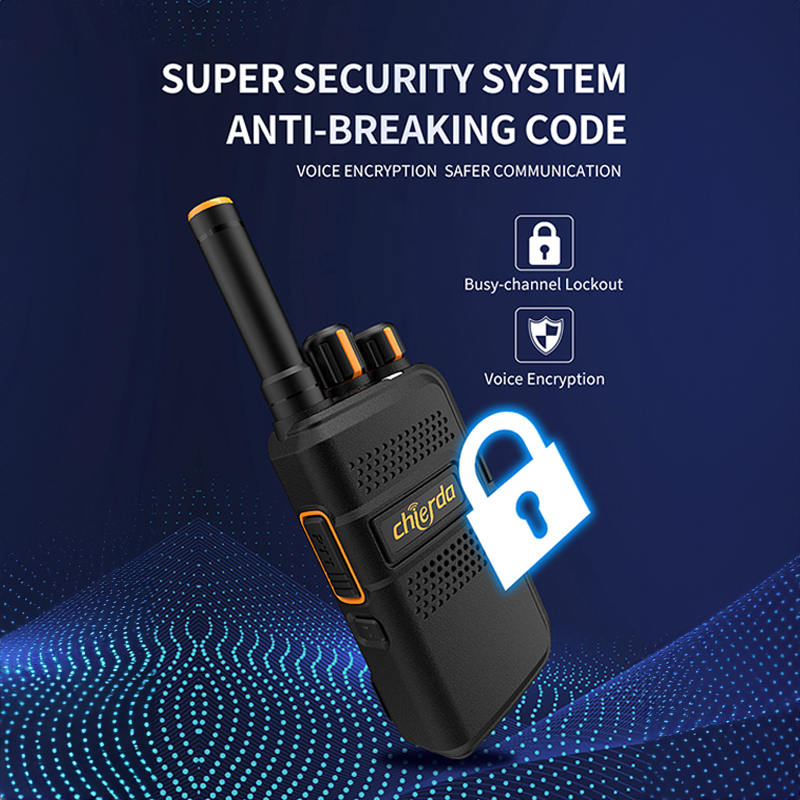

Anti-break Code:

TC308 walkie-talkie is featured with many functions like busy channel lockout, voice encryption, and more. These functions can greatly protect the privacy of your communication.

Specification

SPECIFICATION
Frequency Range	430-440MHz
Channel Spacing	16
Memory Channel	12.5 KHz / 25 KHz
Rated Voltage	7.4V DC
Battery Capacity	1000mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension	93x52x32mm (Without Antenna)
TRANSMITTER
Output Power	5W
Current	≤1.6A
Modulation Distortion	<5%(300-3000Hz)
Maximum Frequency Deviation	≤ 5KHz/≤ 2.5KHz
CTCSS Frequency Deviation	0.75KHz± 50Hz
Remanent Radiation	≤7uW
Modulation Mode	FM
Remanent Modulation	≤-35dB
RECEIVER
RF Sensitivity	≤ 0.25uV/ ≤ 0.3uV
Silent Sensitivity	≤0.2uV/≤0.25uV
Audio Frequency Power	≥500mW
Audio Distortion	≤5%
Modulation Receiver Bandwidth	±7KHz
Spurious Rejection	≥55dB
Selectivity	≥65dB
Intermodulation	≥60dB
