Chierda TC328D High Power IP67 Waterproof DMR Radio
TC328D
1. 10W High Power DMR Radio
2. IP67 Waterproof
3. Recording and Playback Function
4. Remote Monitoring
5. 128 Channels
6. VOX Hands-free Function, Voice Compander
7. Type-C Charging

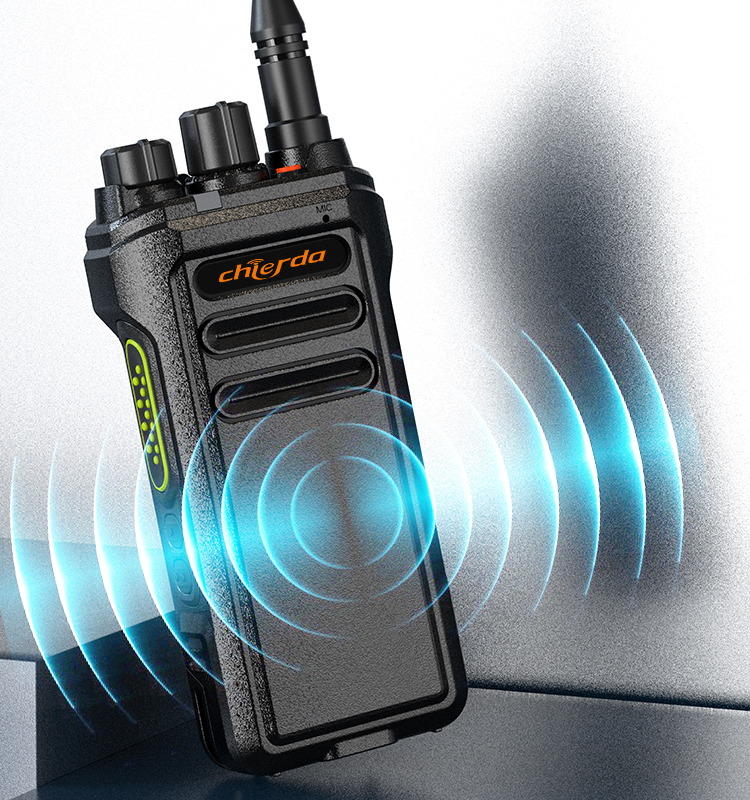

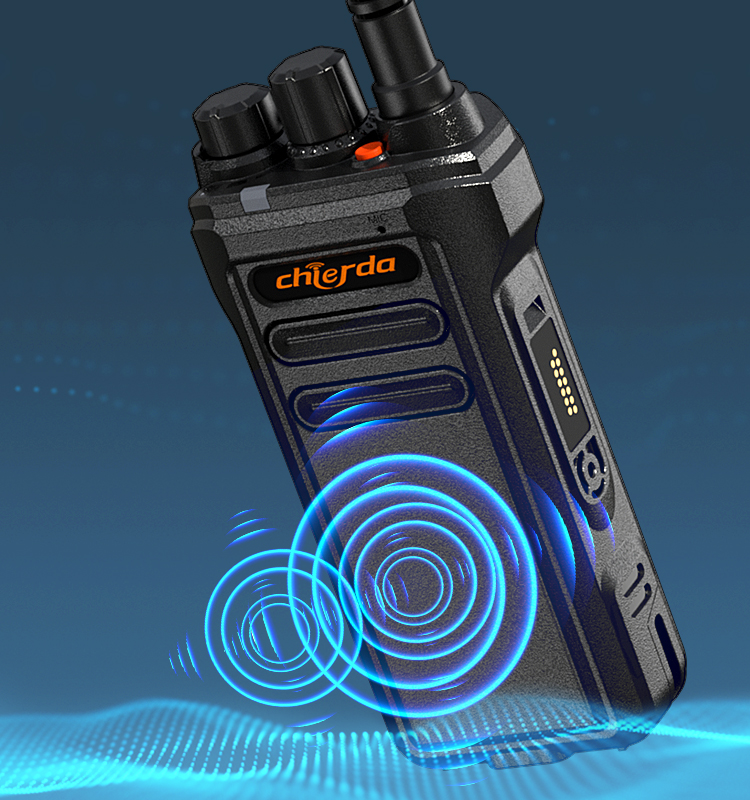

Chierda TC328D DMR radio has many advanced features. With 10W output power, TC328D can reach a distance between 1-10km. In addition, it is equipped with an upgraded speaker. The talk sound is crystal clear. It's ideal for use in logistics, farms, construction sites...

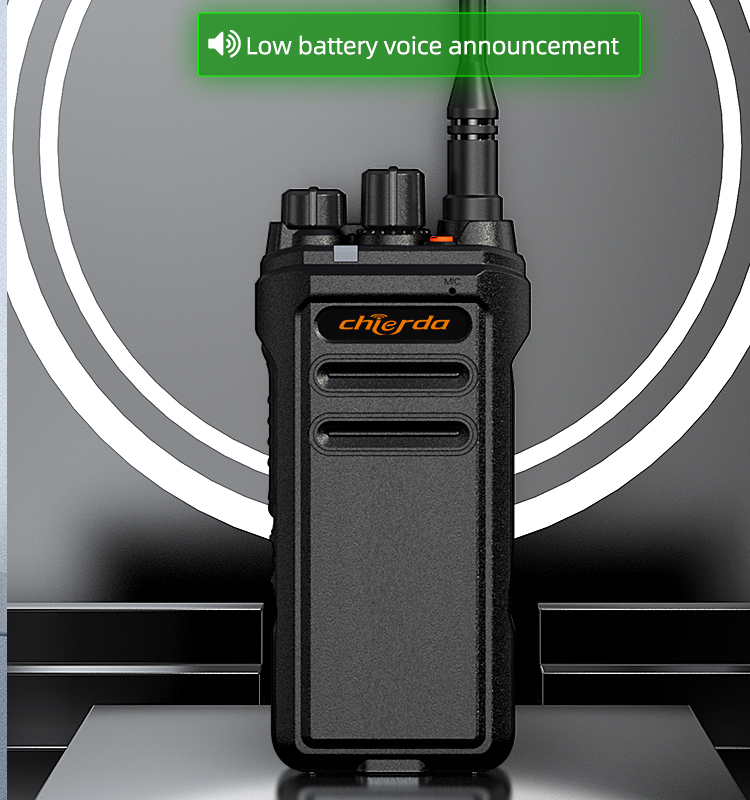

Battery Broadcasting:
TC328D has no LCD display so it's hard to get battery information just from the outside. But don't worry. This walkie-talkie has battery-level broadcasting function. When the radio lacks power, it will send notifications actively.Long Recording and Playback Function:
TC328D two way radio can store more than 500 hours of recording and also support users to playback recordings.
Remote Monitoring:
TC328D radio allows users to monitor remotely. When you hear a beep one time, then the function starts. When you hear a beep twice, the the function ends. Simple operation.SPECIFICATION | |
Frequency Range | UHF:400-480MHz |
Channels | 128(8zone) |
Channel Spacing | 12.5kHz/25kHz |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+60℃ |
Storage temperature | -40℃+85℃ |
Operating Voltage | DC 7.4V |
Battery Type | 2800mAh Li-ion |
Dimension | 126.5*57*37.9mm |
TRANSMITTER | |
Output Power | 10W |
Frequency Stability | ±1.0ppm |
Adjacent Channel Power | -60dBm@12.5kHz |
Modulation Mode | FM |
Modulation limits | 2.5kHz@12.5kHz |
Audio Distortion | ≤5% |
Vocoder Type | AMBE+2TM |
4FSK Digital Modulation | 12.5kHz(data only) |
| 12.5kHz(data+voice) |
Digital Protocol | ETSI TS 102361-1.-2.-3 |
FM Noise | -40dBm@12.5kHz |
Spurious emissions | ＜-36dBm@1GHz |
RECEIVER | |
Analog Receiver Sensitivity | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(Type) |
Digital Receiver Sensitivity | 0.3uV-117.4dBm(BER 5%) |
Blocking | 84dB |
Adjacent Channel Selectivity | TIA603C:-65dB ETS1:-60dB |
Audio Frequency Power | ≥500mW |
Audio Response | +1dB~-3dB |
Receiving Spurious Transmitting | ≤-57dBm@30MHz~1GHz |
| ≤-47dBm@1GHz~12.75GHz |
Audio Distortion | ≤3%(Type) |

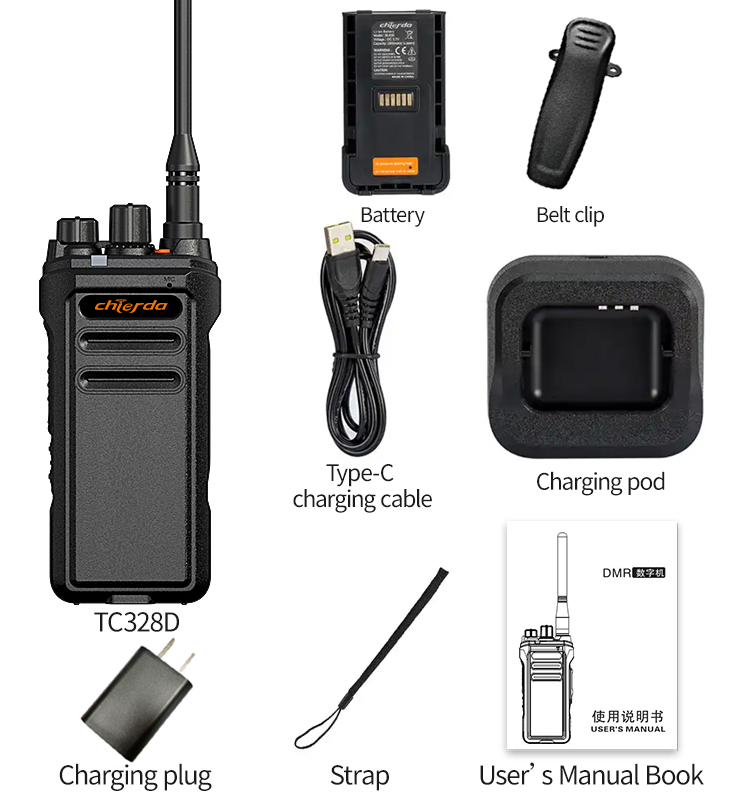

Product set
Radio*1
Battery*1
Belt clip*1
Desk Charger*1
Strap*1
Antenna*1
User's manual*1
