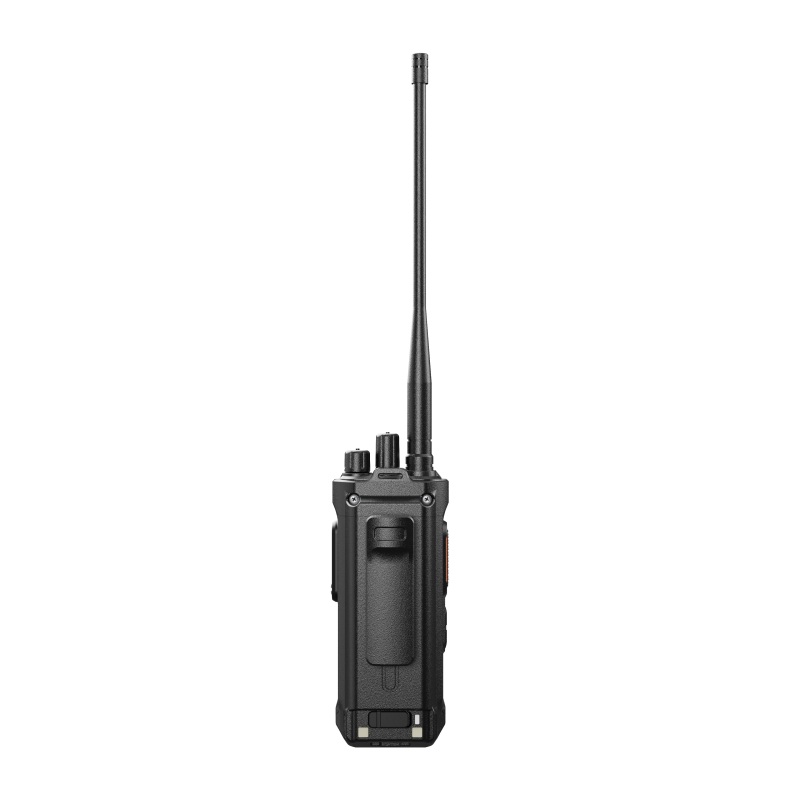

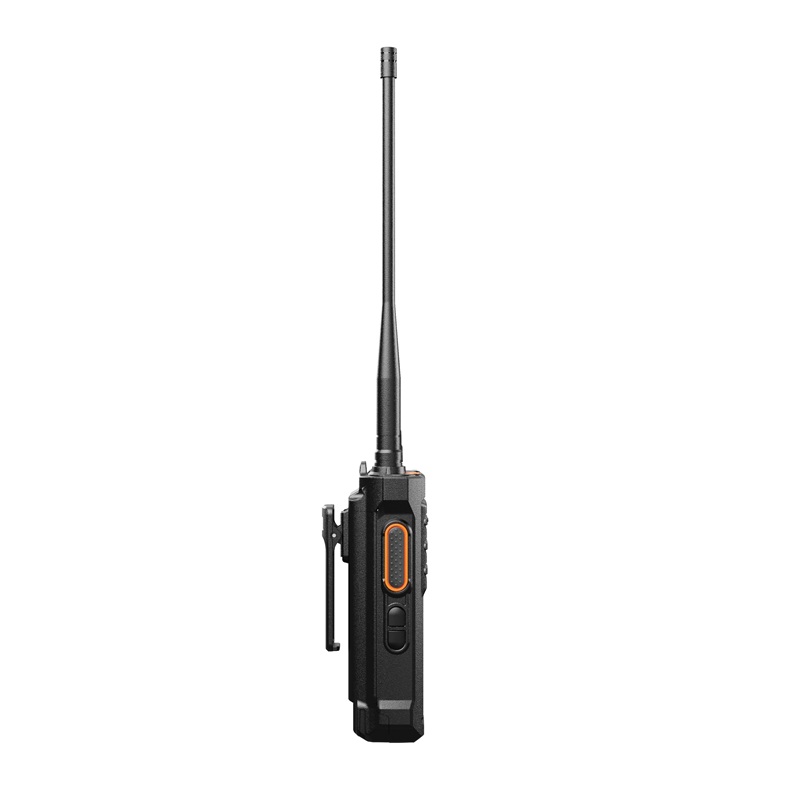

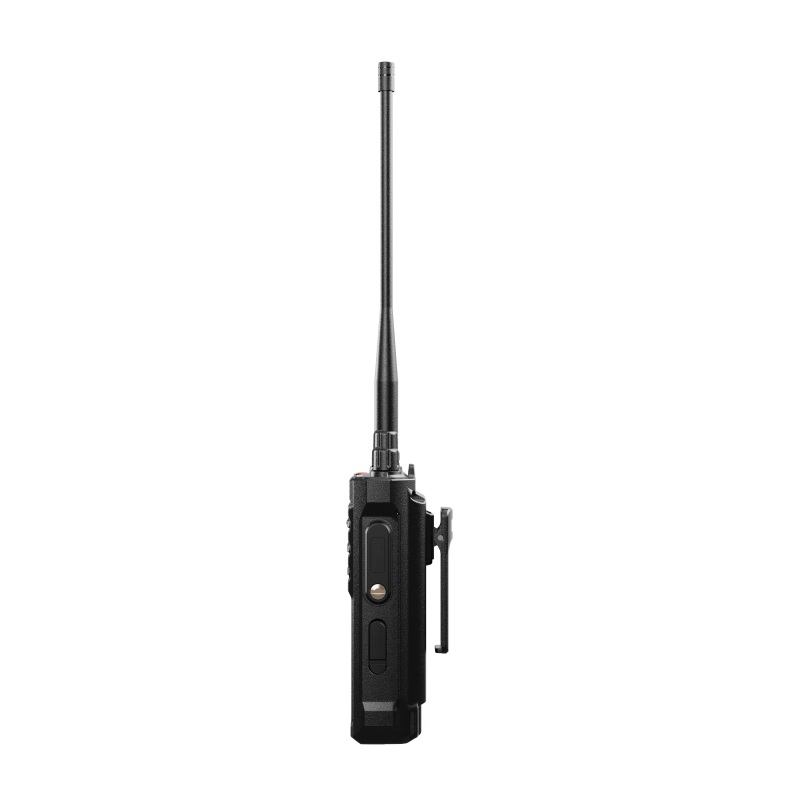

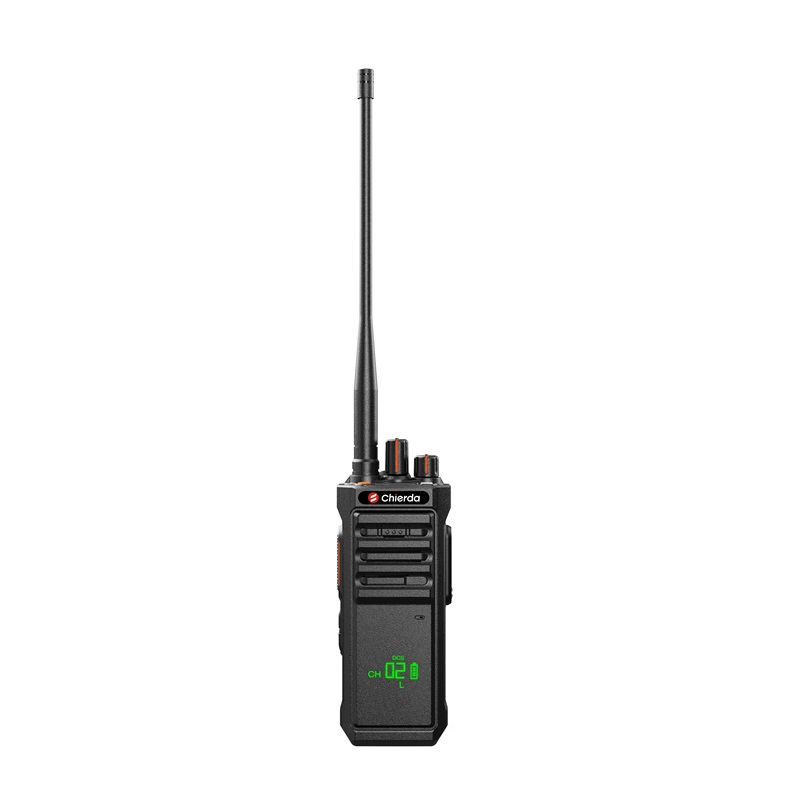

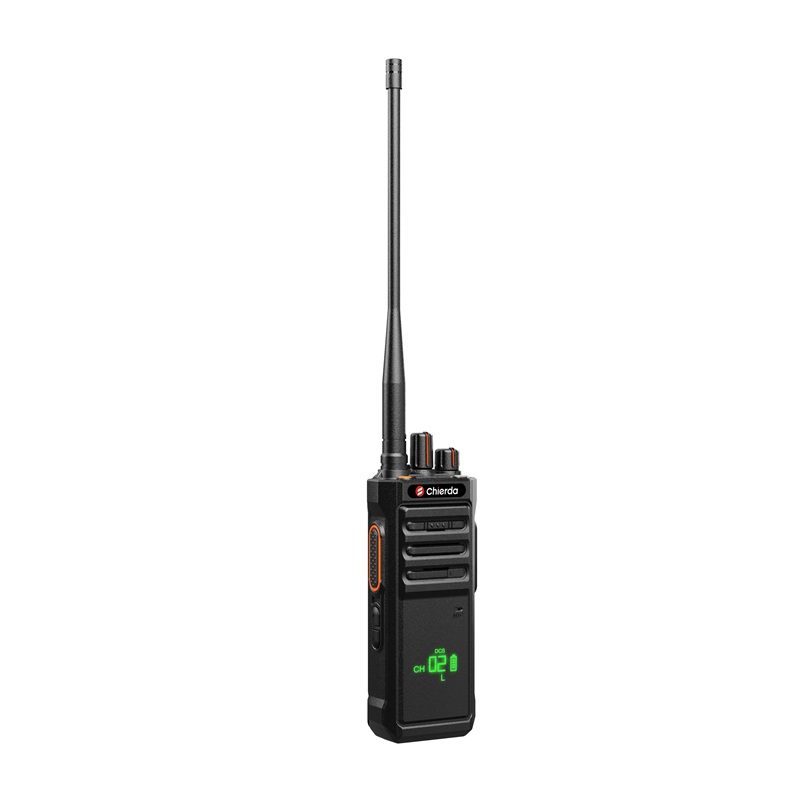

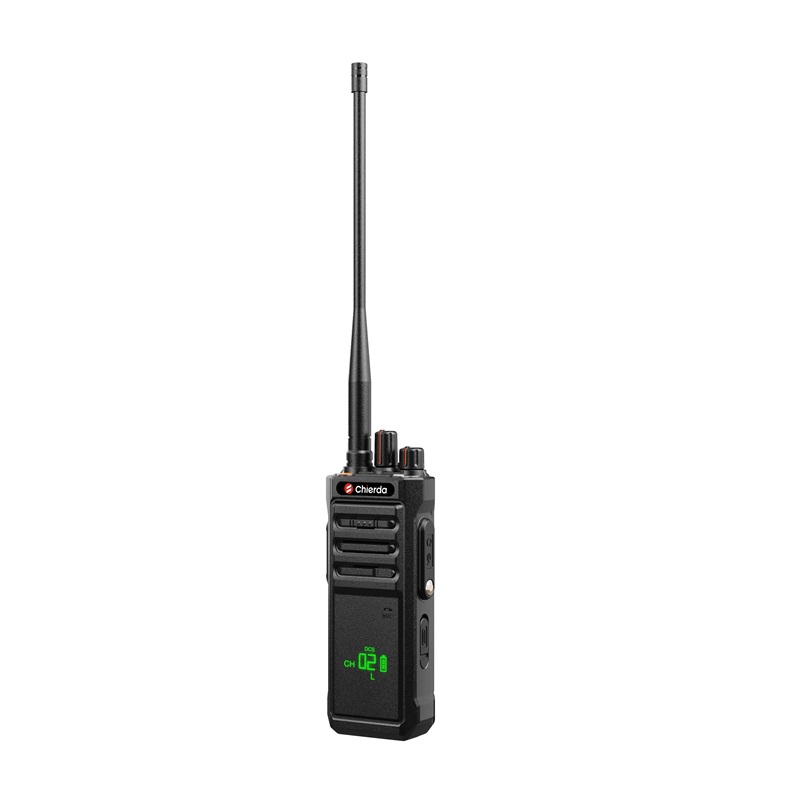

Chierda T168M 15W High Power Walkie Talkie

T168M

1. 15W High Power, Long Range Walkie Talkie

2. PC Material Made, Exceptional Durability

3. Anti-magnetic Speaker, Advanced Audio Quality

4. Hidden Display, Quick Pairing, Wireless copy

5. Alarm Function (Local & Remote)

6. Upgraded Belt Clip design, Dual Type-C Charging port

7. Dual Antenna in One Pack (Long and short)

8. 2800mAh Long Battery Life

9. Optional Function: IP67 Waterproof, AI-based Noise Reduction, Bluetooth Compatible

Contcat Us

Features
Specification
Whats in the Box
Resources

Features

Chierda T168M is a rugged, high-power analog two-way radio designed for reliable communication in demanding work environments. Featuring a durable PC housing, dual-antenna configuration, long-lasting battery, and ergonomic design, it is ideal for construction sites, security operations, warehouses, and industrial teams.

Dual Antennas:

Features a dual-antenna configuration designed to support long-range radio communication. Helps teams stay connected across large construction sites, industrial facilities, and outdoor work areas.

Optional IP67 Waterproof:

Designed to resist dust and everyday water splashes, helping protect the radio during outdoor and industrial operations. Ideal for construction sites, warehouses, and other demanding environments.

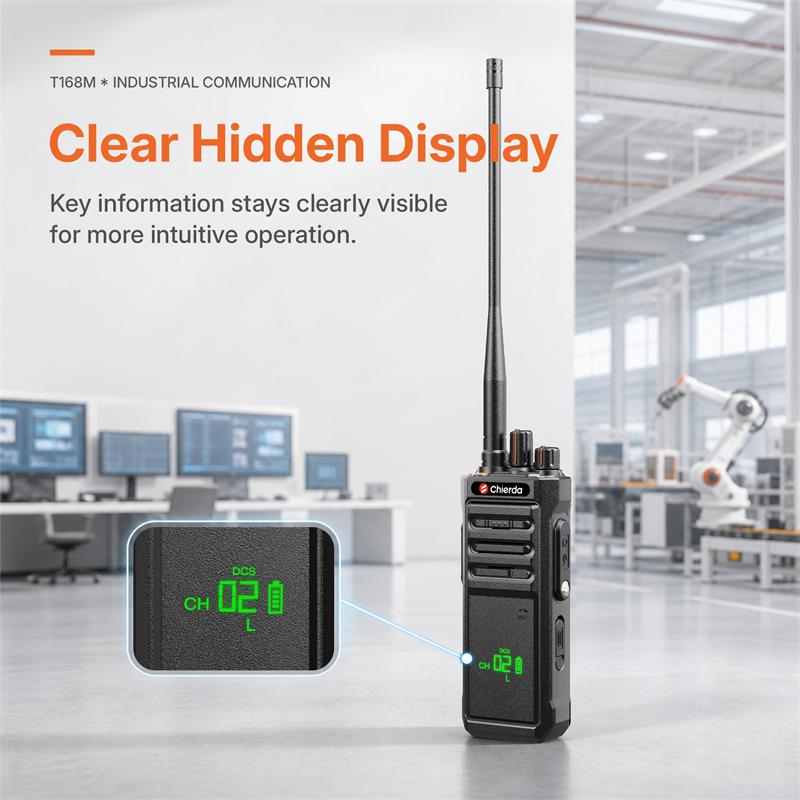

Clear Hidden Display:

Features a built-in display for convenient viewing of essential radio information. Helps users check operating status and manage radio functions more easily.

Specification

SPECIFICATION
Frequency Range	UHF:400-480MHz
Channel Spacing	16
Memory Channel	12.5 KHz / 25 KHz
Rated Voltage	11.1V DC
Battery Capacity	2800mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension	141x55x40mm (Without Antenna)
TRANSMITTER
Output Power	15W
Current	≤3A
Modulation Distortion	<5%(300-3000Hz)
Maximum Frequency Deviation	≤ 5KHz/≤ 2.5KHz
CTCSS Frequency Deviation	0.75KHz± 50Hz
Remanent Radiation	≤7uW
Modulation Mode	FM
Remanent Modulation	≤-35dB
RECEIVER
RF Sensitivity	≤ 0.25uV/ ≤ 0.3uV
Silent Sensitivity	≤0.2uV/≤0.25uV
Audio Frequency Power	≥300mW
Audio Distortion	≤5%
Modulation Receiver Bandwidth	±7KHz
Spurious Rejection	≥55dB
Selectivity	≥65dB
Intermodulation	≥60dB
