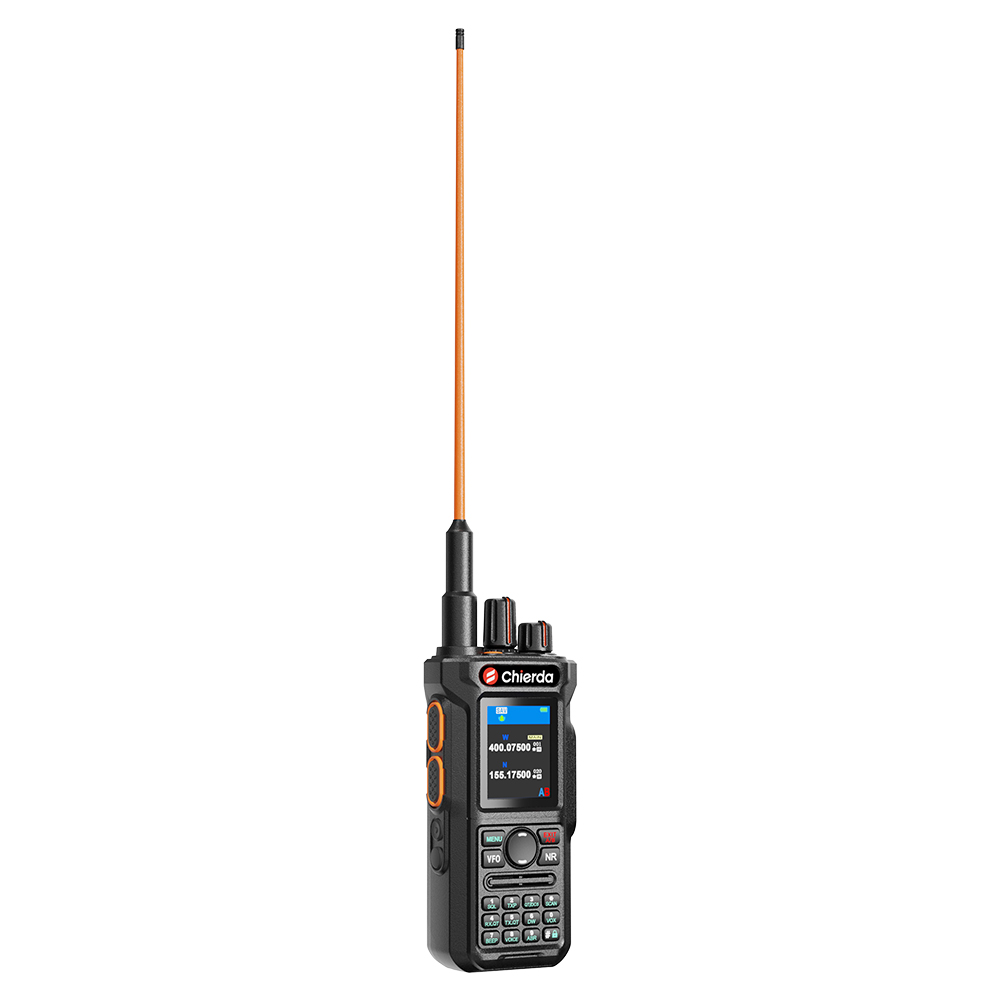

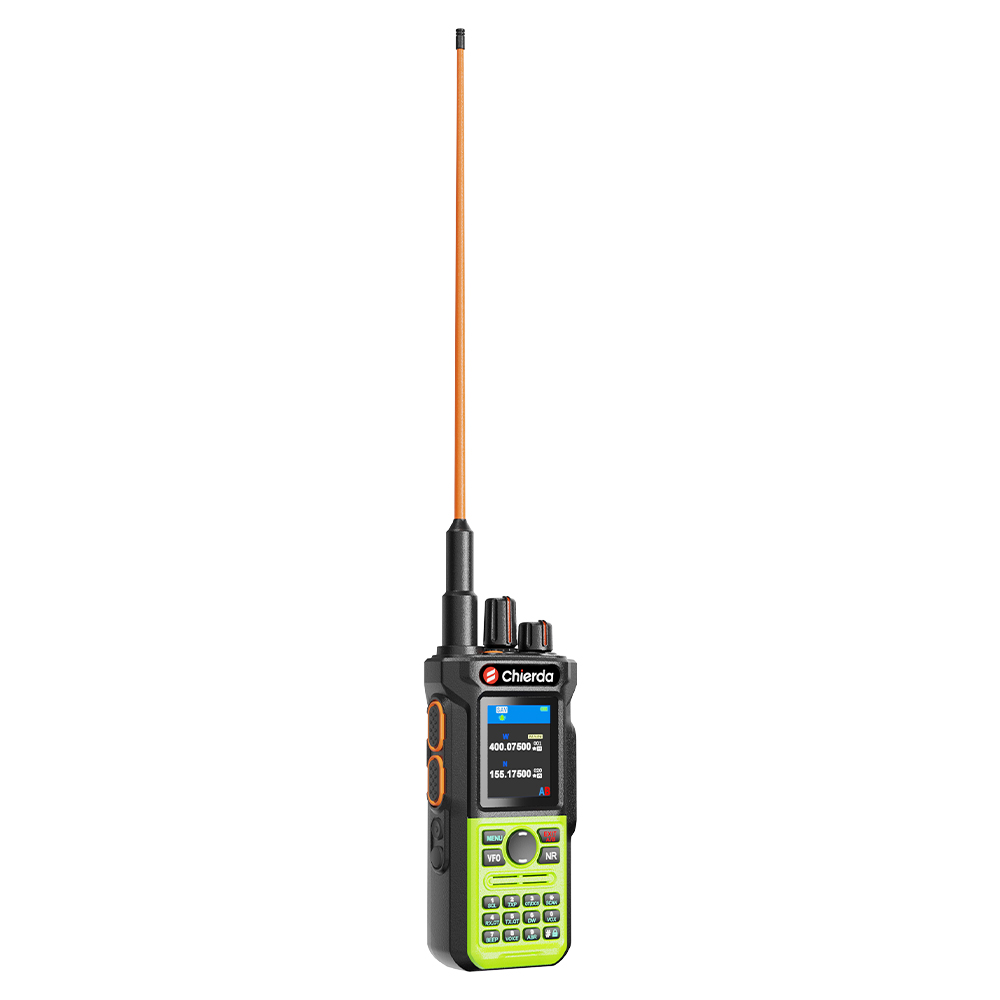

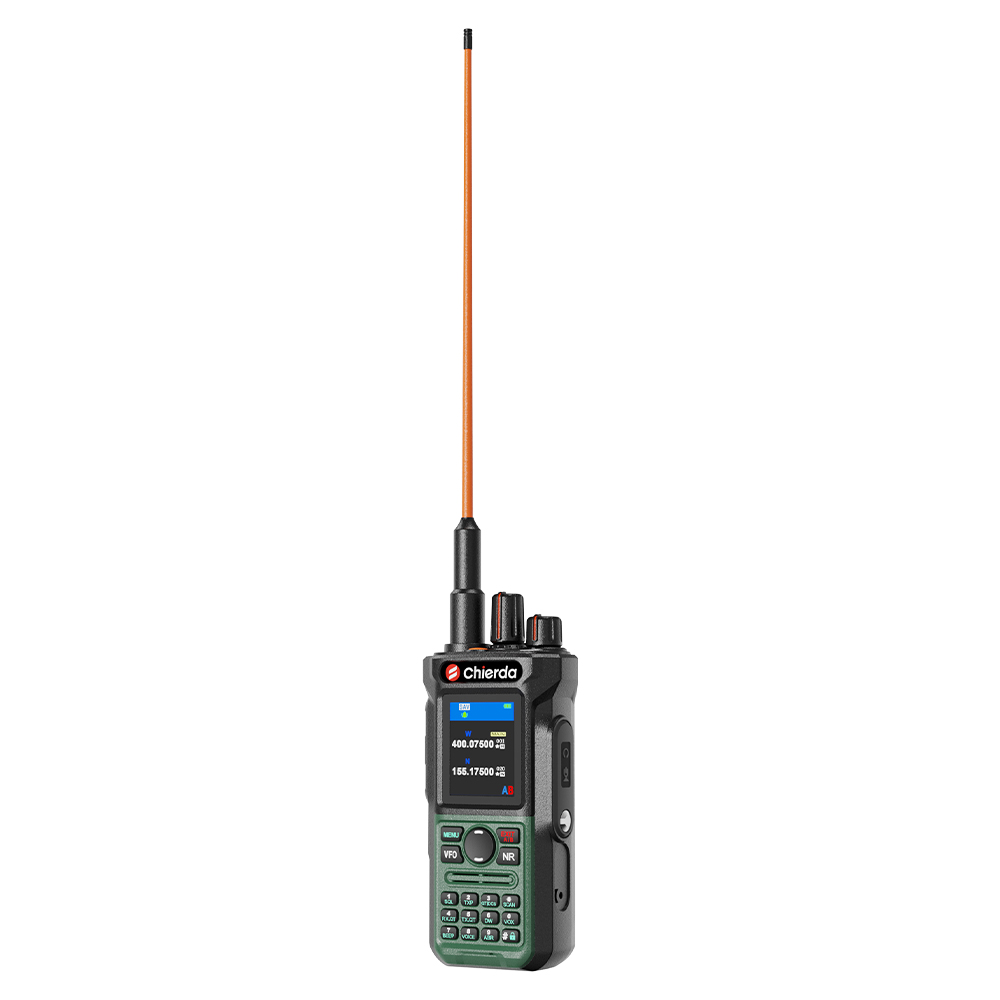

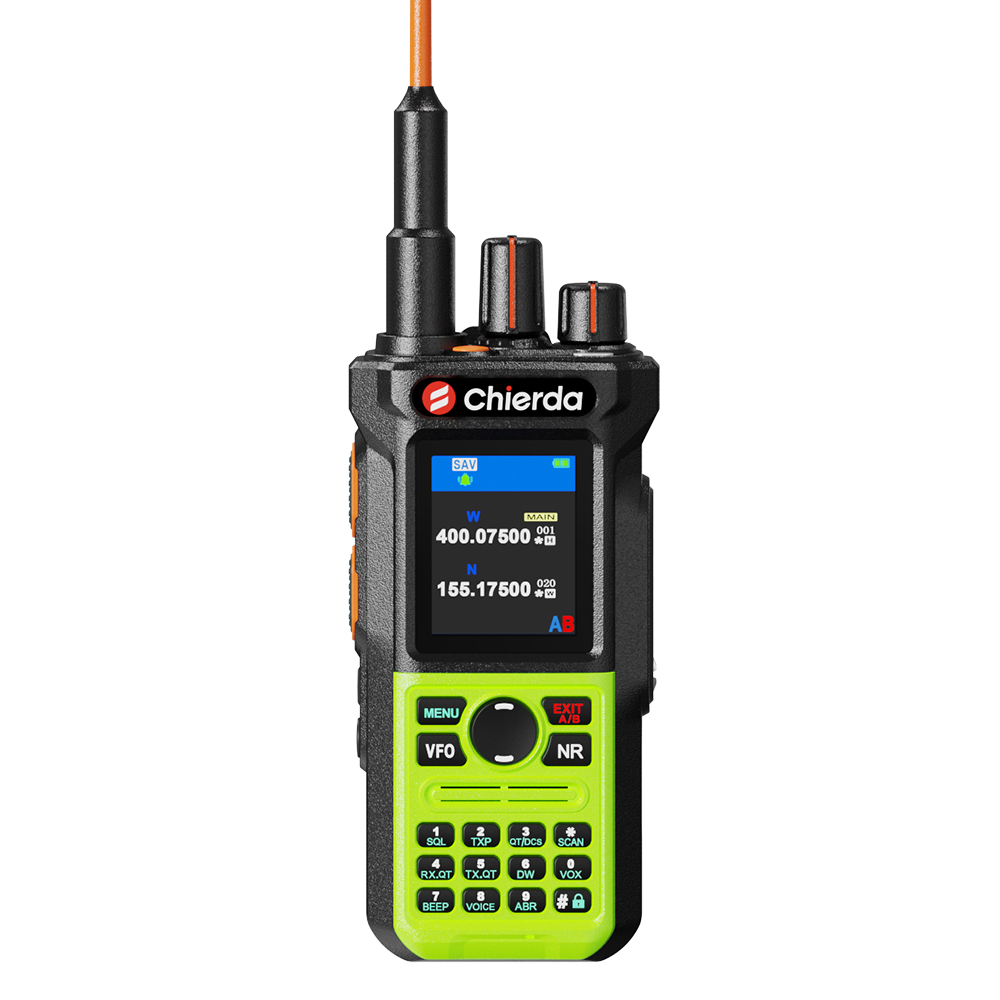

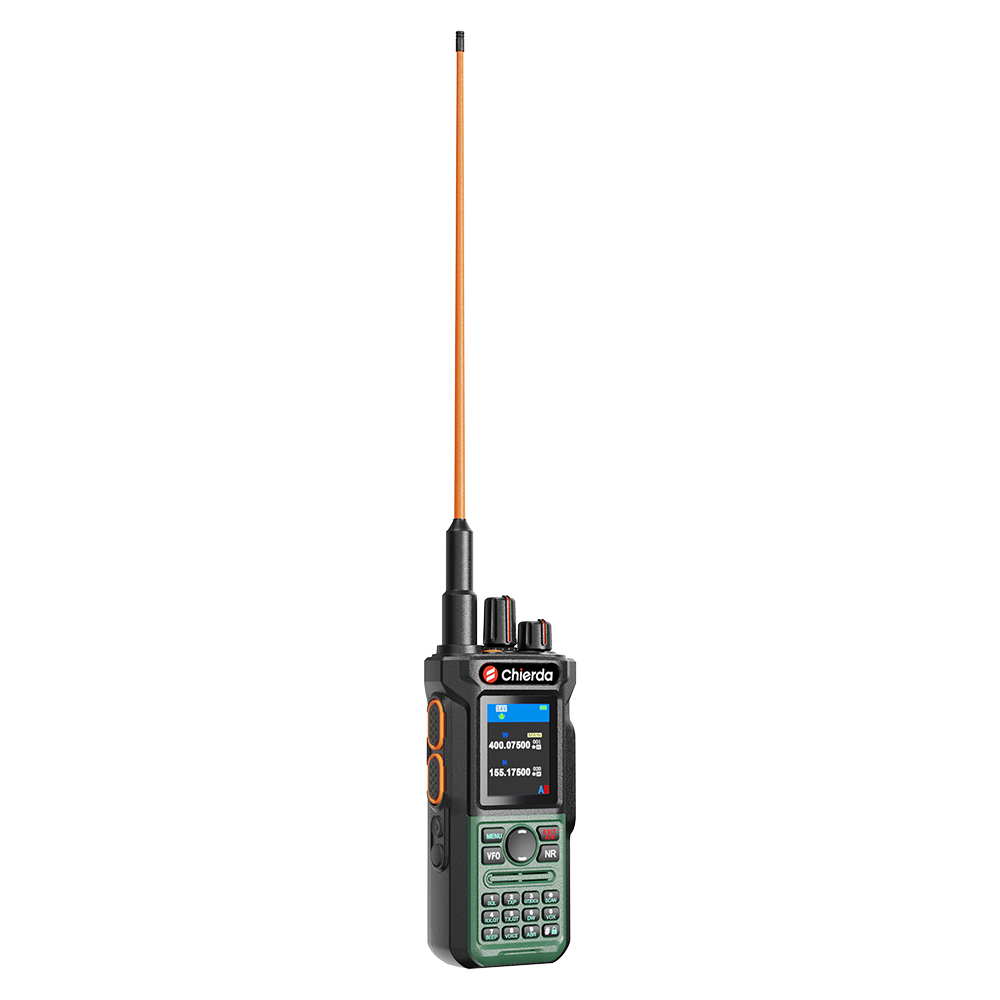

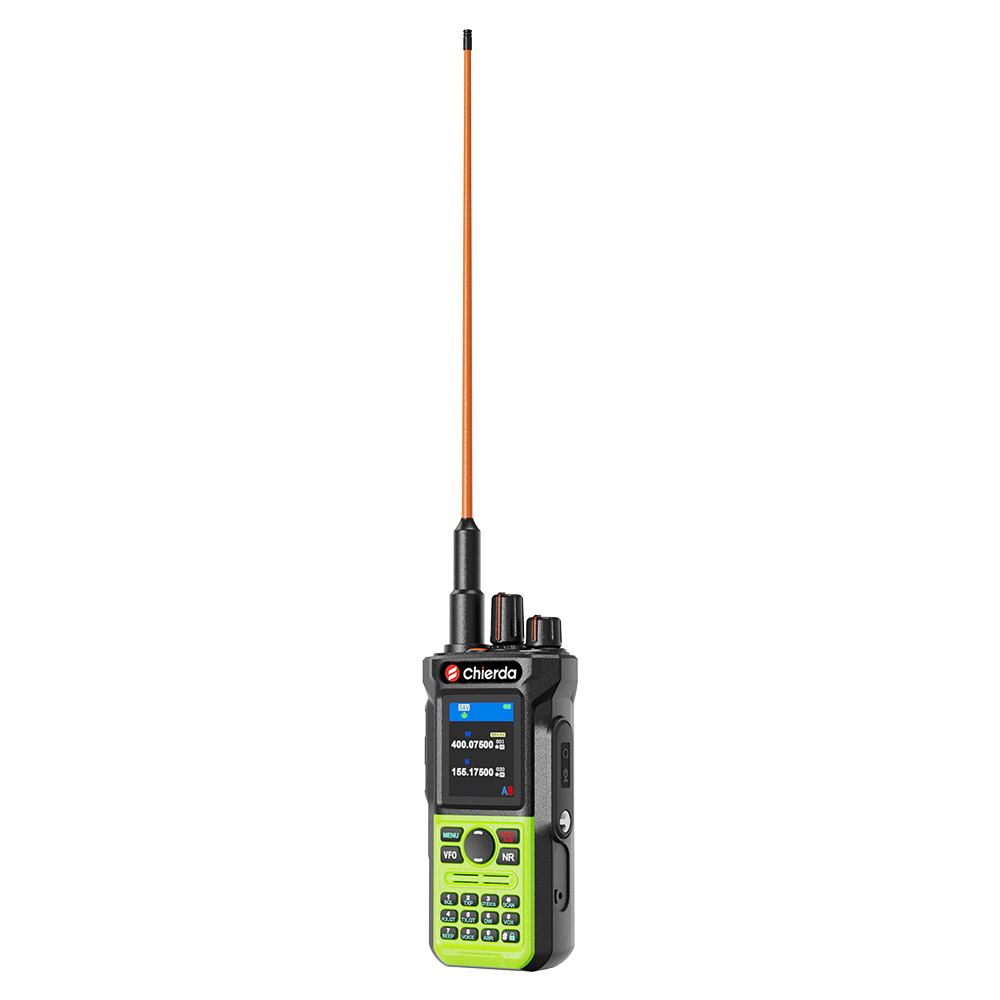

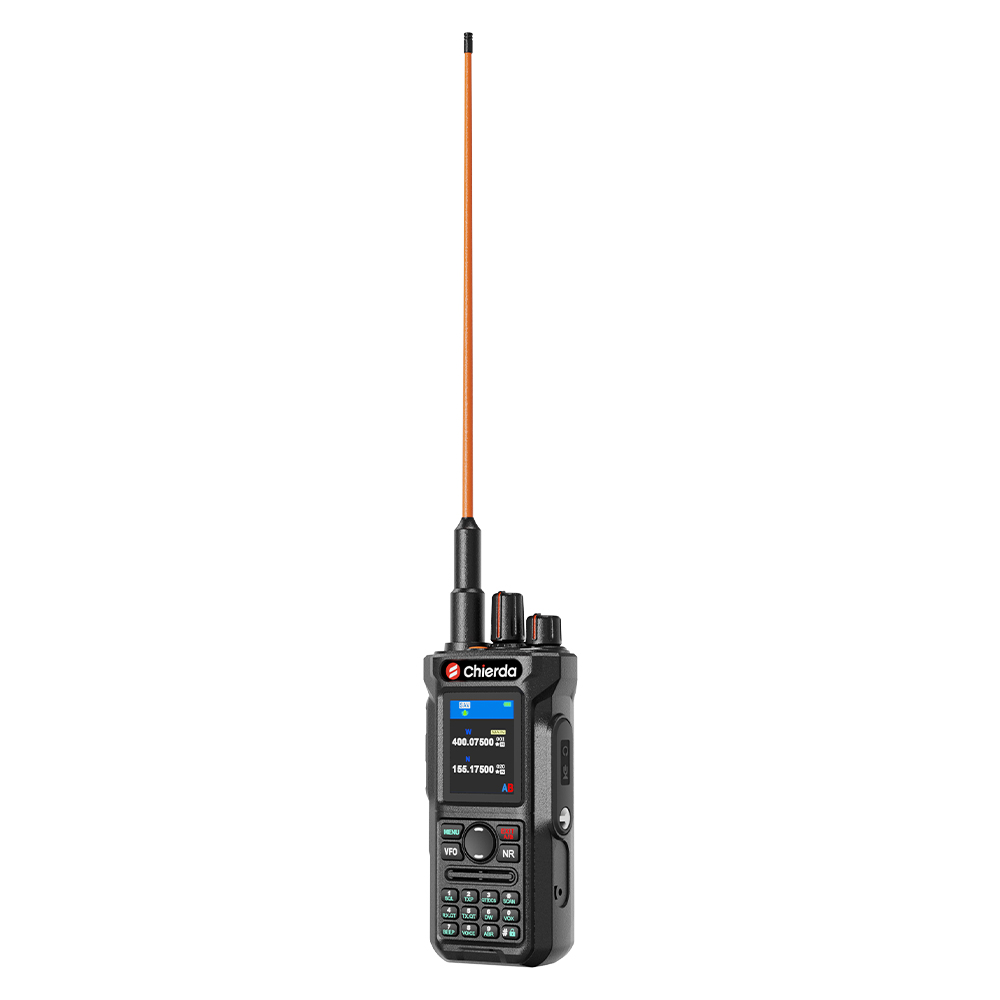

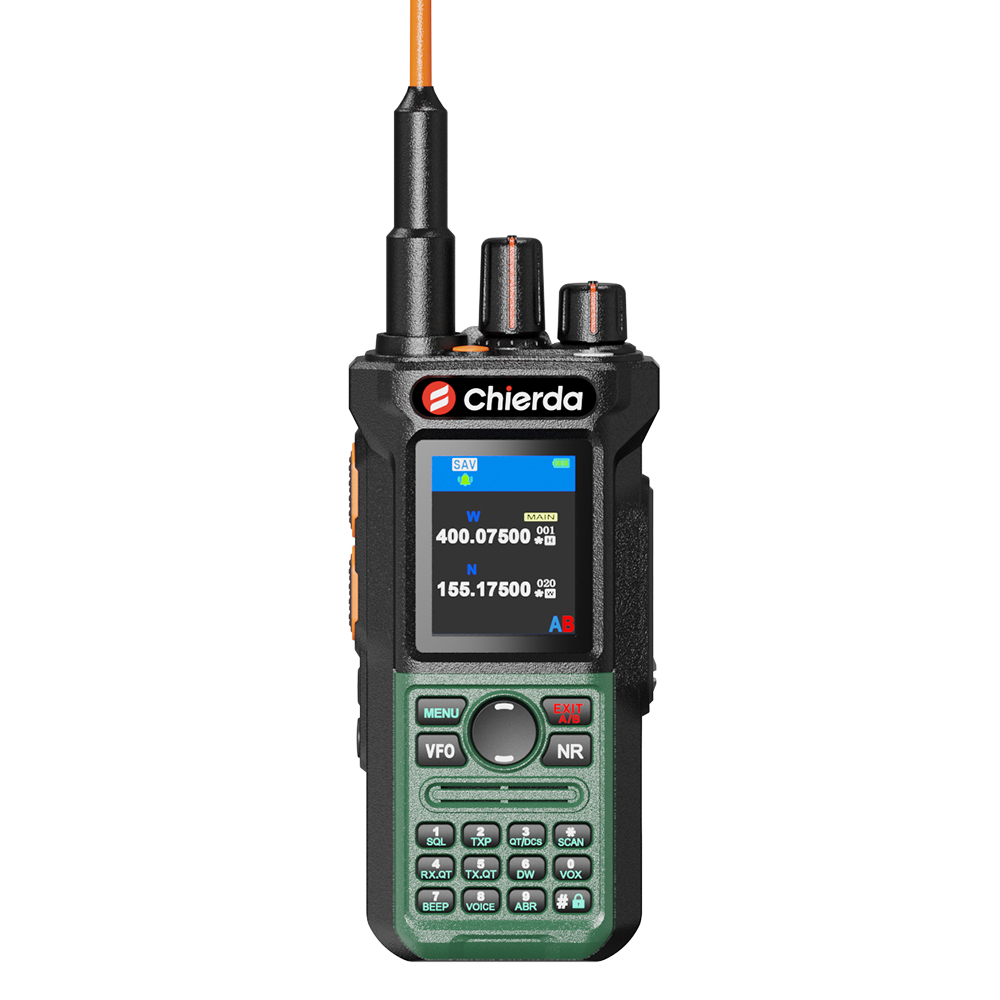

Chierda T5 Dual Band Ham Radio
T5
1. Dual PTT Operation
2. UHF & VHF Dual Band
3. VoX function
4. FM Radio
5. Two way Noise Reduction
6. Emergency SOS Alert
7. Optional function: IP67 Waterproof, Bluetooth
Chierda T5 is a UHF/VHF dual band walkie talkie, high power with LCD display, optional IP67 waterproof. Voice scrambler, SOS, FM radio, dual PTT, one-key group call & scan function for reliable private communication.

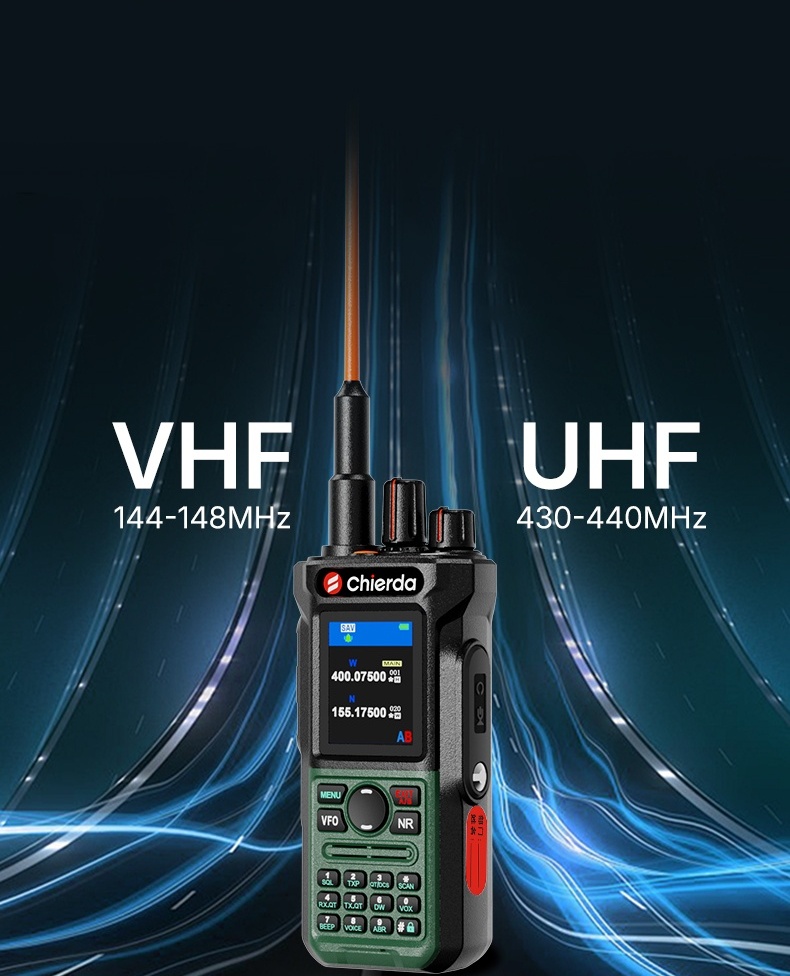

UHF & VHF Dual Band:
Chierda T5 is a dual band radio and it operates on UV dual band. Dual frequency band design for wider signal coverage and flexible communication. It can also receive aviation band and FM radio.Dual PTT Operation:

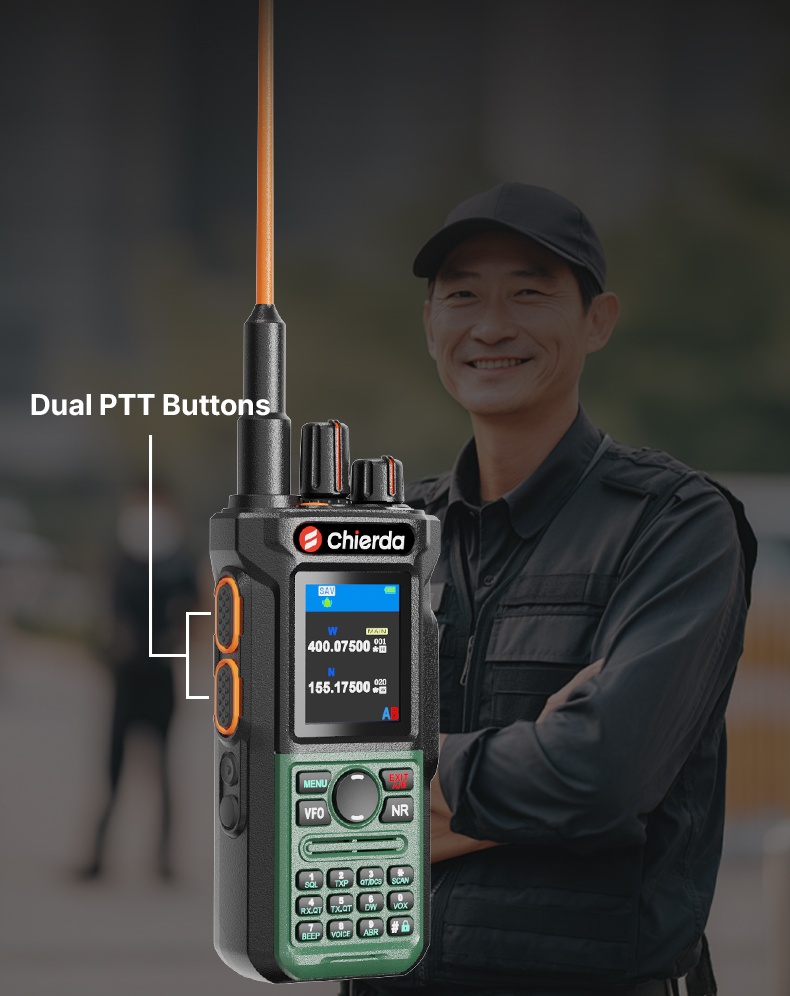

Chierda T5 features dual PTT buttons on the side. High versatibility. It supports single/group/all call modes. You can quickly start a group call.
Two-way Noise Reduction:
Equipped with intelligent two-way noise cancerllation technology, T5 can filter out noise and keep crystal clear human voice.SPECIFICATION | |
Frequency Range | VHF:136-174MHz & |
Channel Spacing | 256 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 120x55x35 mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.7A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency Deviation | ≤5KHz / ≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤0.25uV /≤0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
