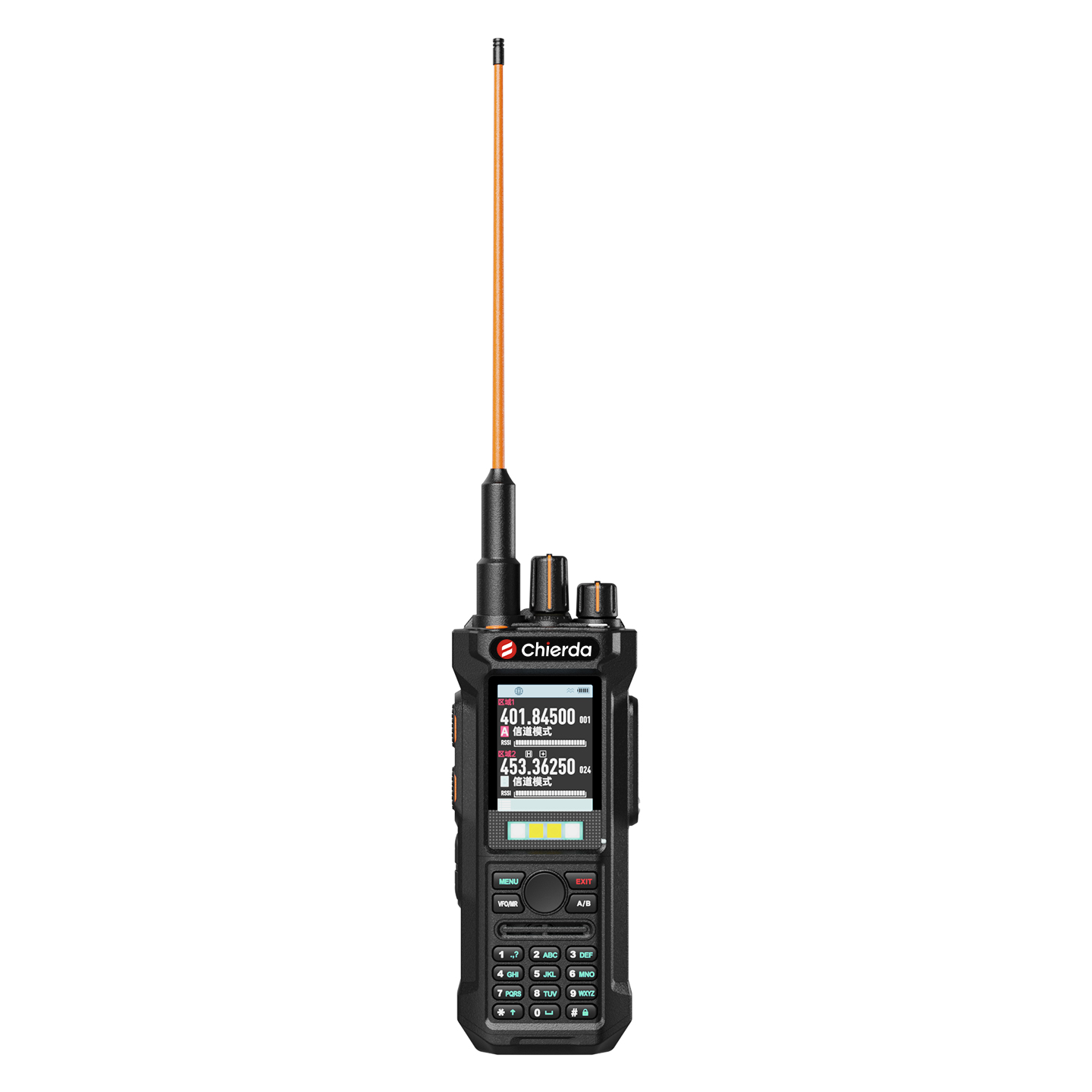

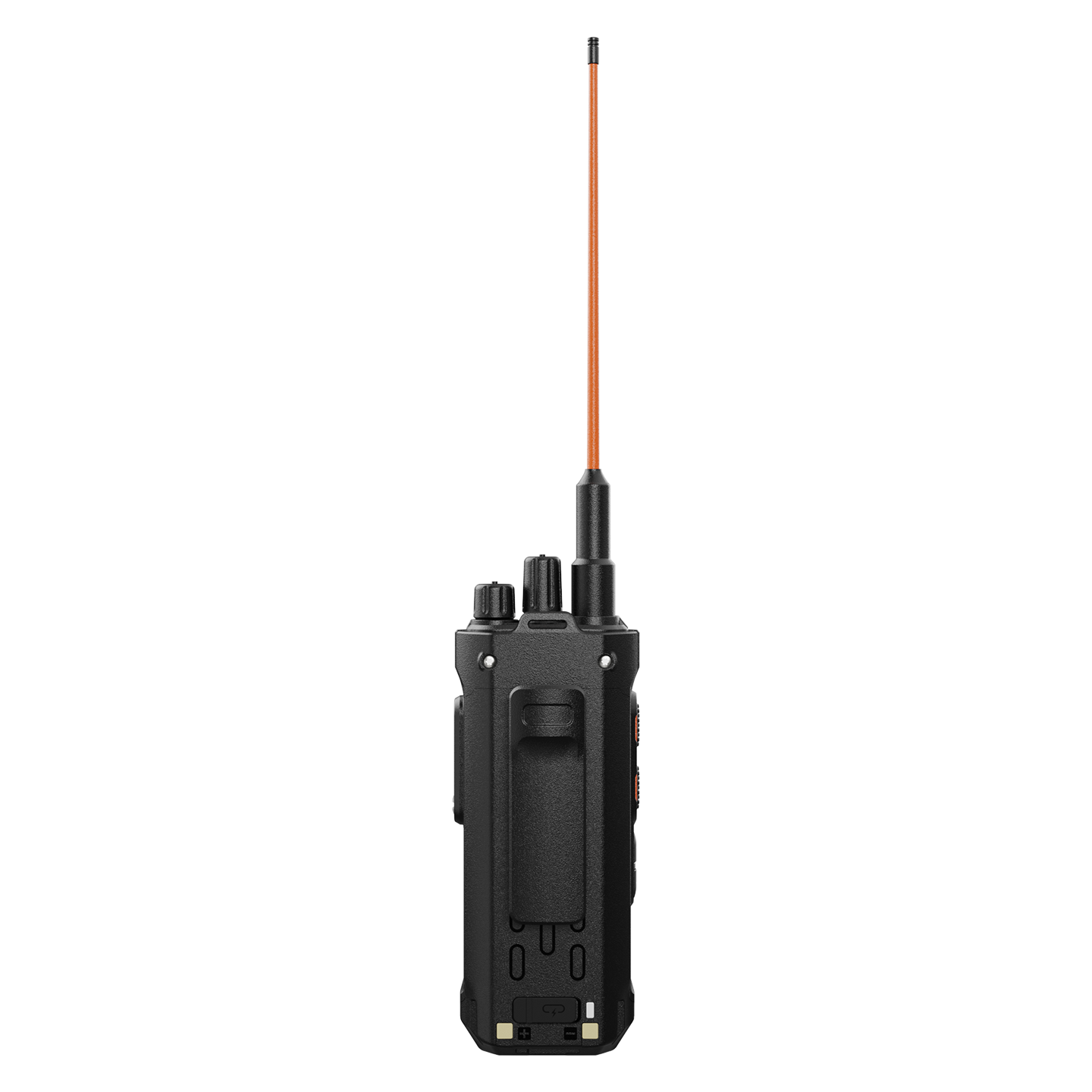

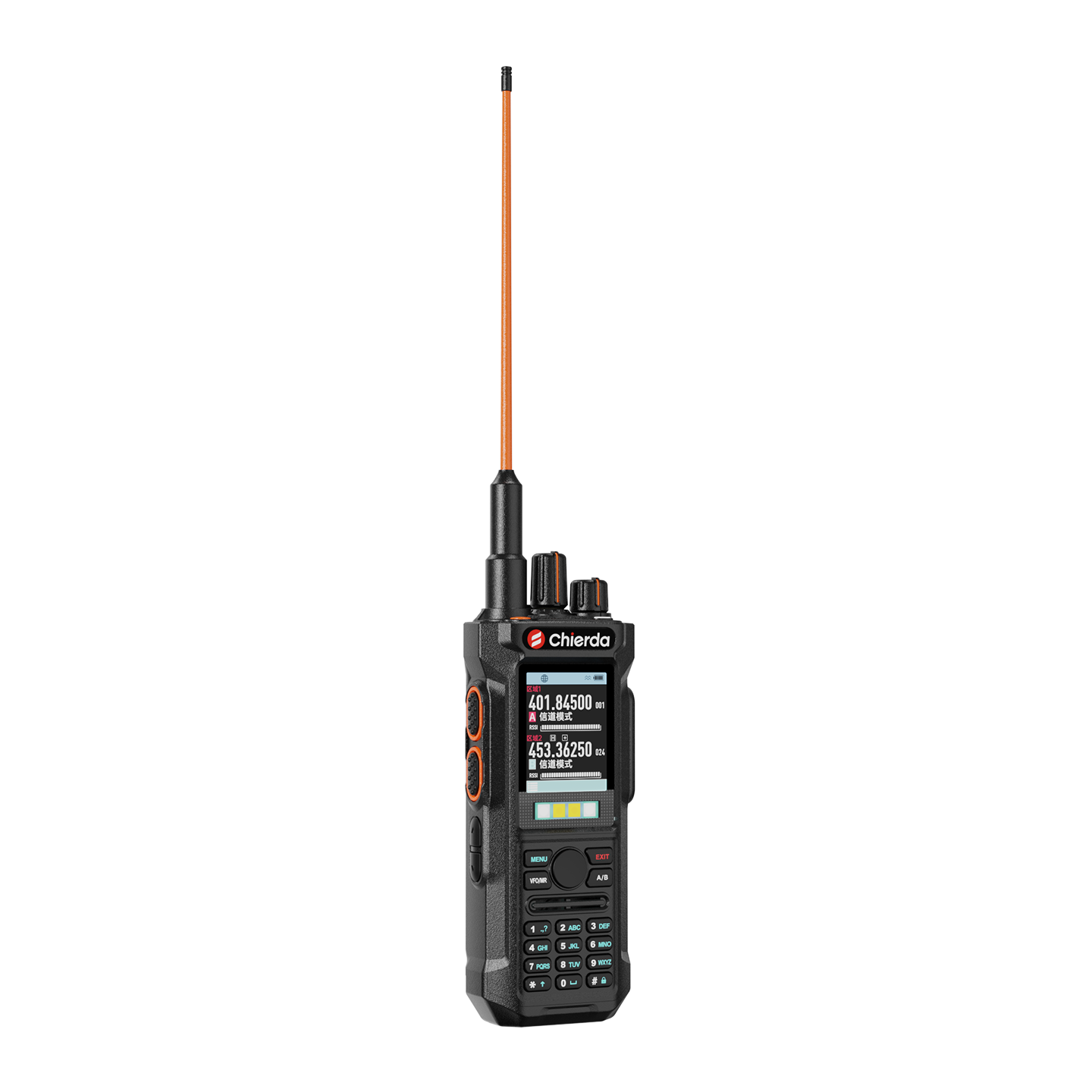

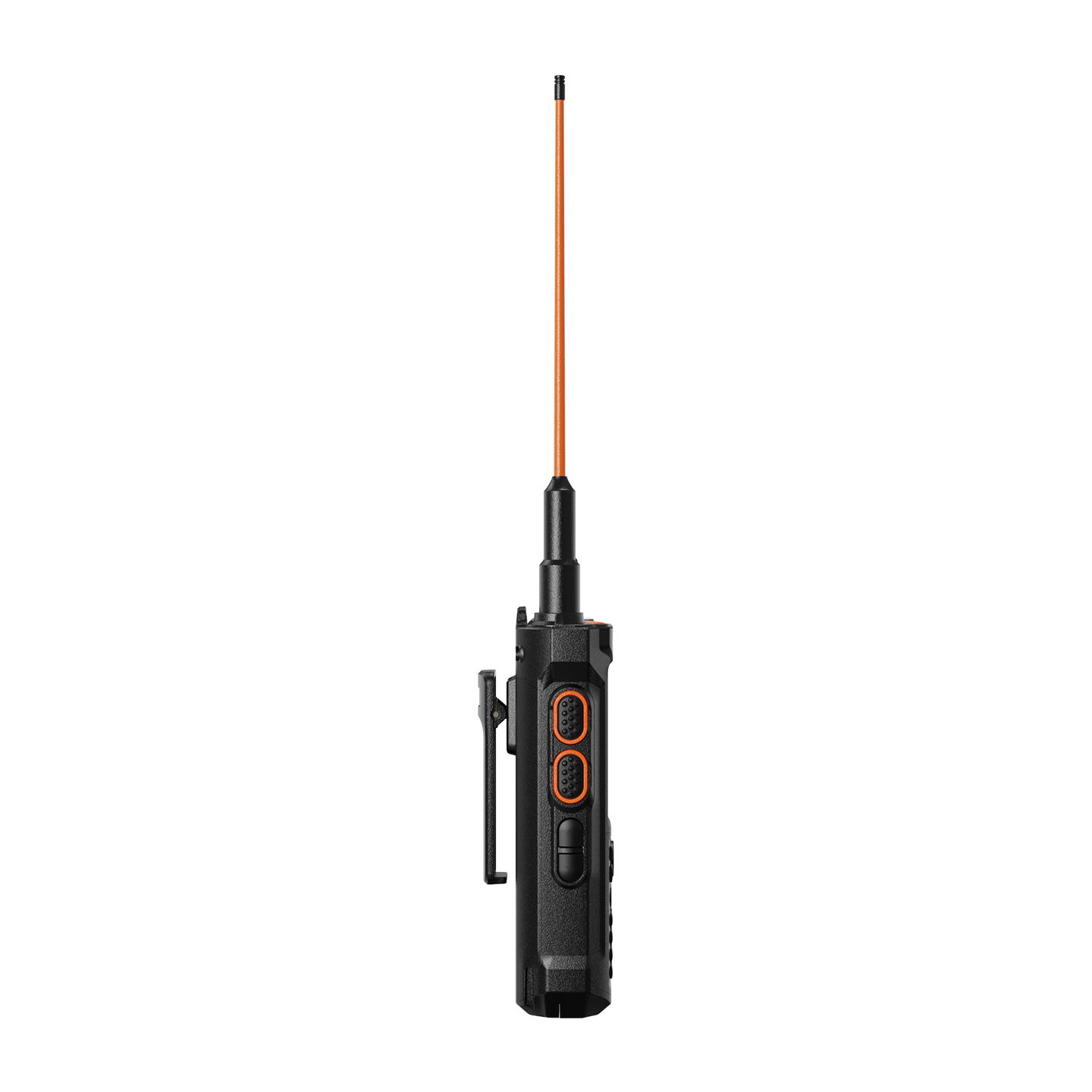

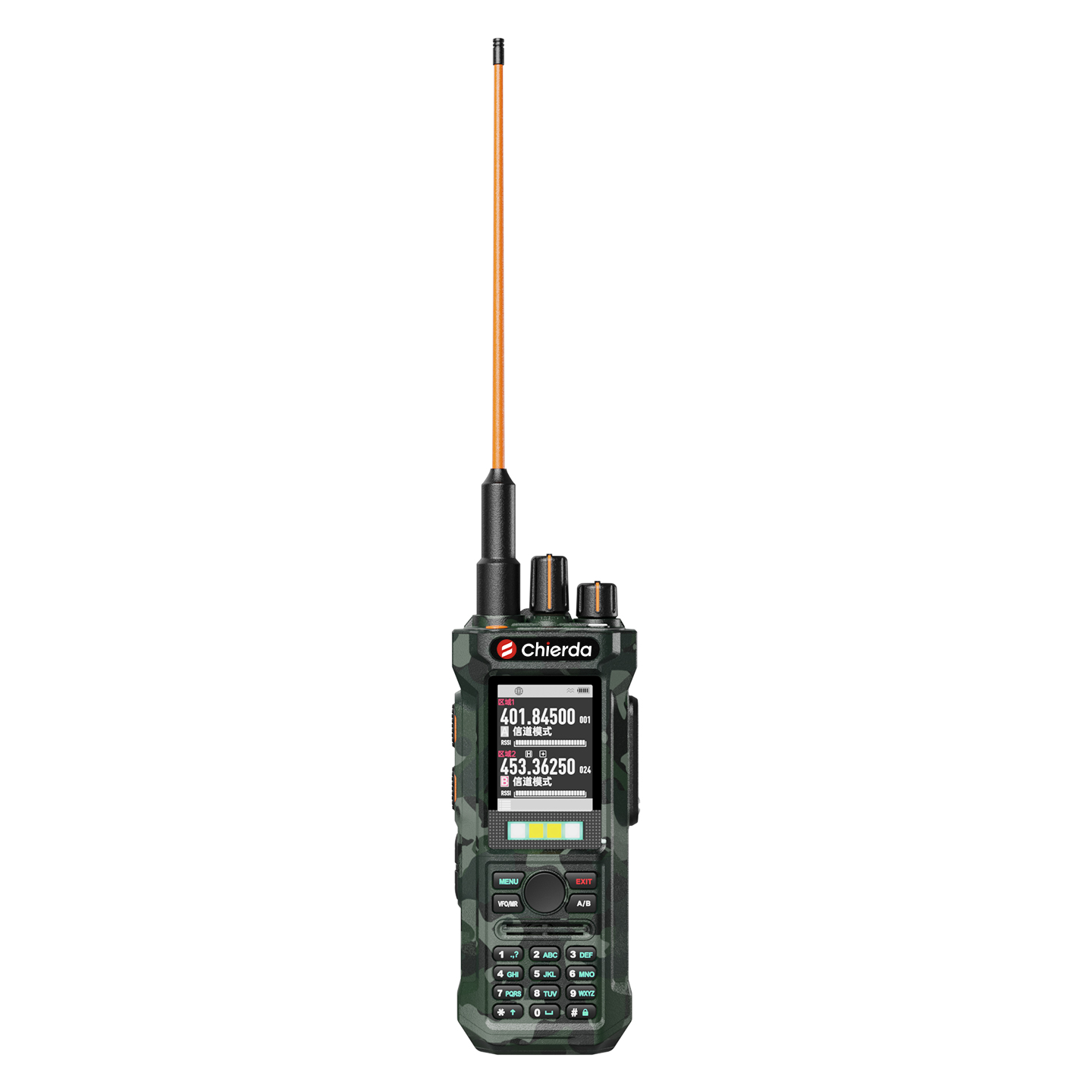

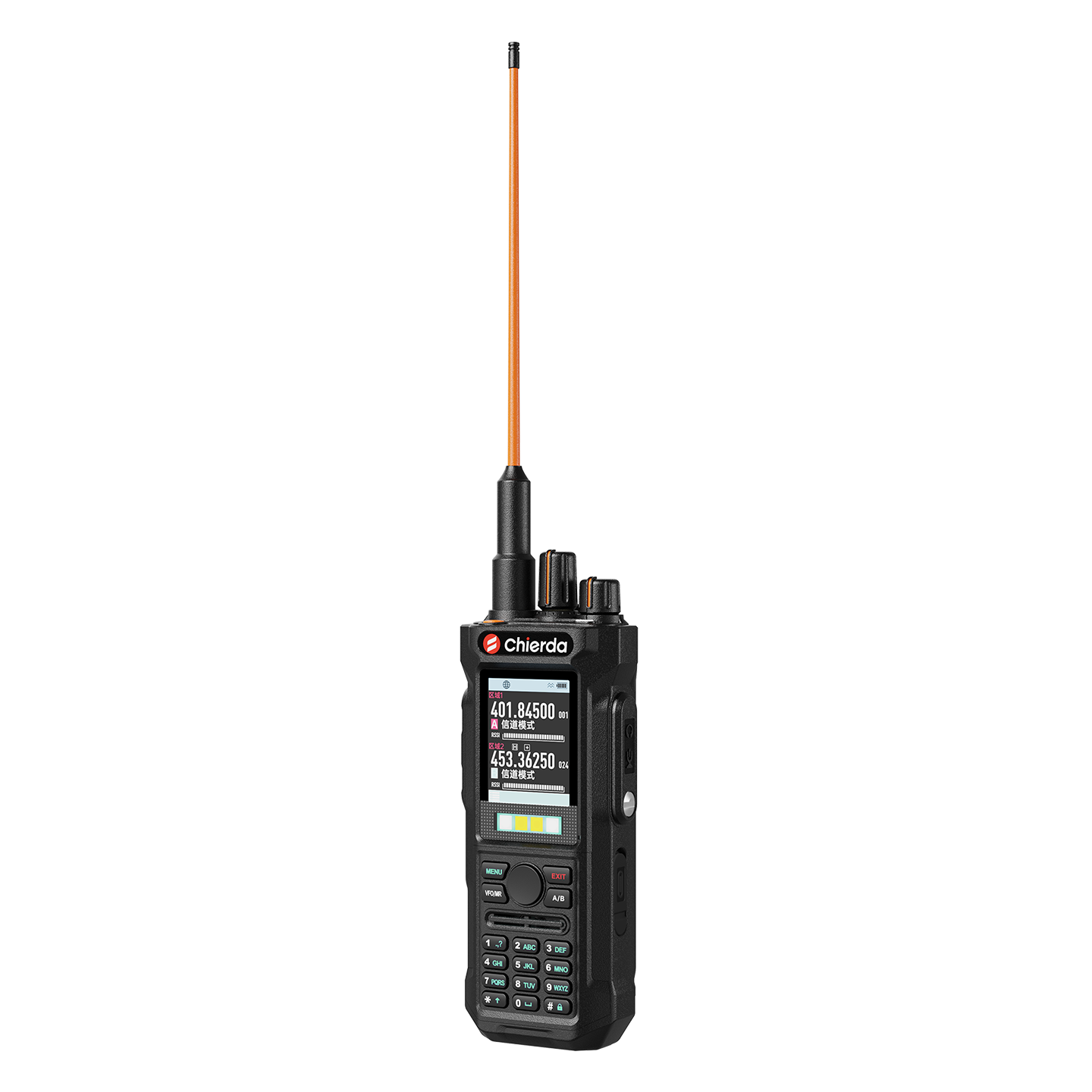

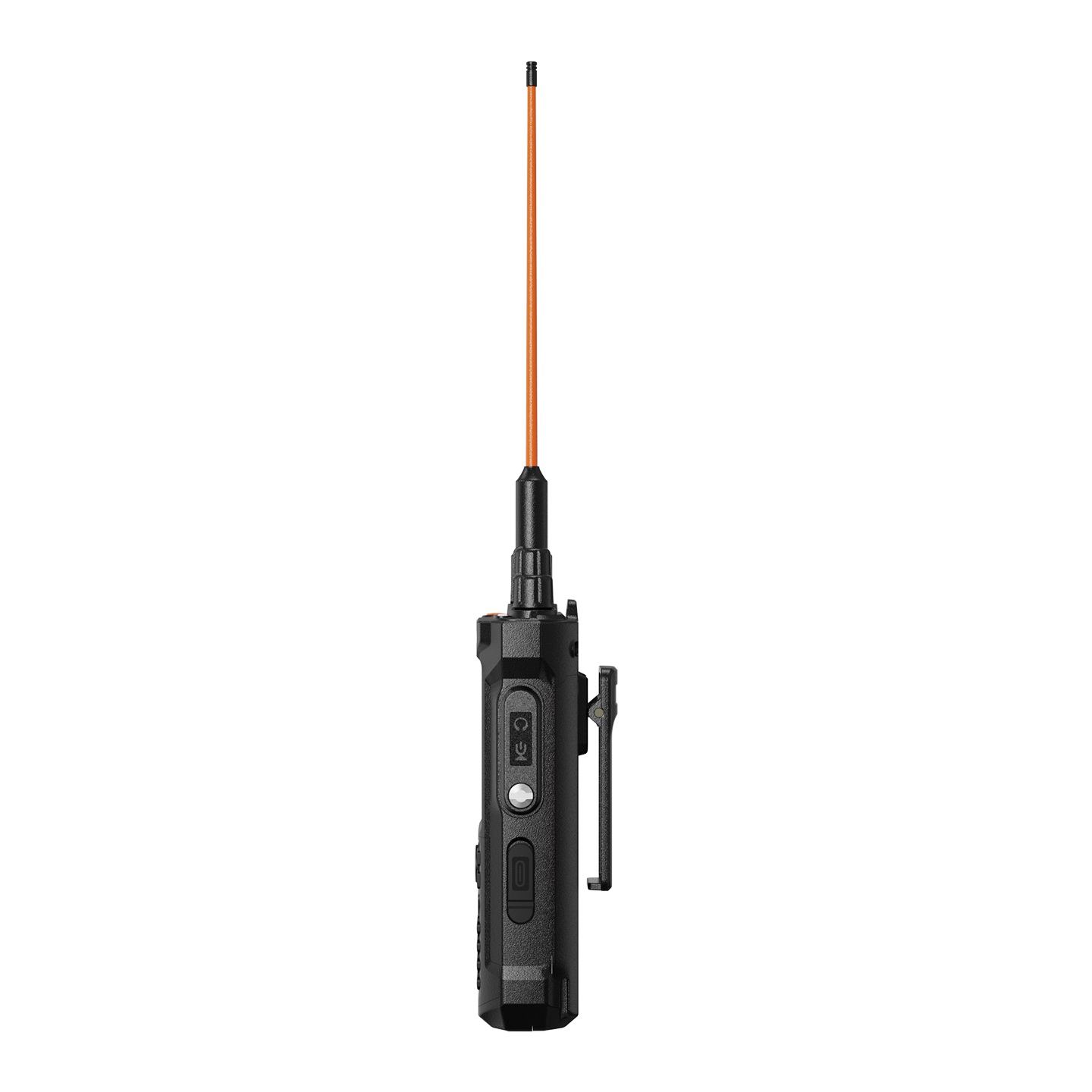

Chierda T6 Dual Band Ham Radio GPS APRS
T6
1. Dual PTT Operation
2. PTT-ID
3. UHF & VHF Dual band
4. GPS function and APRS locate
5. Compass function
6. Three strobe flashlight modes
7. Type-C charging port
8. Scan, VOX function
9. Bluetooth capability
10. Emergency alert function
11. IP67 Waterproof (Optional)
Chierda T6 is a newly upgraded professional 10W dual-band handheld ham radio, engineered for amateur radio enthusiasts, outdoor adventurers, field operations, and emergency communication scenarios.
GPS & APRS Precision Position Tracking:
Built-in high-sensitivity GPS and standard APRS system enable real-time positioning and location sharing. Users can track team positions and synchronize location data during outdoor activities and field missions. Paired with the integrated compass function, T6 provides accurate navigation.Advanced Frequency Hopping Technology:
Equipped with advanced frequency hopping technology, the T6 rapidly and automatically switches operating frequencies during use and private the security of your talk.
Type-C Charging Port:
T6 adpots universal Type-C port for fast, convenient power replenishment.SPECIFICATION | |
Frequency Range | VHF:136-174MHz & |
Channel Spacing | 256 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2800mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 141x55.5x34.5 mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.7A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency Deviation | ≤5KHz / ≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤0.25uV /≤0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

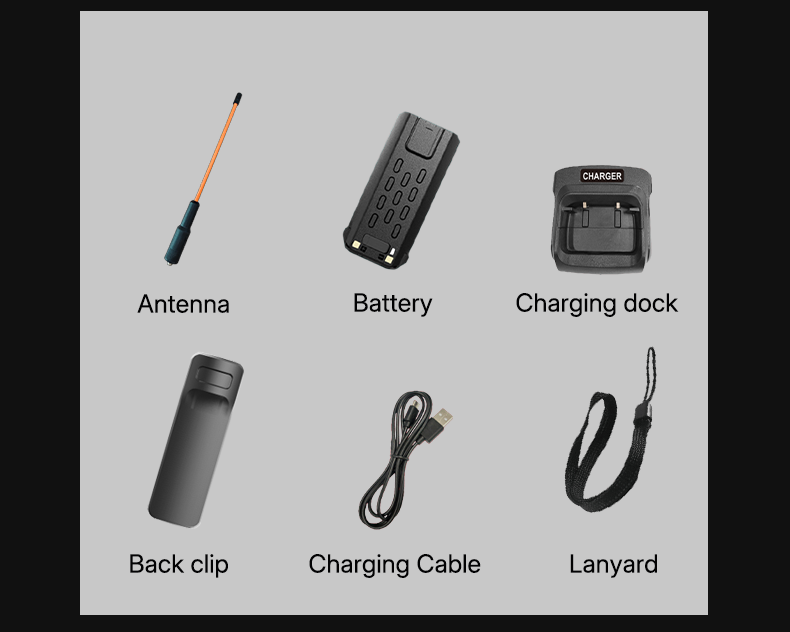

Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
