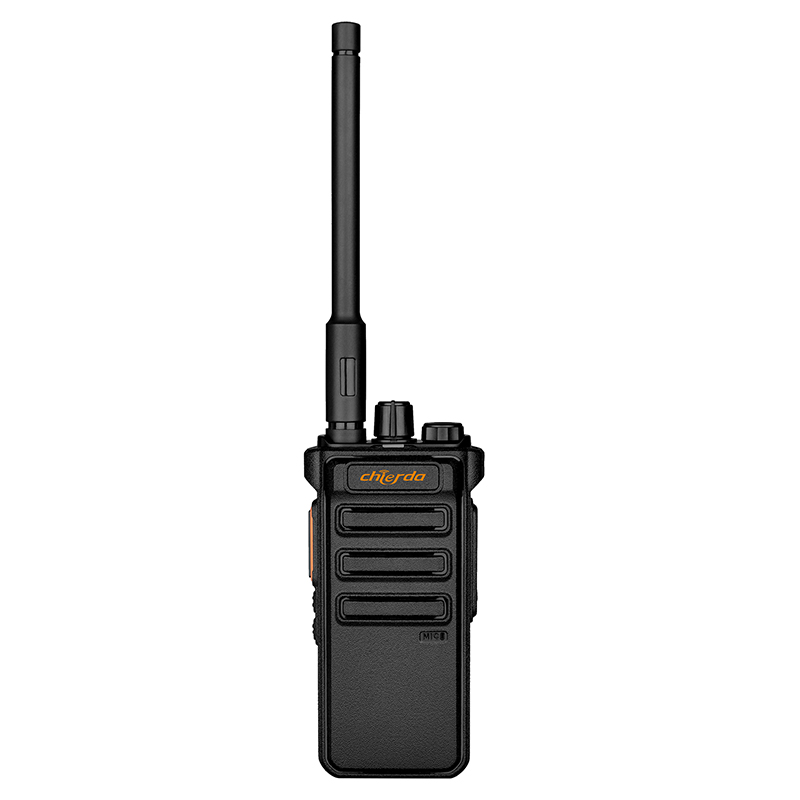

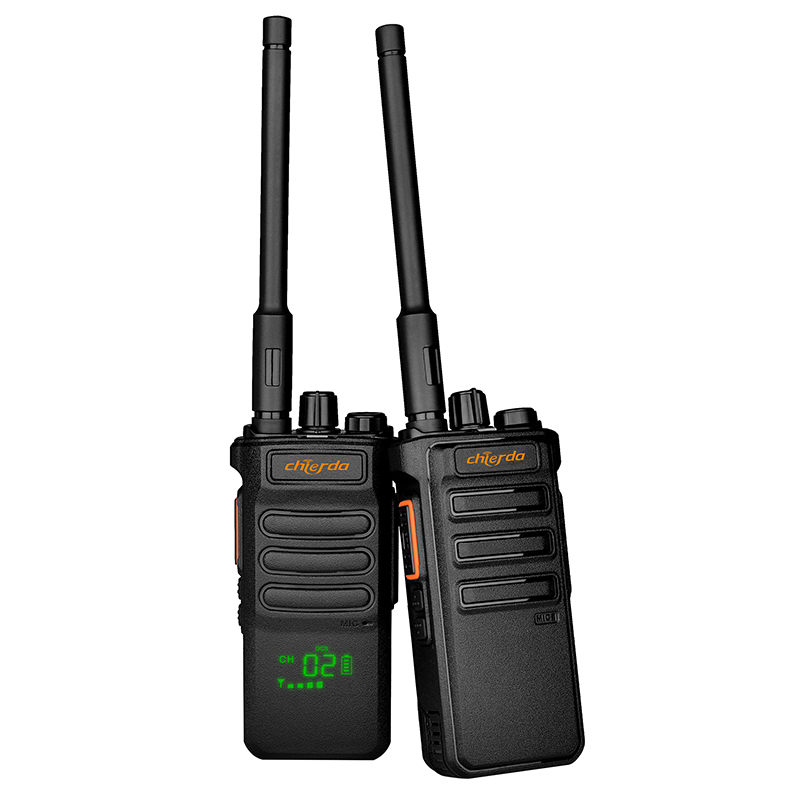

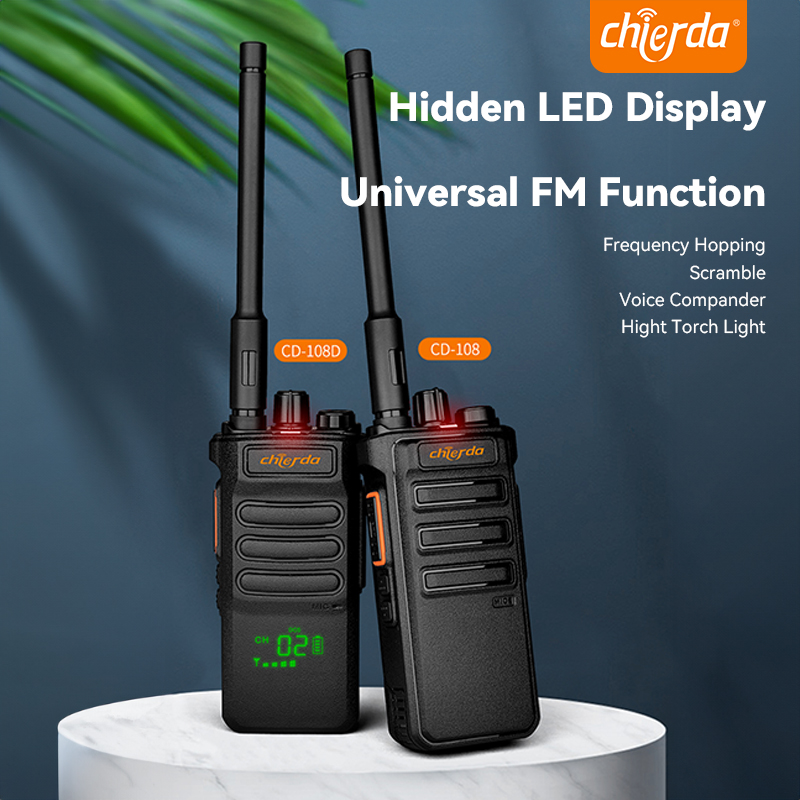

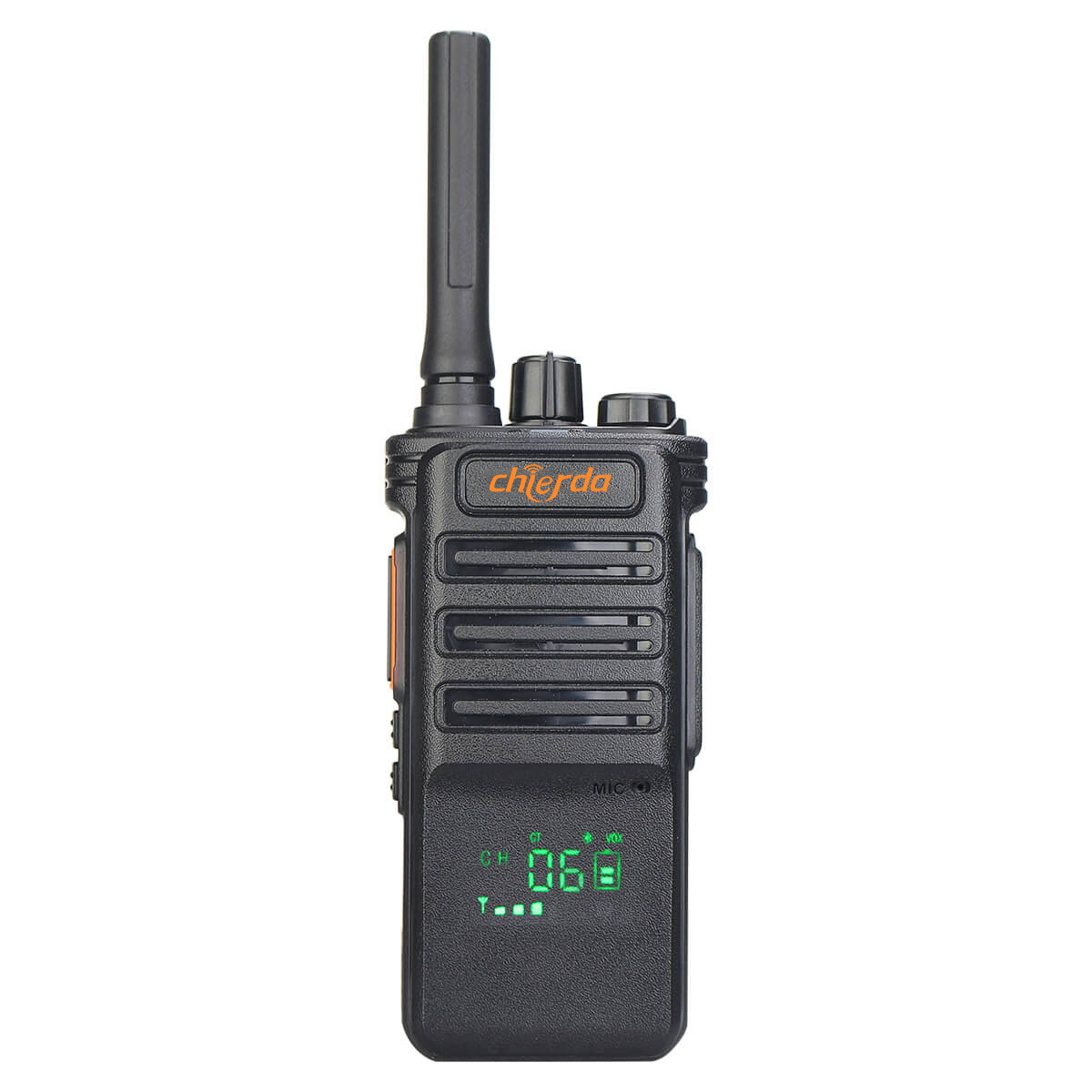

Chierda CD-108D Hidden Display 10W Long-range Two Way Radio
CD-108D
1.High Power, Long Distance
2.Shatterproof Hidden LCD Display
3.2500mAh Large Capacity Battery, 125 Hours Long Standby Time
4. Built-in Powerful Flashlight
5.FCC & CE Certified
Chierda CD-108D Hidden Display Two-Way Radio is a high performance and high functional 10 watt radio with 8-12km communication coverage. It features a hidden display, frequency hopping, scrambler, and many other functions. It is ideal for use in warehouses, logistics, transportation, security, etc.

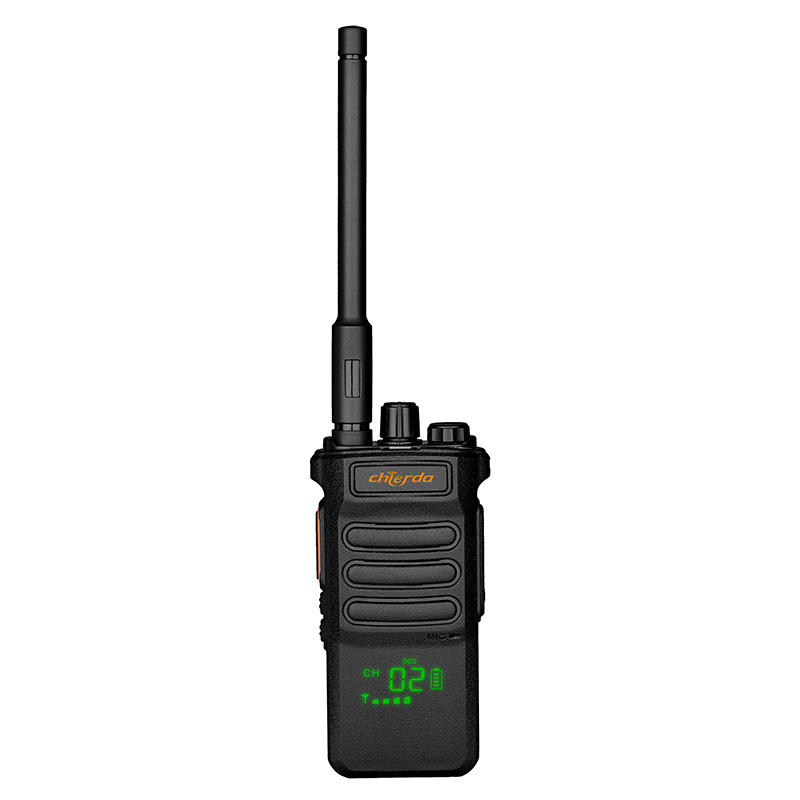

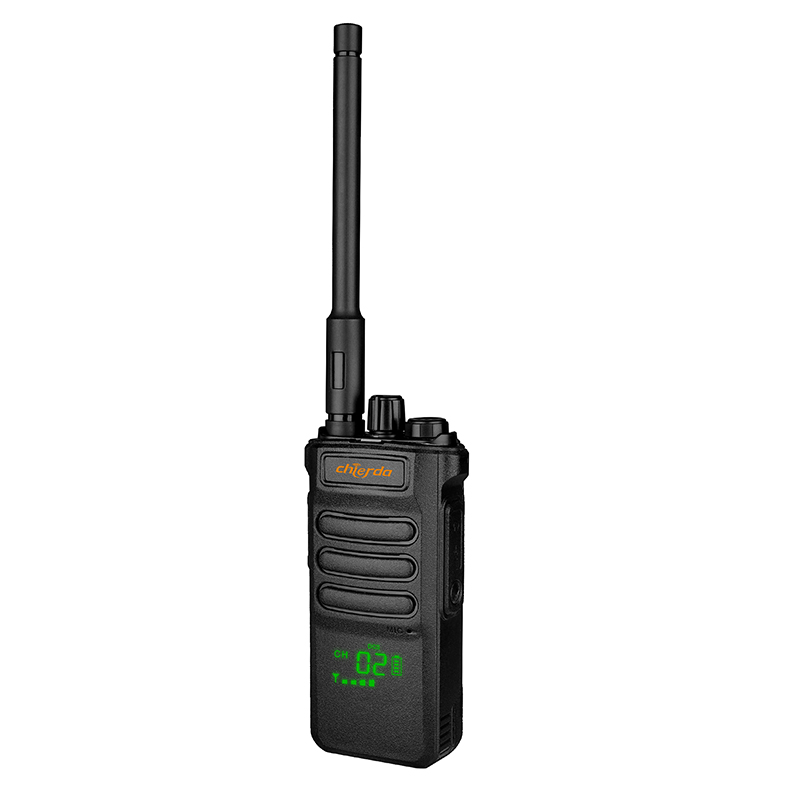

Hidden LCD Display:

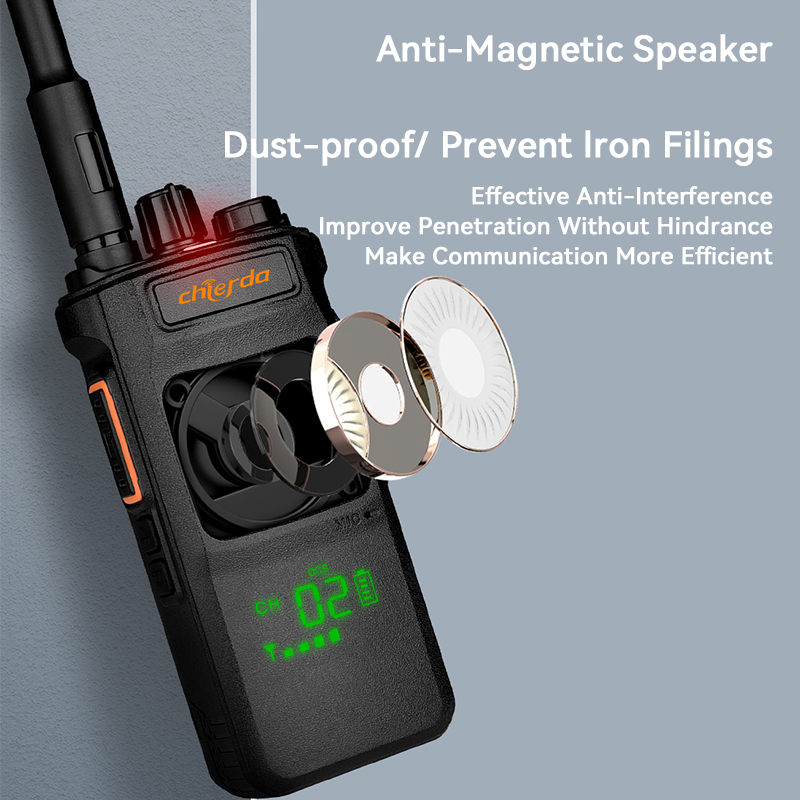

With a hidden display, CD-108D walkie talkie is much easier to operate. You can directly know the essential information from the hidden screen, such as the number of channel, battery capacity.Anti-magnetic Speaker:
Anti-magnetic speaker can help enhance the sound quality when users are in noisy environments.

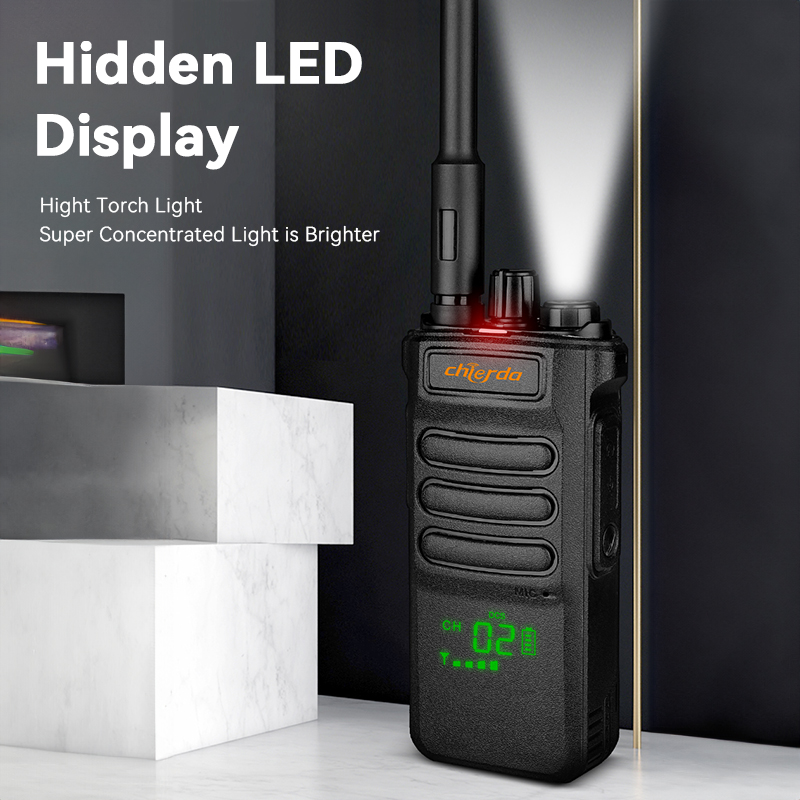

Powerful Flashlight:

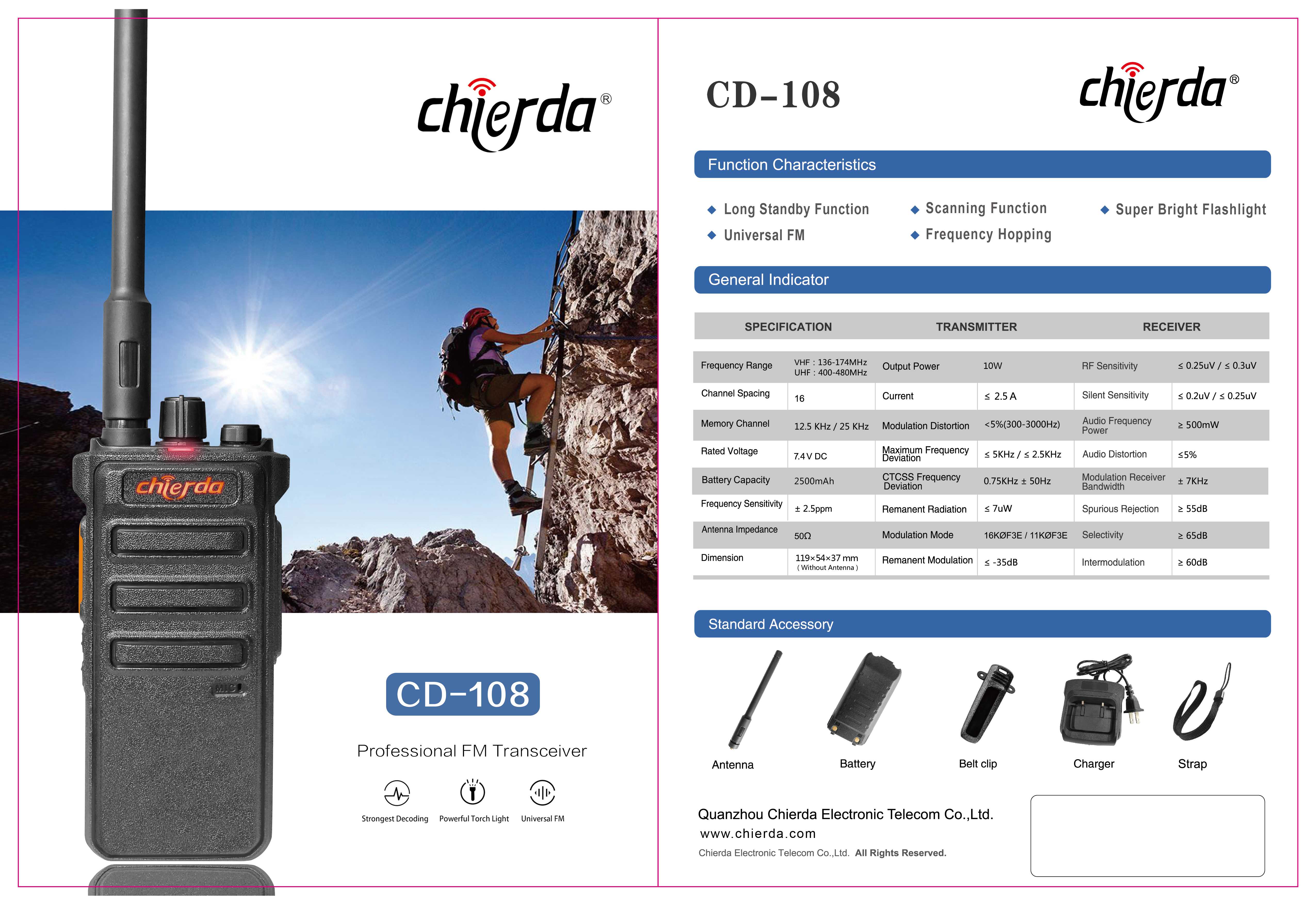

A built-in torch flashlight can help you to work in the darkness. This function can also be used for emergencies.CD-108 | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |
CD-108D | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

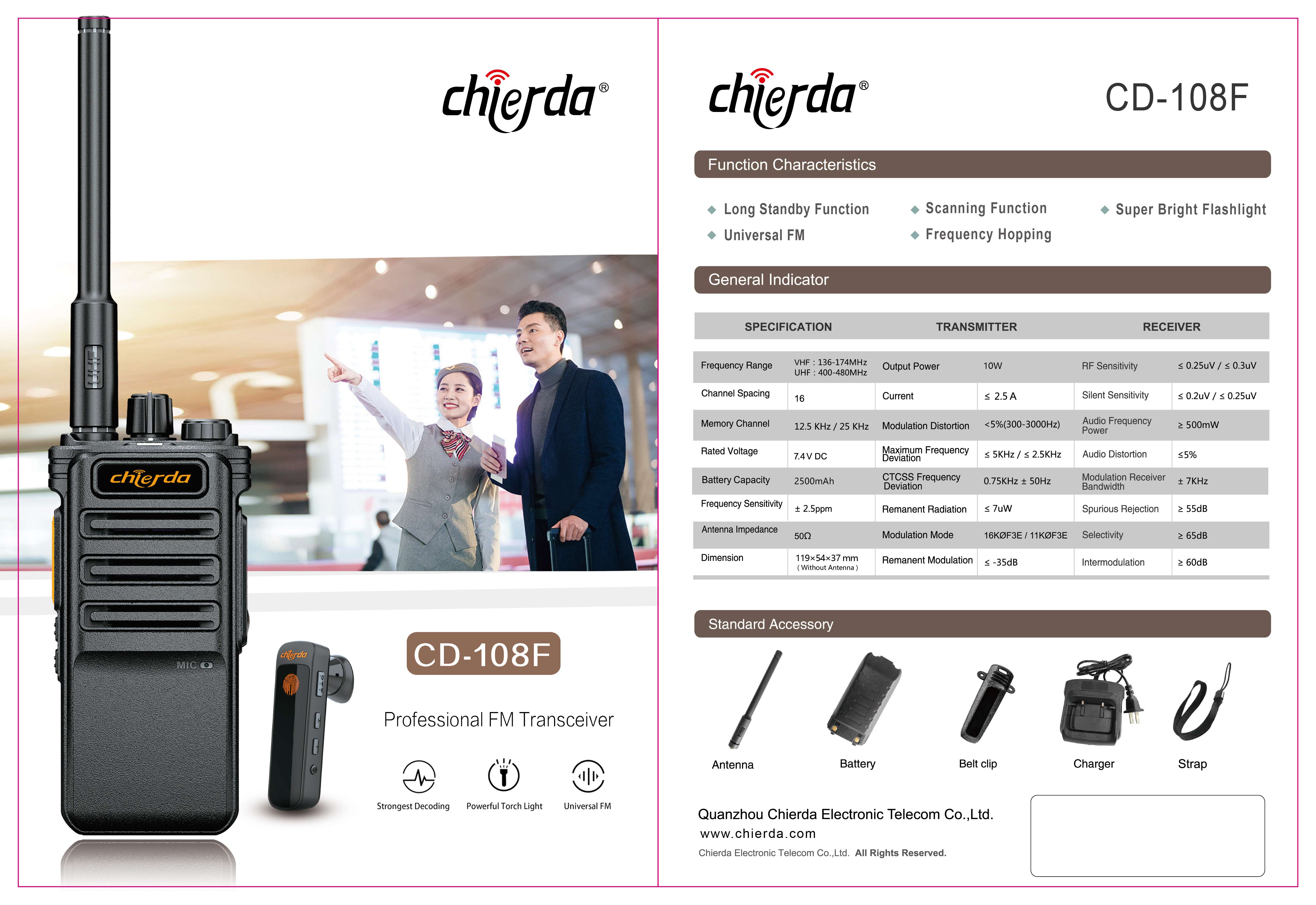

CD-108F with Bluetooth | |
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

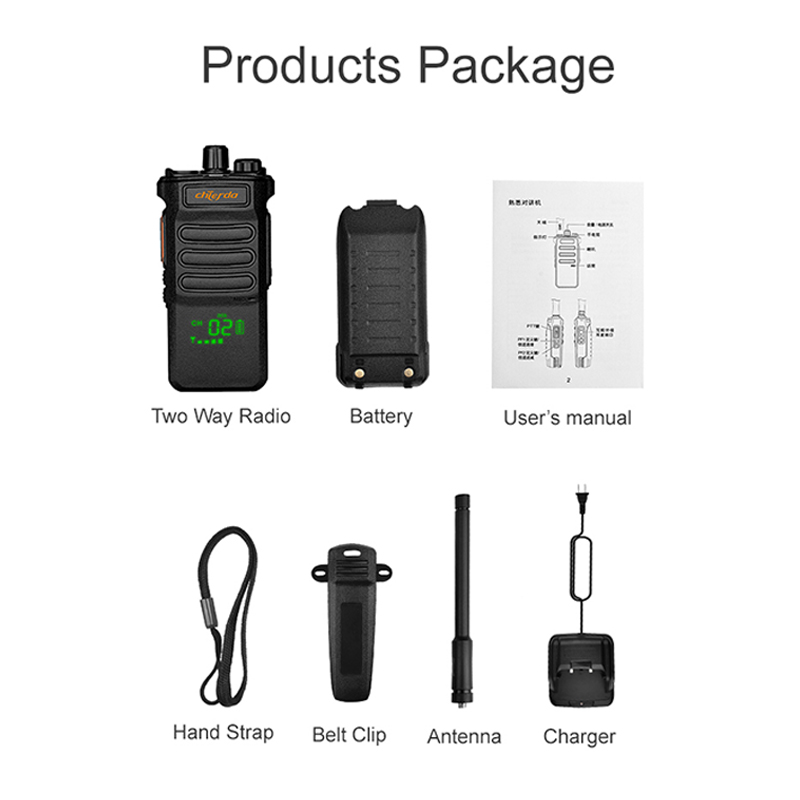

Product set
Radio*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
