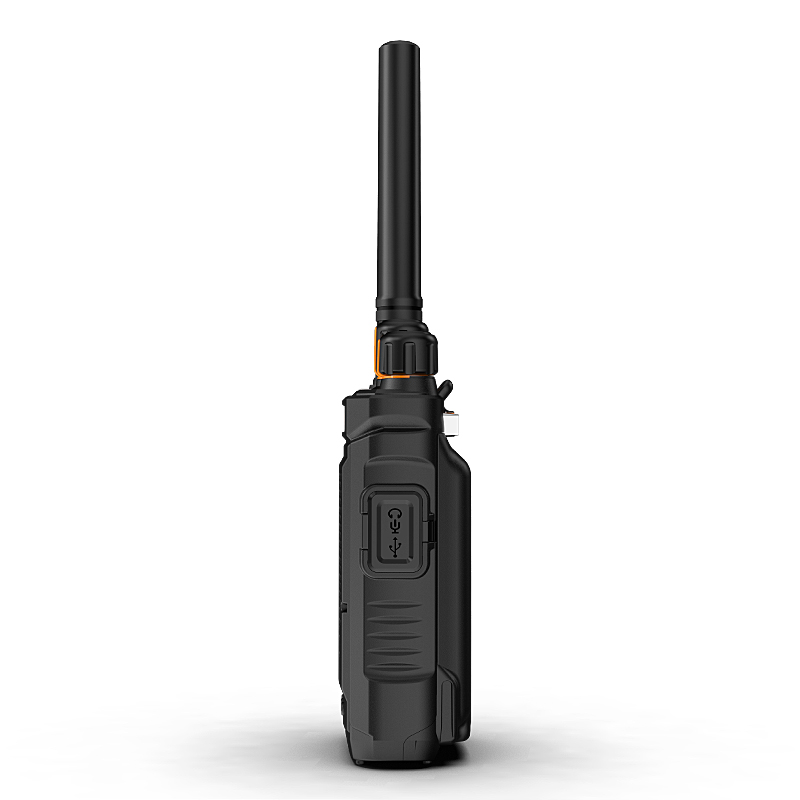

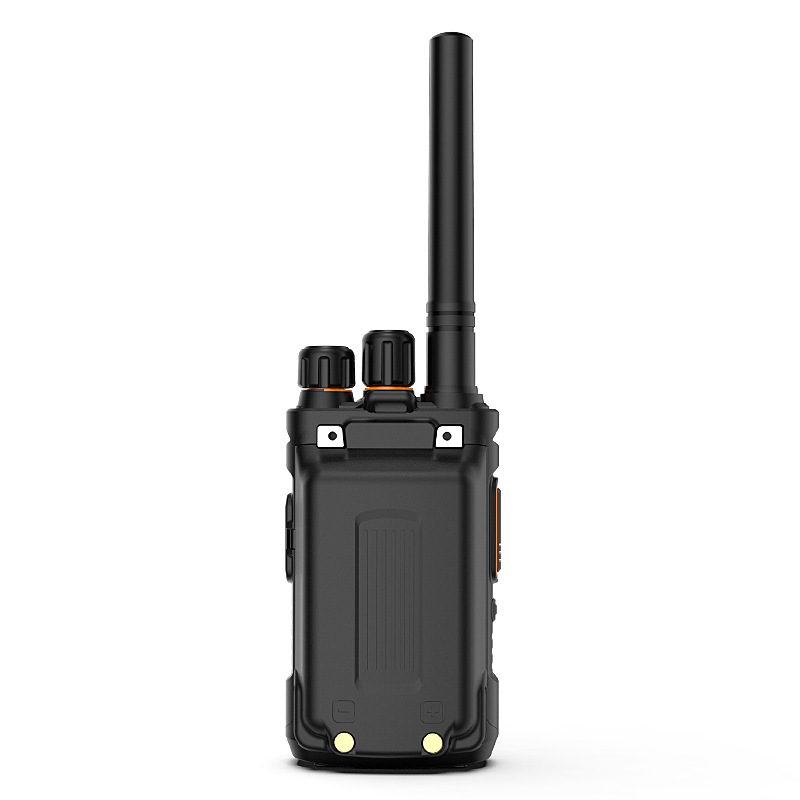

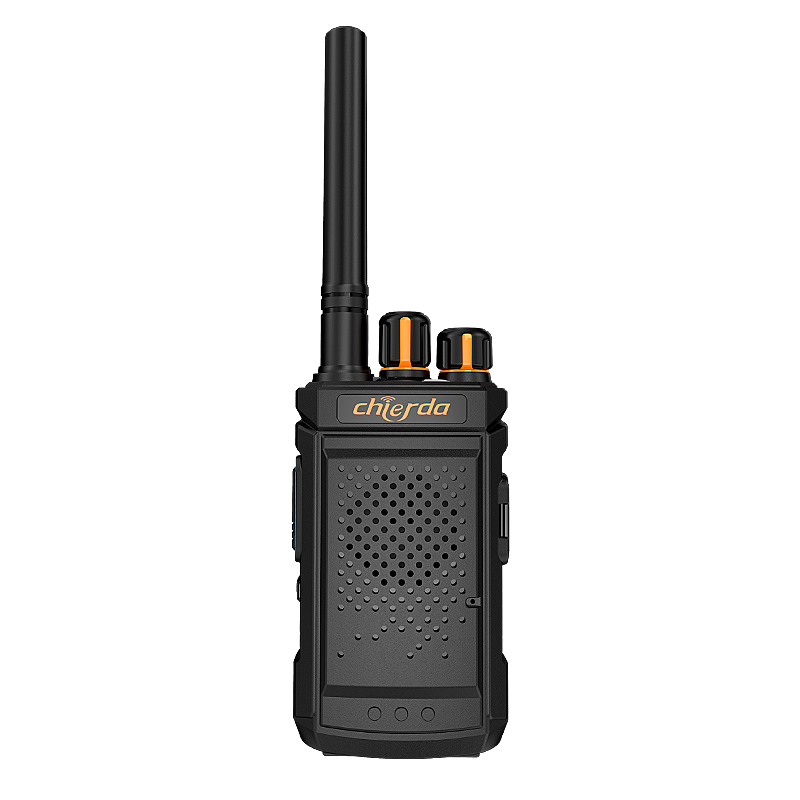

Chierda CD08 Portable Analog Two-way Radio
CD-08
1.Compact and Portable
2.Voice Compander, Crystal Sound

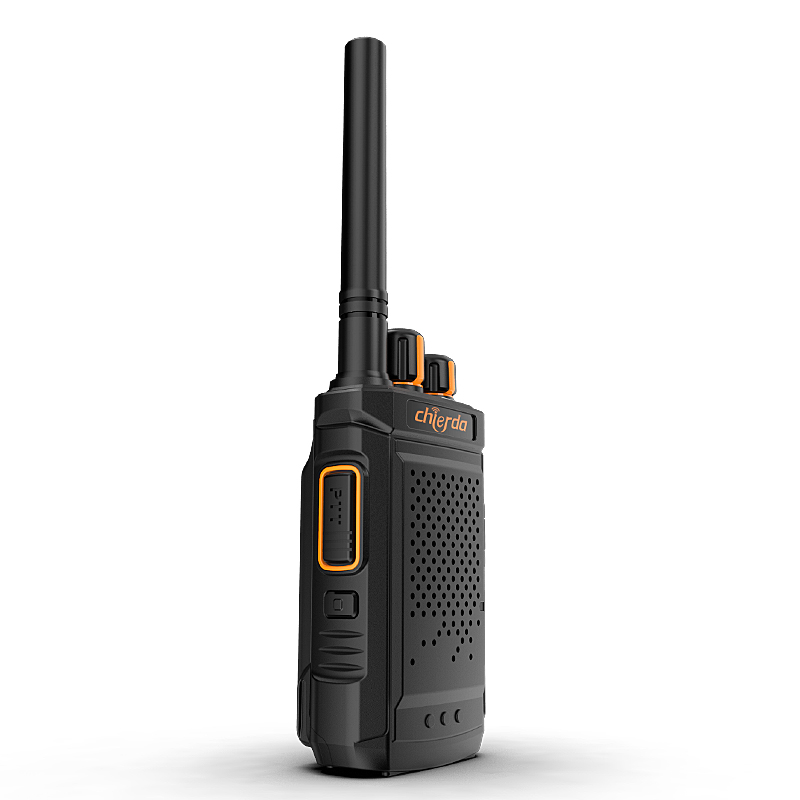

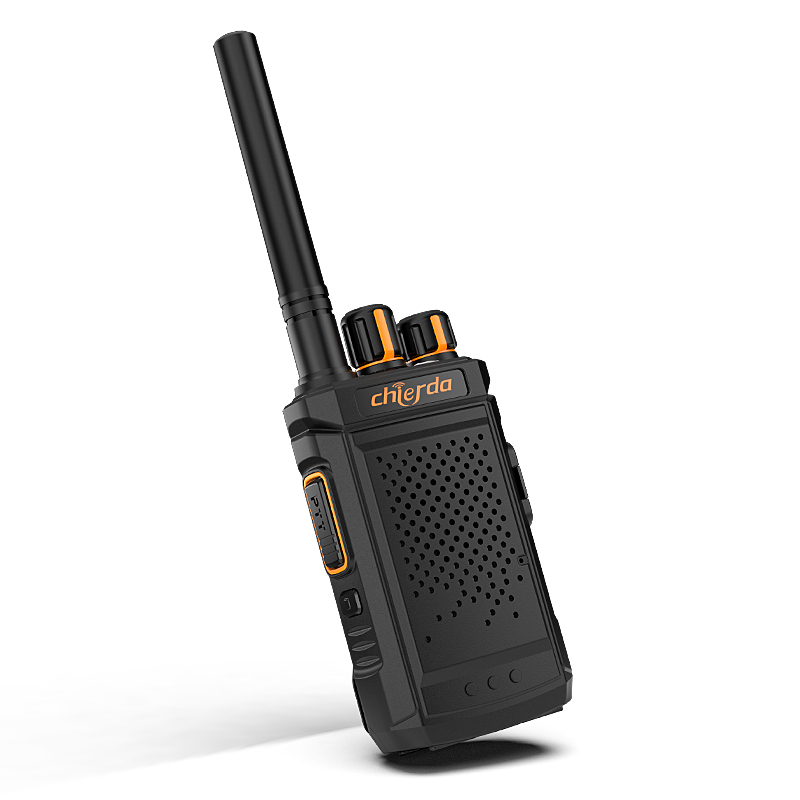

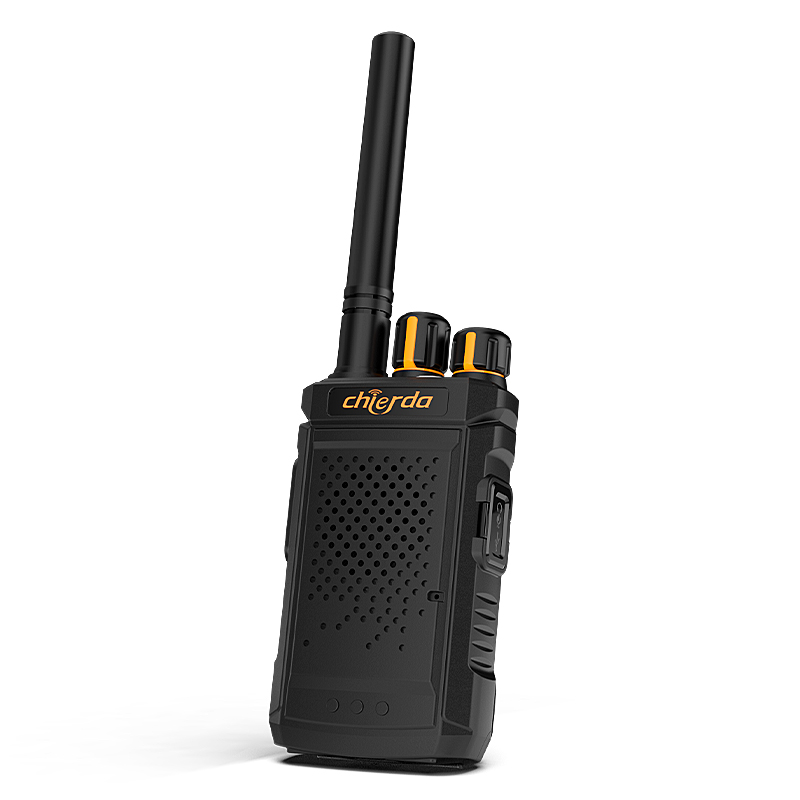

Chierda CD-08 Portable two-way radio is designed to be compact and portable. It's easy to carry and hold, fit into one's palm. CD-08 Walkie-Talkie features scrambler, frequency hopping function, etc.

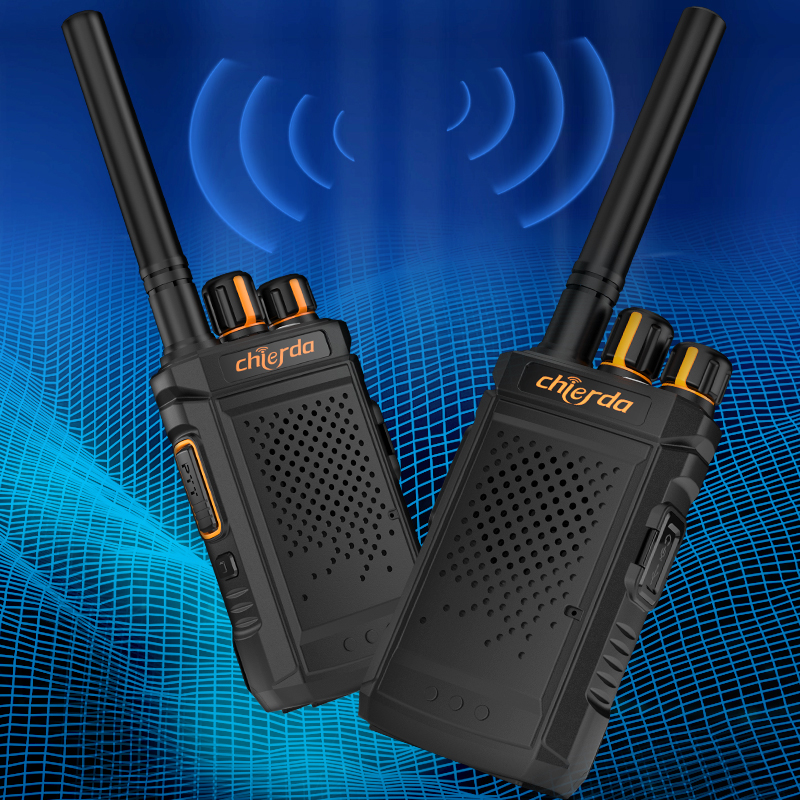

One-key Wireless Copy:
This function helps you quickly communicate with the same type of walkie-talkie. CD-08 radio can efficiently eliminate communication interference, easily communicate with colleagues, and have a clear voice.Power Saving Function:
When this function is on, CD-08 radio can efficiently help save battery power during working and standby time. This function can extend radio's use time.

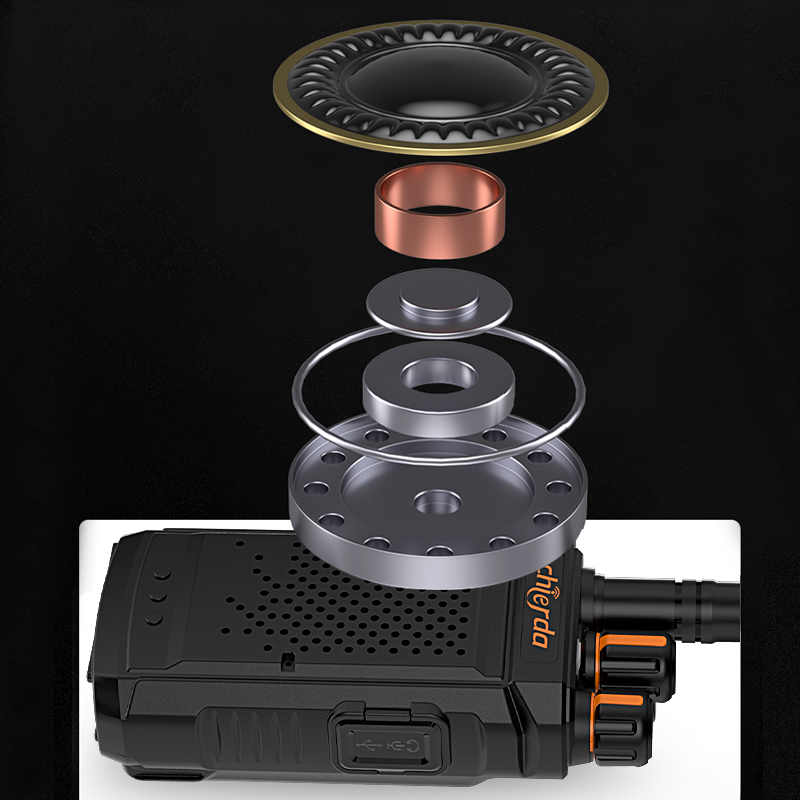

Voice Companding:
With an upgraded speaker and 9 levels of reducing noise, CD-08 radio can make your call much clearer even in wild environment.SPECIFICATION | ||
Frequency Range | UHF:430-440MHz | |
Channel Spacing | 16 | |
Memory Channel | 12.5 KHz / 25 KHz | |
Rated Voltage | 7.4V DC | |
Battery Capacity | 1200mAh/1800mAh | |
Frequency Sensitivity | ± 2.5ppm | |
Antenna Impedance | 50Ω | |
Dimension | 93x52x32mm | |
TRANSMITTER | ||
Output Power | 5W | |
Current | ≤1.3A | |
Modulation Distortion | <5%(300-3000Hz) | |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz | |
CTCSS Frequency | 0.75KHz± 50Hz | |
Remanent Radiation | ≤7uW | |
Modulation Mode | FM | |
Remanent Modulation | ≤-35dB | |
RECEIVER | ||
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV | |
Silent Sensitivity | ≤0.2uV/≤0.25uV | |
Audio Frequency Power | ≥300mW | |
Audio Distortion | ≤5% | |
Modulation Receiver | ±7KHz | |
Spurious Rejection | ≥55dB | |
Selectivity | ≥65dB | |
Intermodulation | ≥60dB | |

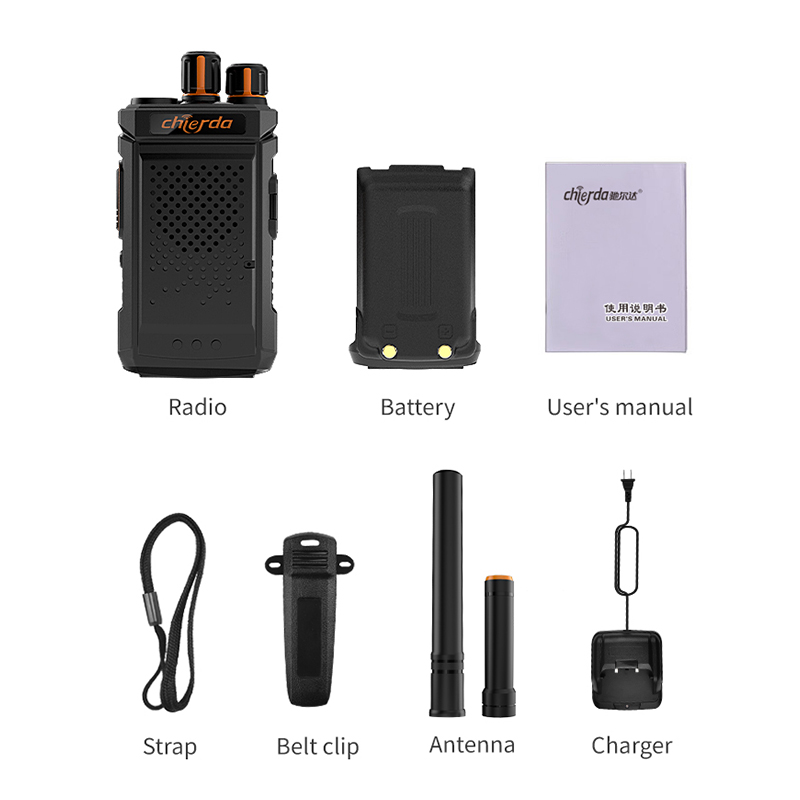

Product set
Radio*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
