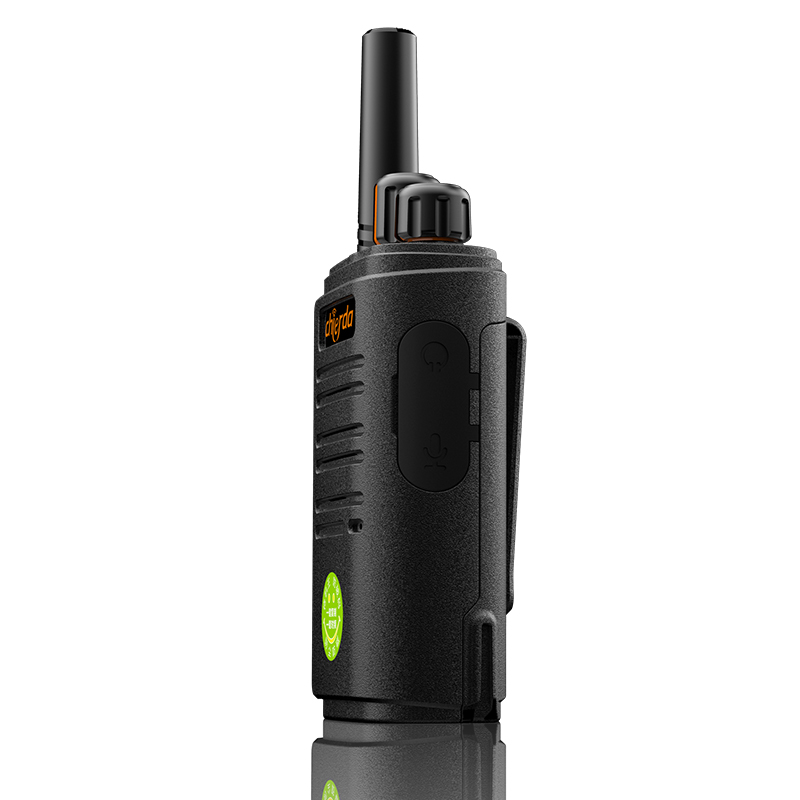

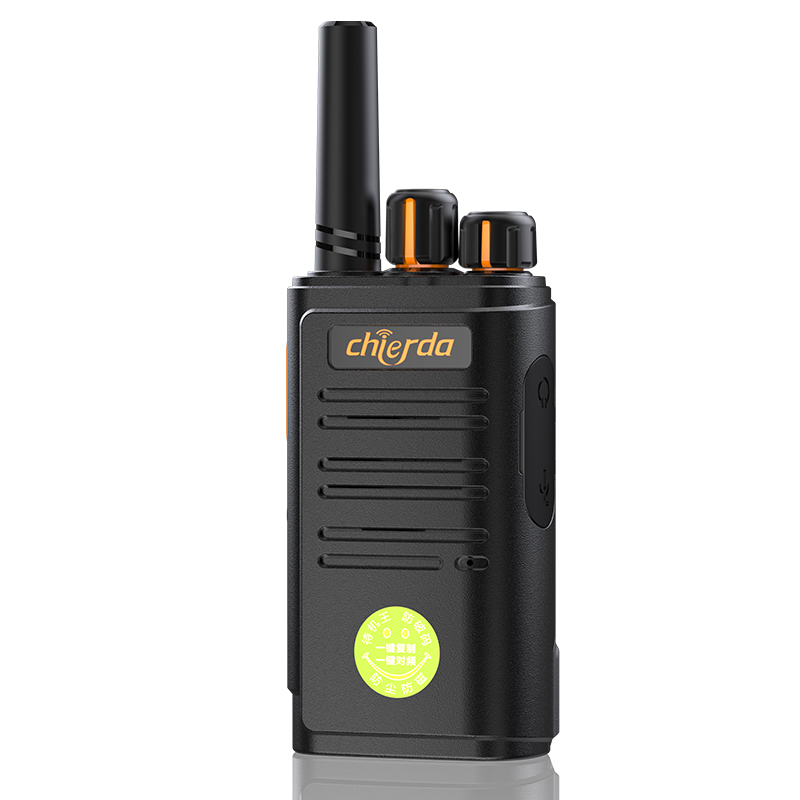

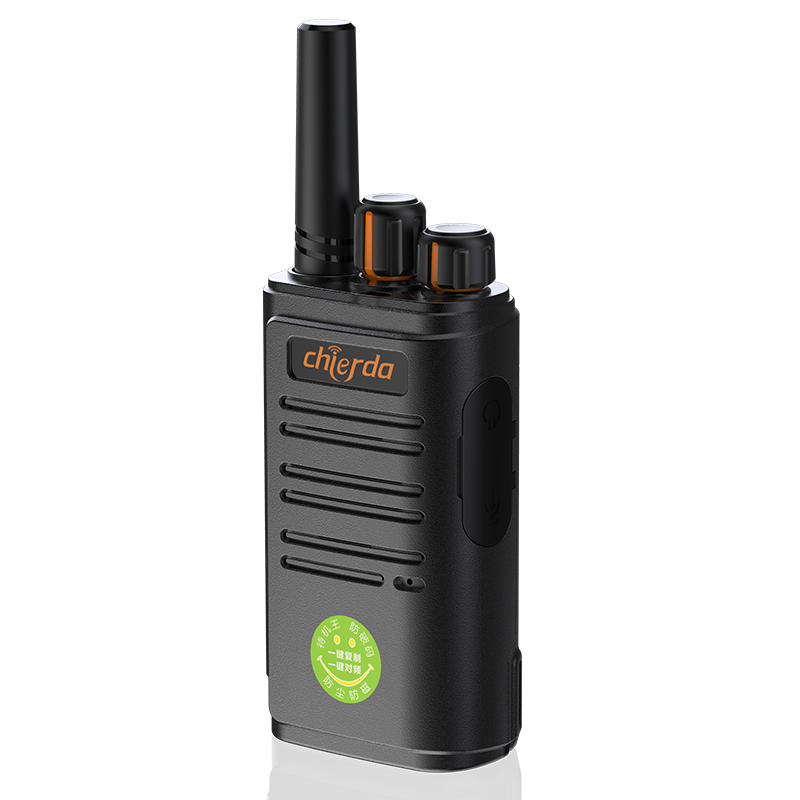

Chierda CD09 Lightweight Portable Business Two Way Radio
CD-09
1.Long Battery Life
2.Lightweight, Easy to Carry with
3.Fashion Appearance

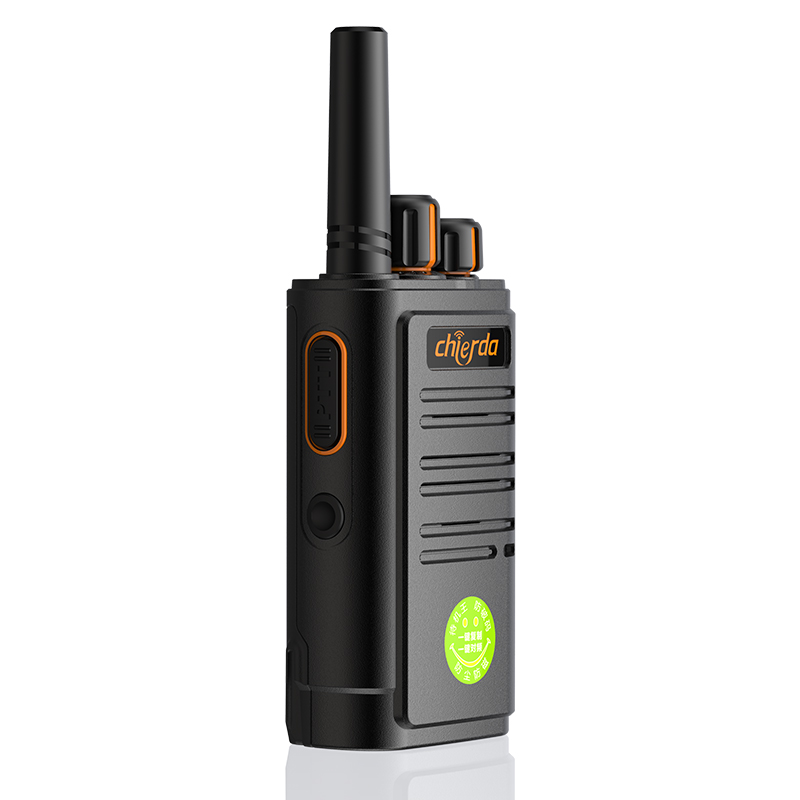

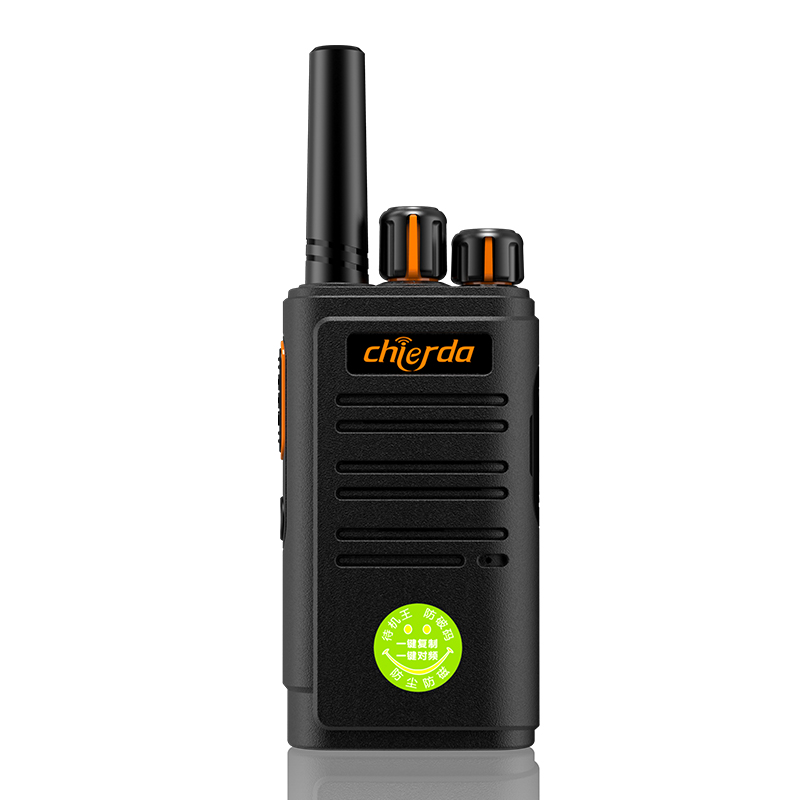

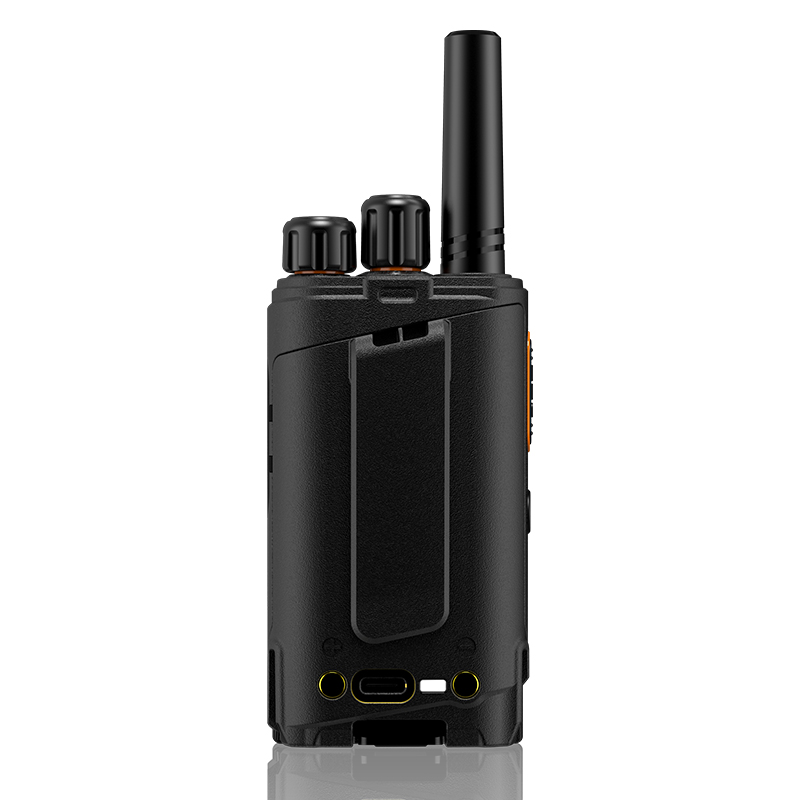

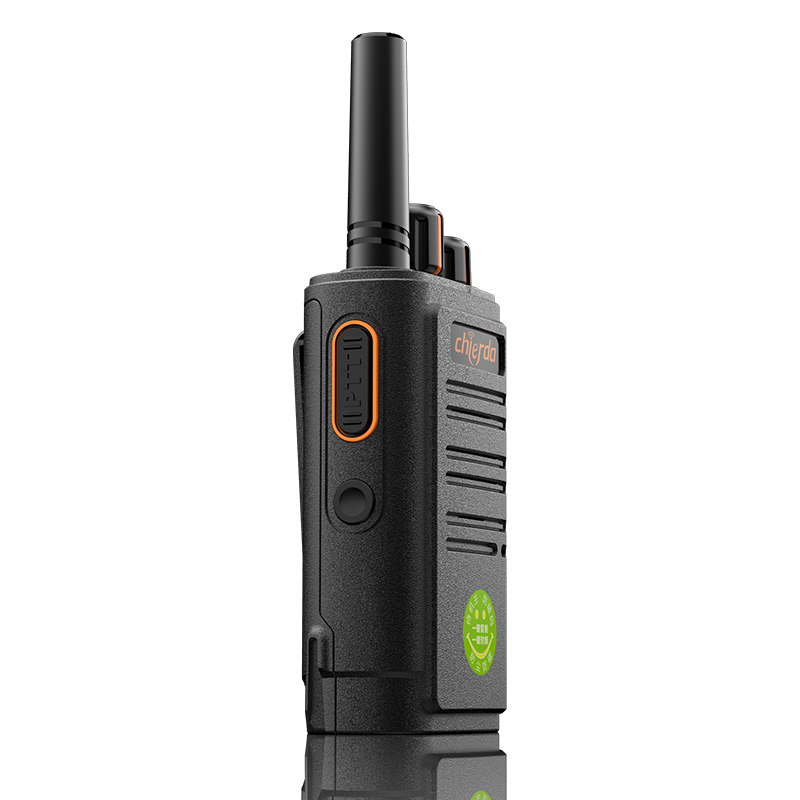

Chierda CD09 Lightweight Portable Radio is small and the compact size fits your palm. Lightweight and easy to carry with. It is a perfect option to use in supermarkets, hotels and warehouses.

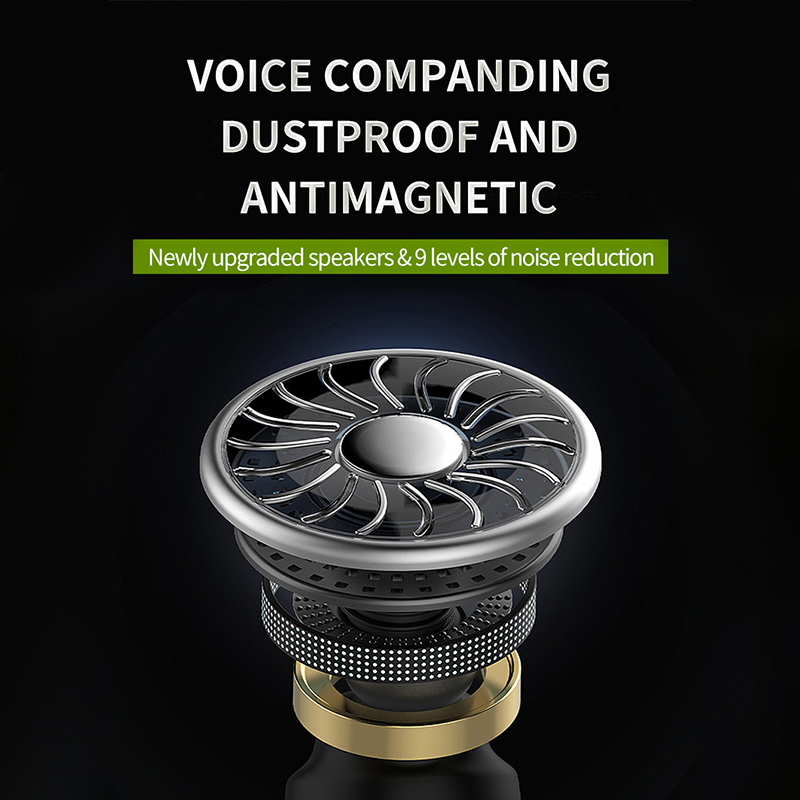

Anti-magnetic speaker:

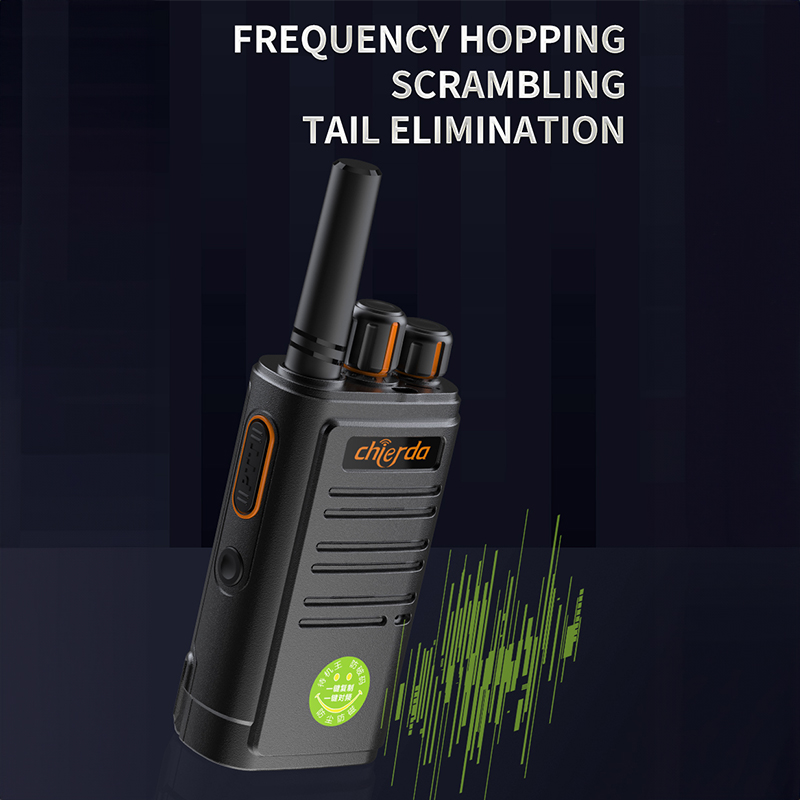

With a newly upgraded speaker and 9 levels of noise reduction, CD-09 two-way radio can communicate much more clearly.Frequency Hopping Function:
Hopping Function can encrypt calls and effectively protect your communication.
SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 4000mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x57x41 mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.2A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency Deviation | ≤5KHz / ≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤0.25uV /≤0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

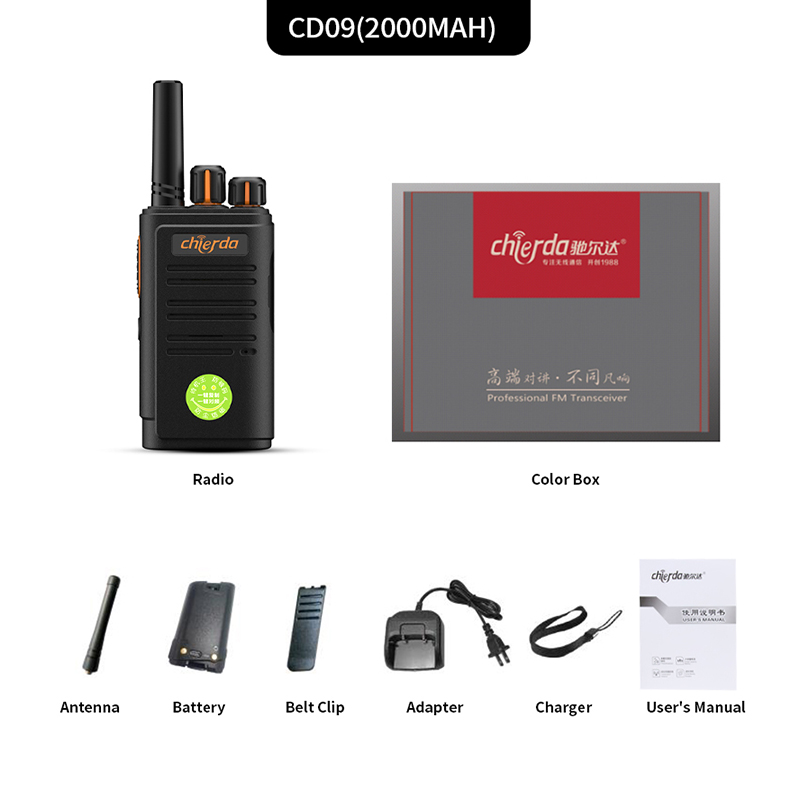

Product set
Radio*1
Battery*1
Charger*1
Battery*1
Belt clip*1
Strap*1
User's manual*1
