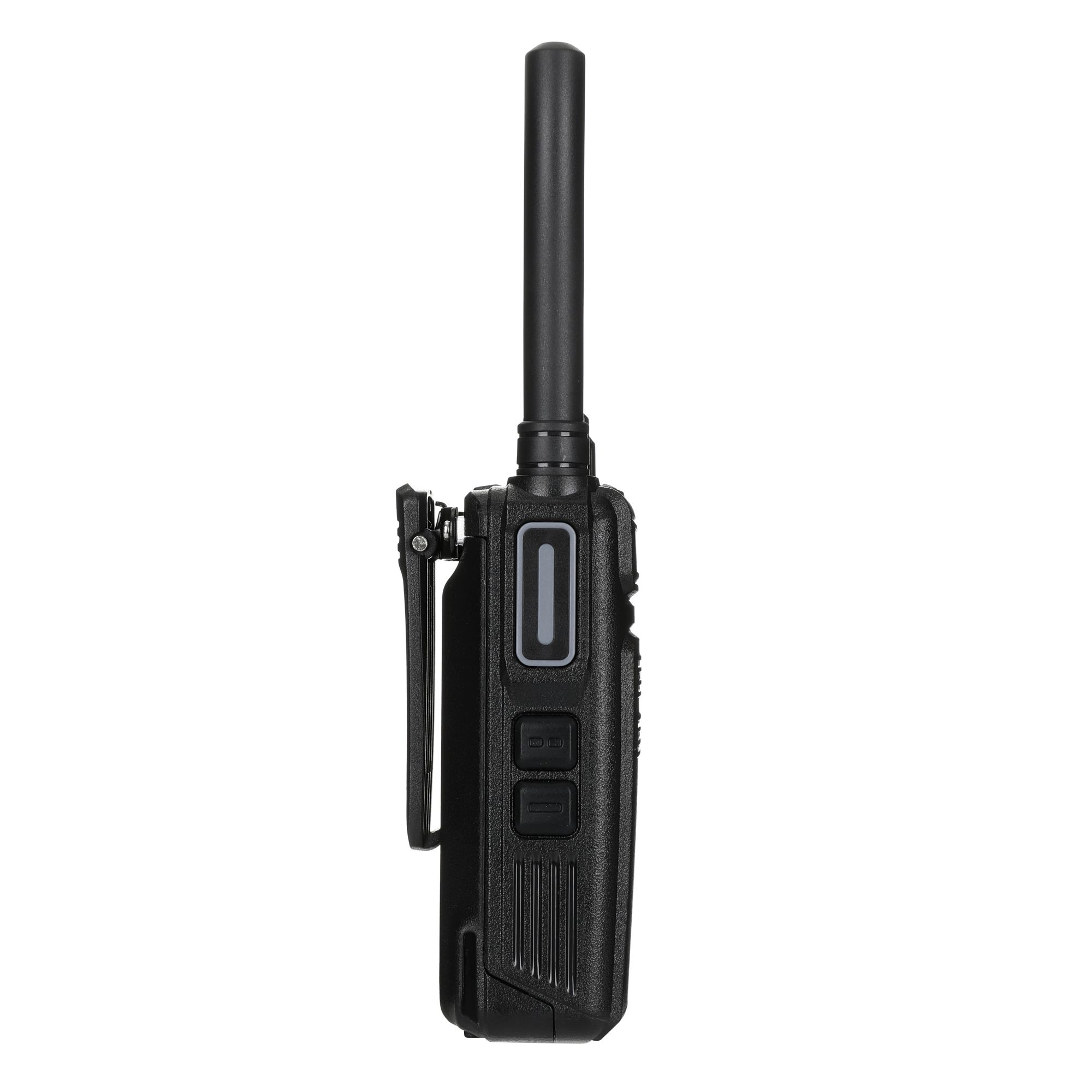

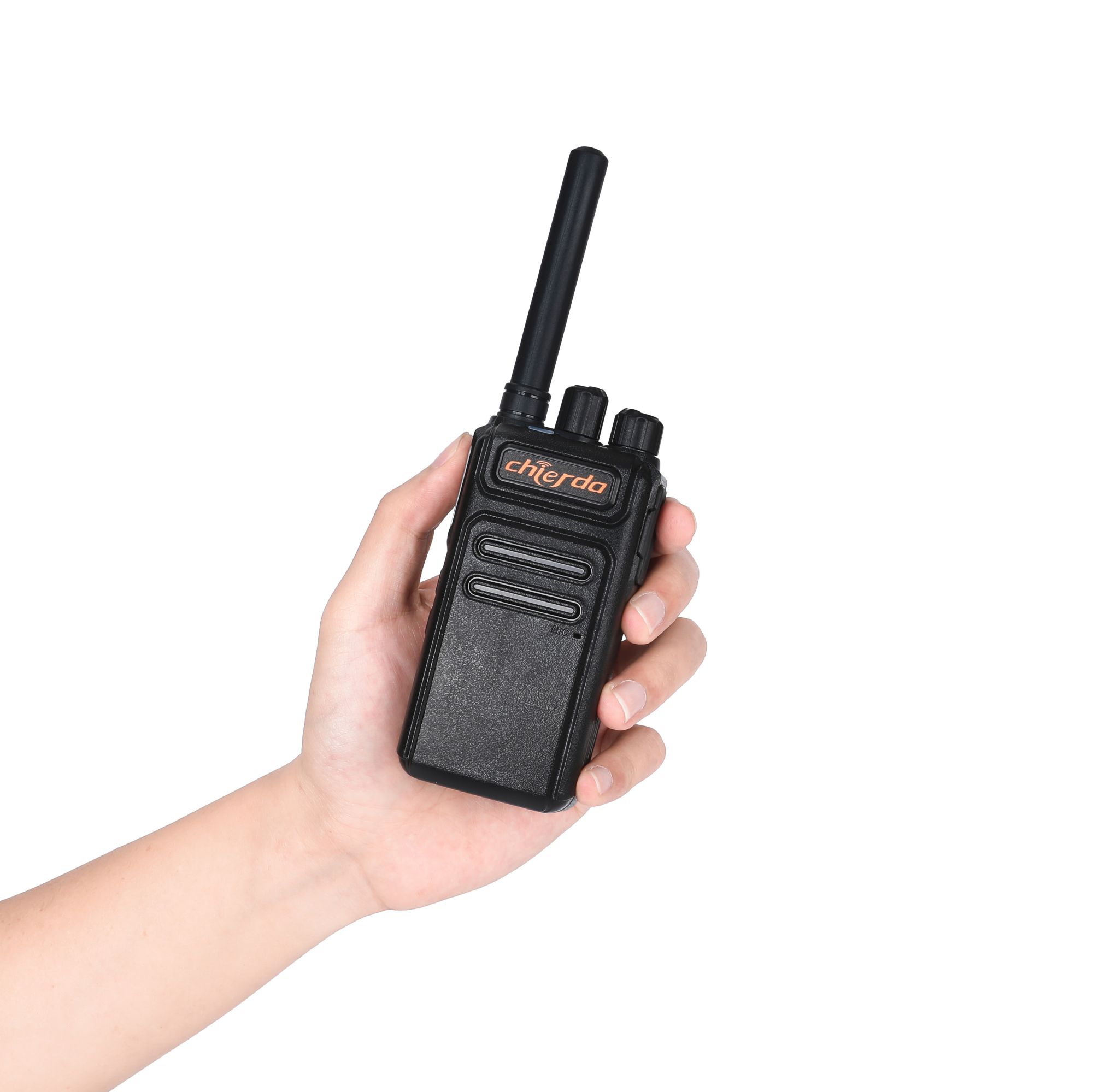

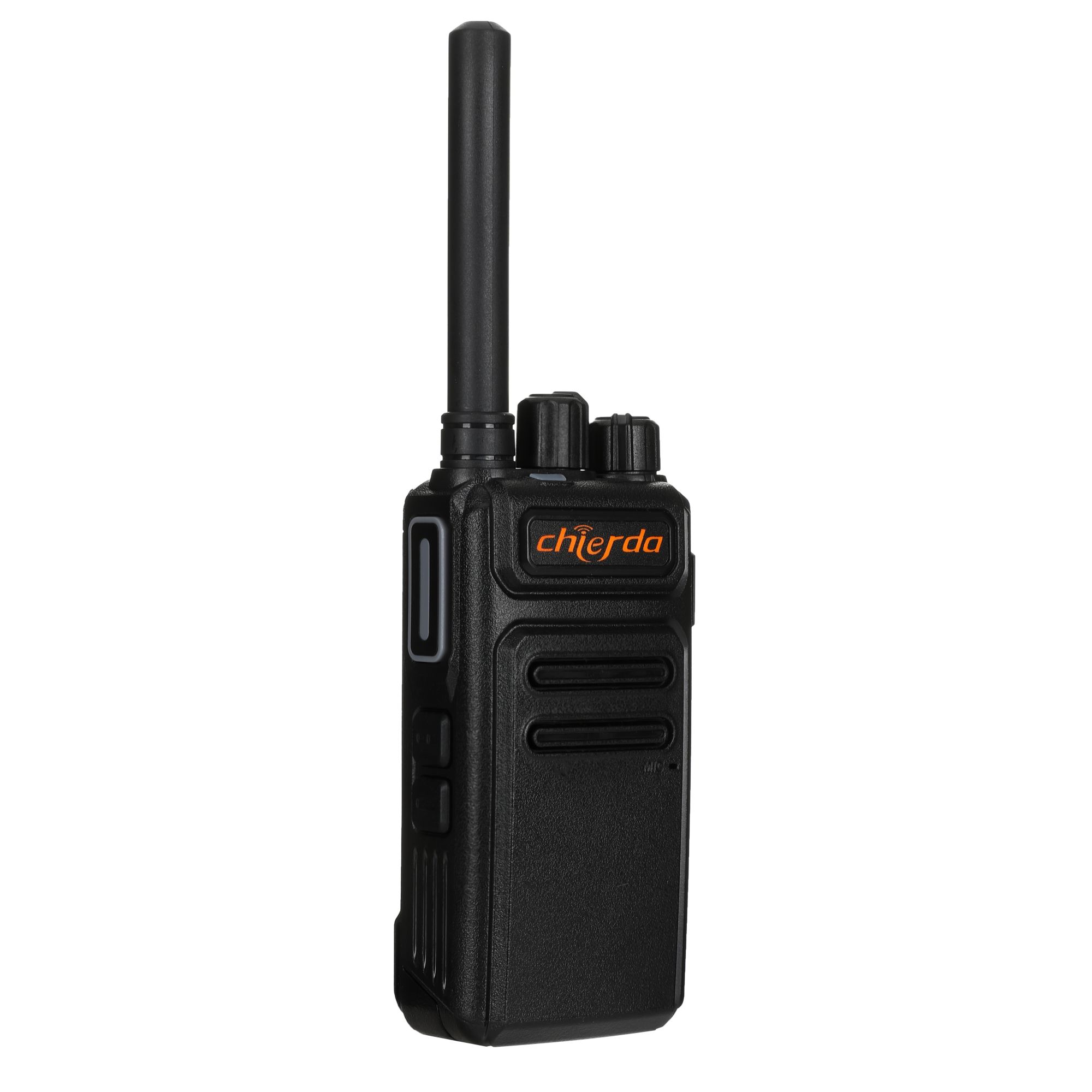

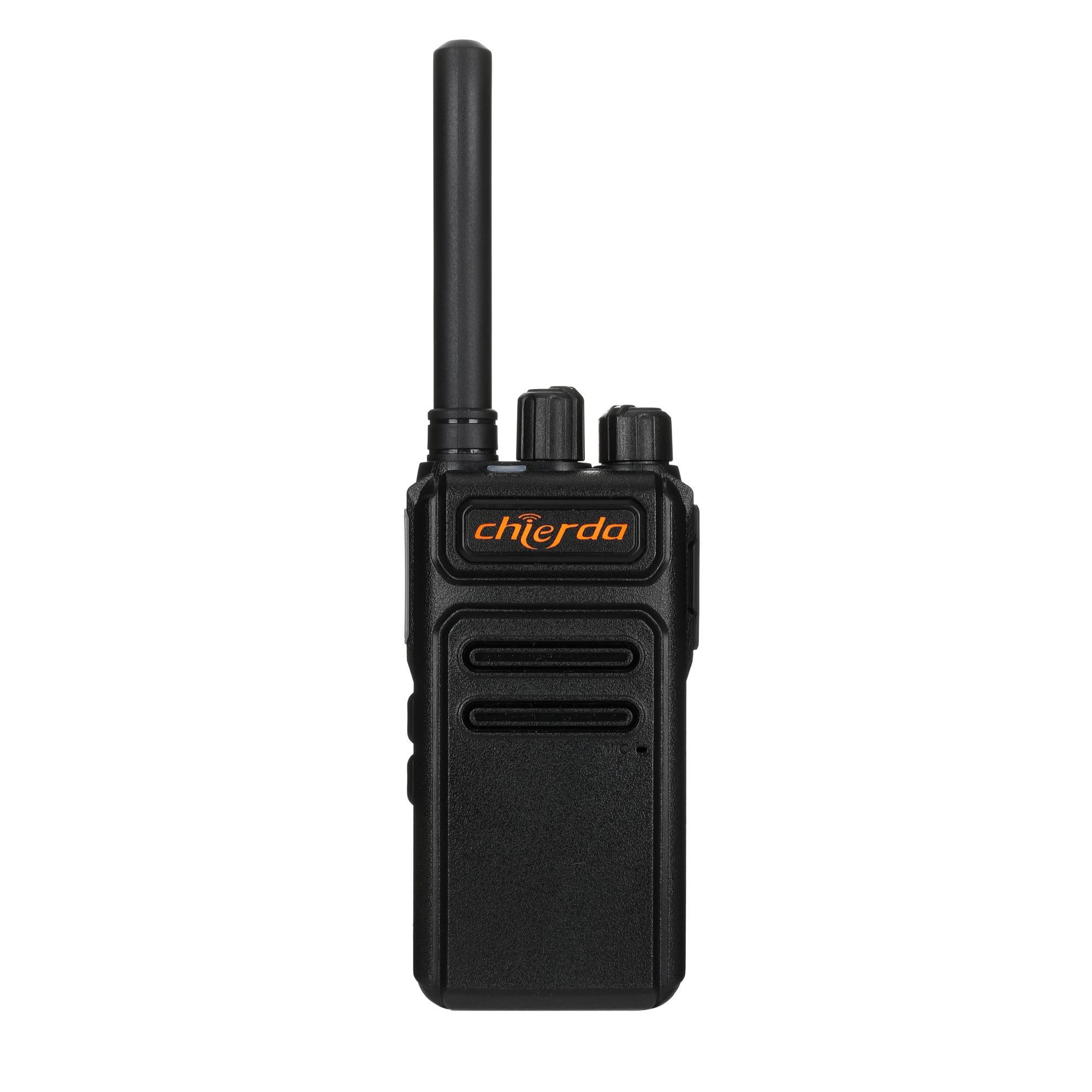

Chierda CD10 5W Two-way Radio

CD-10

1.5 watt, Long-range Communication

2.HD Sound

3.2600 mAh Large Battery Capacity, 240 Hours Standby

4.Frequency Hopping/Scrambler Function

5.Type-C port, Frequency Writing, Headset, Charging port 3 in 1

Contcat Us

Features
Specification

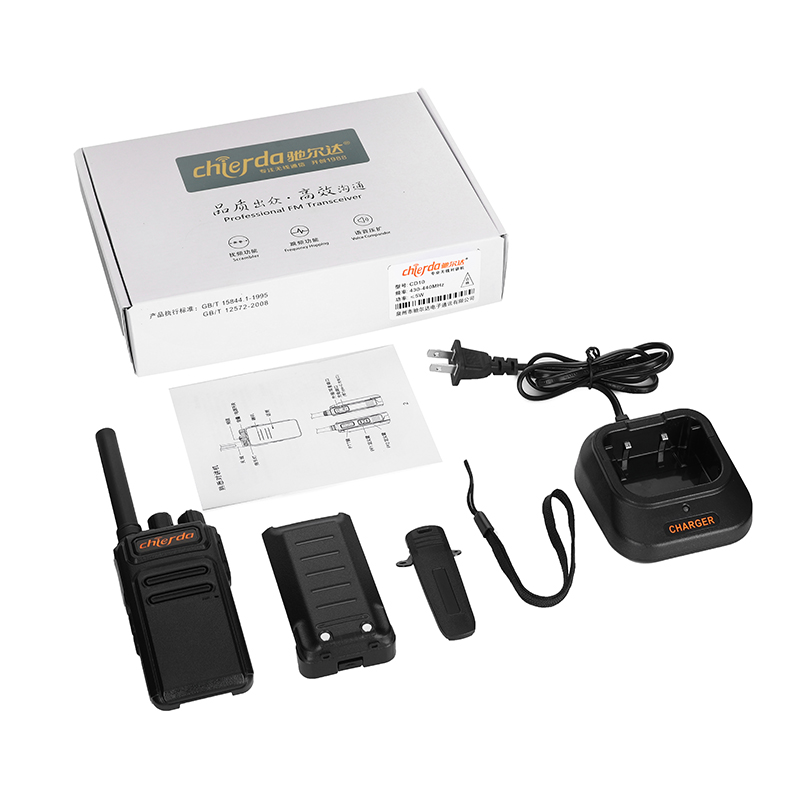

Whats in the Box
Resources

Features

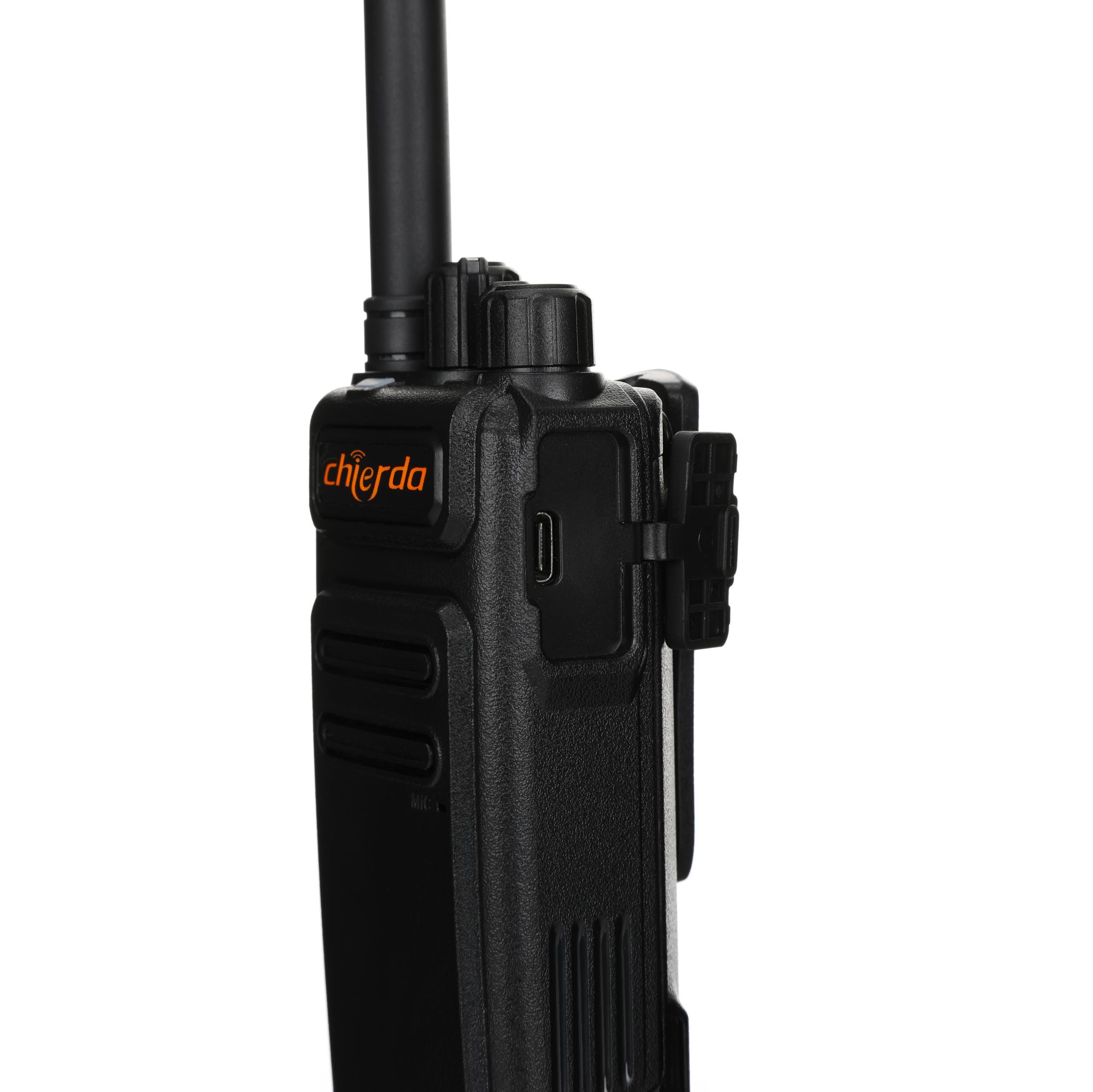

Chierda CD-10 5W Two-way radio is a perfect choice for efficient communication. CD-10 radio features Type-C port, which support frequency writing, deadset, charging 3 in 1. It's very convenient to charge by mobile and car power supply anywhere. It can be widely used in different applications, such as campus, outdoor, hotels and property.

Dustproof:

CD-10 walkie-talkie is designed to be dustproof and anti-magnetic. It can be used in various environments.

Long Battery Life:

HD Sound:

CD-10 walkie talkie has strong signal penetration, making the sound loud and clear.

Specification

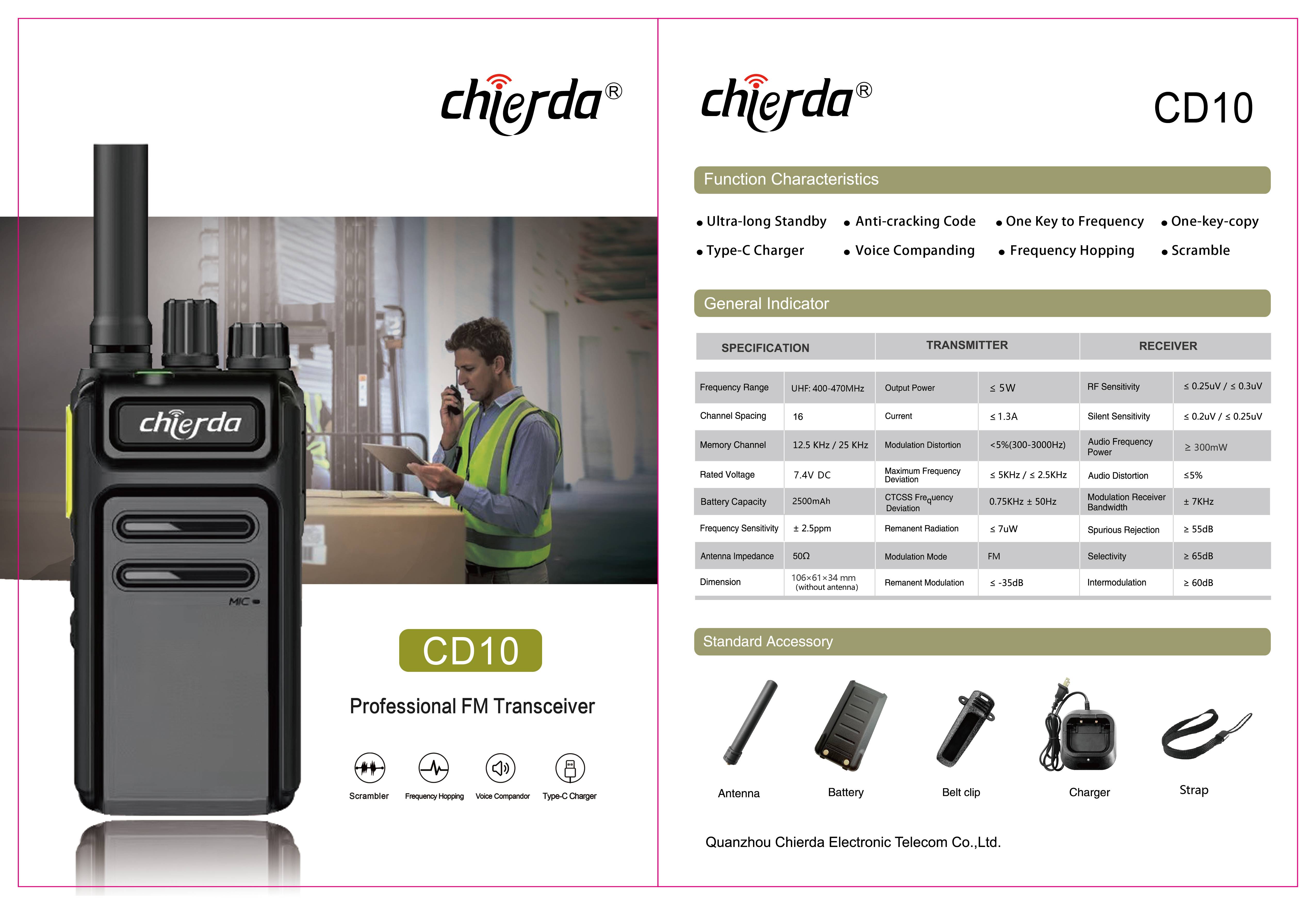

SPECIFICATION
Frequency Range	UHF:430-440MHz
Channel Spacing	16
Memory Channel	12.5 KHz / 25 KHz
Rated Voltage	7.4V DC
Battery Capacity	2500mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension	106x61x34mm (Without Antenna)
TRANSMITTER
Output Power		5W
Current		≤1.3A
Modulation Distortion		<5%(300-3000Hz)
Maximum Frequency Deviation		≤ 5KHz/≤ 2.5KHz
CTCSS Frequency Deviation		0.75KHz± 50Hz
Remanent Radiation		≤7uW
Modulation Mode		FM
Remanent Modulation		≤-35dB
RECEIVER
RF Sensitivity		≤ 0.25uV/ ≤ 0.3uV
Silent Sensitivity		≤0.2uV/≤0.25uV
Audio Frequency Power		≥300mW
Audio Distortion		≤5%
Modulation Receiver Bandwidth		±7KHz
Spurious Rejection		≥55dB
Selectivity		≥65dB
Intermodulation		≥60dB
