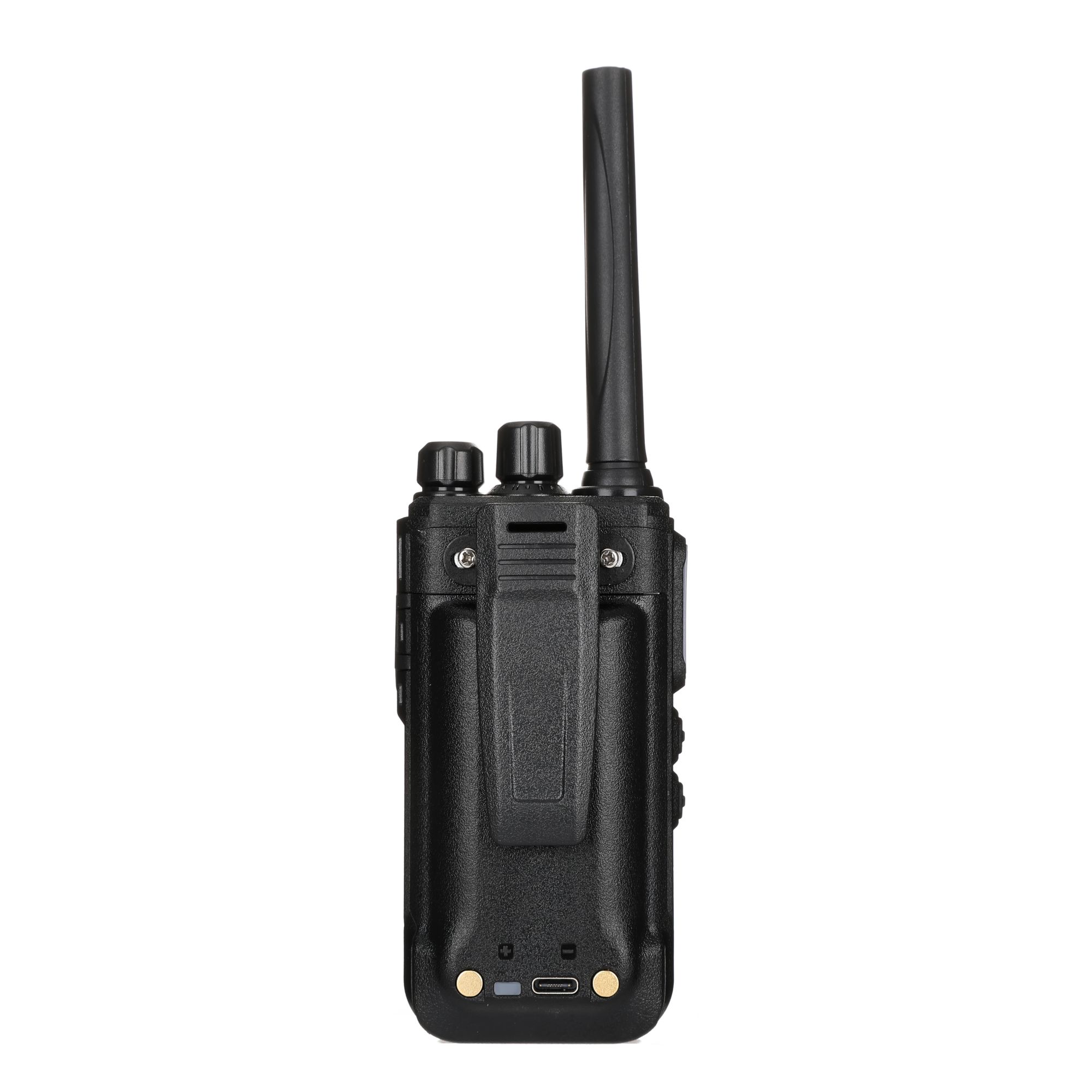

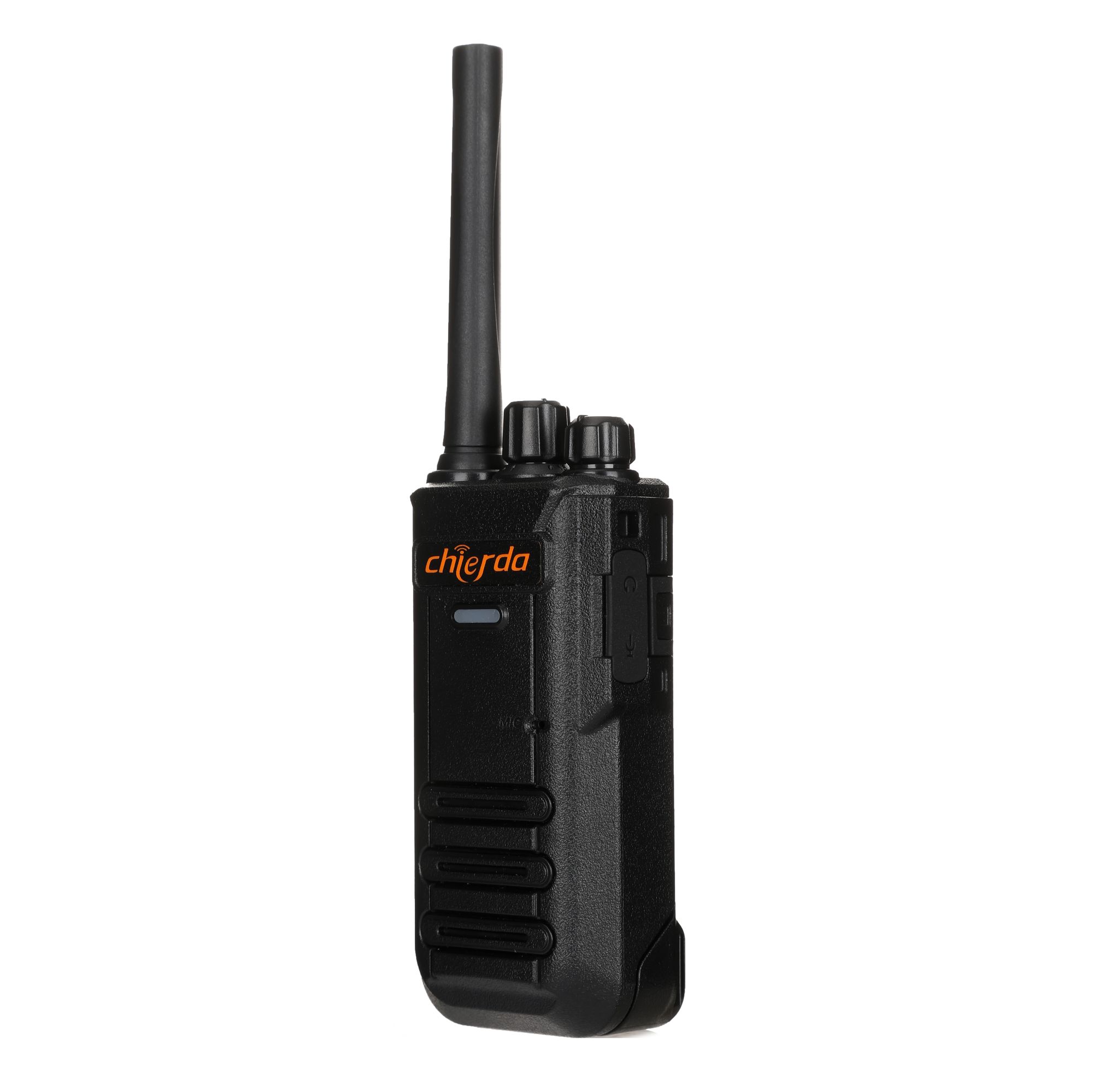

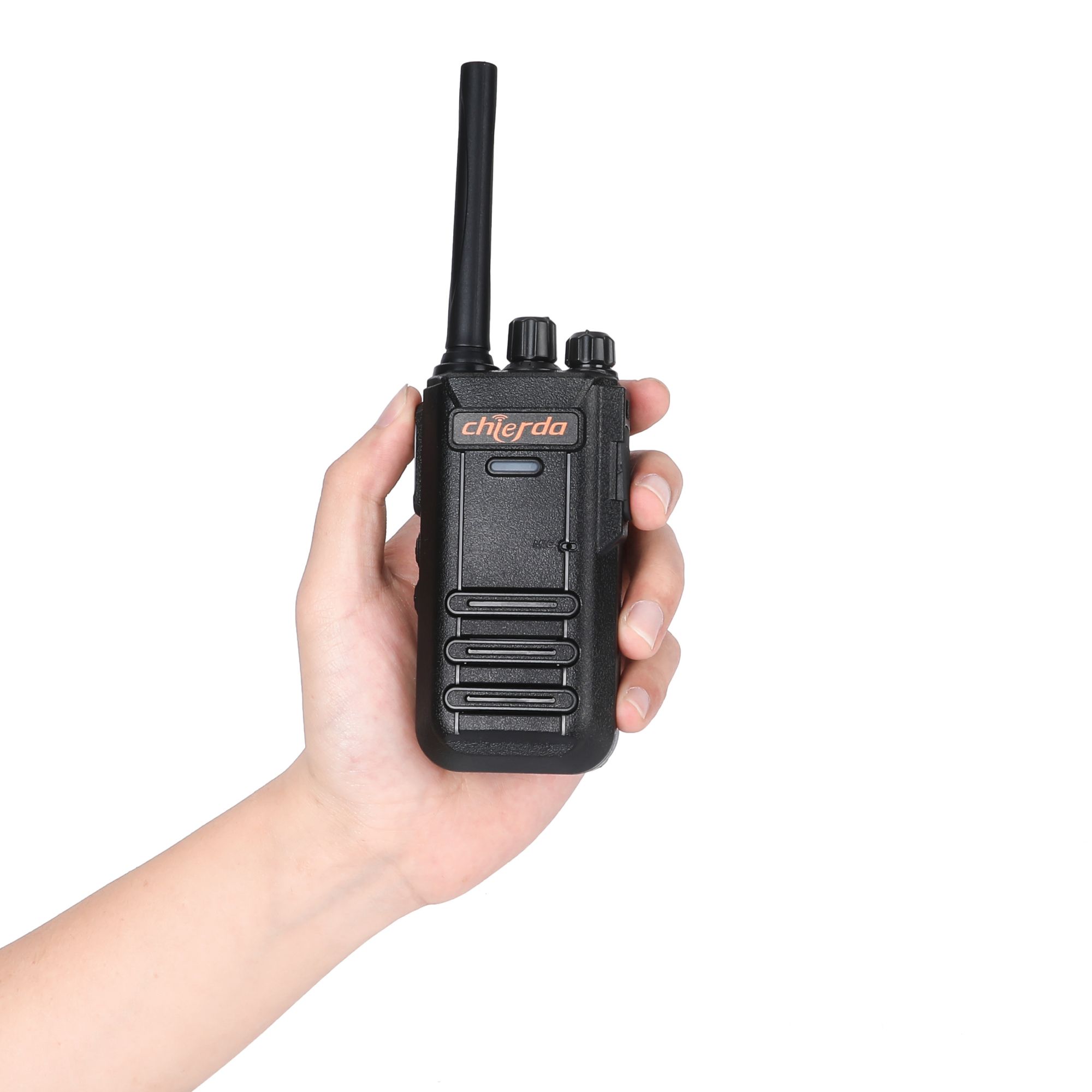

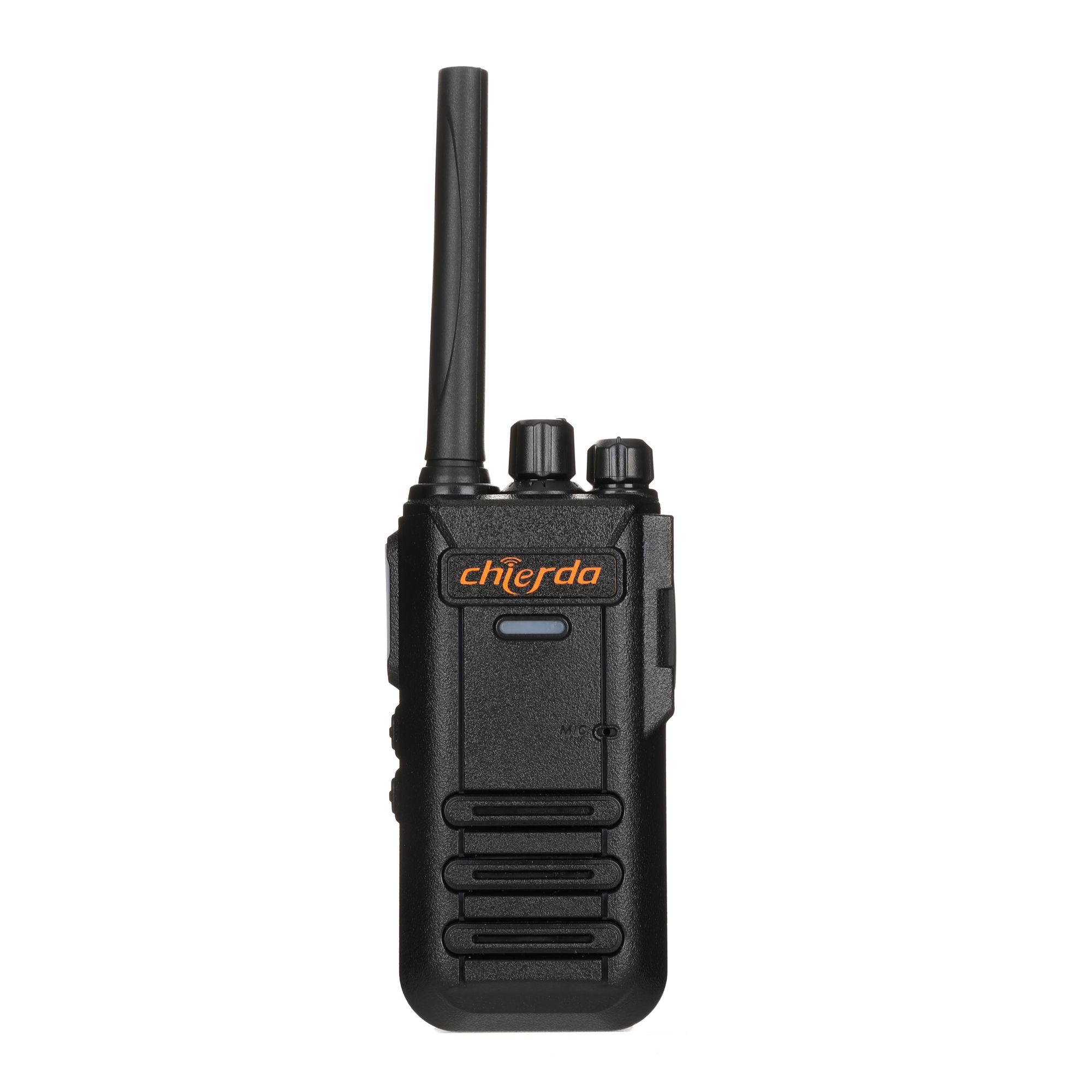

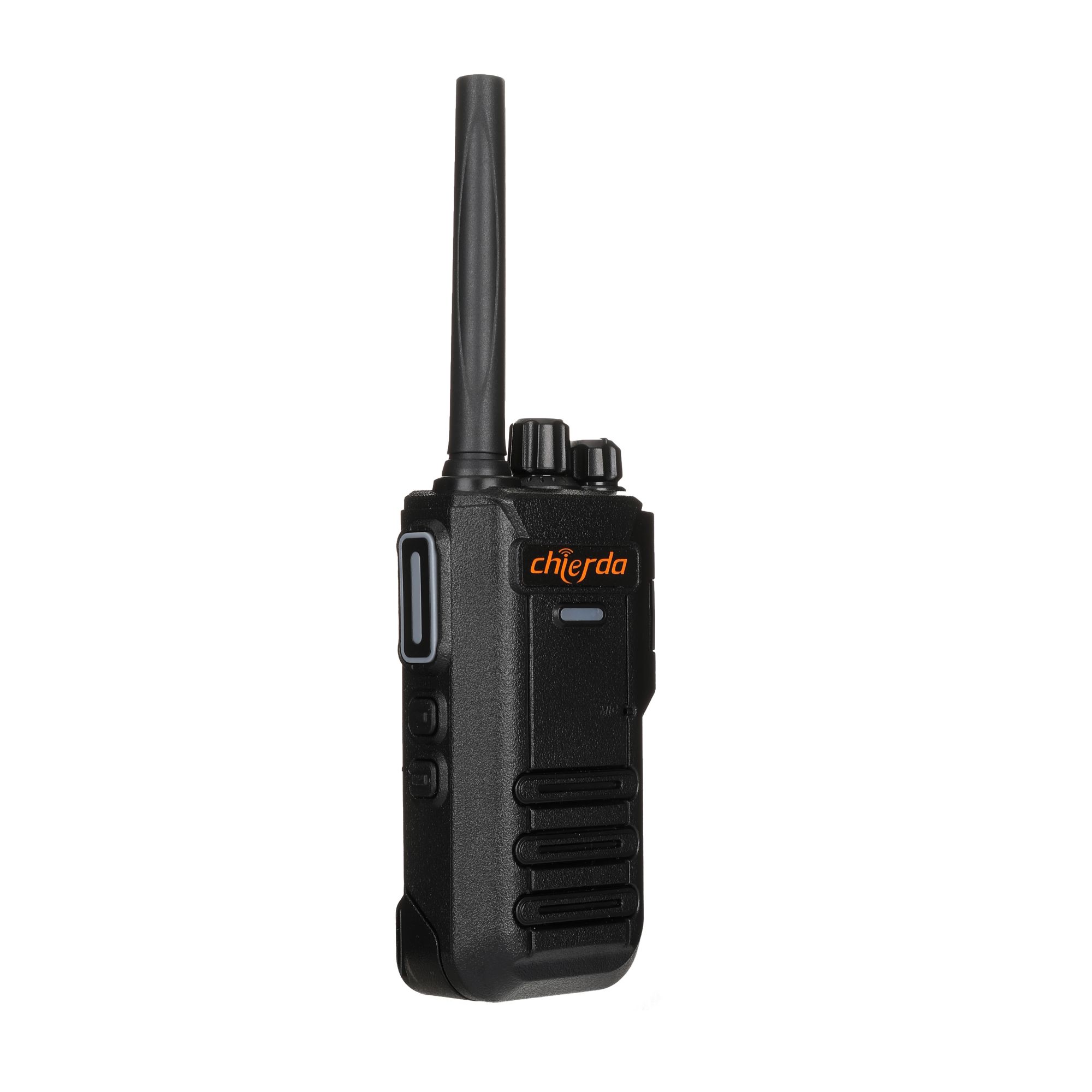

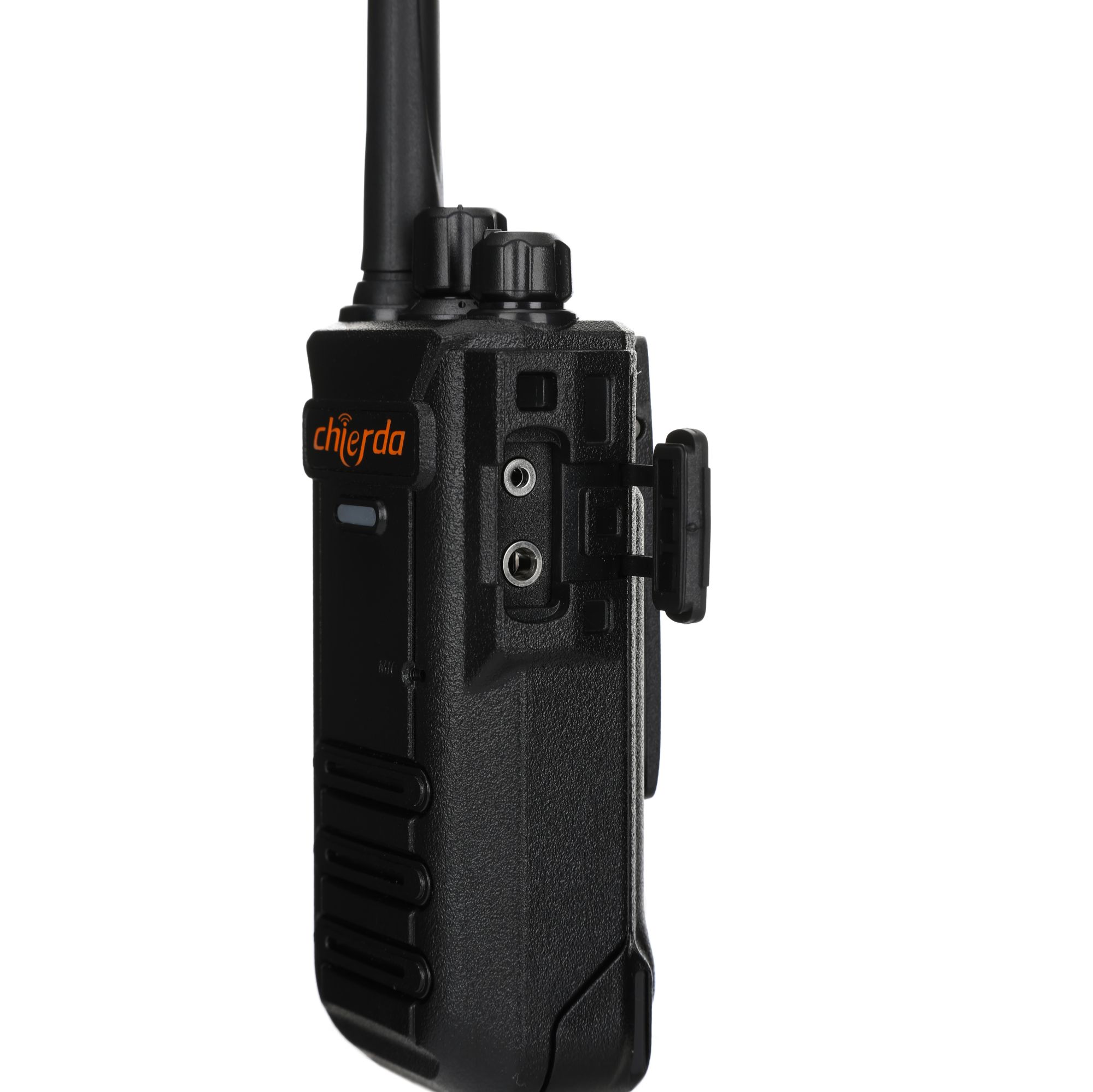

Chierda CD16 High Performance Durable Two Way Radio
Chierda CD16 High Performance Durable Two Way Radio
Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio Chierda CD16 High Performance Durable Two Way Radio

Chierda CD16 High Performance Durable Two Way Radio

CD-16

1.Long-time Standby

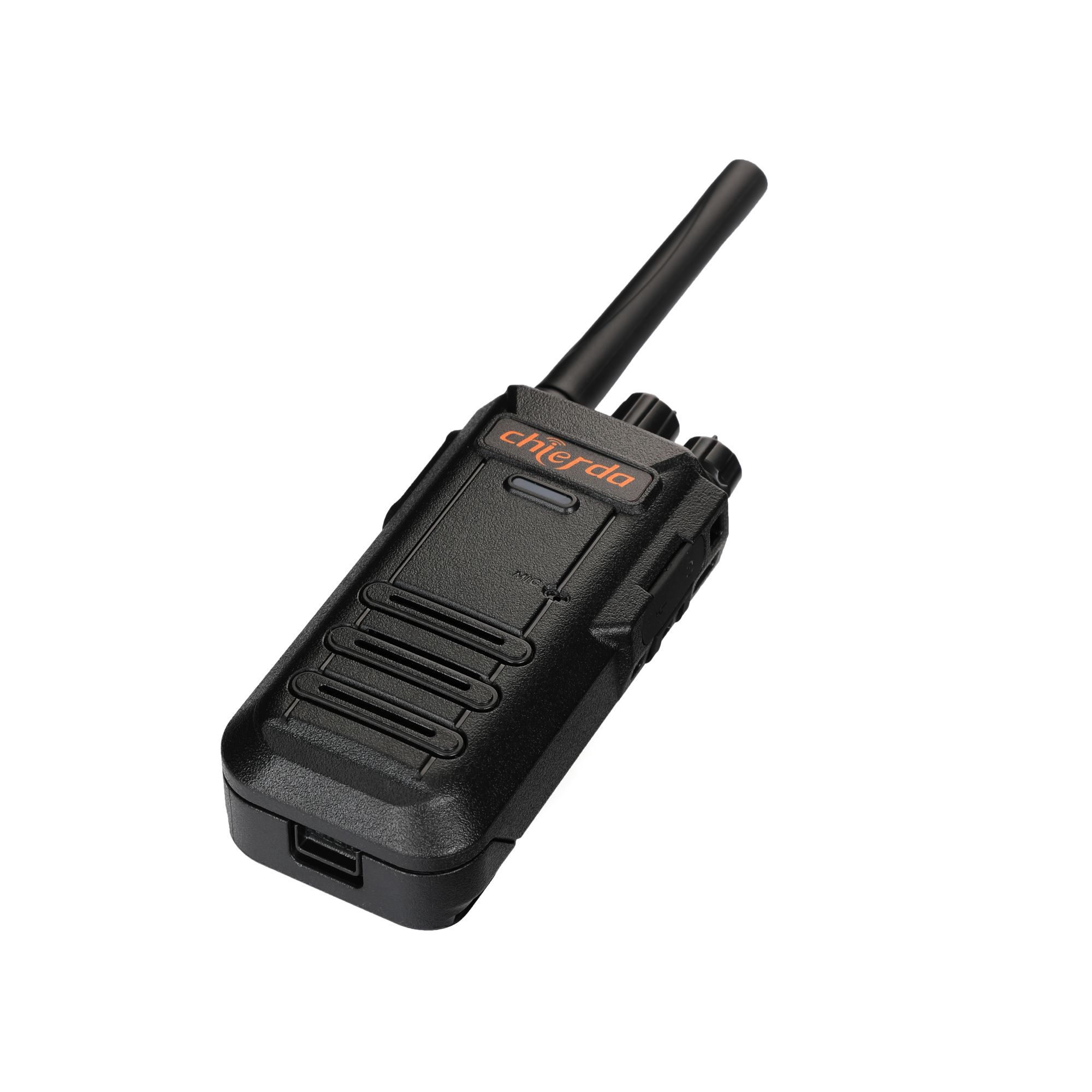

2.type-C Charging

3.CTCSS/DCS

Features

Chierda CD16 High-Performance Durable Two Way Radio has an intelligent independent chip and makes signal stable with up to 16 channels. With a magnetically horn, CD16 radio has enhanced audio clarity.

Features

High Power:

With high power, the radio supports talks of a wide range. Even you are far away from the team, you can easily communicate with each other.

One-key Copy Function:

Only pressing one key can help you easily copy the frequency without programming. This function greatly saves time and improves efficiency.
Features
Specification

SPECIFICATION

Frequency Range

VHF430-440MHz
UHF: 400-480MHz

Channel Spacing

16

Memory Channel

12.5 KHz / 25 KHz

Rated Voltage

3.7V DC

Battery Capacity

4000mAh/5000mAh

Frequency Sensitivity

± 2.5ppm

Antenna Impedance

50Ω

Dimension

109x57x41 mm
( without antenna )

TRANSMITTER

Output Power

2W

Current

≤1.2A

Modulation Distortion

<5%(300-3000Hz)

Maximum Frequency
Deviation

≤ 5KHz/ ≤ 2.5KHz

CTCSS Frequency Deviation

0.75KHz± 50Hz

Remanent Radiation

≤ 7uW

Modulation Mode

16K∅F3E/11K∅F3E

Remanent Modulation

≤-35dB

RECEIVER

RF Sensitivity

≤ 0.25uV/≤0.3uV

Silent Sensitivity

≤ 0.2uV/≤0.25uV

Audio Frequency Power

≥300mW

Audio Distortion

≤5%

Modulation Receiver
Bandwidth

±7KHz

Spurious Rejection

≥55dB

Selectivity

≥65dB

Intermodulation

≥60dB

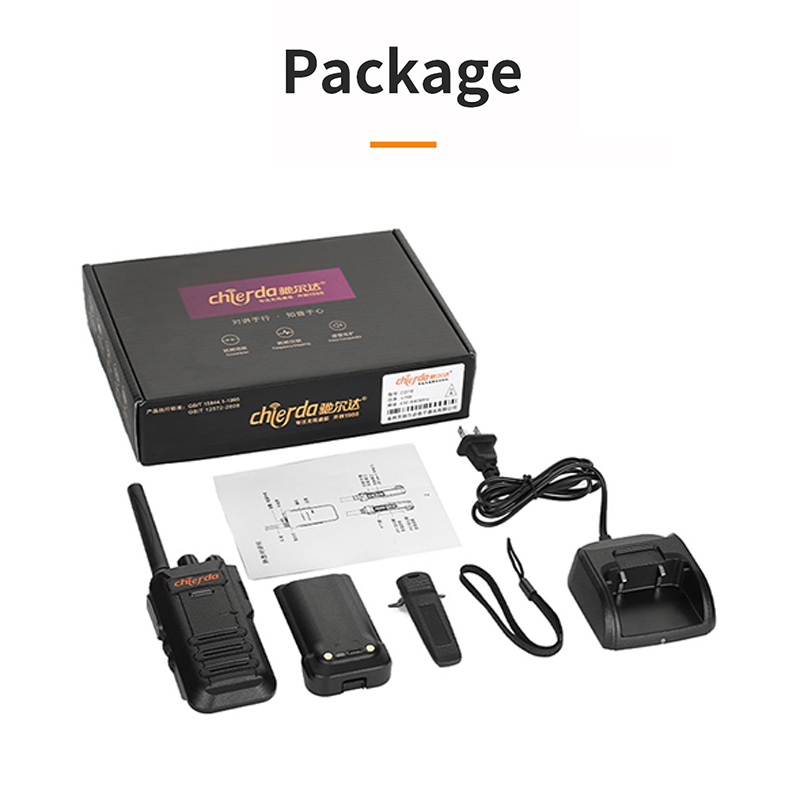

Whats in the Box
whats in the Box

Product set

Radio*1

Battery*1

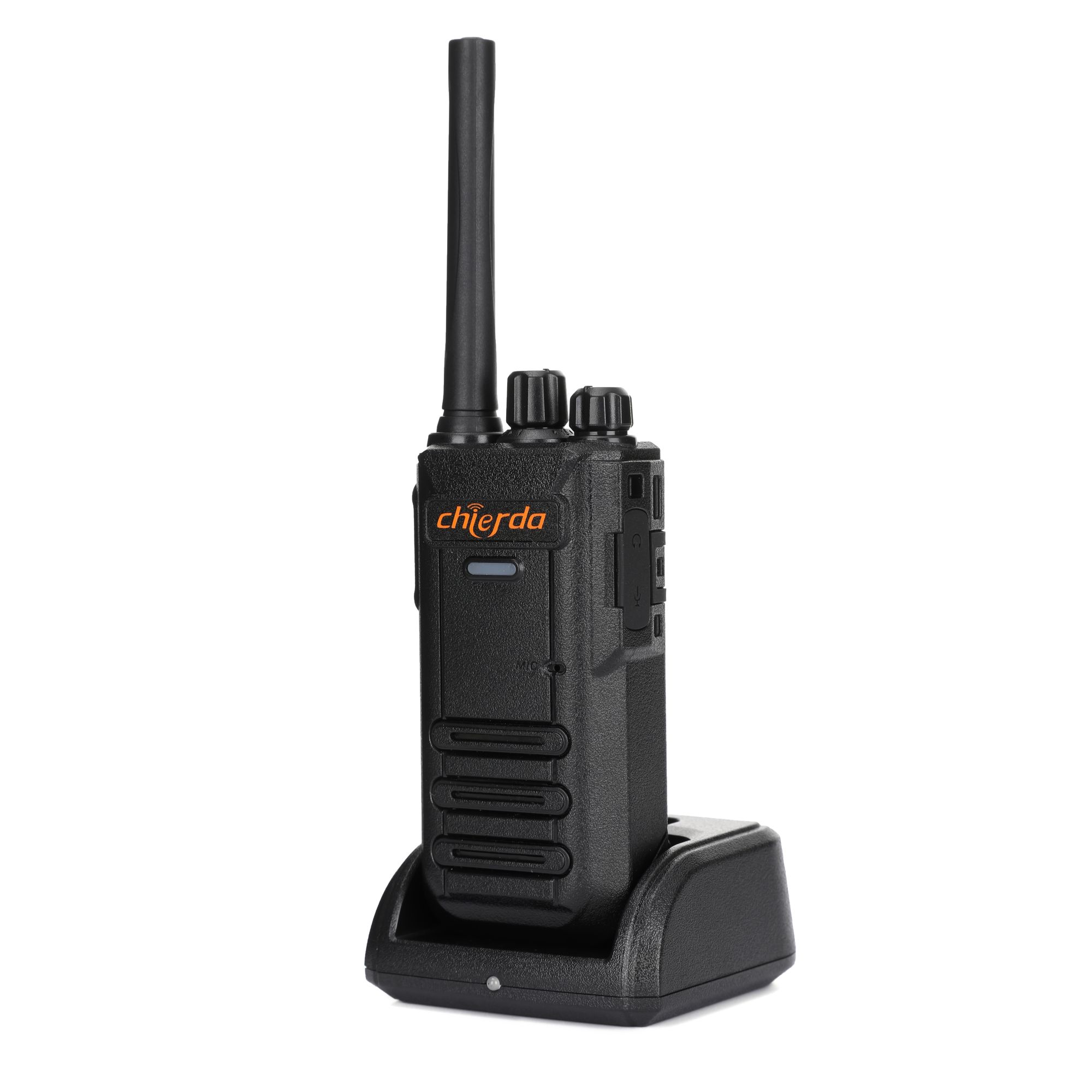

Charger*1

Battery*1

Belt clip*1

Strap*1

User's manual*1

Resources

Firmware/Software

1.CD-106

The WIN11 driver is compatible with the WIN10,WIN8,and WIN7 operating systems
