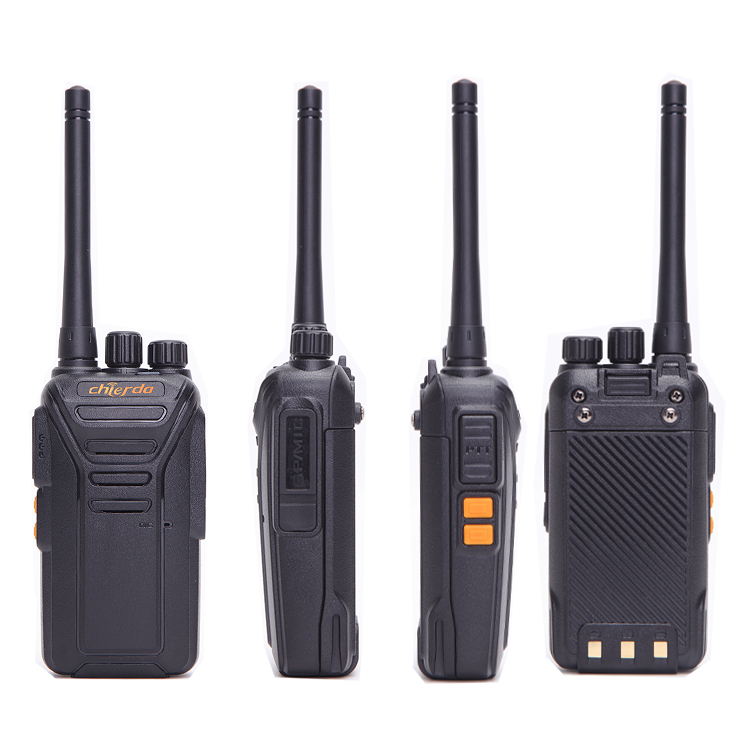

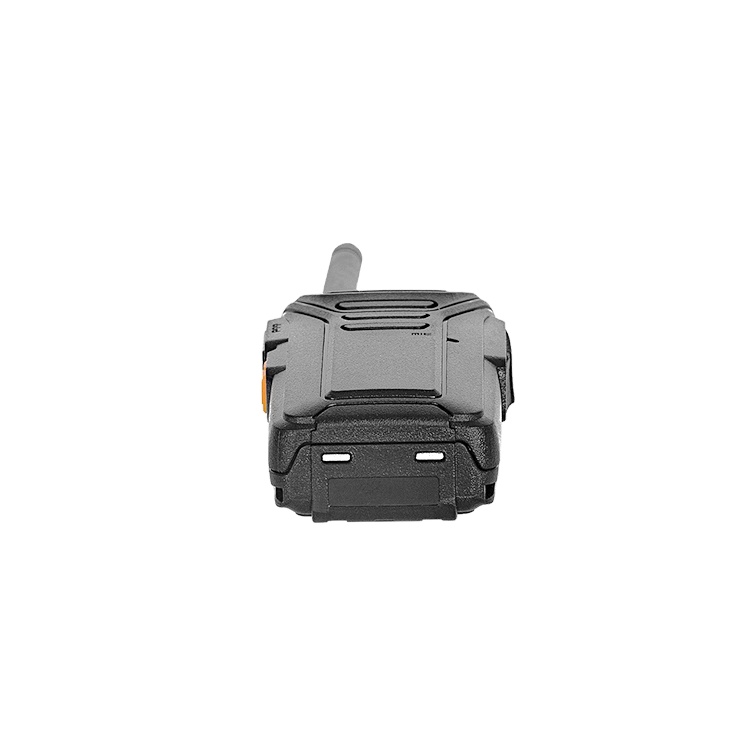

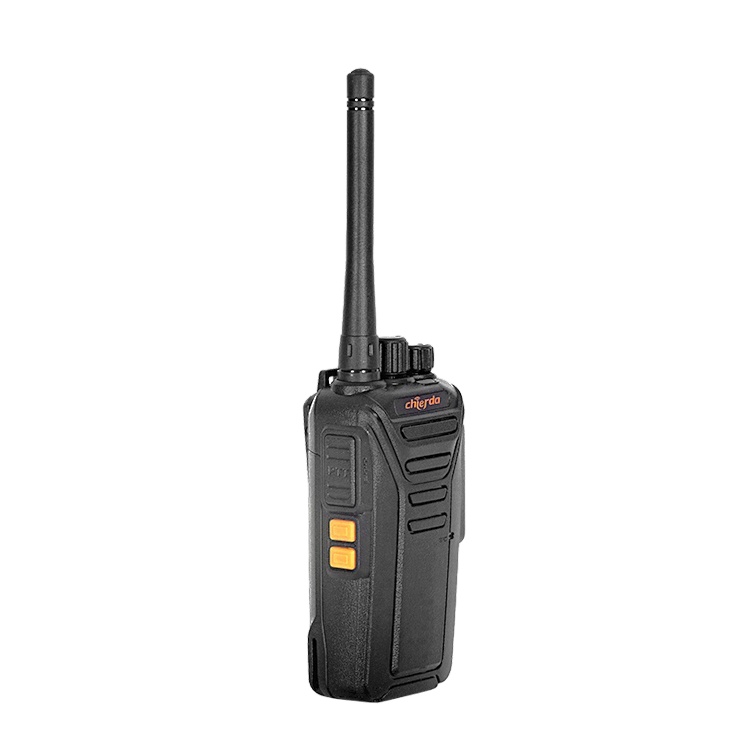

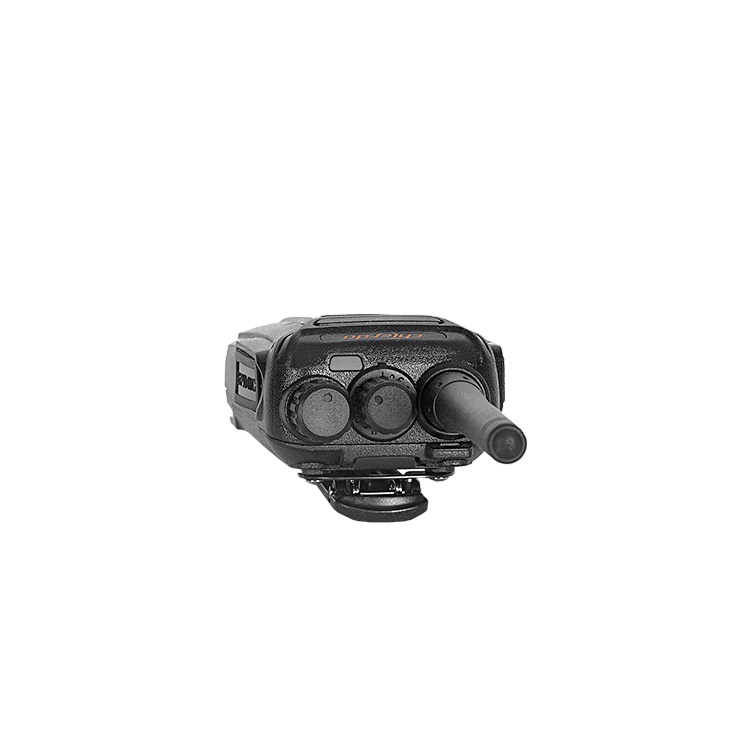

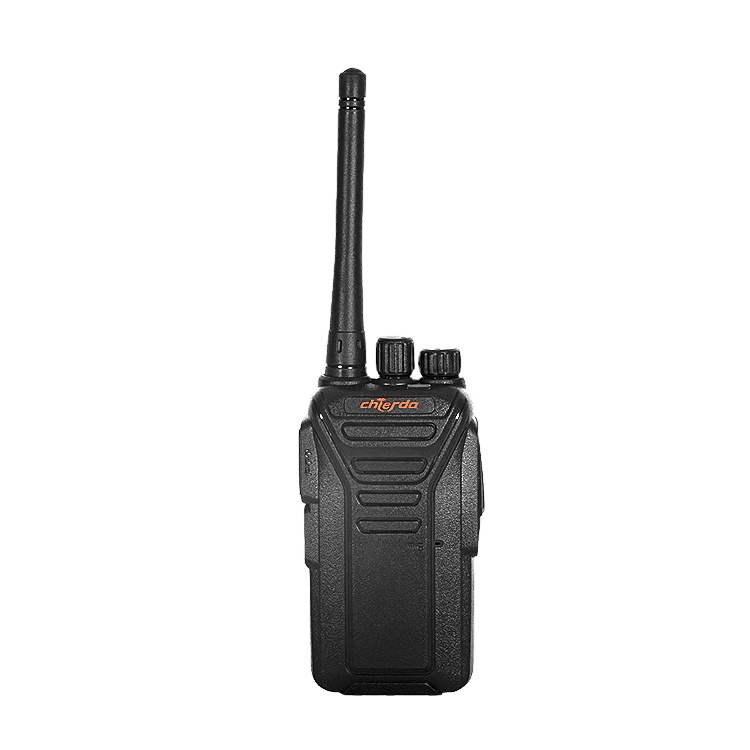

Chierda CD318 Durable Rugged Handheld Radio
CD-318
1.VOX Hand-free Function
2.Battery Save Function
3.Come with Desktop Charger
4.Compact and Ergonomics Design
Chierda CD318 Durable Rugged Handheld Radio provides long-range communication to keep you connected during work. The radio is portable and lightweight, making it easy to carry around with you. 50 CTCSS 210 DCS avoid hearing on the same channel extra call. CD318 features a time-out timer (TOT) function to avoid inadvertent continuous operation
Built-in 1000mAh Lithium Battery:

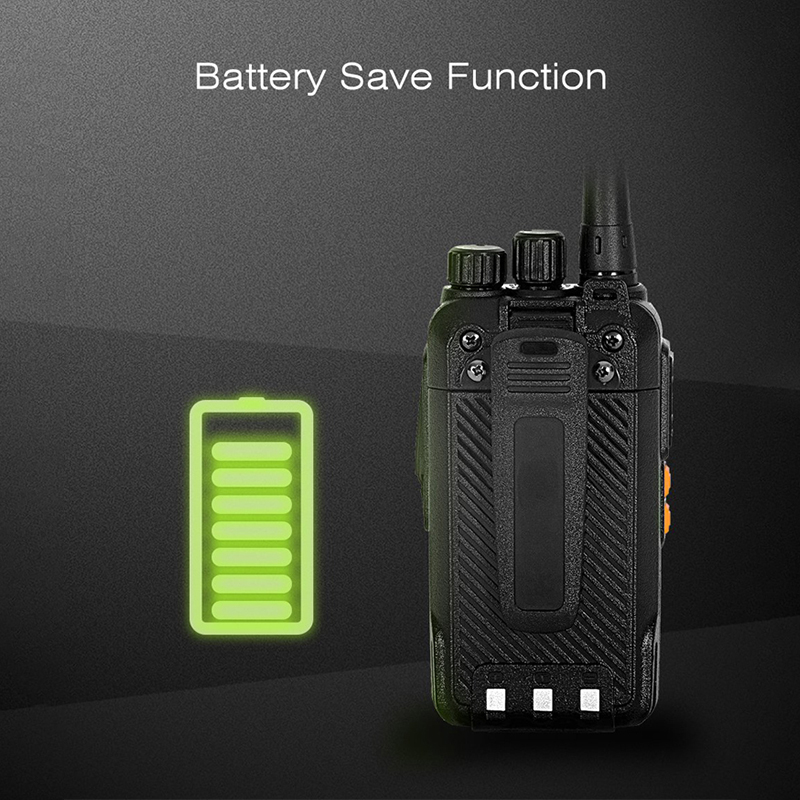

Chierda CD318 walkie talkie can support a long time of working. Plus, it has a battery save function to extend the standby time of your walkie-talkies. CD318 comes with a desktop charger, making it easy to charge anytime.VOX Function:

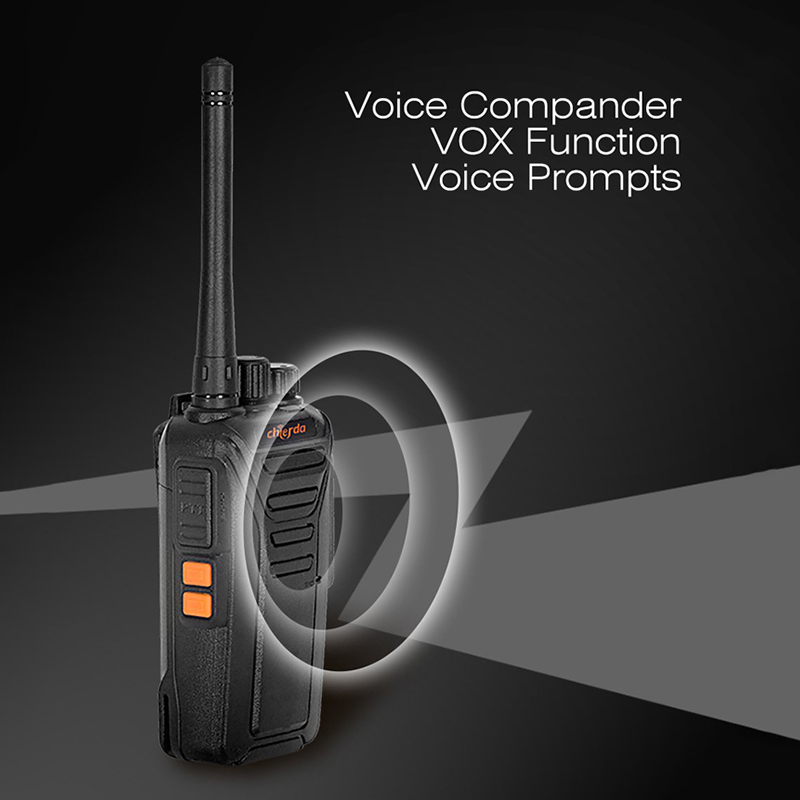

VOX enables normal calls without the need for PTT keys.

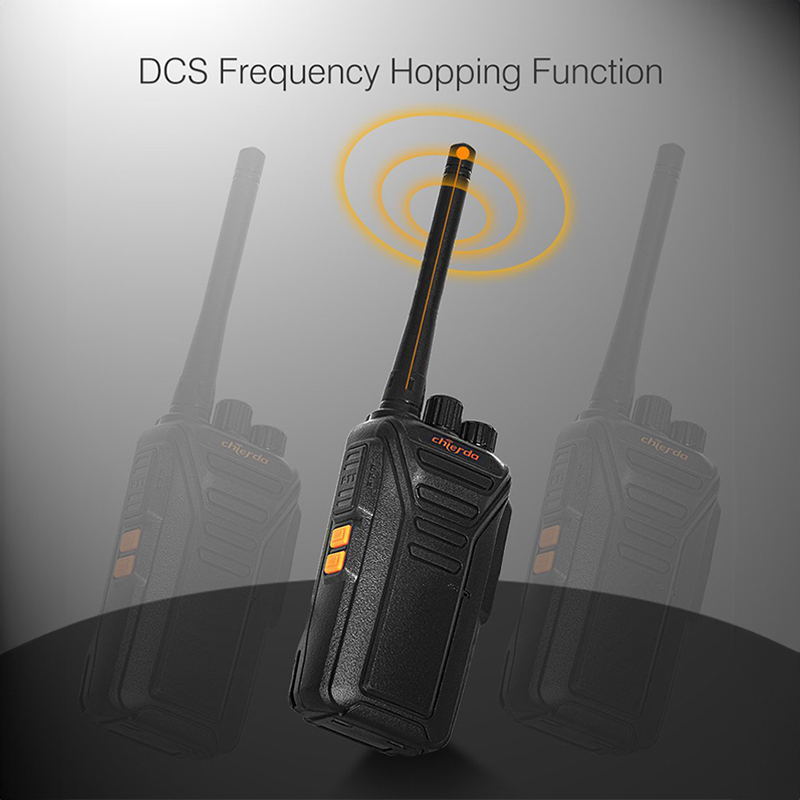

Frequency Hopping:

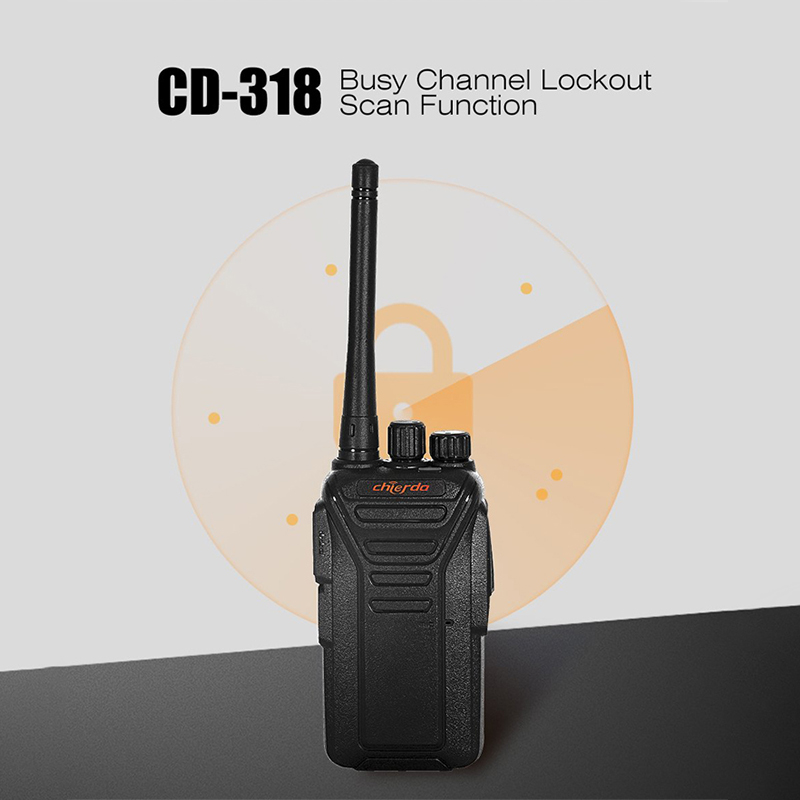

Hopping Function can encrypt calls and effectively protect your communication.Busy Channel Lockout:
BCLO function can protect from occupying the same channel for a long time.The channel lock function effectively helps to maintain an efficient connection.

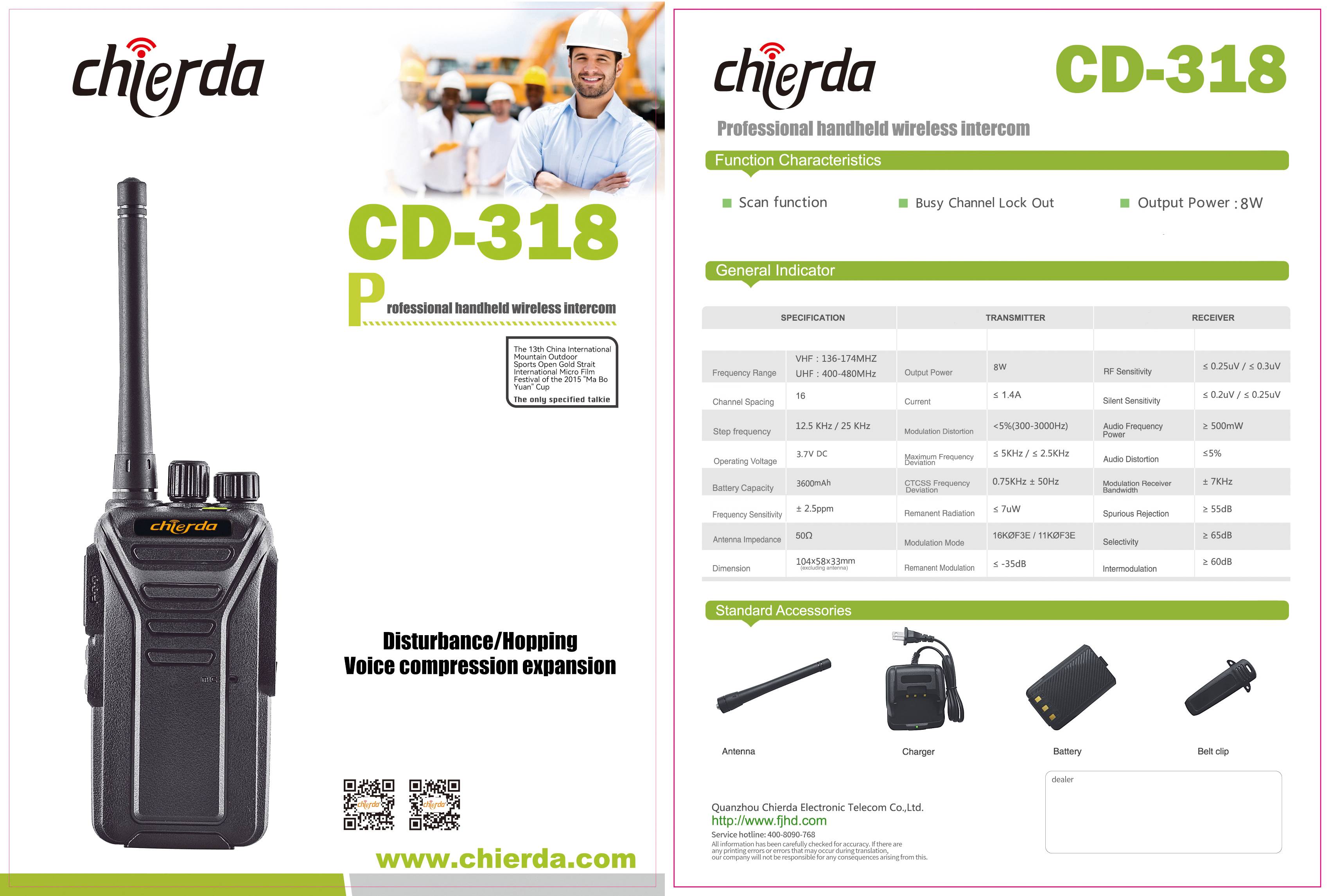

SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1200mAh/2900mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 104x58x33mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.4A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

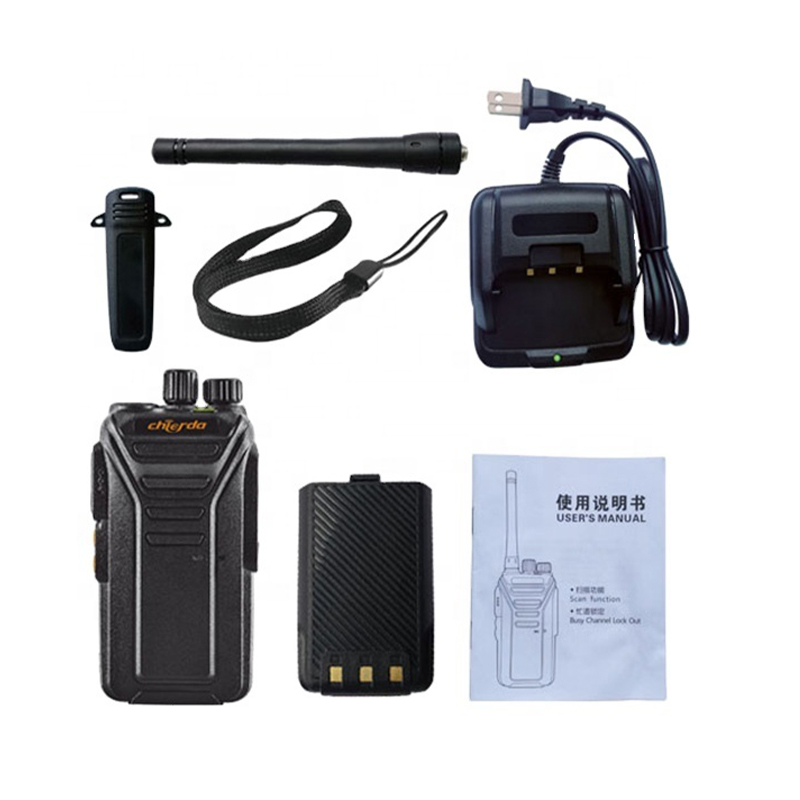

Product set
Radio*1
Battery*1
Charger*1
Belt clip*1
Strap*1
Antenna*1
User's manual*1
