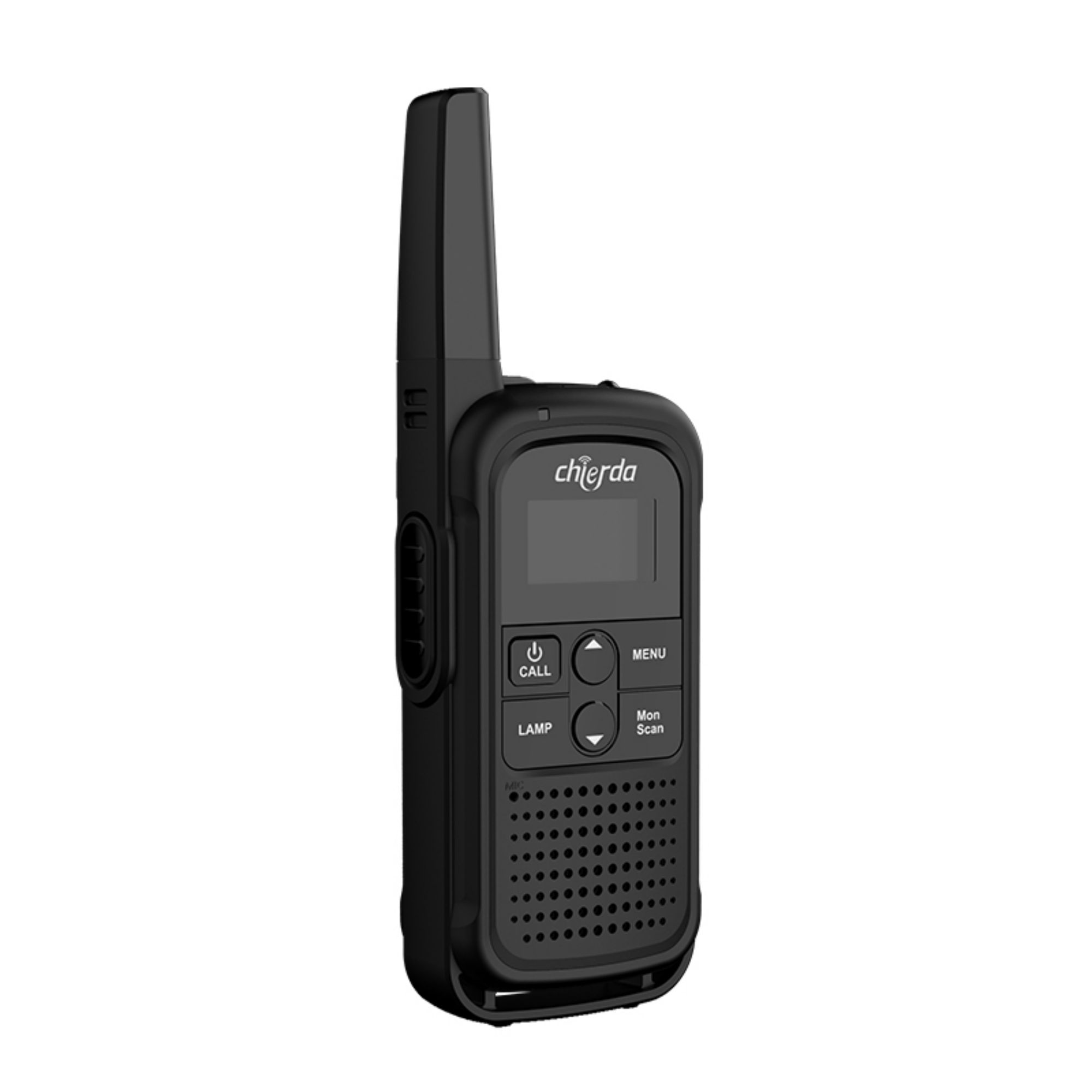

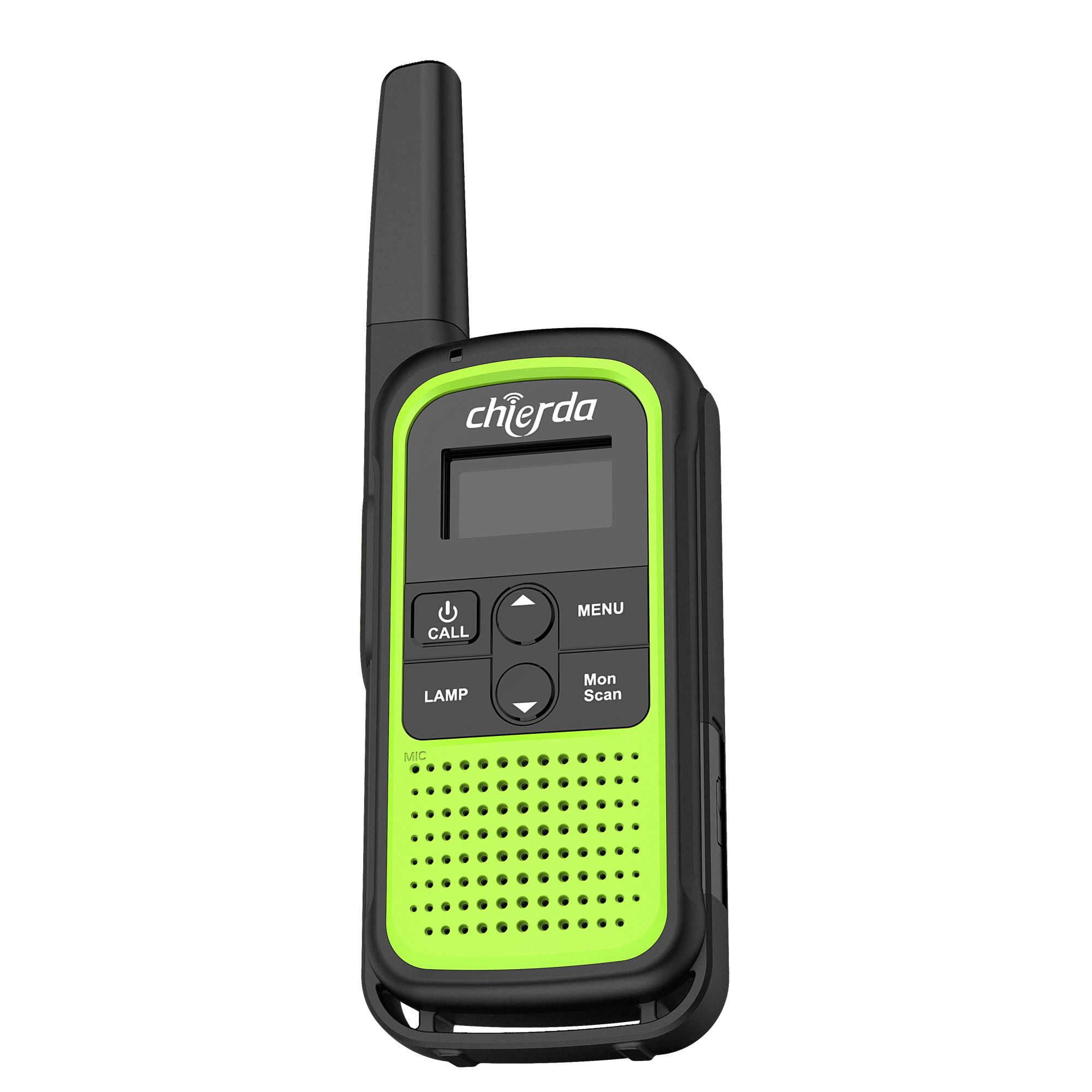

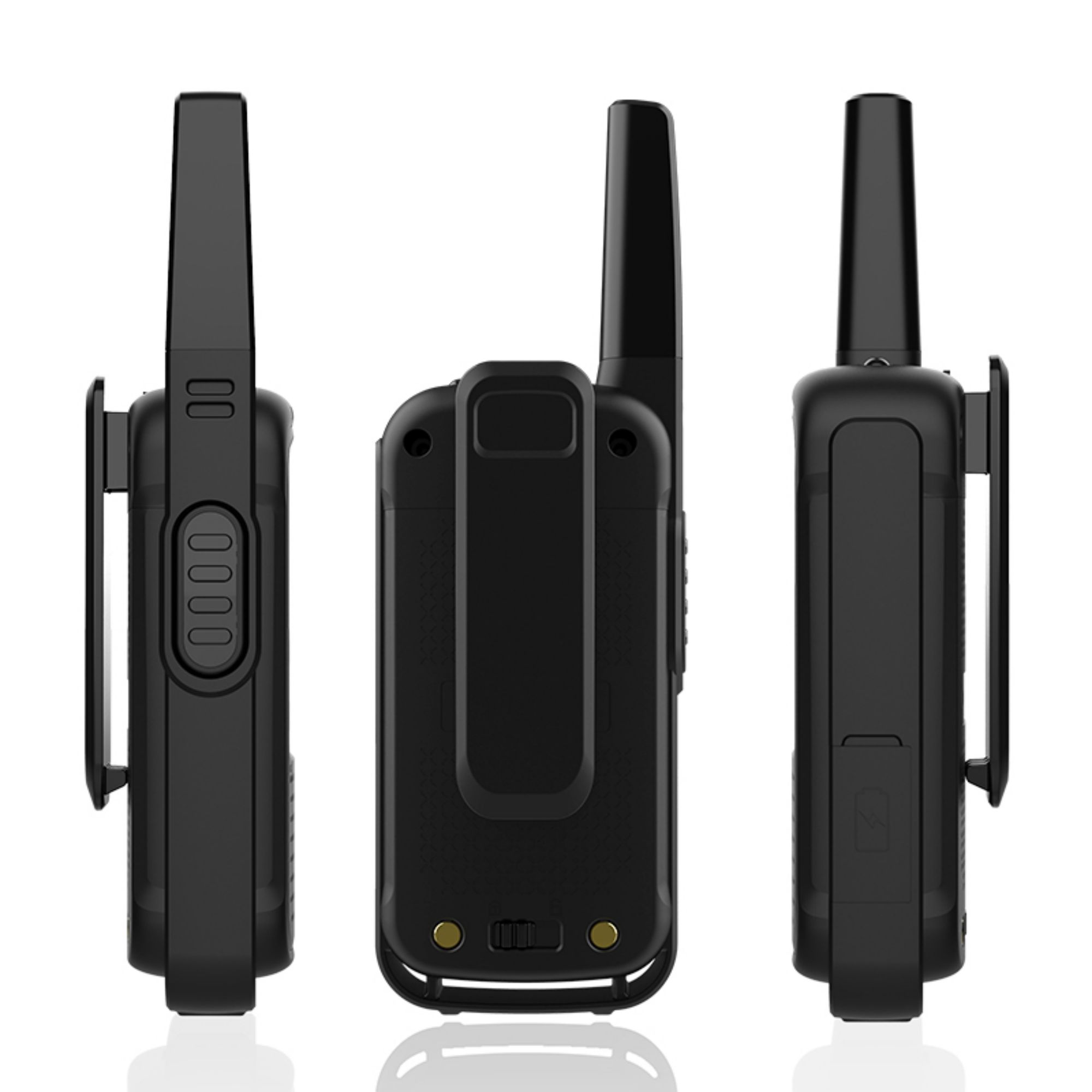

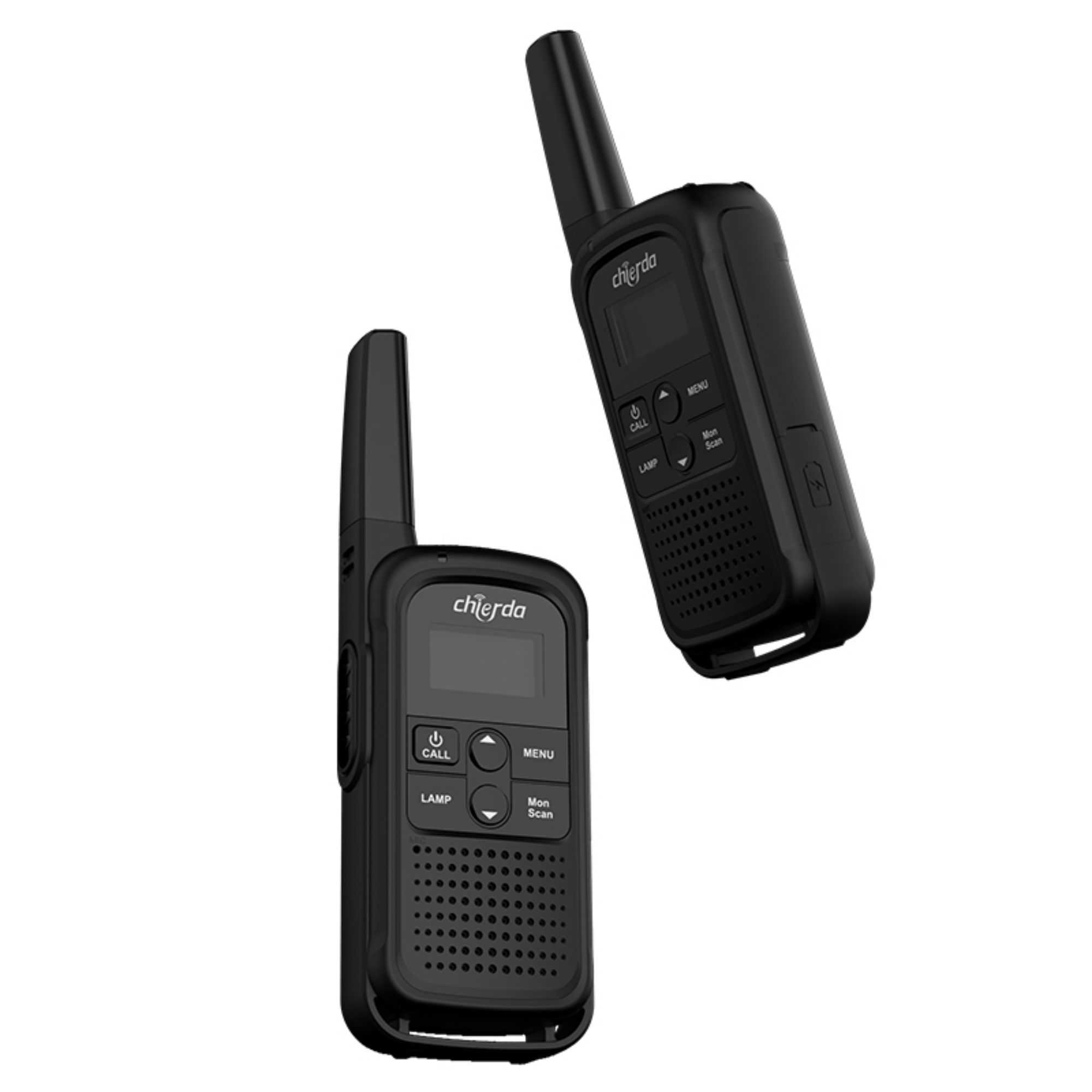

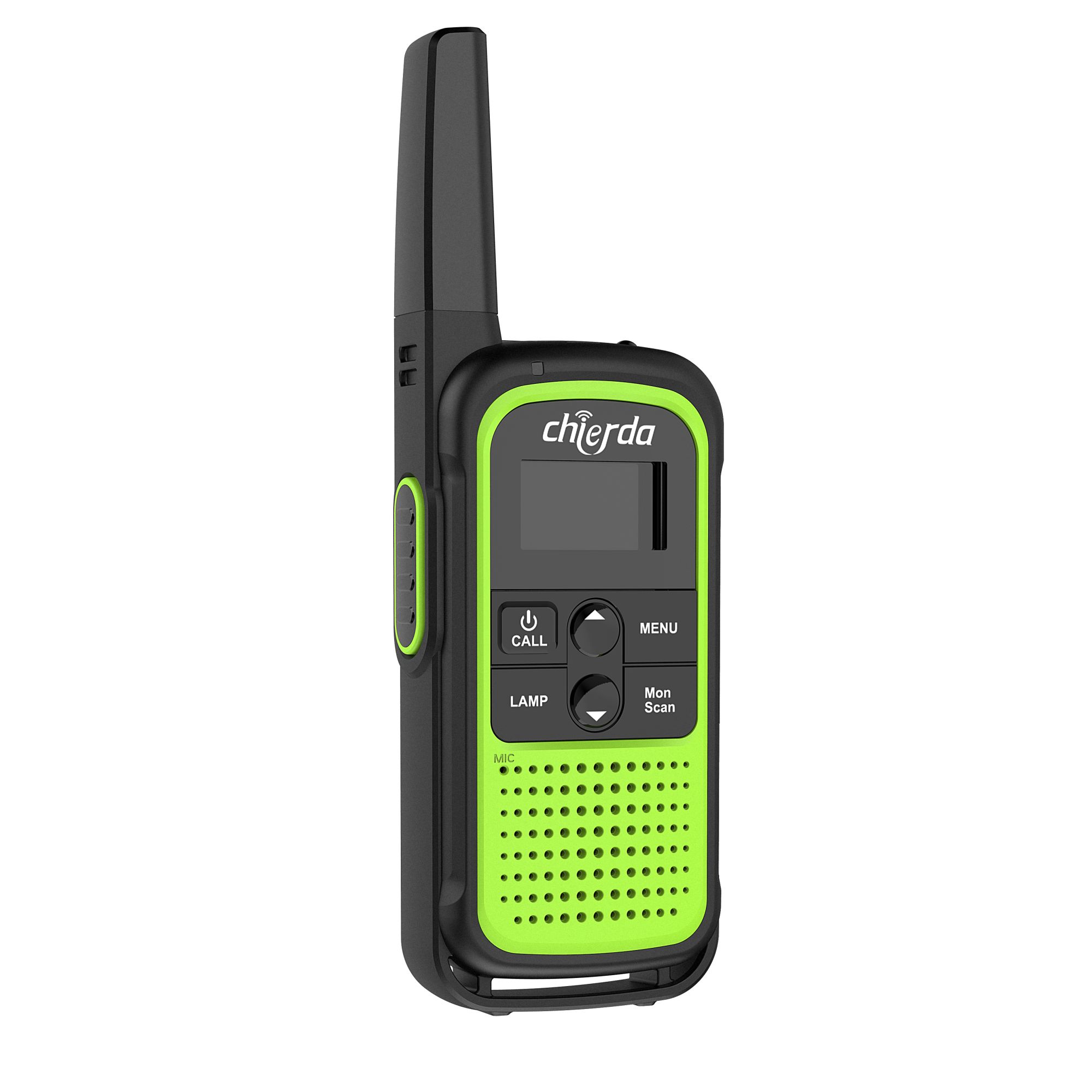

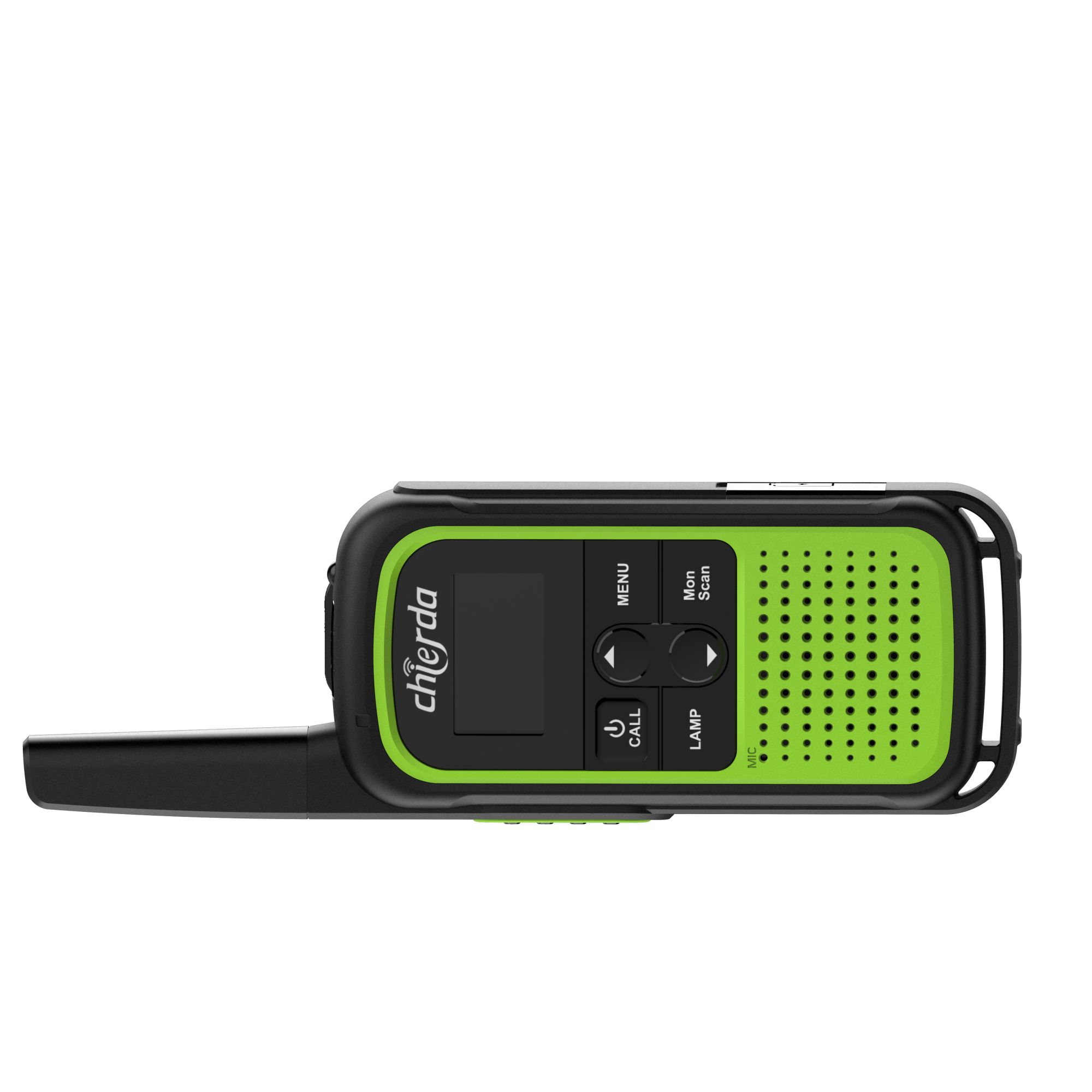

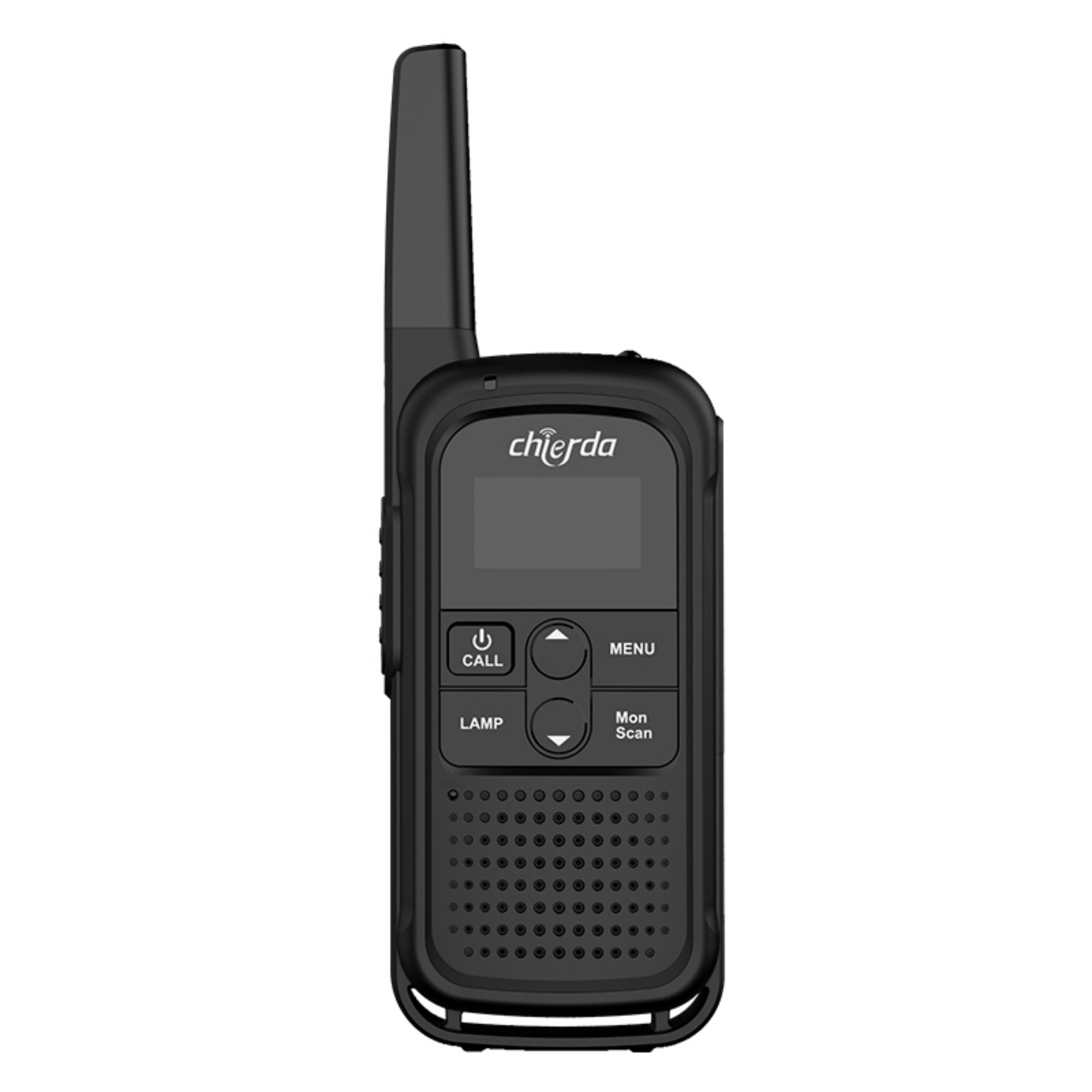

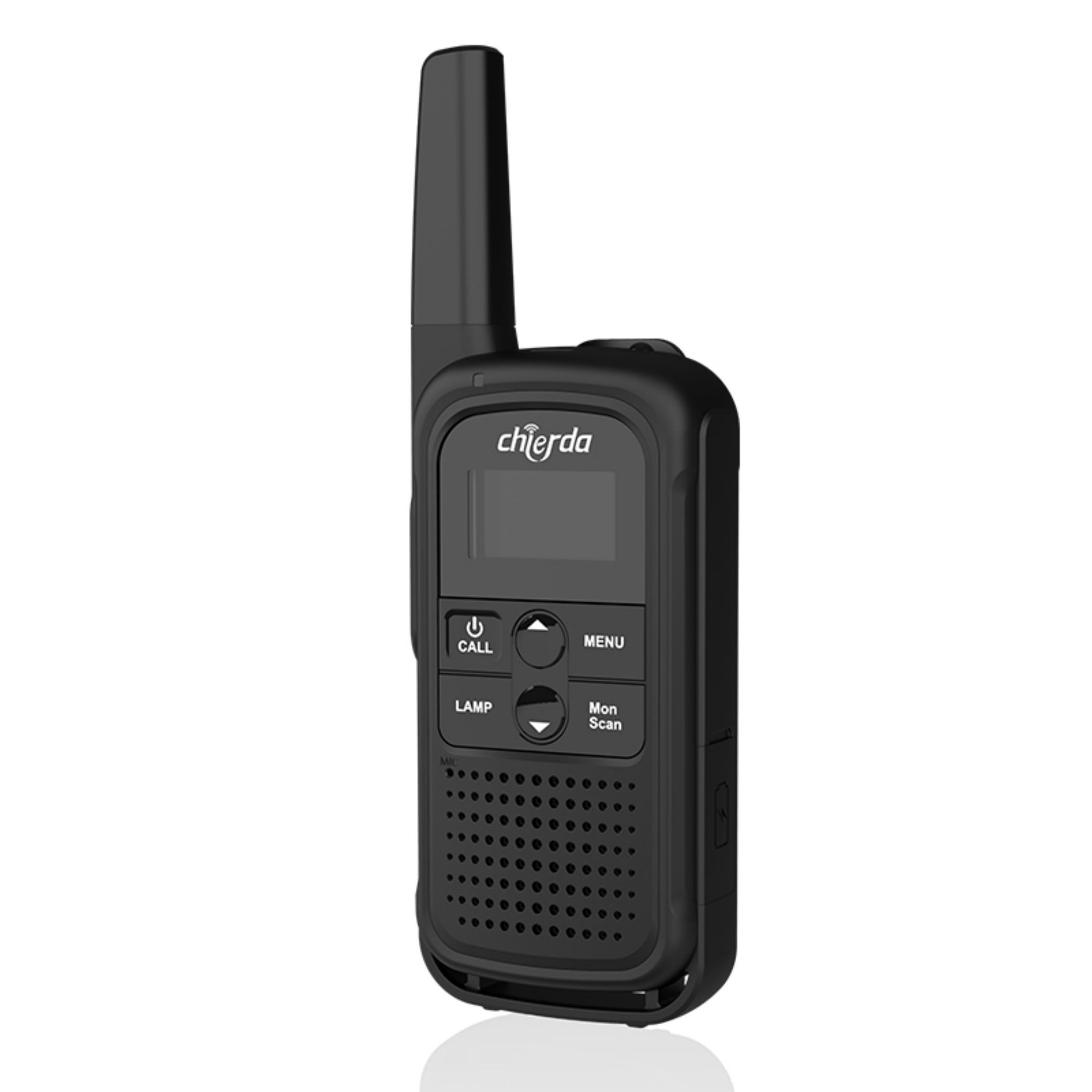

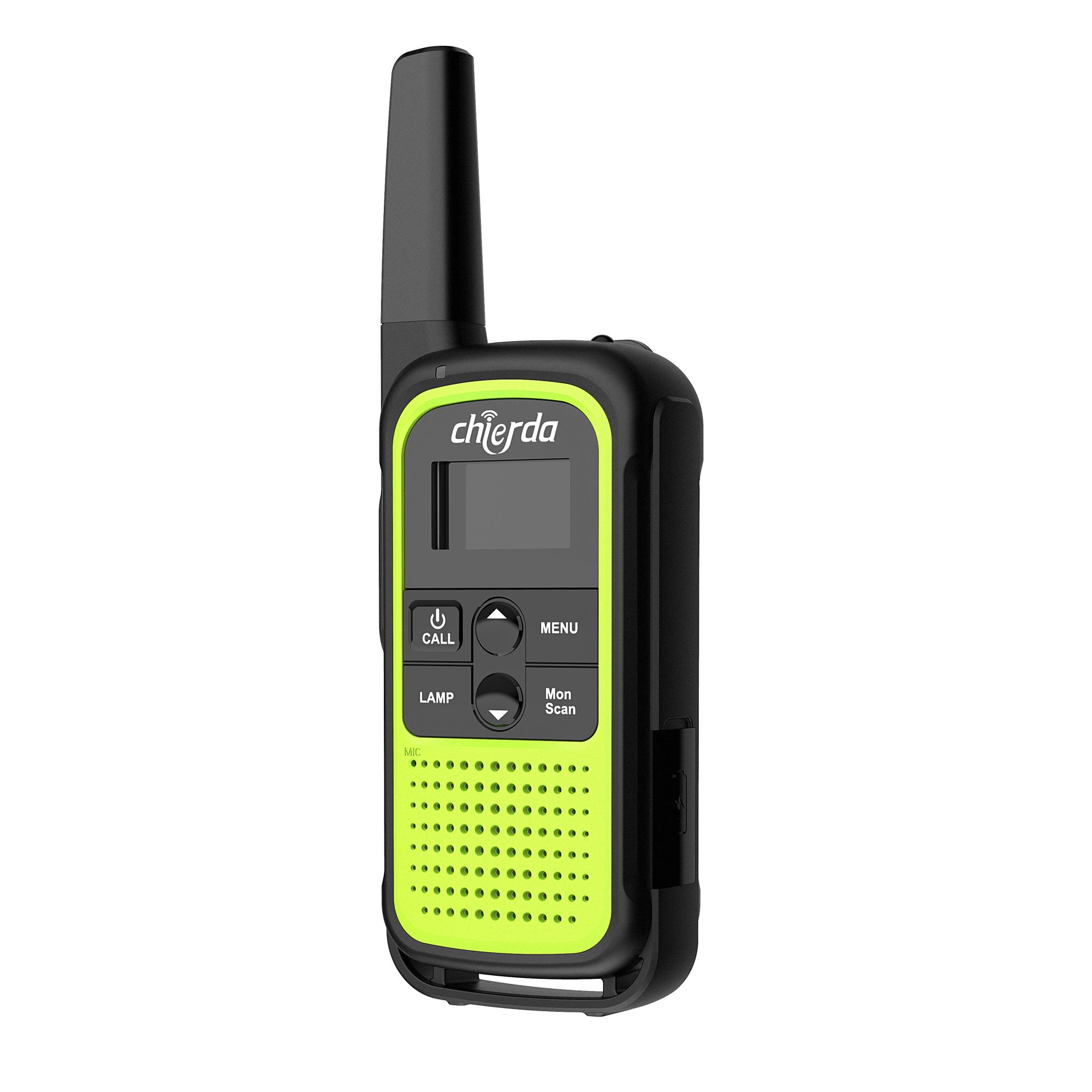

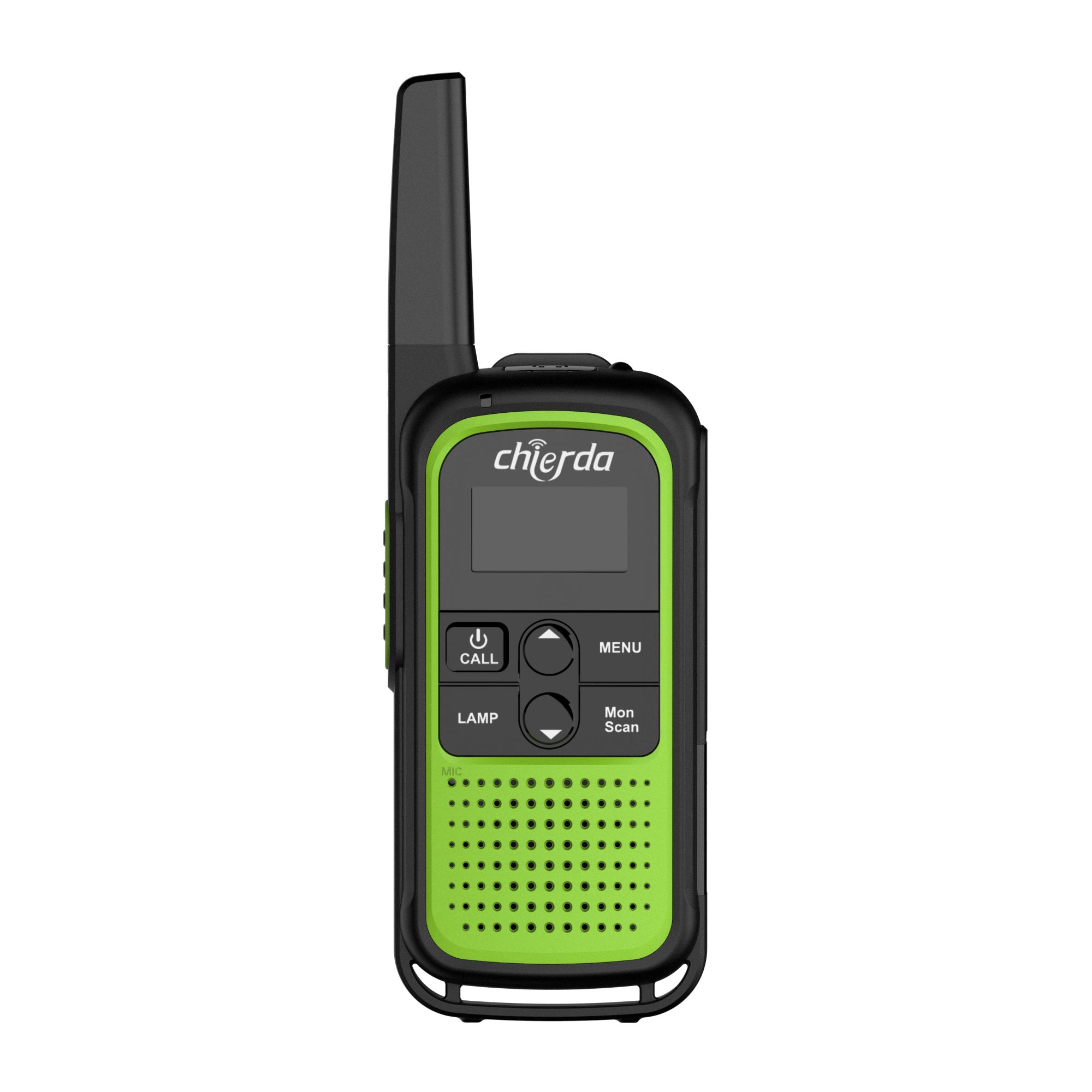

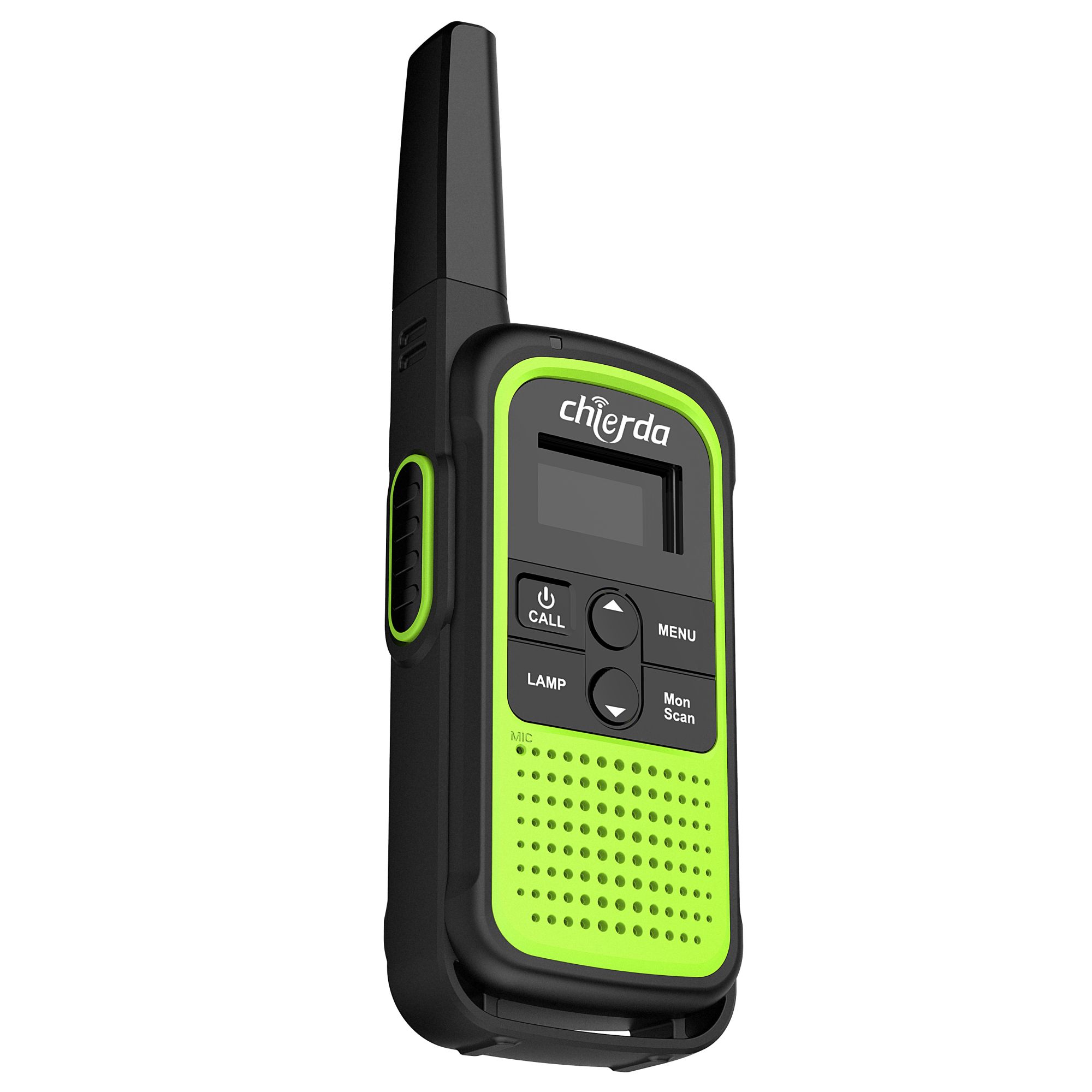

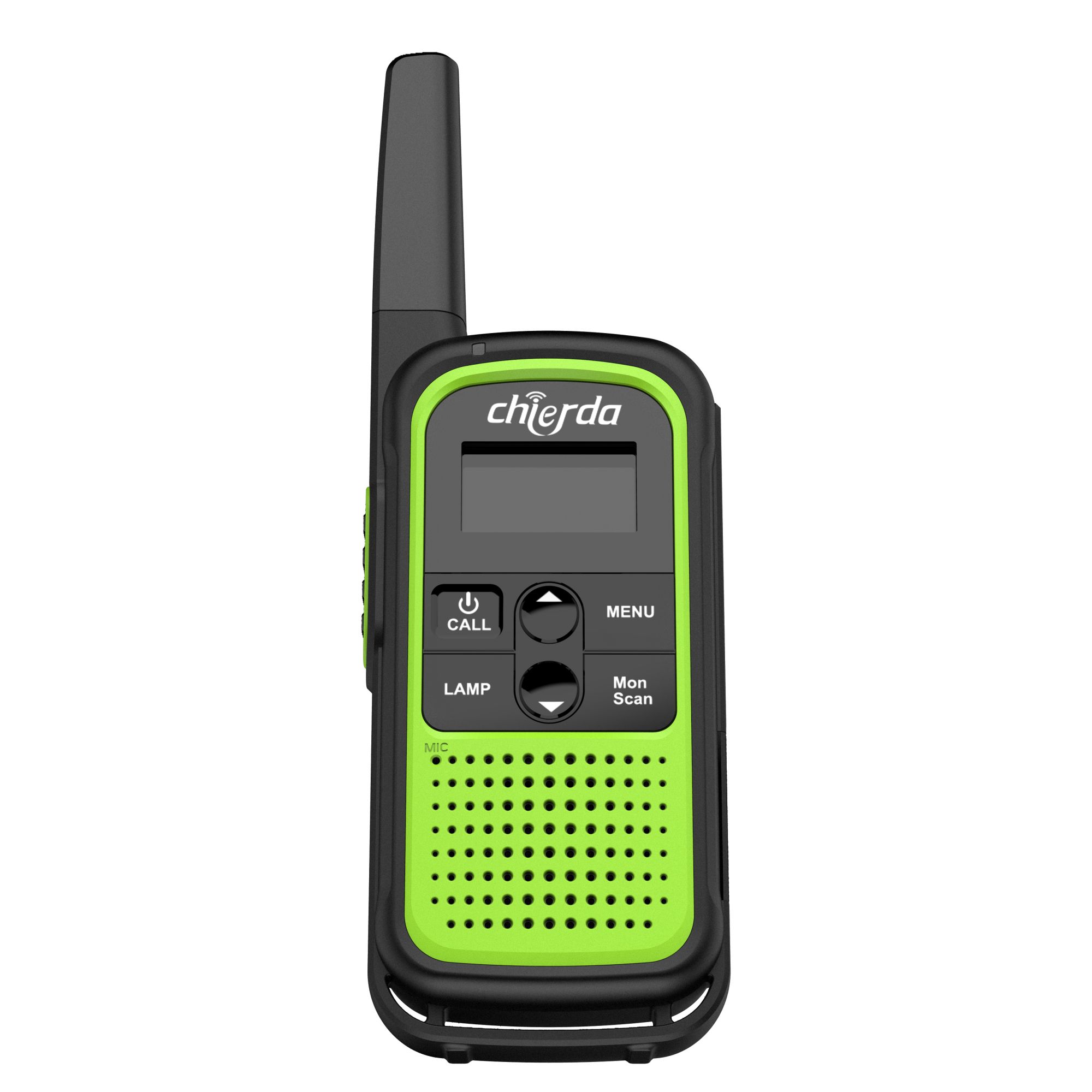

Chierda JV01 License-free FRS High-Performance Two Way Radio
JV01 US version
Chierda JV01 License-Free High-Performance Two Way Radio features a colorful and portable body that can be applied to various situations. It adopts a fashion and colorful design. It is the perfect solution for outdoor activities.
LCD Display:
With an LCD display to show battery level, JV01 radio is user-friendly. With keyboard, it is easy to operate. Trendy and colorful deisgn let you spot partners quickly. JV01 walkie talkie is equipped built-in LED flashlight which is bright enough to use in the darkness.NOAA function:
Weather forecast function lets you check the weather anytime and travel without fear.
3km Talk Coverage:

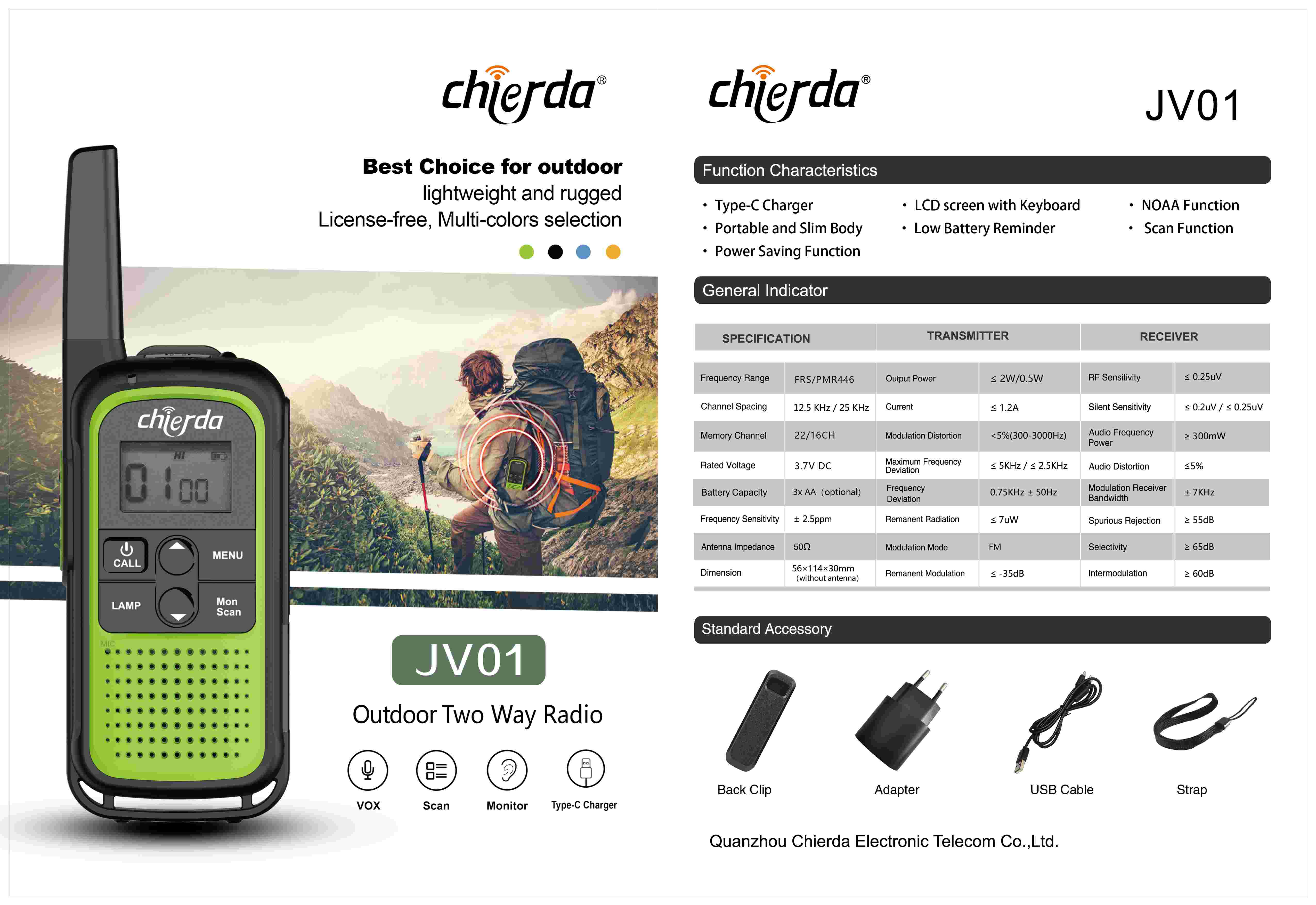

JV01 radio can technically support communication within a distance of 3km. The actual communication coverage depends on the usage and environment. The talk distance even can exceed 3km in a ski resort.SPECIFICATION | |
Frequency Range | FRS/PMR446 |
Channel Spacing | 12.5 KHz / 25 KHz |
Memory Channel | 22/16CH |
Rated Voltage | 3.7V DC |
Battery Capacity | 3x AA (optional) |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 56x114x30mm |
TRANSMITTER | |
Output Power | ≤2W/0.5W |
Current | ≤1.2A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency Deviation | ≤ 5KHz/ ≤ 2.5KHz |
Frequency Deviation | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤0.25uV |
Silent Sensitivity | ≤ 0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver Bandwidth | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

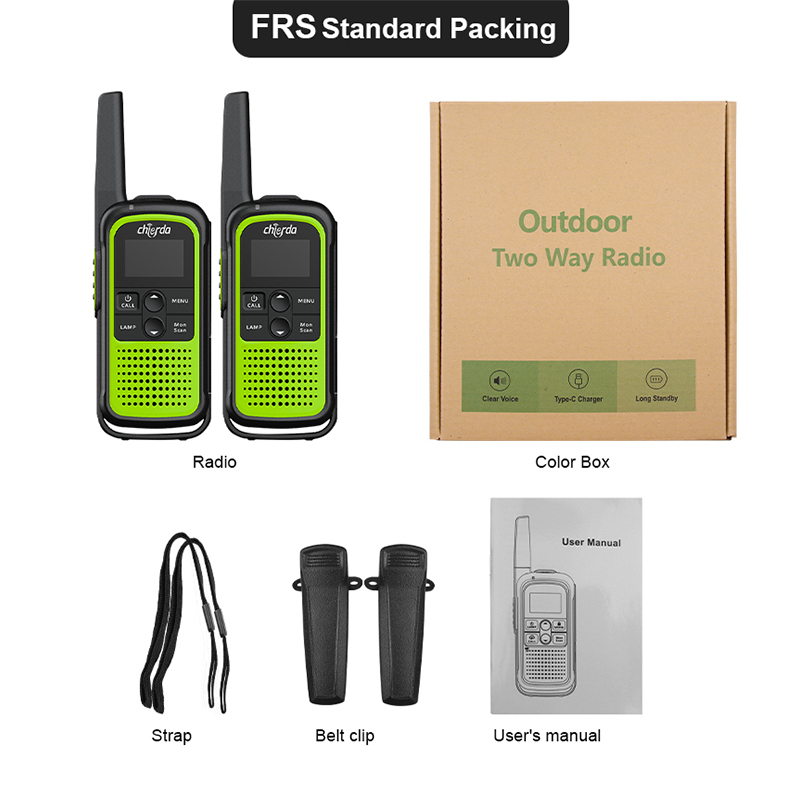

Product set
Radio*2
Belt clip*2
Strap*2
User's manual*1
