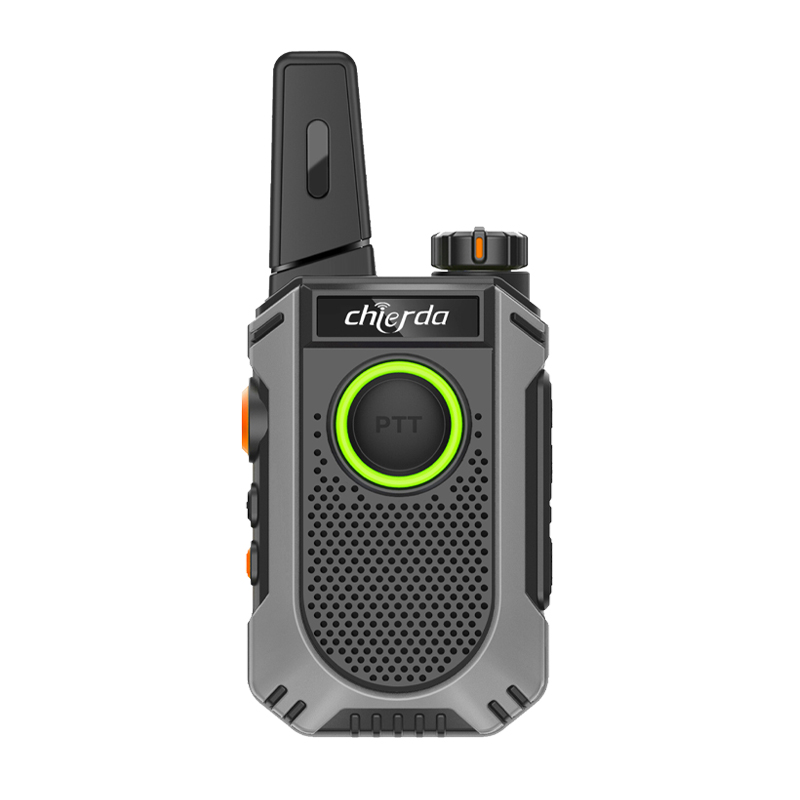

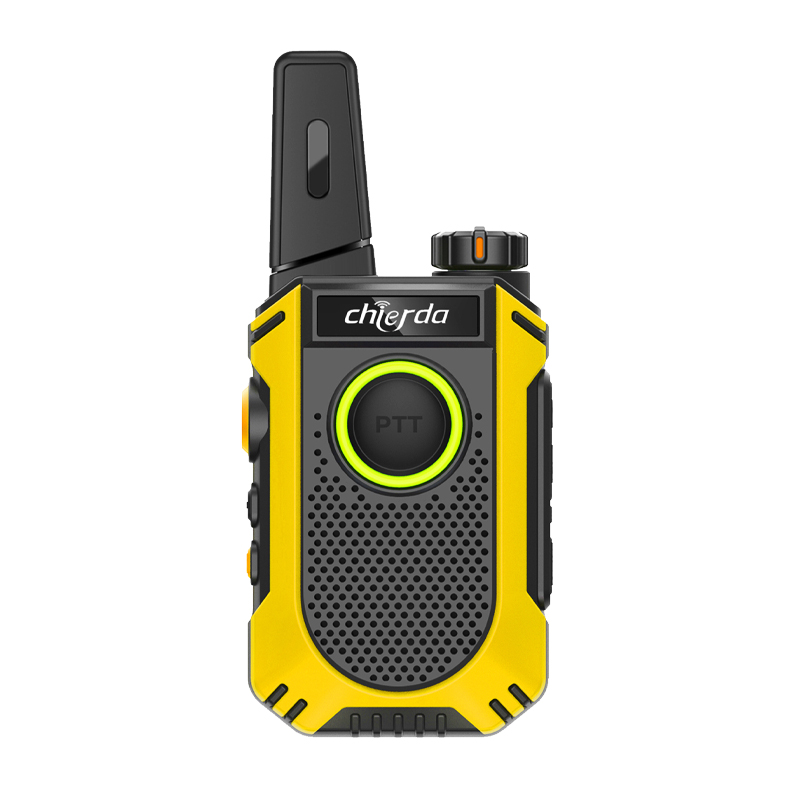

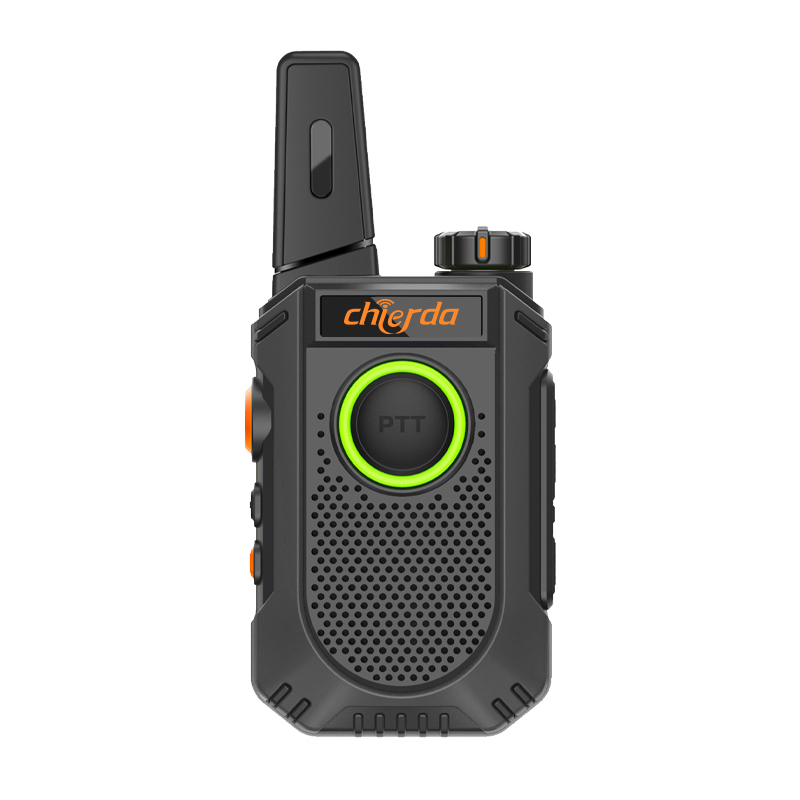

Chierda TC18 Dual PTT Portable Lightweight Two-way Radio
TC18
1. Double PTT Operation
2. Mini body, portable
3. Support Type-C Charging
4. Circle Breathing Indicator

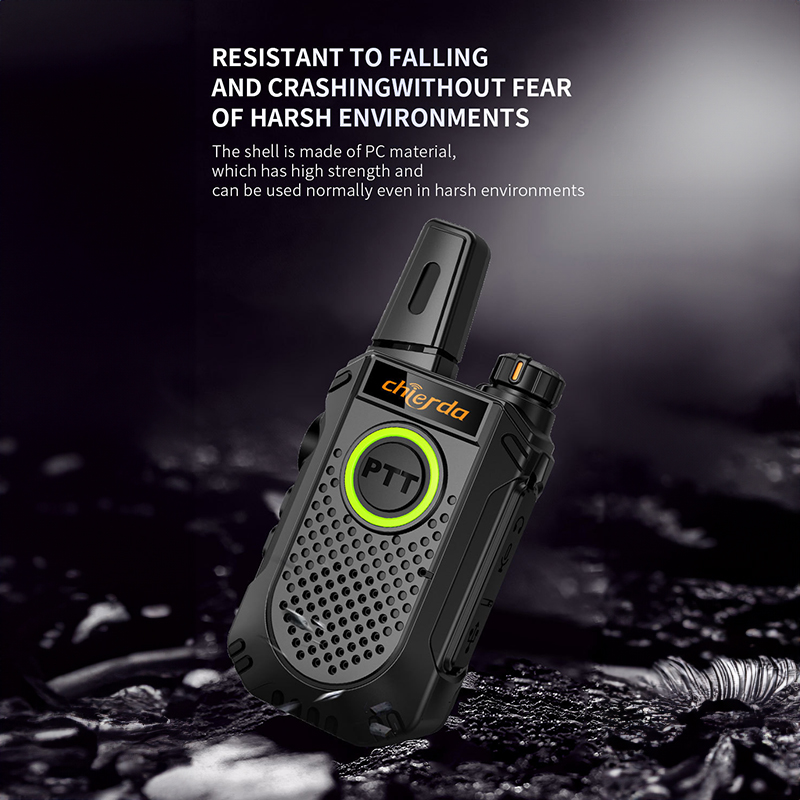

Chierda TC18 Dual PTT Portable Lightweight Two-way Radio features two PTT buttons and mini body. The shell is made of PC material which makes TC-18 can be used even in harsh environments. It is an ideal option to use in every situations.

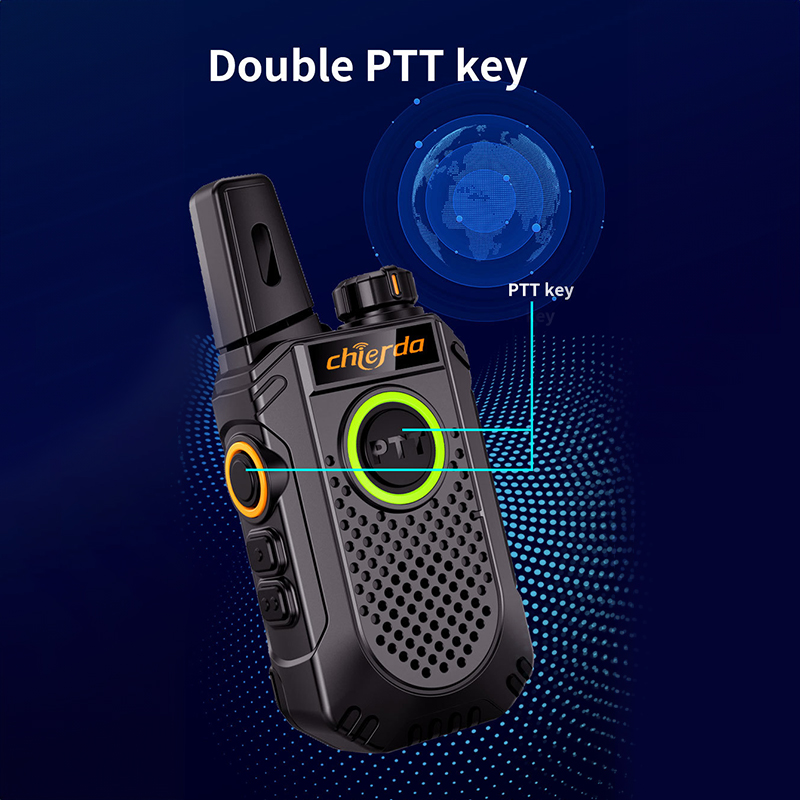

Dual PTT:
Unique double PTT design on TC18 radio makes it easy to operate. In addition, TC18 radio adopts a fashion design of circle breathing indicator. Users can identify the working status easily.Anti-break Code:
Don't worry about safety. Anti-break code and voice encryption protect your privacy.

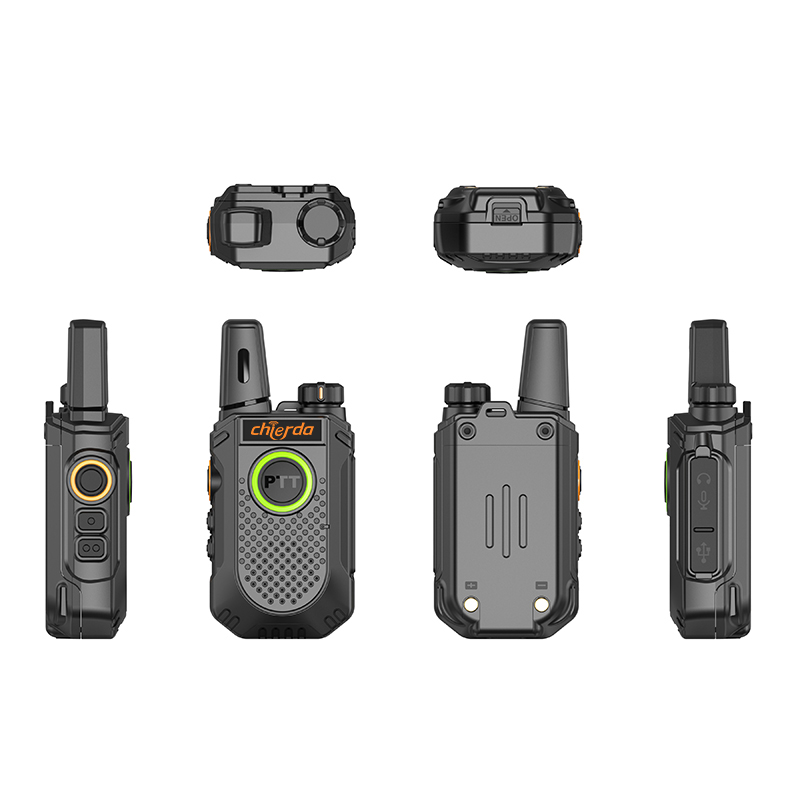

Portable and Sturdy Body:

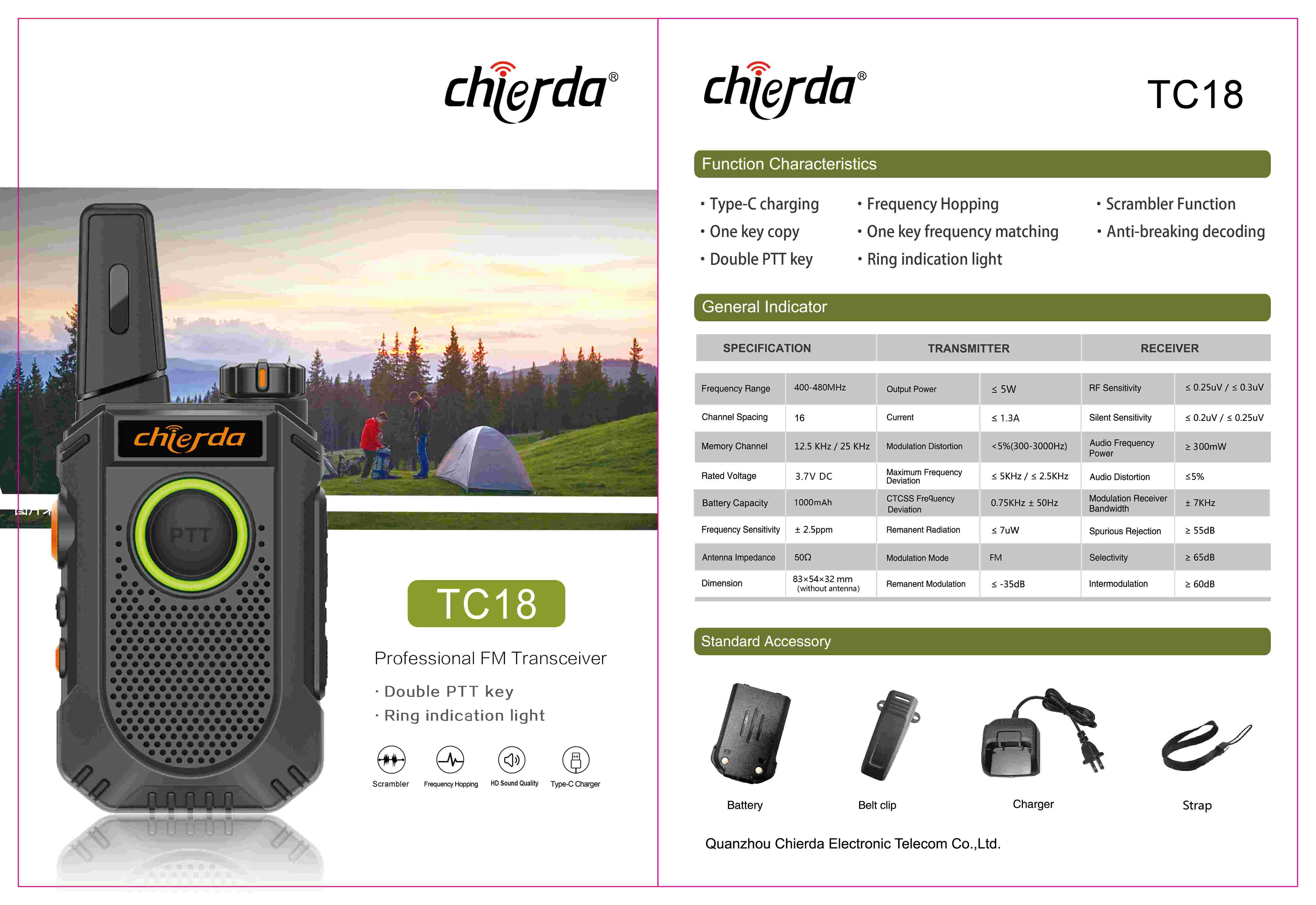

TC18 walkie talkie is made of PC material. It is manufactured to be small and portable, making it ideal for use in restaurants, salons, bars, and other service sectors.SPECIFICATION | |
Frequency Range | 400-480MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz/ 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 83x54x32 mm |
TRANSMITTER | |
Output Power | ≤5W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/ ≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤ 7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤ 0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ± 7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

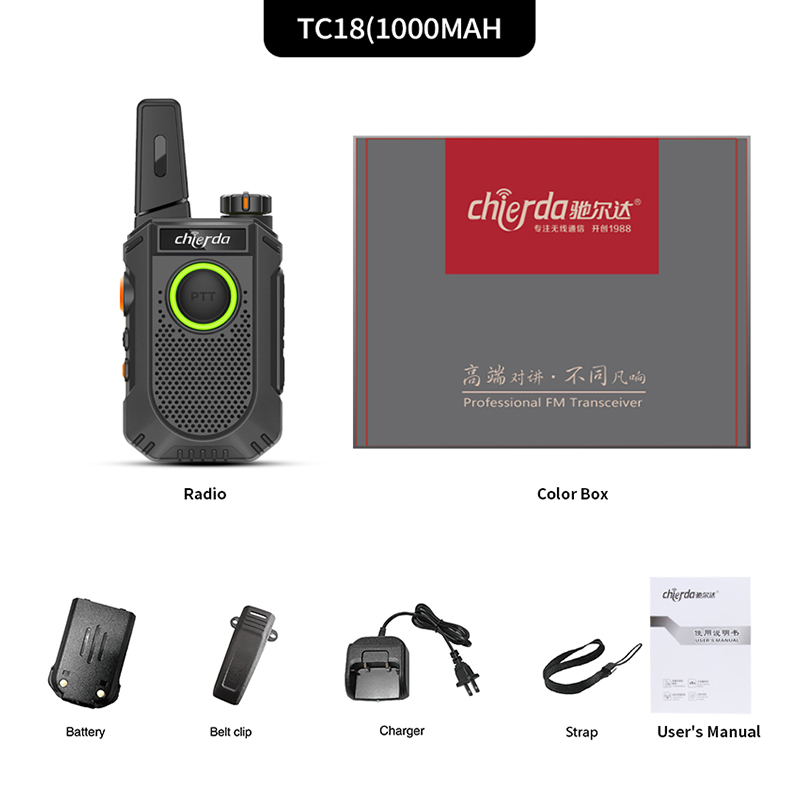

Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
