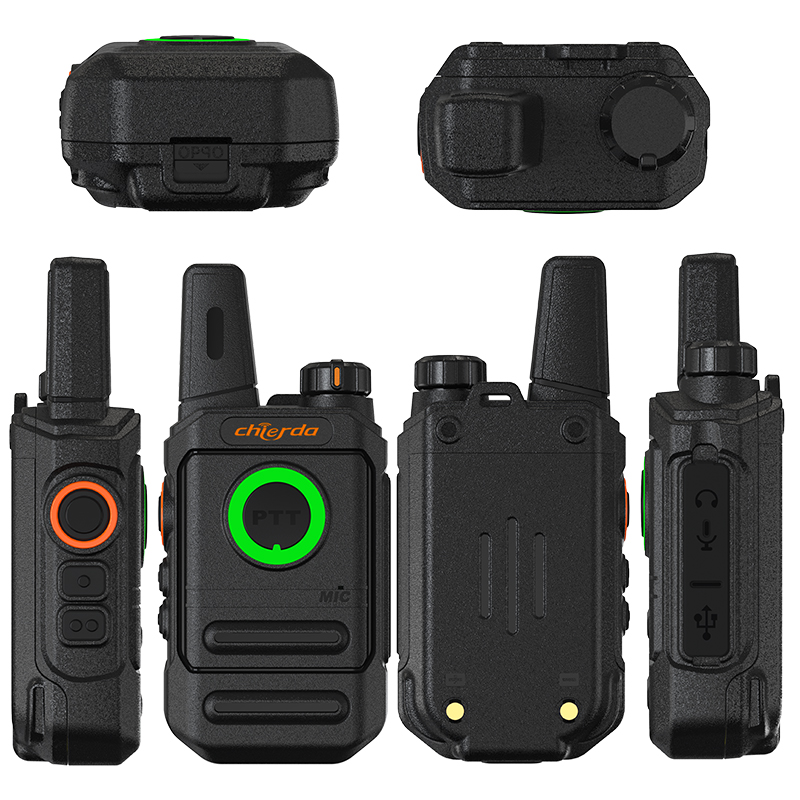

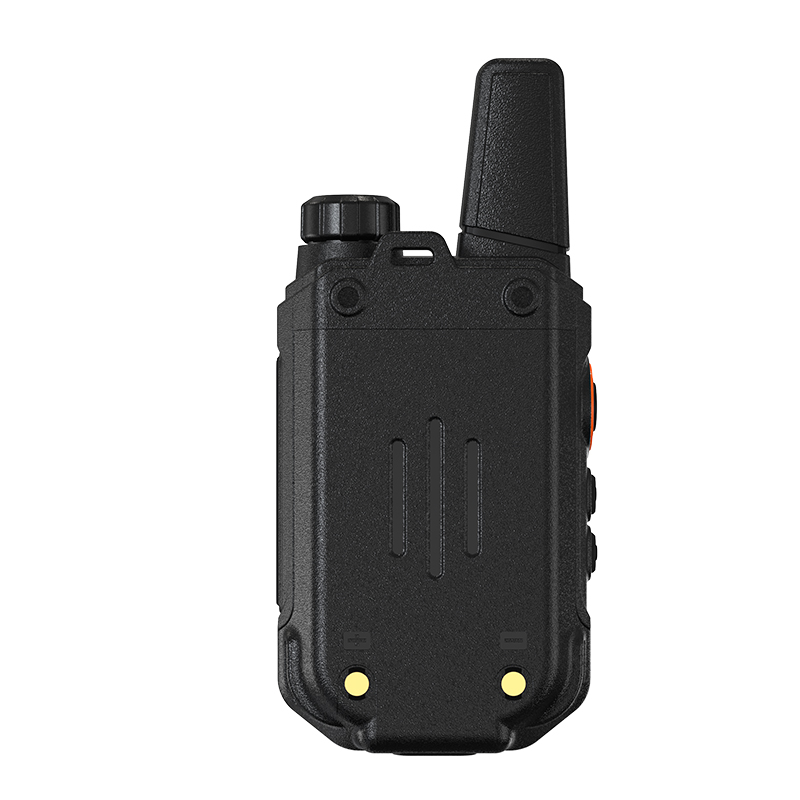

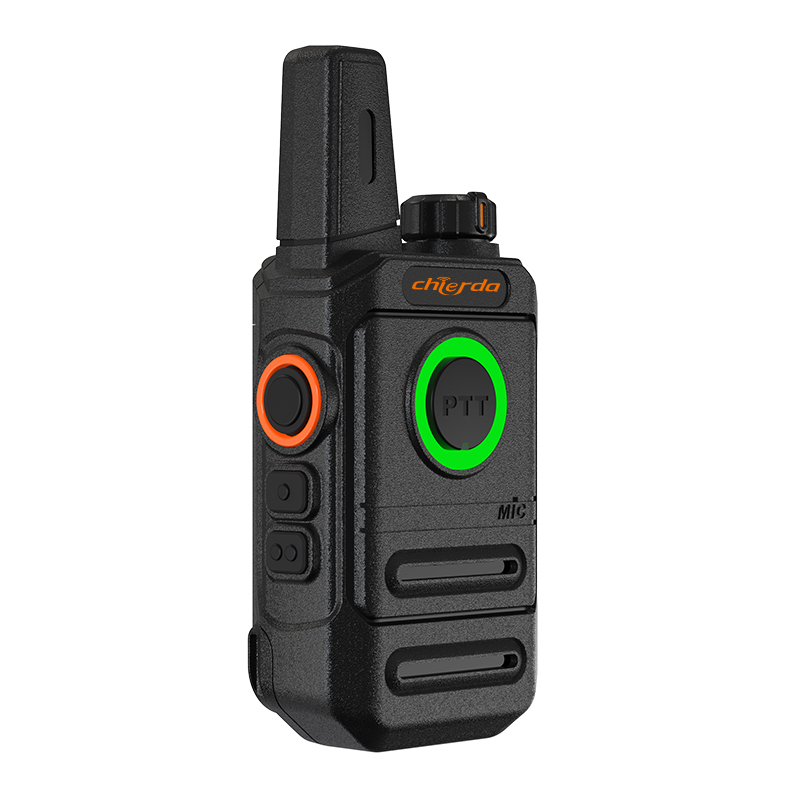

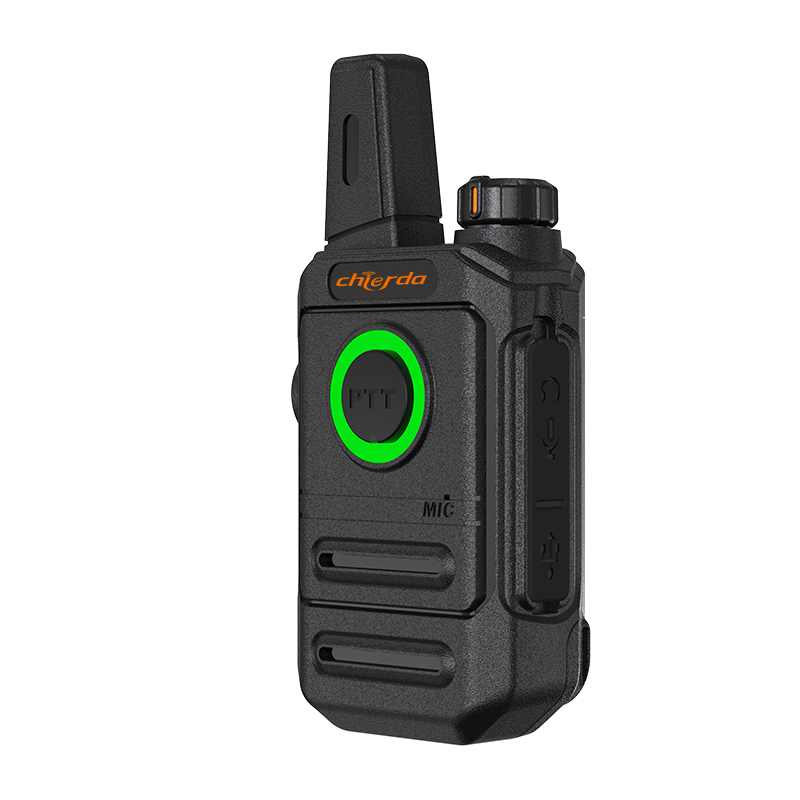

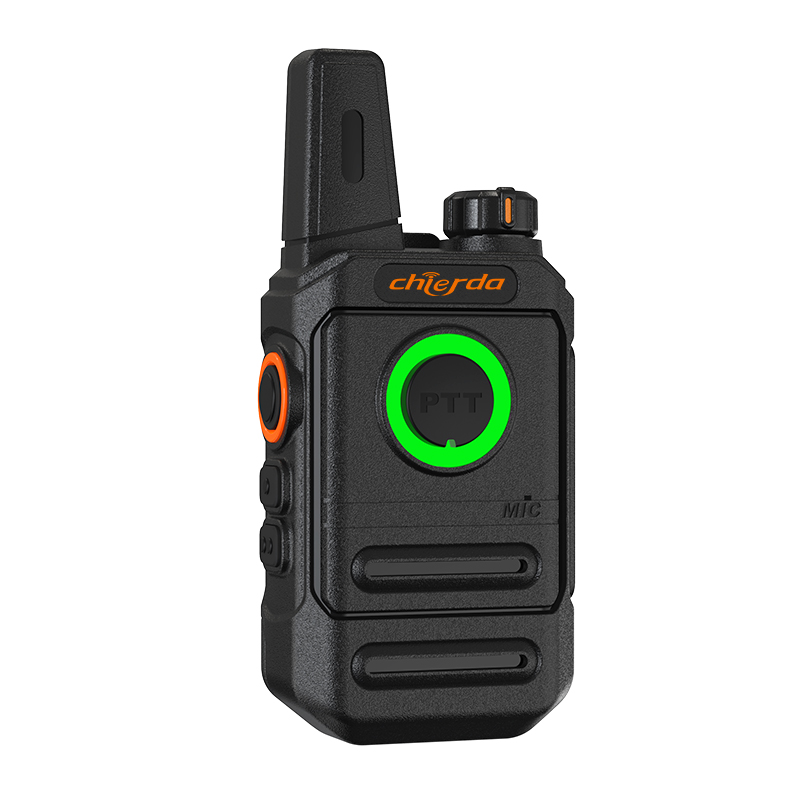

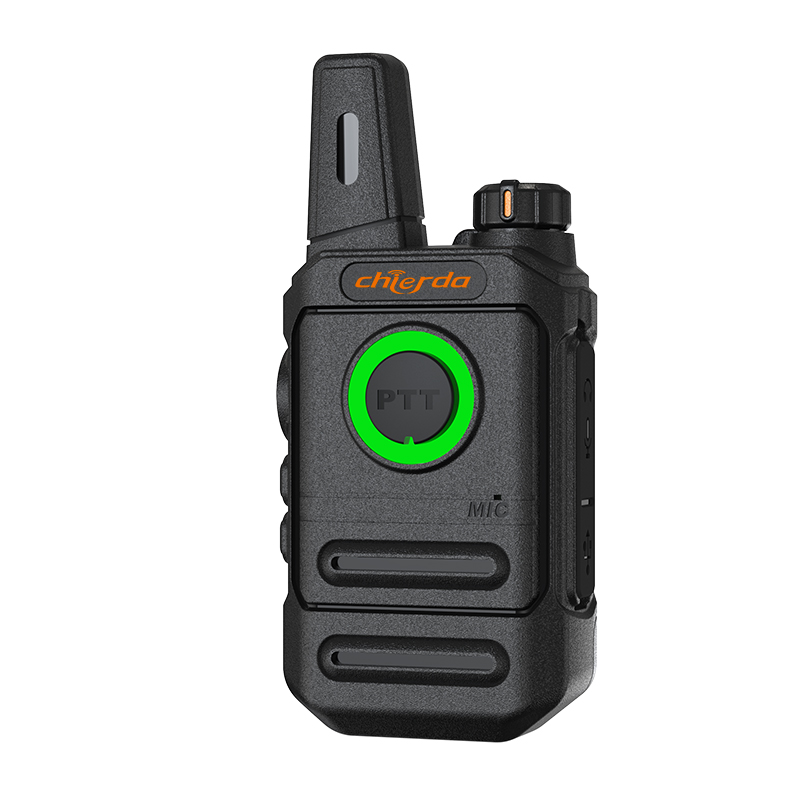

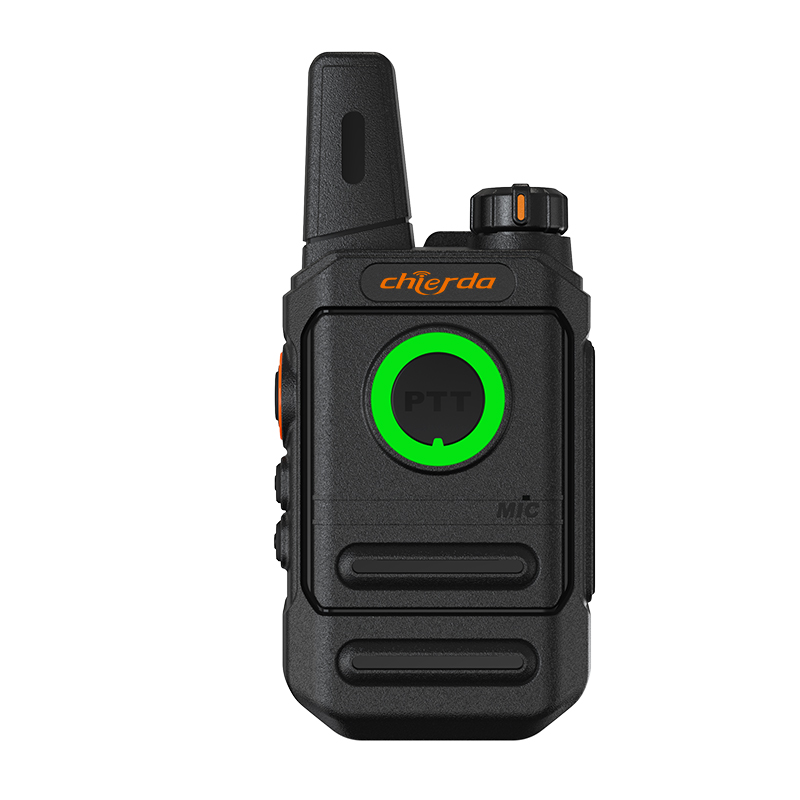

Chierda TC28 Dual PTT Portable Lightweight Rechargeable Two Way Radio
TC28
1.Double PTT Operation
2.Support Type-C Charging
3.Anti-break code, Much safer
4.Circle Breathing Indicator
Chierda TC28 Dual PTT Portable Lightweight Two-way Radio is designed to be small and portable. The housing is made of PC material. It is ideal for various settings, such as restaurants, salons, clubs...

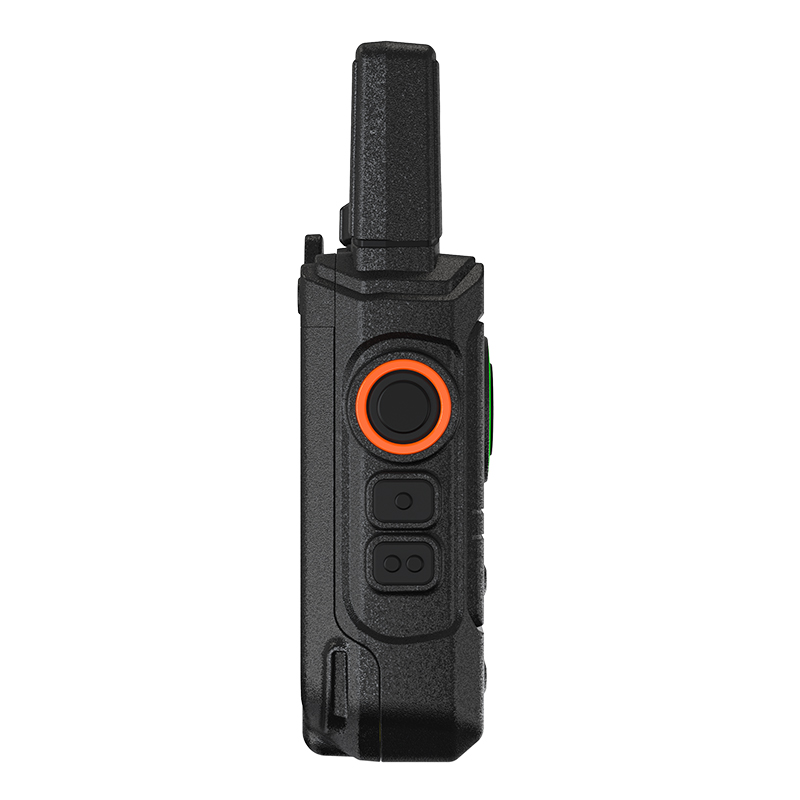

Double PTT Operation:
Built-in silicone PTT button can guarantee quick rebound and longer service life. Circle breathing indicator design lets users easily to check the working status of walkie talkie.Anti-break Code:
Don't worry about safety. Anti-break code and voice encryption can greatly protect your privacy.
Battery Saving Function:

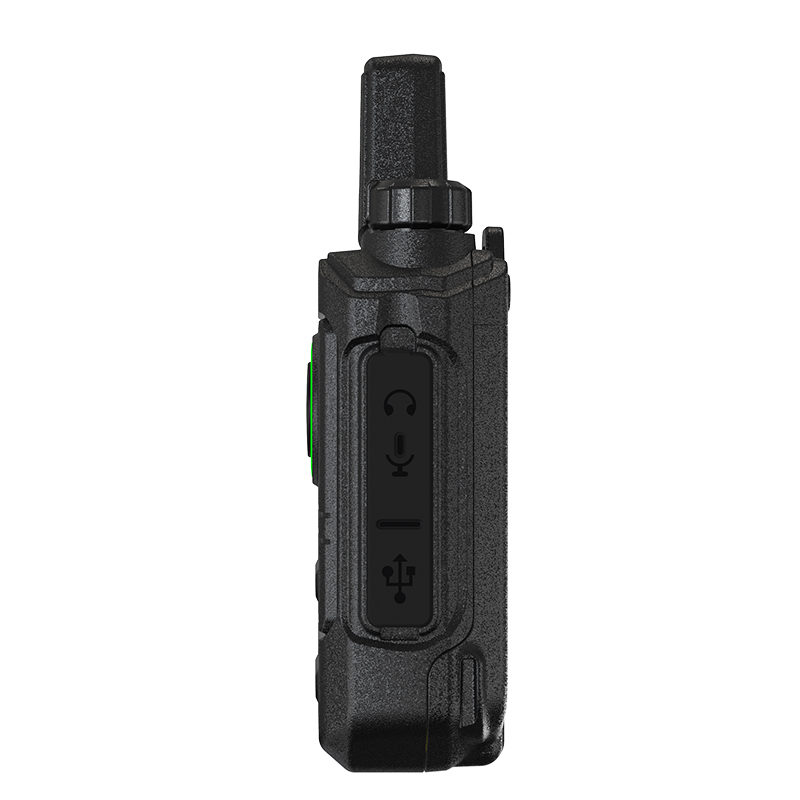

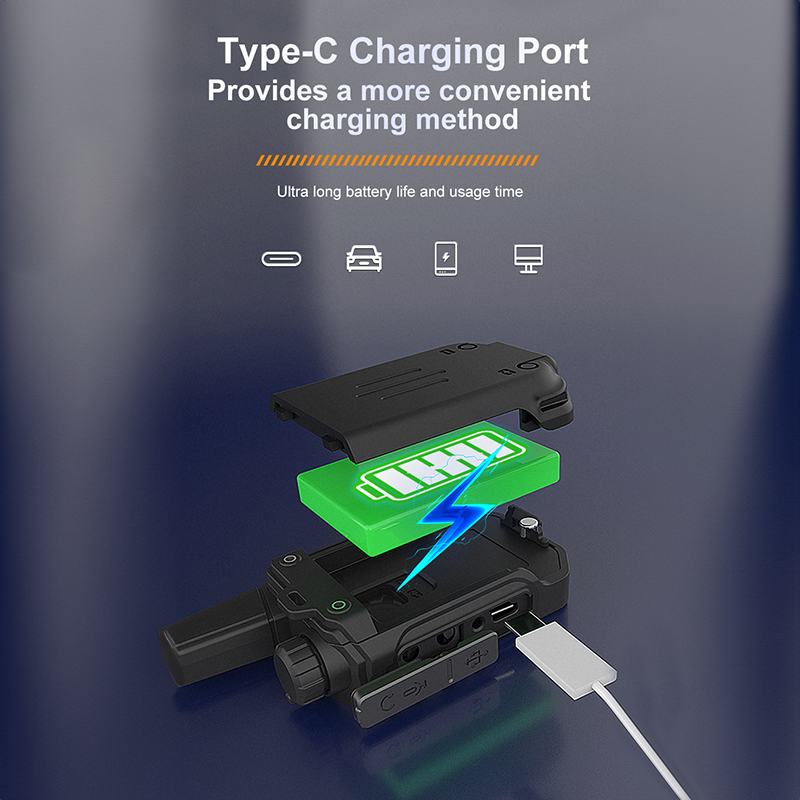

Large battery capacity ensures long-time working. In addition, battery saving function can extend working time.Type-C charging port:
Type-c jack allows different charging ways.

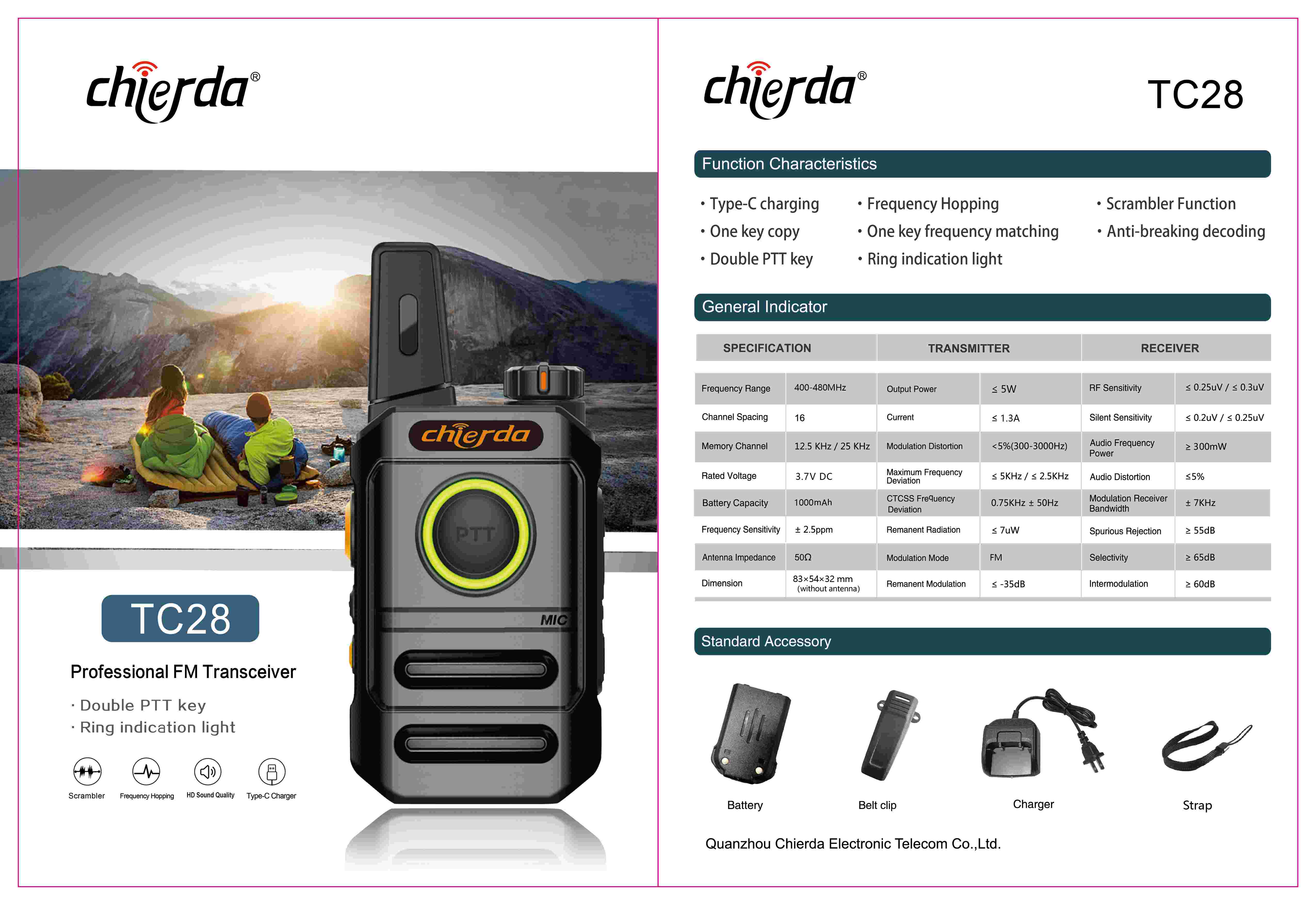

SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh/2400mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 83x54x32mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

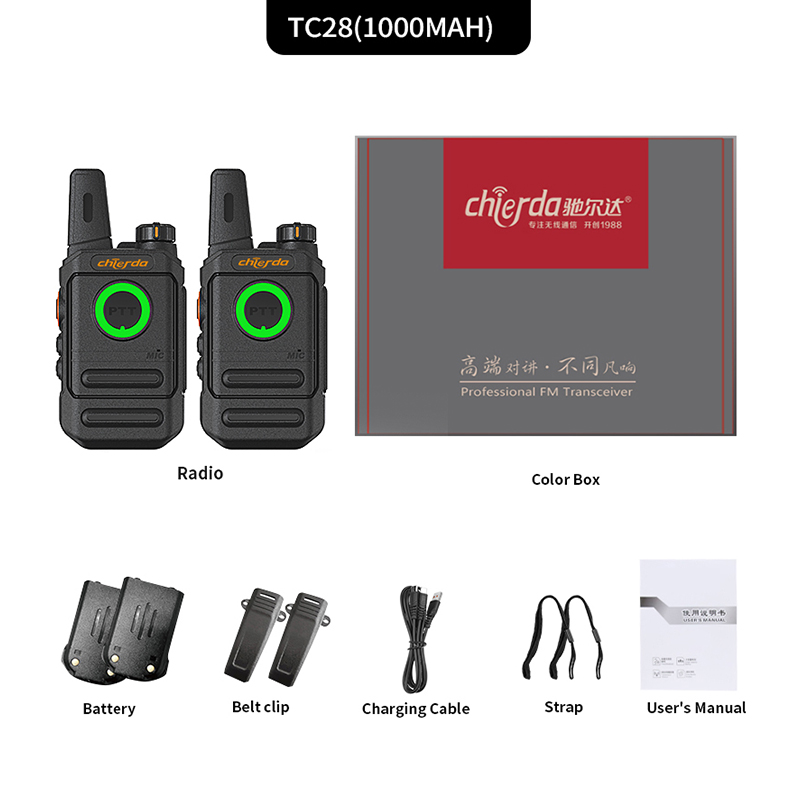

Product set
Radio*2
Battery*2
Belt clip*2
Charger*2
Strap*2
User's manual*1
