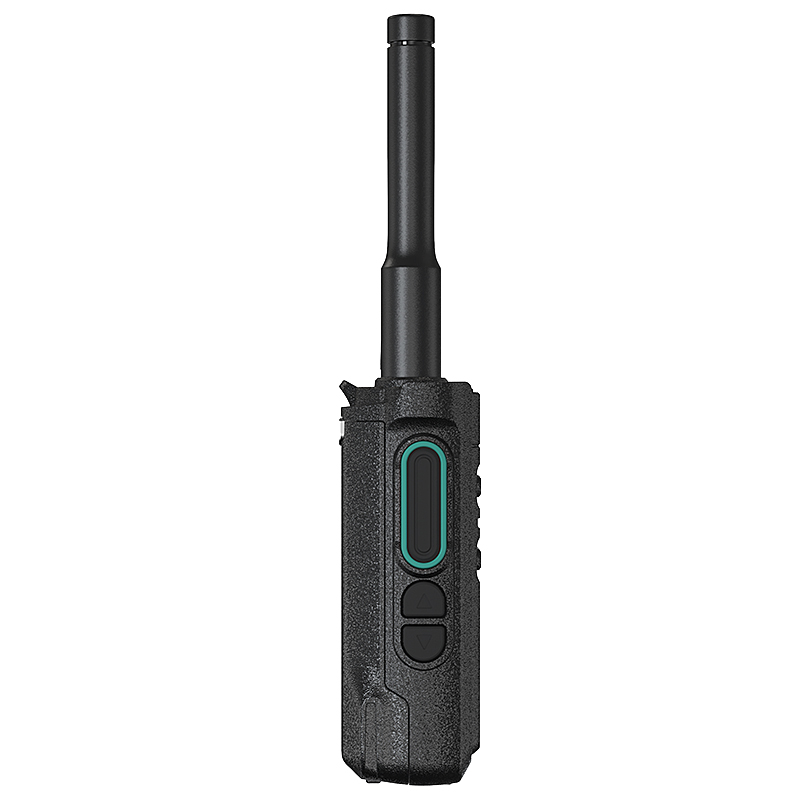

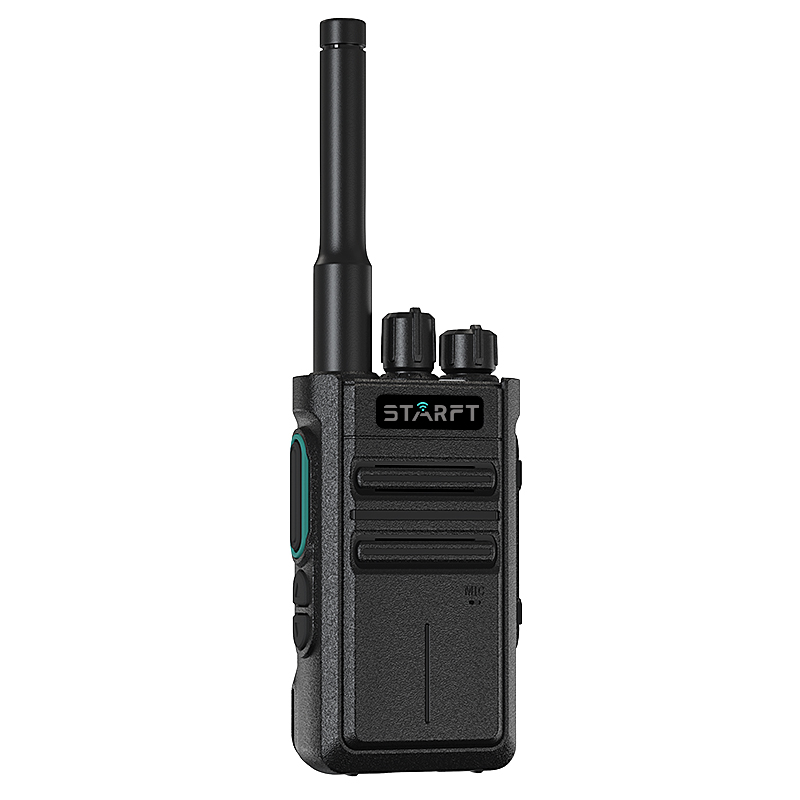

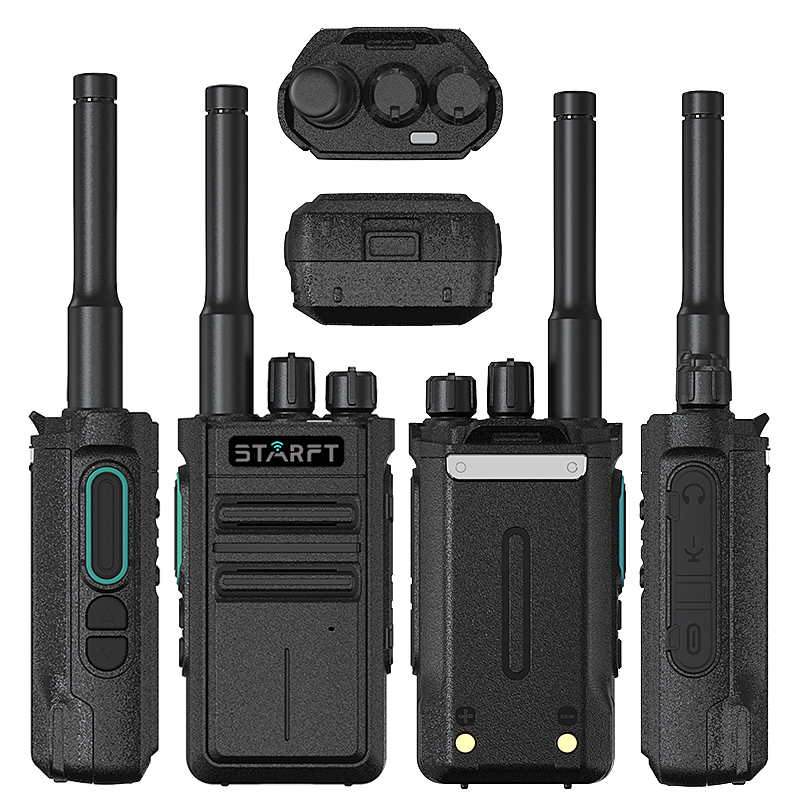

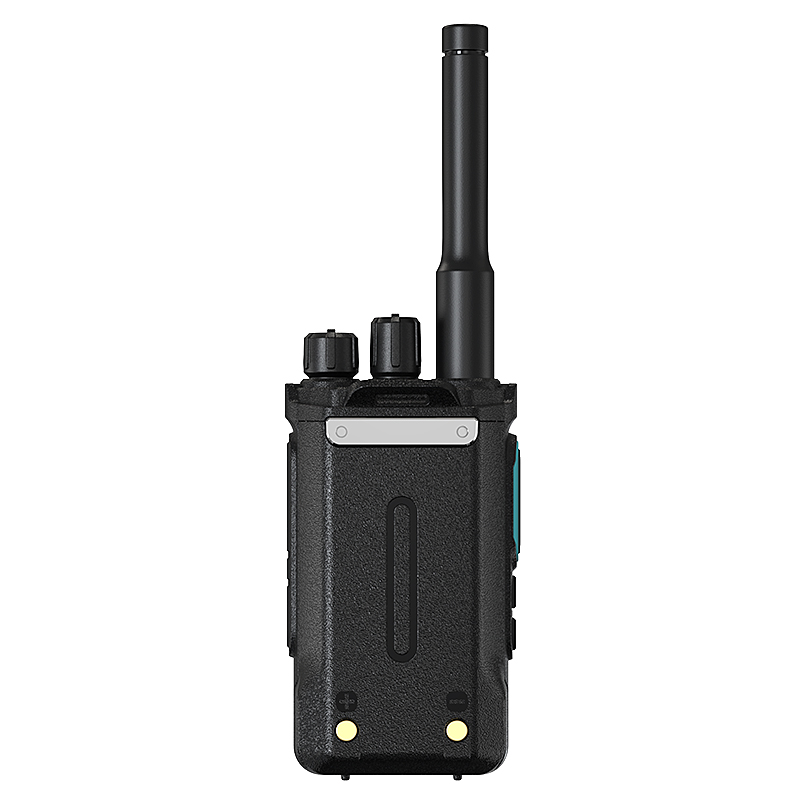

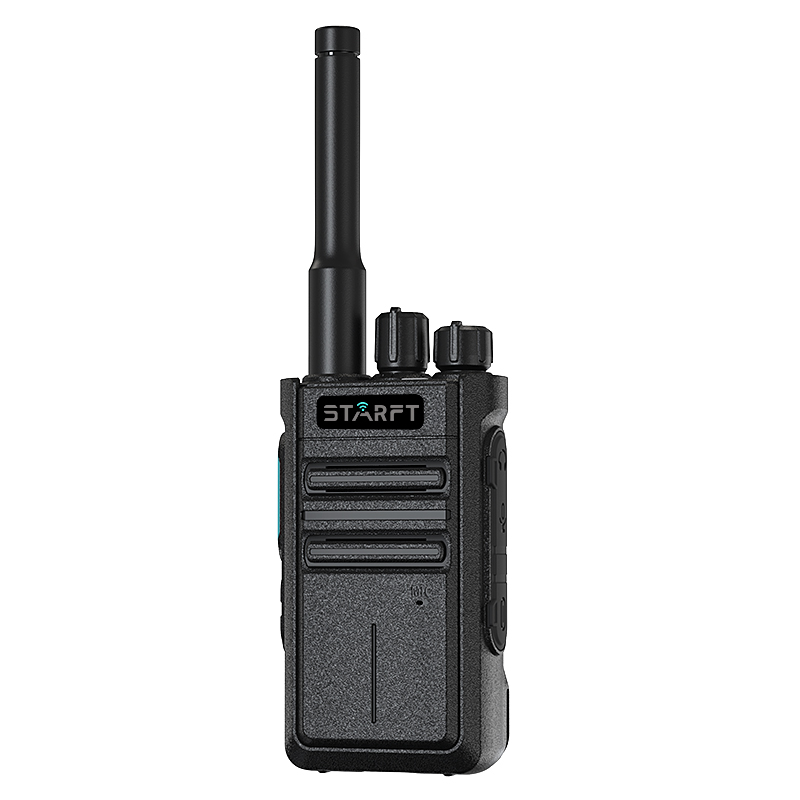

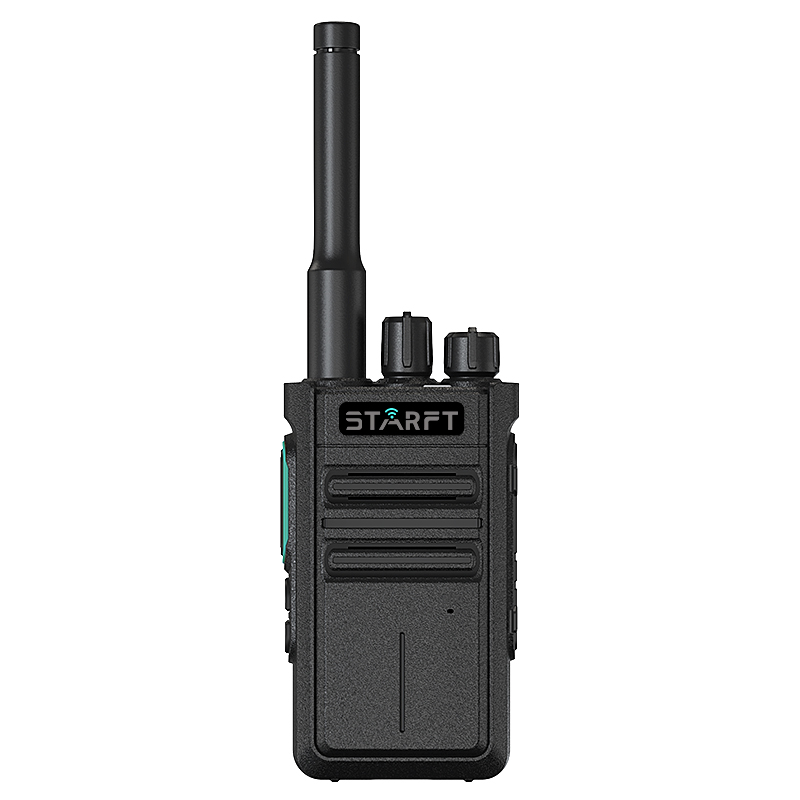

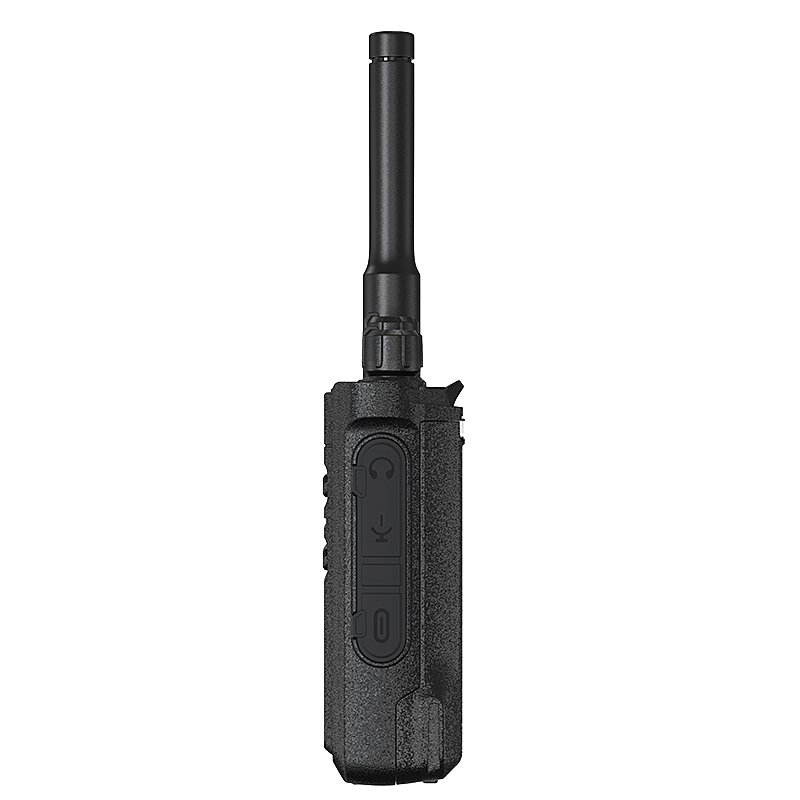

Made of PC material, Chierda XA301 rugged two way radio is robust and endurable, and can be used in various situations.

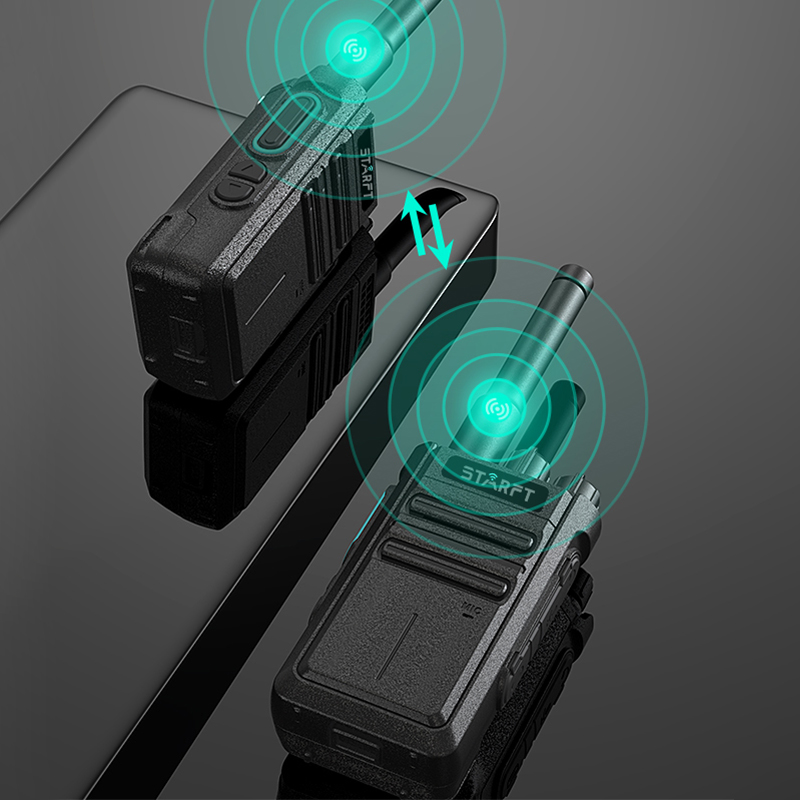

One key pairing function:

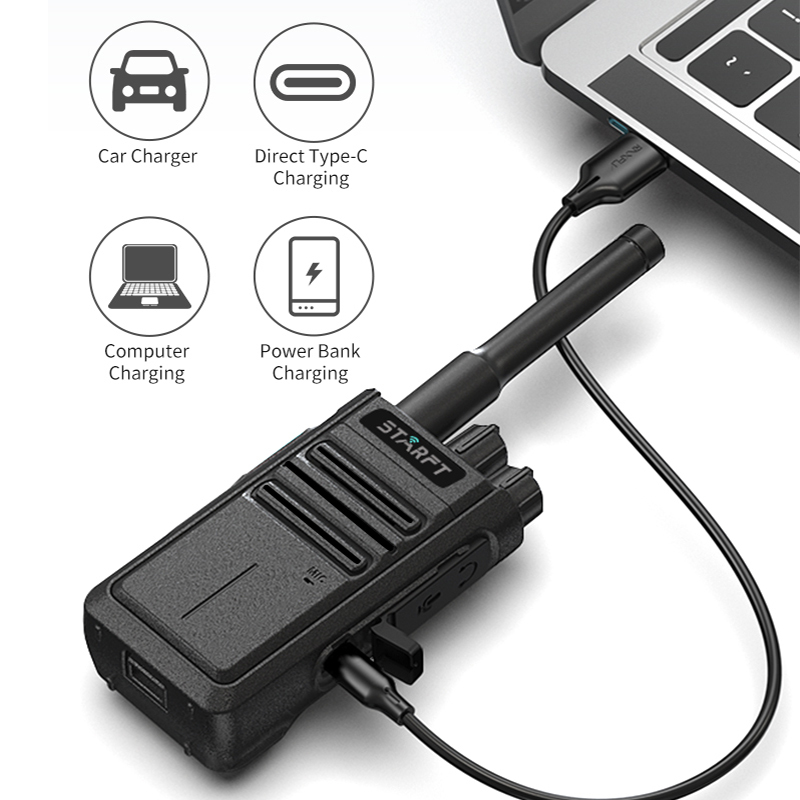

One key pairing function helps you get rid of the troubles of programming.USB Charging Port:
USB charging gives you more choices to charge the radio, such as a power bank or computer.
Local/Remote Alarm function:
Local/Remote Alarm function keeps you safe if emergencies happen.SPECIFICATION | |
Frequency Range | VHF:136-174MHz/ |
Channel Spacing | 16 |
Memory Channel | 12.5KHz/25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 96x52x33mm |
TRANSMITTER | |
Output Power | ≤ 2W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤5KHz/≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤ 7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency | ≥ 300mW |
Audio Distortion | ≤5% |
Spurious Rejection | ≥ 55dB |
Selectivity | ≥ 65dB |
Intermodulation | ≥ 60dB |

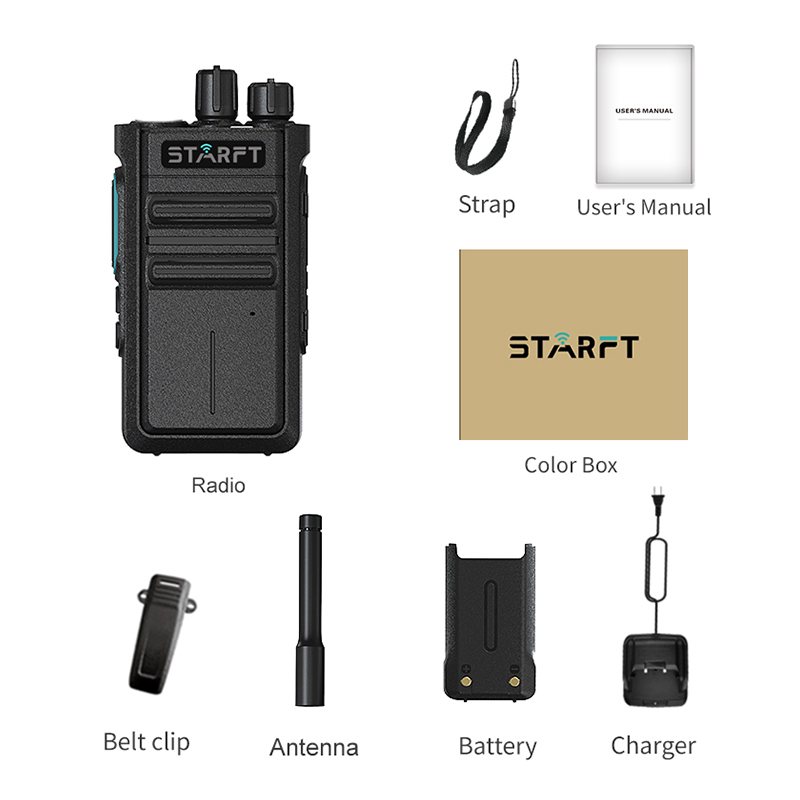

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
