Chierda CD101 Hiden Display Two Way Radio
CD101
1. Hidden Display
2. Type-C Charging
3. Shockproof and Drop-resistant
4. LED Flashlight
5. Anti-break Code

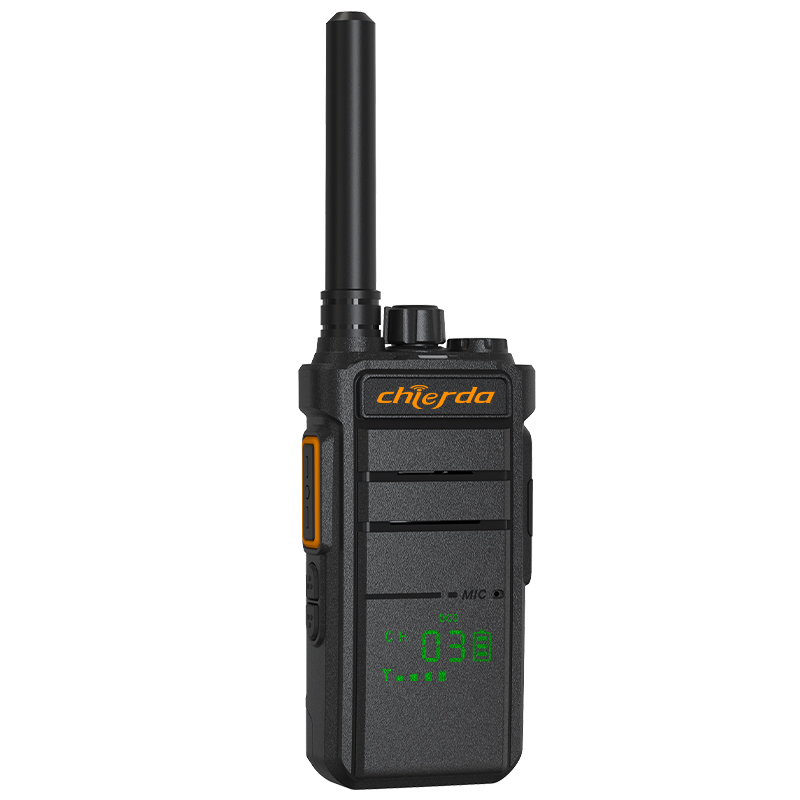

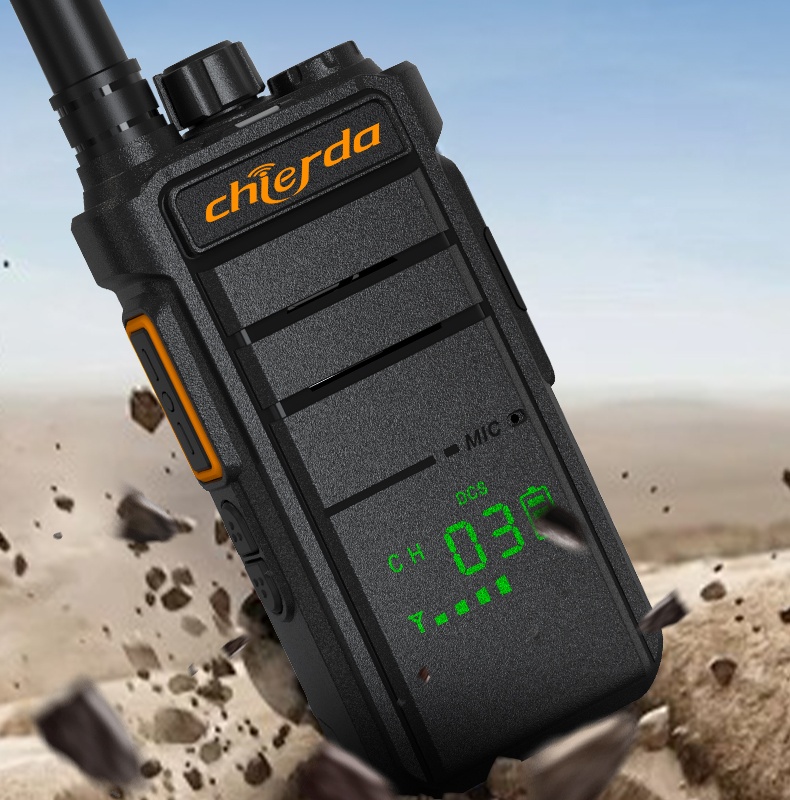

Chierda CD101 with hiden display is a perfect partner for outdoor enthusiasts. With hidden display, you can easily know the walkie talkie's status, such as power level, channel number.
Durable and Rugged:
CD101 housing is made of PPC+ABS material, which is robust and durable. It is shock and drop resistant.Anti-interference:

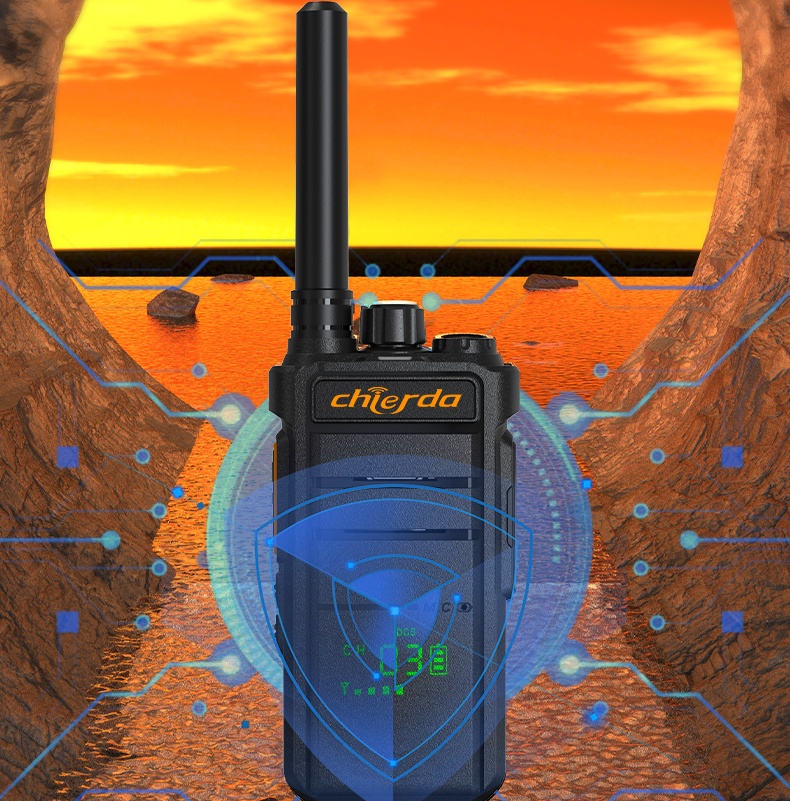

CD101 walkie talkie is highly secure and has a particularly strong anti-interference ability. You will no longer receive interference from unknown walkie talkies.

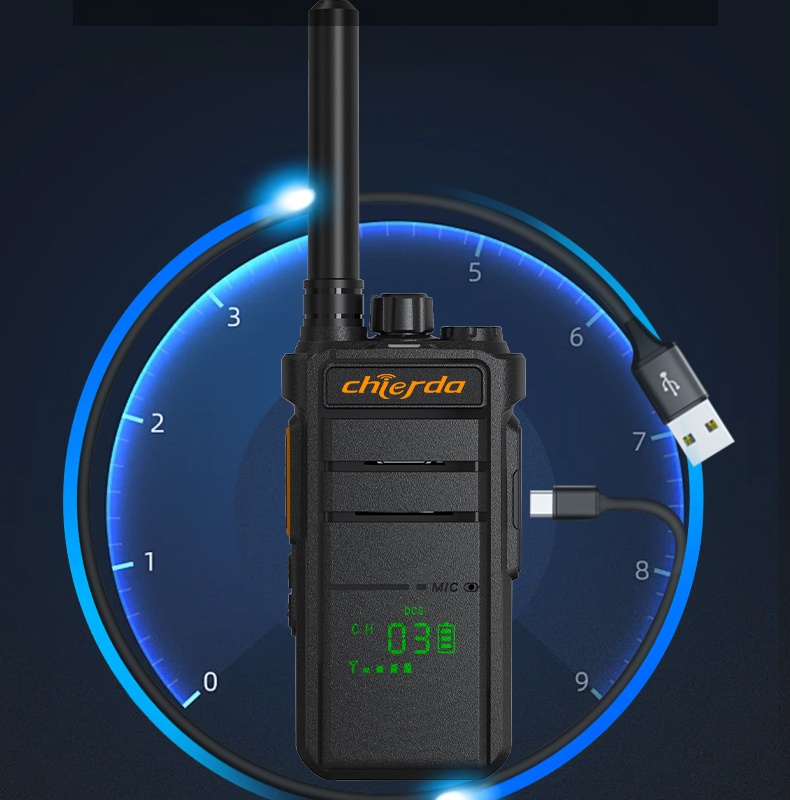

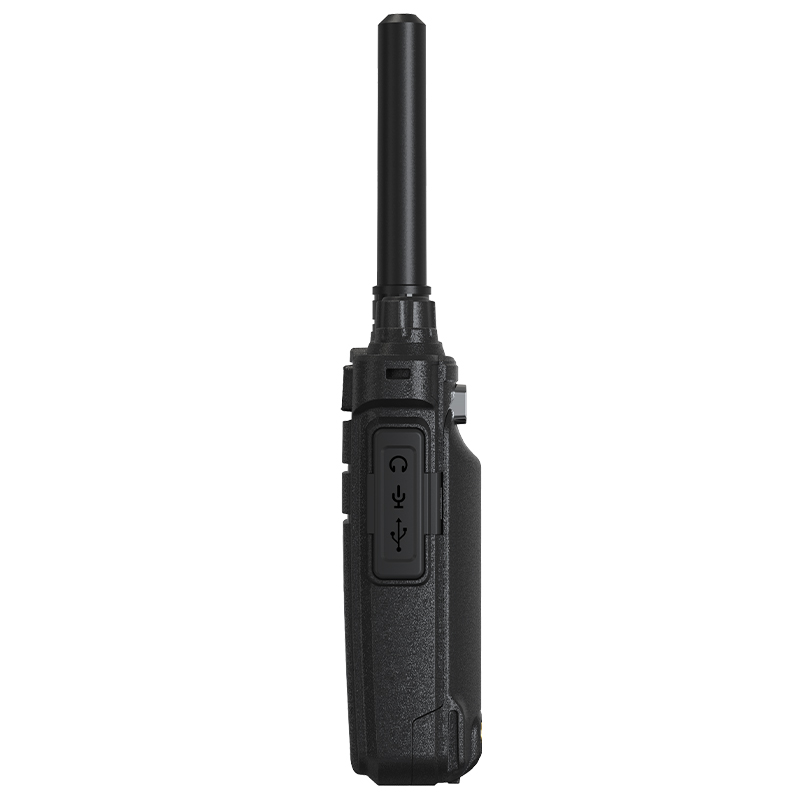

Type-C Charging:
CD101 adpots standard type-C charging port. It allows for different charging methods, including direct charging cable, power bank, and car supply. With power saving function, it can outlast for a long time.High Clarity:

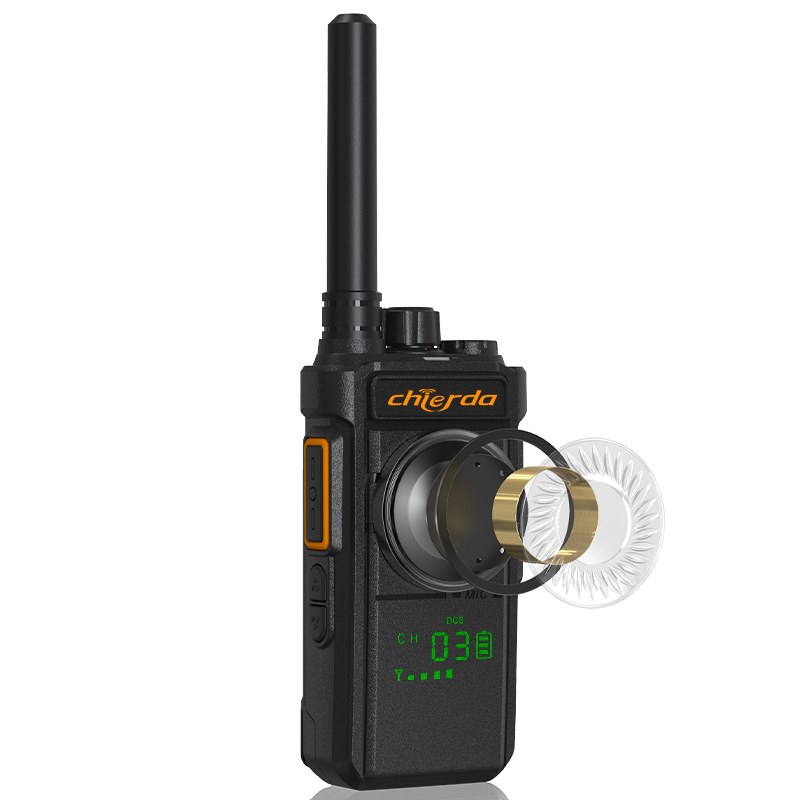

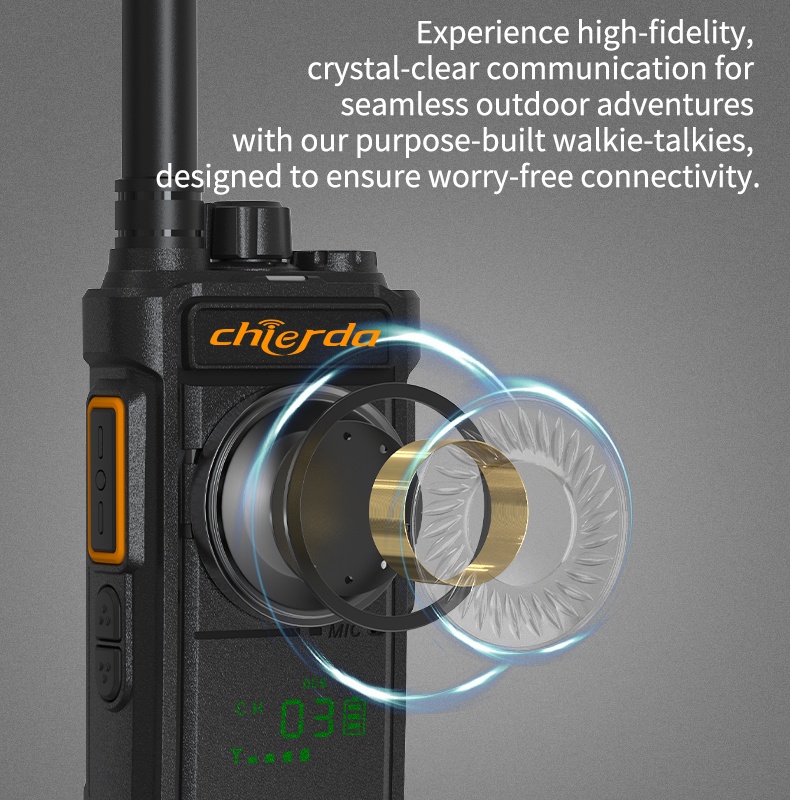

CD101 is upgraded with a high power speaker to deliver crystal clear sound.
SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 2000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x61x34mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

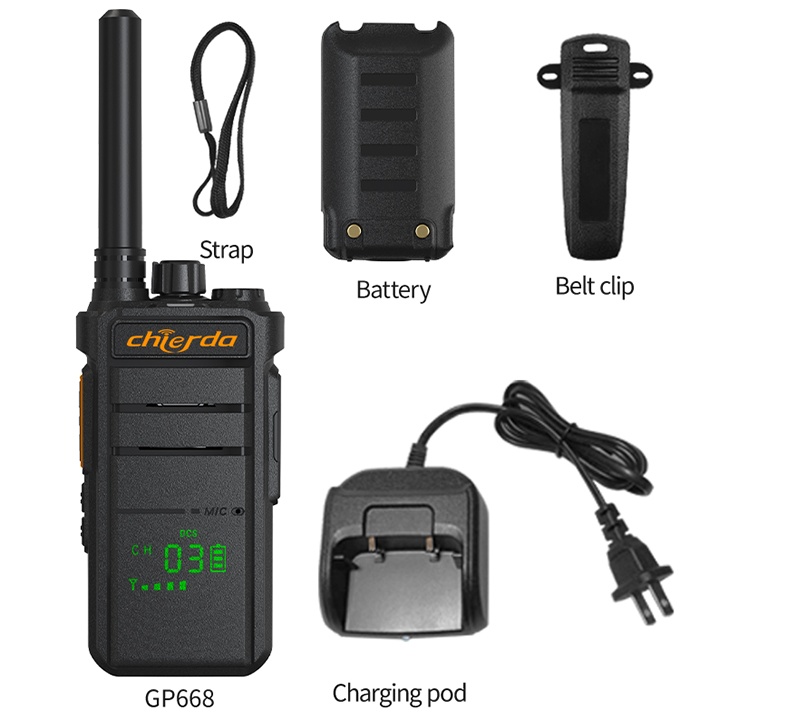

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
