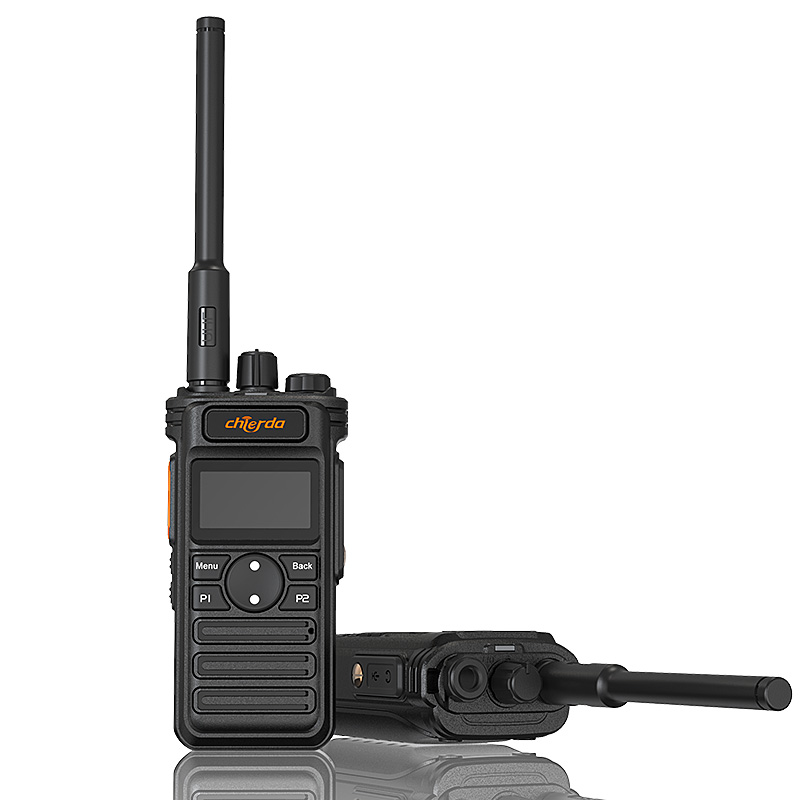

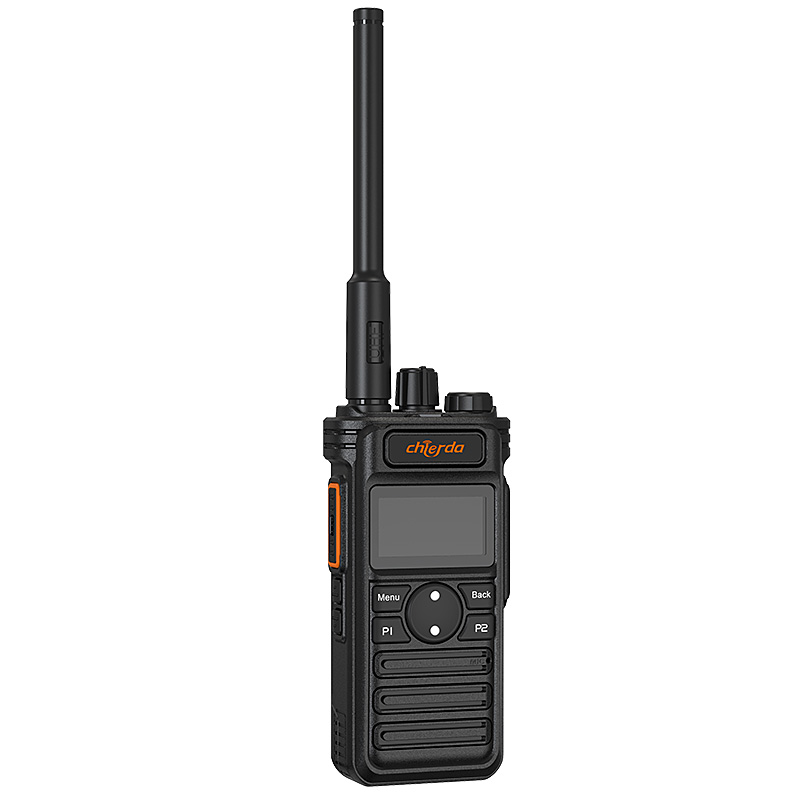

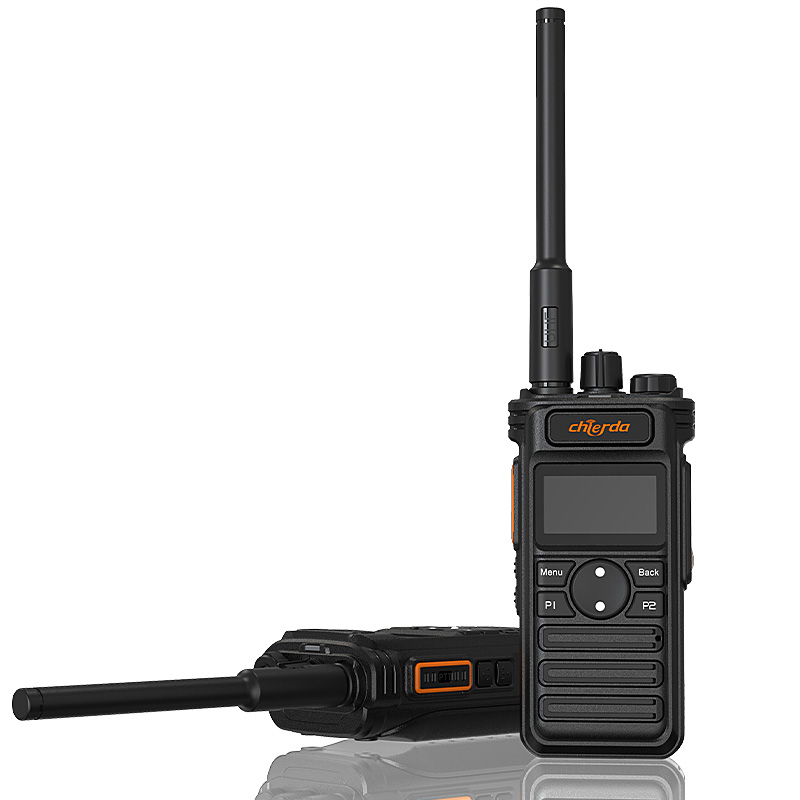

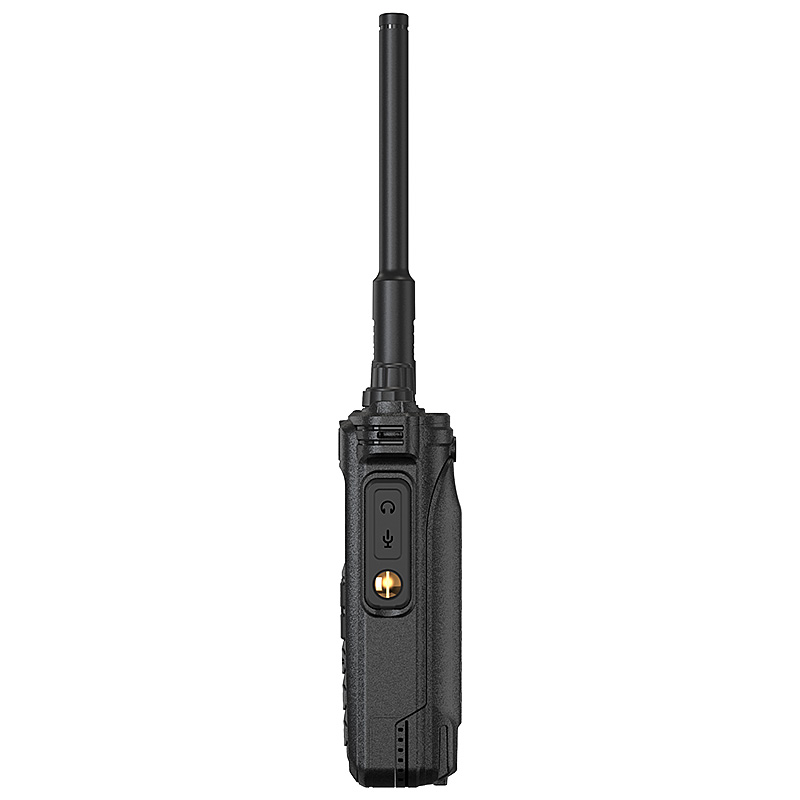

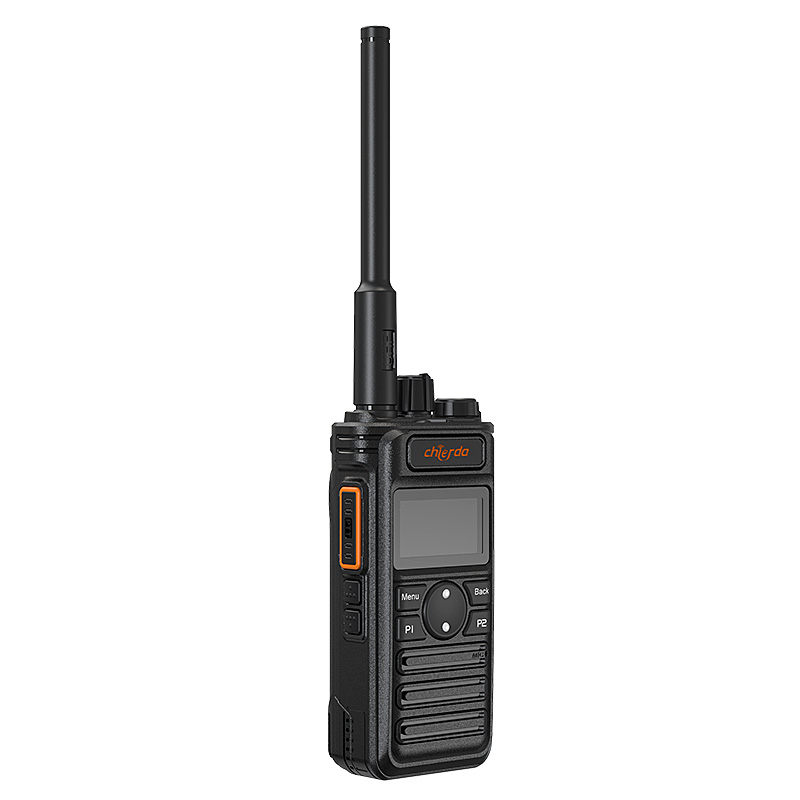

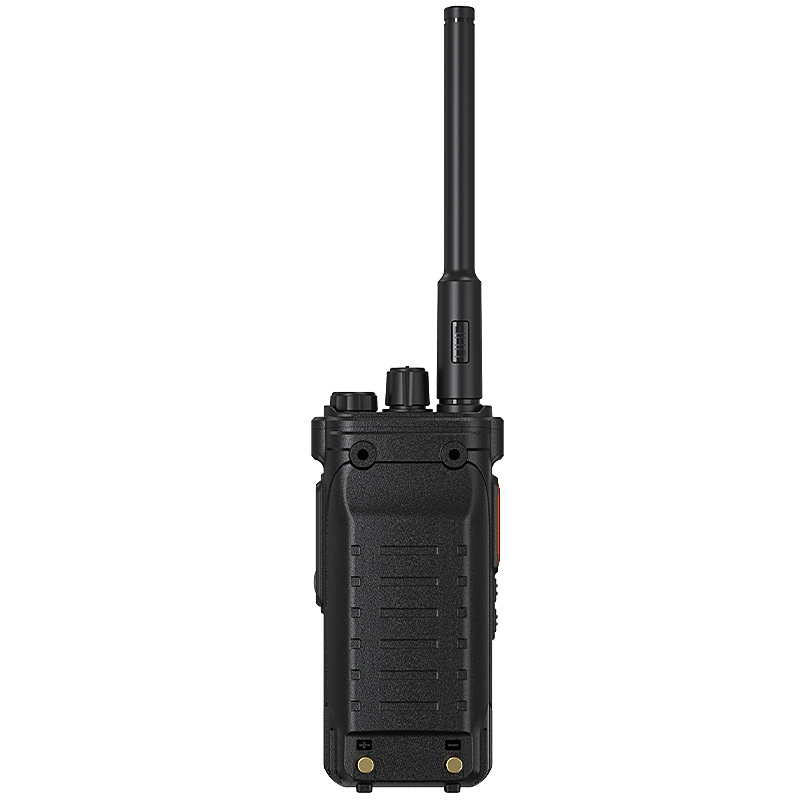

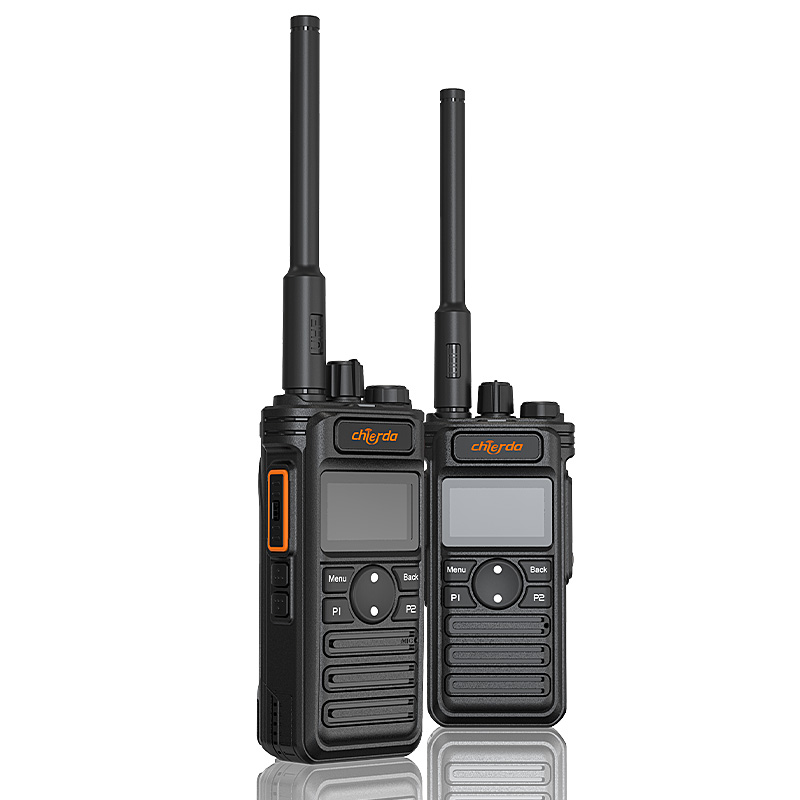

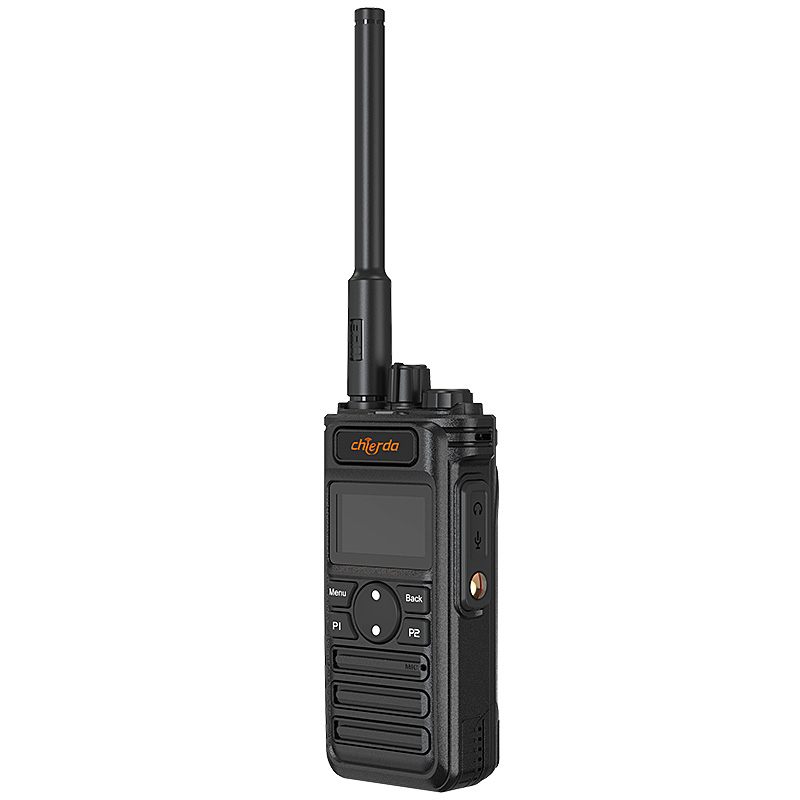

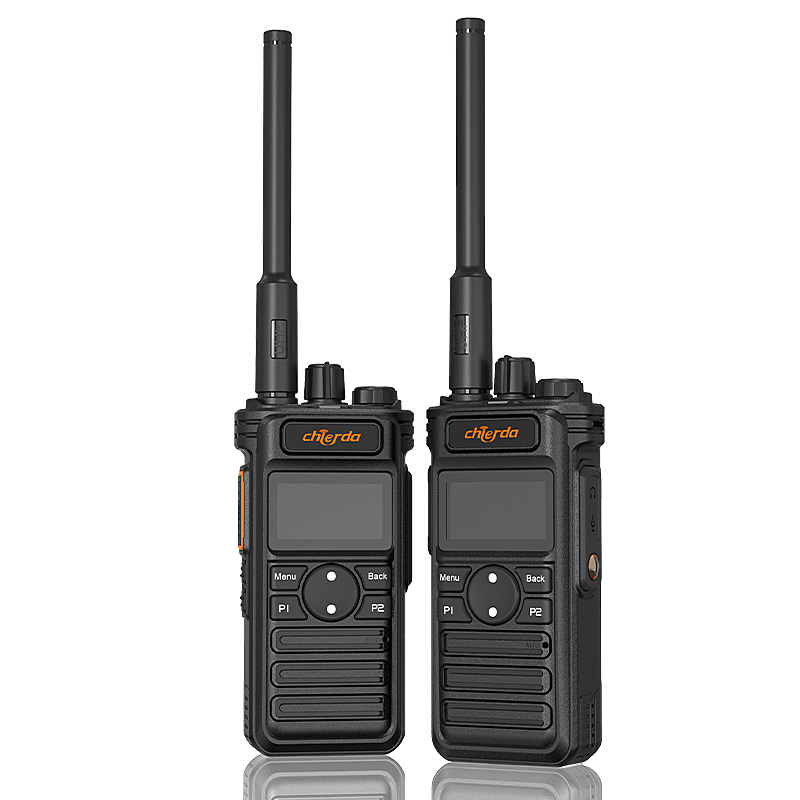

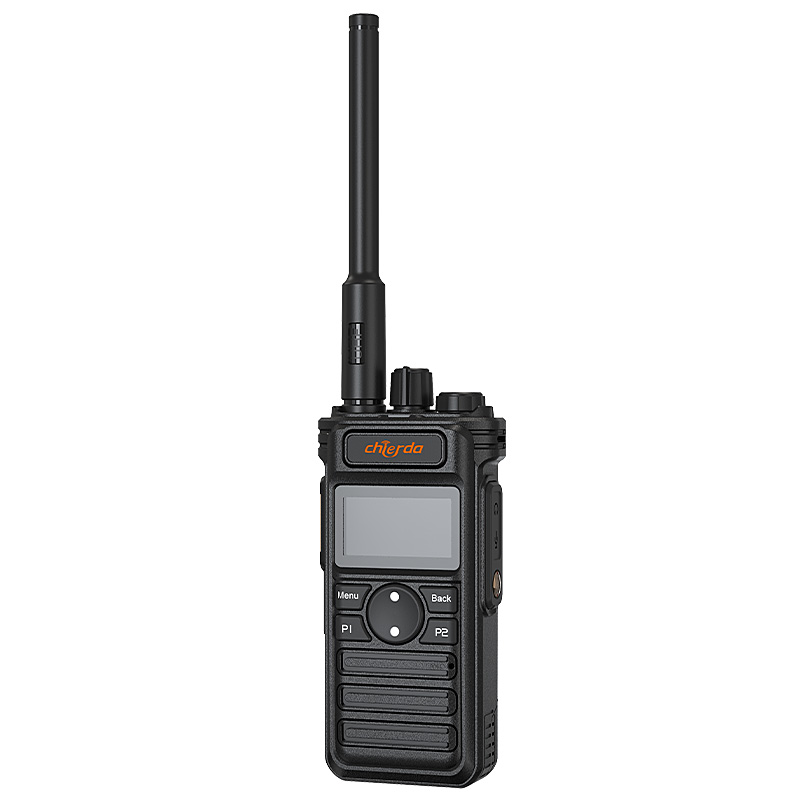

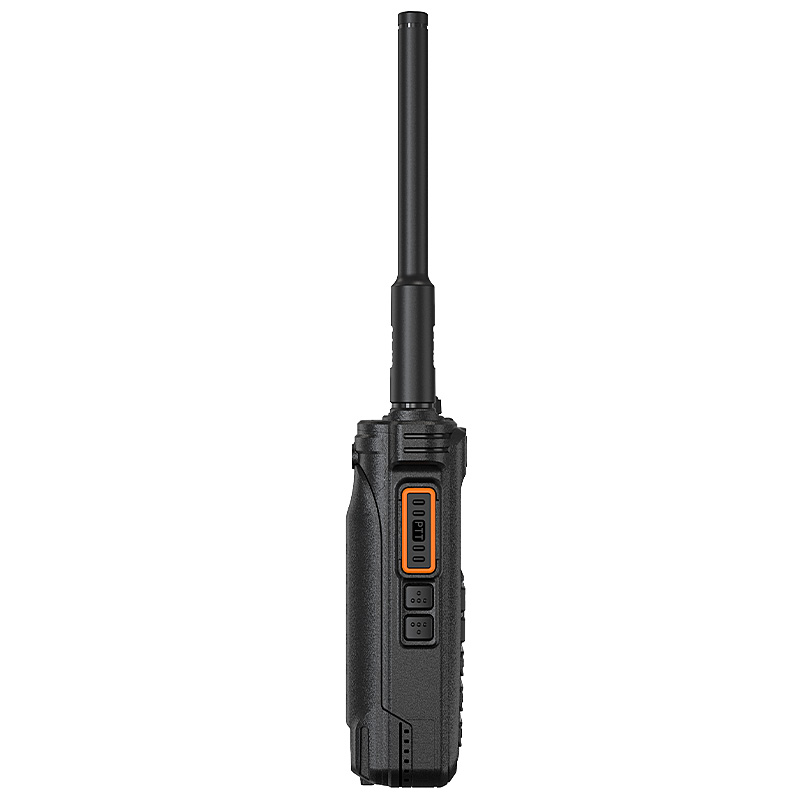

Chierda CD108S LCD Display Long Range Two Way Radio
CD108S
1. High Power, Long Range
2. 2500mAh Rechargeable Battery
3. Type-C Charging
4. LCD Display
5. One-key Group Call
6. Durable and Rugged
7. VOX Hands-free Function
Chierda CD108S two way radio features high power and long communication range.

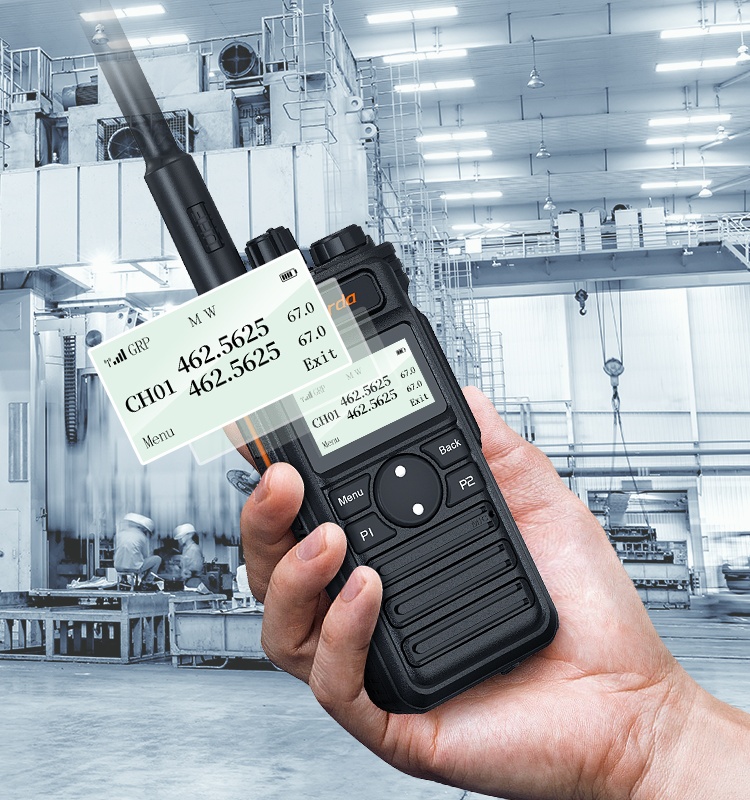

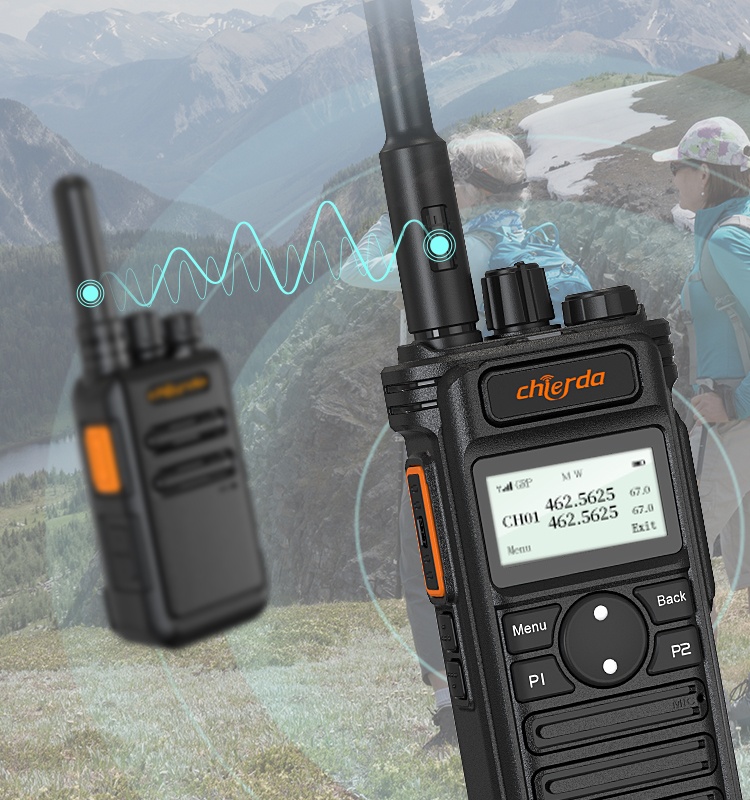

LCD Display:
CD108S walkie talkie is equipped with a colorful LCD display for intuitive operation. With half keyboard design, it is easy to change settings.Group Call:
You can program the keyboard via PC program software to activate one-key group calls. After long pressing the key, you can start a group call immediately.
Rechargeable Battery:
With a 2800mAh rechargeable battery, CD108S walkie talkie can outlast for 15 hours' working and 117 hours' standby. In addition, it adopts a Type-C Charging port and allows for versatile charging methods.Easy Frequency Pairing:
You can pair walkie talkie's frequency with others by pressing one key. It is efficient and convenient.

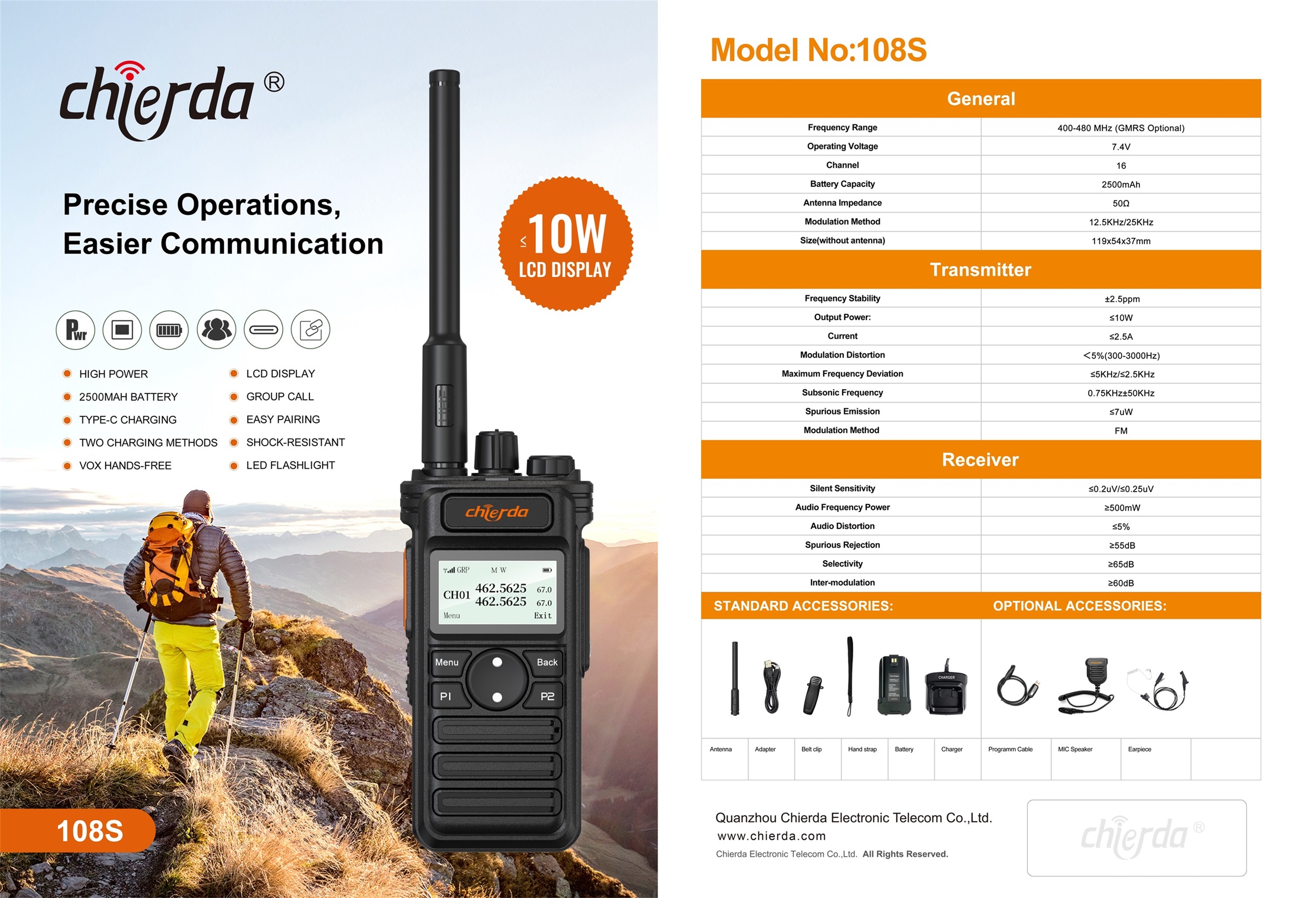

SPECIFICATION | |
Frequency Range | UHF:400-480MHz (GMRS Optional) |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

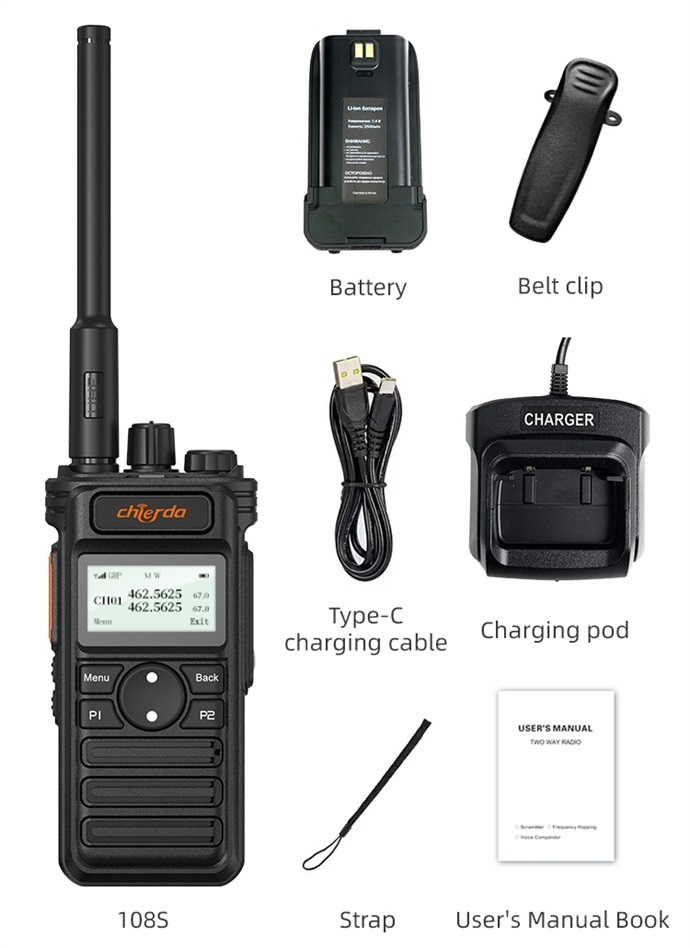

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
