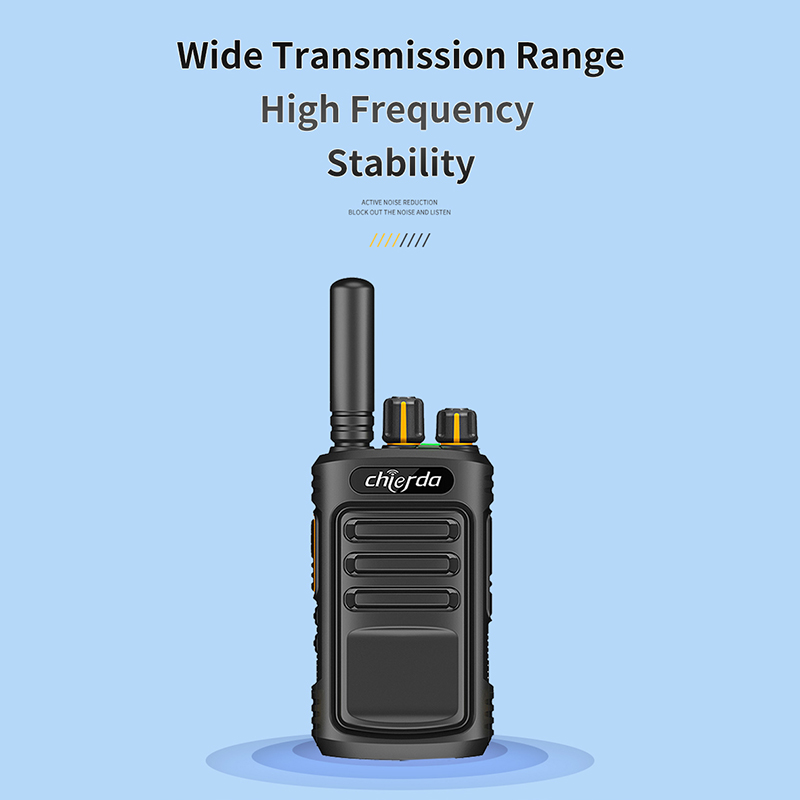

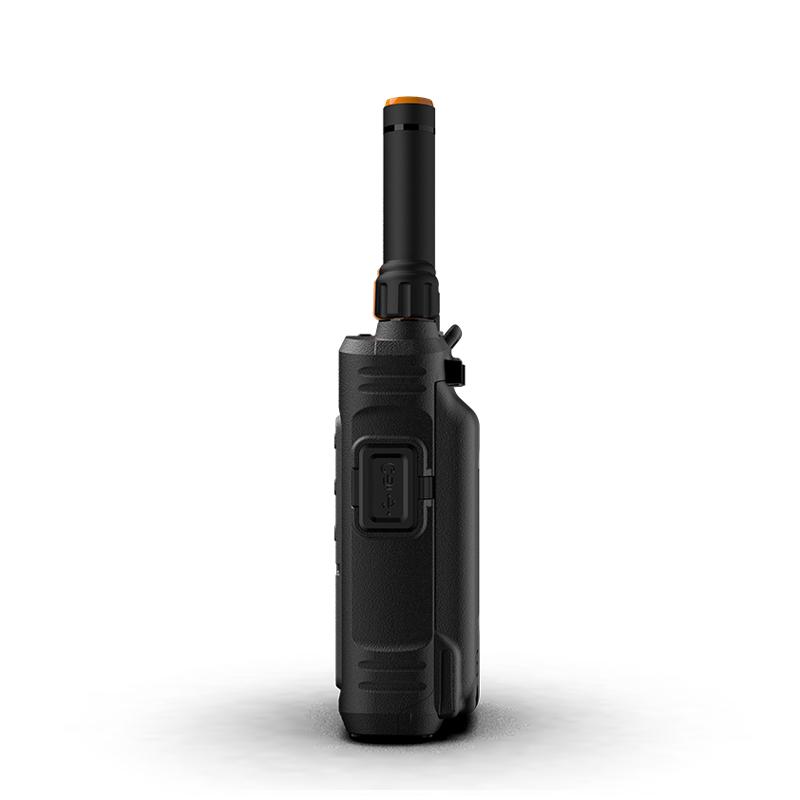

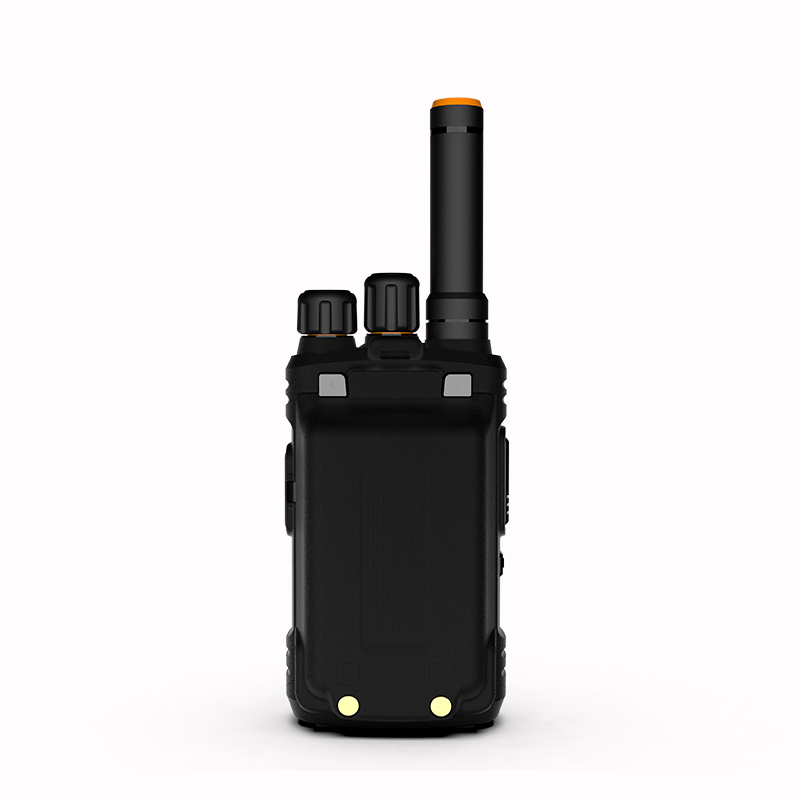

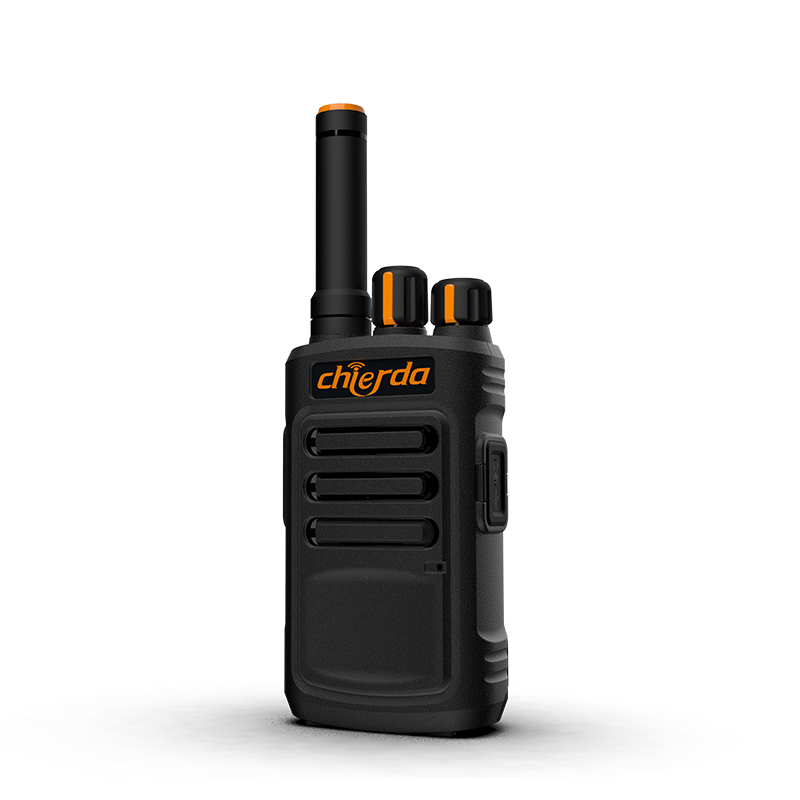

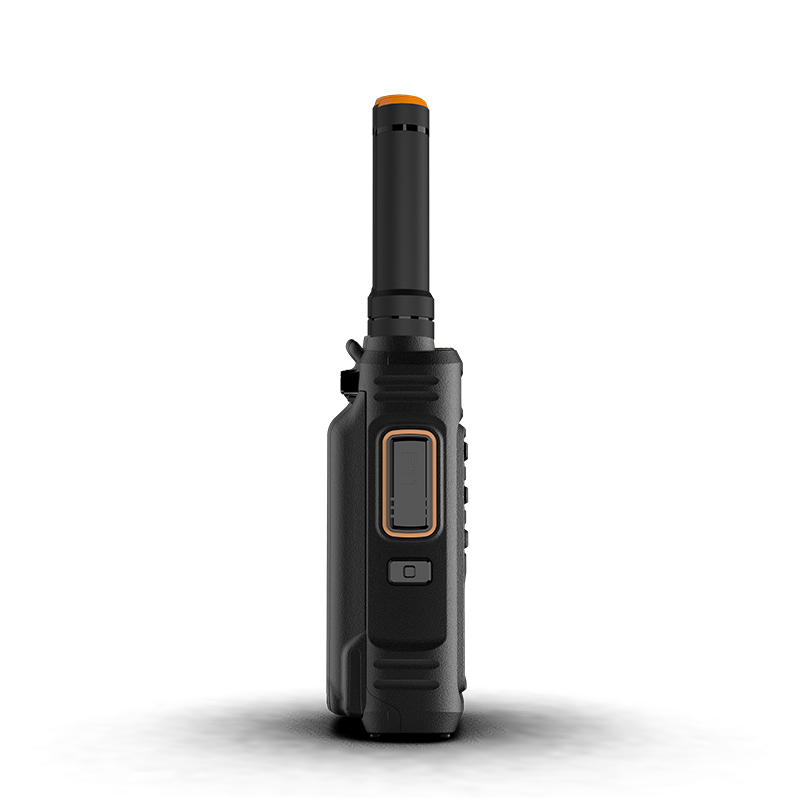

Chierda CD11 Long-distance Rugged Two Way Radio
CD-11
Chierda CD11 Long-distance Rugged Two Way Radio is portable, durable, and easy to use in various in situations. It is ideal for use in service industry, such as hotels, restaurants and rersorts.
Independent chip:
Equipped with an independent chip, CD11 keeps connection very stable.High power:
High output power allows long-distance communication. With 5 watt output power, CD11 can reach 1-5 kilometer.

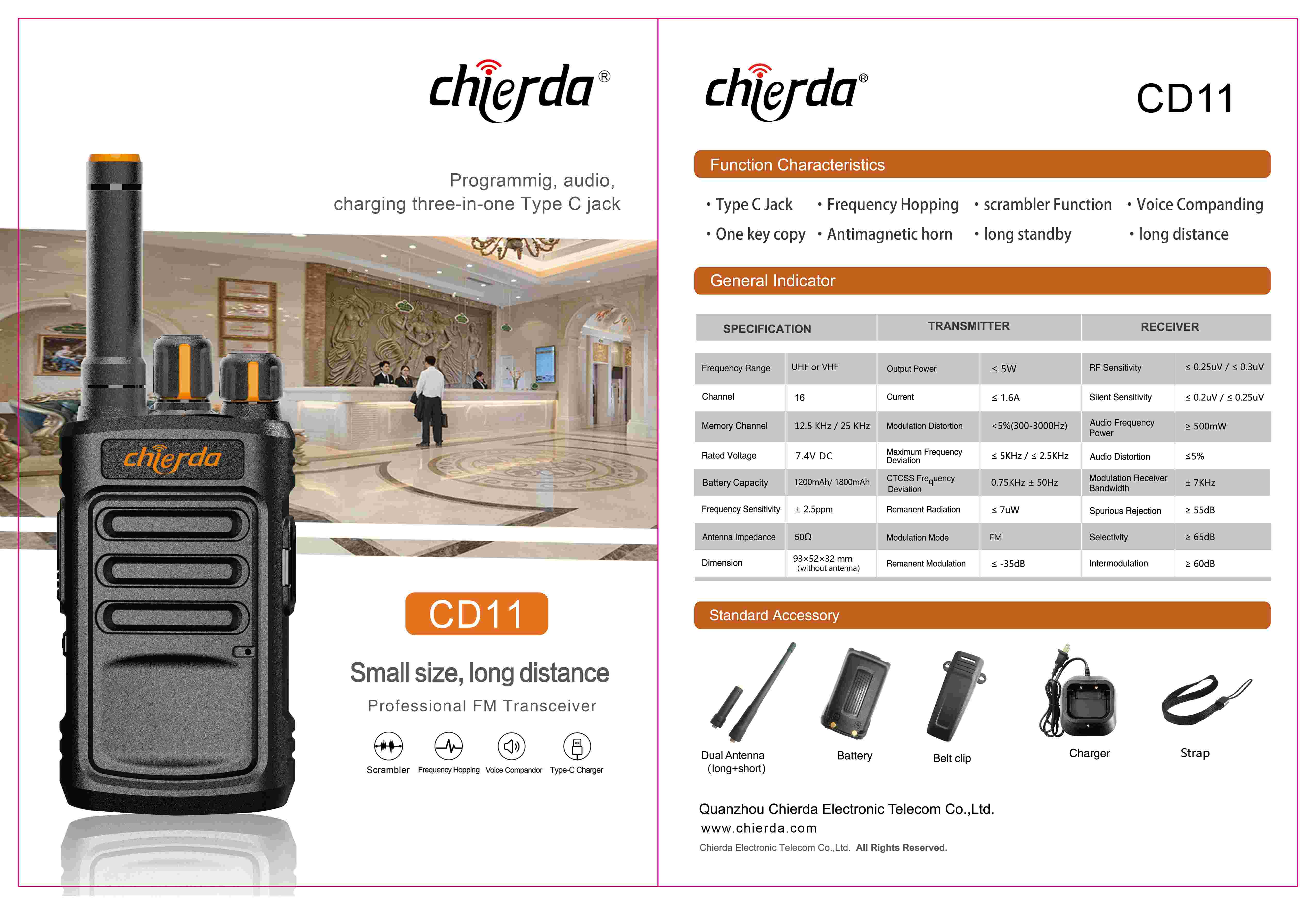

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5KHz/25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 1200mAh/1800mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 93x52x32mm |
TRANSMITTER | |
Output Power | ≤ 5W |
Current | ≤1.6A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤5KHz/≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤ 7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency | ≥ 500mW |
Audio Distortion | ≤5% |
Spurious Rejection | ≥ 55dB |
Selectivity | ≥ 65dB |
Intermodulation | ≥ 60dB |

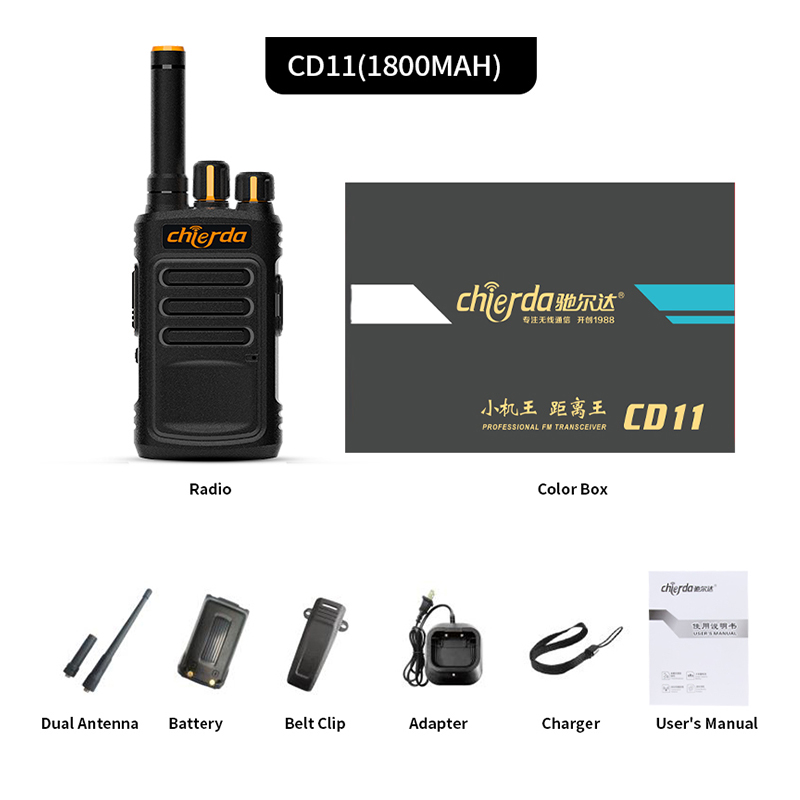

Product set:
Radio*1
Long antenna*1
Short antenna*1
Battery*1
Belt clip*1
Adapter*1
Strap*1
User's manual*1
