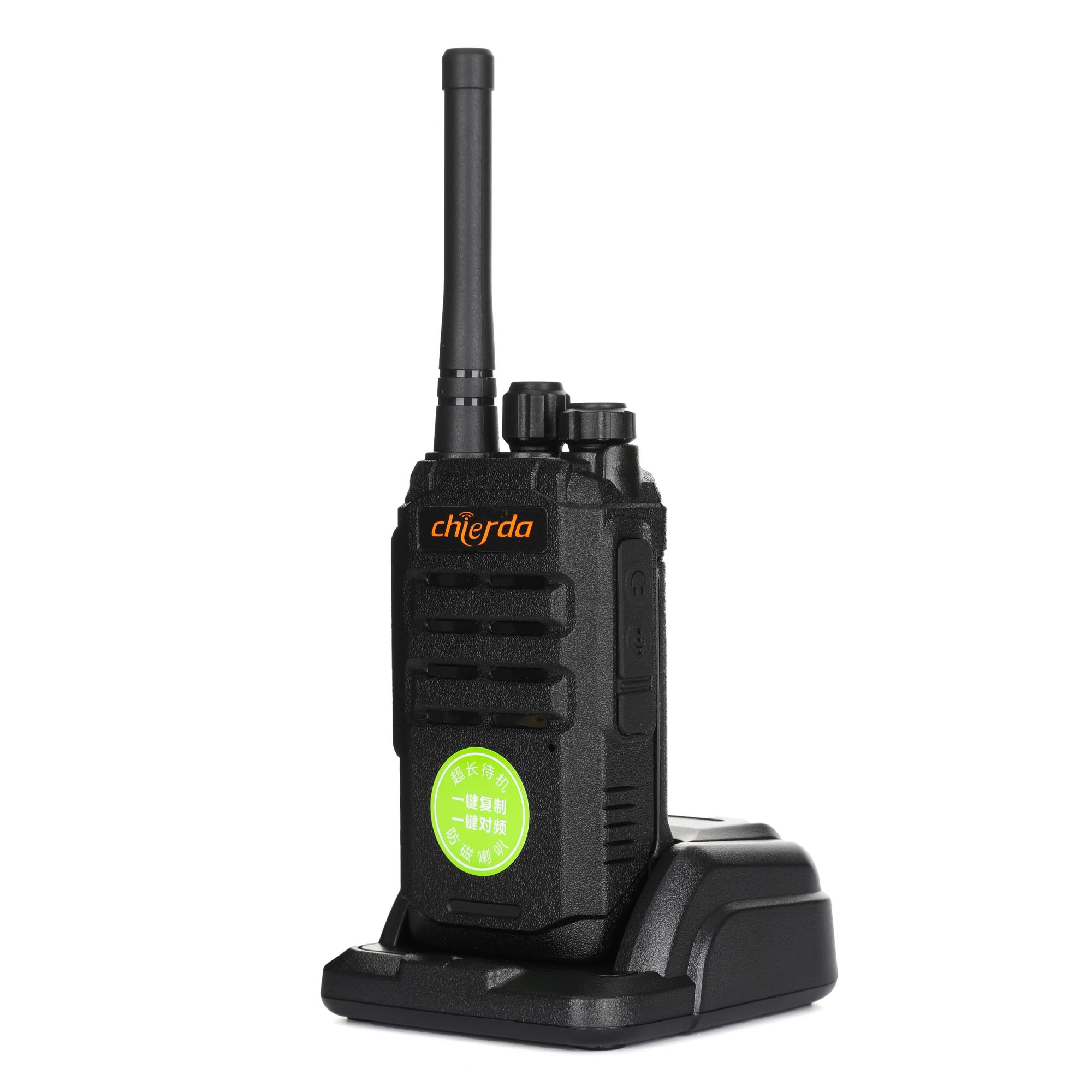

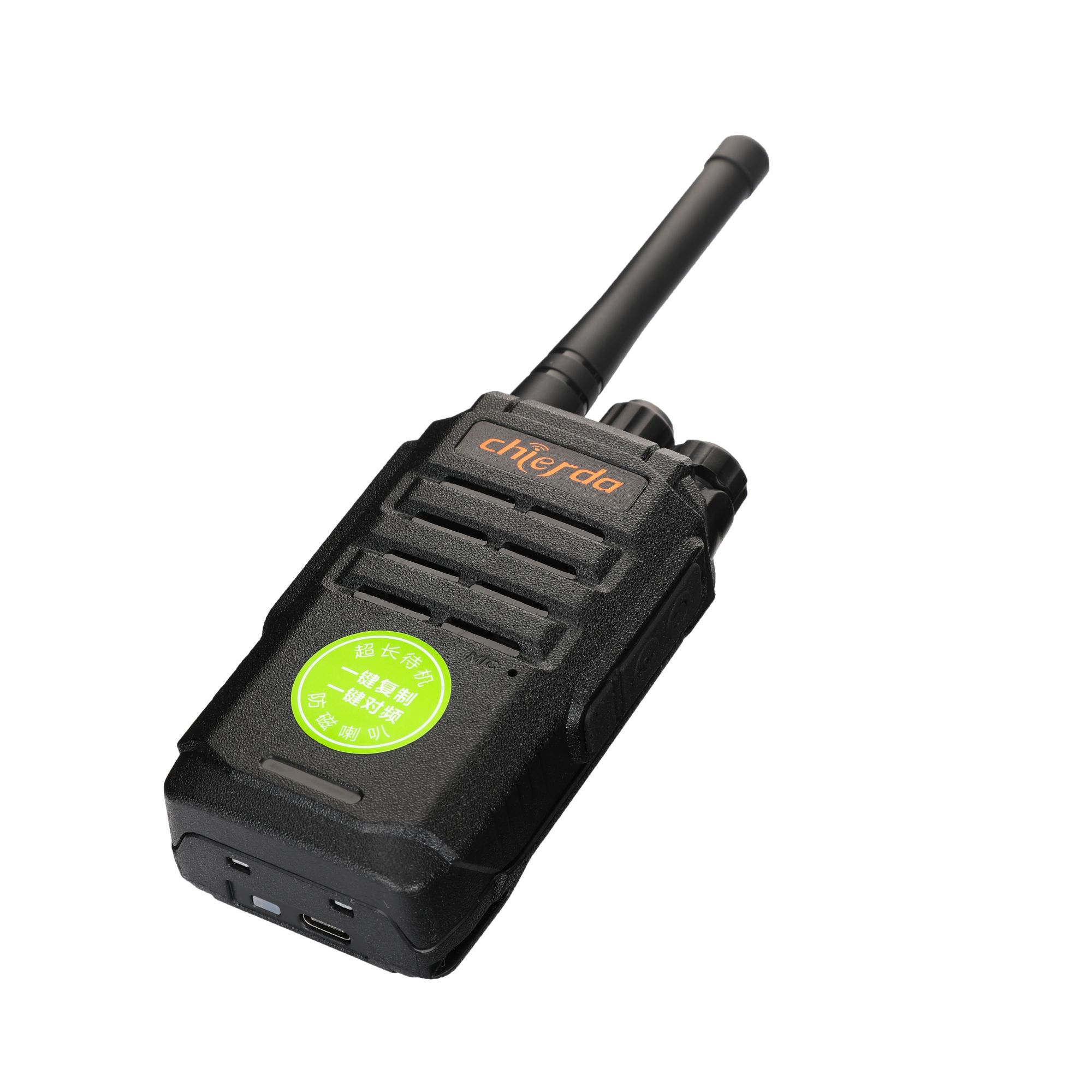

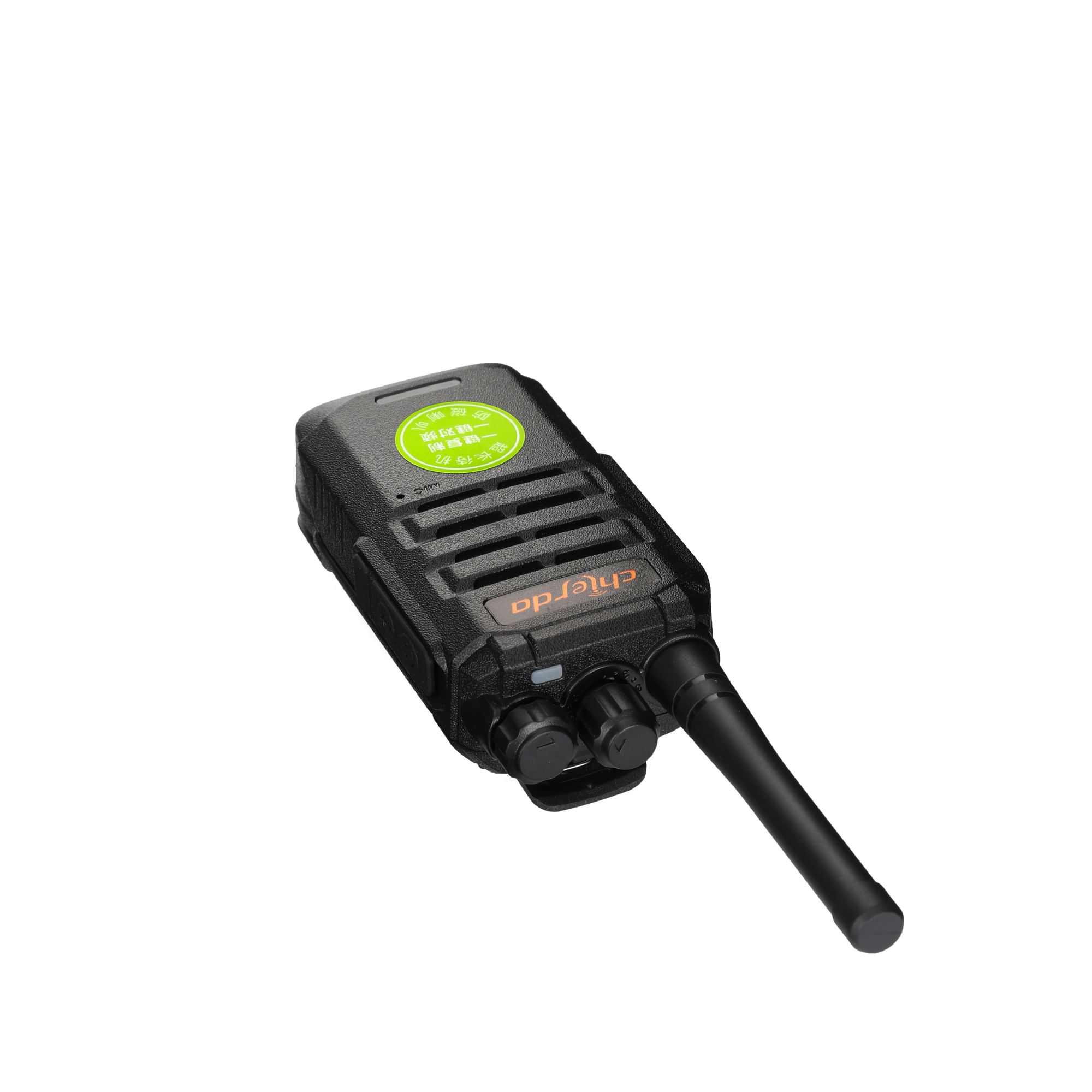

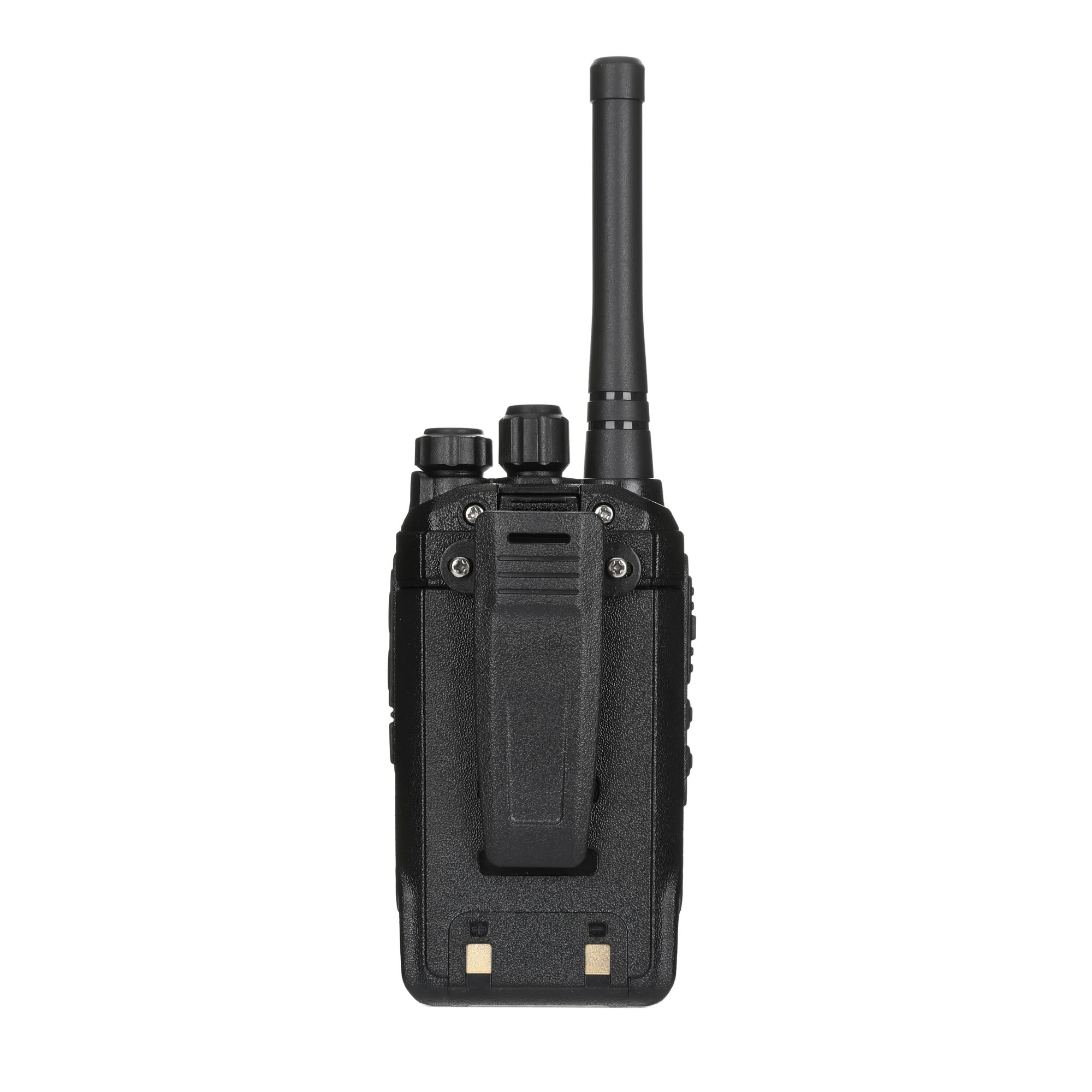

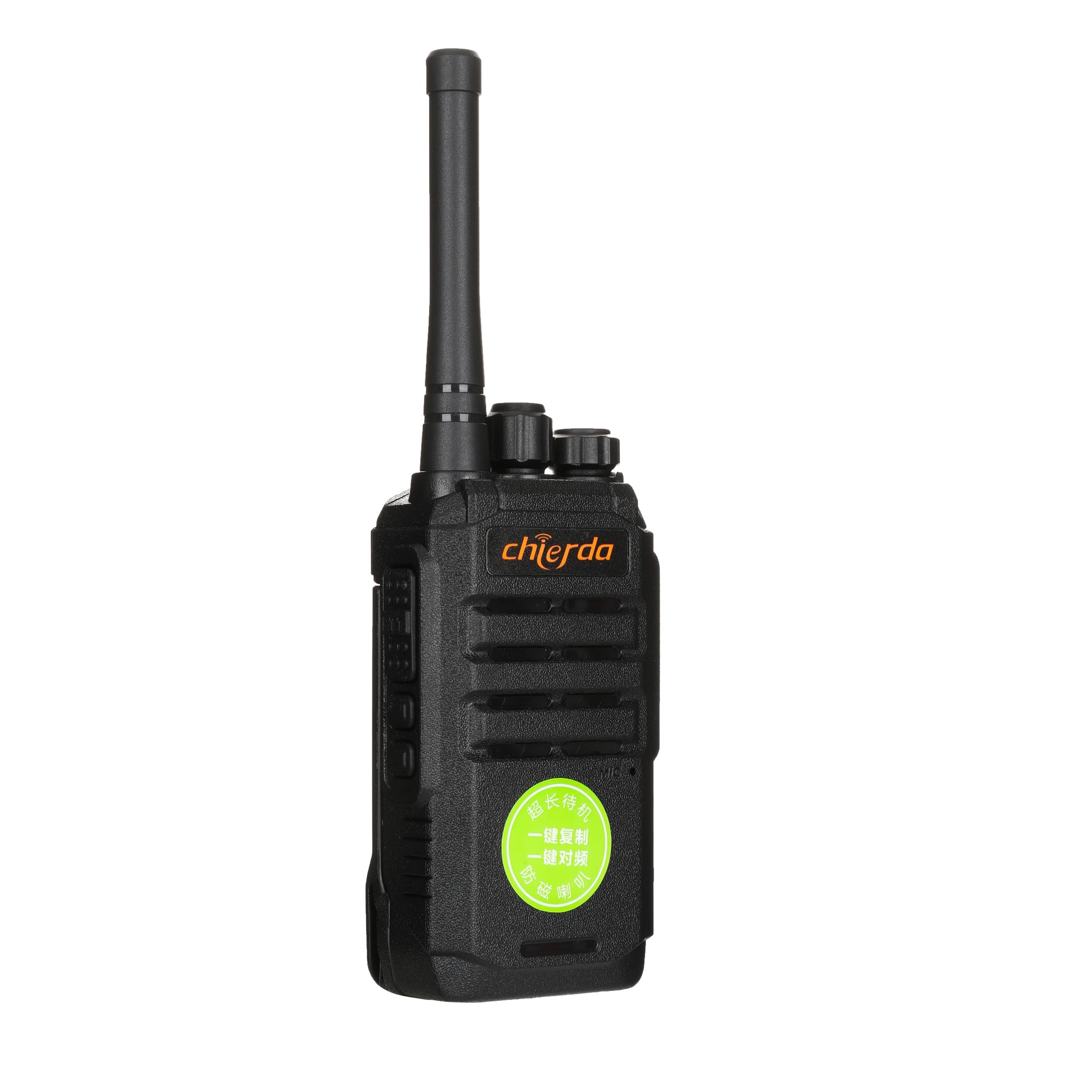

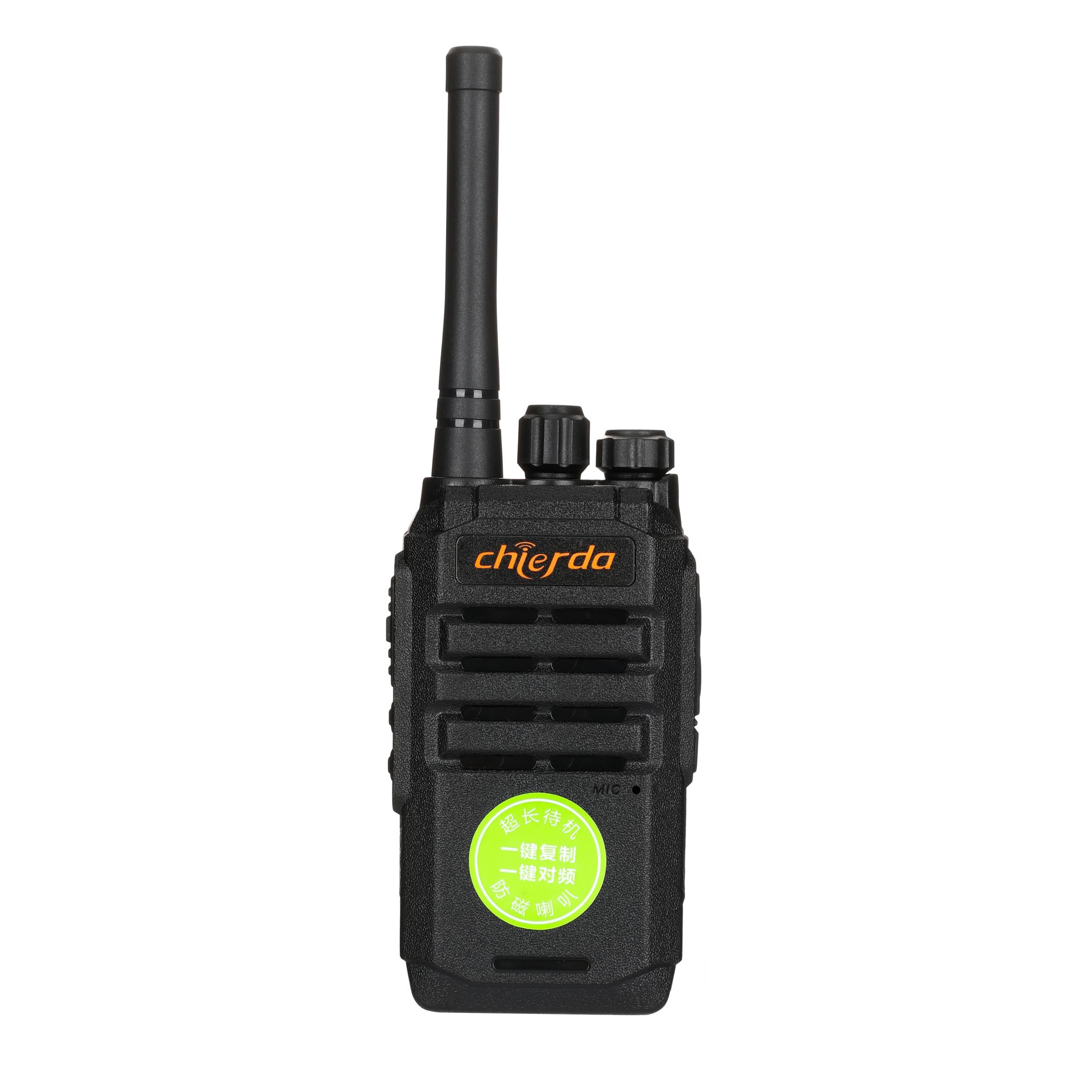

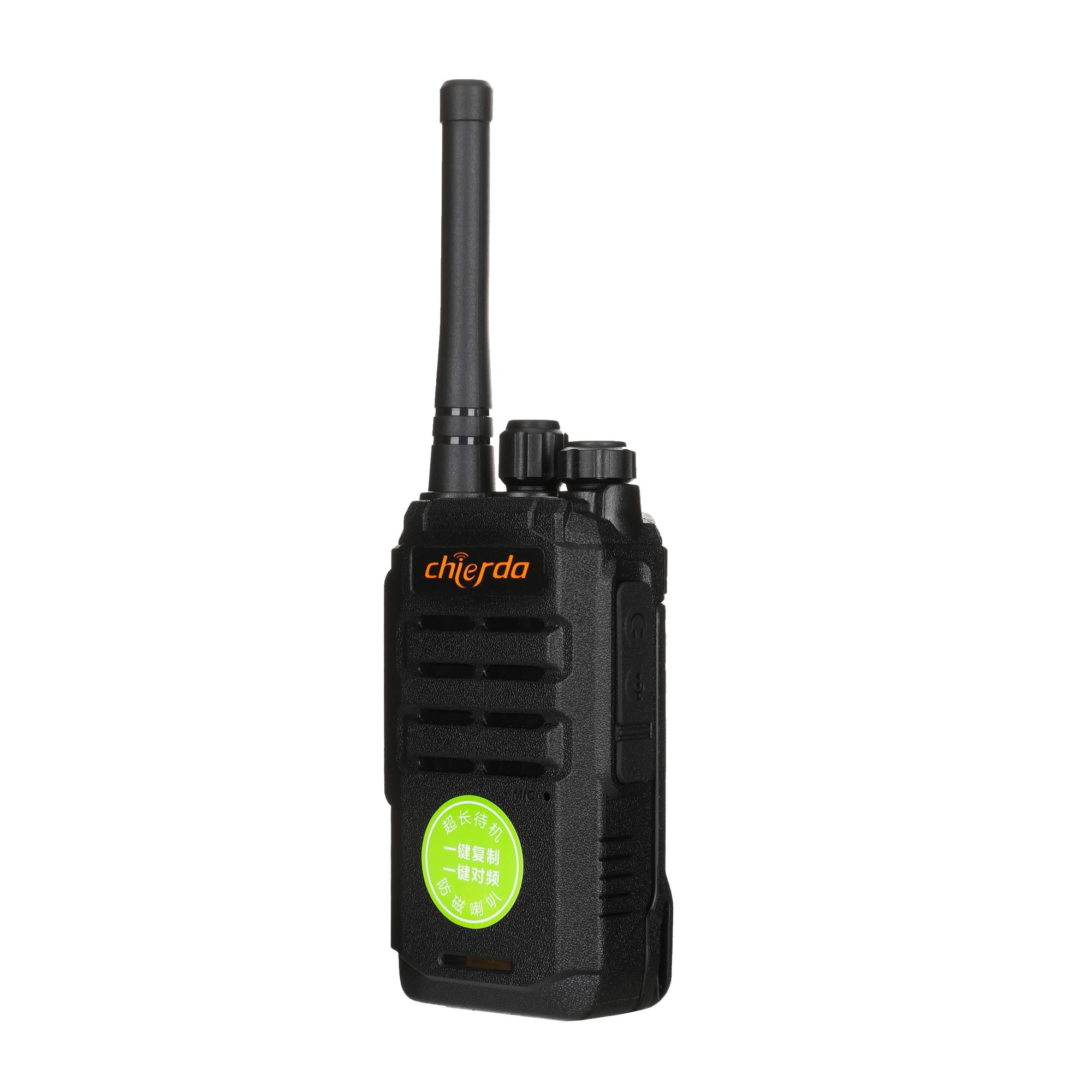

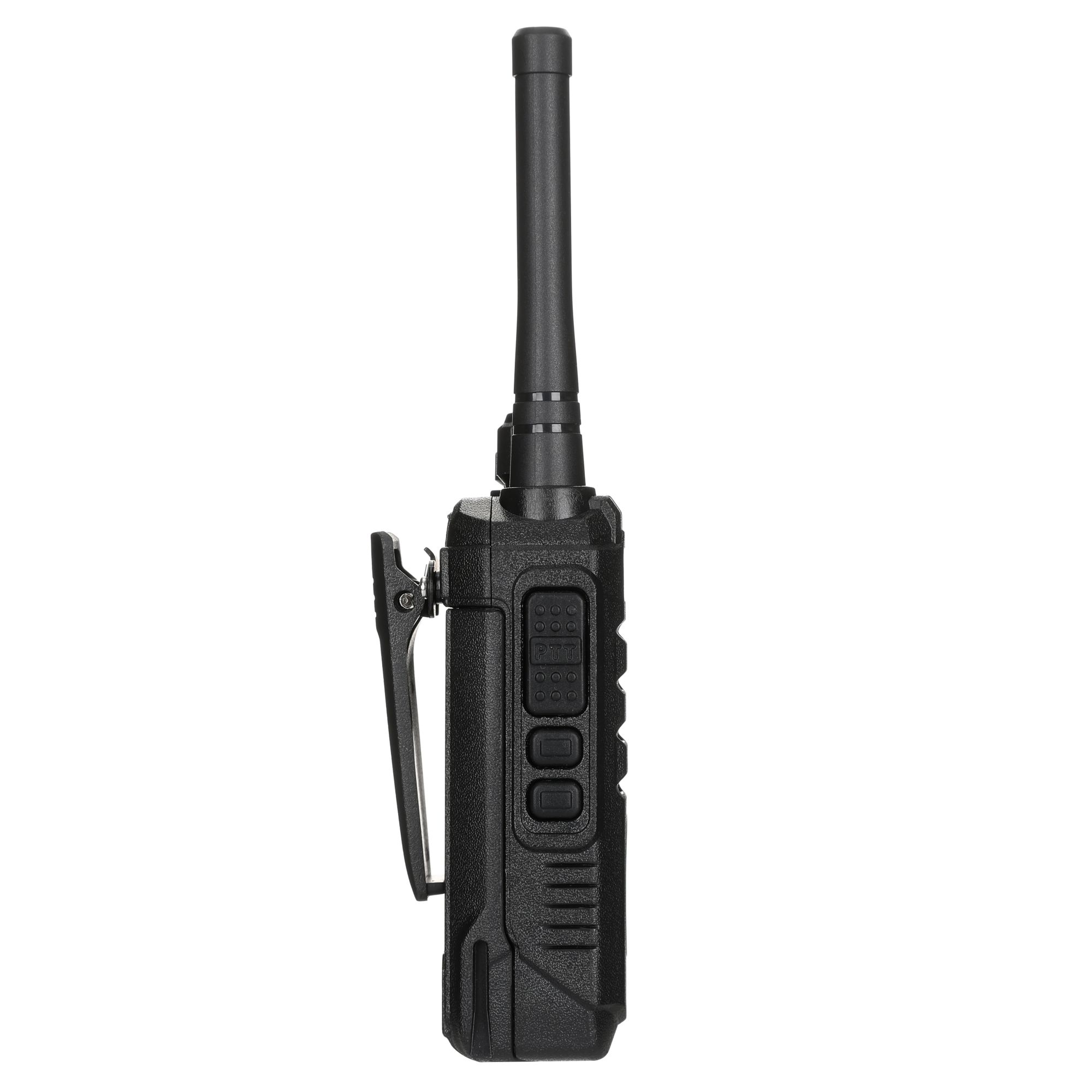

Chierda CD15 Long Standby Radio
CD15
1. Long Battery Life
2. Strong Penetration

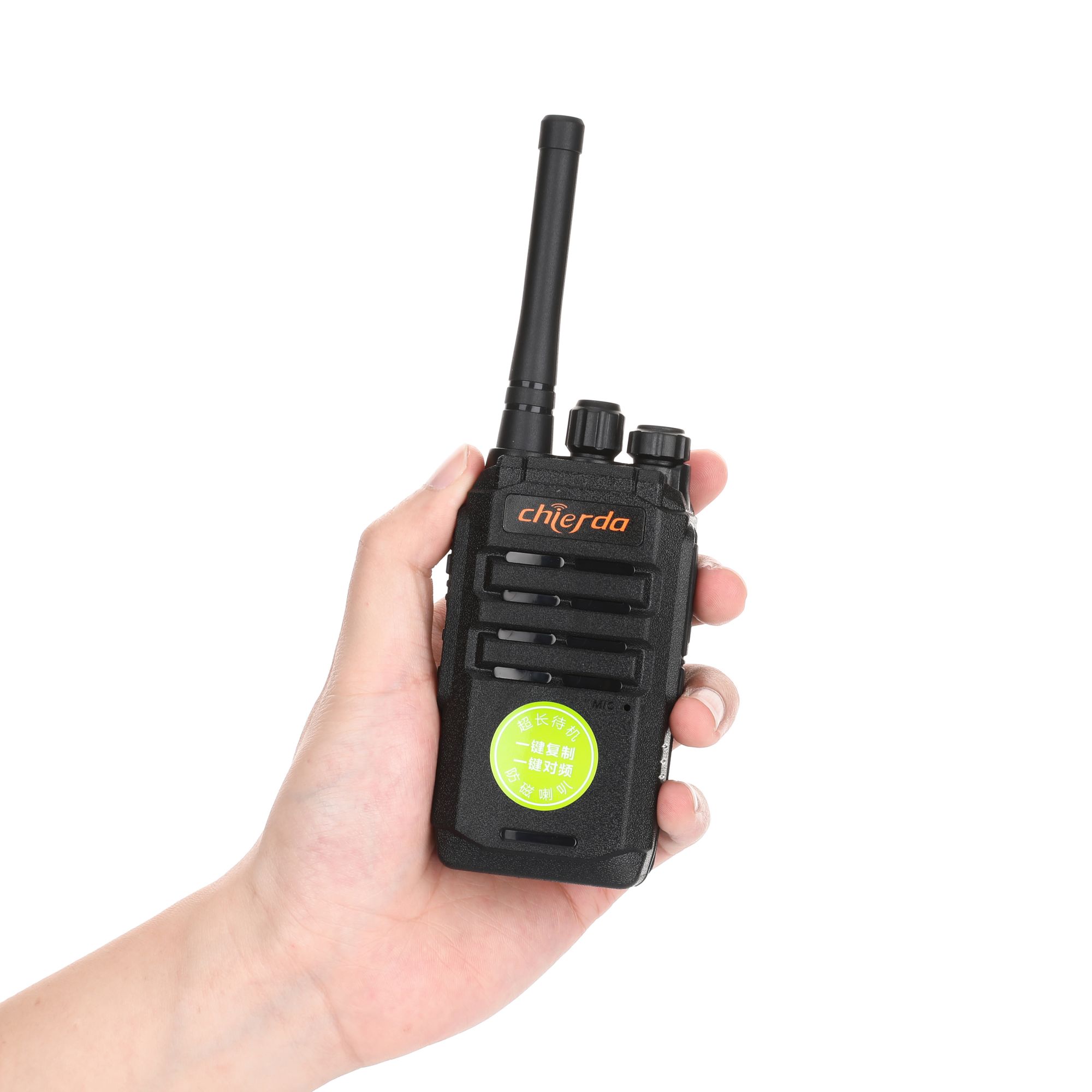

3. Compact Size and Lightweight
4. Type-C Charging
5. VOX Hands-free Function
6. Alarm Function
Chierda CD15 One-Key Frequency Copy Long standby Radio is a high-performance and durable two-way radio. Large battery capacity can guarantee long-time working. It can be used in malls, warehouses, hotels, etc.
Anti-magnetic speaker:
CD15 radios make sound louder while noise smaller.Long Battery Life:

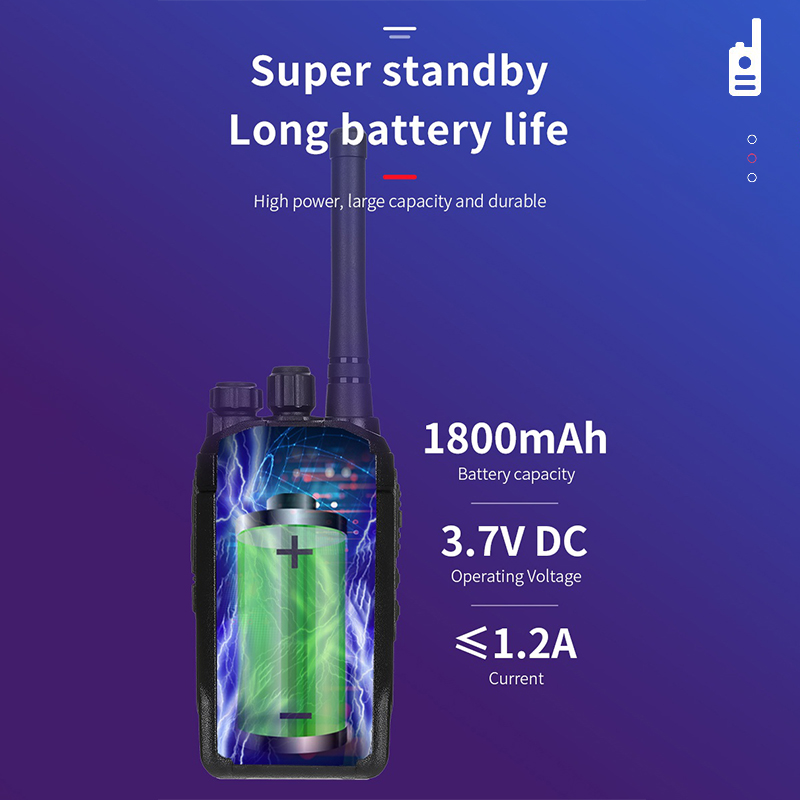

Equipped with a 1800mAh lithium battery, CD15 can work for a long time.
One-key Frequency Pairing:

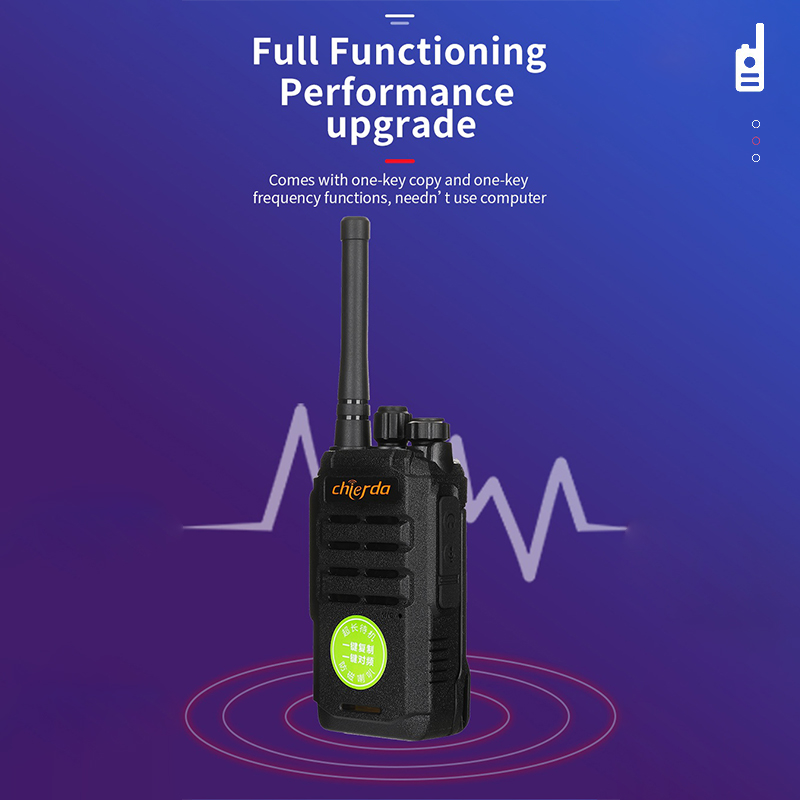

One-key Wireless Copy:The wireless copy function enables CD15 easily copy the frequency without programming, which saves time and improves working efficiency.
One-key Frequency Pairing:
The one-key pairing function can help you communicate with colleagues quickly even if you use different two-way radios.

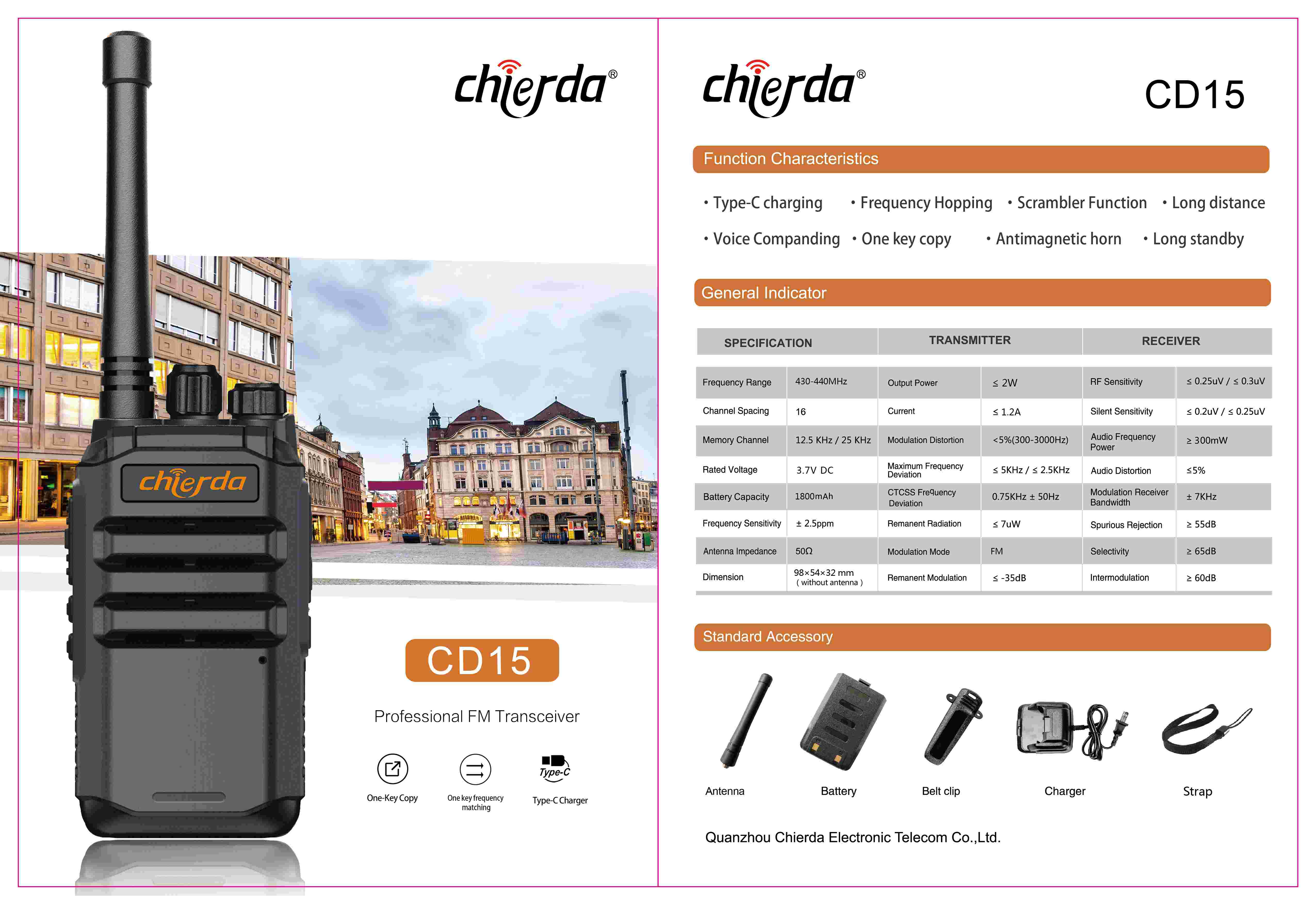

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1800mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x57x41 mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.2A |
Modulation Distortion | ＜5%(300-3000Hz) |
Maximum Frequency Deviation | ≤5KHz / ≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤0.25uV /≤0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

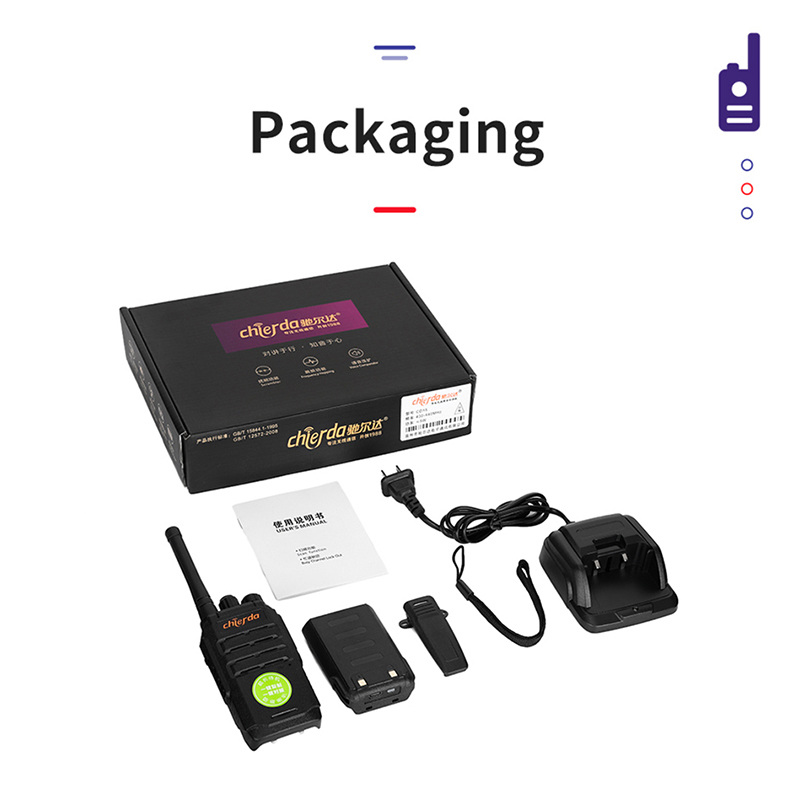

Product set:
Radio*1
Battery*1
Charger*1
Antenna*1
Belt clip*1
Strap*1
User's manual*1
