Chierda CD18P License-free PMR446 Portable Two Way Radio
CD-18P European version
1. Monitor function
2. License-free PMR446 walkie talkie
3. VOX Function, Time out timer(TOT)
5. Lightweight and Compact design

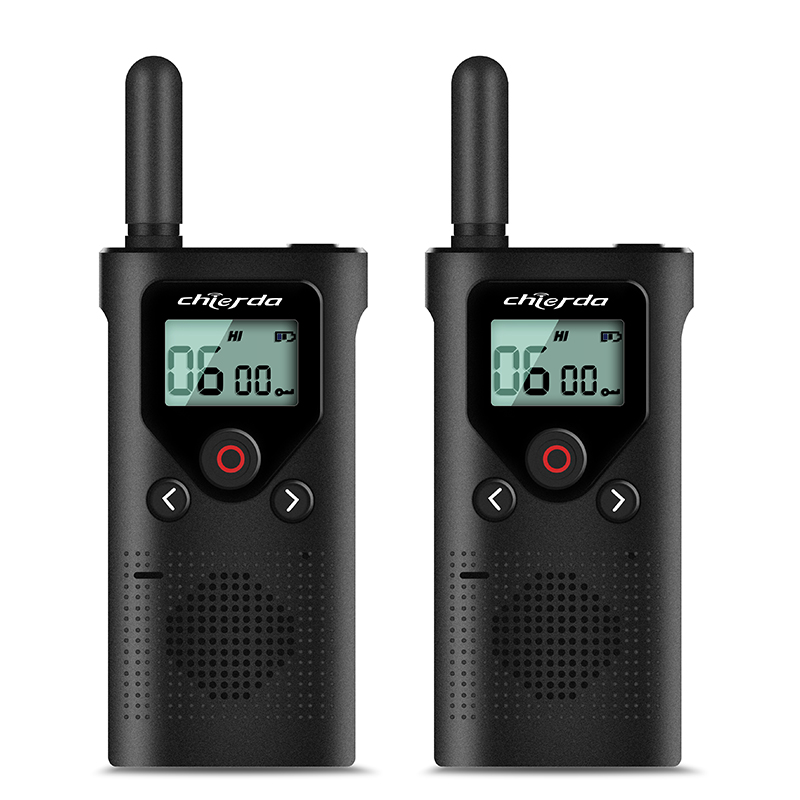

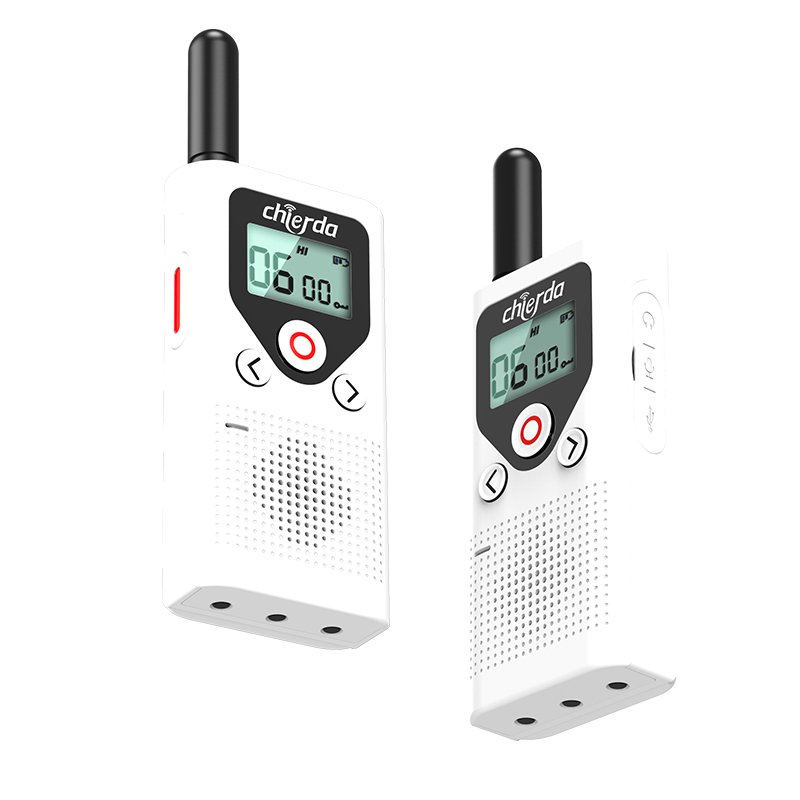

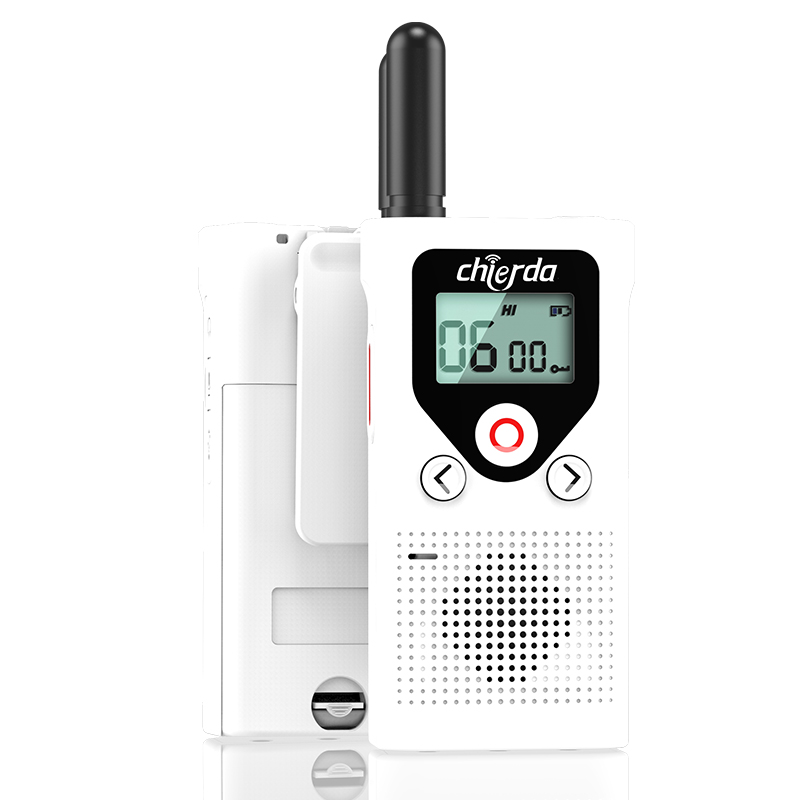

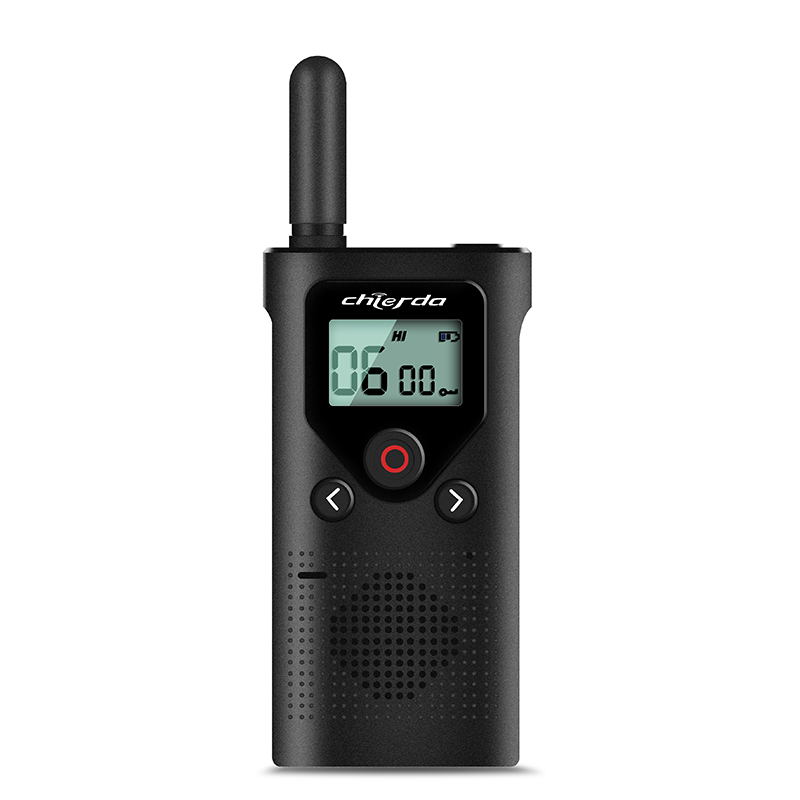

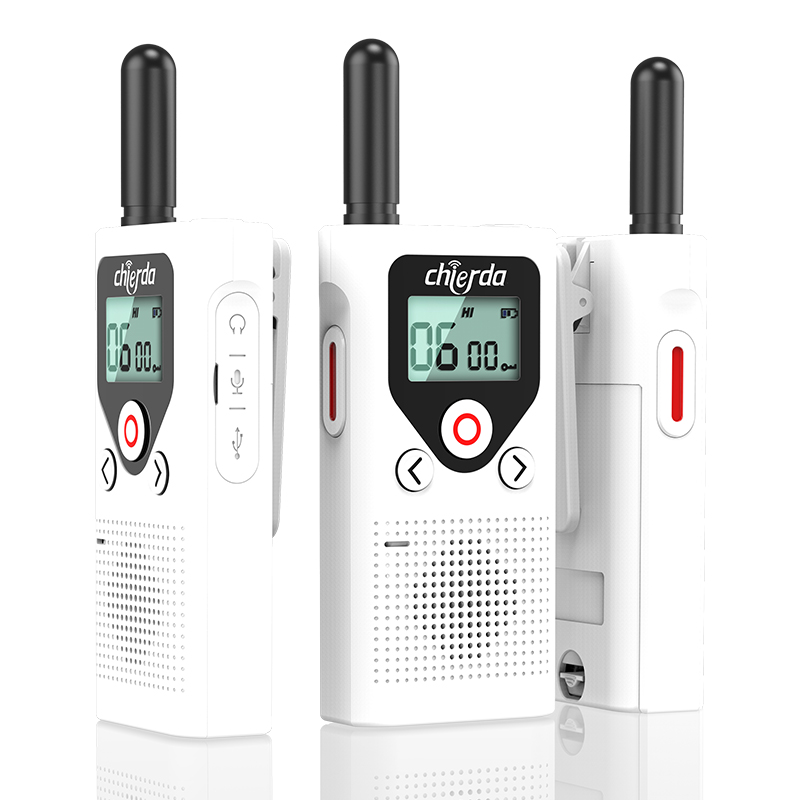

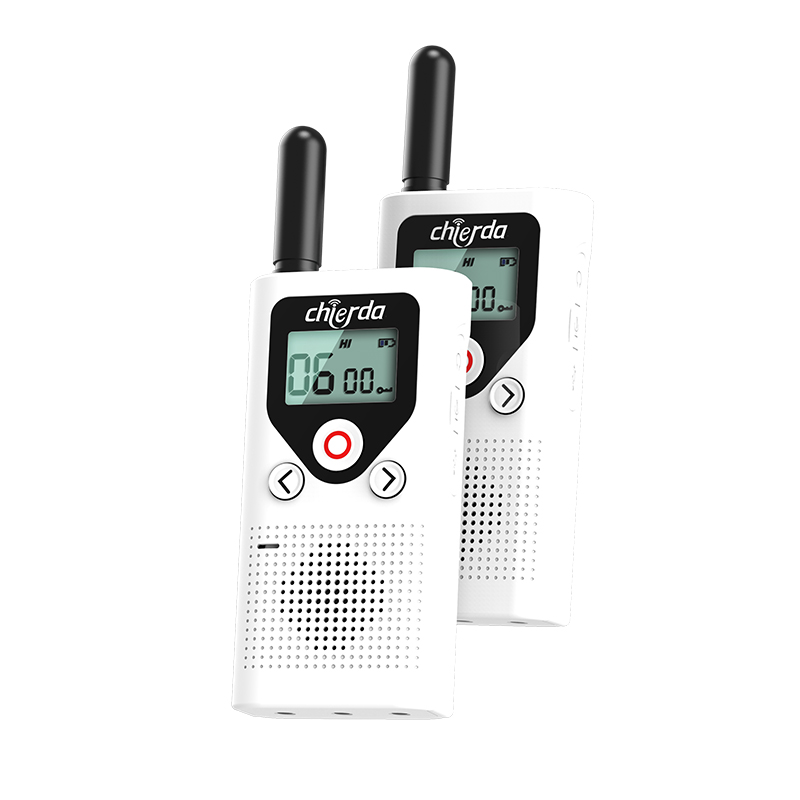

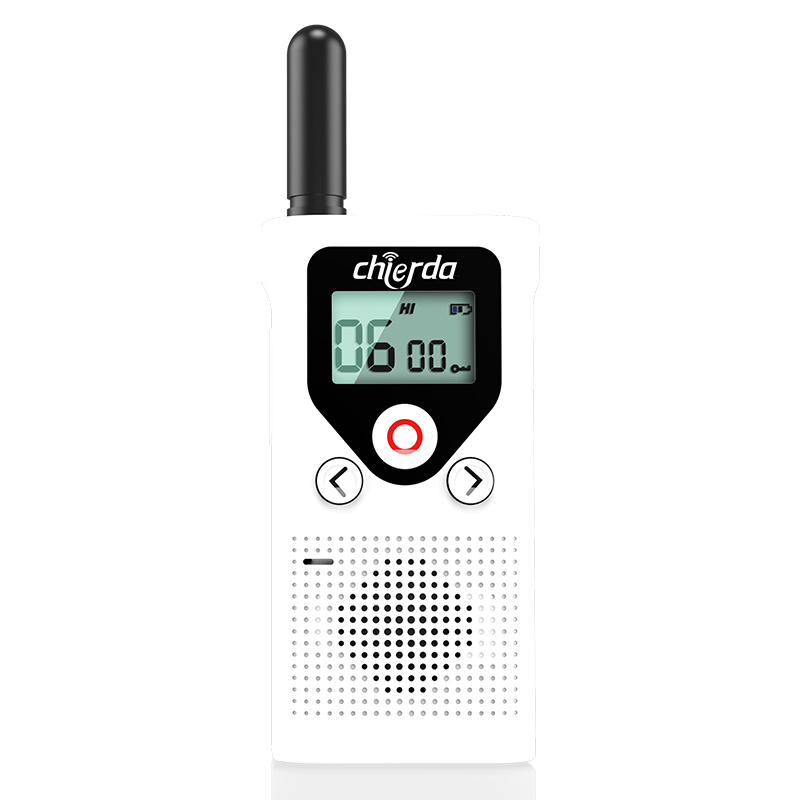

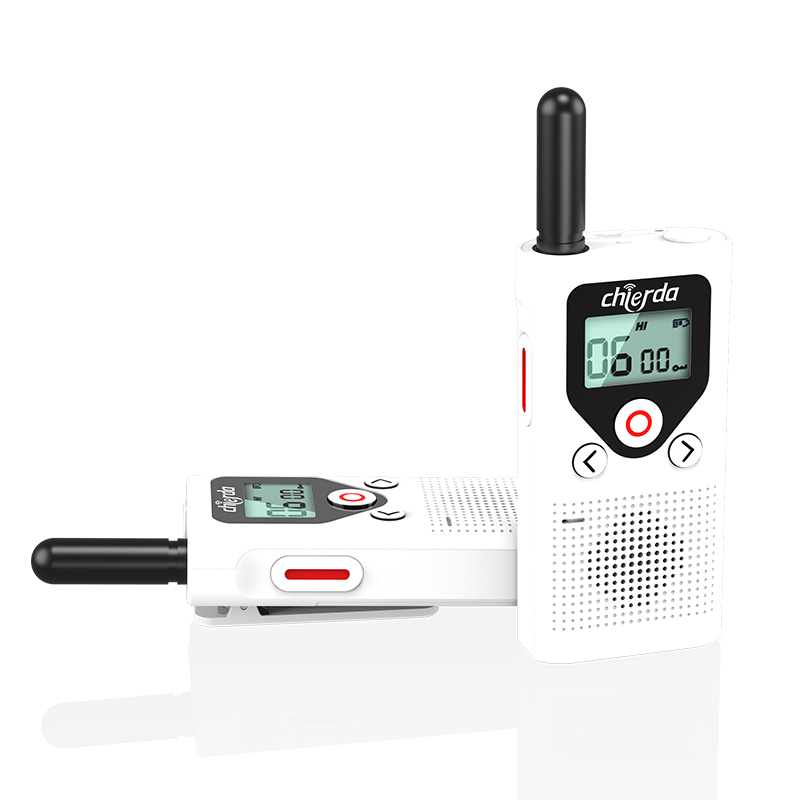

Chierda CD18P License-free PMR446 Portable Two Way Radio is designed to be compact and portable. It features a 1.28 inch LCD Display and multiple colors body. It has VOX hands-free function, which means it can support both push-to-talk and voice-operated. CD 18P walkie-talkie is perfect for working in supermarket, hotels, restaurants, and salons.

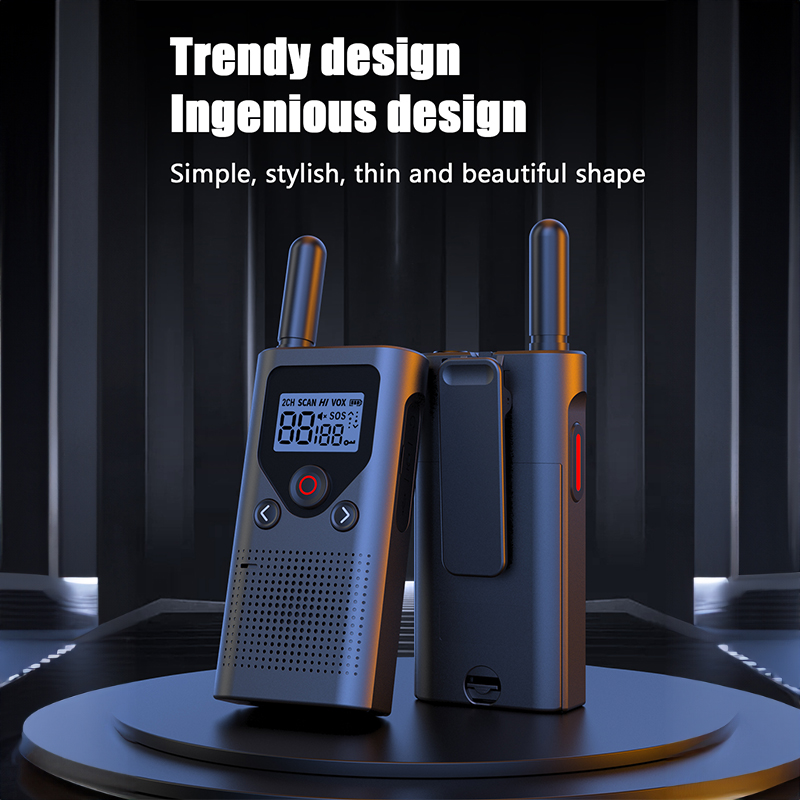

Compact and Portable:

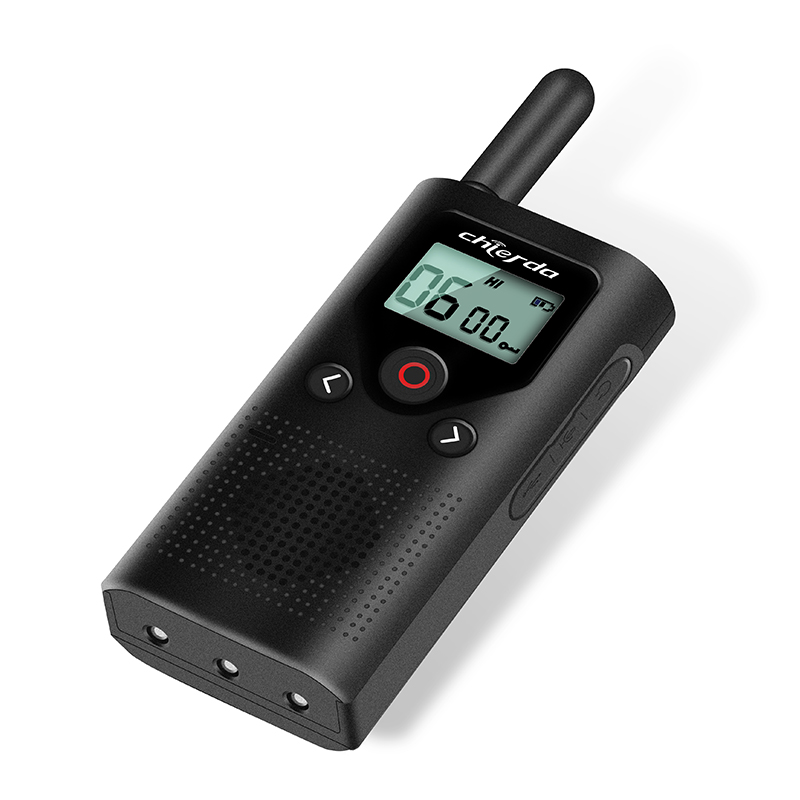

With an LCD display to show the battery level, JV01 radio is user-friendly. With a keyboard, it is easy to operate. Trendy and colorful design lets you spot partners quickly. JV01 walkie-talkie is equipped built-in LED flashlight to dispel the darknessPowerful Battery:
CD18P radio is powered by a 1500mAh battry and has power saving function. It can last 100 hours on standby and is enough for whole-day use after being fully powered. Low power alarm will remind you of the status of power anytime.
Advanced Functions:
CD18P walkie talkie has keyboard lock (Auto or Manual) and Busy Channel Lockout functions. Users don't worried about misoperations and privacy disclosure when busy.CD18P radio also features VOX hands-free function. It can support both push-to-talk and voice-operated. Time out timer (TOT) function protects CD18P walkie talkie from misoperating or occupying the same channel for a long time.

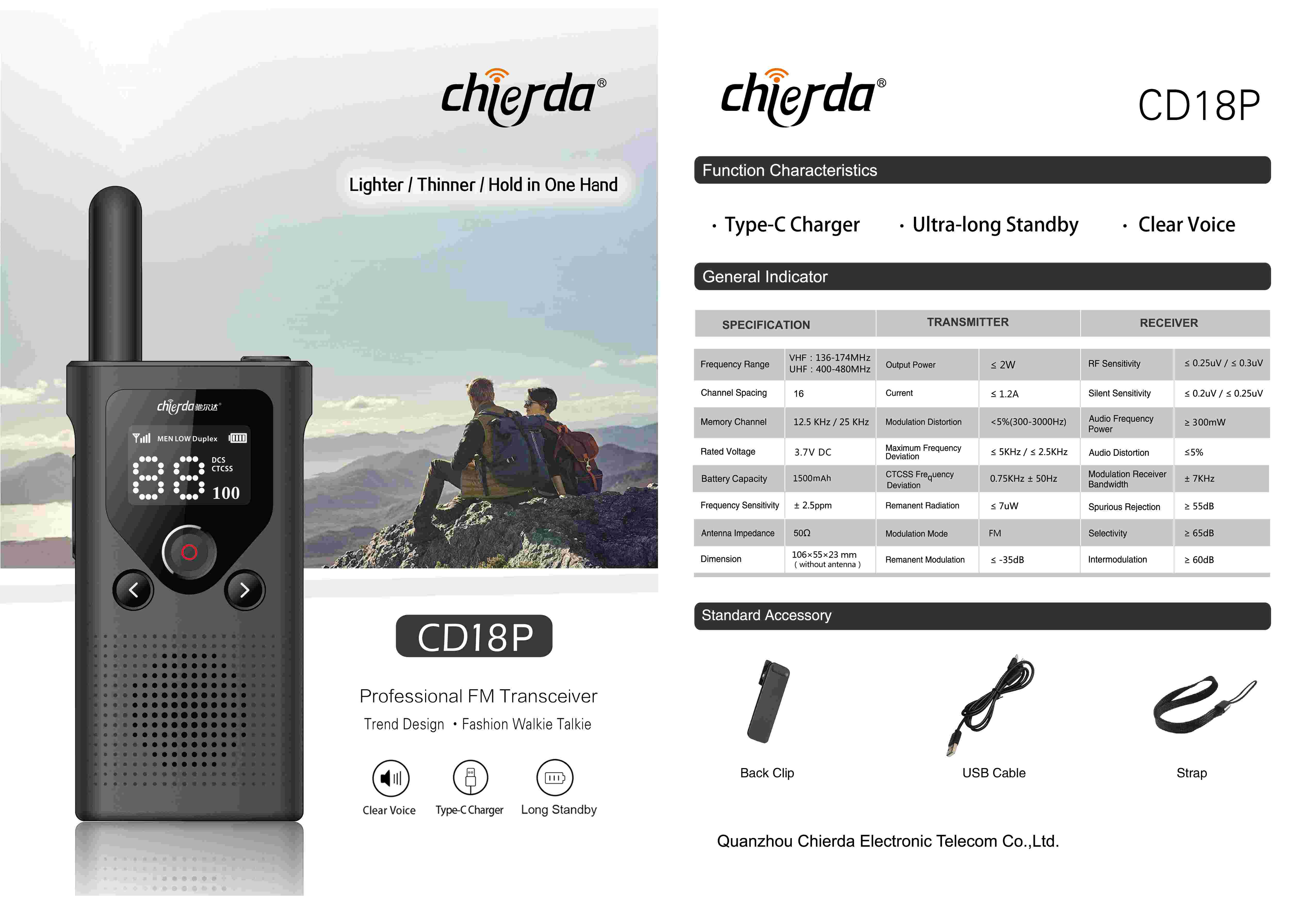

SPECIFICATION | |
Frequency Range | PMR446 |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz/ 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1500mAh |
Frequency Sensitivity | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x55x23 mm |
TRANSMITTER | |
Output Power | 0.5W |
Current | ≤1.2A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤ 7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤ 0.2uV/≤ 0.25uV |
Audio Frequency Power | ≥ 300mW |
Audio Distortion | ≤5% |
Modulation Receiver Bandwidth | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

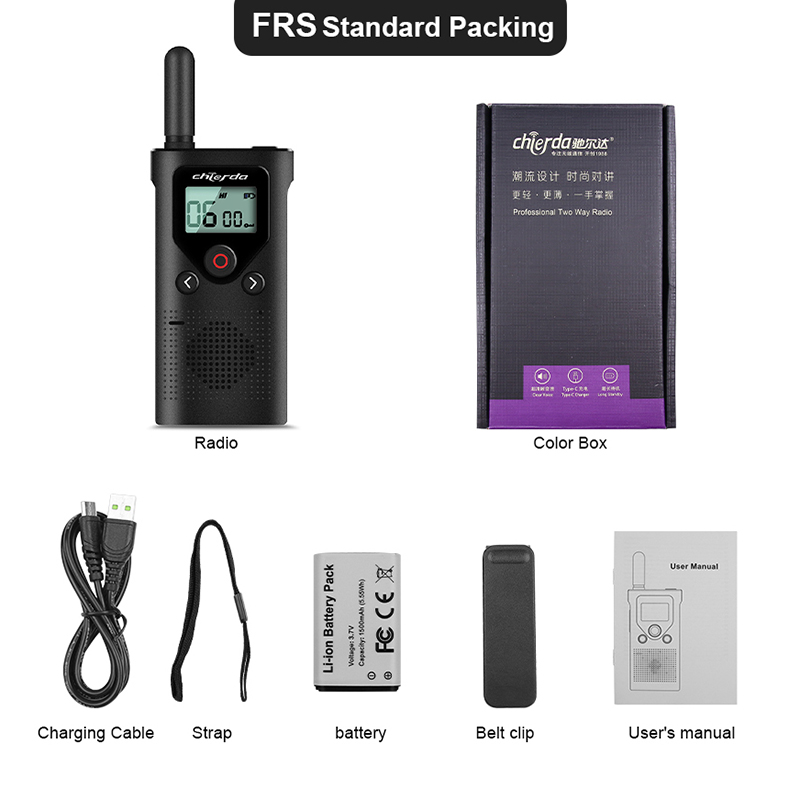

Product set
Radio*1
Charging cable*1
Battery*1
Belt clip*1
Strap*1
User's manual*1
