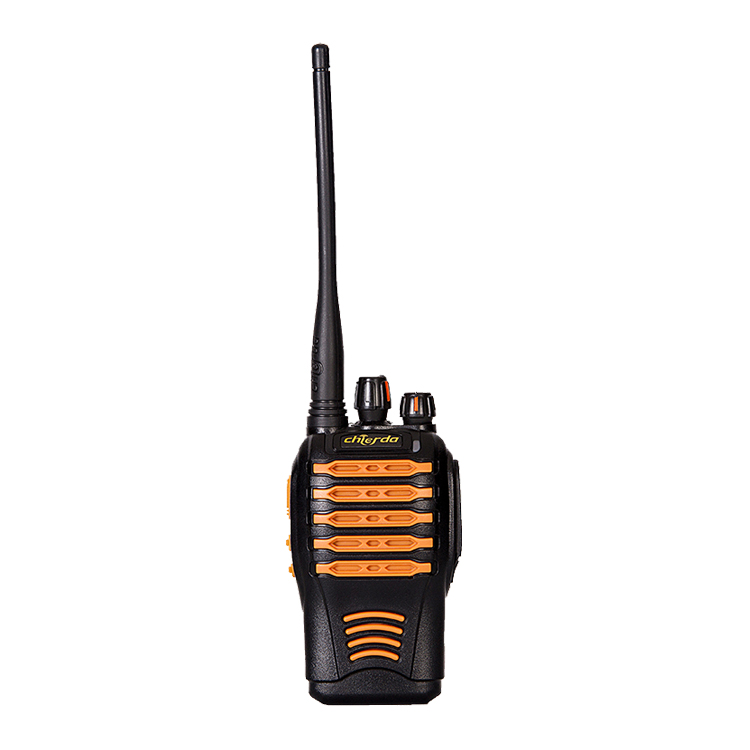

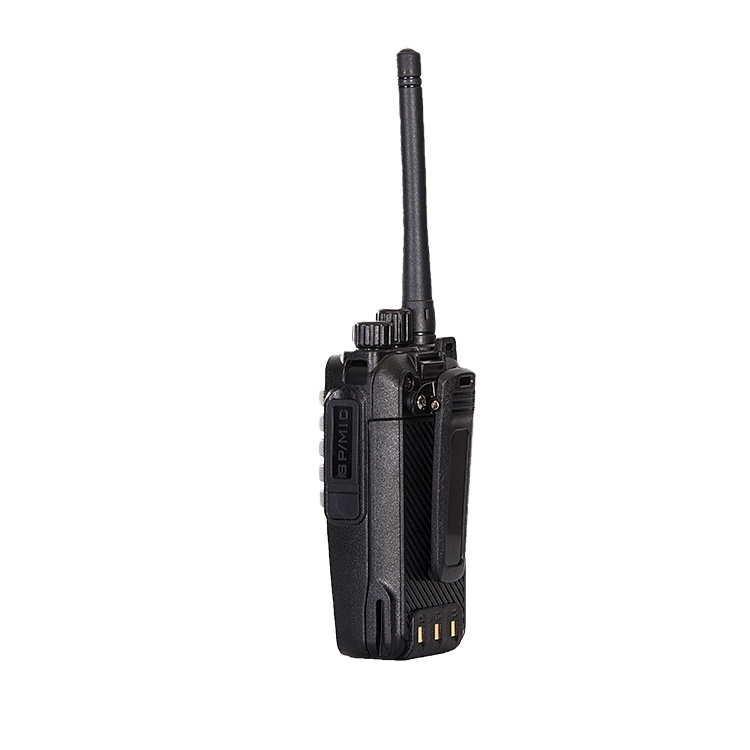

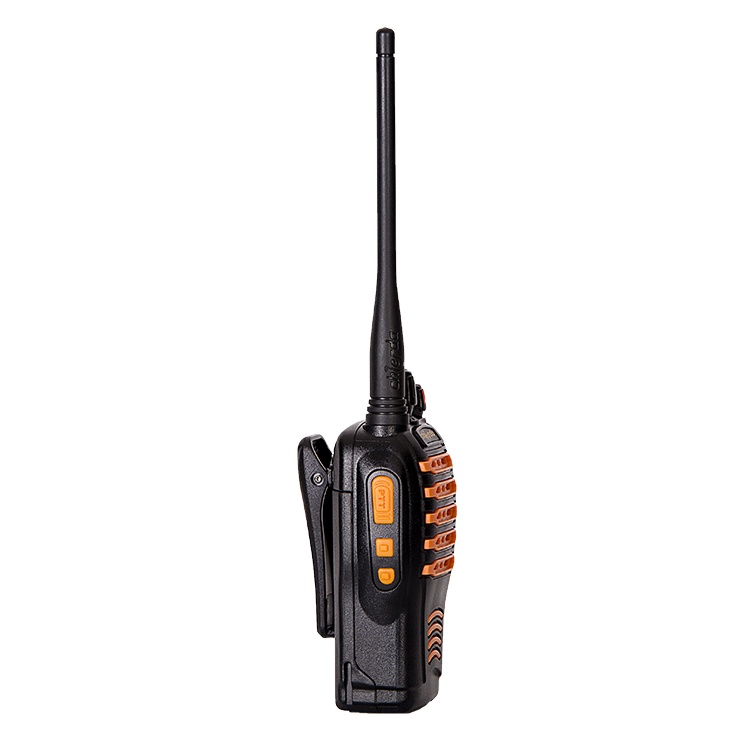

Chierda CD728 5W Durable IP66 Waterproof Two-way Radio

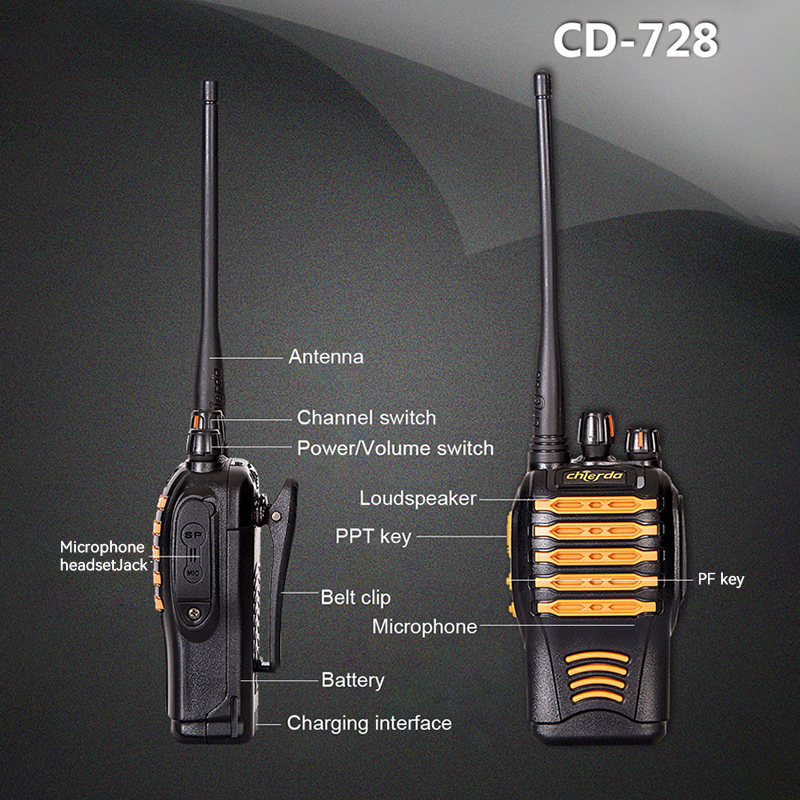

CD-728
1.IP66 Waterproof, multiple colors
2.Power Saving Function
3.Scrambler Function
4.VOX Hands-free Function
5.TOT
Chierda CD728 5W Durable Two-way radio is a IP66 waterproof walkie-talkie with up to 16 channels. It features a small and portable body. Multiple colors can satisfy every users' customized needs.

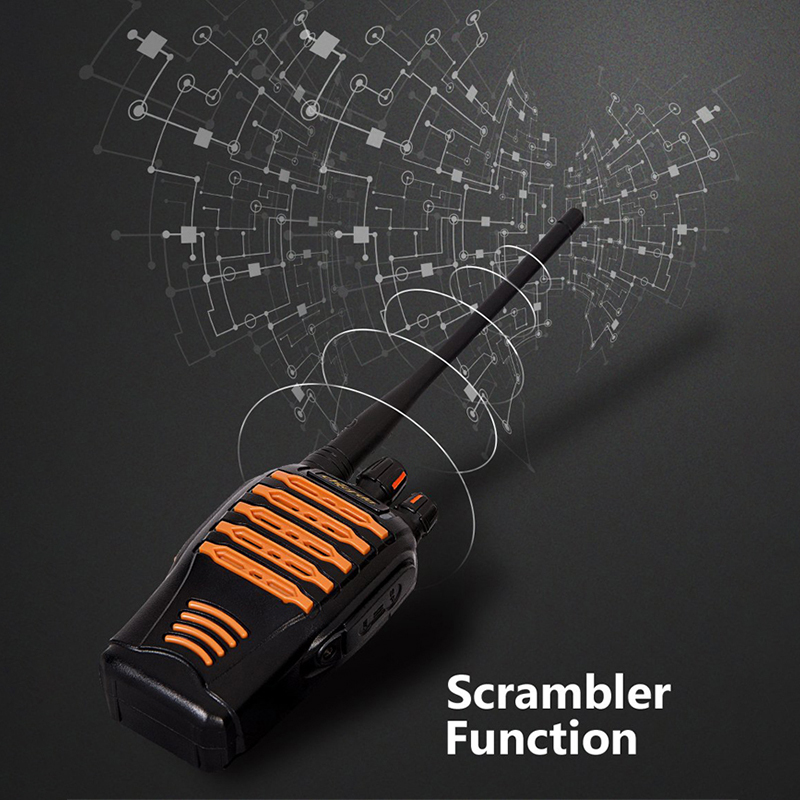

Scrambler Function:

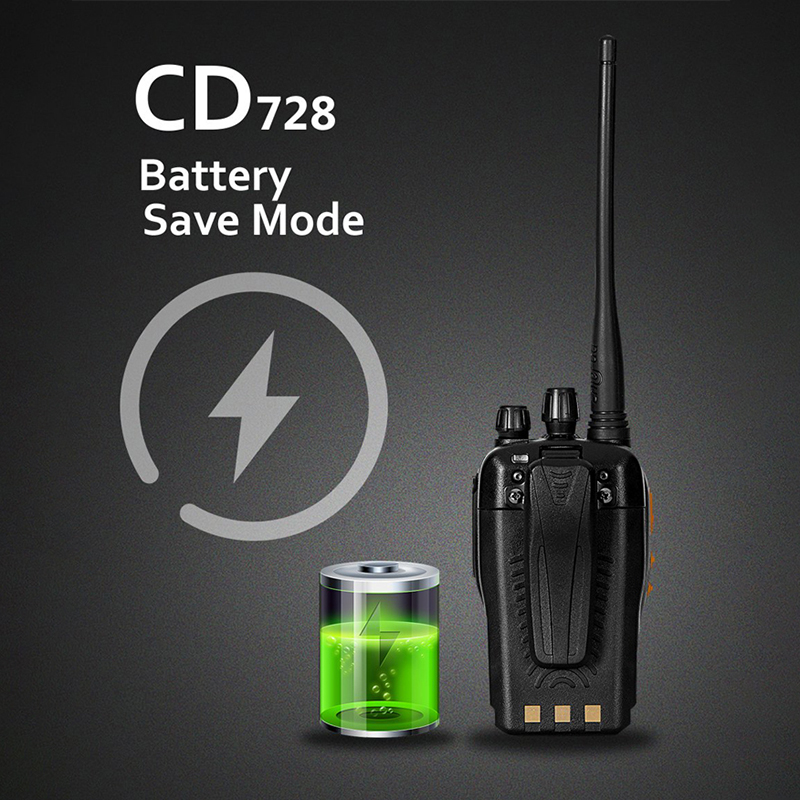

Scrambler function can encryption your communication. It can greatly protect privacy.Battery Saving Mode:
When battery saving function is on, CD728 two-way radio can be used for a longer time.

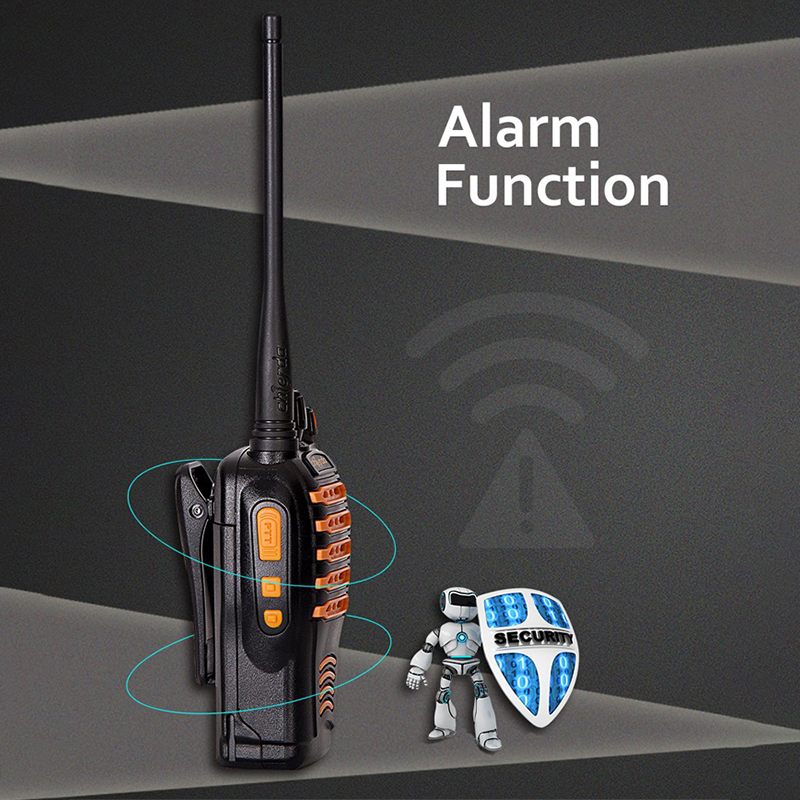

Alarm Function:
In the event of an emergency, activating the emergency alarm is a convenient way to ask for help.IP66 Waterproof:
CD-728 two way radio is waterproof and dustproof, which can satisfy users' needs in different sectors.

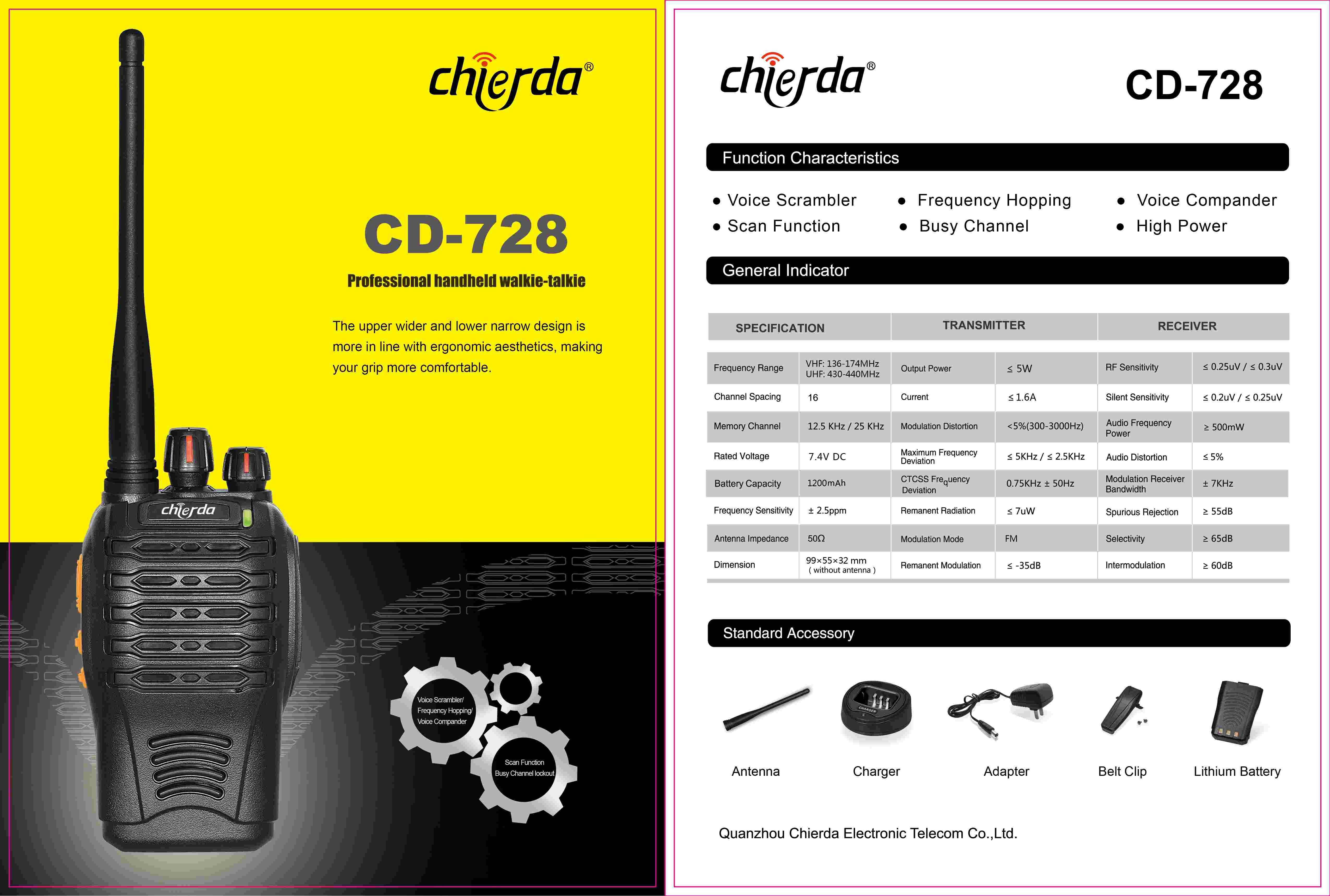

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 1200mAh/1600mAh |
Frequency | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 99x55x32mm |
TRANSMITTER | |
Output Power | 5W |
Current | ≤1.6A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

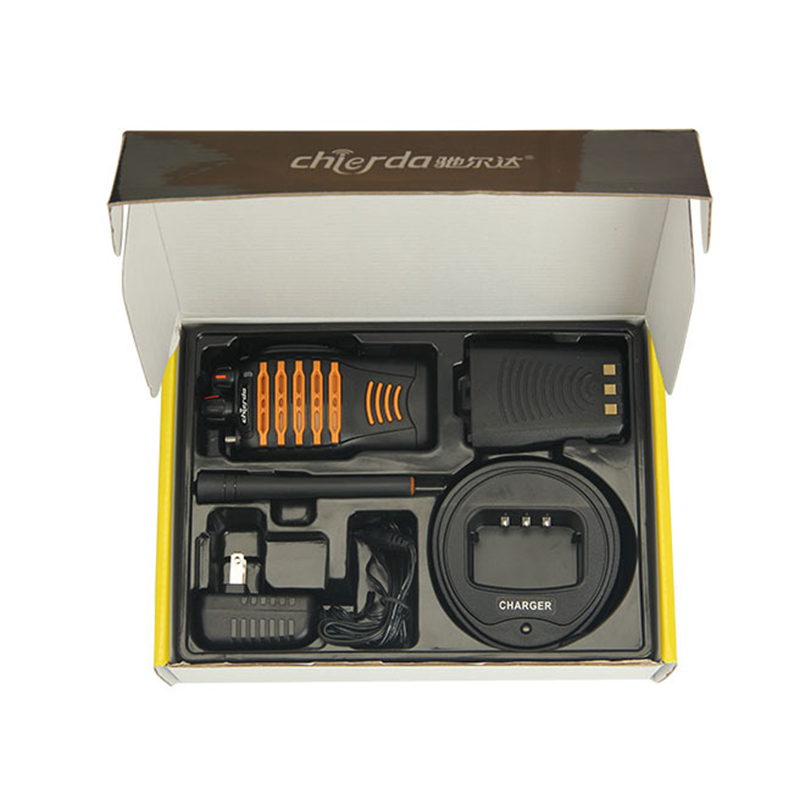

Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
