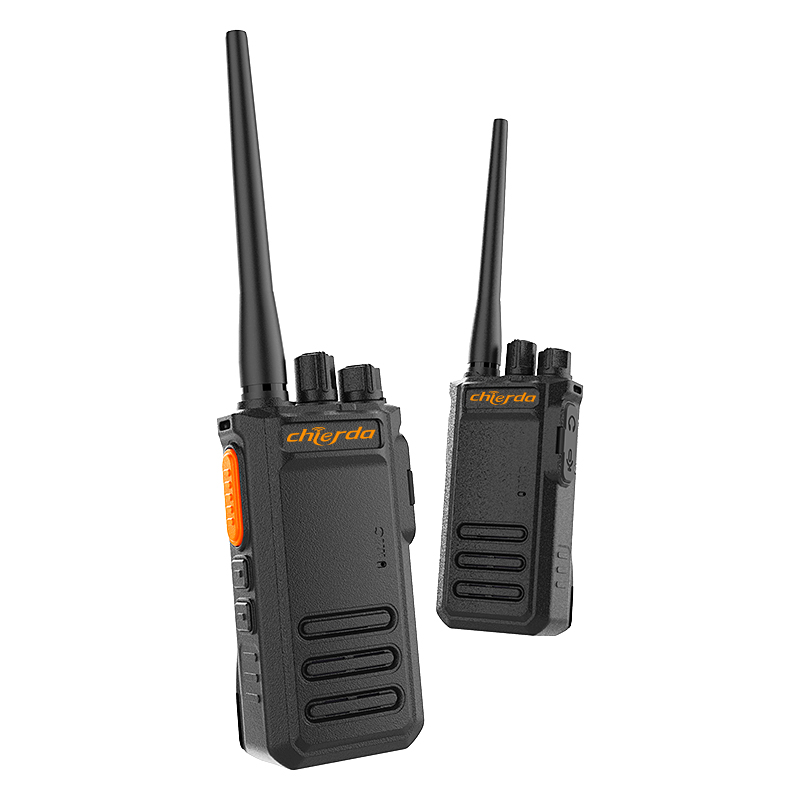

Chierda CDQ9 Encrypted Two Way Radio
CDQ9
1. Type-C Charging Port
2. Frequency Hopping
3. One-key Channel Copy
4. Alarm Function
5. Anti-break Code
6. Emergency Alarm
7. Noise Cancelling (Optional)

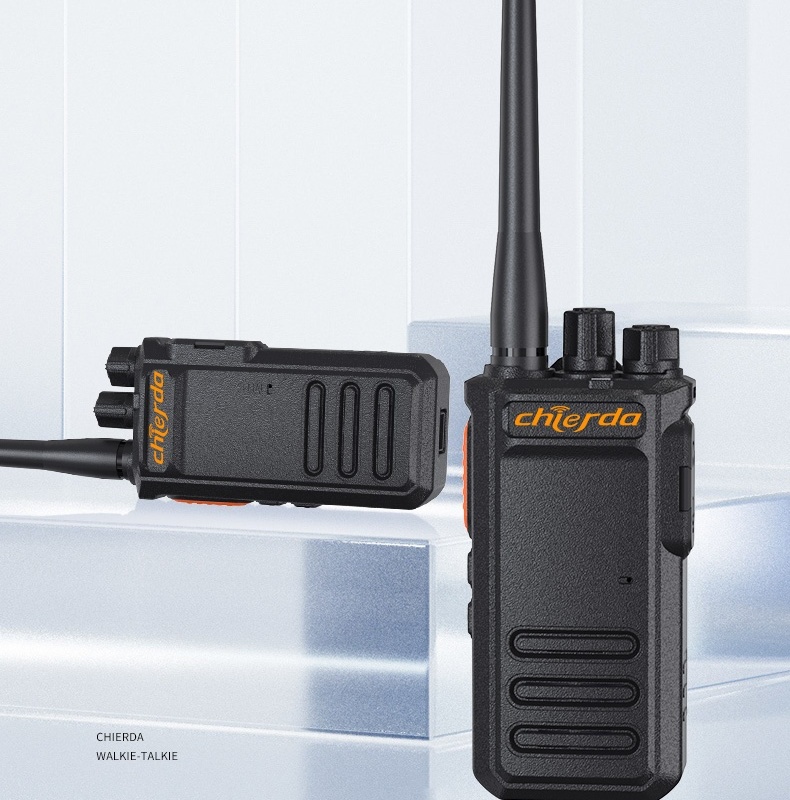

Chierda CDQ9 encrypted walkie talkie is highly secure and provides stable communication. It features one-key frequency pairing and one-key channel copy function.
Emergency Alarm:
CDQ9 has emergency alarm function. If you run into any emergency, you can press the button and send alert quickly.Type-C Charging:

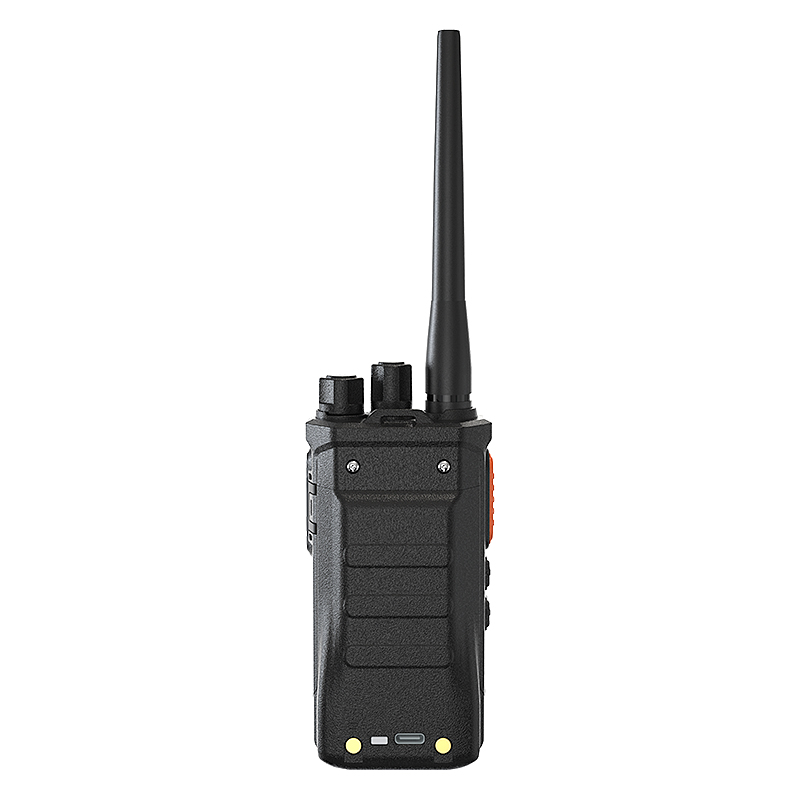

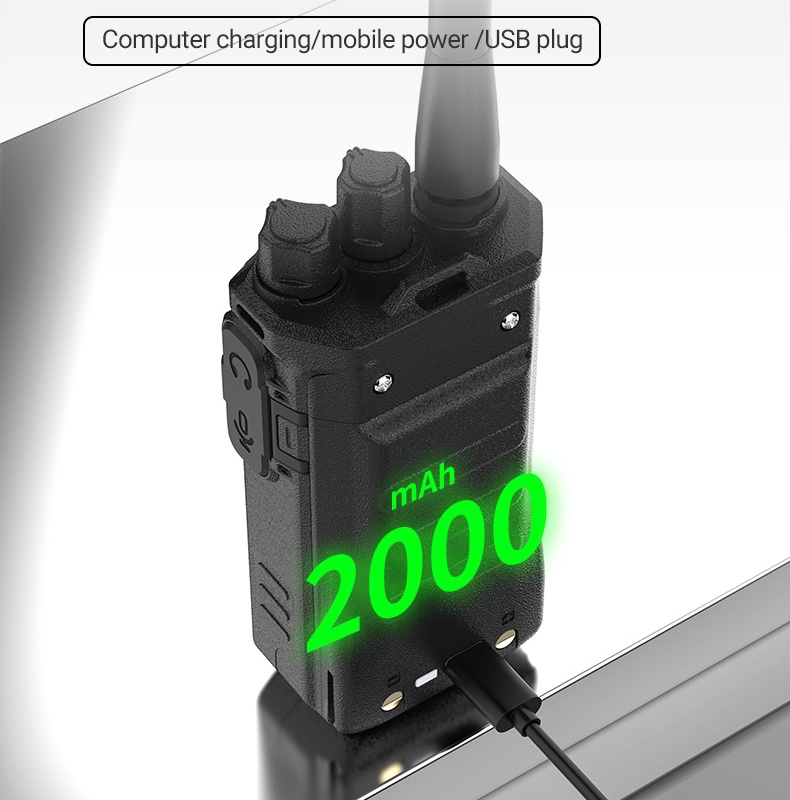

CDQ9 adopts Type-C charging port. You can charge it via cable, power bank or car supply. It is convenient.
One-key Frequency Pairing:
You can pair walkie talkie's frequency by pressing one key. It is efficient and convenient.SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 2000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 107x53x39mm |
TRANSMITTER | |
Output Power | 5W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

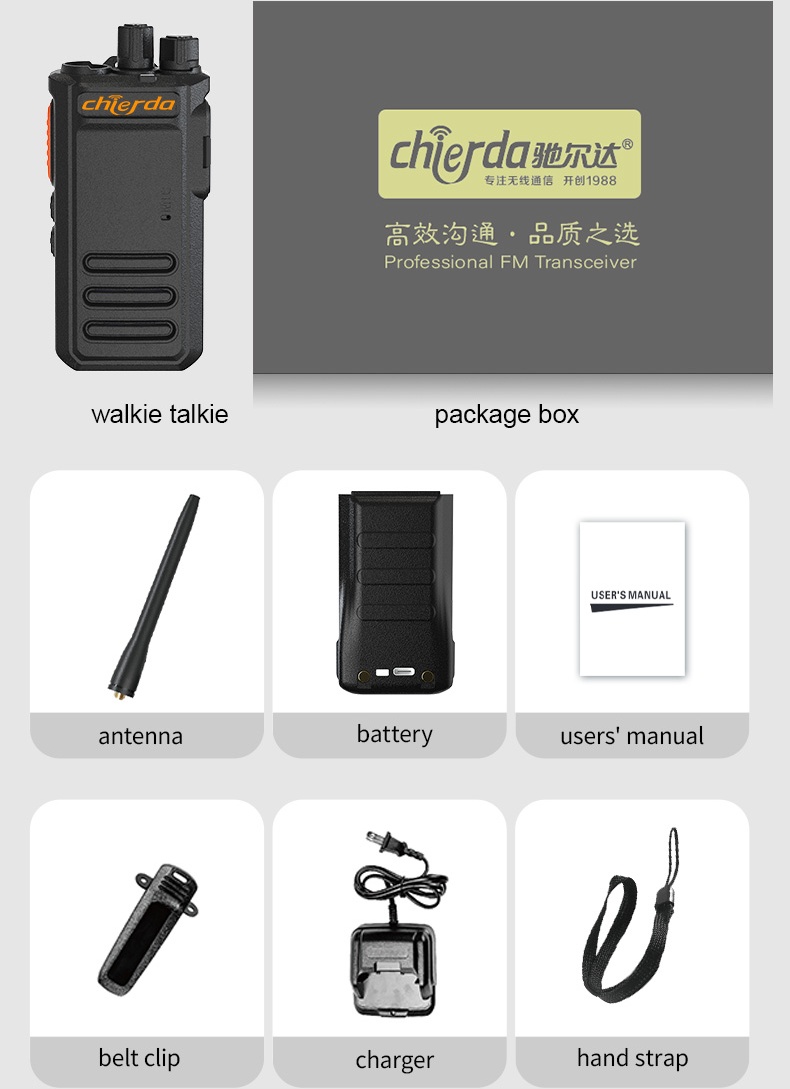

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
