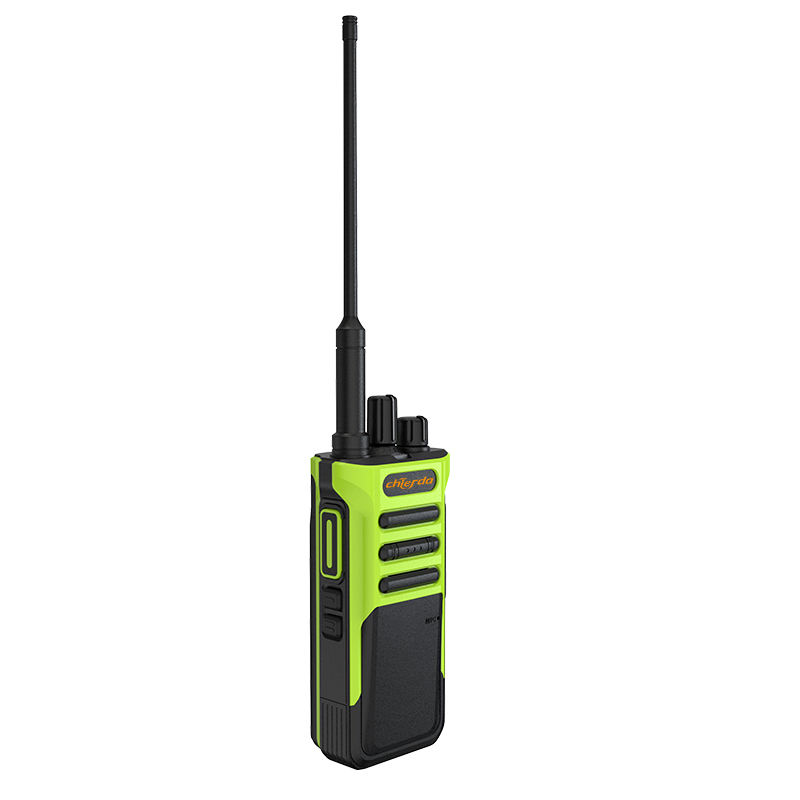

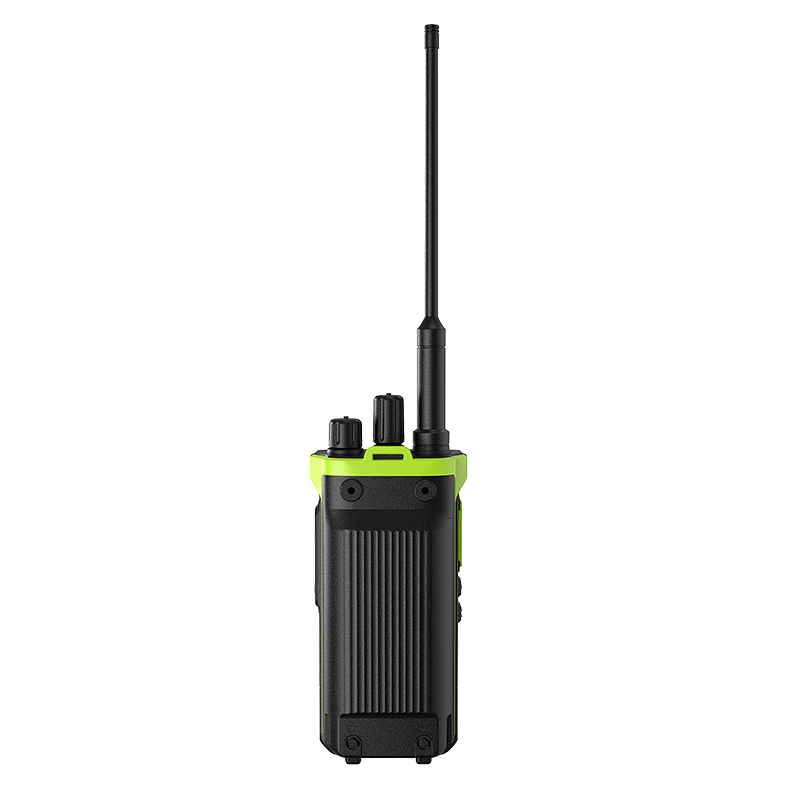

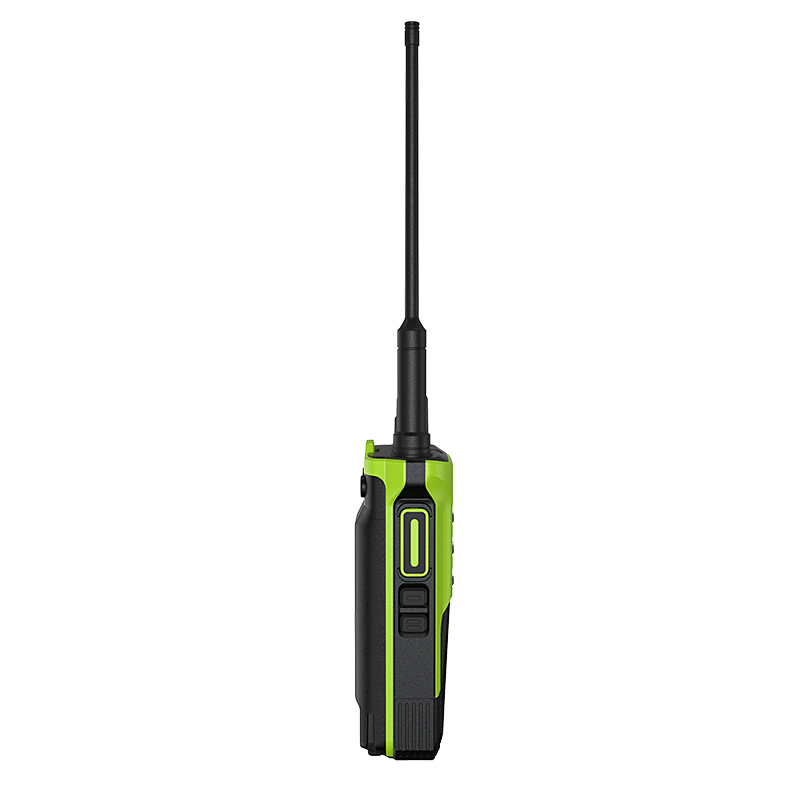

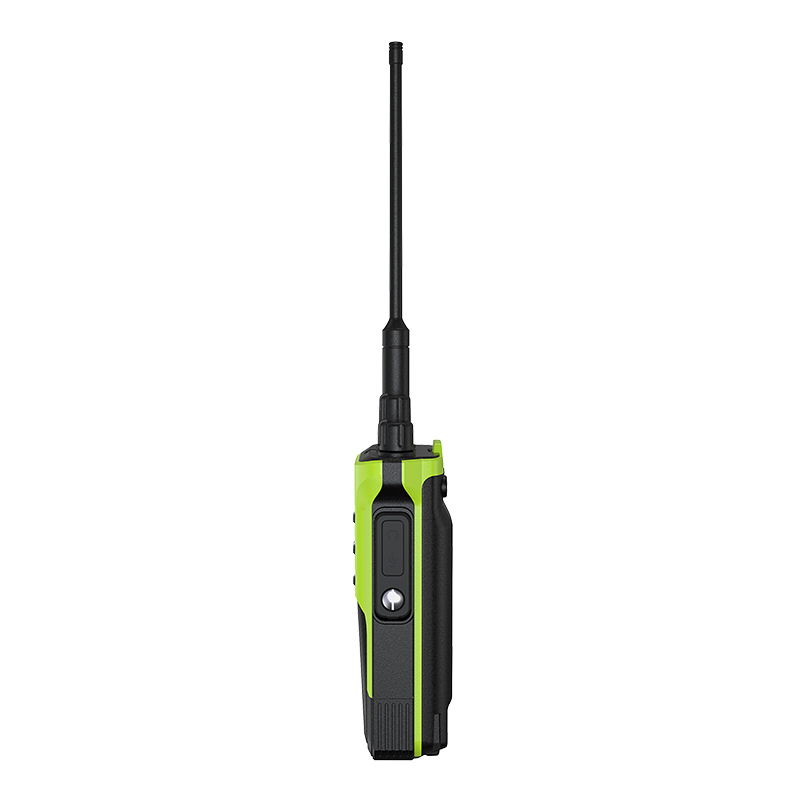

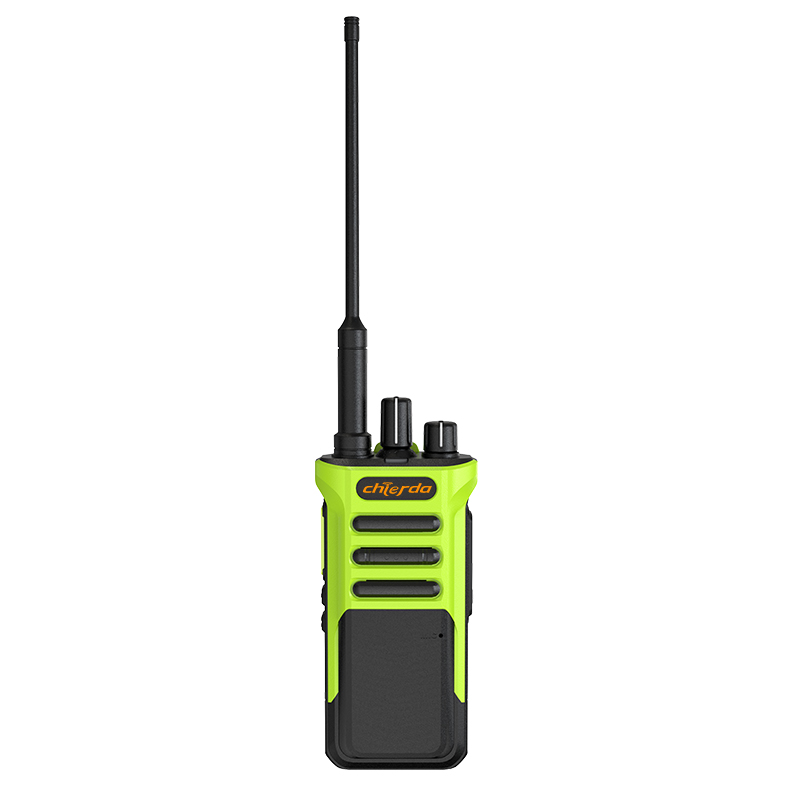

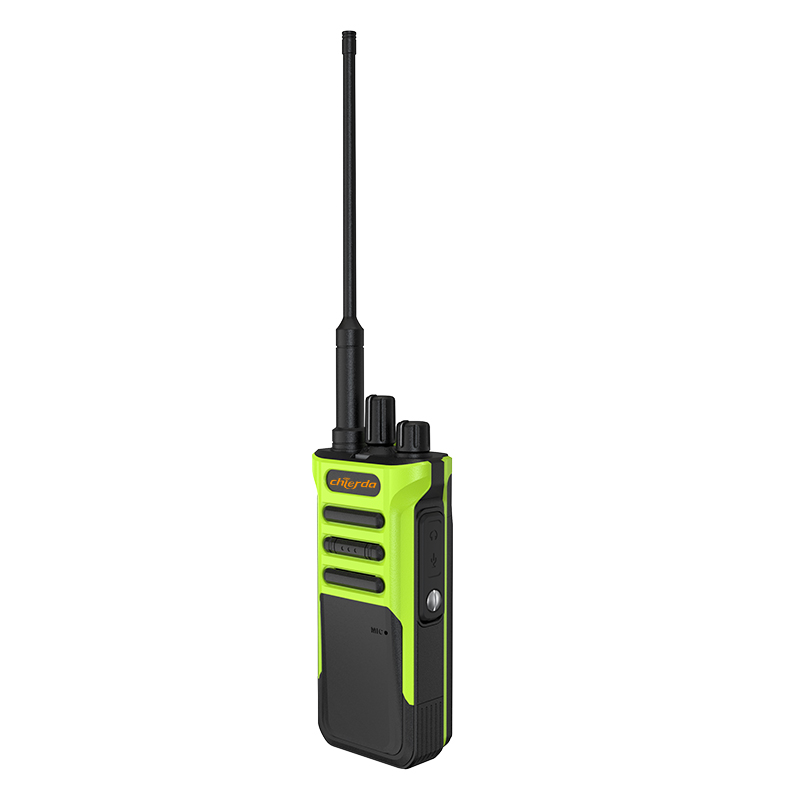

Chierda TC318 Long Range Rugged Two Way Radio
TC318
1. High Power, Long Range
2. Long Battery Life
3. Type-C Charging
4. One-key Group Call
5. Durable and Rugged Construction, Trendy Housing
6. VOX Hands-free Function
7. One-key Frequency Pairing
8. Emergency Alert
Chierda TC318 is a high power and long range walkie talkie. It is packed with many advanced features, including one-key frequency pairing, one-key group tall. It is ideal for heavy duty industries, such as security industry and construction sites.

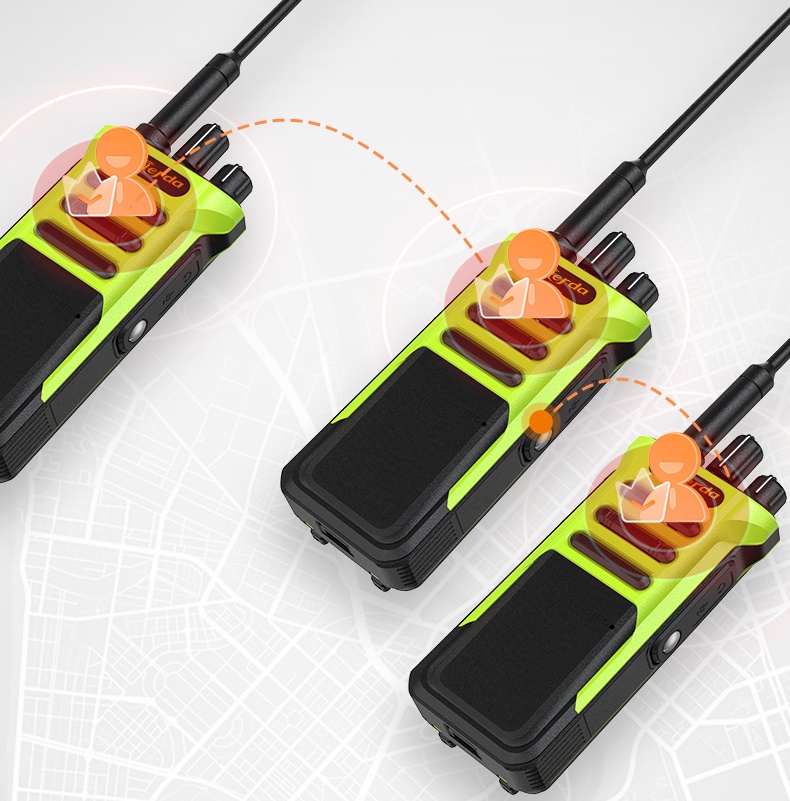

One-key Group Call:
TC318 walkie talkie has one-key group call function. You can set a group via program software. By pressing one key, you can immediately start a group call.One-key Frequency Pairing:
TC318 walkie talkie has one-key frequency pairing function. Press PTT button and PF1 key, and turn on the walkie talkie. TC318 enters pairing mode. Then press the other walkie talkie's PTT button. After a few seconds, the two walkie talkie can pair with the same frequency.

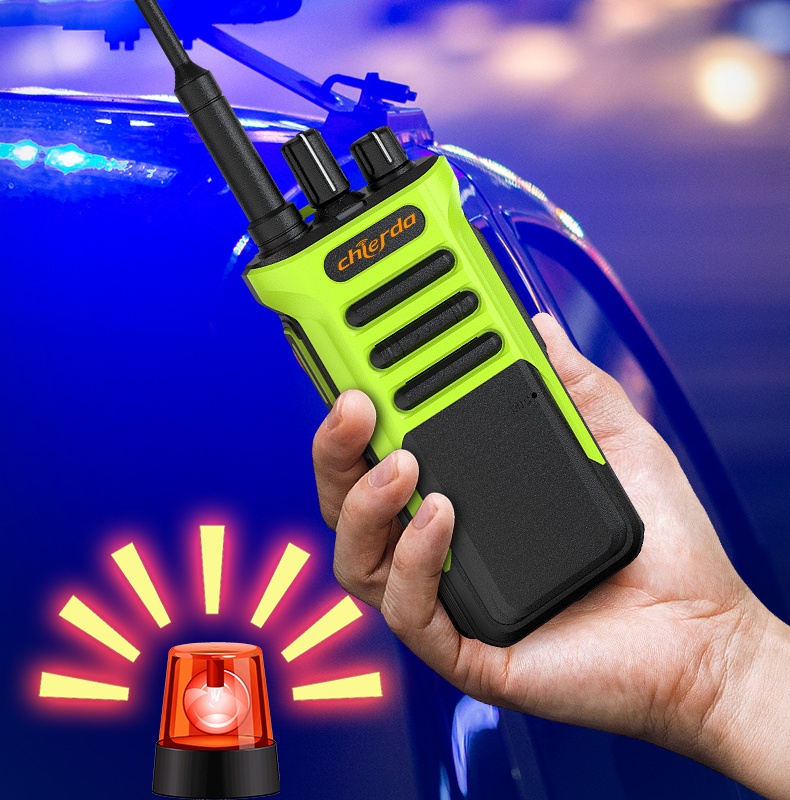

Emergency Alert:
TC318 walkie talkie has emergency alert SOS button. Long press the button, you can send a loud alert to your partners.High Clarity:
TC318 walkie talkie is upgraded with a high-power speaker to enhance call experience.

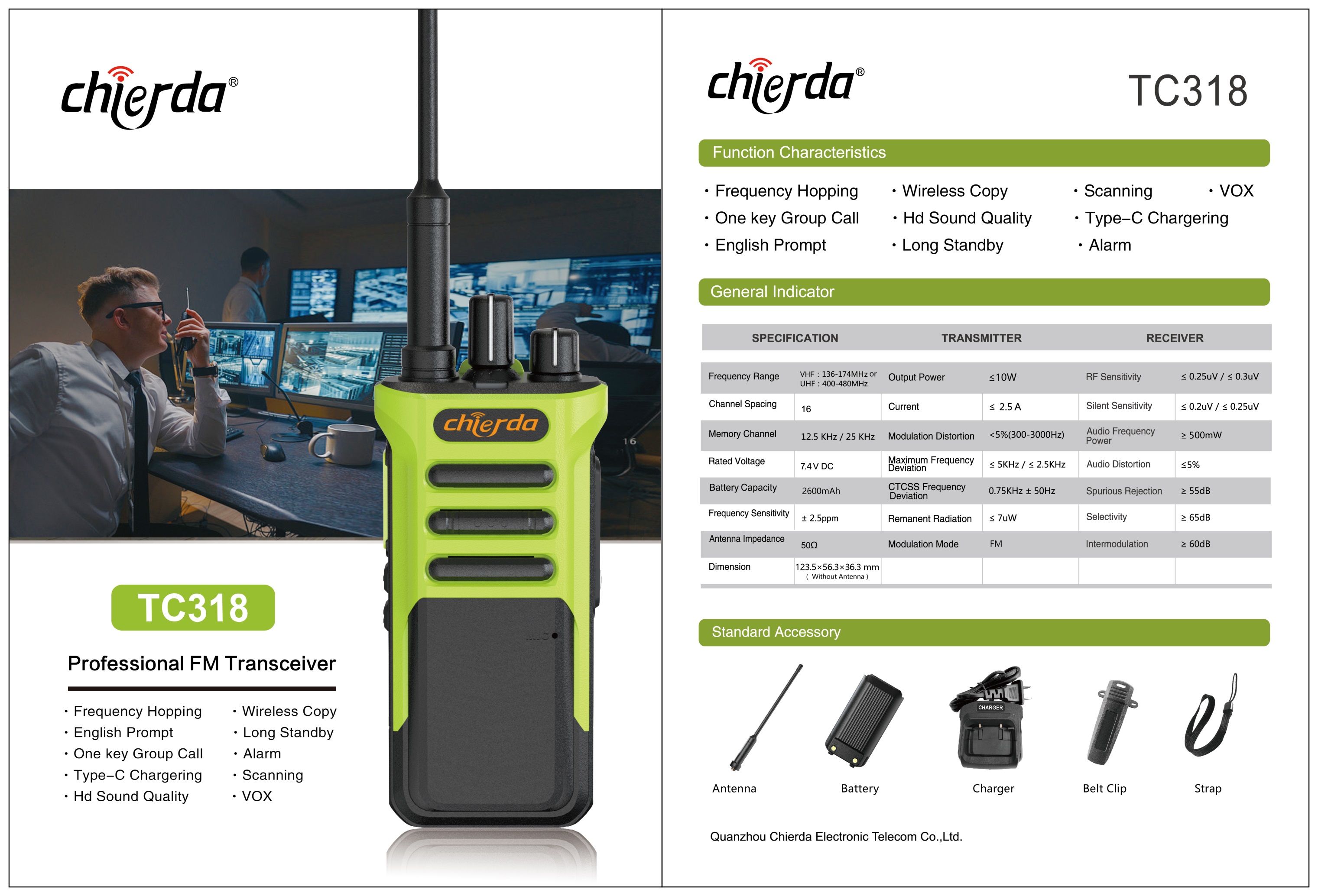

SPECIFICATION | |
Frequency Range | VHF: 136-174MHz or UHF:400-480MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2600mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 123.5x56.3x36.3mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

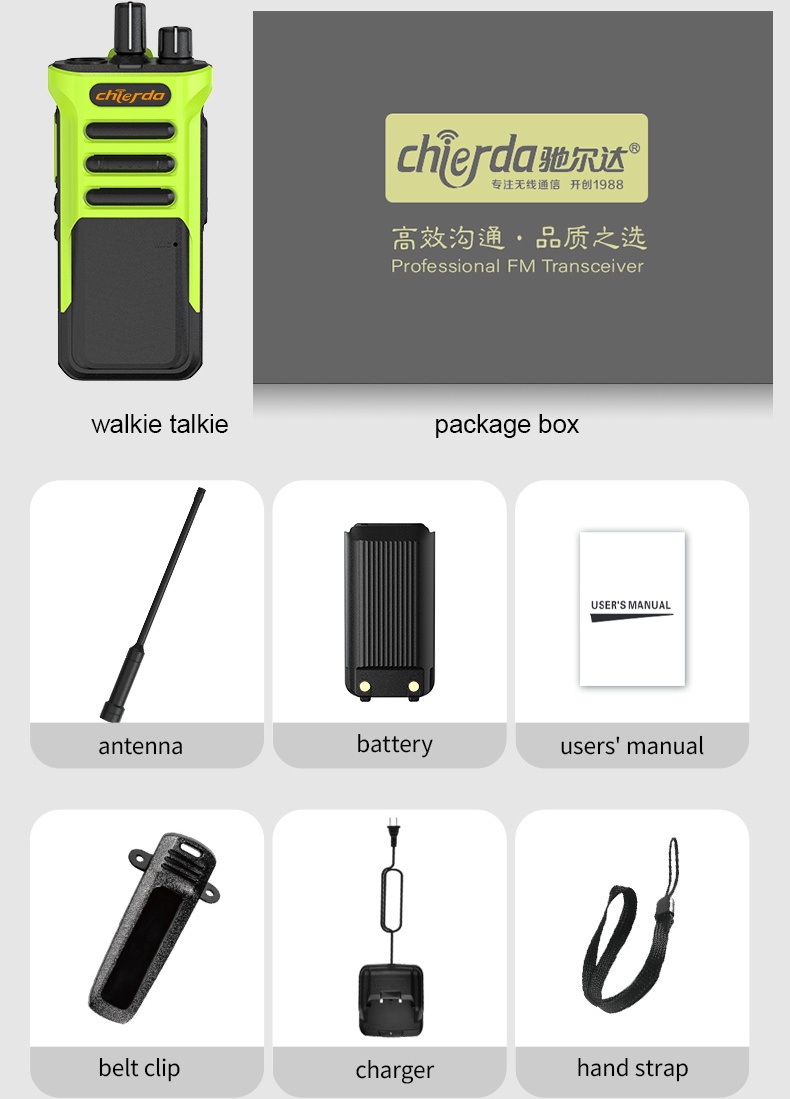

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
