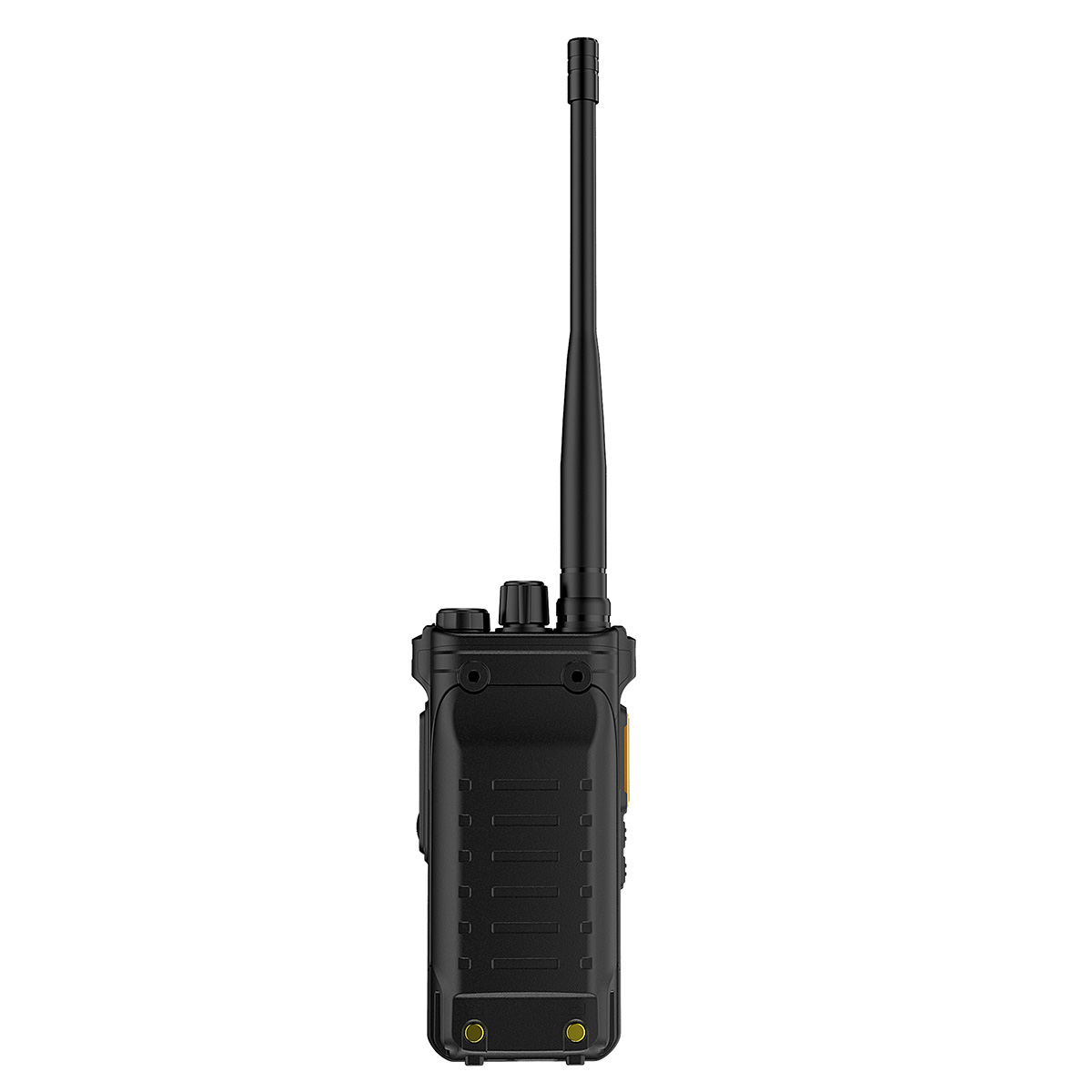

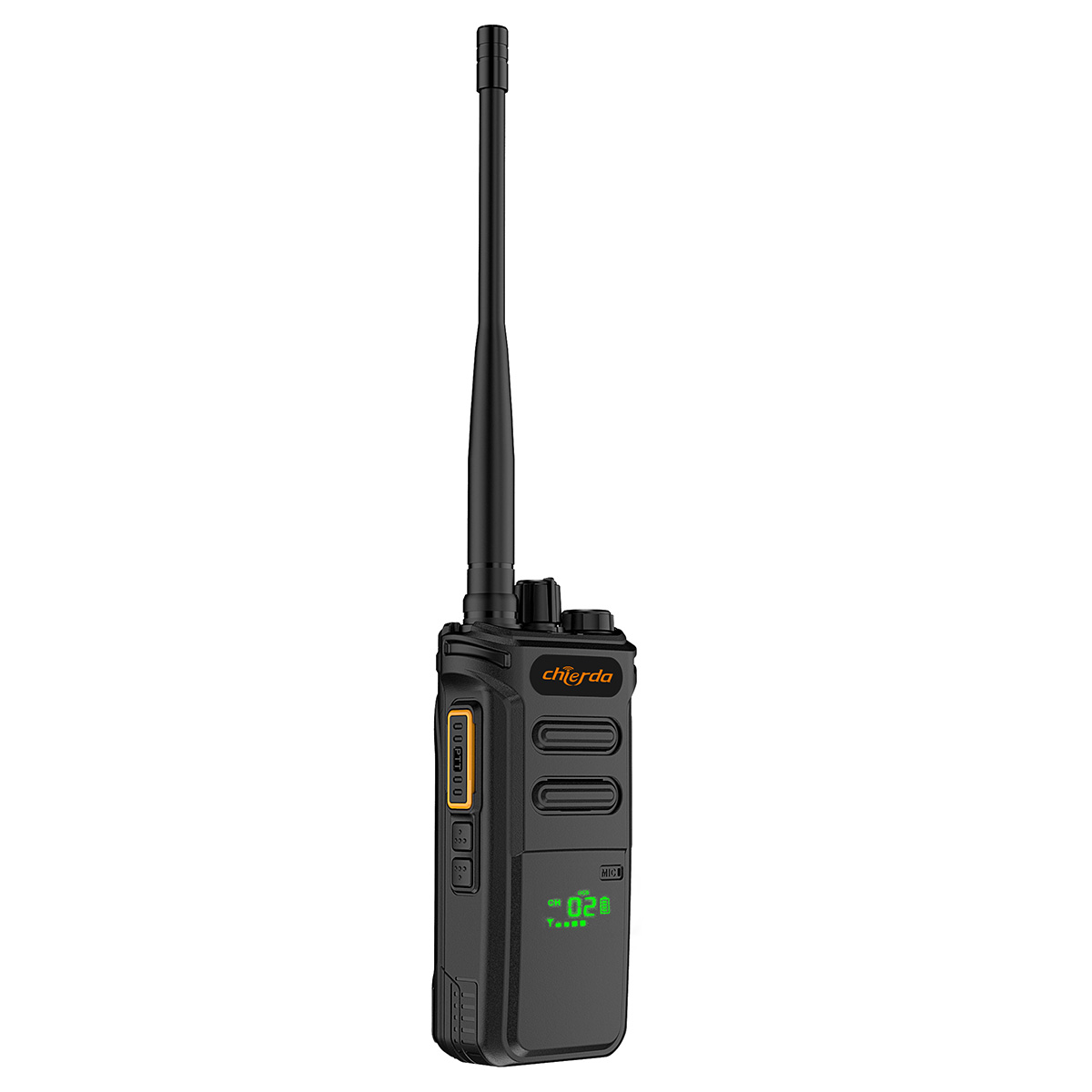

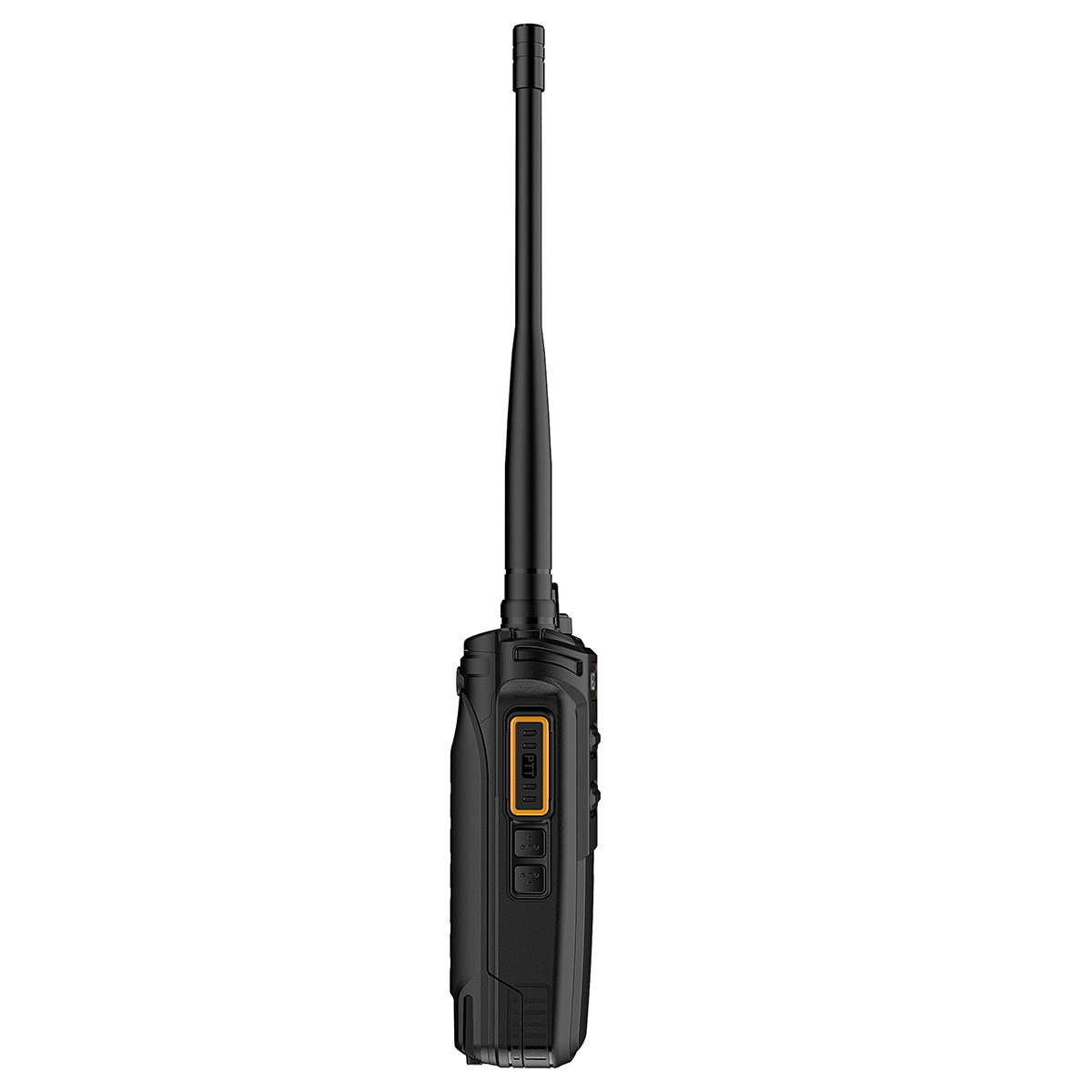

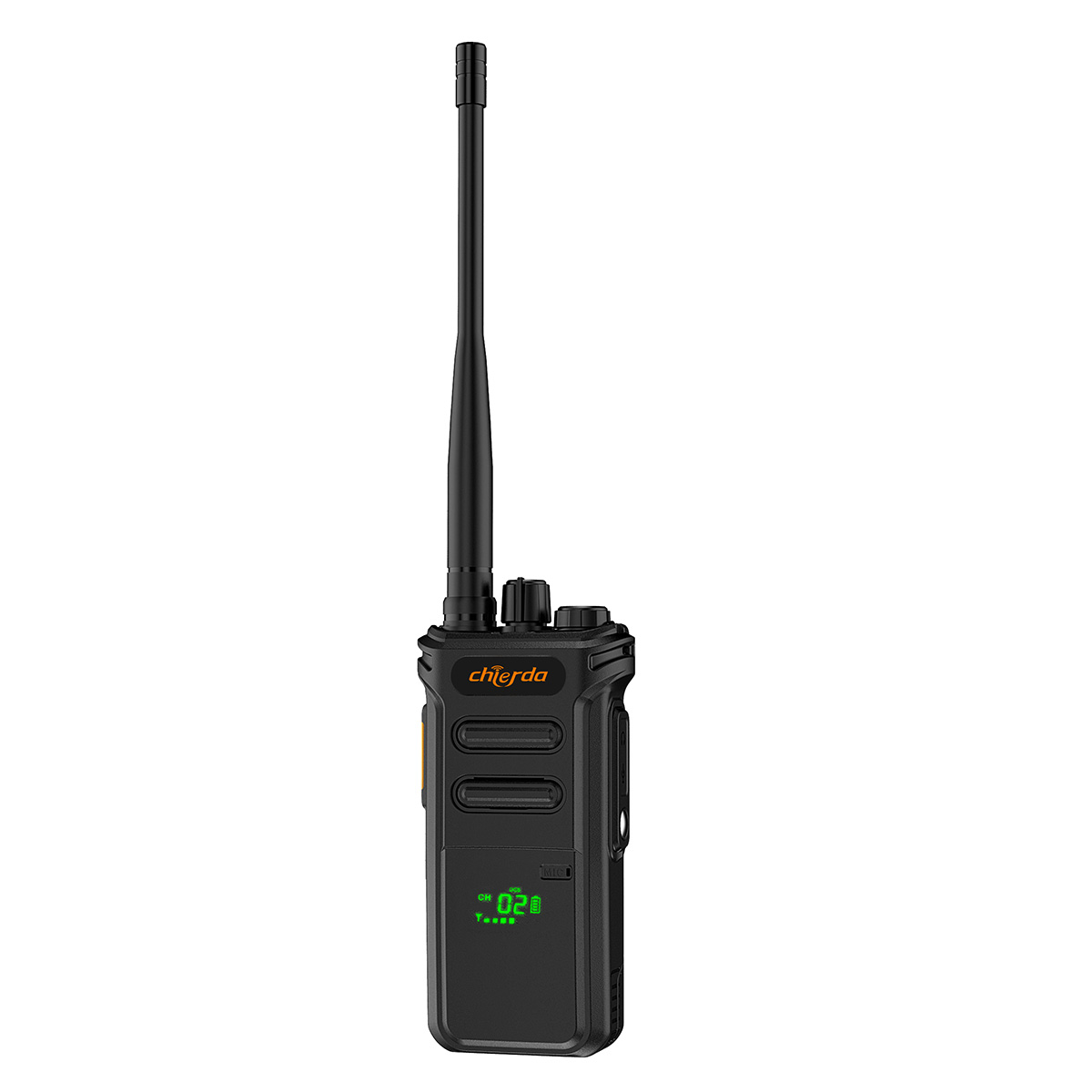

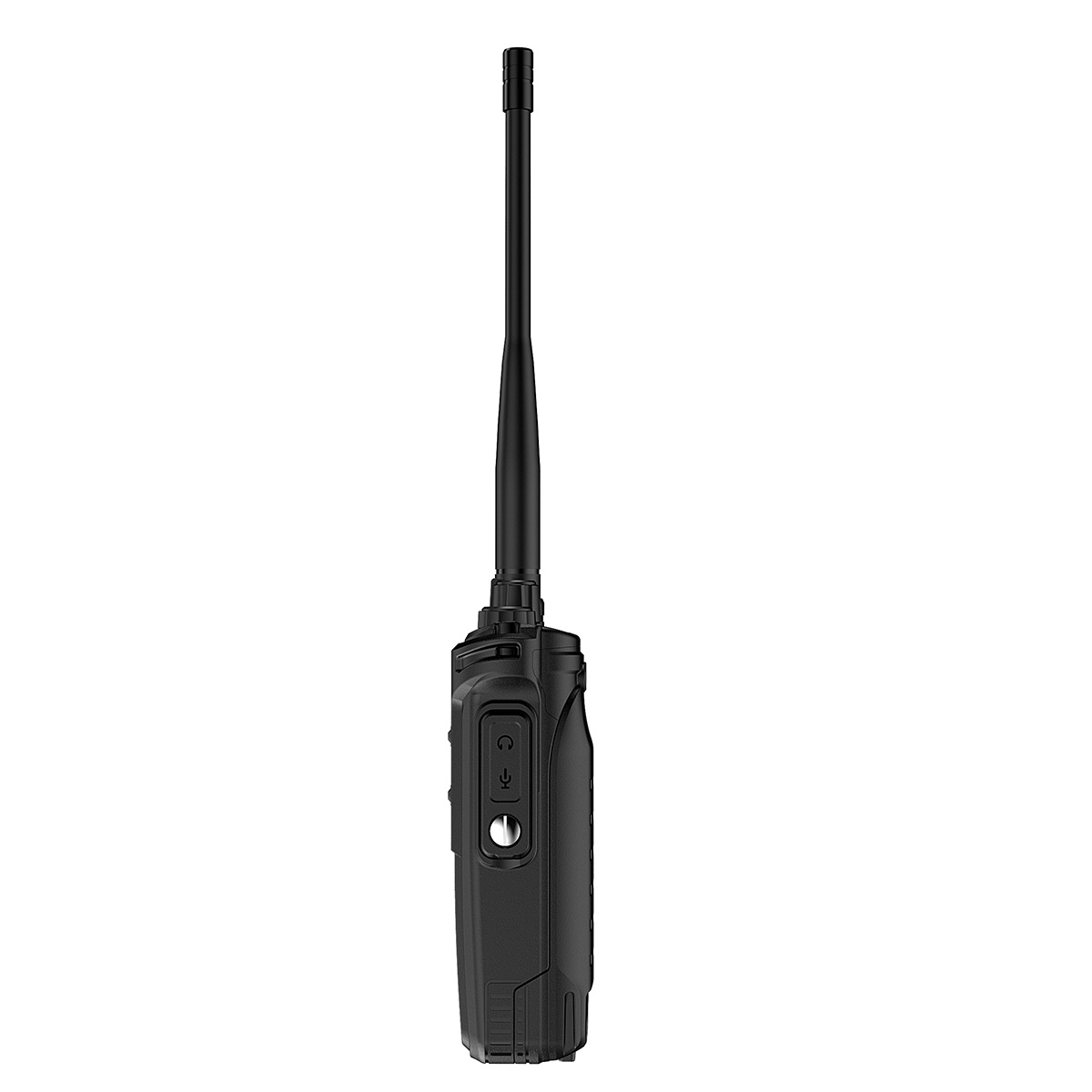

Chierda TC358Plus 10W Long Distance Hidden Display Two Way Radio
TC358Plus
1. High power, 8-12km Long Distance
2. Hidden Display
3. Long Battery Life
4. Voice Companding
5. Durable and Rugged
Chierda TC358plus walkie talkie features high power and powerful signal penetration. It is durable and rugged, shockoroof and drop-resistant. You can use it in harsh environments, such as construction sites.
Wide Coverage:
With a built-in antenna and high output power, TC358plus can cover a long range. It can reach 1-10km on ideal occasion.Hidden Display:

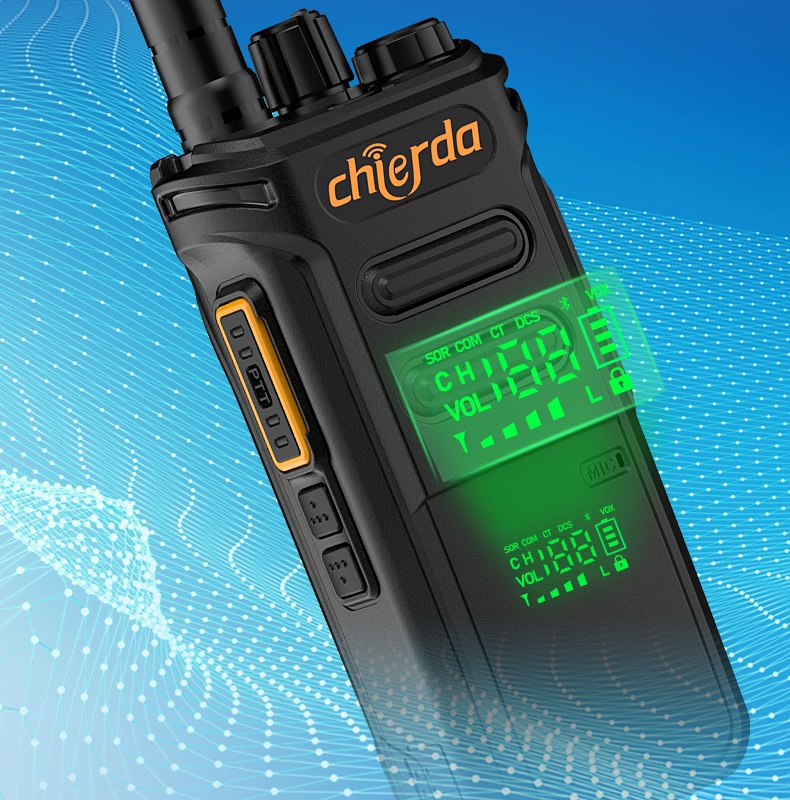

TC358plus walkie talkie is equipped with a LED hidden display. You can easily get the information of battery life, channel, and other.

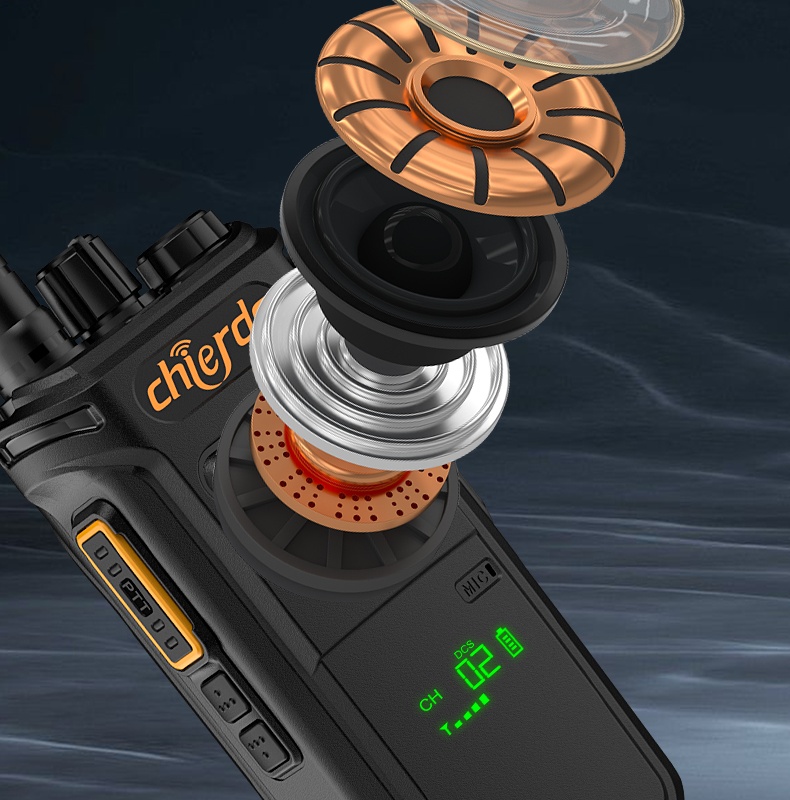

Anti-magnetic Speaker:
Anti-magnetic speaker can greatly enhance the penetration ability of TC358plus, making communication much clearer.SPECIFICATION | |
Frequency Range | 136-174MHz or 400-480MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 119x54x37mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

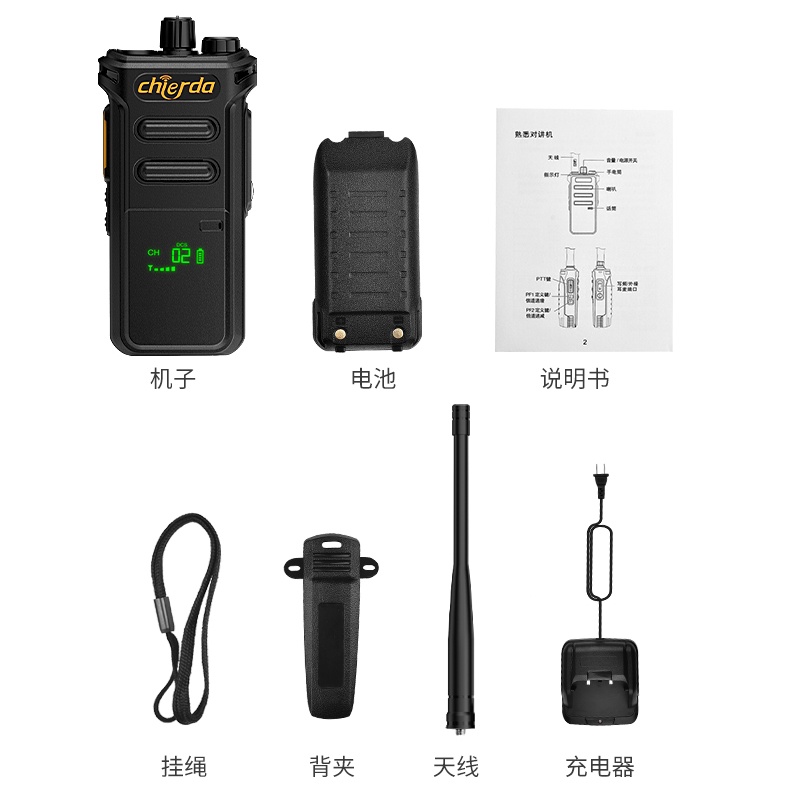

Product set
Radio*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
