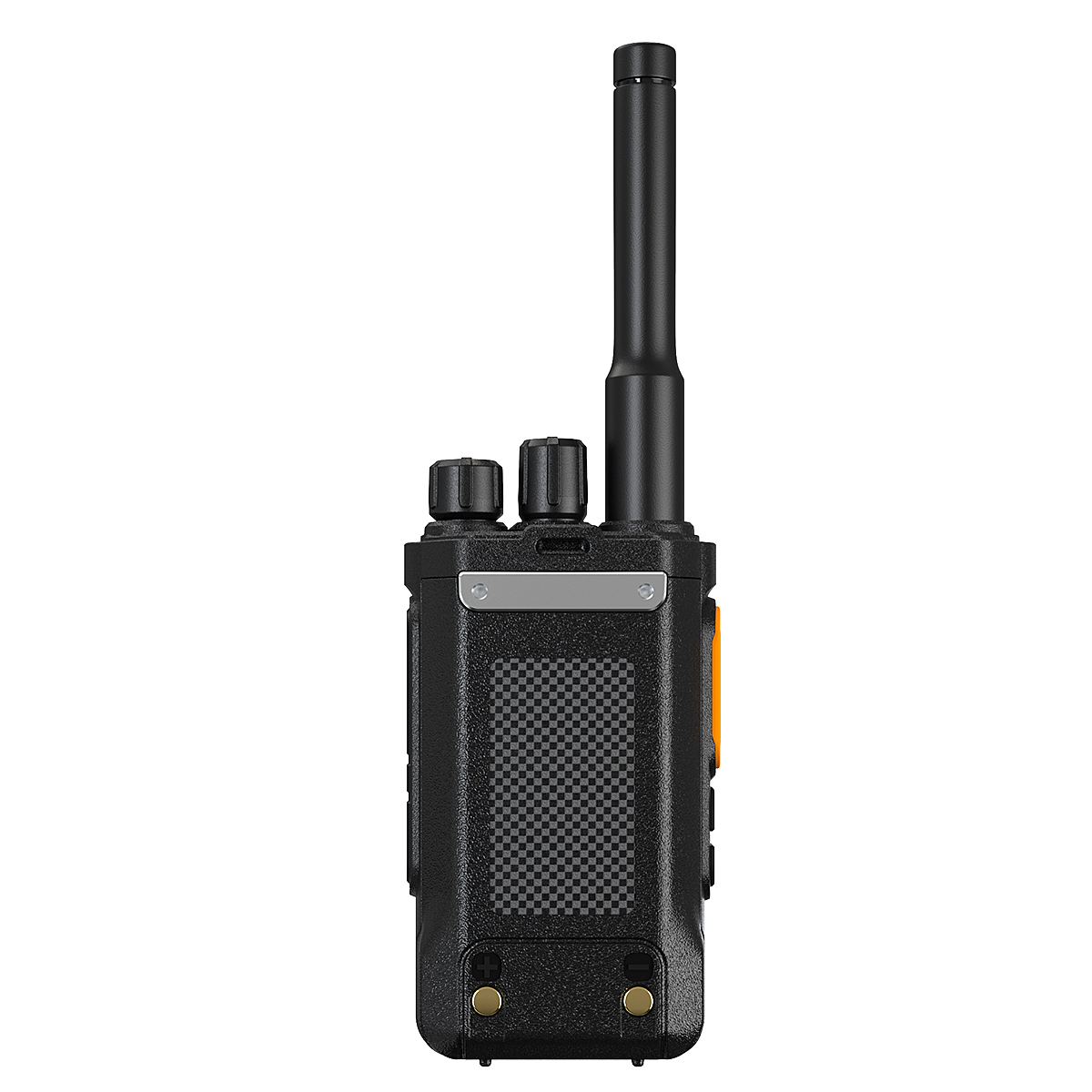

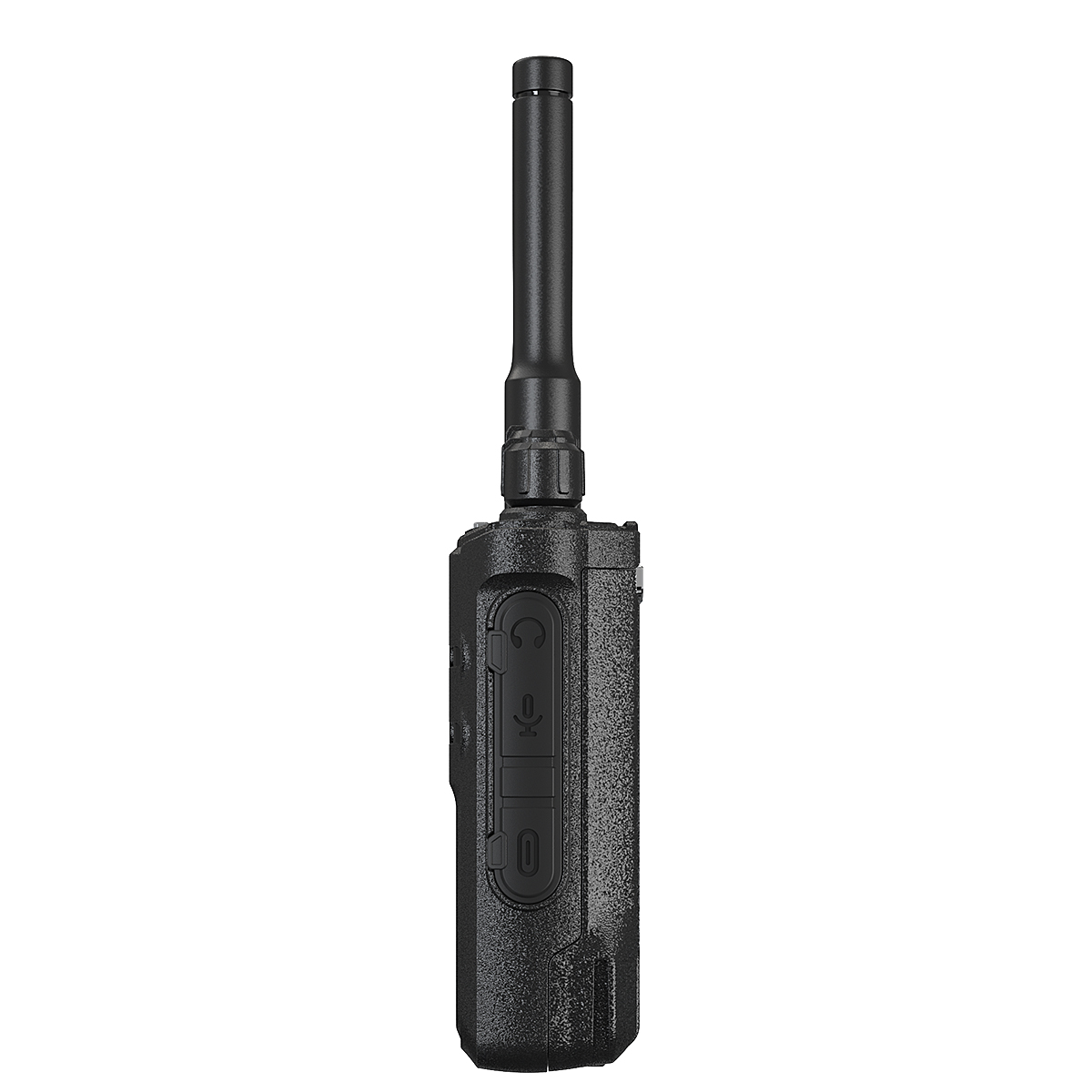

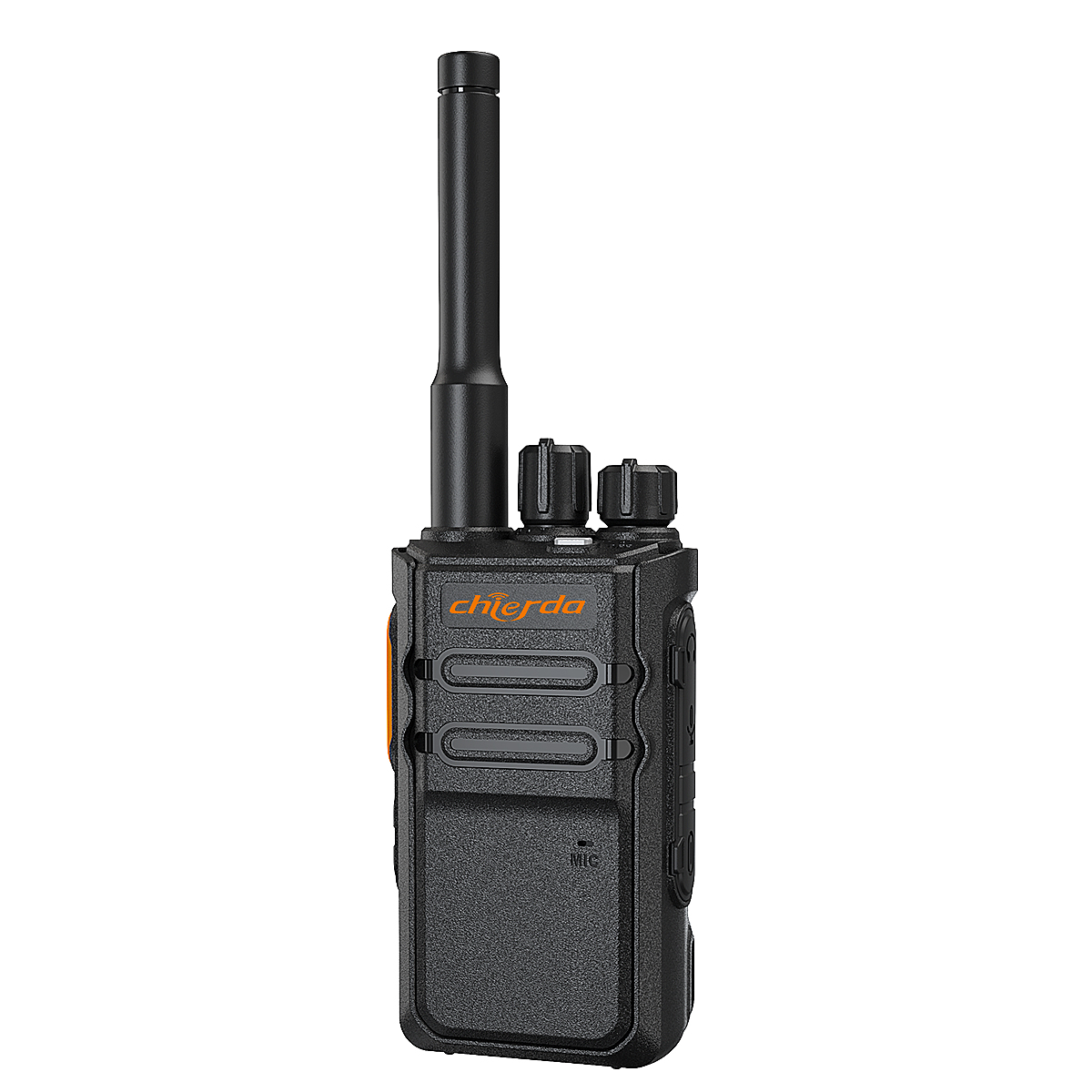

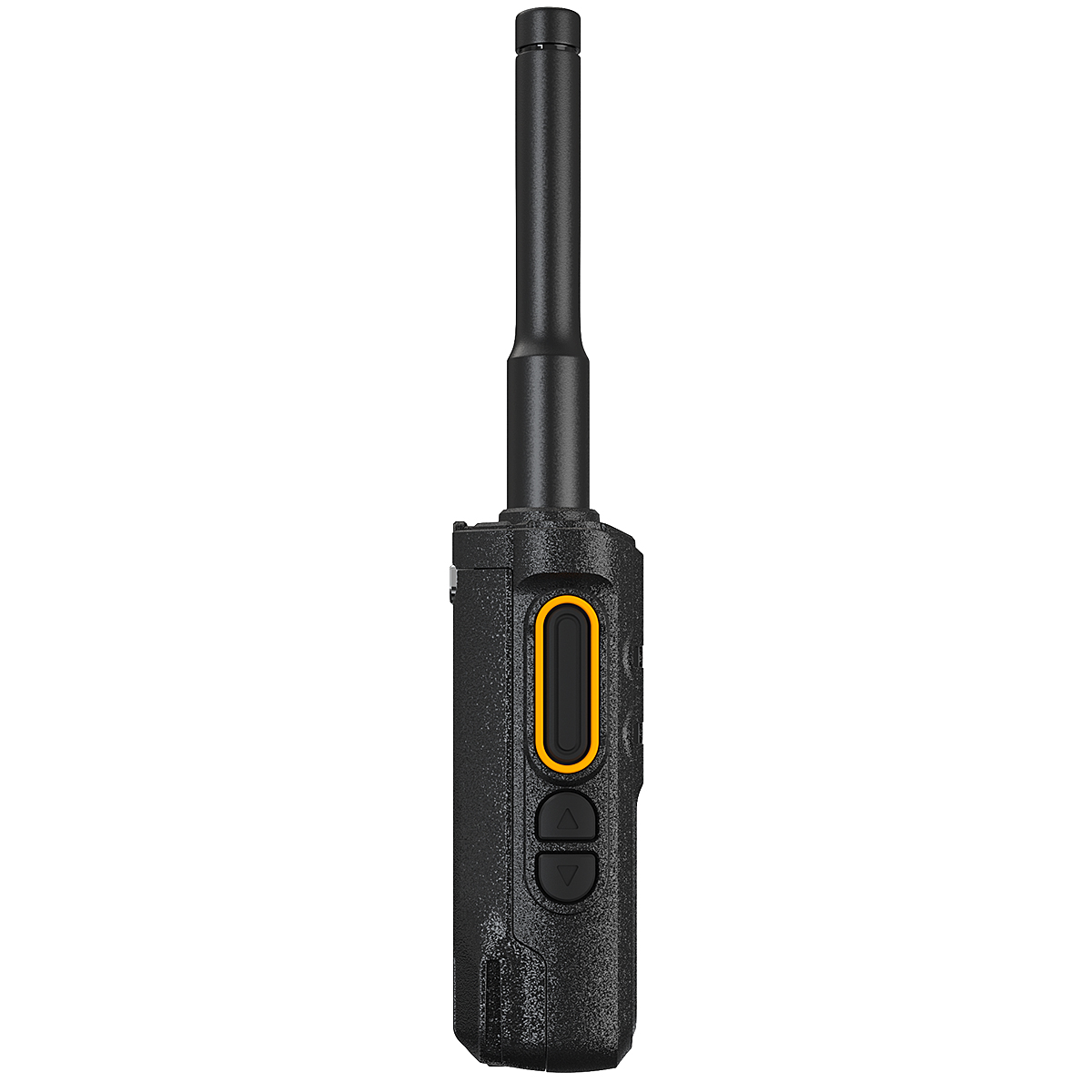

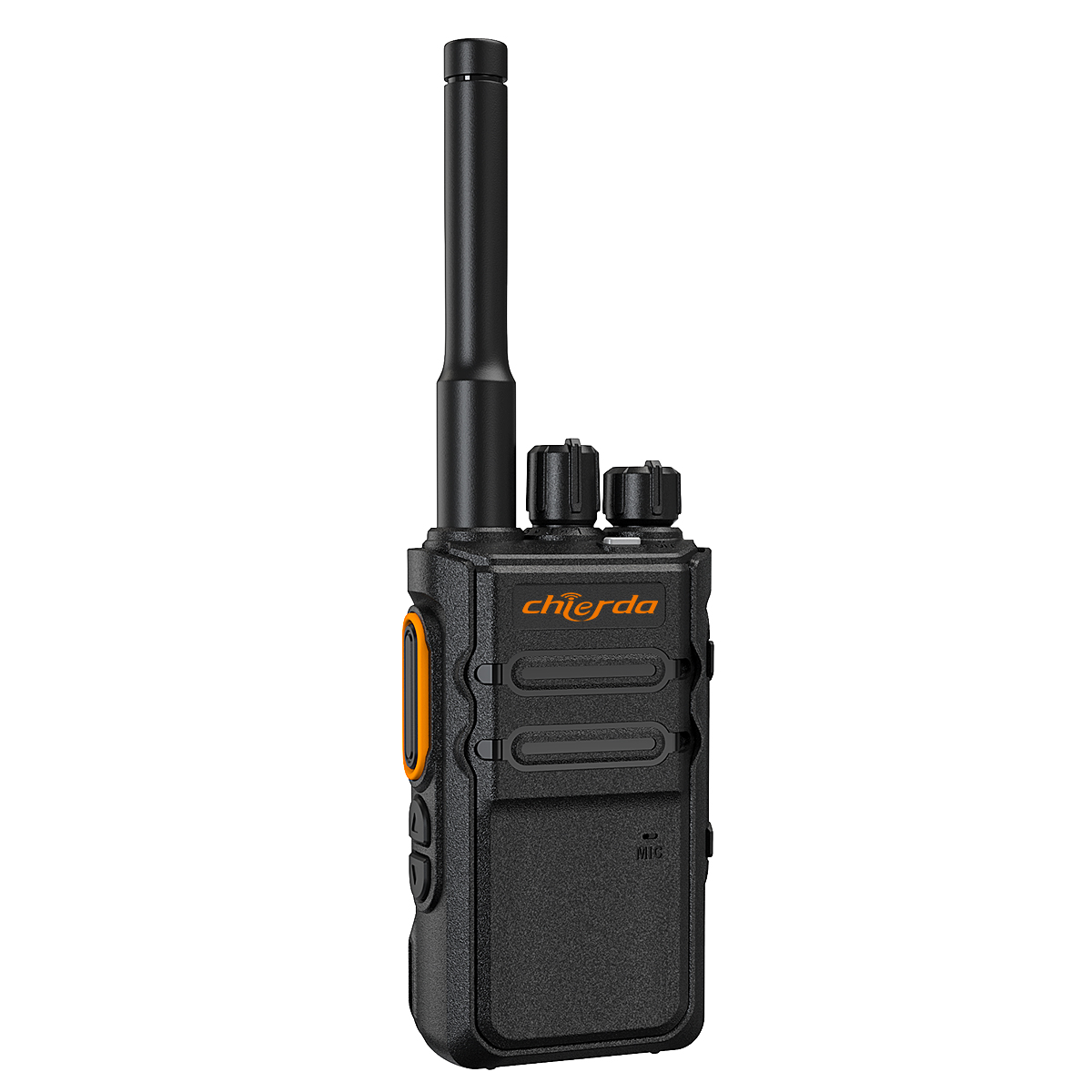

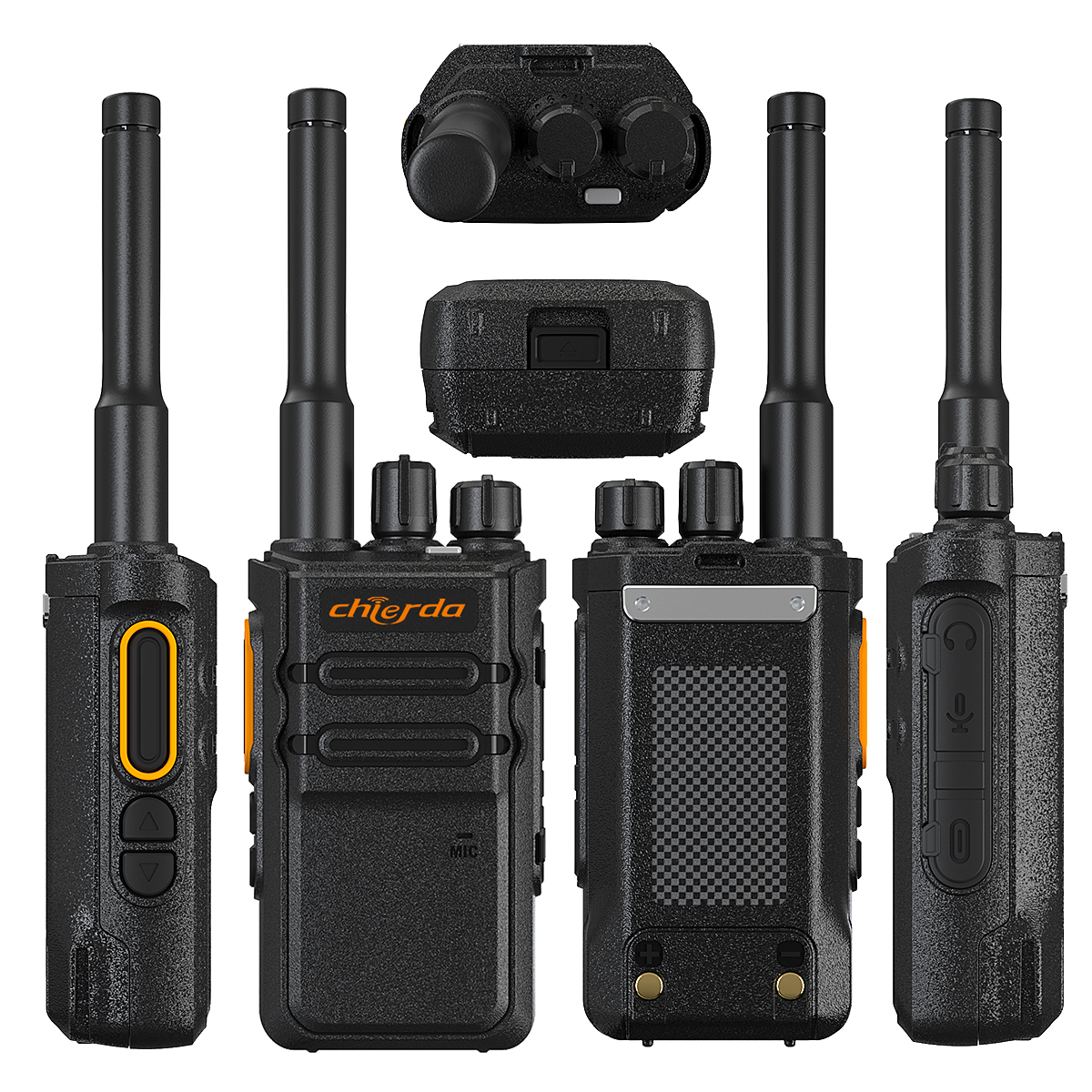

Chierda TC58 Portable Two Way Radio
TC58
1. Type-C Charging Port
2. Wireless Copy Function
3. Emergency SOS Alert
4. VOX Hands-free Function
5. Scan Function
6. Scrambler Function
Chierda TC58 walkie talkie is portable and easy to carry with. It features wirelss copy function, VOX hands-free function, and voice scrambler function. It is ideal for use in small restaurants, bars, and salons.

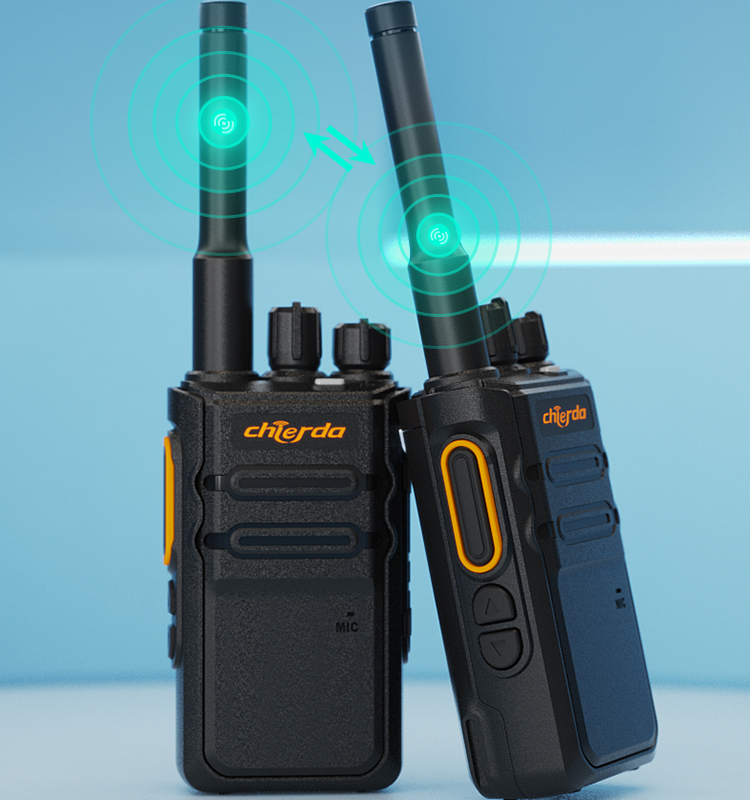

One-key Frequency Pairing:
You can pair walkie talkie's frequency by pressing one key. It is efficient and convenient.Emergency Alert:
You can send a loud emergency alert to your partners when long pressing one button.
VOX Hands-free Function:
TC58 has VOX hands-free function. After activating this function, the walkie talkie will transmit your voice message without pressing PTT key.SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 96x52x33mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

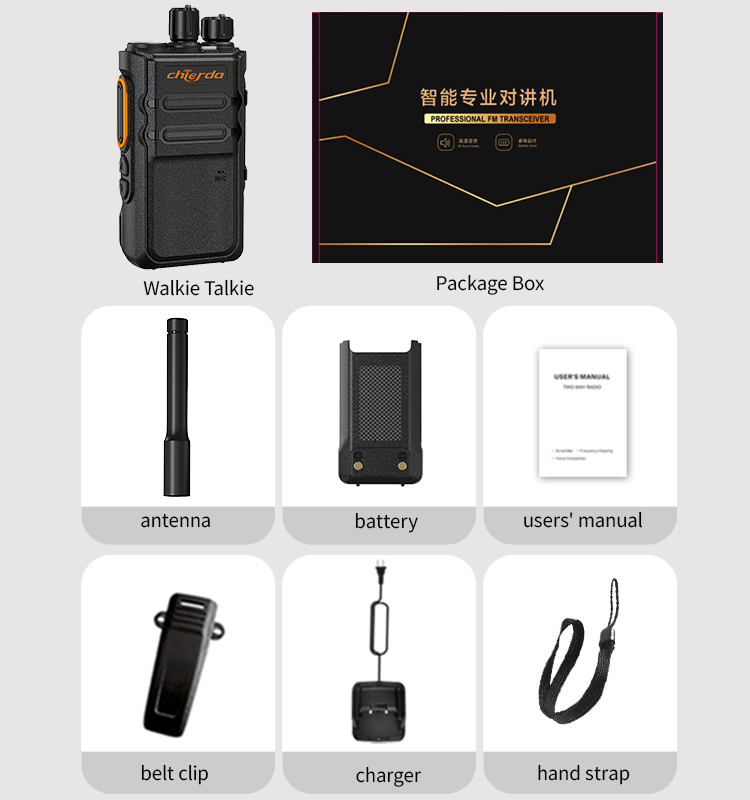

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
