Chierda TC68 Compact Two Way Radio
TC68
1. Type-C Charging Port
2. Wireless Copy Function
3. Emergency SOS Alert
4. VOX Hands-free Function
5. Scan Function
6. Scrambler Function
7. Frequency Hopping

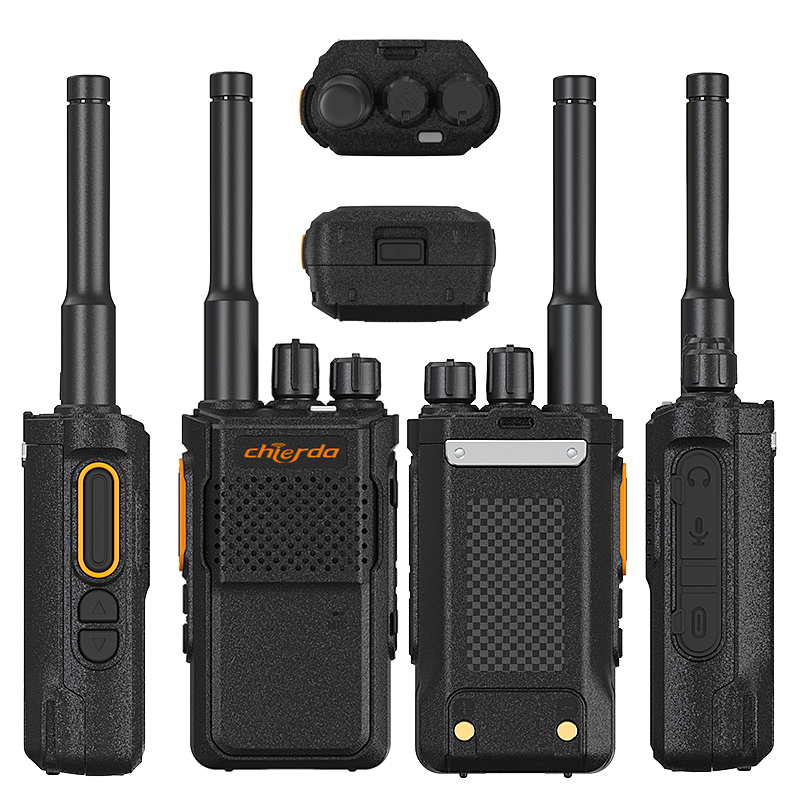

Chierda TC68 walkie talkie is compact and portable. Ergonomically designed buttons make it easy to operate. The durable and robust housing withstand every situation and work. It is ideal for use in retail stores, restaurants, bars.
One-key Frequency Pairing:
You can pair walkie talkie's frequency by pressing one key. It is efficient and convenient.Emergency Alert:
You can send a loud emergency alert to your partners when long pressing one button.
VOX Hands-free Function:
TC68 has VOX hands-free function. After activating this function, the walkie talkie will transmit your voice message without pressing PTT key.Type-C Charging
TC68 walkie talkie adpots type-c charging port, which is convenient. It is equipped with a 1000mAh rechargeable battery. It can outlast 10 hours for working.
SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 96x52x33mm |
TRANSMITTER | |
Output Power | 2W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

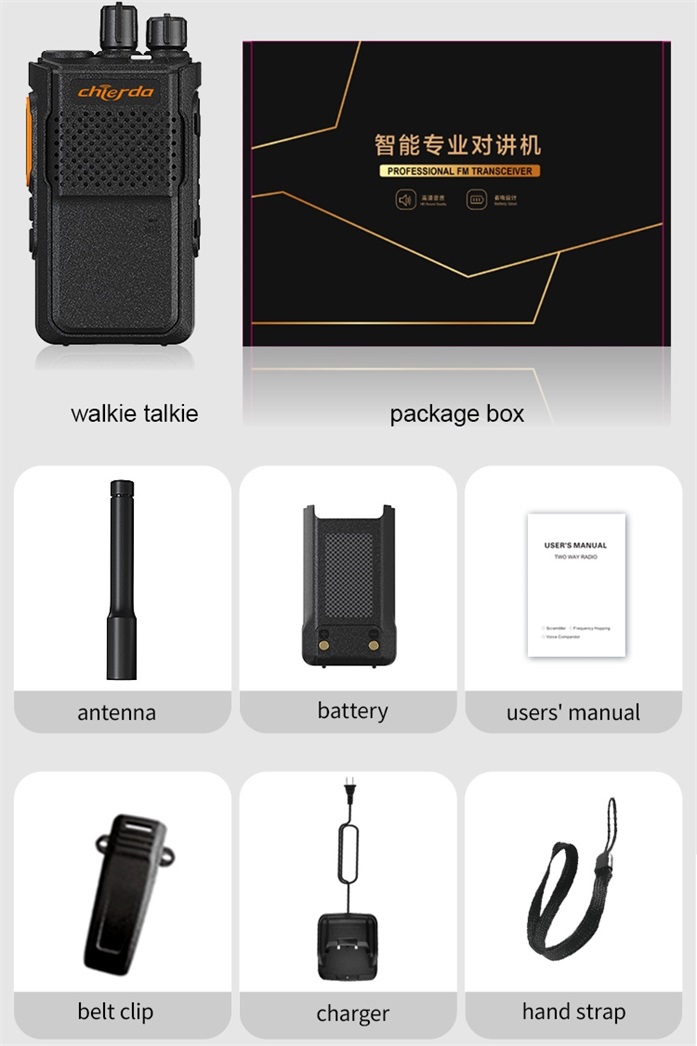

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
