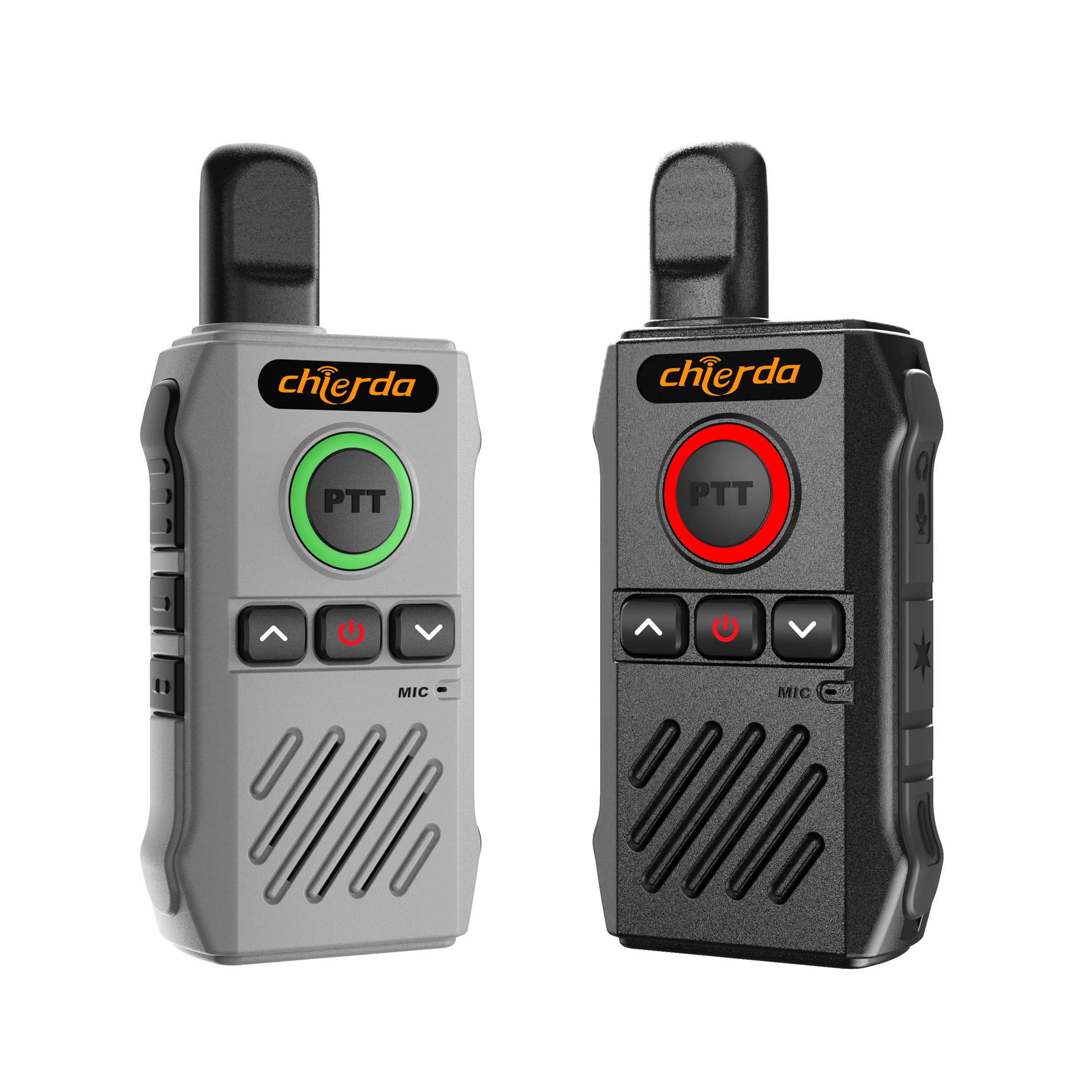

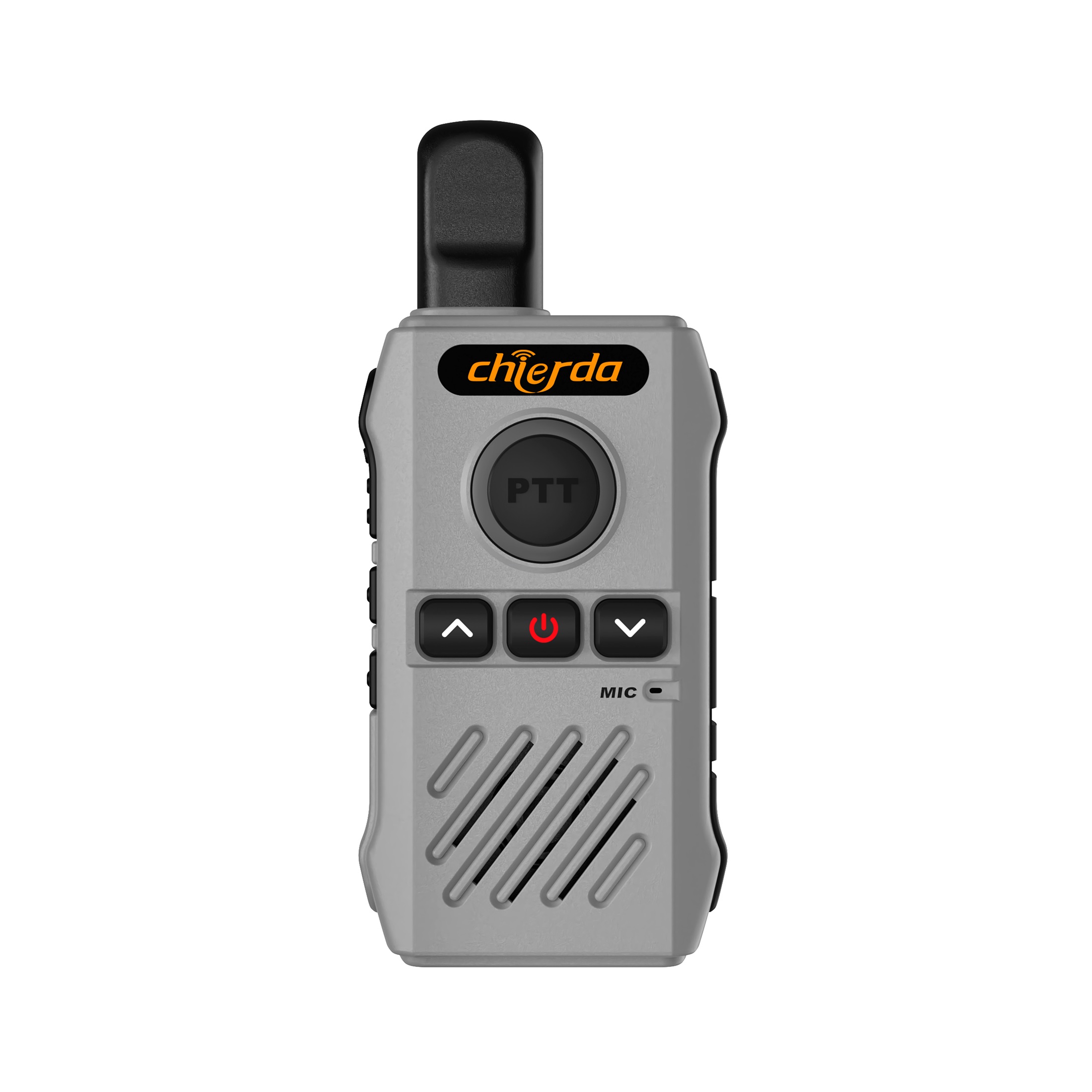

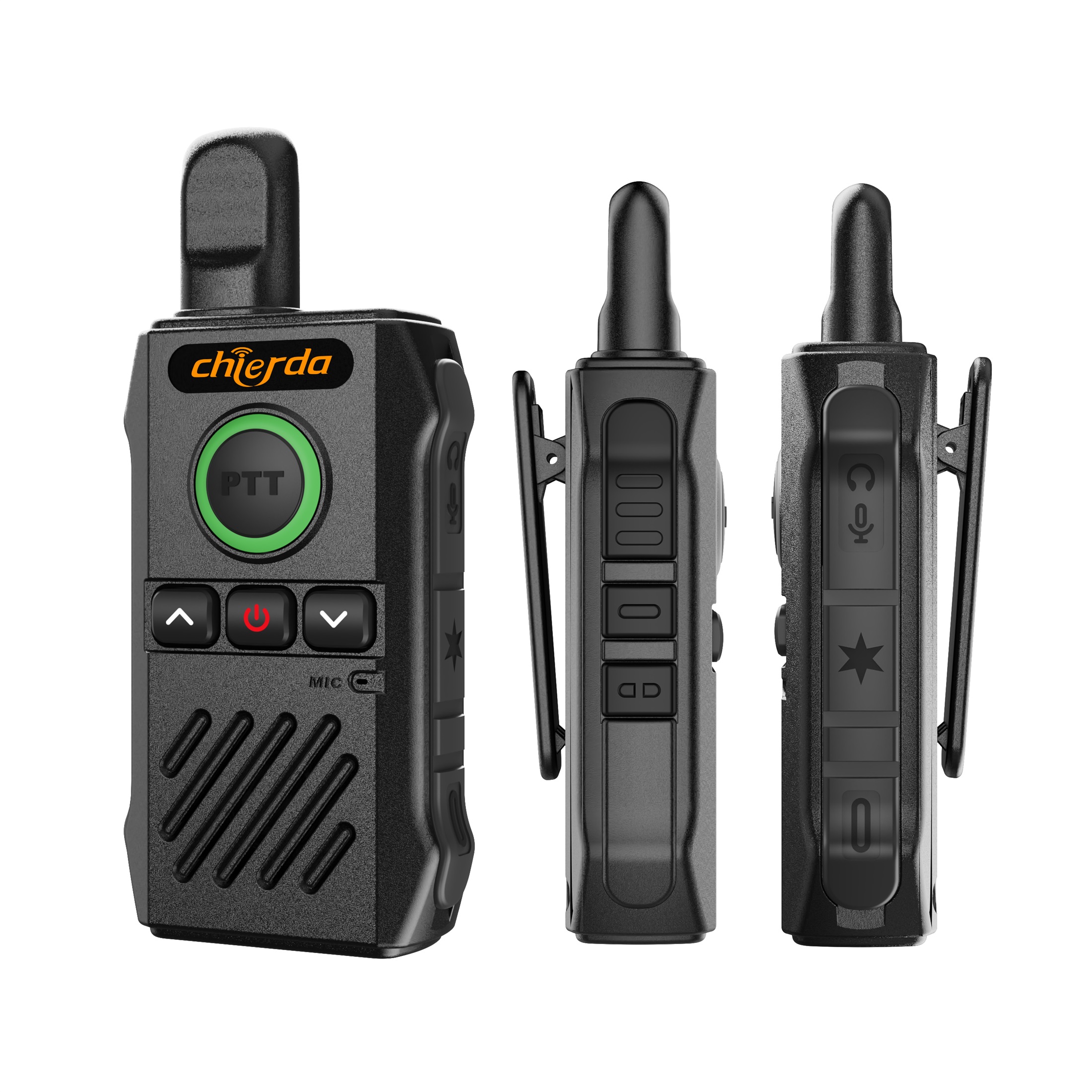

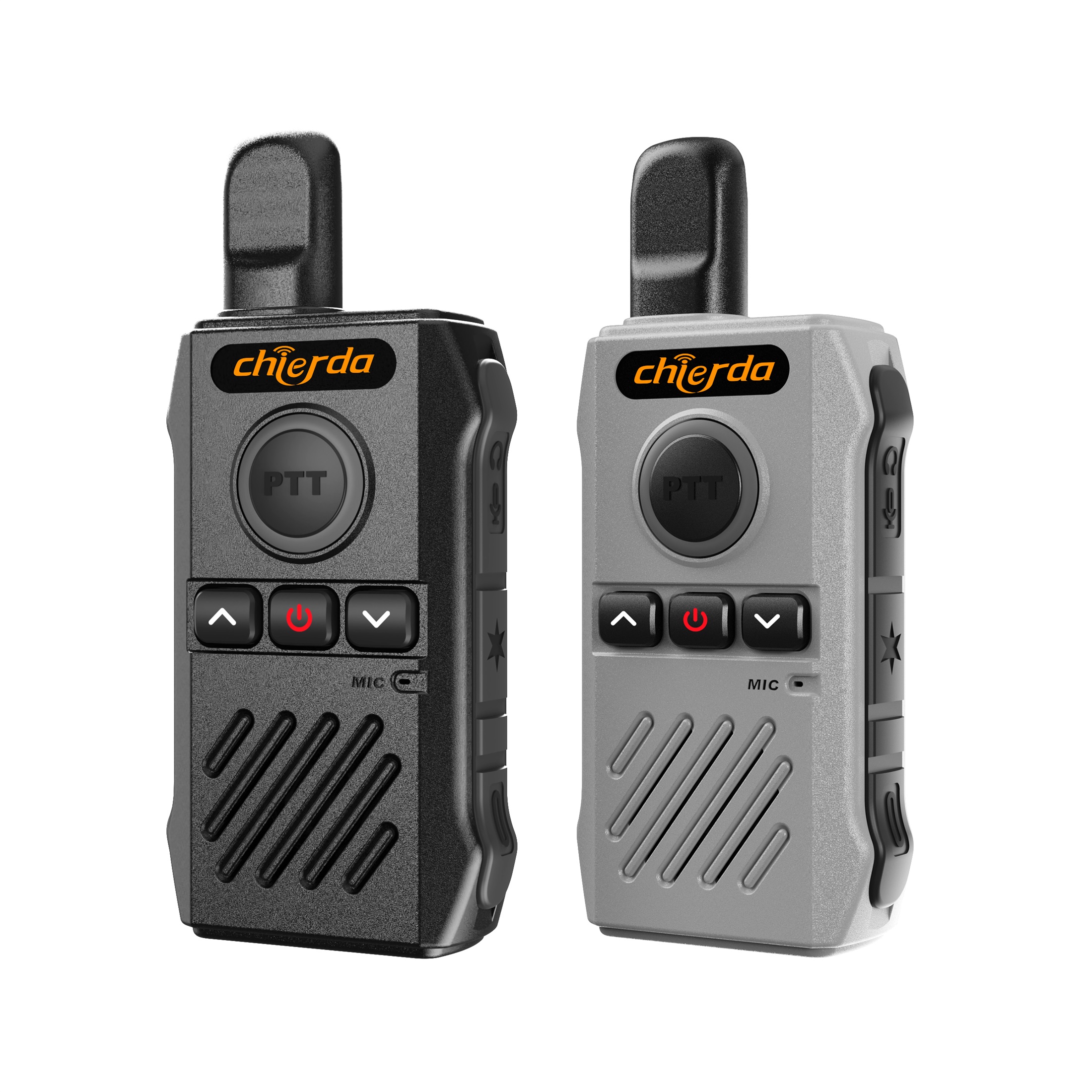

Chierda TCM1 Dual PTT Lightweight Two-way Radio
Chierda TCM1 Dual PTT Lightweight Two-way Radio
Chierda TCM1 Dual PTT Lightweight Two-way Radio Chierda TCM1 Dual PTT Lightweight Two-way Radio Chierda TCM1 Dual PTT Lightweight Two-way Radio Chierda TCM1 Dual PTT Lightweight Two-way Radio Chierda TCM1 Dual PTT Lightweight Two-way Radio

Chierda TCM1 Dual PTT Lightweight Two-way Radio

TCM1

1. Double PTT Operation

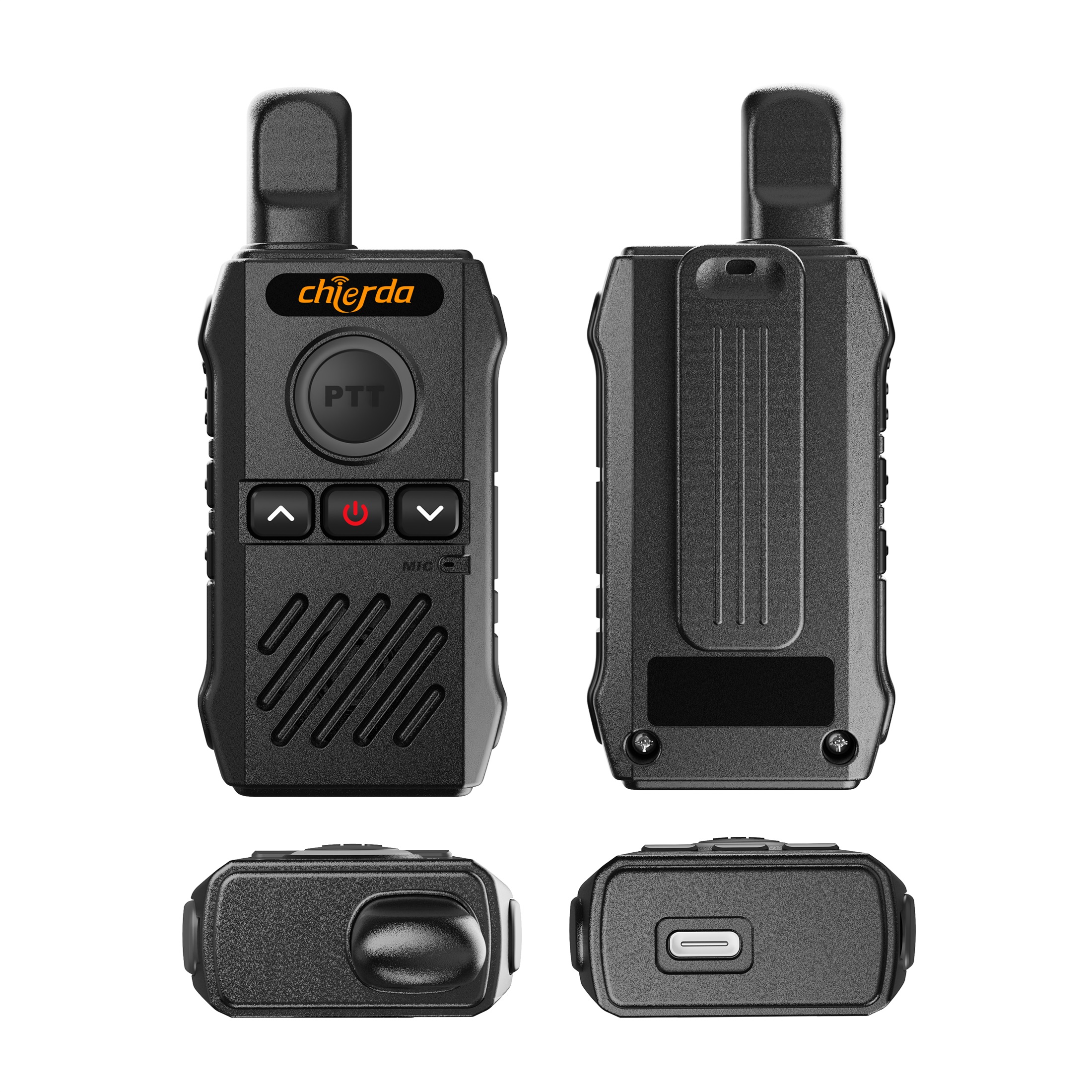

2. Compact and Ultrathin body

3. Support Type-C Charging

4. Circle Breath Indicator

5. One-key Channel Copy Function

6. One-key Frequency Pairing


Features

Chierda TCM1 Lightweight Two-way Radio features two PTT buttons and ultrathin body. The compact body makes it easy to carry with. It is ideal for use in service industries, such as retail, restuarants, hotels.

Features

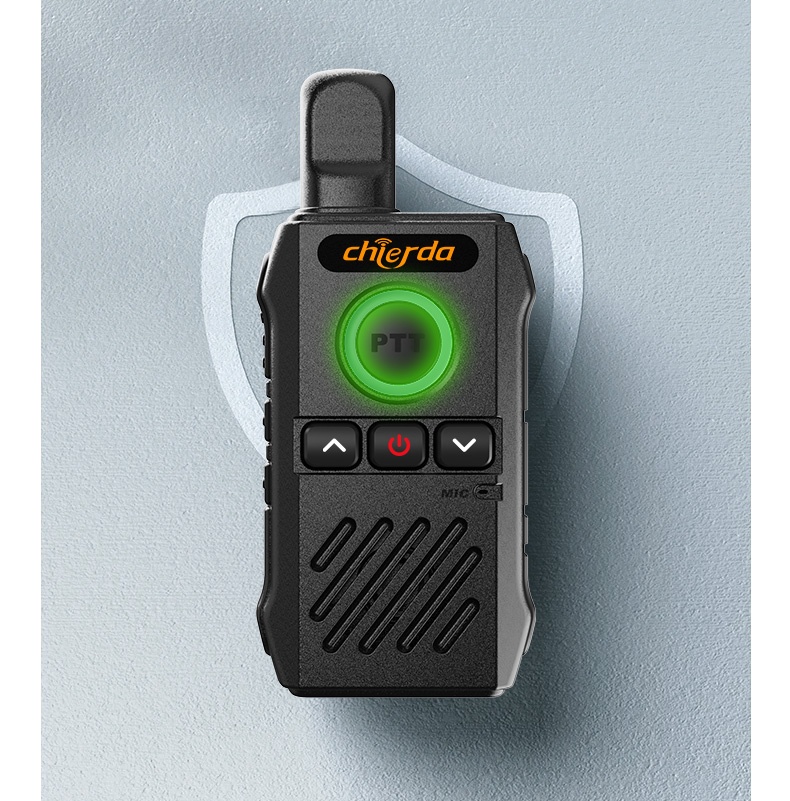

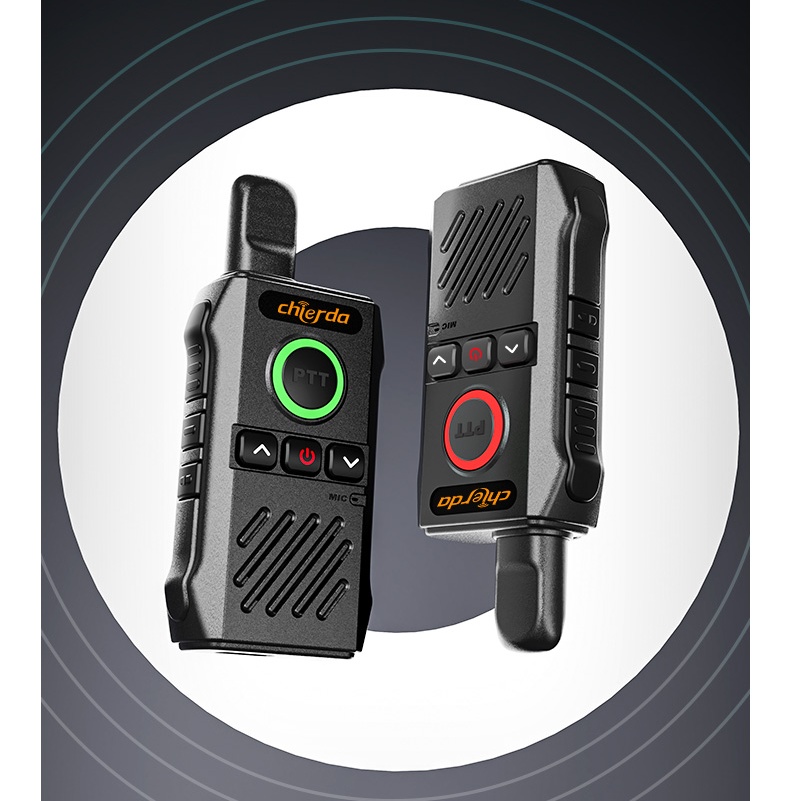

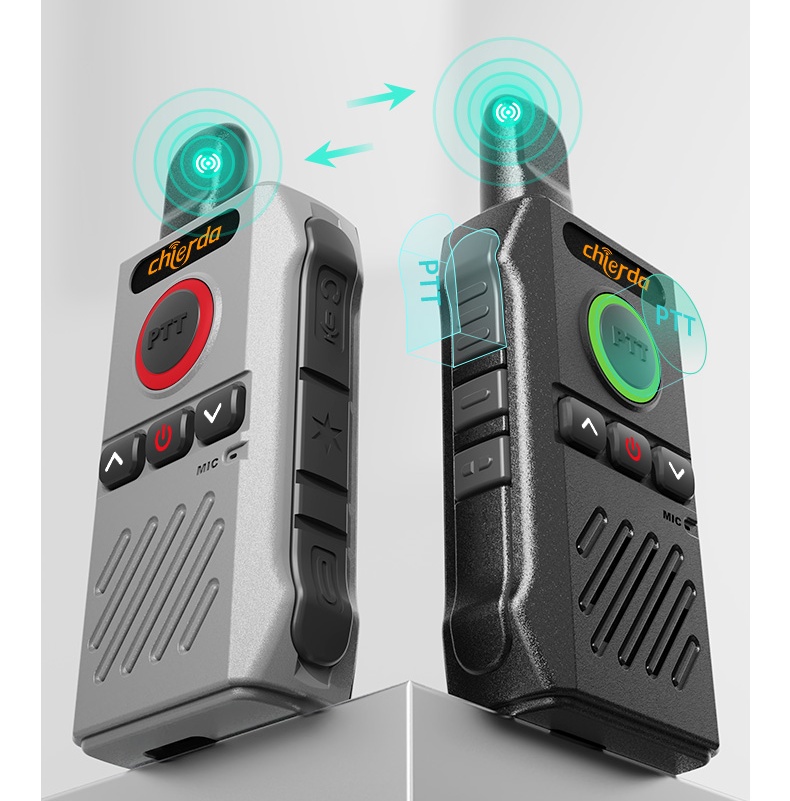

Dual PTT:

Unique double PTT design on TCM1 radio makes it easy to operate. In addition, TCM118 adopts a fashion design of circle breath indicator. Users can identify the working status easily. When it transmit signals, the indicator goes red.

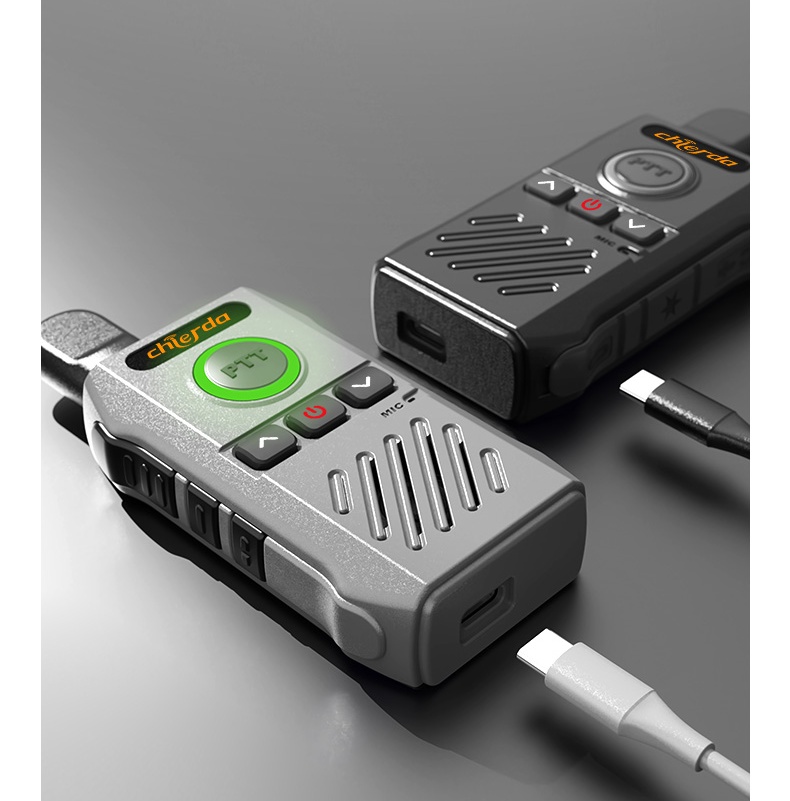

Dual Type-C Charging Ports:

TCM1 radio is equipped with two Type-C charging ports, which allows for versatile charging ways.
Features
Features

High Performance:

TCM1 has better code-breaking ability to effectively protect privacy and security of your talks.

One-key Frequency Copy:

Having trouble in pairing frequency with your teammates? Just pressing one key, you can quickly pair the same frequency and copy channels from your teammates' walkie talkies.
Features
Specification

SPECIFICATION

Frequency Range

400-480MHz

Channel Spacing

16

Memory Channel

 12.5 KHz/ 25 KHz

Rated Voltage

3.7V DC

Battery Capacity

1000mAh

Frequency Sensitivity

±2.5ppm

Antenna Impedance

50Ω

Dimension

81x44x21 mm
(without antenna)

TRANSMITTER

Output Power

≤5W

Current

≤1.3A

Modulation Distortion

<5%(300-3000Hz)

Maximum Frequency
Deviation

≤ 5KHz/ ≤ 2.5KHz

CTCSS Frequency
Deviation

0.75KHz± 50Hz

Remanent Radiation

≤ 7uW

Modulation Mode

FM

Remanent Modulation

≤-35dB

RECEIVER

RF Sensitivity

≤ 0.25uV/≤ 0.3uV

Silent Sensitivity

≤0.2uV/≤ 0.25uV

Audio Frequency Power

≥300mW

Audio Distortion

≤5%

Modulation Receiver
Bandwidth

± 7KHz

Spurious Rejection

≥55dB

Selectivity

≥65dB

Intermodulation

≥60dB

Whats in the Box
whats in the Box

Product set

Radio*1

Battery*1

Belt clip*1

Charger*1

Strap*1

User's manual*1


Resources

TCM1

TCM1

DownLoad

Firmware/Software

1.TCM1

The WIN11 driver is compatible with the WIN10,WIN8,and WIN7 operating systems
