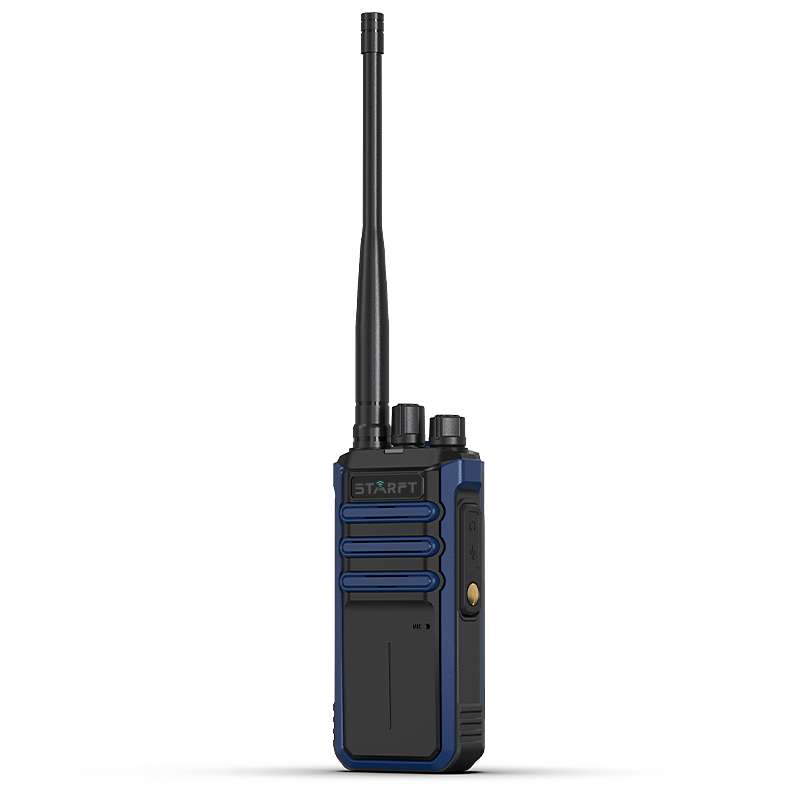

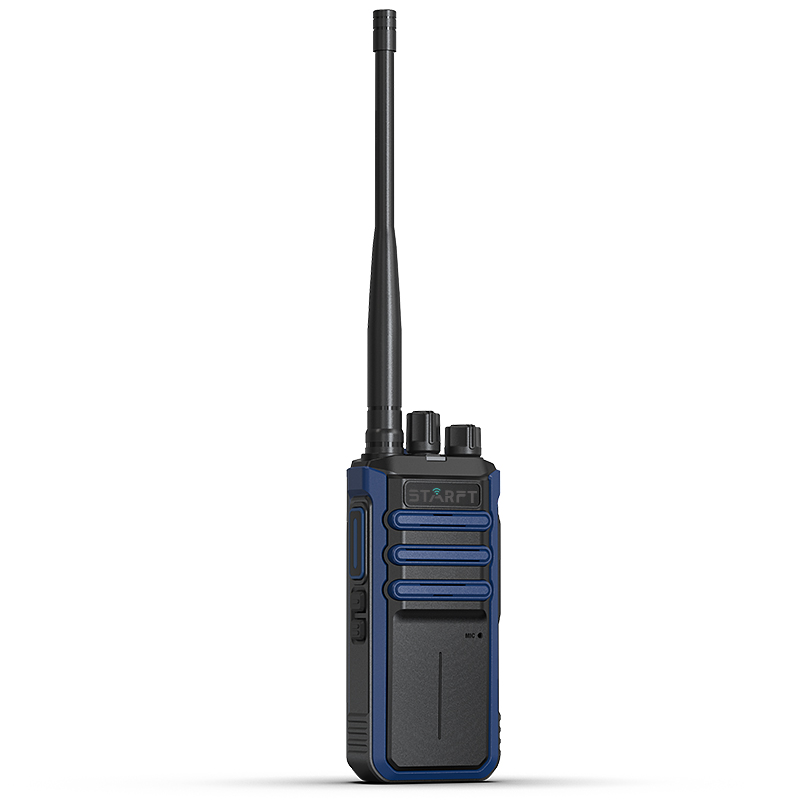

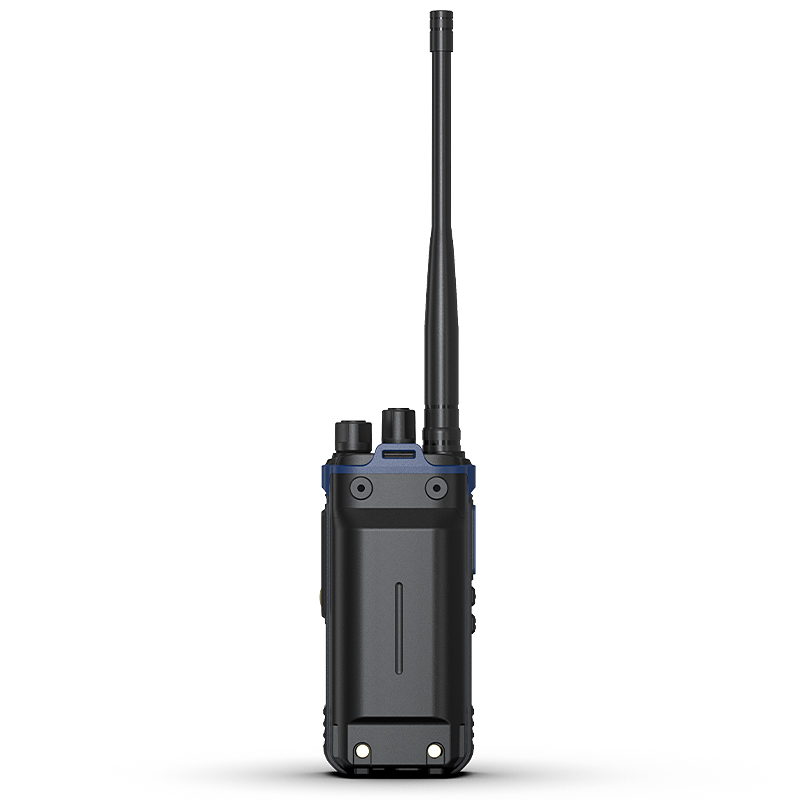

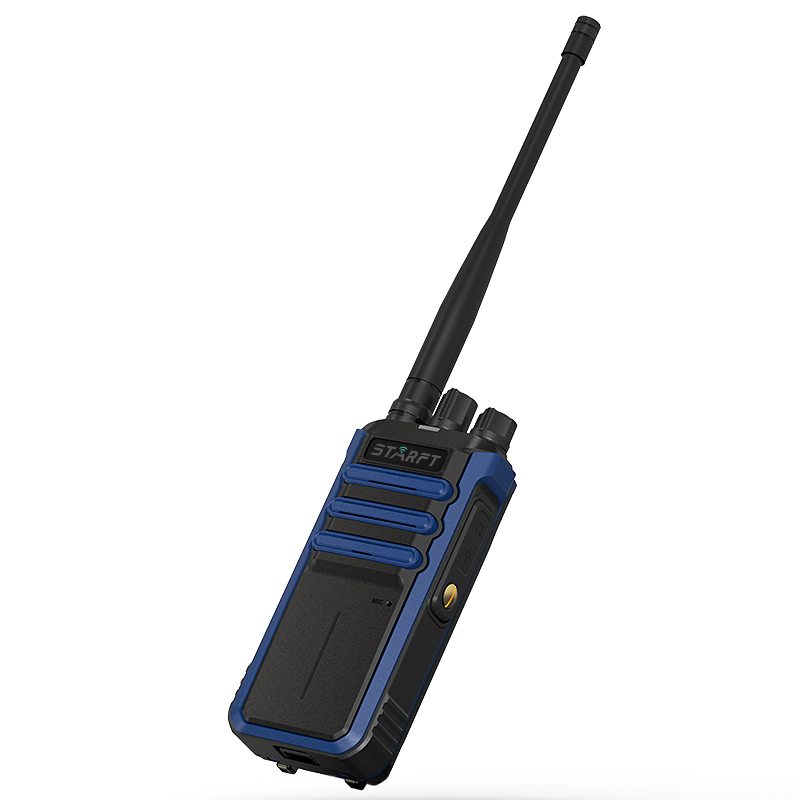

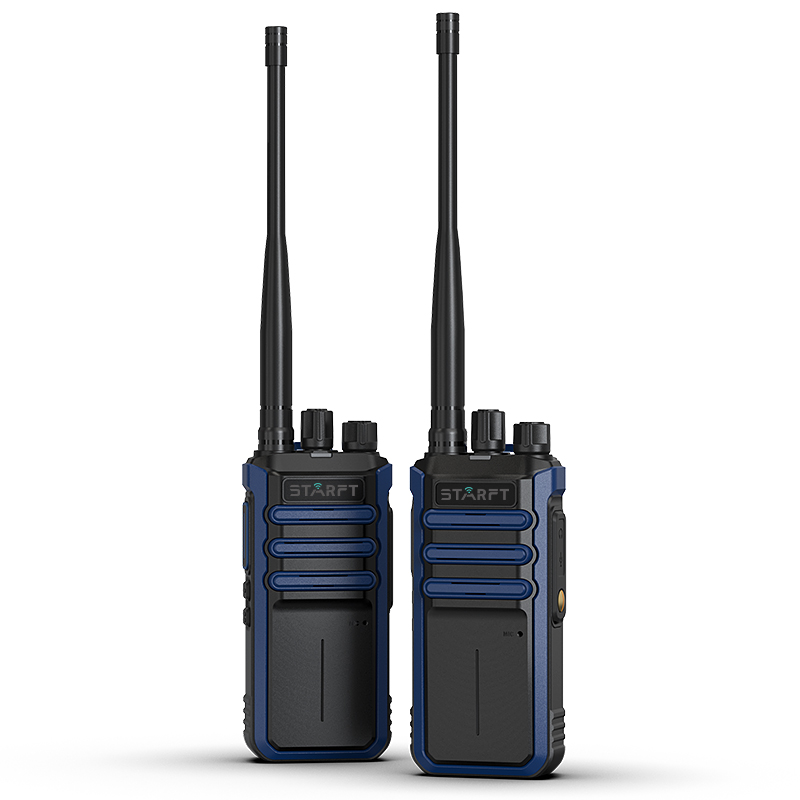

STARFT XA30 Rugged Two Way Radio
XA30
1. Rugged Construction
2. One-key Group Call
3. Wireless Copy
4. Long Battery Life
5. VOX Hands-free Function
6. Emergency Alert Function
7. Type-C Charging
STARFT XA30 walkie talkie features 10 watt high output power to reach a wide coverage. The housing is made of ABS material, which is durable. It can withstand abrasion and drops when use.
One-key Group Call
XA30 walkie talkie has one-key group call function. This function need programming. You can quickly start a group call with the whole team, which can effectively improve communication and work efficiency.Emergency Alert:
You can send a loud emergency alert to your partners when long pressing one button.
VOX Hands-free Function:
XA30 walkie talkie has VOX(voice-operated) function. You can clip this radio on the clothes, and the radio can transmit your voice message directly without pressing PTT.High Clarity:
XA30 walkie talkie has squelch function, which can effectively filter the noise and deliver clear human sound.

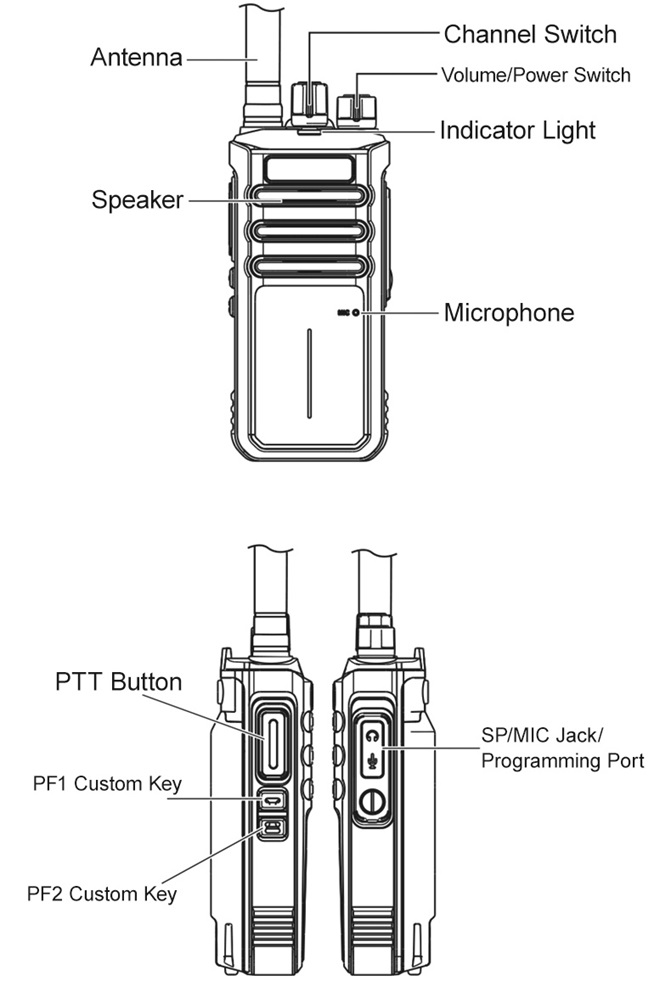

Interface Detail:

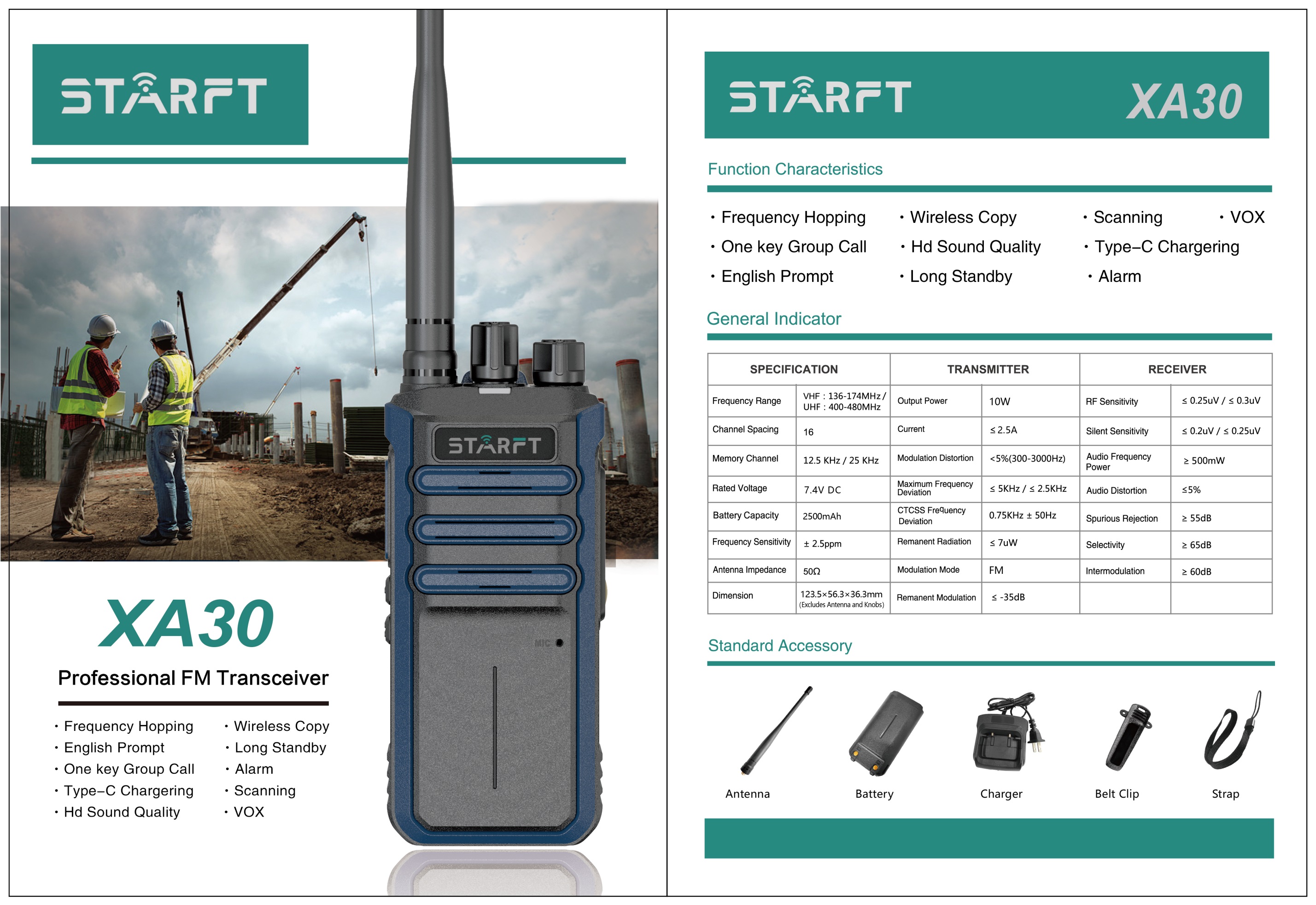

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2500mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 123.5x56.3x36.3mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

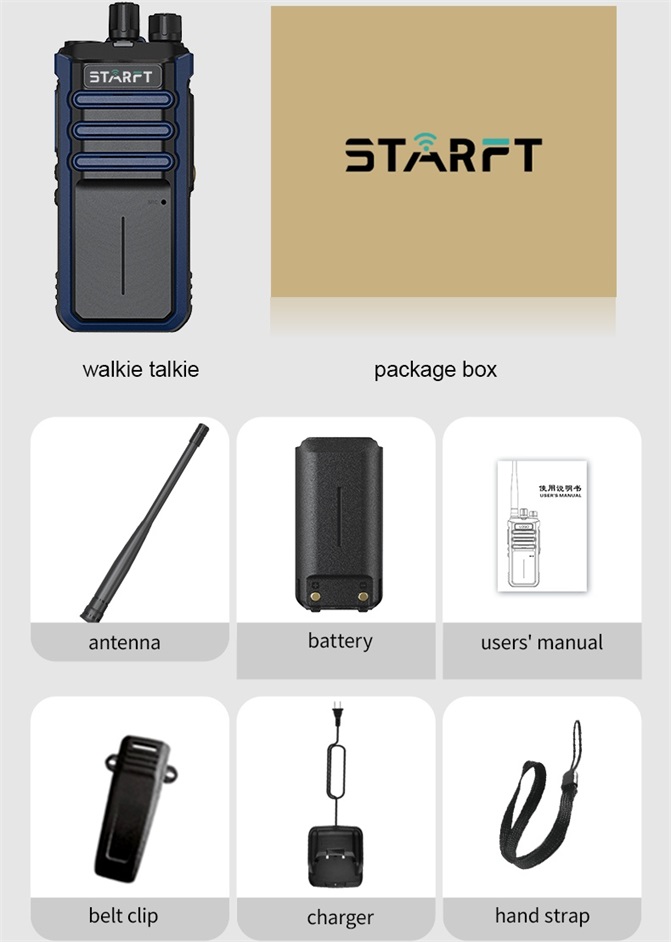

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
