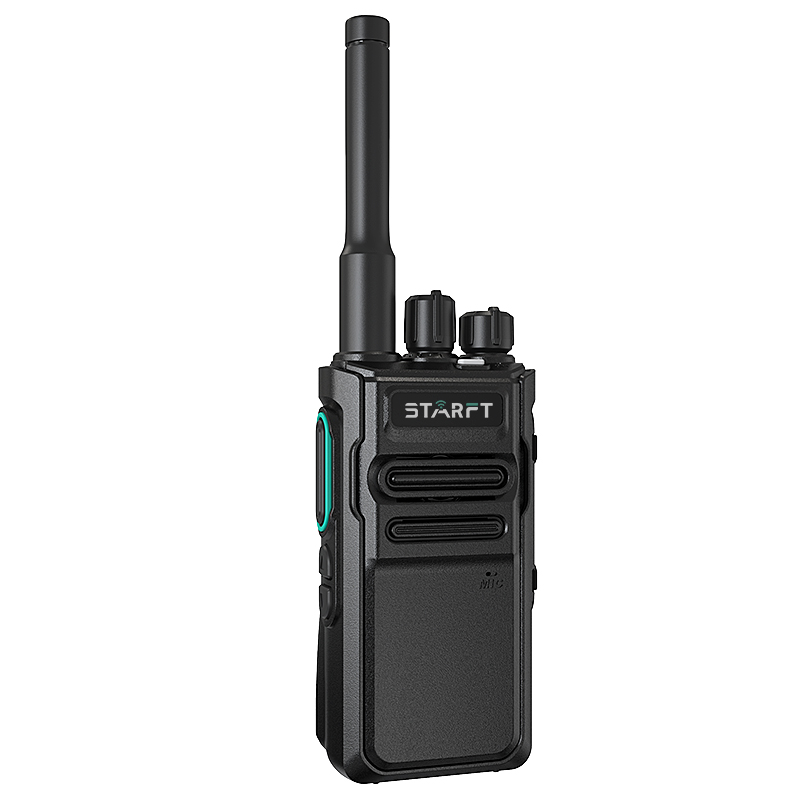

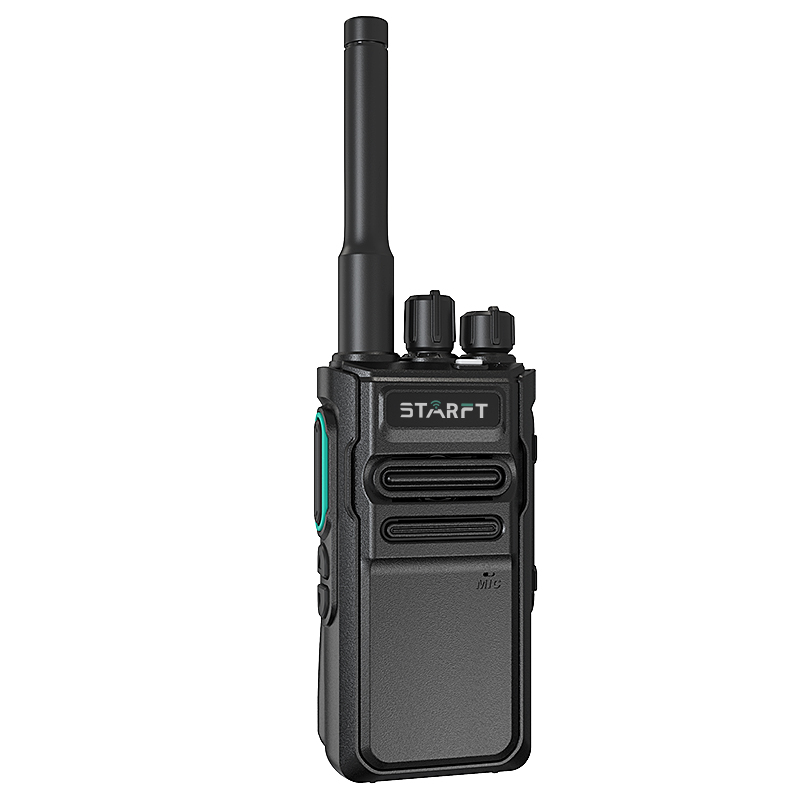

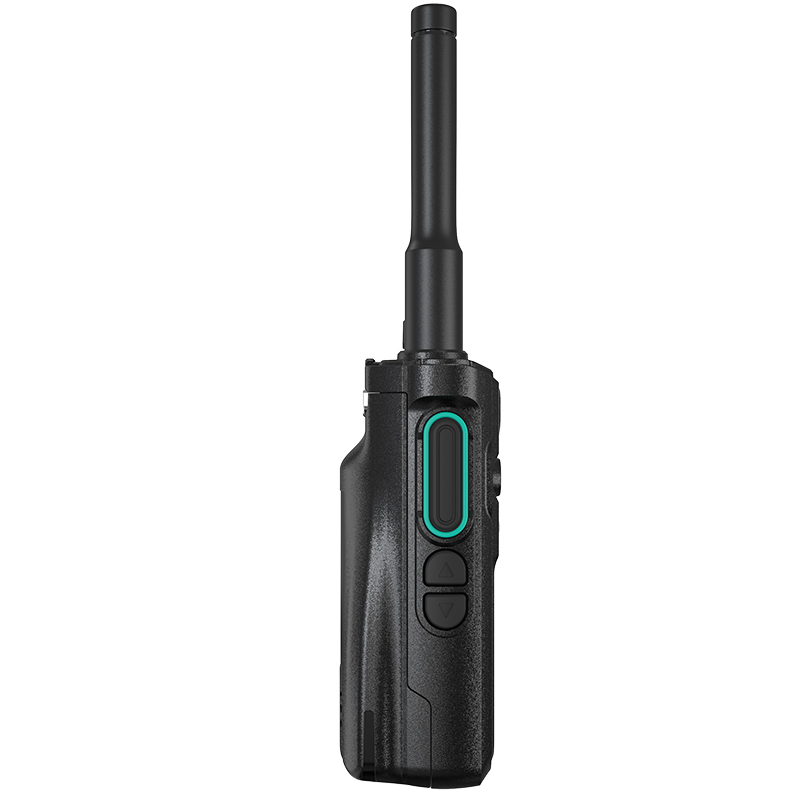

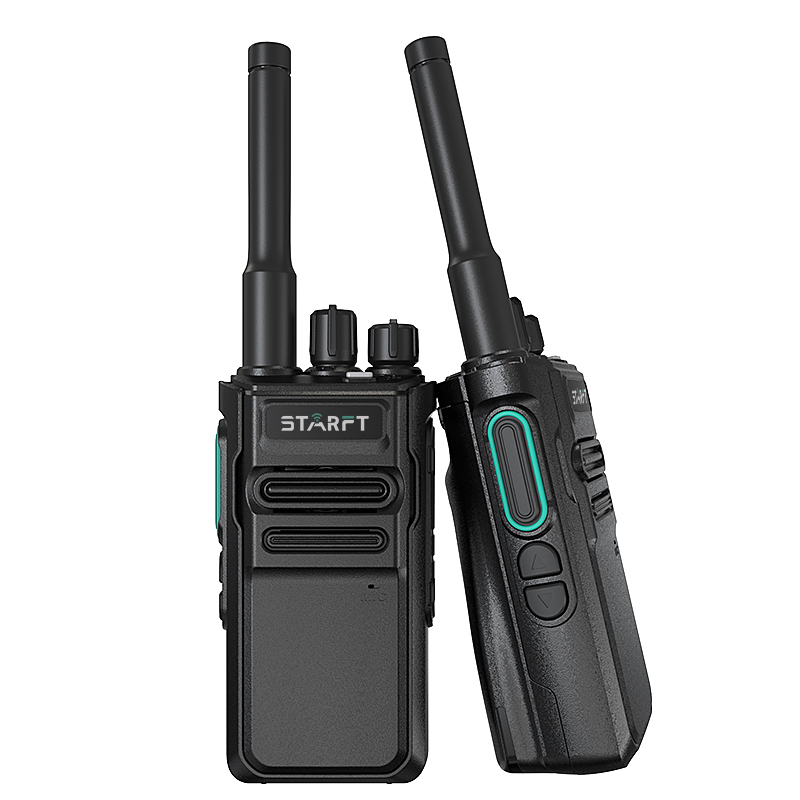

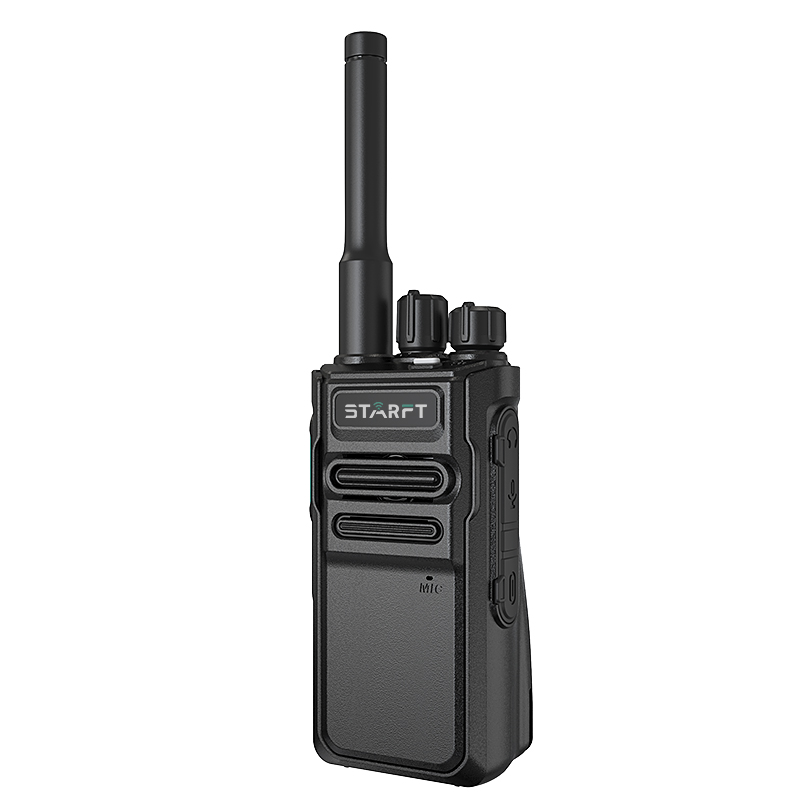

Starft XA302 Two Way Radio
XA302

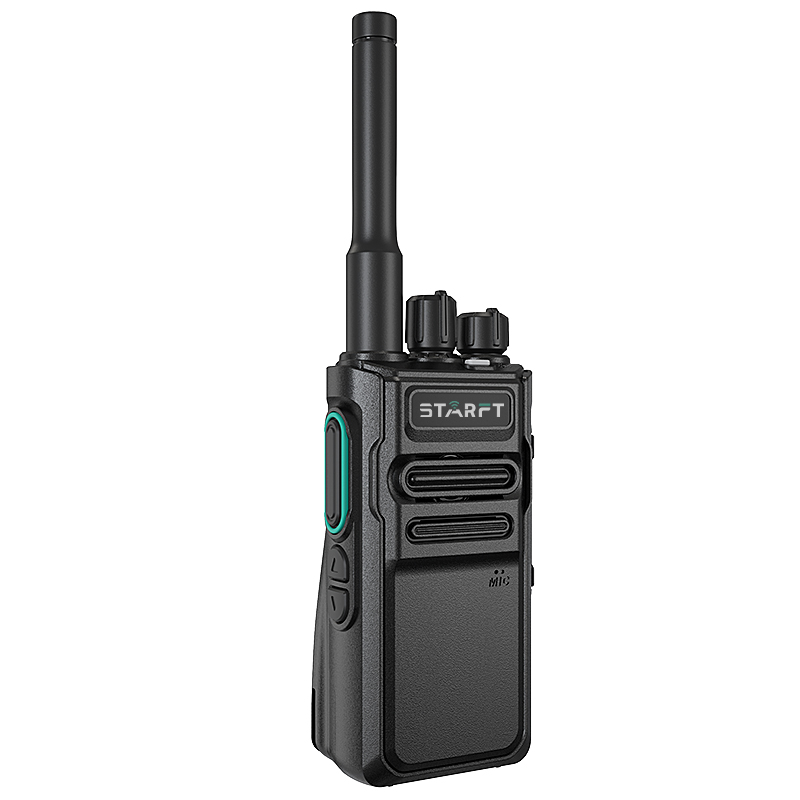

Chierda XA302 rugged two way radio features a compact and portable body. The housing is made of high strength PC material. It can withstand every harsh environments.
VOX Hands-free Function:
XA302 walkie talkie has VOX function. After activating this function, the walkie talkie can transmit the voice directly without pressing PTT button. In addition, you can adjust sensitivity to avoid transmitting unwanted noise message.High Clarity:

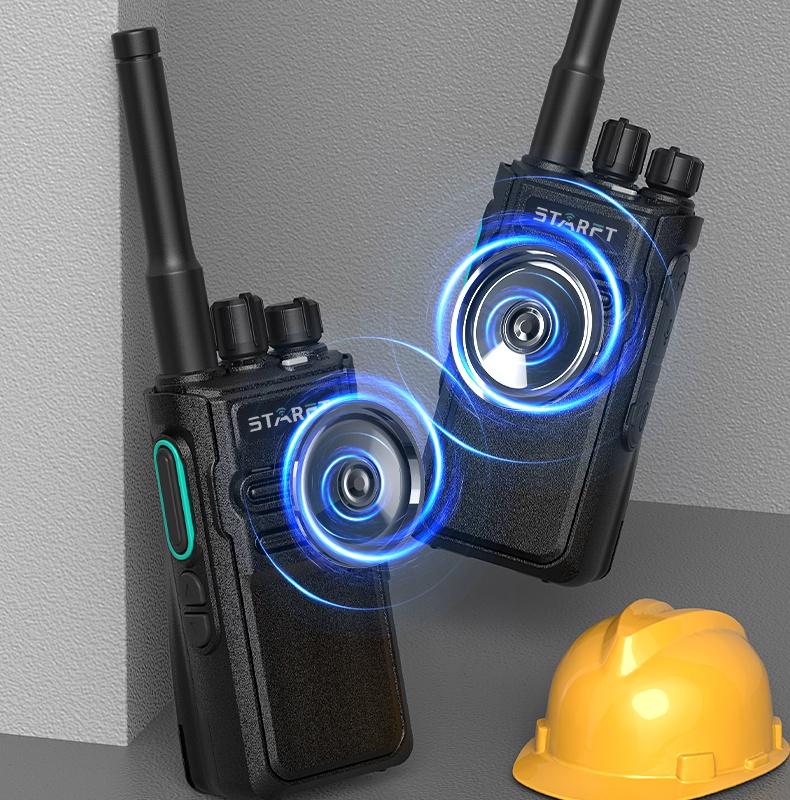

XA302 walkie talkie is equipped with an upgraded speaker to deliver crystal clear sound even in noisy environments.

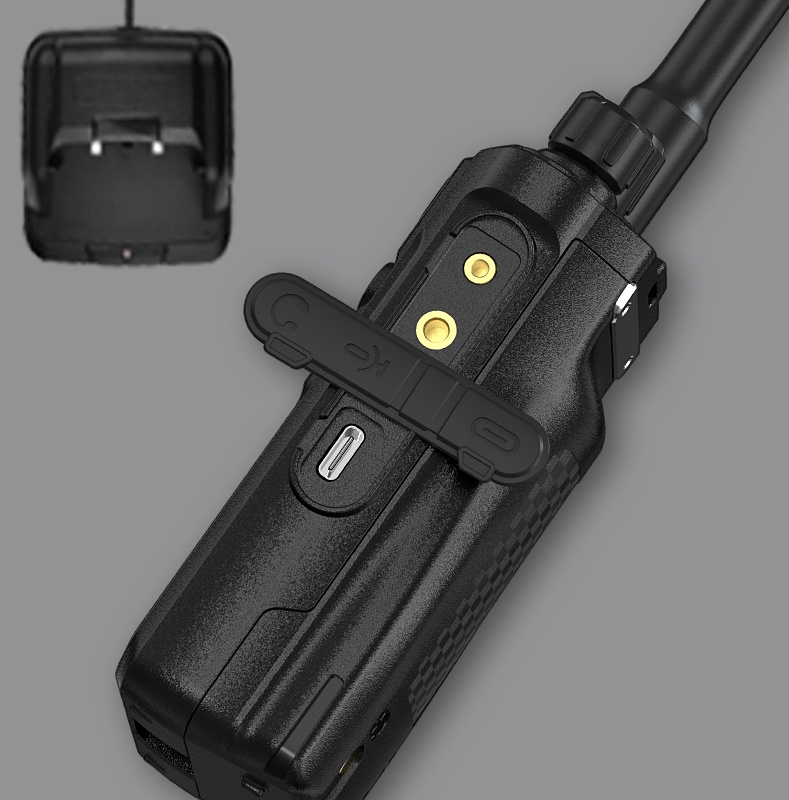

Type-C Charging:

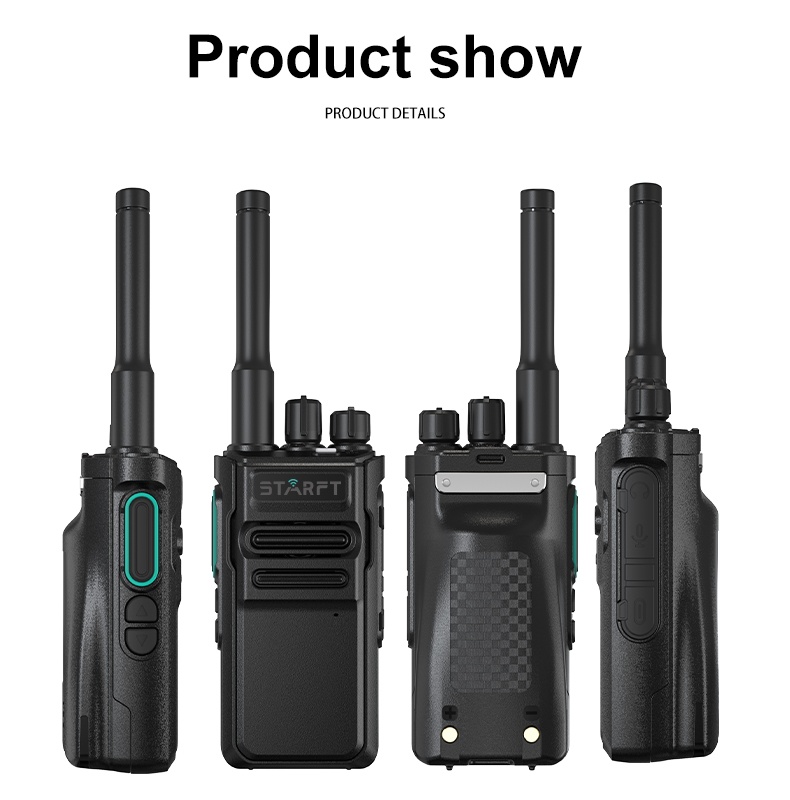

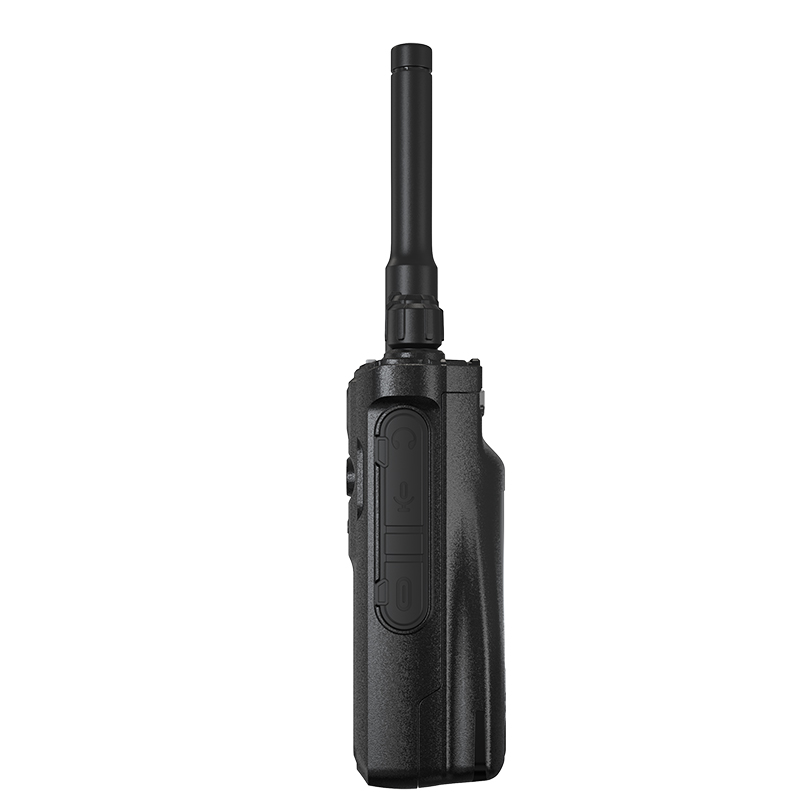

XA302 walkie talkie adopts a standard Type-C charging port. It is convenient to charge anywhere and anytime.Interface Detail:

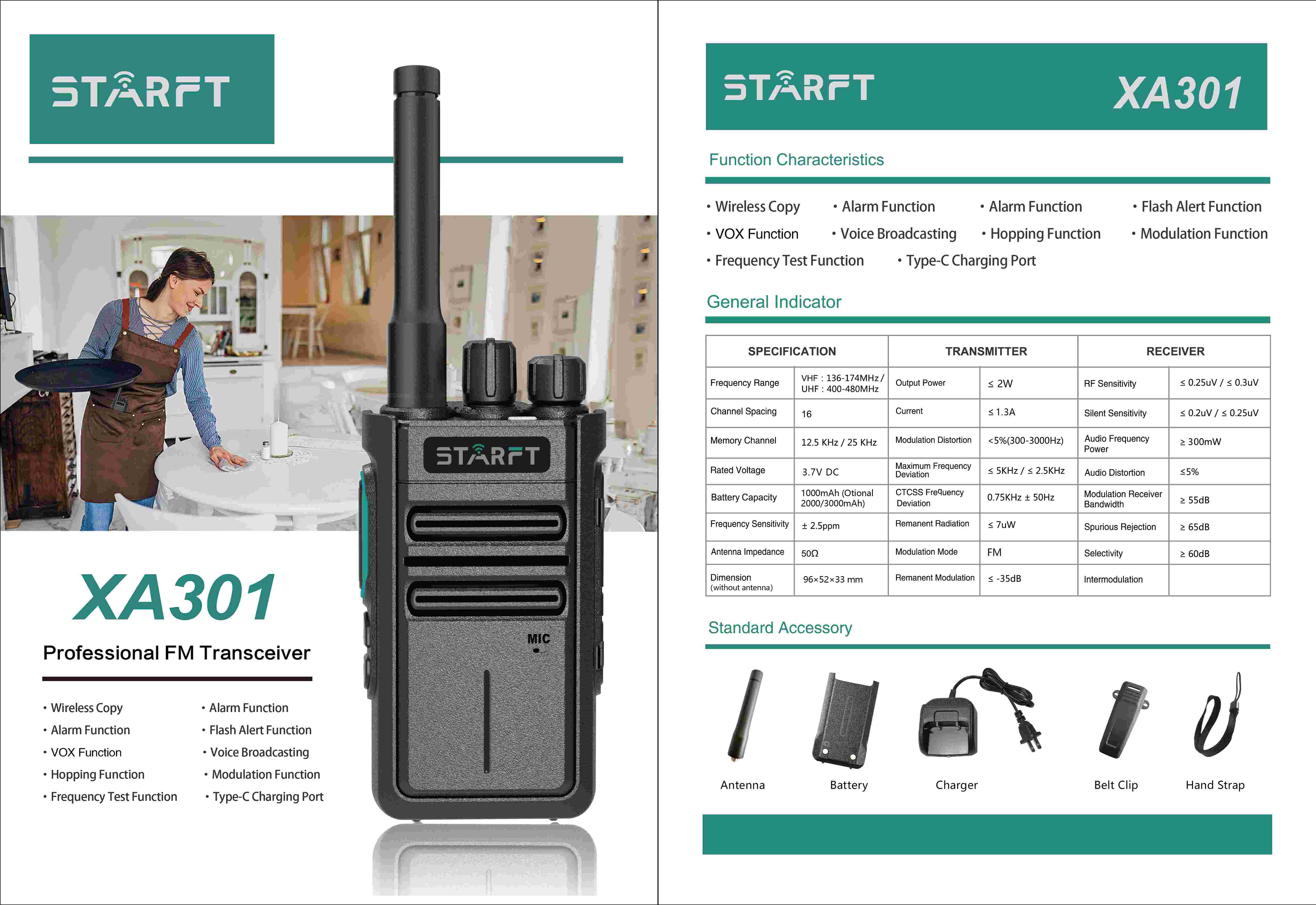

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5KHz/25 KHz |
Rated Voltage | 3.7V DC |
Battery Capacity | 1000mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 106x52x39mm |
TRANSMITTER | |
Output Power | 5W |
Current | ≤1.3A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤5KHz/≤2.5KHz |
CTCSS Frequency | 0.75KHz±50Hz |
Remanent Radiation | ≤ 7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency | ≥ 300mW |
Audio Distortion | ≤5% |
Spurious Rejection | ≥ 55dB |
Selectivity | ≥ 65dB |
Intermodulation | ≥ 60dB |

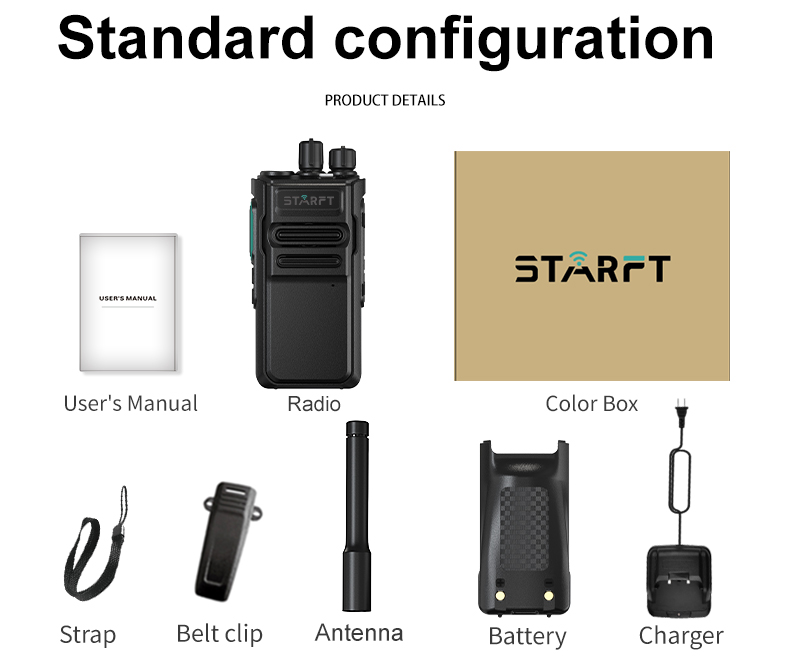

Product set
Radio*1
Antenna*1
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
