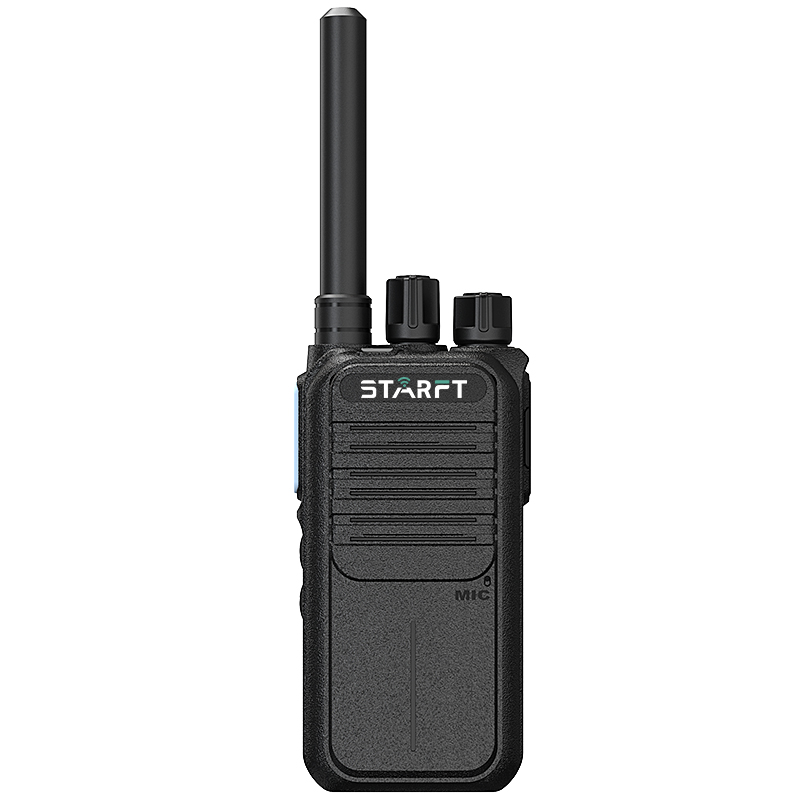

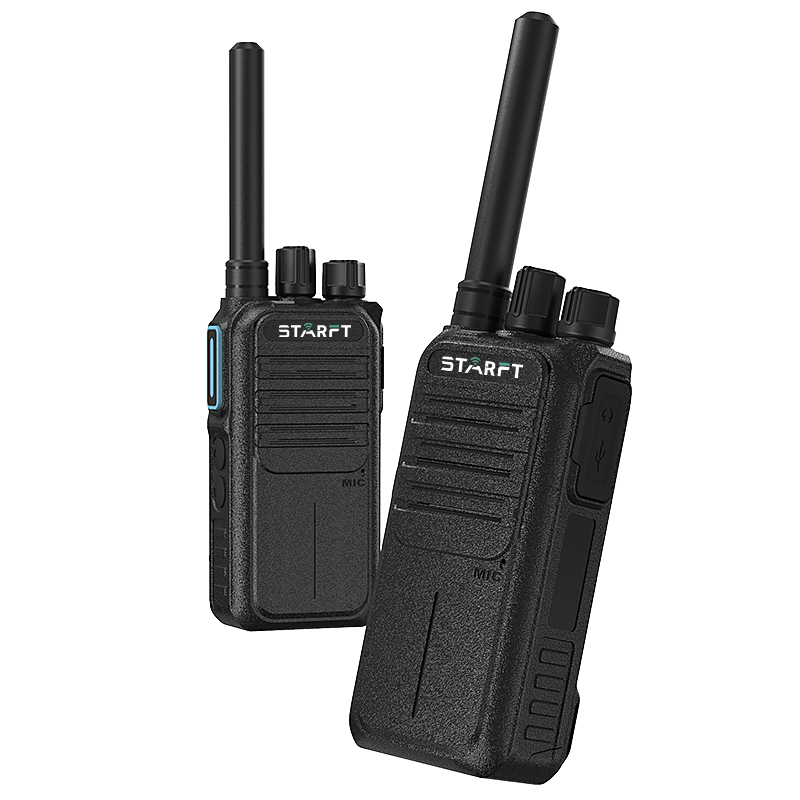

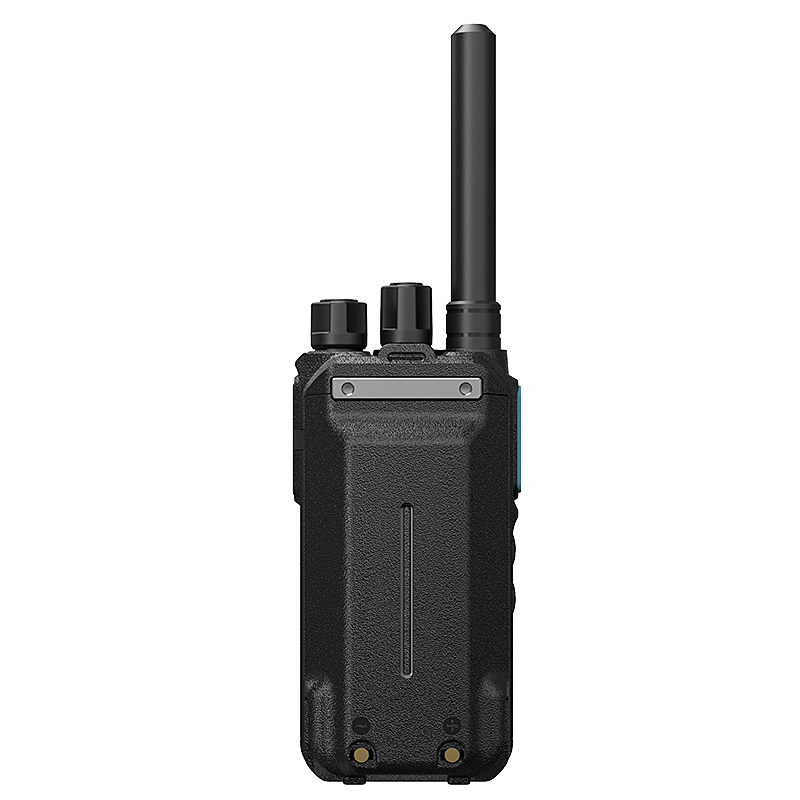

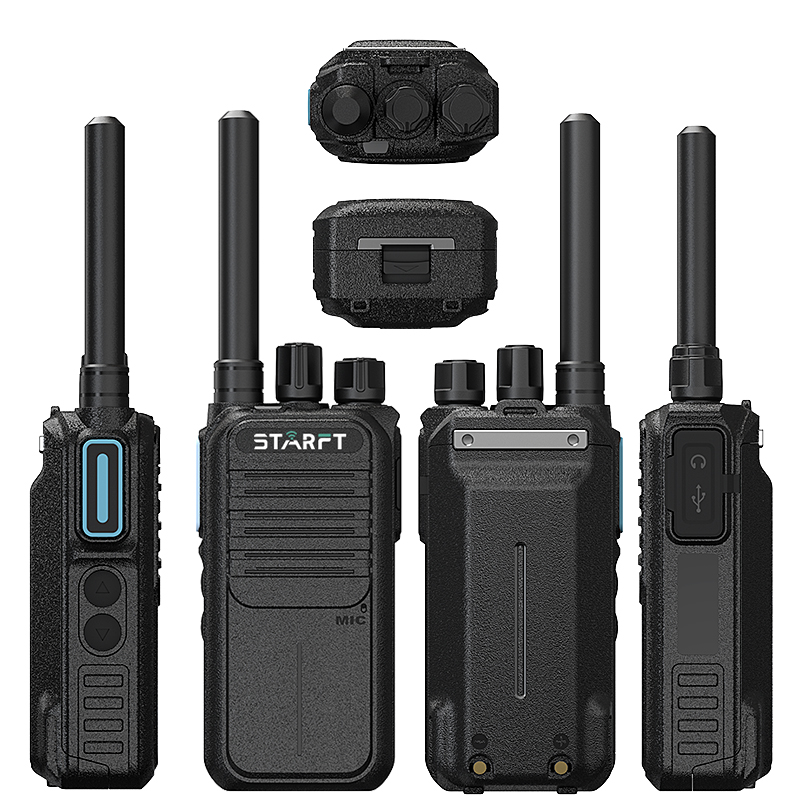

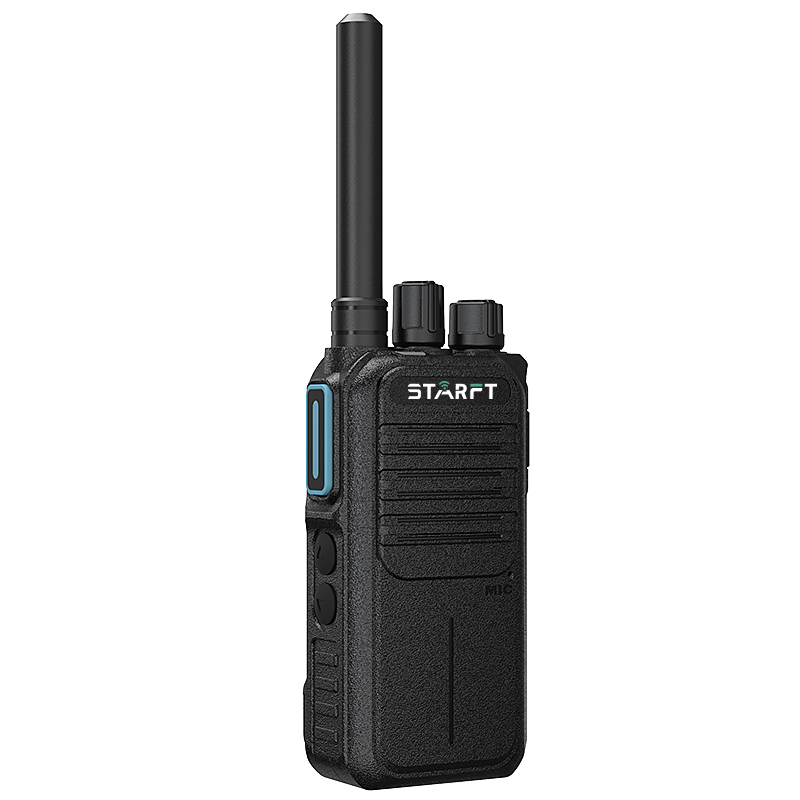

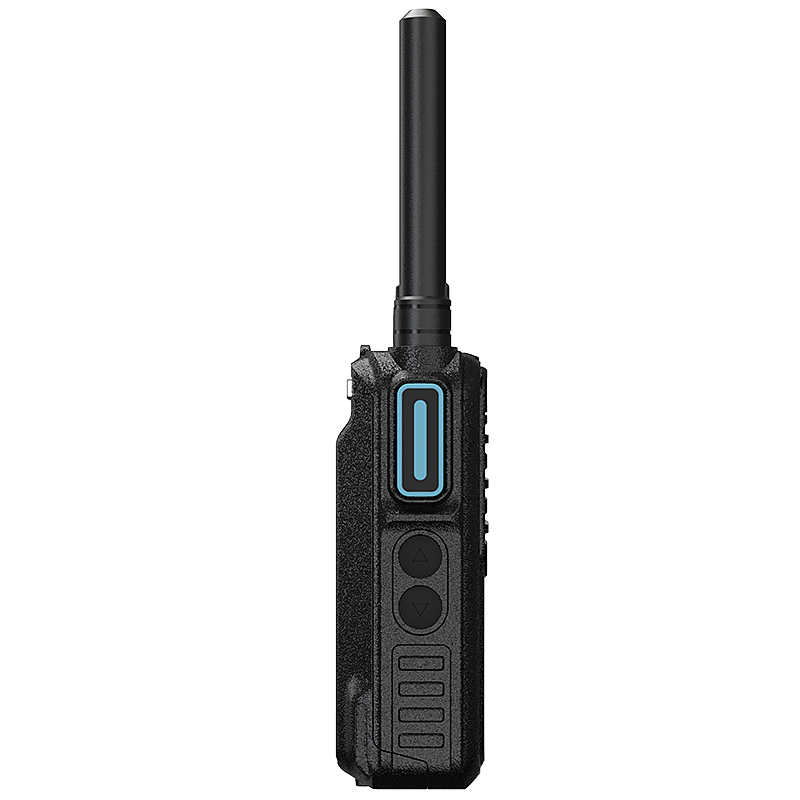

Starft XA502 Durable Heavy Duty Handheld Radio

XA502

1. Rugged body

2. Large Battery Capacity

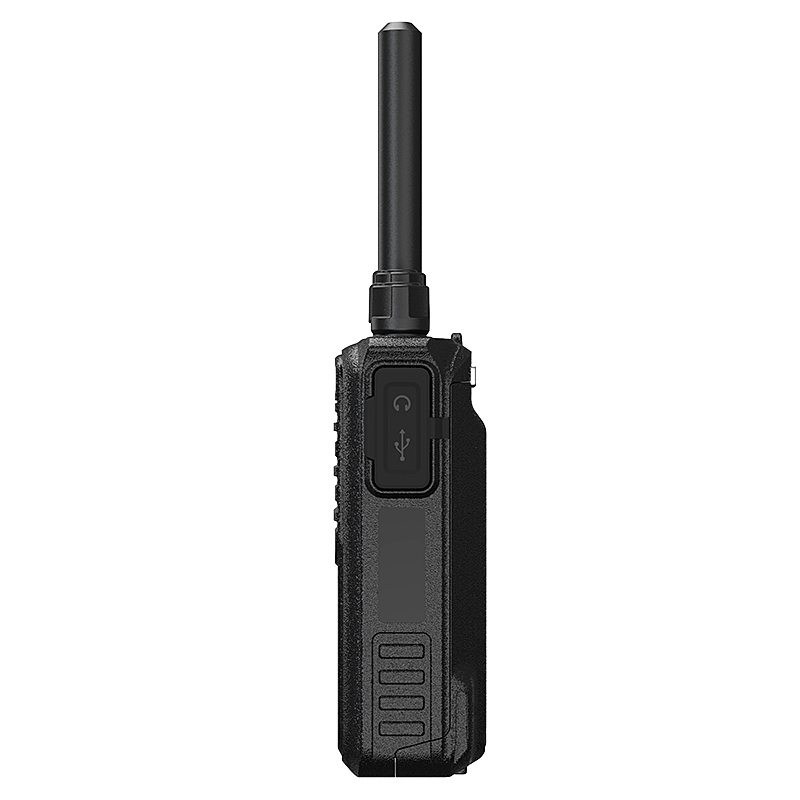

3. Support Type-C Charging

4. Scrambler Function

5. Voice Companding

6. Frequency Hopping

7. One-key Frequency Pairing, One-key Channel Copy

Features

Starft XA502 Durable Heavy Duty Handheld Radio has a mini body and is portable, making your communication easier.

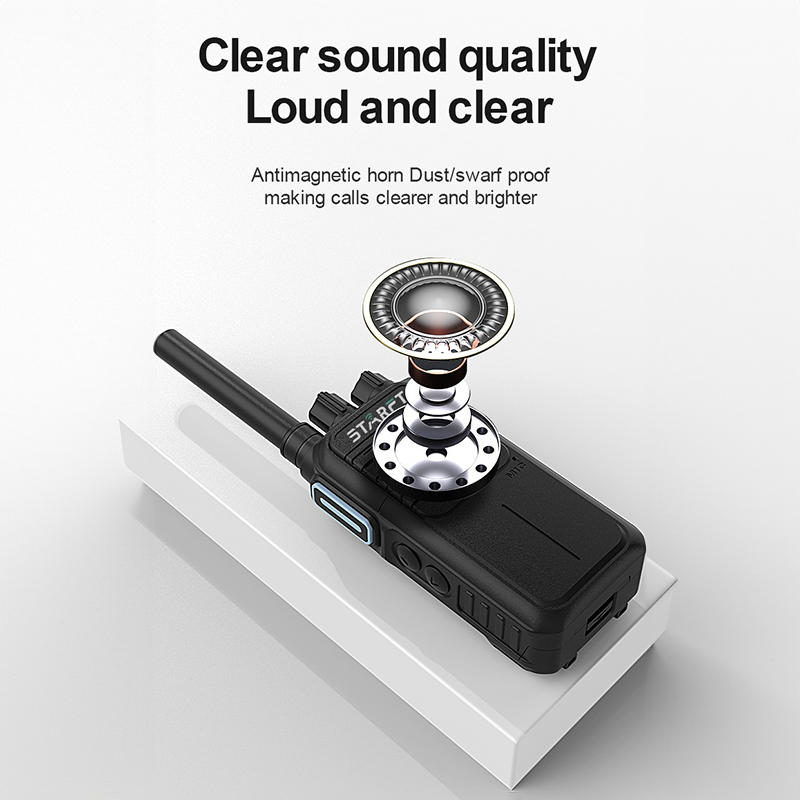

XA502 radio has HD sound to make calls clear.

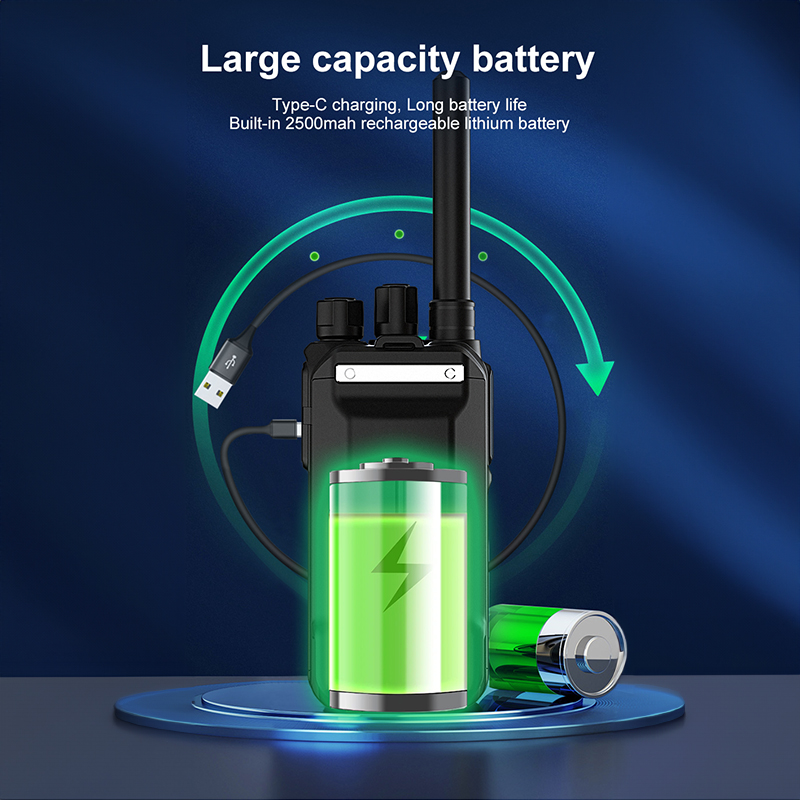

Built-in rechargeable Li-ion battery guarantees long-time working.

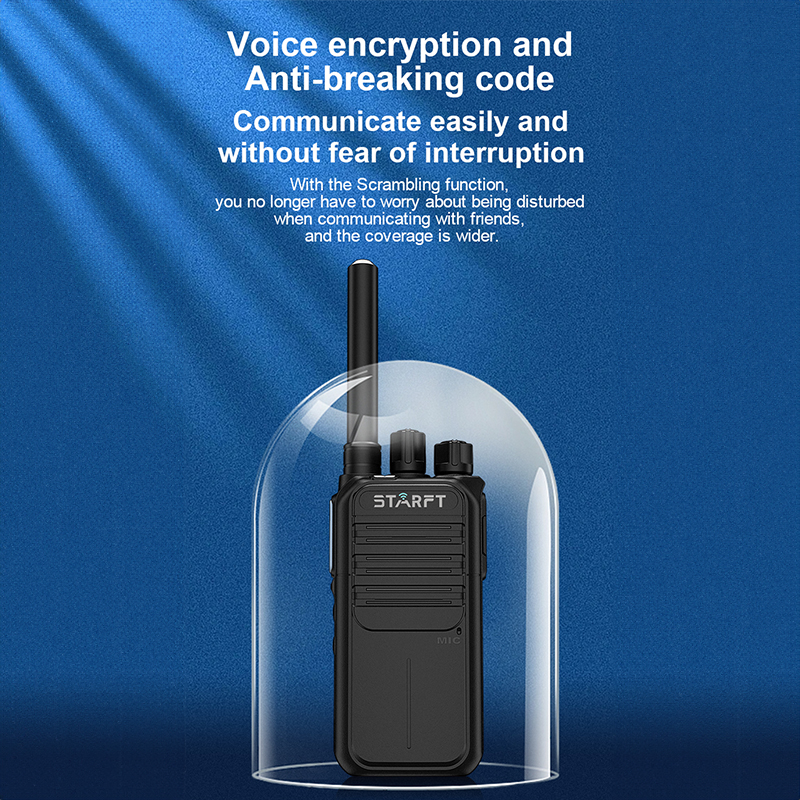

Anti-break code and voice scrambler function protect your

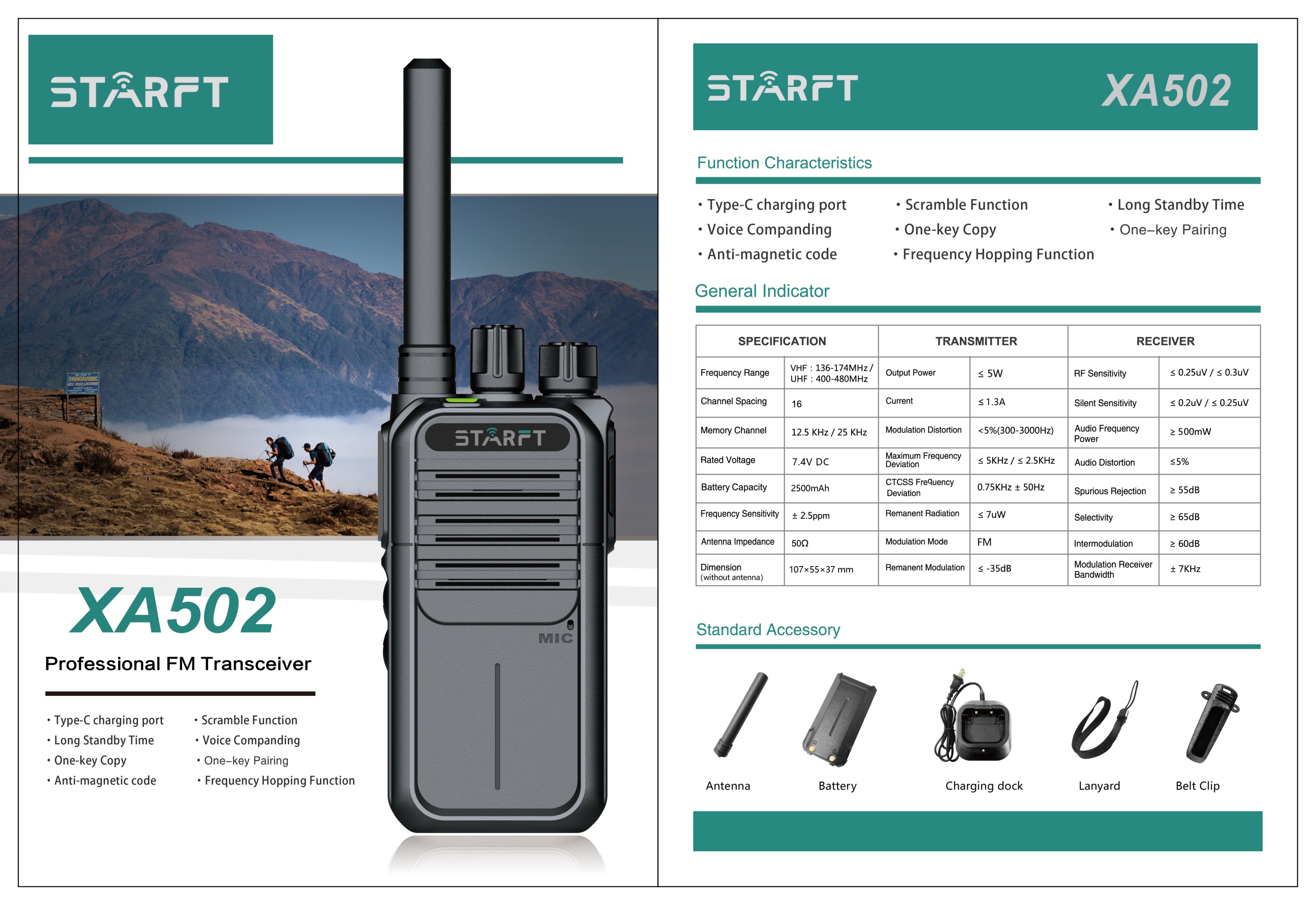

Specification

SPECIFICATION
Frequency Range	VHF:136-174MHz/ UHF:400-480MHz
Channel Spacing	16
Memory Channel	12.5KHz/25 KHz
Rated Voltage	7.4V DC
Battery Capacity	2500mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension (without antenna)	107x55x37mm
TRANSMITTER
Output Power	≤ 5W
Current	≤1.3A
Modulation Distortion	<5%(300-3000Hz)
Maximum Frequency Deviation	≤5KHz/≤2.5KHz
CTCSS Frequency Deviation	0.75KHz±50Hz
Remanent Radiation	≤ 7uW
Modulation Mode	FM
Remanent Modulation	≤-35dB
RECEIVER
RF Sensitivity	≤ 0.25uV/≤ 0.3uV
Silent Sensitivity	≤0.2uV/≤0.25uV
Audio Frequency Power	≥ 500mW
Audio Distortion	≤5%
Spurious Rejection	≥ 55dB
Selectivity	≥ 65dB
Intermodulation	≥ 60dB
