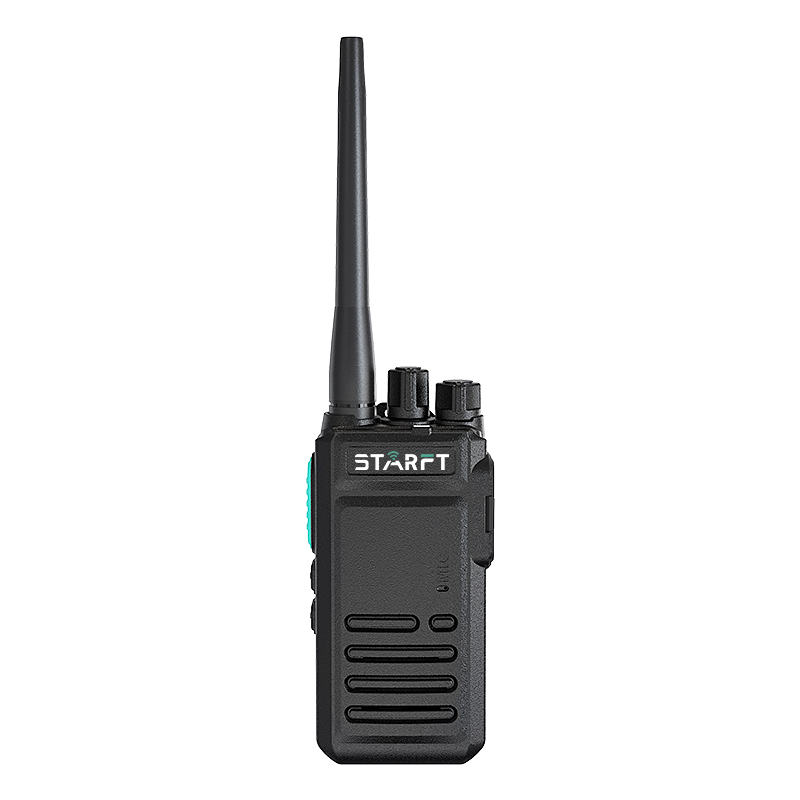

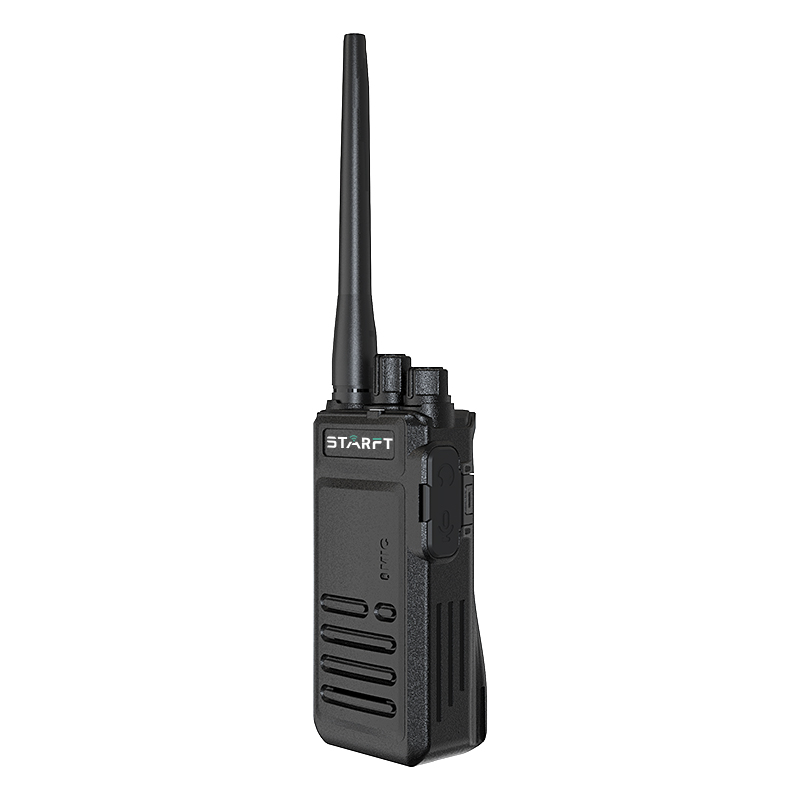

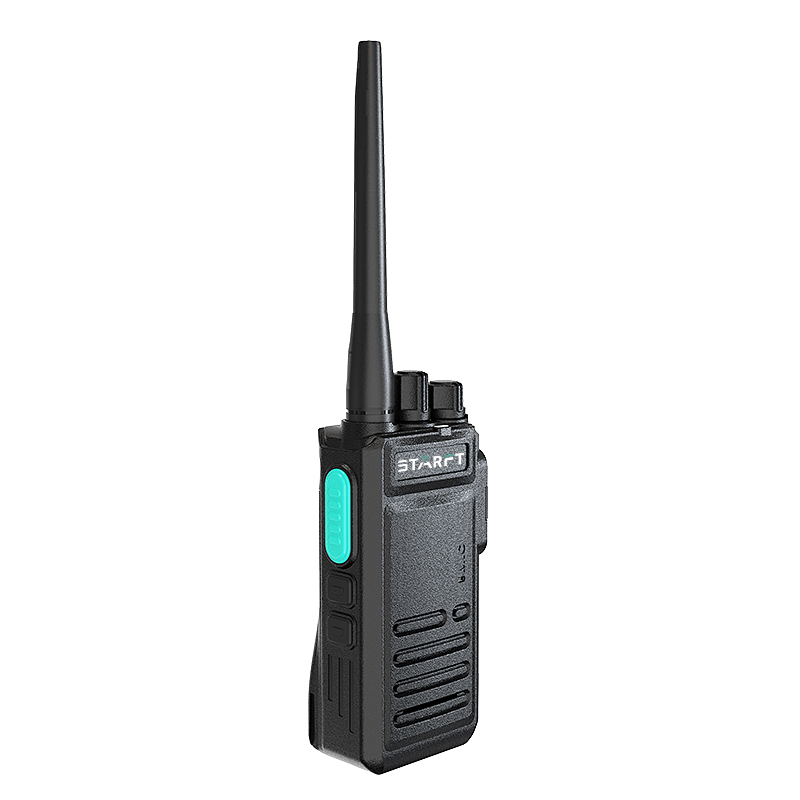

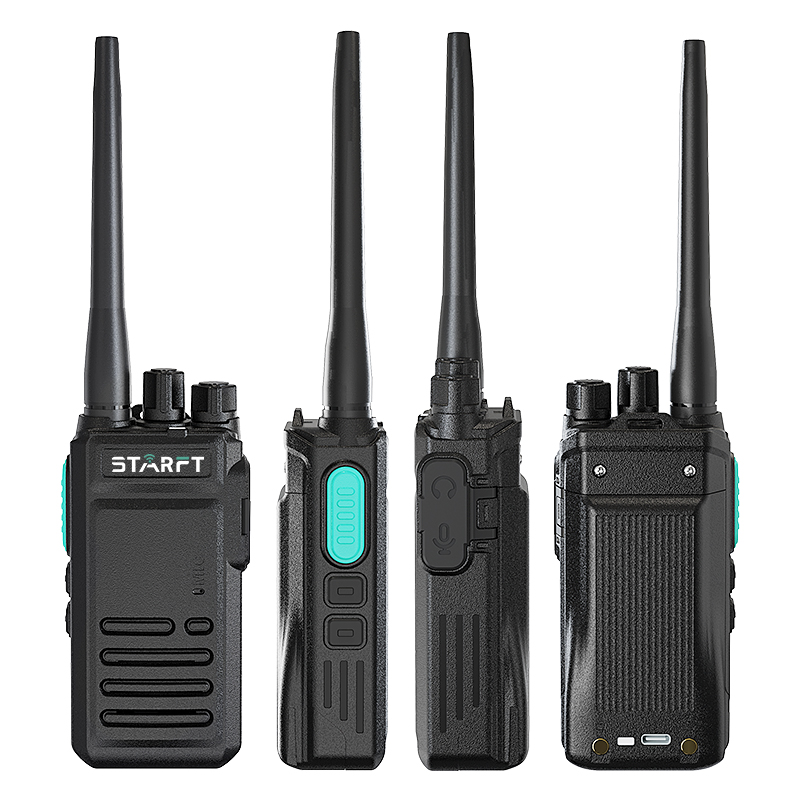

Starft XA503 Durable Handheld Radio

XA503

1. Rugged body

2. Large Battery Capacity

3. Support Type-C Charging

4. Scrambler Function

5. Voice Companding

6. Frequency Hopping

7. One-key Frequency Pairing, One-key Channel Copy

Contcat Us

Features
Specification
Whats in the Box
Resources

Features

Starft XA503 Handheld Radio is highly secure and protects your communication. With advanced features, it is ideal for business and commercial use, including hotel, property management.

Highly Secure:

XA503 radio provides a highly secure communication experience, featuring advanced anti-interference technology that ensures clear and uninterrupted transmissions even in challenging environments.

One-key Frequency Pairing:

XA503 radio features one-key frequency pairing for instant synchronization and one-key channel copy to quickly duplicate partners' walkie talkie. These functions ensure seamless and efficient communication.

Powerful Penetration:

With high power output, XA503 supports clear and reliable communication even through obstacles and long distances.

Specification

SPECIFICATION
Frequency Range	VHF:136-174MHz/ UHF:400-480MHz
Channel Spacing	16
Memory Channel	12.5KHz/25 KHz
Rated Voltage	7.4V DC
Battery Capacity	2500mAh
Frequency Sensitivity	± 2.5ppm
Antenna Impedance	50Ω
Dimension (without antenna)	107x53x39mm
TRANSMITTER
Output Power	≤ 5W
Current	≤1.3A
Modulation Distortion	<5%(300-3000Hz)
Maximum Frequency Deviation	≤5KHz/≤2.5KHz
CTCSS Frequency Deviation	0.75KHz±50Hz
Remanent Radiation	≤ 7uW
Modulation Mode	FM
Remanent Modulation	≤-35dB
RECEIVER
RF Sensitivity	≤ 0.25uV/≤ 0.3uV
Silent Sensitivity	≤0.2uV/≤0.25uV
Audio Frequency Power	≥ 500mW
Audio Distortion	≤5%
Spurious Rejection	≥ 55dB
Selectivity	≥ 65dB
Intermodulation	≥ 60dB
