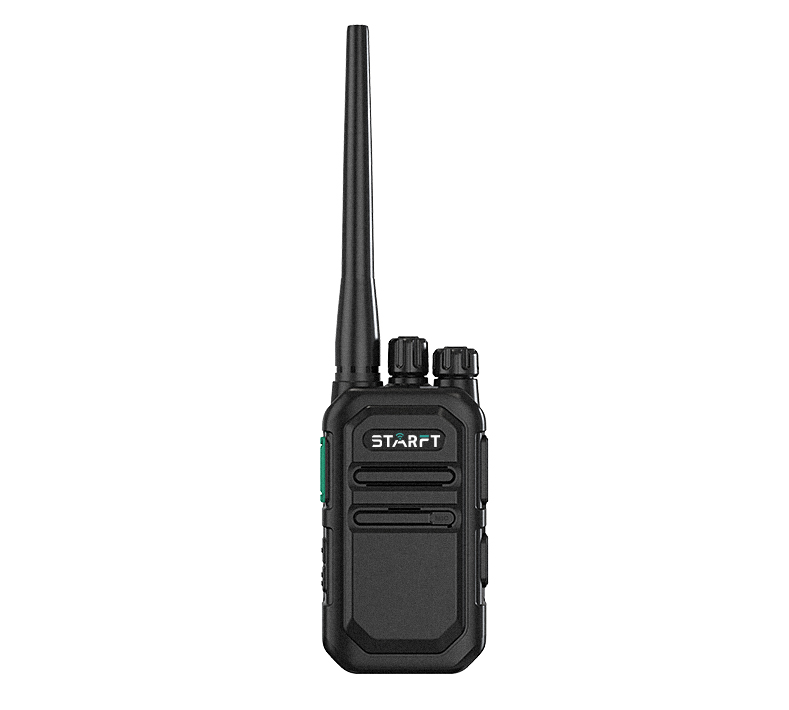

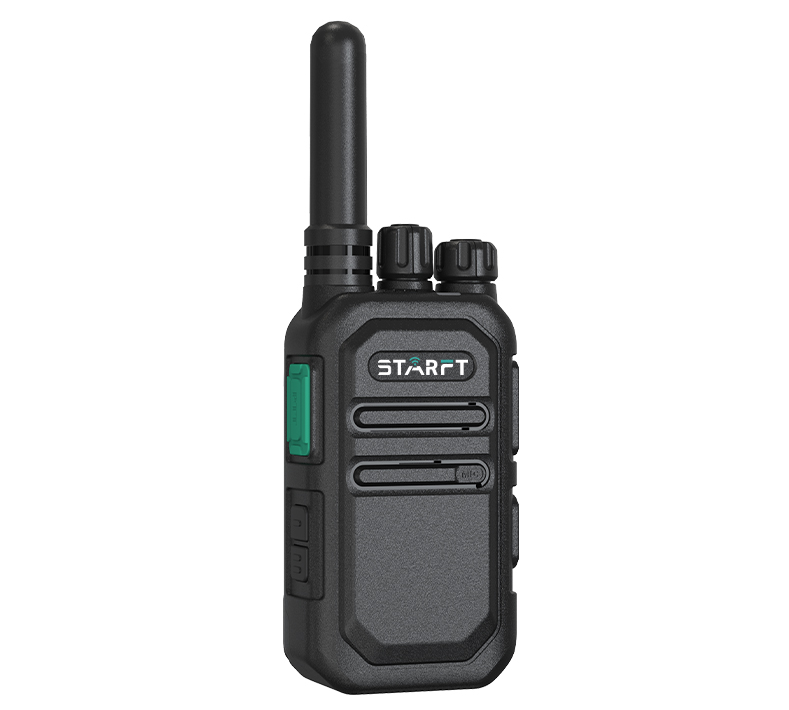

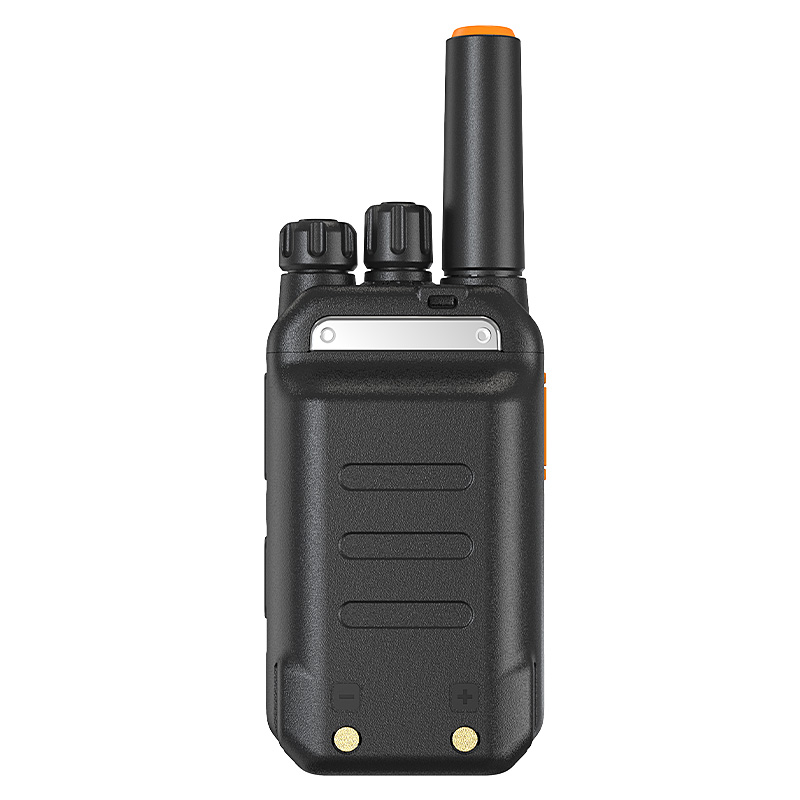

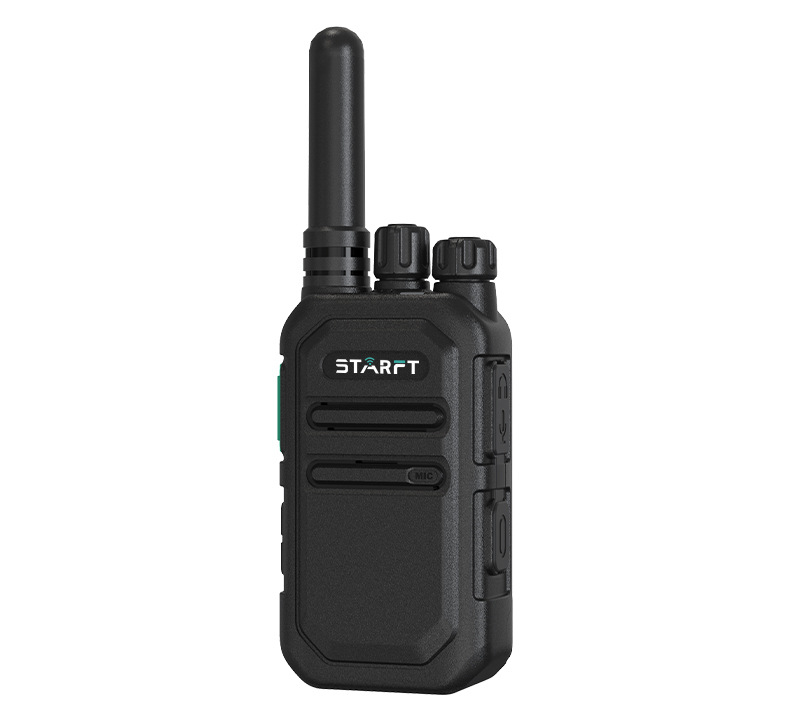

STARFT XA505 Noise Cancelling Two Way Radio
XA505
1. Two-way Noise Reduction
2. One-key Frequency Pairing
3. Emergency SOS Alert
4. Voice Encryption
5. One-key Channel Copy
6. Type-C Charging Port
STARFT XA505 walkie talkie is compact and portable. It features the latest two-way noise reduction technology. It performs well and delivers crystal clear sound in noisy and crowded environment. That feature makes it ideal for service industries, such as hotels, restaurants, entertainment.
Two-way Noise Reduction:
XA505 radio has two-way noise reduction feature. It can filter noise from the background on the transmit side and the receive side. Compare with single-way noise reduction, it can deliver much clearer sound.One-key Frequency Pairing:
You can pair walkie talkie's frequency by pressing one key. It is efficient and convenient for teamwork.
Emergency Alert:
You can send a loud emergency alert to your partners when long pressing one button.Encrypted Walkie Talkie:
XA505 radio has super secure system to encrypt your communication. Less interference, more stable.

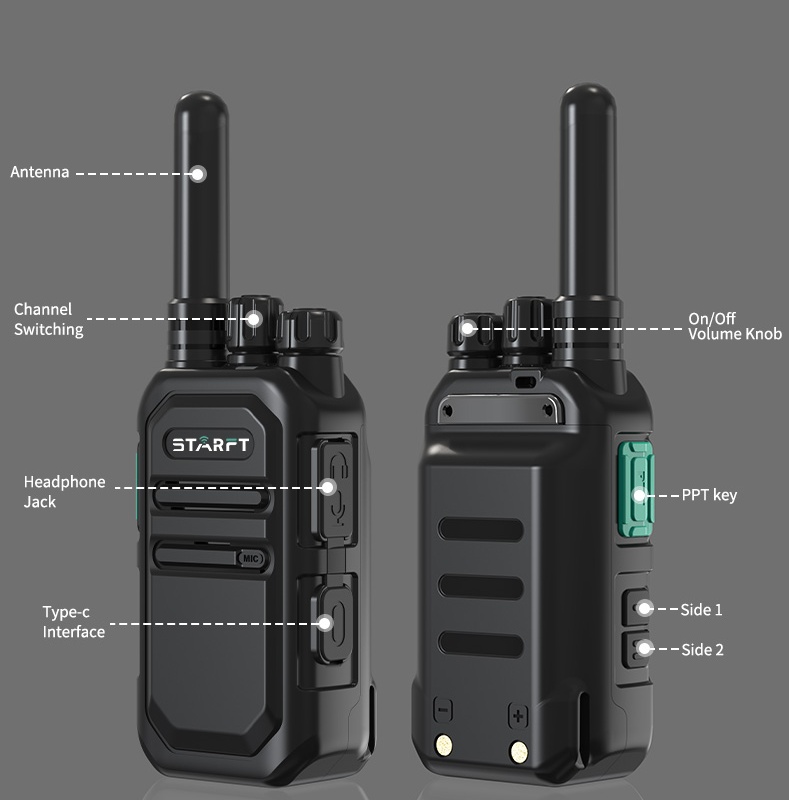

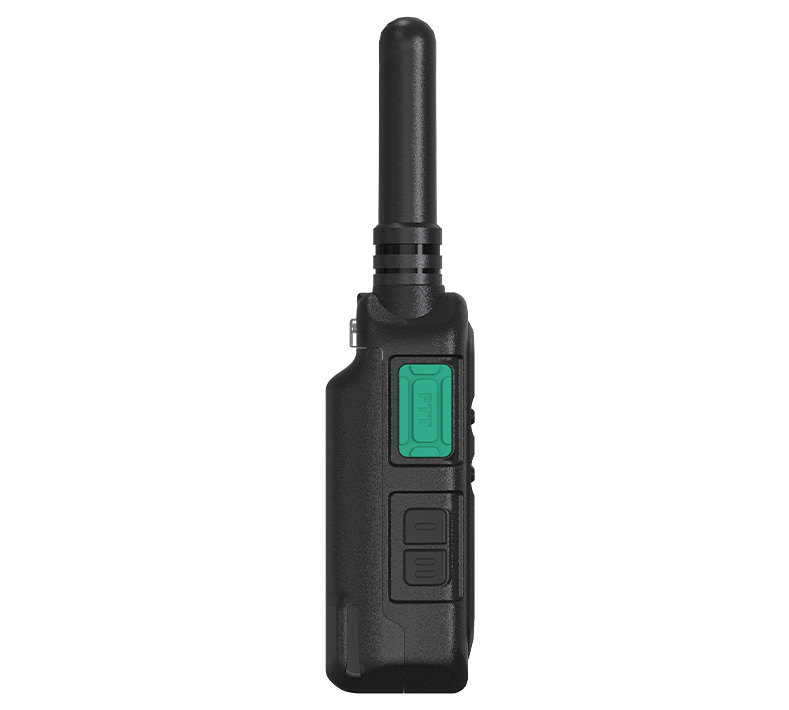

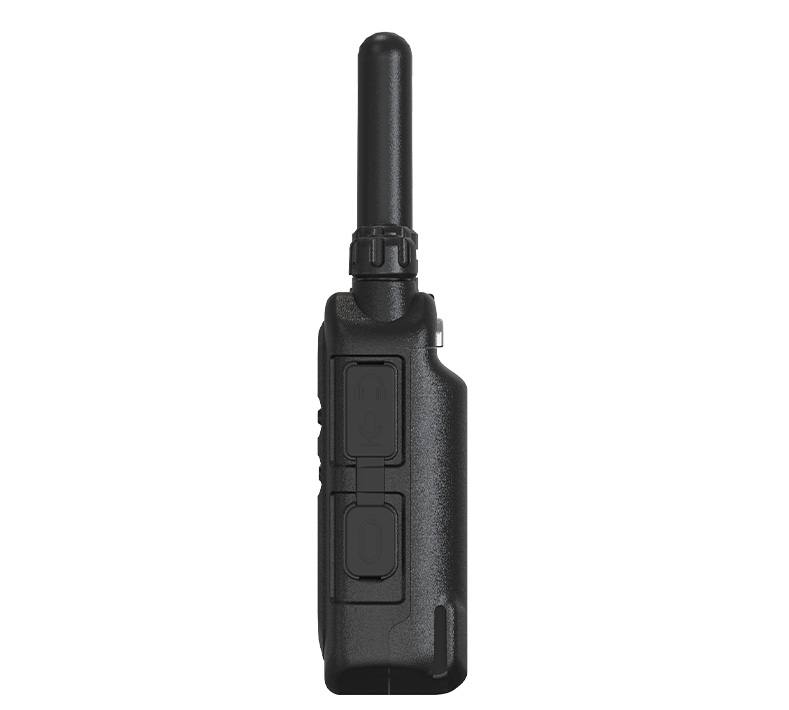

Interface Detail:

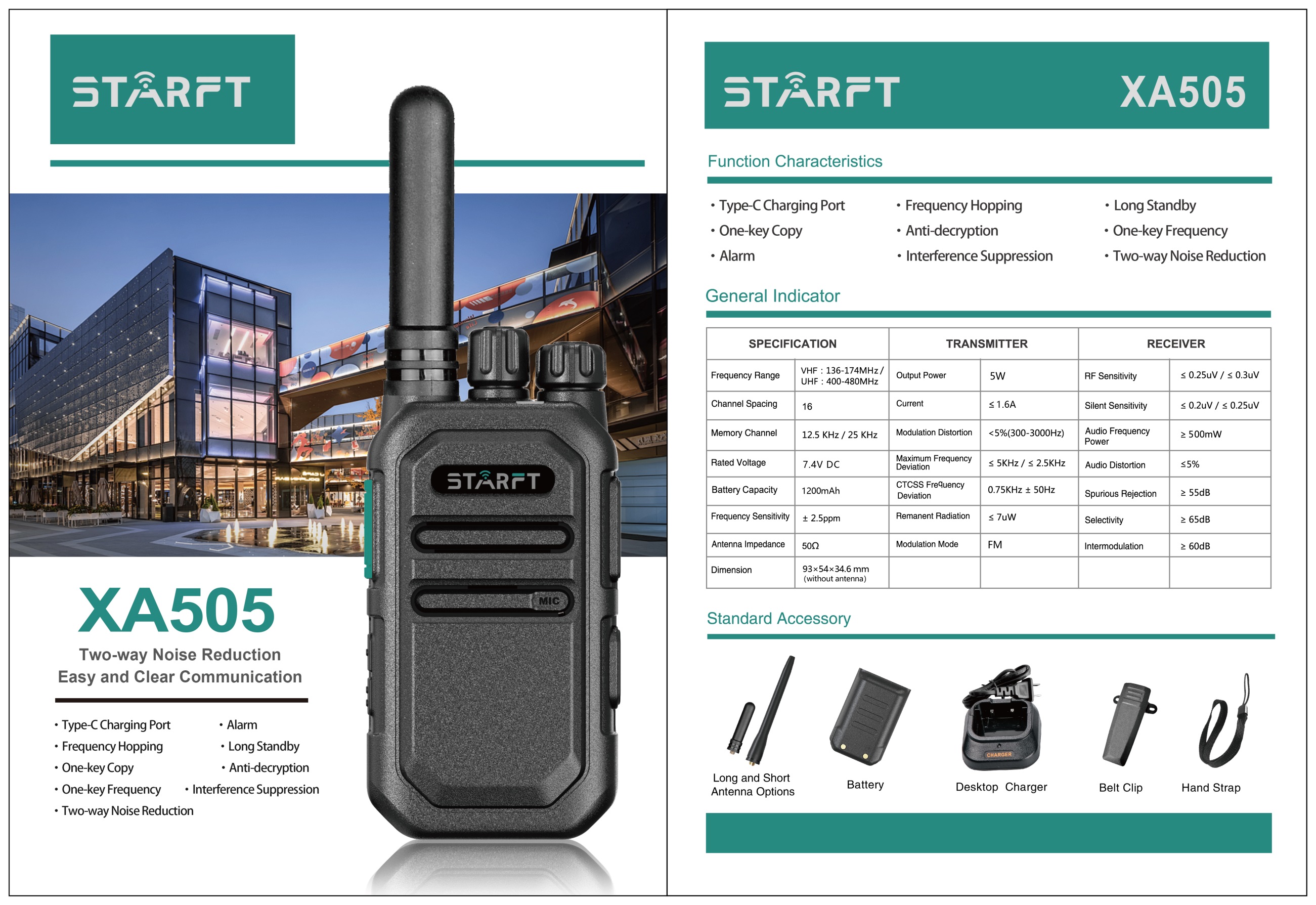

SPECIFICATION | |
Frequency Range | VHF:136-174MHz or |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 1200mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 93x54x34.6mm |
TRANSMITTER | |
Output Power | 5W |
Current | ≤1.6A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | FM |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥300mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

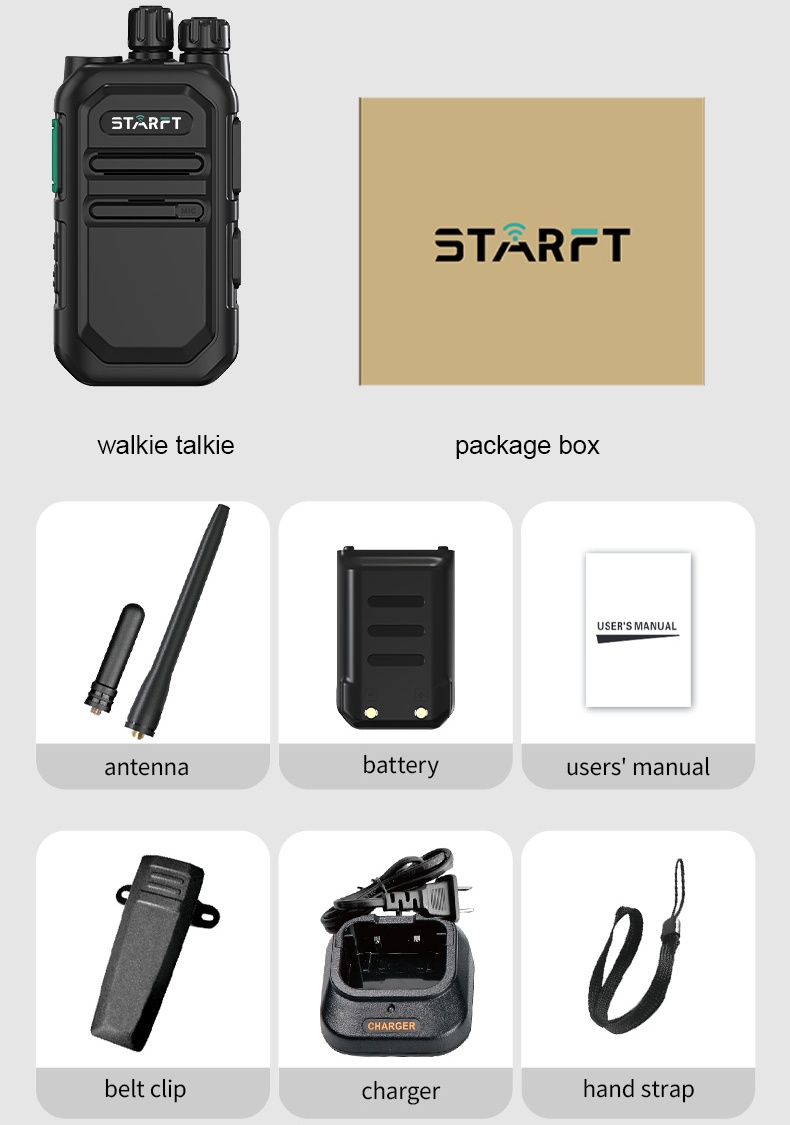

Product set
Radio*1
Antenna*2 (Long and short)
Battery*1
Belt clip*1
Charger*1
Strap*1
User's manual*1
