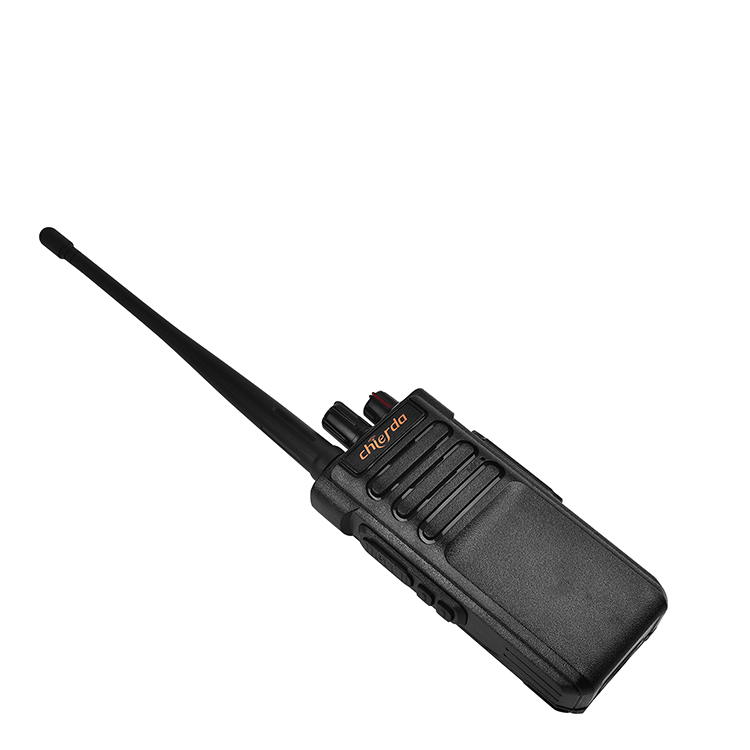

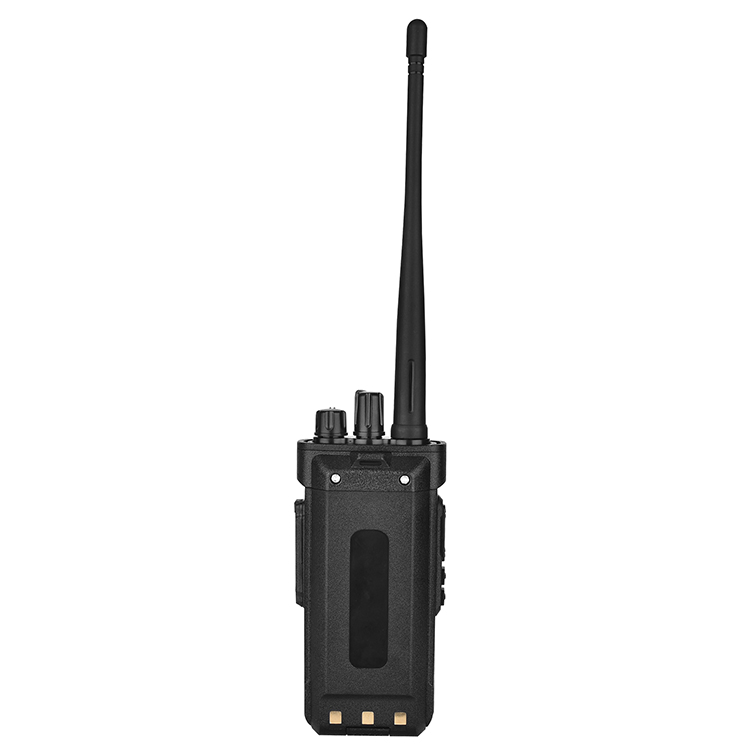

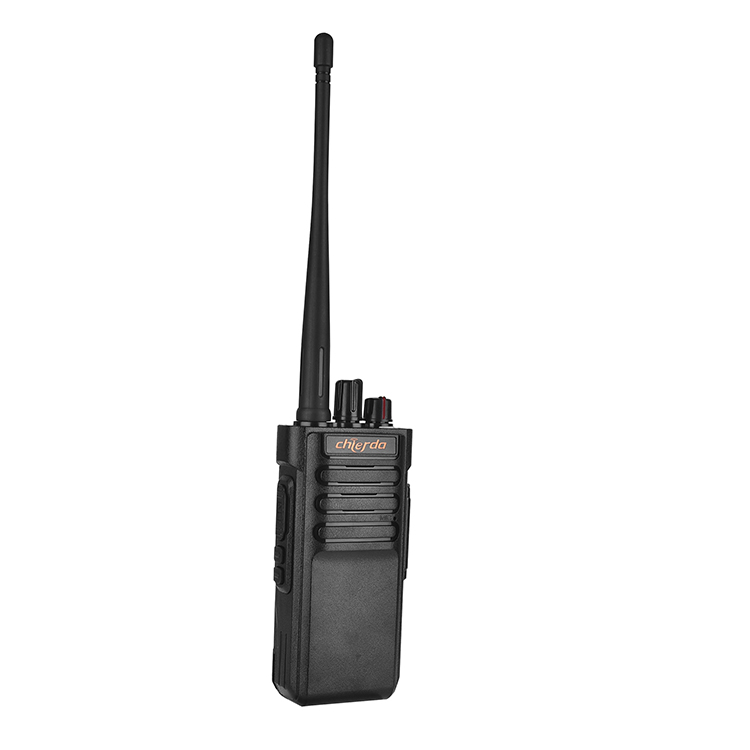

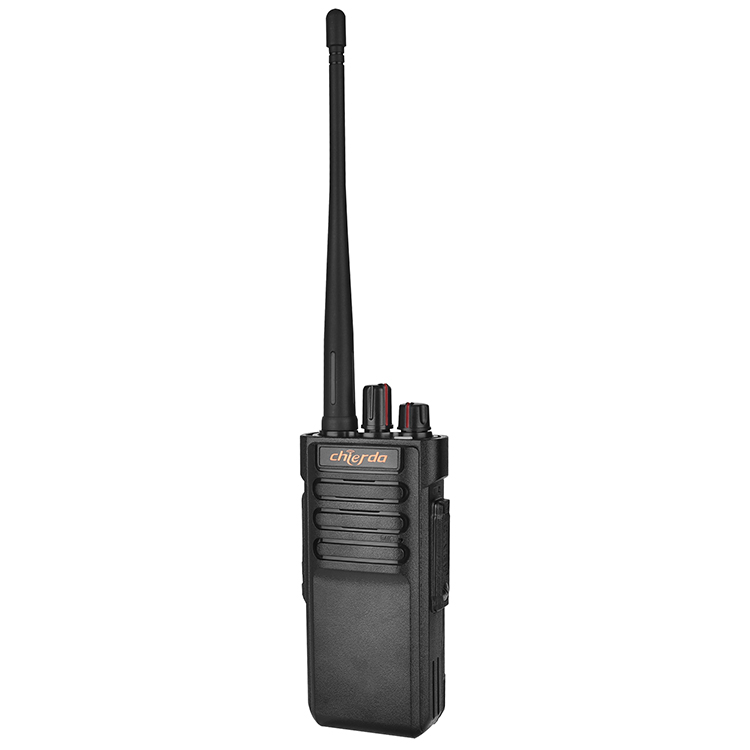

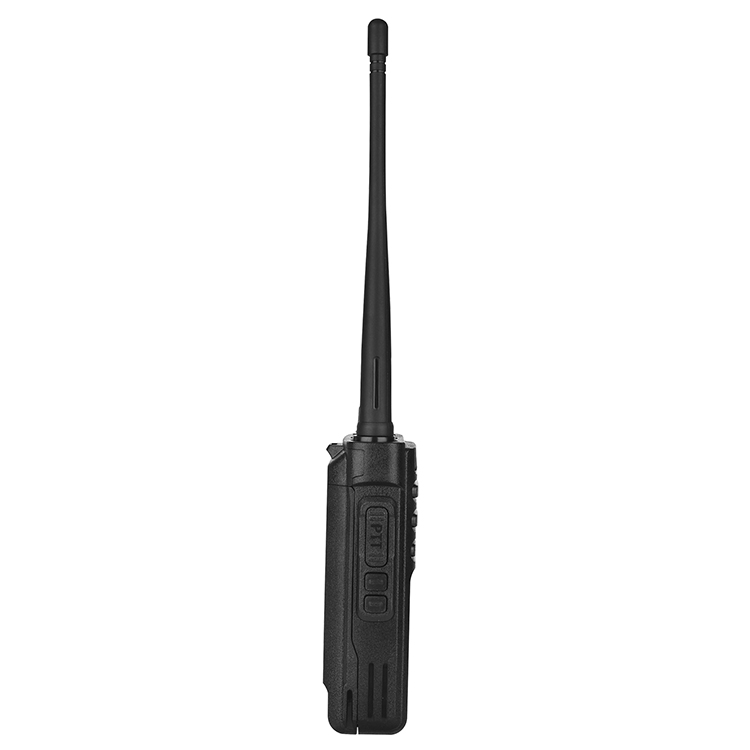

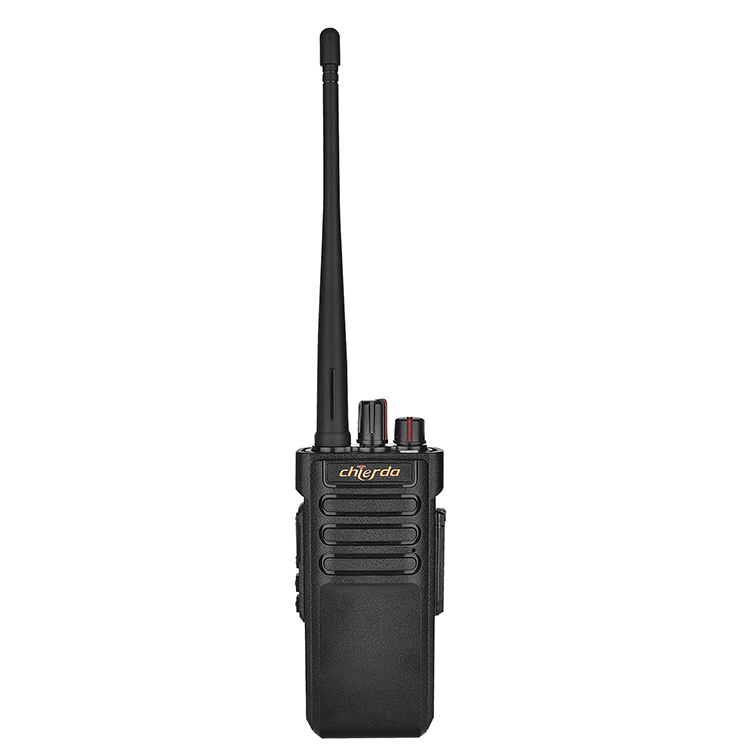

Chierda CD-A8 IP67 Waterproof Long Range Rugged Two Way Radio
CD-A8
1.IP67 Waterproof and Dustproof
2.High Power and Long Distance
3.2900mAh Large Capacity Battery, Long Standby Time up to 145 Hours
4. Rugged and Durable Body
5. Alarm Function
6.FCC & CE Certified
Chierda CD-A8 series two way radio has two different housing for optional. CD-A8 radio is well made with good material. It is durable and sturdy, making it easy to use under harsh.
With up to 16 channels and crystal clear sound, CD-A8 walkie talkie offers secure and stable communication to you. It's ideal for commercial applications such as construction, security, transportation, warehousing, etc.
In addition, CD-A8 radio is CE & FCC certified. You don't need to worry about customs clearance and sales problems, for it complies with legal and regulatory usage standards.

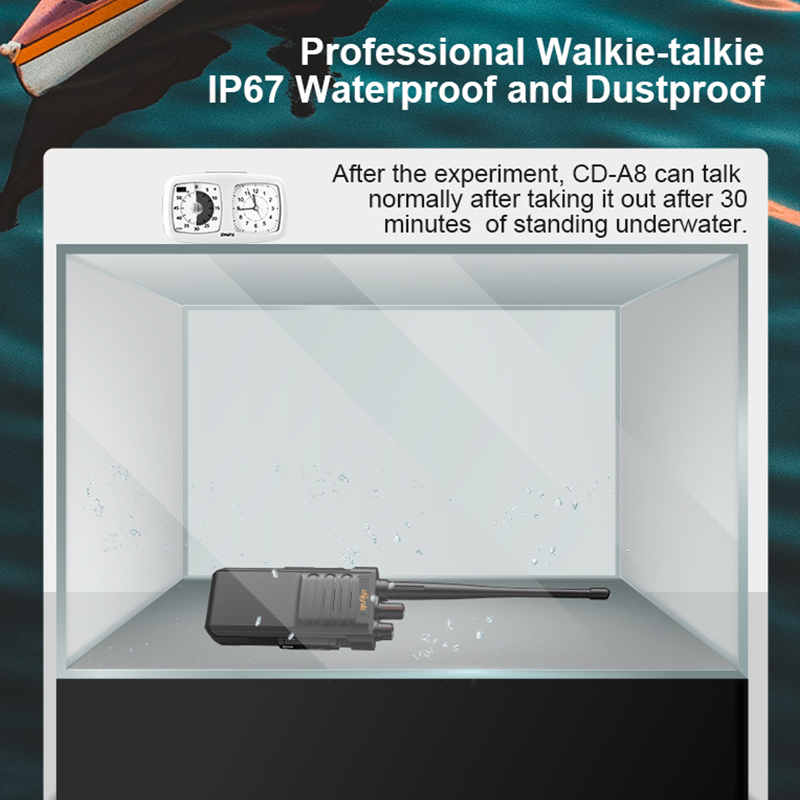

IP67 Waterproof:
CD-A8 radio is a waterproof walkie talkie and has an IP67 rating. CD-A8 can talk normally after submerging in a depth of 1 meter of water for 30 minutes. With a waterproof function, CD-A8 radio is suitable for outdoor use in bad weather, and in water/marine environments.High Power, Long Range:

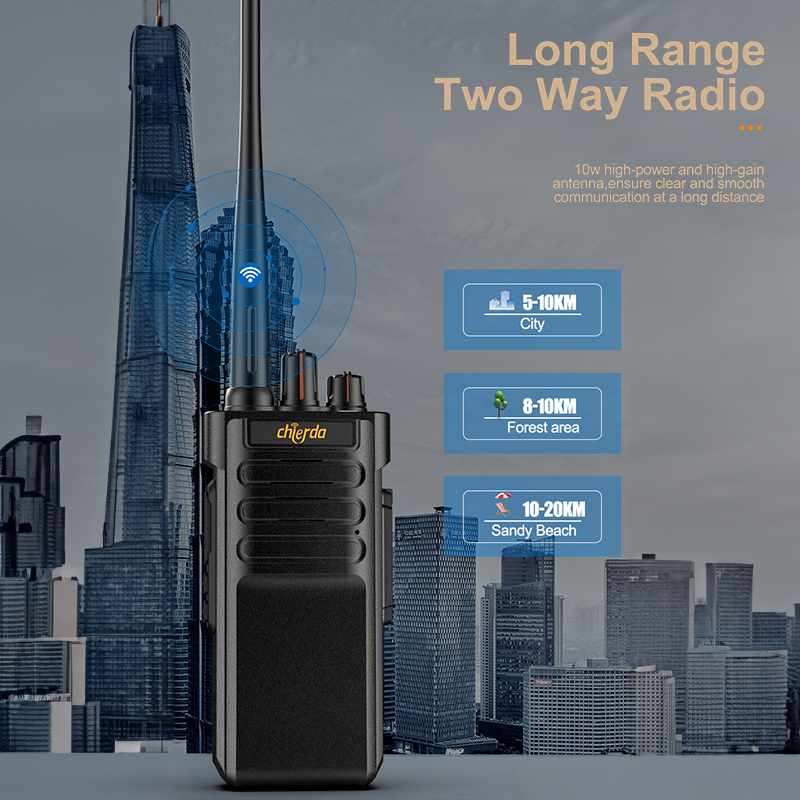

CD-A8 radio is 10 Watt high power walkie talkie. High-gain antenna ensures clear and smooth communication at a long distance. High power technically allows the talk coverage of 8-12 km. If used with 10 Watt Chierda portable repeater V9, the talk coverage can expand to 20-25 km according to experiment data.

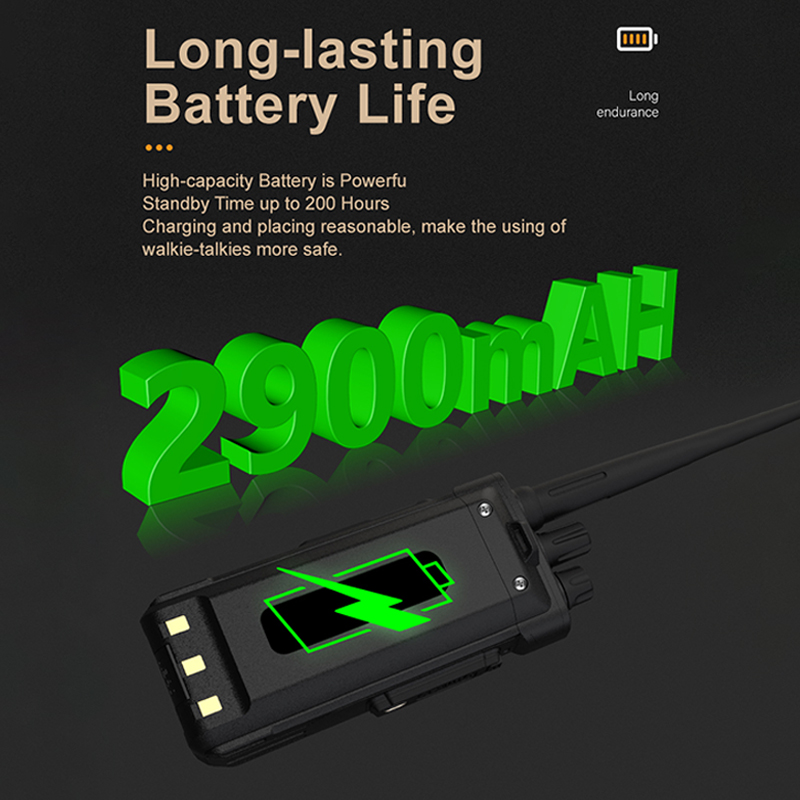

Long Battery Life:

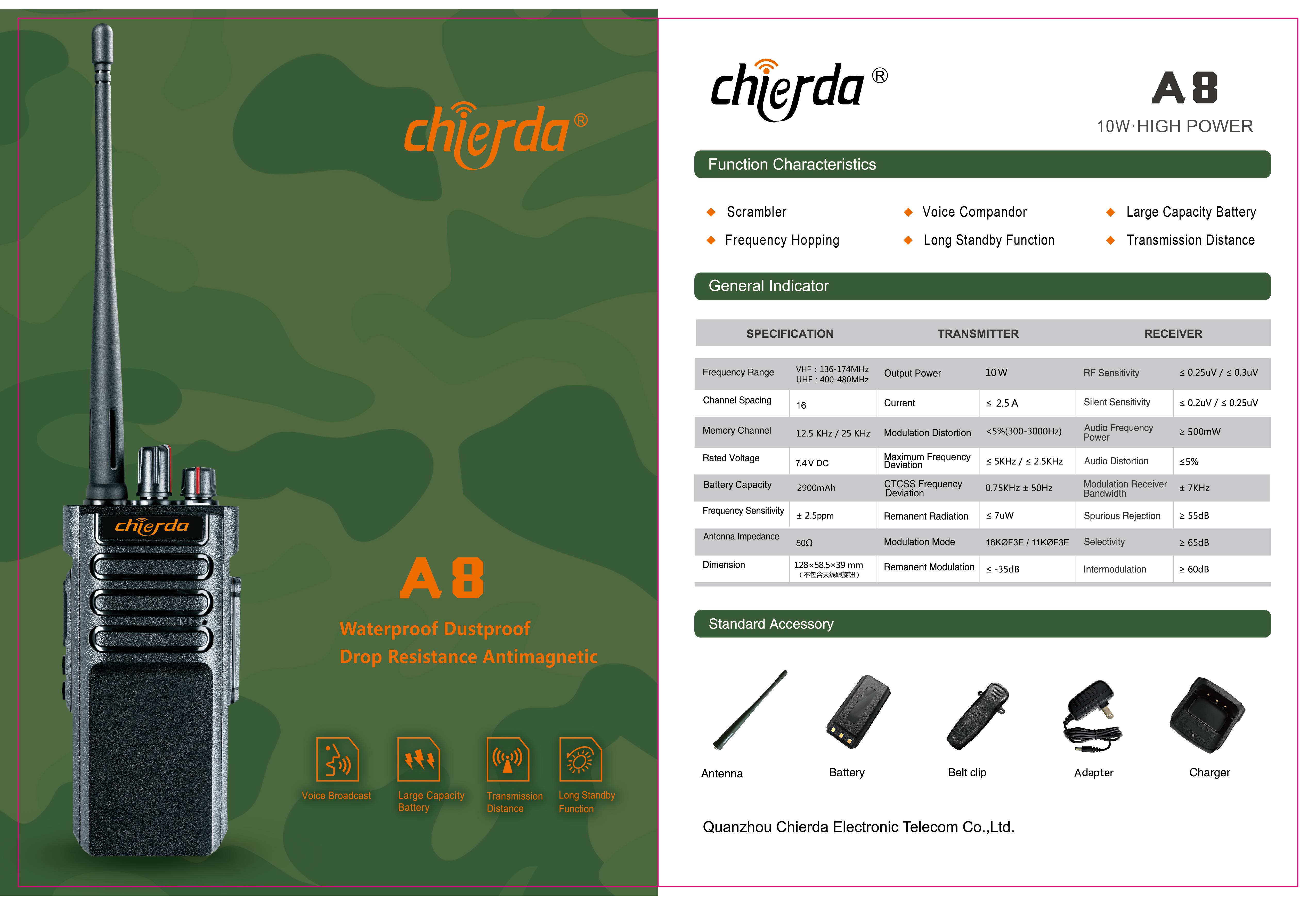

Powered by a 2900mAh battery, CD-A8 walkie talkie ensures 18 hours of working and standby with up to 145 hours.SPECIFICATION | |
Frequency Range | VHF:136-174MHz |
Channel Spacing | 16 |
Memory Channel | 12.5 KHz / 25 KHz |
Rated Voltage | 7.4V DC |
Battery Capacity | 2900mAh |
Frequency Sensitivity | ± 2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 128x58.5x39mm |
TRANSMITTER | |
Output Power | 10W |
Current | ≤2.5A |
Modulation Distortion | <5%(300-3000Hz) |
Maximum Frequency | ≤ 5KHz/≤ 2.5KHz |
CTCSS Frequency | 0.75KHz± 50Hz |
Remanent Radiation | ≤7uW |
Modulation Mode | 16K∅F3E/11K∅F3E |
Remanent Modulation | ≤-35dB |
RECEIVER | |
RF Sensitivity | ≤ 0.25uV/ ≤ 0.3uV |
Silent Sensitivity | ≤0.2uV/≤0.25uV |
Audio Frequency Power | ≥500mW |
Audio Distortion | ≤5% |
Modulation Receiver | ±7KHz |
Spurious Rejection | ≥55dB |
Selectivity | ≥65dB |
Intermodulation | ≥60dB |

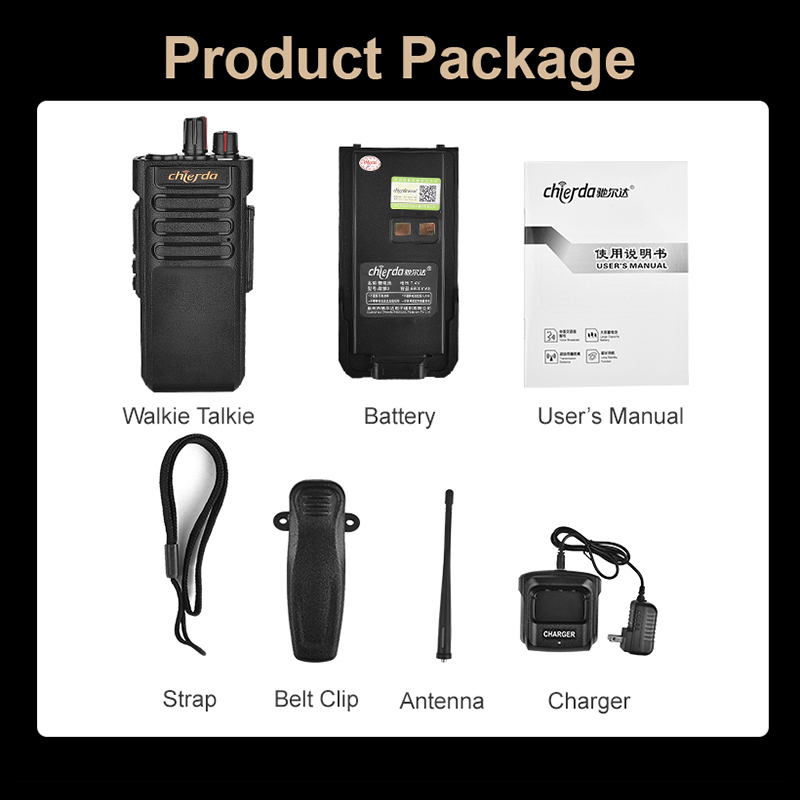

Product set
Radio*1
Battery*1
Belt clip*1
Charger*1
Strap*1
Antenna*1
User's manual*1
